Unicorn Computer ENDAT-D2550 Manuale utente

ENDAT-D2550 USERS MANUAL

UNICORN COMPUTER CORP.

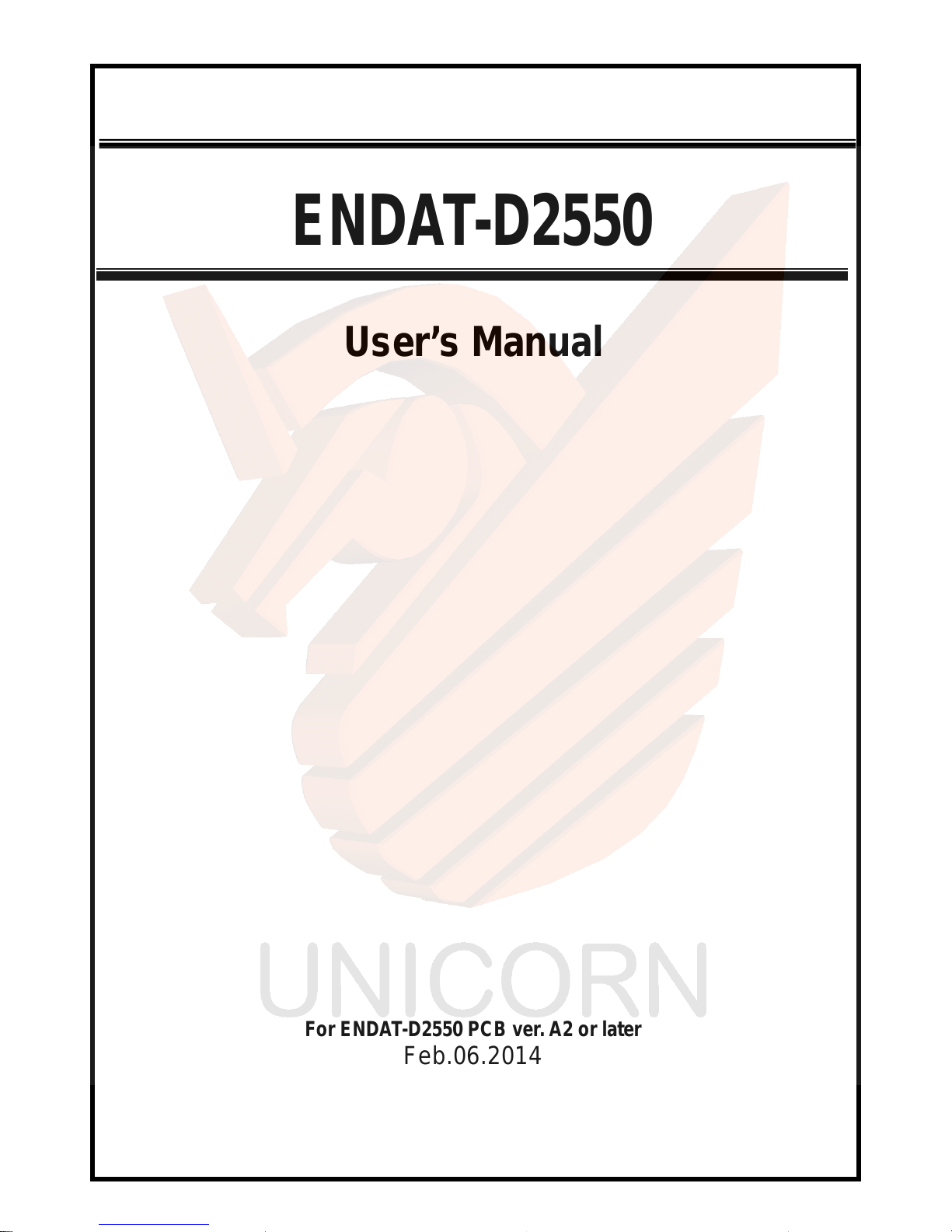

ENDAT-D2550

User’s Manual

For ENDAT-D2550 PCB ver. A2 or later

Feb.06.2014

ENDAT-D2550 USERS MANUAL

UNICORN COMPUTER CORP.

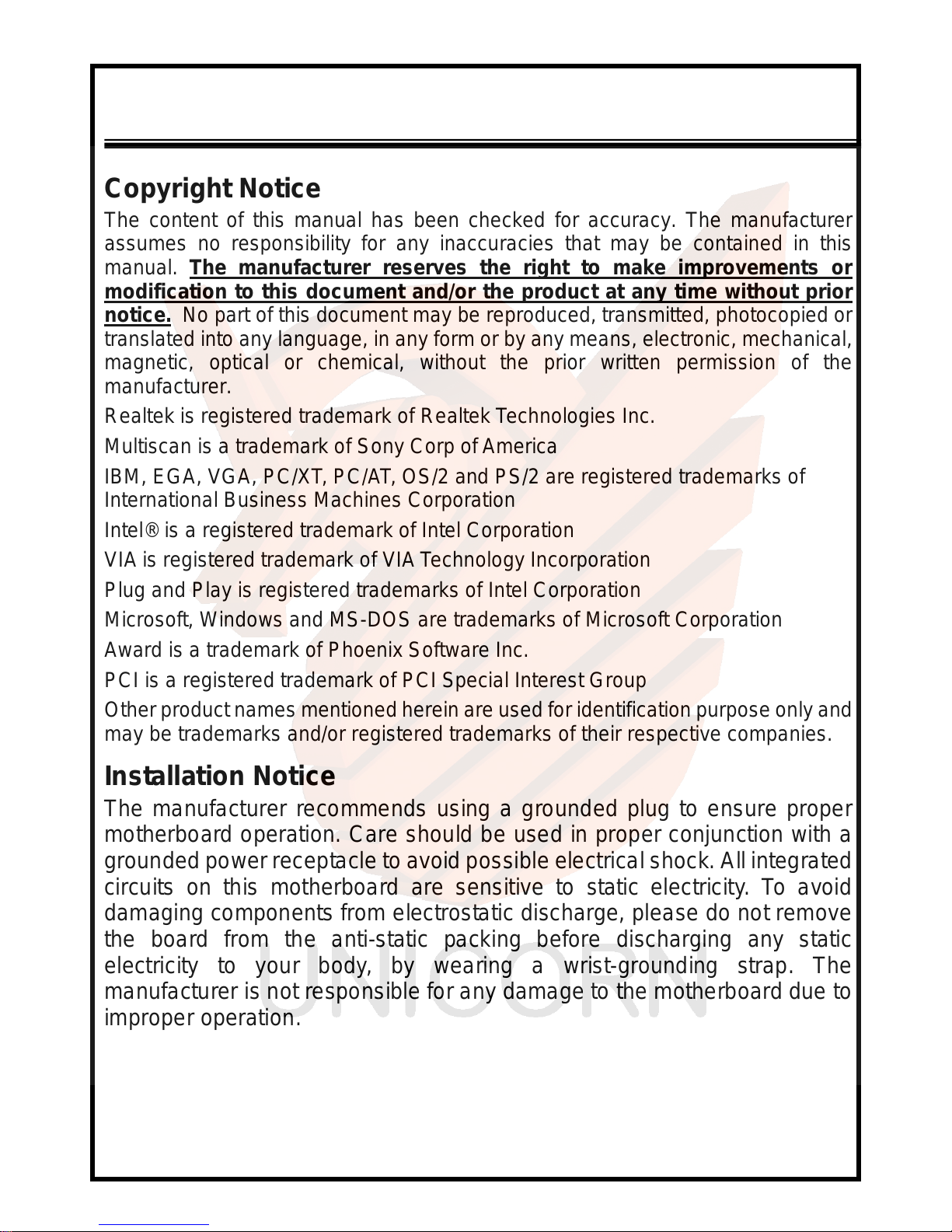

The content of this manual has been checked for accuracy. The manufacturer

assumes no responsibility for any inaccuracies that may be contained in this

manual. The manufacturer reserves the right to make improvements or

modification to this document and/or the product at any time without prior

notice. No part of this document may be reproduced, transmitted, photocopied or

translated into any language, in any form or by any means, electronic, mechanical,

magnetic, optical or chemical, without the prior written permission of the

manufacturer.

Realtek is registered trademark of Realtek Technologies Inc.

Multiscan is a trademark of Sony Corp of America

IBM, EGA, VGA, PC/XT, PC/AT, OS/2 and PS/2 are registered trademarks of

International Business Machines Corporation

Intel® is a registered trademark of Intel Corporation

VIA is registered trademark of VIATechnology Incorporation

Plug and Play is registered trademarks of Intel Corporation

Microsoft, Windows and MS-DOS are trademarks of Microsoft Corporation

Award is a trademark of Phoenix Software Inc.

PCI is a registered trademark of PCI Special Interest Group

Other product names mentioned herein are used for identification purpose only and

may be trademarks and/or registered trademarks of their respective companies.

Installation Notice

The manufacturer recommends using a grounded plug to ensure proper

motherboard operation. Care should be used in proper conjunction with a

grounded power receptacle to avoid possible electrical shock. All integrated

circuits on this motherboard are sensitive to static electricity. To avoid

damaging components from electrostatic discharge, please do not remove

the board from the anti-static packing before discharging any static

electricity to your body, by wearing a wrist-grounding strap. The

manufacturer is not responsible for any damage to the motherboard due to

improper operation.

ENDAT-D2550 USERS MANUAL

UNICORN COMPUTER CORP.

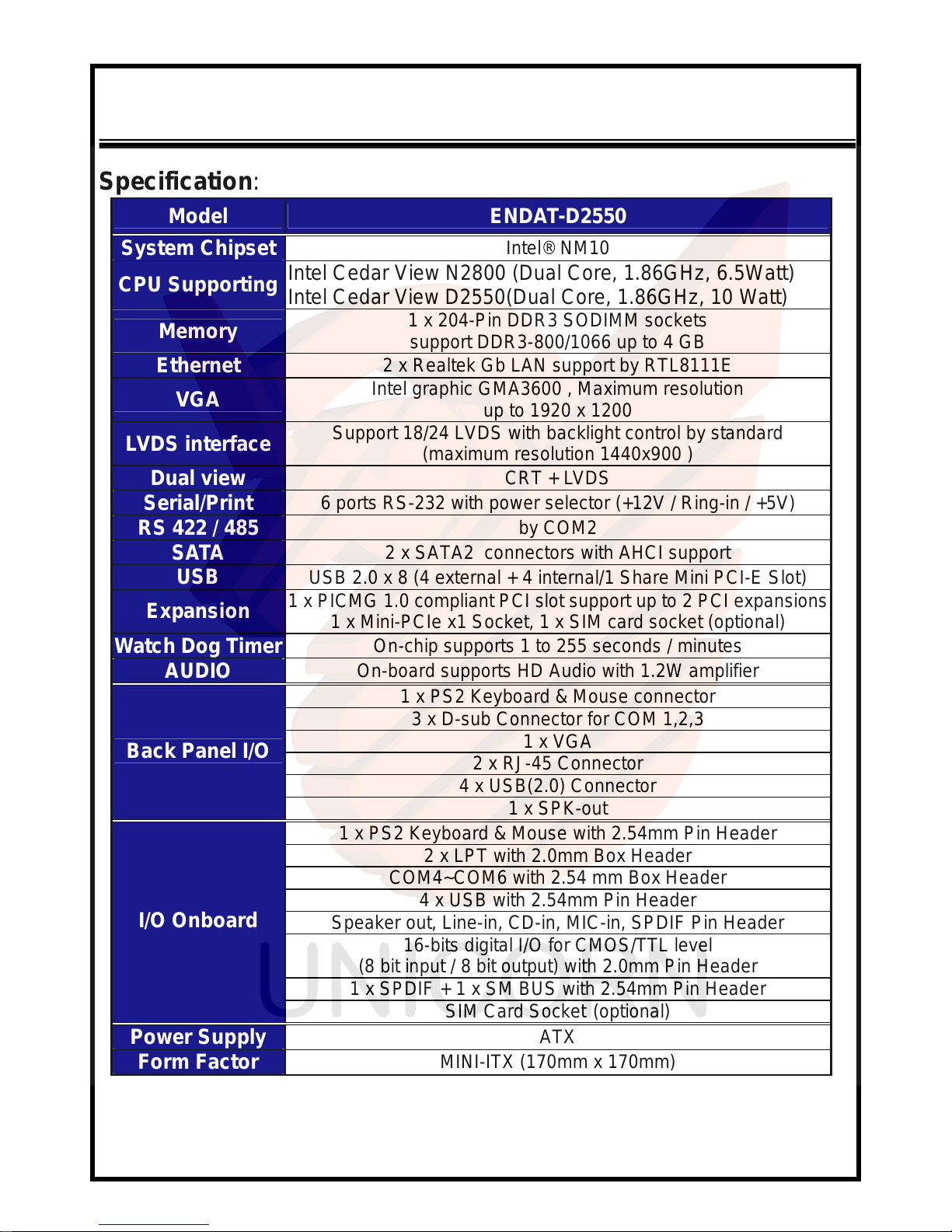

Specification:

Model ENDAT-D2550

System Chipset Intel® NM10

CPU Supporting Intel Cedar View N2800 (Dual Core, 1.86GHz, 6.5Watt)

Intel Cedar View D2550(Dual Core, 1.86GHz, 10 Watt)

Memory 1 x 204-Pin DDR3 SODIMM sockets

support DDR3-800/1066 up to 4 GB

Ethernet 2 x Realtek Gb LAN support by RTL8111E

VGA Intel graphic GMA3600 , Maximum resolution

up to 1920 x 1200

LVDS interface Support 18/24 LVDS with backlight control by standard

(maximum resolution 1440x900 )

Dual view CRT + LVDS

Serial/Print 6 ports RS-232 with power selector (+12V / Ring-in / +5V)

RS 422 / 485 by COM2

SATA 2 x SATA2 connectors with AHCI support

USB USB 2.0 x 8 (4 external + 4 internal/1 Share Mini PCI-E Slot)

Expansion 1 x PICMG 1.0 compliant PCI slot support up to 2 PCI expansions

1 x Mini-PCIe x1 Socket, 1 x SIM card socket (optional)

Watch Dog Timer On-chip supports 1 to 255 seconds / minutes

AUDIO On-board supports HD Audio with 1.2W amplifier

1 x PS2 Keyboard & Mouse connector

3 x D-sub Connector for COM 1,2,3

1 x VGA

2 x RJ-45 Connector

4 x USB(2.0) Connector

Back Panel I/O

1 x SPK-out

1 x PS2 Keyboard & Mouse with 2.54mm Pin Header

2 x LPT with 2.0mm Box Header

COM4~COM6 with 2.54 mm Box Header

4 x USB with 2.54mm Pin Header

Speaker out, Line-in, CD-in, MIC-in, SPDIF Pin Header

16-bits digital I/O for CMOS/TTL level

(8 bit input / 8 bit output) with 2.0mm Pin Header

1 x SPDIF + 1 x SM BUS with 2.54mm Pin Header

I/O Onboard

SIM Card Socket (optional)

Power Supply ATX

Form Factor MINI-ITX (170mm x 170mm)

ENDAT-D2550 USERS MANUAL

UNICORN COMPUTER CORP.

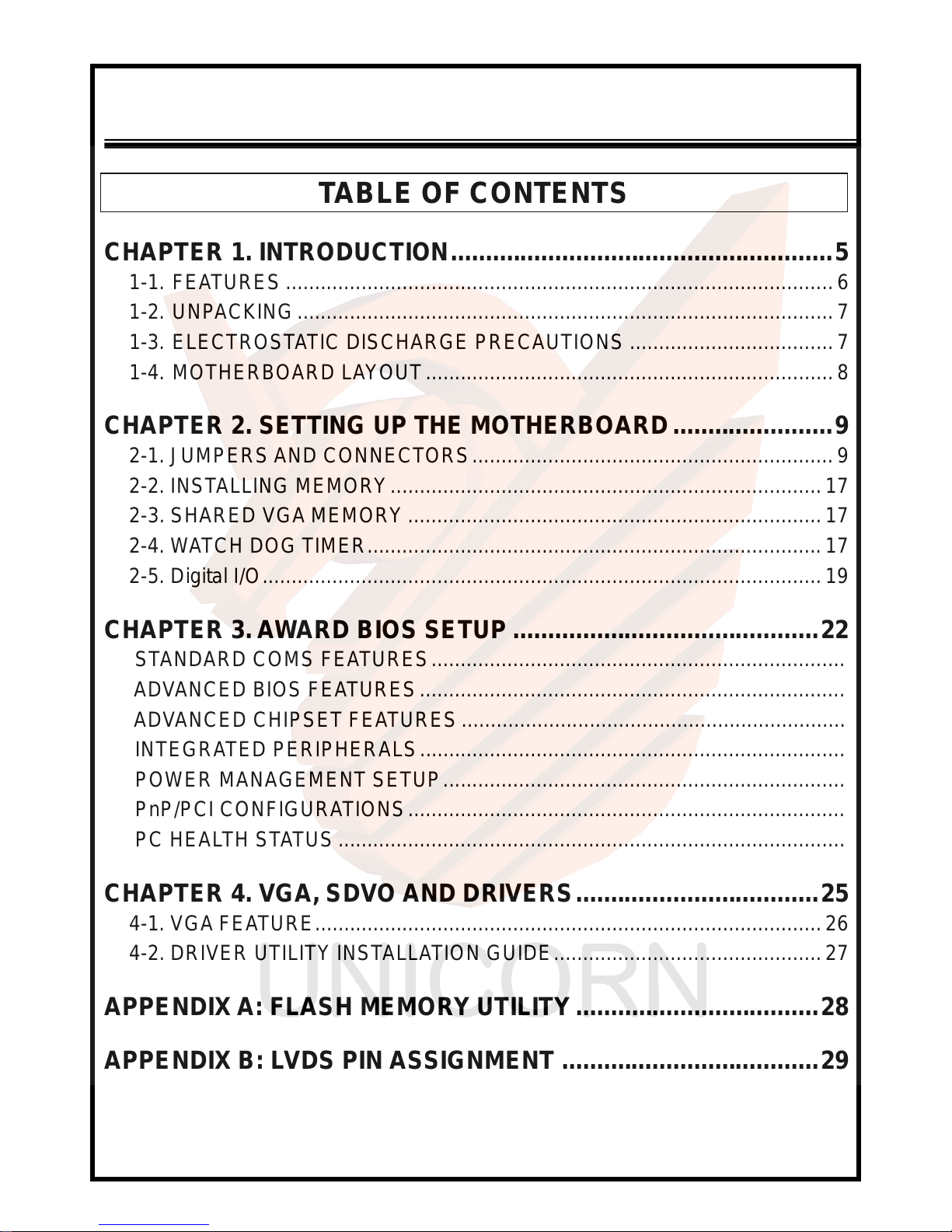

TABLE OF CONTENTS

CHAPTER 1. INTRODUCTION.......................................................5

1-1. FEATURES ..............................................................................................6

1-2. UNPACKING............................................................................................7

1-3. ELECTROSTATIC DISCHARGE PRECAUTIONS ...................................7

1-4. MOTHERBOARD LAYOUT......................................................................8

CHAPTER 2. SETTING UP THE MOTHERBOARD.......................9

2-1. JUMPERS AND CONNECTORS..............................................................9

2-2. INSTALLING MEMORY..........................................................................17

2-3. SHARED VGA MEMORY.......................................................................17

2-4. WATCH DOG TIMER..............................................................................17

2-5. Digital I/O................................................................................................19

CHAPTER 3. AWARD BIOS SETUP ............................................22

STANDARD COMS FEATURES.......................................................................

ADVANCED BIOS FEATURES.........................................................................

ADVANCED CHIPSET FEATURES..................................................................

INTEGRATED PERIPHERALS.........................................................................

POWER MANAGEMENT SETUP.....................................................................

PnP/PCI CONFIGURATIONS...........................................................................

PC HEALTH STATUS.......................................................................................

CHAPTER 4. VGA, SDVO AND DRIVERS...................................25

4-1. VGA FEATURE.......................................................................................26

4-2. DRIVER UTILITY INSTALLATION GUIDE..............................................27

APPENDIX A: FLASH MEMORY UTILITY...................................28

APPENDIX B: LVDS PIN ASSIGNMENT .....................................29

APPENDIX C: LIMITED WARRANTY ..........................................30

ENDAT-D2550 USERS MANUAL

UNICORN COMPUTER CORP.

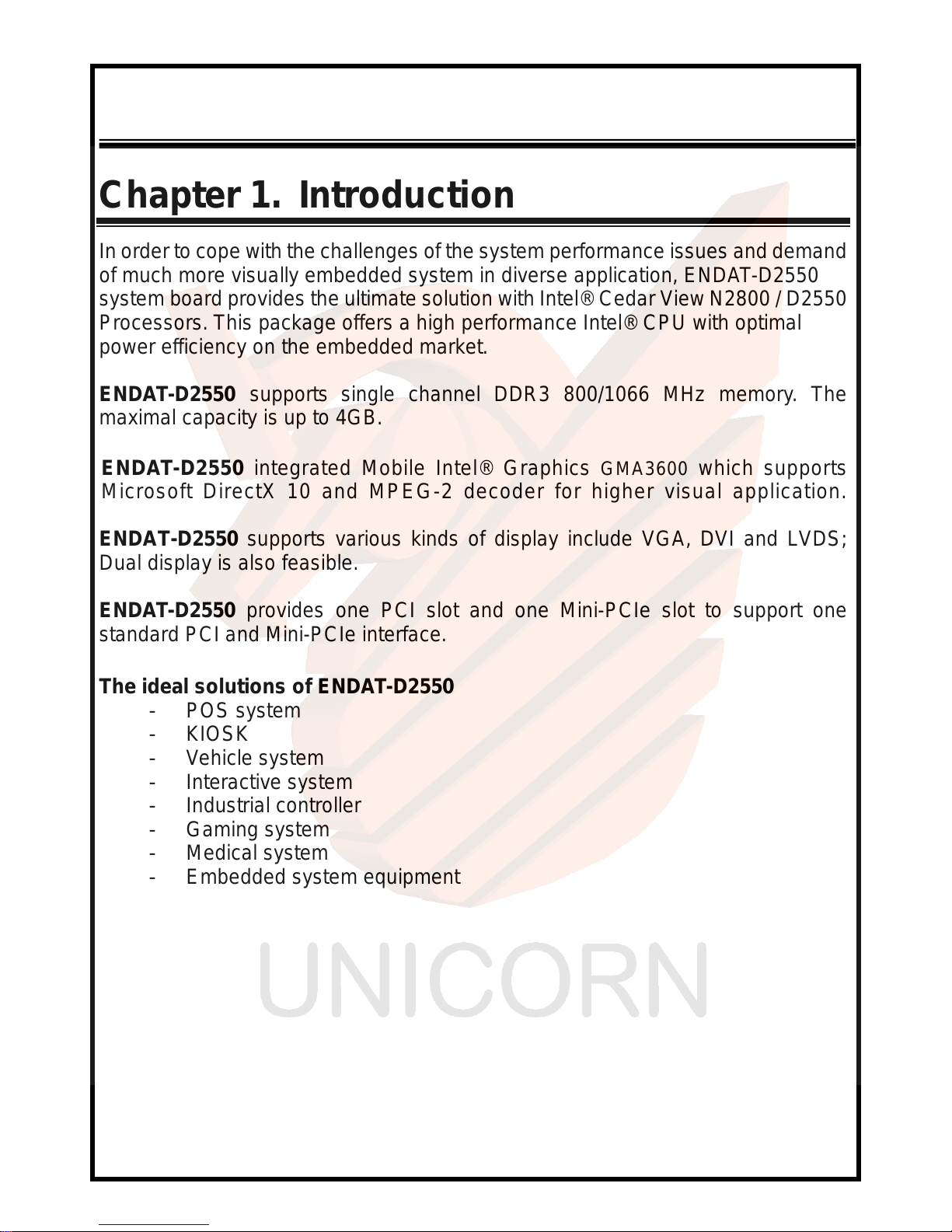

Chapter 1. Introduction

In order to cope with the challenges of the system performance issues and demand

of much more visually embedded system in diverse application, ENDAT-D2550

system board provides the ultimate solution with Intel® Cedar View N2800 / D2550

Processors. This package offers a high performance Intel® CPU with optimal

power efficiency on the embedded market.

ENDAT-D2550 supports single channel DDR3 800/1066 MHz memory. The

maximal capacity is up to 4GB.

ENDAT-D2550 integrated Mobile Intel® Graphics GMA3600 which supports

Microsoft DirectX 10 and MPEG-2 decoder for higher visual application.

ENDAT-D2550 supports various kinds of display include VGA, DVI and LVDS;

Dual display is also feasible.

ENDAT-D2550 provides one PCI slot and one Mini-PCIe slot to support one

standard PCI and Mini-PCIe interface.

The ideal solutions of ENDAT-D2550

-POS system

-KIOSK

-Vehicle system

-Interactive system

-Industrial controller

-Gaming system

-Medical system

-Embedded system equipment

ENDAT-D2550 USERS MANUAL

UNICORN COMPUTER CORP.

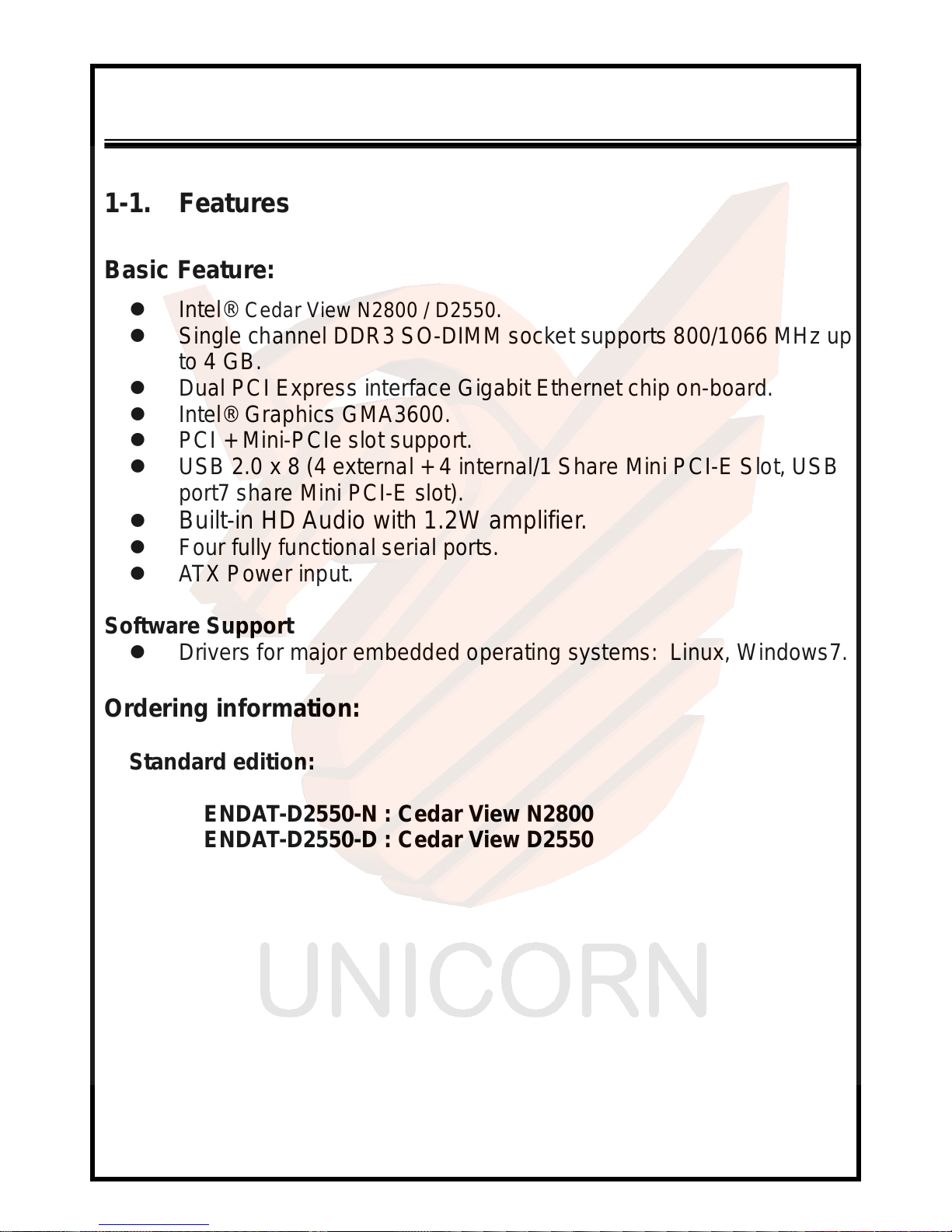

1-1. Features

Basic Feature:

Intel® Cedar View N2800 / D2550.

Single channel DDR3 SO-DIMM socket supports 800/1066 MHz up

to 4 GB.

Dual PCI Express interface Gigabit Ethernet chip on-board.

Intel® Graphics GMA3600.

PCI + Mini-PCIe slot support.

USB 2.0 x 8 (4 external + 4 internal/1 Share Mini PCI-E Slot, USB

port7 share Mini PCI-E slot).

Built-in HD Audio with 1.2W amplifier.

Four fully functional serial ports.

ATX Power input.

Software Support

Drivers for major embedded operating systems: Linux, Windows7.

Ordering information:

Standard edition:

ENDAT-D2550-N : Cedar View N2800

ENDAT-D2550-D : Cedar View D2550

ENDAT-D2550 USERS MANUAL

UNICORN COMPUTER CORP.

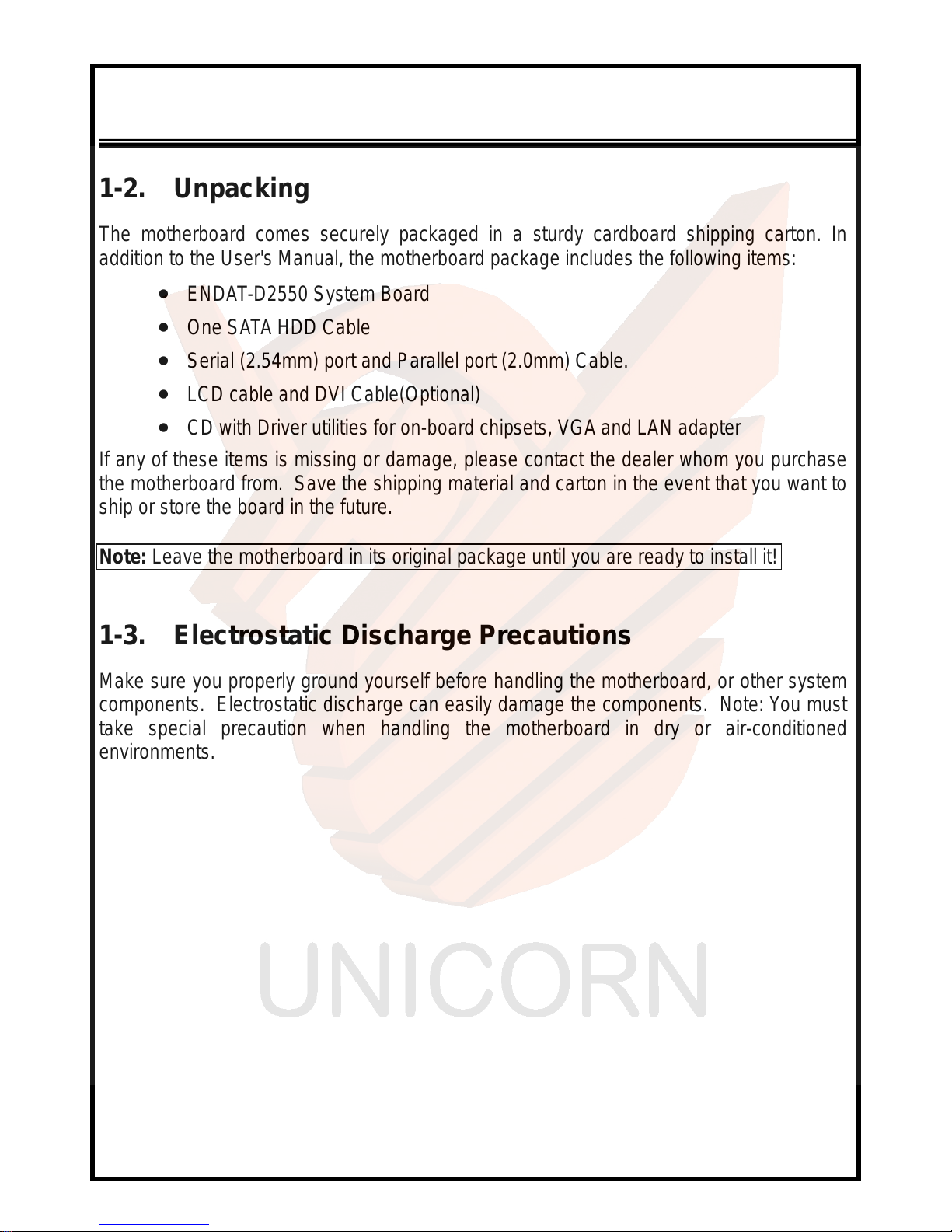

1-2. Unpacking

The motherboard comes securely packaged in a sturdy cardboard shipping carton. In

addition to the User's Manual, the motherboard package includes the following items:



ENDAT-D2550 System Board



One SATA HDD Cable



Serial (2.54mm) port and Parallel port (2.0mm) Cable.



LCD cable and DVI Cable(Optional)



CD with Driver utilities for on-board chipsets, VGA and LAN adapter

If any of these items is missing or damage, please contact the dealer whom you purchase

the motherboard from. Save the shipping material and carton in the event that you want to

ship or store the board in the future.

Note:

Leave the motherboard in its original package until you are ready to install it!

1-3. Electrostatic Discharge Precautions

Make sure you properly ground yourself before handling the motherboard, or other system

components. Electrostatic discharge can easily damage the components. Note: You must

take special precaution when handling the motherboard in dry or air-conditioned

environments.

ENDAT-D2550 USERS MANUAL

UNICORN COMPUTER CORP.

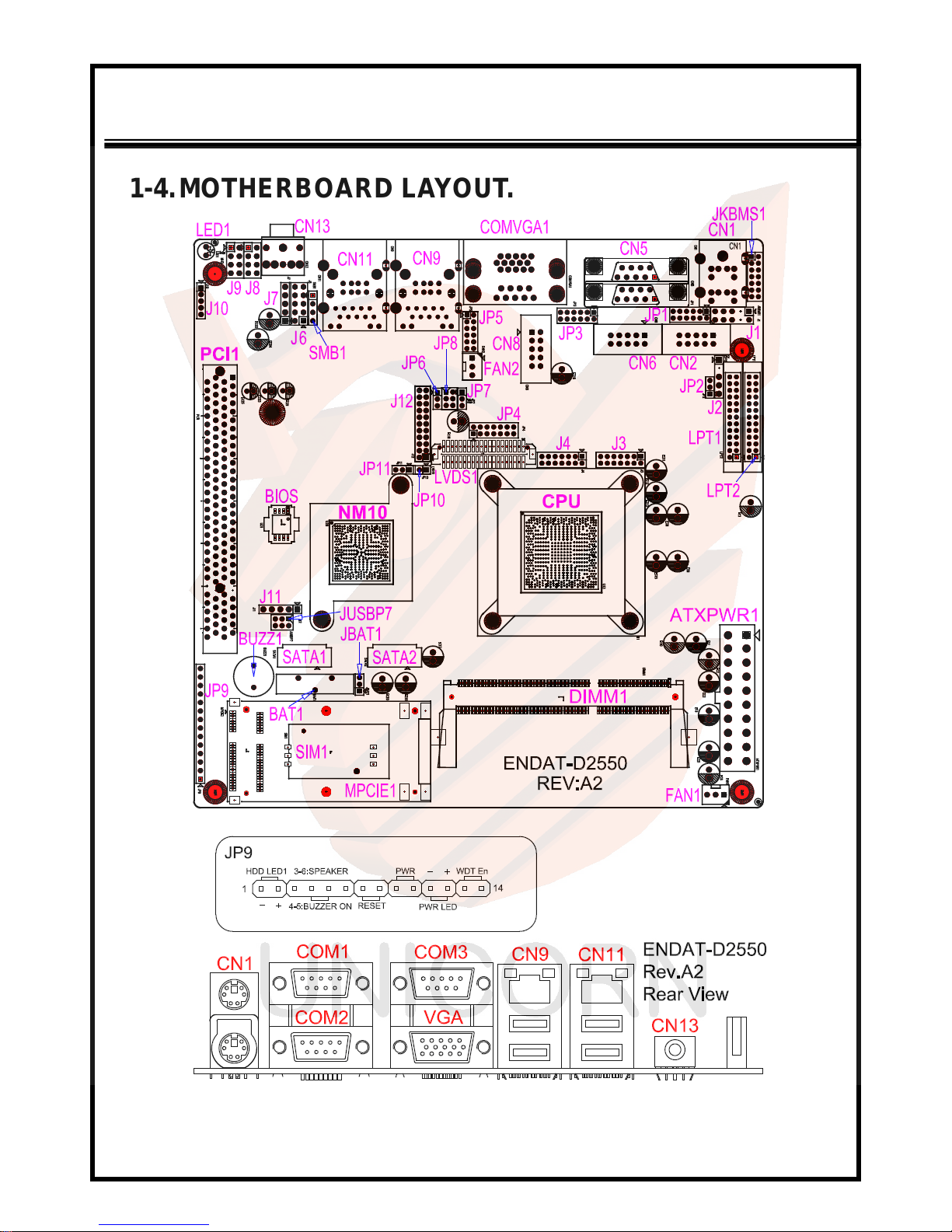

1-4.MOTHERBOARD LAYOUT.

ENDAT-D2550 USERS MANUAL

UNICORN COMPUTER CORP.

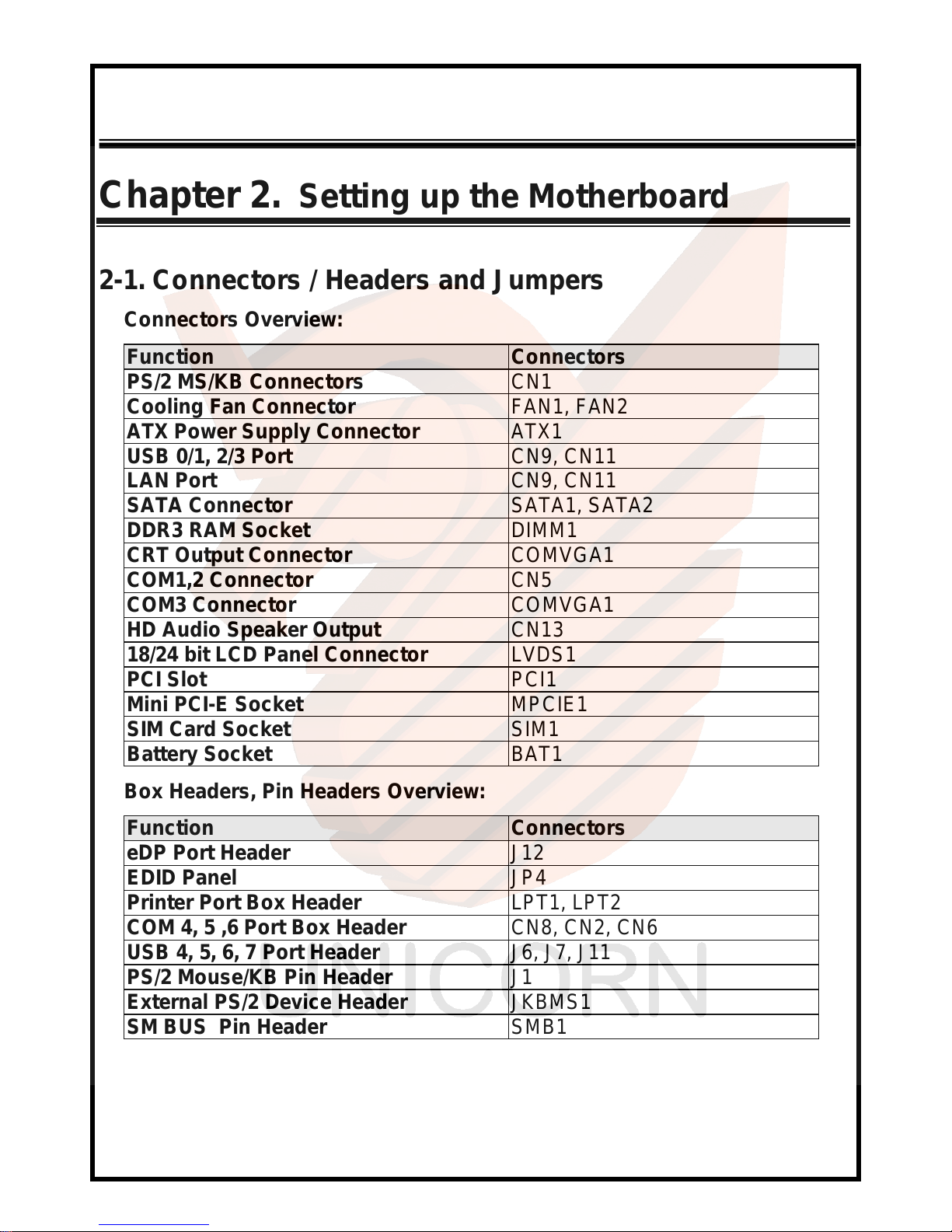

Chapter 2. Setting up the Motherboard

2-1. Connectors / Headers and Jumpers

Connectors Overview:

Function Connectors

PS/2 MS/KB Connectors CN1

Cooling Fan Connector FAN1, FAN2

ATX Power Supply Connector ATX1

USB 0/1, 2/3 Port CN9, CN11

LAN Port CN9, CN11

SATA Connector SATA1, SATA2

DDR3 RAM Socket DIMM1

CRT Output Connector COMVGA1

COM1,2 Connector CN5

COM3 Connector COMVGA1

HD Audio Speaker Output CN13

18/24 bit LCD Panel Connector LVDS1

PCI Slot PCI1

Mini PCI-E Socket MPCIE1

SIM Card Socket SIM1

Battery Socket BAT1

Box Headers, Pin Headers Overview:

Function Connectors

eDP Port Header J12

EDID Panel JP4

Printer Port Box Header LPT1, LPT2

COM 4, 5 ,6 Port Box Header CN8, CN2, CN6

USB 4, 5, 6, 7 Port Header J6, J7, J11

PS/2 Mouse/KB Pin Header J1

External PS/2 Device Header JKBMS1

SM BUS Pin Header SMB1

ENDAT-D2550 USERS MANUAL

UNICORN COMPUTER CORP.

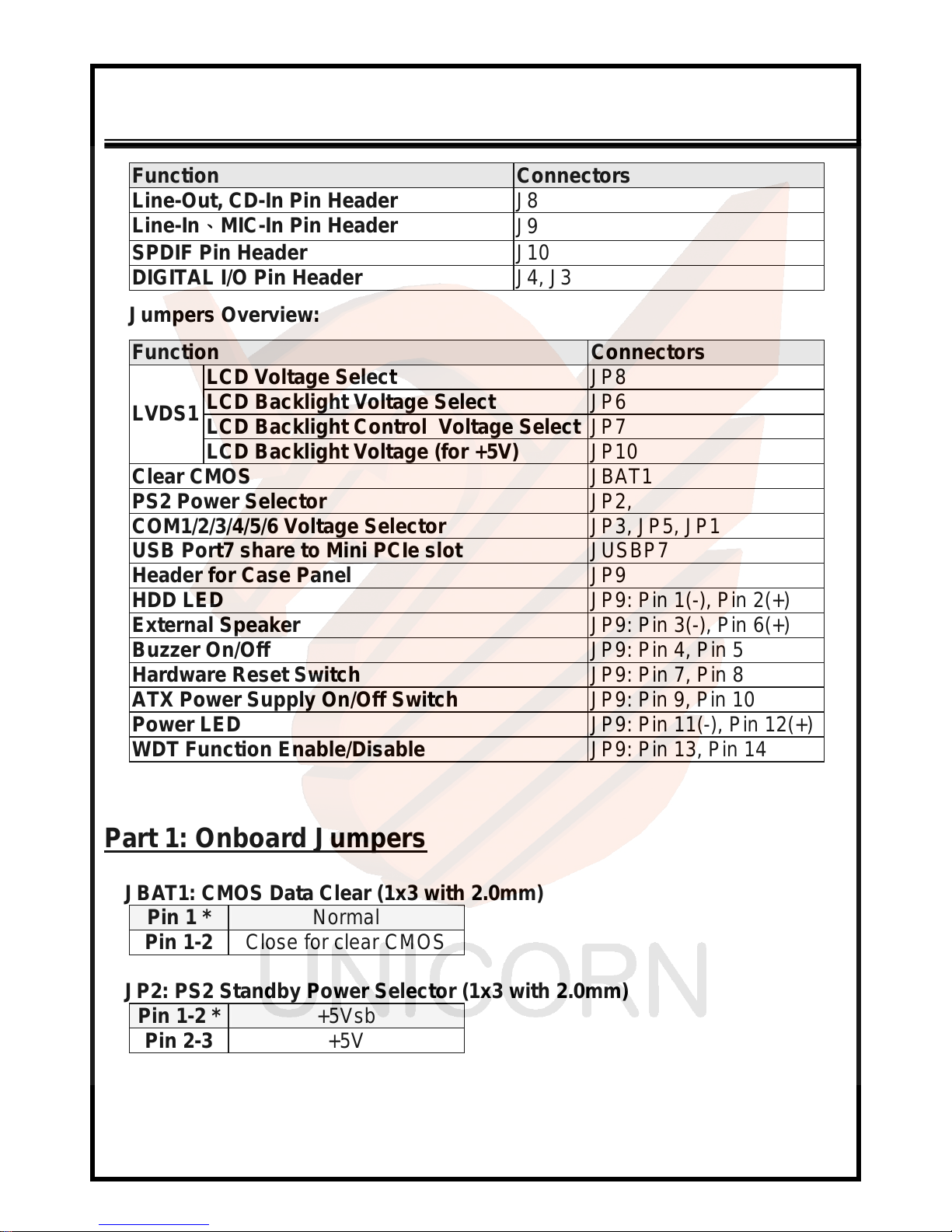

Function Connectors

Line-Out, CD-In Pin Header J8

Line-In、MIC-In Pin Header J9

SPDIF Pin Header J10

DIGITAL I/O Pin Header J4, J3

Jumpers Overview:

Function Connectors

LCD Voltage Select JP8

LCD Backlight Voltage Select JP6

LCD Backlight Control Voltage Select JP7

LVDS1

LCD Backlight Voltage (for +5V) JP10

Clear CMOS JBAT1

PS2 Power Selector JP2,

COM1/2/3/4/5/6 Voltage Selector JP3, JP5, JP1

USB Port7 share to Mini PCIe slot JUSBP7

Header for Case Panel JP9

HDD LED JP9: Pin 1(-), Pin 2(+)

External Speaker JP9: Pin 3(-), Pin 6(+)

Buzzer On/Off JP9: Pin 4, Pin 5

Hardware Reset Switch JP9: Pin 7, Pin 8

ATX Power Supply On/Off Switch JP9: Pin 9, Pin 10

Power LED JP9: Pin 11(-), Pin 12(+)

WDT Function Enable/Disable JP9: Pin 13, Pin 14

Part 1: Onboard Jumpers

JBAT1: CMOS Data Clear (1x3 with 2.0mm)

Pin 1 * Normal

Pin 1-2 Close for clear CMOS

JP2: PS2 Standby Power Selector (1x3 with 2.0mm)

Pin 1-2 * +5Vsb

Pin 2-3 +5V

Indice

Altri manuali Unicorn Computer Scheda madre

Unicorn Computer

Unicorn Computer ENDAT-7100M Manuale utente

Unicorn Computer

Unicorn Computer ENDAT-K1001 Manuale utente

Unicorn Computer

Unicorn Computer ENDAT-9401F/H Manuale utente

Unicorn Computer

Unicorn Computer ENDAT-3702 Manuale utente

Unicorn Computer

Unicorn Computer ENDAT-3701 Manuale utente

Unicorn Computer

Unicorn Computer ENDAT-3857 Manuale utente

Unicorn Computer

Unicorn Computer ENDAT-AJ01 Manuale utente

Unicorn Computer

Unicorn Computer ENDAT-4946i/M Manuale utente

Unicorn Computer

Unicorn Computer ENDAT-LX301 Manuale utente

Unicorn Computer

Unicorn Computer ENDAT-4601 Manuale utente

Manuali Scheda madre popolari di altre marche

DFI

DFI SD170 Manuale utente

ASROCK

ASROCK ROMED8-2T Manuale utente

Asus

Asus P2L97A Manuale utente

Winmate

Winmate IC70 Manuale utente

Asus

Asus MES-B Manuale utente

Grantech

Grantech SYS8F377VGGA-3OMN Manuale utente

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manuale utente

Gigabyte

Gigabyte GA-9IVDT Manuale utente

Texas Instruments

Texas Instruments ADS8372EVM Manuale utente

Commell

Commell MS-C73 Manuale utente

IBT Technologies

IBT Technologies MB860 Manuale utente

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manuale utente

Biostar

Biostar M7VIT Bravo Istruzioni per l'uso e l'installazione

Intel

Intel D33217CK Manuale utente

Asus

Asus F1A55-M LX PLUS R2.0 Manuale utente

EPC

EPC EPC9147C Manuale utente

Asus

Asus EX-B760M-V5 D4 Manuale utente

EPOX

EPOX MU-8KHA0010 Manuale utente
