Uniden SD5000UPVR Manuale utente

DIGI

TAT

RECEIVER

Set

op Box with USB Record Capabilities

Top Box with USB Record CapabilitiesT

SD5000UPVR

Power cord protection

To avoid any malfunctions of the receiver, and to protect against electric shock,

ﬁ re or personal injury, please observe the following.

Hold the plug ﬁ rmly when connecting or disconnecting the AC power cord.

Keep the AC power cord away from heating appliances.

Never put any heavy object on the AC power cord.

Do not attempt to repair or reconstruct the AC power cord in any way.

Never make or change connections with the power switched on.

Placement

Avoid placing the receiver in areas of:

Direct sunlight, heating radiators, closed automobiles, high temperature (over

35°C), high humidity (over 90%) or severe dust as the internal parts may be

seriously damaged.

TO REDUCE THE RISK OF FIRE AND

ELECTRIC SHOCK, DO NOT EXPOSE

THIS UNIT TO RAIN OR MOISTURE.

Safety First

on-use periods

When the receiver is not being used, turn it off. When left unused for a long pe-

riod of time, the receiver should be unplugged from the household AC outlet.

No ﬁ ngers or other objects inside

Touching internal parts of the receiver is dangerous, and may cause serious

damage to the unit.

Do not attempt to disassemble the receiver.

Do not put any foreign object in the receiver.

Please review the following safety precautions. If this is your ﬁ rst time to use

a digital receiver, then read this manual before installing or using this receiver.

If the receiver is not functioning properly, please contact your local distributor

or system installer.

Keep away from water/magnet

Keep the receiver away from ﬂ ower vases, tubs, sinks, etc. If liquids are

spilled into the receiver, serious damage could occur.

Never bring a magnet or magnetized object near to the receiver.

Stacking

Place the receiver in a horizontal position and do not place anything heavy

on it.

Condensation

Moisture may form on the remote control lens in the following conditions:

Immediately after a heater has been turned on in a steamy or very humid

room.

When the receiver is suddenly moved from a cold environment to a warm

one.

If moisture forms inside the receiver, it may not operate properly. In this case,

turn on the power and wait about one hour for the moisture to evaporate.

DVB and the DVB logo are registered trademarks of the DVB

project.

• Trademark Information

Table of Contents

Safety First

..................................................................

Introduction

.................................................................

Package Contents

..............................................................

Package Contents ..............................................................Package Contents

Key Features

......................................................................

Key Features ......................................................................Key Features

Parts of the Uniden SD5000UPVR

............................

Front panel

.........................................................................

Front panel .........................................................................Front panel

Rear panel

..........................................................................

Rear panel ..........................................................................Rear panel

Remote Control

...........................................................

System Installation

...................................................

Connecting to the TV

........................................................

Connecting to the TV ........................................................Connecting to the TV

Connecting a HiFi system

................................................

Aspect Ratio Setting

................................................

Switching on for the ﬁ rst time

.................................

Viewing Channels

.....................................................

The Information Window

..................................................

The Information Window ..................................................The Information Window

Recording TV Programmes

.....................................

Format the USB Storage Drive

.........................................

Start /Stop Recording

.......................................................

Start /Stop Recording .......................................................Start /Stop Recording

Approximate

Recording Times

.........................................

Recording Times .........................................Recording Times

Timeshift Function

...................................................

Start/Stop

Timeshift

..........................................................

Timeshift .......................................................... Timeshift

Playback Recorded

Content

..............................

USB File Manager

............................................................

USB File Manager ............................................................USB File Manager

Main Menu

.................................................................

Channel Manager

......................................................

Setup

................................................................................

Auto Scan

.........................................................................

Manual Scan

....................................................................

Area Scan

.........................................................................

Settings

.....................................................................

On Screen Display (OSD) Set up

.....................................

TV Set up

.........................................................................

System Setup

...................................................................

Time

.................................................................................

Wakeup Timer

..................................................................

Wakeup Timer ..................................................................Wakeup Timer

Parental Lock

...................................................................

Parental Lock ...................................................................Parental Lock

TOOLS

.......................................................................

Factory Reset

...................................................................

Factory Reset ...................................................................Factory Reset

Version

.............................................................................

Software Upgrade

............................................................

Playing Multimedia Content

....................................

Movie Playing

...................................................................

Movie Playing ...................................................................Movie Playing

Music Playing

...................................................................

Music Playing ...................................................................Music Playing

Photo Playing

...................................................................

Photo Playing ...................................................................Photo Playing

Troubleshooting

.......................................................

Product Speciﬁ cation

...............................................

One Year Limited Warranty

......................................

Introduction

Package Contents

The Uniden SD5000UPVR Set-Top-Box is an MPEG-2 compli-

ant Digital receiver, capable of receiving and recording Stand-

ard Deﬁ nition (SD) TV programmes from free-to-air terrestrial

broadcasts (DVB-T).

The user friendly On-Screen-Display (OSD) allows you to set-

up your receiver to enjoy SD digital channels with clear picture

and stereo sound quality.

Unpack the receiver and verify that all of the following items

are included.

• SD5000UPVR SD Digital Terrestrial Receiver

• Remote Control Unit (with 2x AAA batteries)

• Owner’s manual

• AC adapter (ﬁ xed to receiver)

• Composite (RCA) Video/Audio Cable

If any items are missing or damaged, contact

your place of purchase immediately.

NOTE

Key Features

• USB Record/Playback*:

Record or playback your favourite programmes from an external

USB Storage Drive (not included)

• Timeshift Function*:

Pause a broadcast or record it and watch it later

• On Screen Display (OSD):

Easy to use Menu system displays key information on screen

• Fully Functional Remote Contro

• Electronic Programme Guide (EPG):

With Now & Next and 7 days programme guide support

• Video and audio connection capabilities:

Component Video/Audio and Coaxial Digital Audio connections

• DVB Compliant:

Decodes MPEG-2 format

• Video Resolution:

720 x 576 (PAL), 720 x 480 (NTSC)

• Multiple Aspect Ratio Modes:

Auto, 16:9(Widescreen), 4:3LB(Letter Box) and 4:3PS(Pan Scan)

• Channel Search with automatic/manual scan

• Parental Locked Functio

• Wake Up Timer

• Media playback:

Play

multimedia ﬁ les added separately to the USB Storage Drive

• DVB Subtitling - ETSI 300 473 Compliant

• Teletext - VBI / OSD

• USB 2.0 support for software upgrade

* USB Record/Playback and Timeshift:

A USB Storage Drive of compatible read/write speed

and sufﬁ cient space must be connected to enable

these functions. Uniden recommends connecting

a dedicated compatible storage drive to record,

playback and timeshift TV programmes.

NOTE

Parts of the Uniden SD5000UPVR

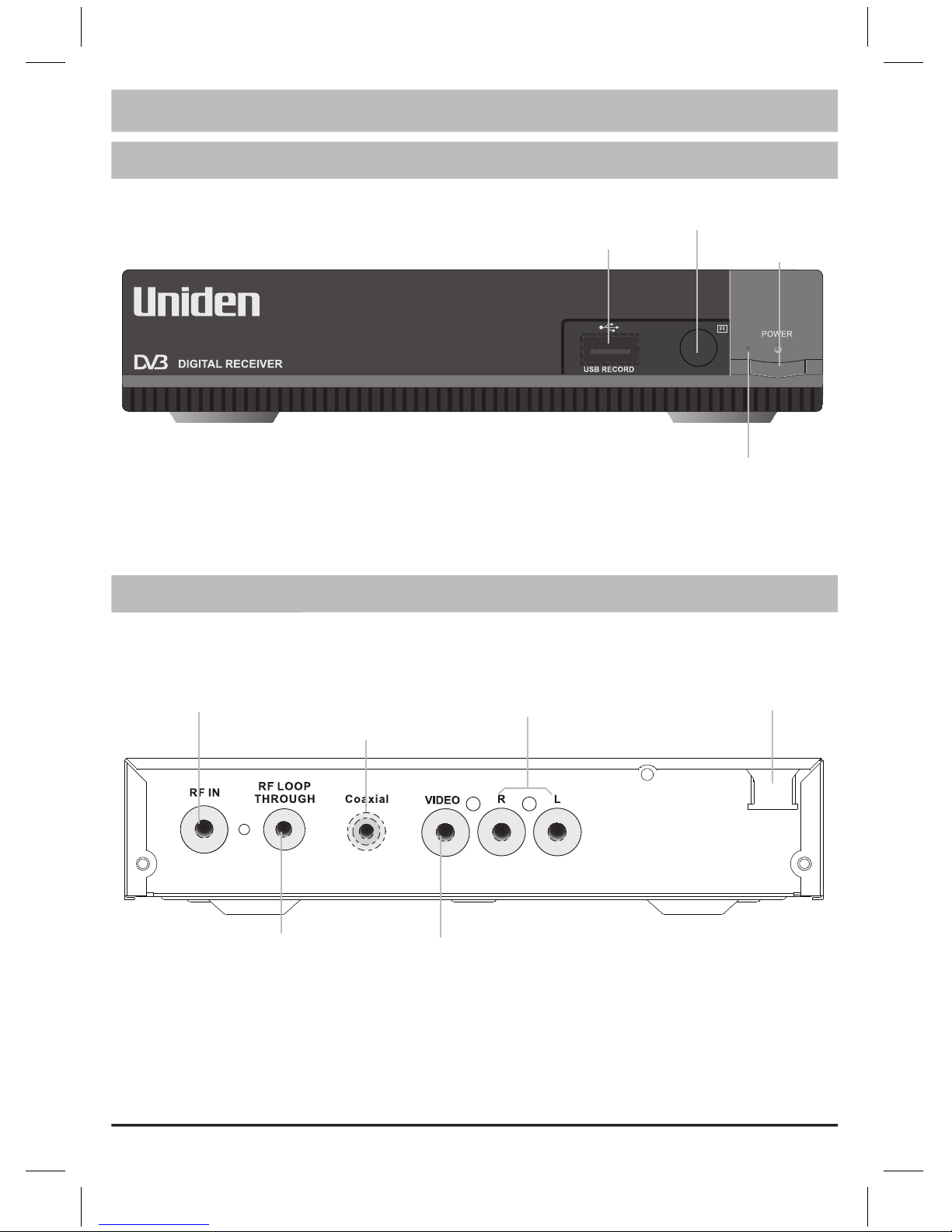

Front panel

Rear panel

Standby button

Remote sensor

USB port

Power indicator

RF Input

for an external aerial

RF Loop through

for an external device

Coaxial Digital Audio

Composite Video

Down MIX Audio 2 channel L/R

AC Mains

5. CH+/CH-

VOL+/

/VOL+//

VOL-

VOL+/VOL-VOL+/

▲▼◄►

navigation buttons.

Channel Up/Down and Volume Up/Down.

OK - Conﬁ rm a selection within a menu.

6. RECORD:

Start Programme Record funtion

7. Numeric

(0-9):

For entering channel number o

r PIN code

8. DEVICE:

View the USB Storage Drive’s

Read/

Record/Tim

eshift c

ompatibility

9. FAVORITE:

Open the Favorites list

10. TELETEXT:

Switch Teletext O

N/OFF

11. DIGEST:

View

Channel thumbnails

and

preview

the highlighted Channel.

12. SUBTITLE:

For DVB s

ubtitles if available

13. AUDIO:

Select audio: Left/Right/Stereo/Mono

14. MUTE:

Disable/enable MUTE

15.

◄

►

kip to previous/to next ﬁ le

(for multimedia ﬁ les or photos)

16. STOP:

Stop playback or recording

17. EXIT:

Exit from the Menu

18. TIMESHIFT:

Activate Timeshift function

19. EPG:

Open up the Electronic

Programme Guide (EPG) menu

20. RECALL:

Toggle between the current

and previous channels

21. FILE:

View ﬁ lelist or Recorded programmes

22. REPEAT:

untion not available

23. INFO:

Channel mode: view current

channel information. Menu mode: view

key guide

24. TV/RADIO:

Switch between TV and Radio mode

25. RED/GREEN/YELLOW/BLUE B

uttons

Perform various fu

nctions wh

ich are

shown in the menu

(

Blue button: short-

cut to Timer function)

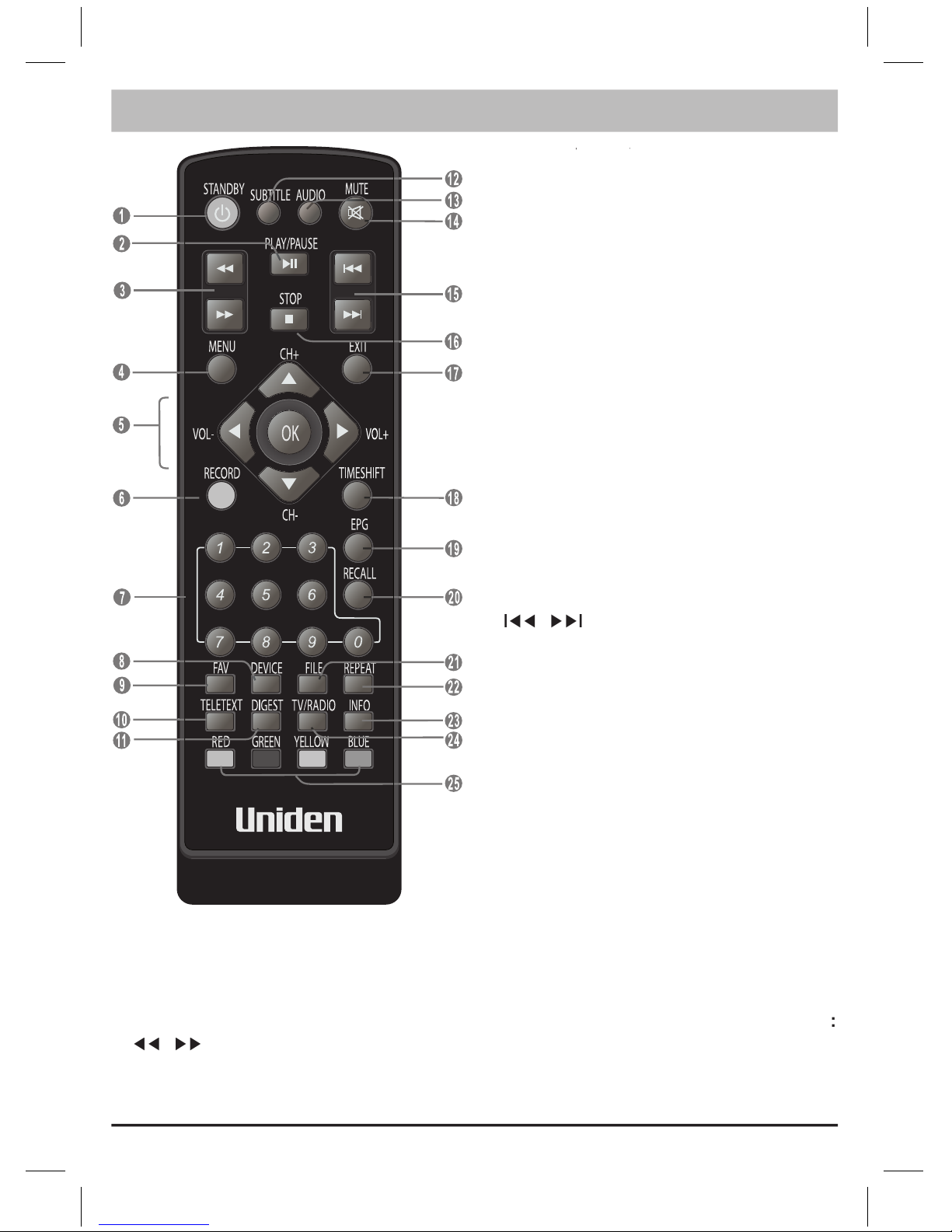

Remote Control

1. STANDBY:

witch the receiver on/off(standby)

2. PAUSE/PLAY:

Play/Pause the video or audio in play-

back mode

◄

►

Rewind / Forward during playback mode

4. MENU:

Open/Close the Menu screen

System Installation

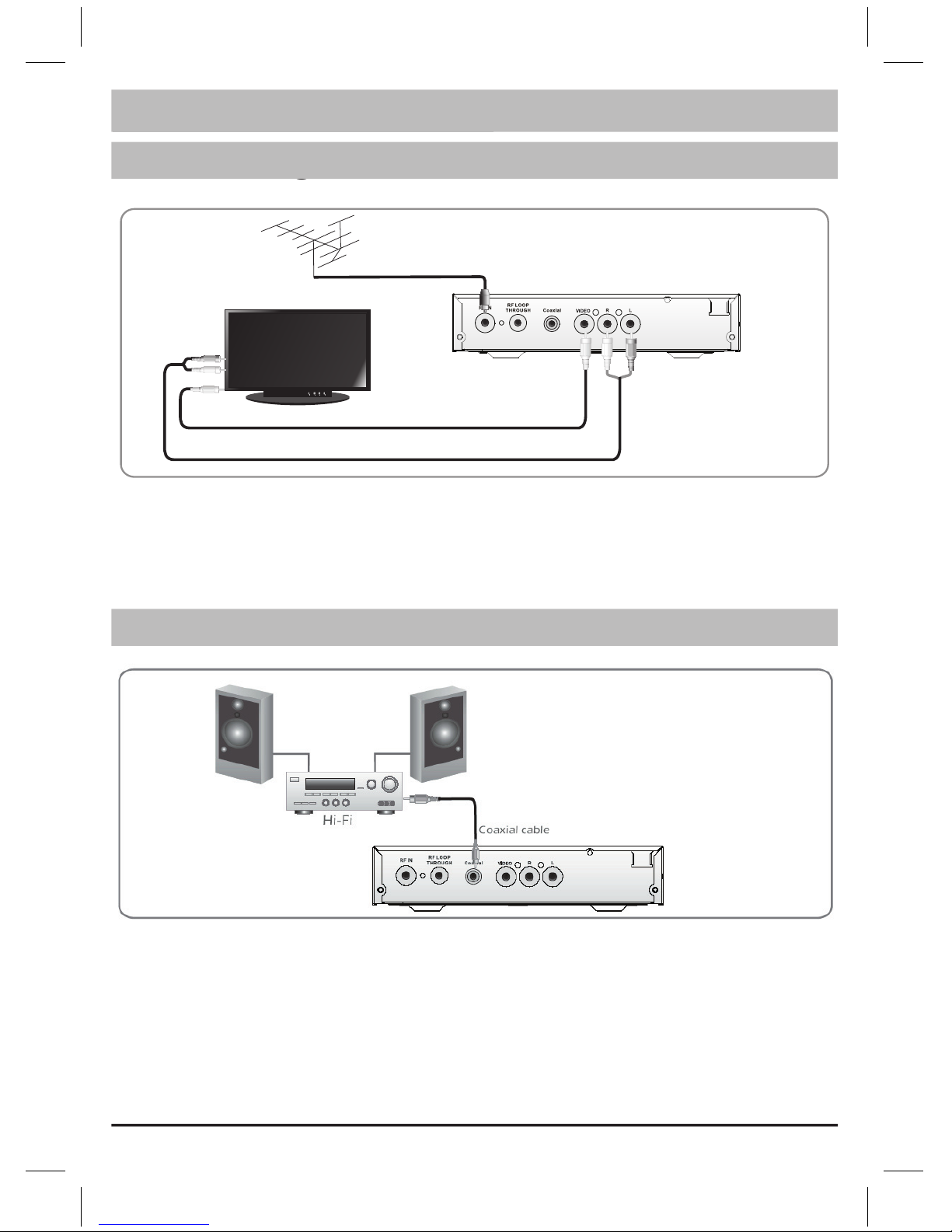

Connecting to the TV

Connecting a HiFi system











Indice
