UNIPUMP TURBI-M2 Manuale utente
Installation and Operation
Manual
PUMP AUTOMATIC
CONTROL UNIT
TURBI-M2
Manual
EN
3
Technical support — +7 495 734-91-97
EN
The present Manual contains basic instructions for
installation, operation and maintenance.
Please, read the present Manual carefully before the device
operation in order to avoid accidents and breakage.
CORRECT USE AND FUNCTIONAL
CAPABILITIES
The device is designed for automatic on and off control of
single-phase surface and submersible pumps (including
vibration pumps) with power of up to 1.5 kW according to
ow and minimum pressure (Pmin), it can be also used as
the pump protection device against dry-running and other
emergency situations.
The device maintains thresholds of Pmax and Pmin set by
pressure sensor in water supply system (switches the pump
on at Pmin and switches the pump off at Pmax).
In case the pump, for some reason, does not produce the
preset Pmax in the system (improper selection, the pump
failure, low supply voltage or other emergency situations),
the pump is switched off with 30-second delay at ow rate of
less than 2 l/min.
4
installation and operation manual
SUPPLY PACKAGE
Name Quantity, pcs
TURBI-M2 control unit as a set 1
Wire nut (СИЗ-2) for grounding wires (un-
der upper cover of the device) 1
Installation and Operation Manual 1
Package 1
DESCRIPTION AND OPERATING
PRINCIPLE
TURBI-M2 control unit consists of sealed plastic housing
(1) and upper cover with rubber bushing (2). On the housing
5
Technical support — +7 495 734-91-97
EN
there are two screwed connecting ttings with 1» external
thread (3) and two cable glands (4). On upper cover there is
signal LED for the device mode indication (5).
Flow sensor (FS), dual-threshold pressure sensor (PS) and
electronic circuit board with microcontroller which sets
the device operation program are installed inside housing.
FS consists of turbine rotating upon an axis by water ow,
and sealed contact. In turbine vanes, there are two magnets
installed symmetrically.
The device operating principle is that the ow sensor
turbine starts to rotate when water ow is passing through
it at a rate higher than 2 l/min. The sealed contact, when
approaching magnets in turbine vanes, receives pulses
and delivers them to microcontroller. The microcontroller
processes this information, and power relay turns the pump
on. At this time the pump continuously delivers water
producing the system pressure corresponding to pressure
thresholds Pmin (cut-in pressure) and Pmax (cut-off pressure)
preset by sensor.
If the pump, for some reason, cannot produce the system
pressure Рmax, then it is switched off with 30-second delay
when water ow stops or its rate drops to 2 l/min and is
automatically switched on when water ow rate is more
than 2 l/min but not earlier than in 2 seconds after the pump
switching off. In this case the system pressure is determined
by the pump parameters, pressure tank capacity and
connection diagram thereof.
In the absence of water ow, the control unit automatically
switches the pump off providing protection against dry-
running and other emergency situations.
6
installation and operation manual
SPECIFICATIONS
1. System parameter: ~220 V ± 10%, 50 Hz.
2. Pump power: up to 1.5 kW.
3. Max current: not more than 16 А.
4. Load current: not more than 10 А.
5. Max permissible pressure in the system: 0.6 MPa (6 bar).
It is permissible to use TURBI-M2 control unit in pressure
boosting systems provided that summing pressure is not
more than 6 bar.
6. Min ow sensor sensibility: 2 l/min
6. Pump cut-in pressure Рmin: 1.5 ... 1.8 bar.
7. Max permissible water ow: 100 l/min.
8. Pressure thresholds Pmin and Pmax are determined accor
ing to types of pressure sensor:
Pmin - Pmax,
bar
Threshold range,
bar
Type 1 1.5 – 3.0
±0.3
Type 2 2.0 – 3.5
Type 3 2.5 – 4.0
Type 4 3.0 – 4.5
9. Permissible range of water temperature: +5 ... +35“С at
ambient temperature from +1 to +40“С.
10. Requirements to pumped uid: clean water without abr
sive particles and ber inclusions, max size of
impurities - 1 mm.
11. Connecting dimensions: 1” external thread х 1”
external thread
12. Protection class: 1р65.
7
Technical support — +7 495 734-91-97
EN
SAFETY MEASURES
1. The device is under the life-threatening supply voltage of
220V, 50 Hz. Installation and electrical connection should
be made by qualied specialists in strict accordance with
“Rules for Technical Operation of Electric Installations
of Consumers” and “Safety Code for Technical Operation
of Electric Installations of Consumers”.
2. Before any operations, disconnect the device from power
line and open valves in order to blow the system pressure
down.
3. Do not use the control unit without grounding.
4. Do not use the control unit with upper cover removed.
5. The device dismounting and repair shall be performed
only by maintenance specialists.
OPERATION ALGORITHM
1. At water ow rate of more than 2 l/min, the pump is
switched on and starts to pump water continuously
(pump mode).
2. The device can operate in two modes – basic mode and
temporary mode.
Basic mode:
The pump is automatically switched off at the system pres-
sure Pmax and switched on at pressure drop to Pmin.
8
installation and operation manual
Temporary mode:
This mode is automatically set when the pump, for a variety
of reasons, cannot produce Pmax. In this case the pump is
switched off with 30-second delay when water ow stops and
rate thereof drops to 2 l/min. The pump is switched on when
water ow appears (more than 2 l/min) but not earlier than in
2 seconds after the pup switching off.
3. In the absence of water ow and the system pressure
drop to Рmin, the pump is switched on and operates during
30 seconds. If after thirty-second interval water ow rate
is not more than 2 l/min, the control unit is transferred to
pre-emergency mode.
4. After transfer to pre-emergency mode, the device produces
6 automatic trial starts of 30 seconds each – in 5, 20 and
60 minutes and then – in 6, 12 and 24 hours. When water
appears during any trial starts, the pump is automatically
switched on and transferred to pump mode.
5. In the absence of water during full cycle of trial starts, the
pump is switched off and transferred to emergency mode.
6. Exit from emergency mode is made manually by discon-
necting the control unit from power line for not less than 6
seconds.
ATTENTION! The control unit can enter emergency mode not
only in the absence of water ow but also when supply voltage
drops below 170 V, in case of improper installation, impeller
jamming and in other emergency situations. Before restarting
the device, make sure that the cause of accident is eliminated. It
is not permissible to use the pump at very low water ow - less
than 2 l/min.
9
Technical support — +7 495 734-91-97
EN
MODE INDICATION
Pump mode, the pump is switched
on
LED evenly ashes one
time per second
Stand-by mode, the pump is
switched off LED does not light
Trial emergency starts mode, the
pump is switched on
LED intermittently ash-
es out three times per
second
Stand-by mode between trial
emergency starts, the pump is
switched off
LED intermittently ashes
out one time a second
Emergency mode, the pump is
switched off LED lights continuously
HYDRAULIC CONNECTION
Install the suction line in accordance with Surface and Sub-
mersible Pumps Operation Manual.
TURBI-M2 control unit shall be installed on the pump dis-
charge line. All connections must be sealed. When installing
the device, do not use excessive force in avoidance of disrup-
tion of thread on plastic connecting ttings. Use teon tape
to seal connections.
ATTENTION! Direction of arrow on the housing should corre-
spond to direction of uid ow .
10
installation and operation manual
ATTENTION! Direction of arrow on the housing should corre-
spond to direction of uid ow .
It is permissible to install the device both vertically and
horizontally.

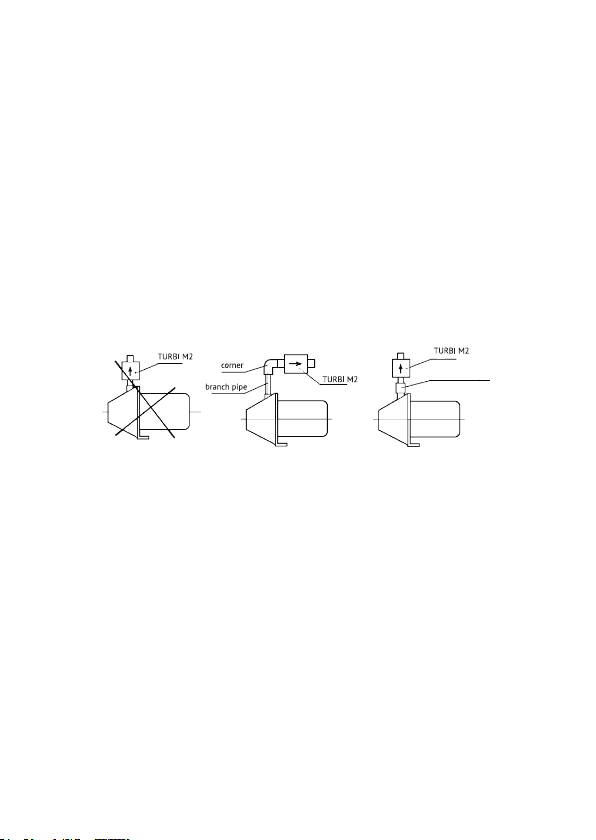

VARIANTS FOR INSTALLATION OF
TURBI-M2 CONTROL UNIT ON SUR-
FACE PUMP OUTLET
ATTENTION! It is not permissible to install the unit vertically on
surface pump outlet without check valve.
VARIANTS FOR INSTALLATION OF
TURBI-M2 CONTROL UNIT WHEN
USING IT FOR ON/OFF PUMP AUTO-
MATIC CONTROL
ATTENTION! The required condition for TURBI-M2 control unit
operation in automatic mode is the presence of pressure tank in
the system.
