Unit UPO1000CS Series Manuale utente

UPO1000CS Series

Digital Phosphor Oscilloscope

Quick Start Guide

REV 1

2022.11.7

2/ 14

Trademark Information

UNI-T is the registered trademark of Uni-Trend Technology (China) Co., Ltd.

Document Version

UPO1000CS-20220901-V1.00

Statement

UNI-T products are protected by patent rights in China and foreign countries, including issued and

pending patents.

UNI-T reserves the rights to any product specification and pricing changes.

UNI-T reserves all rights. Licensed software products are properties of Uni-Trend and its subsidiaries

or suppliers, which are protected by national copyright laws and international treaty provisions.

Information in this manual supersedes all previously published versions.

3/ 14

1. Safety Requirement

This section contains information and warnings that must be followed to keep the instrument operating

under safety conditions. In addition, user should also follow the common safety procedures.

Safety Precautions

Warning

Please follow the following guidelines to avoid possible electric shock and risk to

personal safety.

Users must follow the following conventional safety precautions in operation, service and maintenance of

this device. UNI-T will not be liable for any personal safety and property loss caused by the user’s failure

to follow the following safety precautions. This device is designed for professional users and responsible

organizations for measurement purposes.

Do not use this device in any way not specified by the manufacturer. This device is only for indoor use

unless otherwise specified in the product manual.

Safety Statement

Warning

“Warning” indicates the presence of a hazard. It reminds users to pay attention to a

certain operation process, operation method or similar. Personal injury or death

may occur if the rules in the “Warning” statement are not properly executed or

observed. Do not proceed to the next step until you fully understand and meet the

conditions stated in the “Warning” statement.

Caution

“Caution” indicates the presence of a hazard. It reminds users to pay attention to a

certain operation process, operation method or similar. Product damage or loss of

important data may occur if the rules in the “Caution” statement are not properly

executed or observed. Do not proceed to the next step until you fully understand

and meet the conditions stated in the “Caution” statement.

Note

“Note” indicates important information. It reminds users to pay attention to

procedures, methods and conditions, etc. The contents of the “Note” should be

highlighted if necessary.

Safety Sign

Danger

It indicates possible danger of electric shock, which may cause personal injury or

death.

Warning

It indicates that you should be careful to avoid personal injury or product damage.

Caution

It indicates possible danger, which may cause damage to this device or other

equipment if you fail to follow a certain procedure or condition. If the “Caution” sign is

present, all conditions must be met before you proceed to operation.

Note

It indicates potential problems, which may cause failure of this device if you fail to

follow a certain procedure or condition. If the “Note” sign is present, all conditions

must be met before this device will function properly.

4/ 14

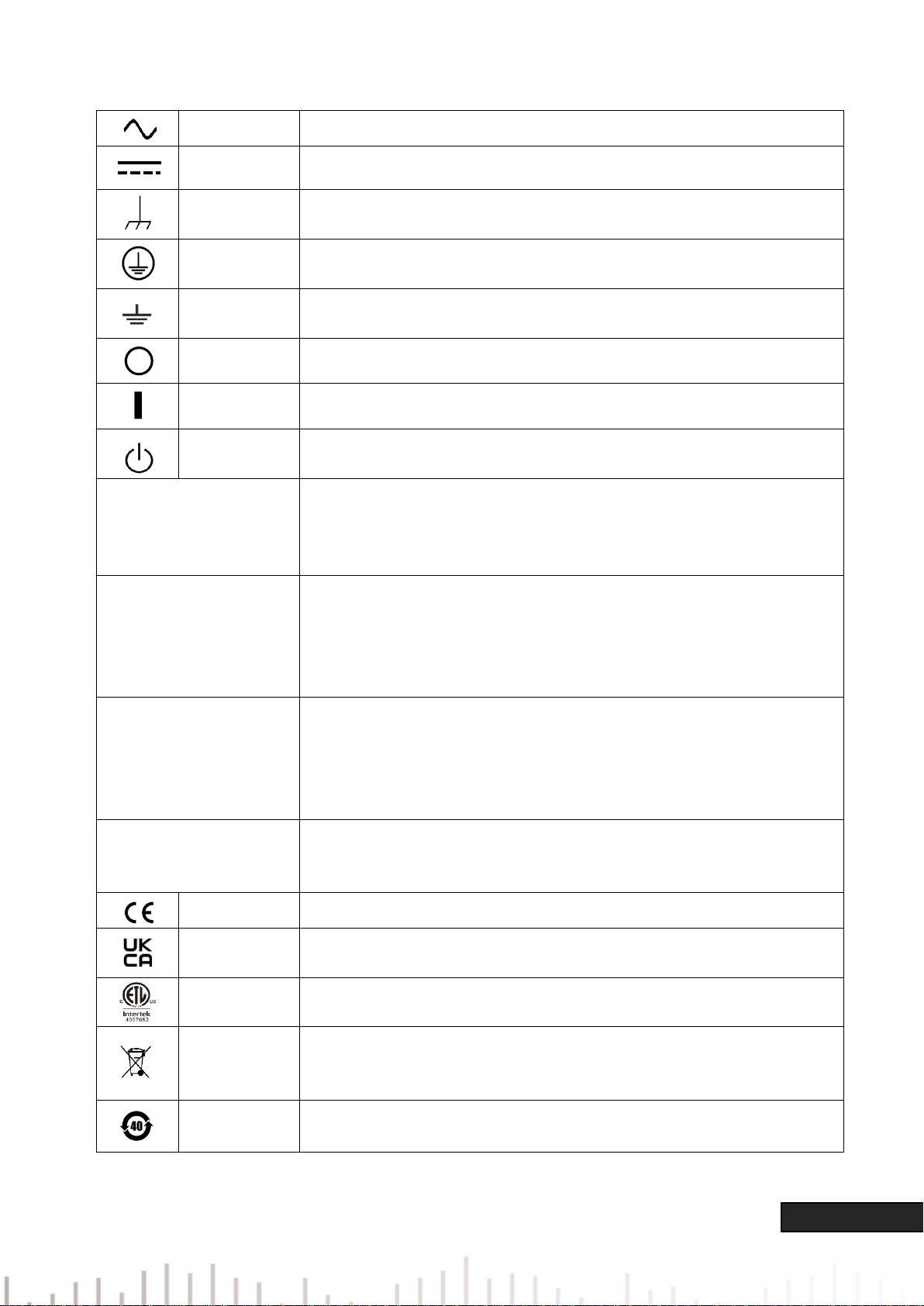

Alternating current of device. Please check the region’s voltage range.

Direct current of device. Please check the region’s voltage range.

Grounding

Frame and chassis grounding terminal.

Grounding

Protective grounding terminal.

Grounding

Measuring grounding terminal.

OFF

Main power off.

Main power on.

Power

Supply

Standby power supply: when the power switch is turned off, this device is not

completely disconnected from the AC power supply.

CAT I

Secondary electrical circuit connected to wall sockets through transformers or similar

equipment, such as electronic instruments and electronic equipment; electronic

equipment with protective measures, and any high-voltage and low-voltage circuits,

such as the copier in the office.

CAT II

CATII: Primary electrical circuit of the electrical equipment connected to the indoor

socket via the power cord, such as mobile tools, home appliances, etc. Household

appliances, portable tools (e.g. electric drill), household sockets, sockets more than

10 meters away from CAT III circuit or sockets more than 20 meters away from CAT

IV circuit.

CAT III

Primary circuit of large equipment directly connected to the distribution board and

circuit between the distribution board and the socket (three-phase distributor circuit

includes a single commercial lighting circuit). Fixed equipment, such as multi-phase

motor and multi-phase fuse box; lighting equipment and lines inside large buildings;

machine tools and power distribution boards at industrial sites (workshops).

CAT IV

Three-phase public power unit and outdoor power supply line equipment. Equipment

designed to “initial connection”, such as power distribution system of power station,

power instrument, front-end overload protection, and any outdoor transmission line

Certification

CE indicates a registered trademark of EU.

Certification

UKCA indicates a registered trademark of United Kingdom.

Certification

ETL indicates a registered trademark of Intertek.

Waste

This product complies with the marking requirements of WEEE Directive

(2002/96/EC). This additional label indicates that this electrical / electronic product

must not be discarded in household waste.

EFUP

This environment-friendly use period (EFUP) mark indicates that dangerous or toxic

substances will not leak or cause damage within this indicated time period. The

5/ 14

environment-friendly use period of this product is 40 years, during which it can be

used safely. Upon expiration of this period, it should enter the recycling system.

Safety Requirements

Warning

Preparation before use

Please connect this device to AC power supply with the power cable provided;

The AC input voltage of the line reaches the rated value of this device. See the

product manual for specific rated value.

The line voltage switch of this device matches the line voltage;

The line voltage of the line fuse of this device is correct.

Check all terminal

rated values

Please check all rated values and marking instructions on the product to avoid fire

and impact of excessive current. Please consult the product manual for detailed rated

values before connection.

Use the power cord

properly

You can only use the special power cord for the instrument approved by the local and

state standards. Please check whether the insulation layer of the cord is damaged or

the cord is exposed, and test whether the cord is conductive. If the cord is damaged,

please replace it before using the instrument.

Instrument Grounding

To avoid electric shock, the grounding conductor must be connected to the ground.

This product is grounded through the grounding conductor of the power supply.

Please be sure to ground this product before it is powered on.

AC power supply

Please use the AC power supply specified for this device. Please use the power cord

approved by your country and confirm that the insulation layer is not damaged.

Electrostatic

prevention

This device may be damaged by static electricity, so it should be tested in the anti-

static area if possible. Before the power cable is connected to this device, the internal

and external conductors should be grounded briefly to release static electricity. The

protection grade of this device is 4KV for contact discharge and 8KV for air

discharge.

Measurement

accessories

Measurement accessories are of lower class, which are definitely not applicable to

main power supply measurement, CAT II, CAT III or CAT IV circuit measurement.

Use the input / output

port of this device

properly

Please use the input / output ports provided by this device in a properly manner. Do

not load any input signal at the output port of this device. Do not load any signal that

does not reach the rated value at the input port of this device. The probe or other

connection accessories should be effectively grounded to avoid product damage or

abnormal function. Please refer to the product manual for the rated value of the input

/ output port of this device.

Power fuse

Please use power fuse of specified specification. If the fuse needs to be replaced, it

must be replaced with another one that meets the specified specifications (Class T,

6/ 14

rated current 5A, rated voltage 250V) by the maintenance personnel authorized by

UNI-T.

Disassembly and

cleaning

There are no components available to operators inside. Do not remove the protective

cover.

Maintenance must be carried out by qualified personnel.

Service environment

This device should be used indoors in a clean and dry environment with ambient

temperature from 0 ℃to 40 ℃.

Do not use this device in explosive, dusty or humid air.

Do not operate in

humid environment

Do not use this device in a humid environment to avoid the risk of internal short

circuit or electric shock.

Do not operate in

flammable and

explosive environment

Do not use this device in a flammable and explosive environment to avoid product

damage or personal injury.

Caution

Abnormity

If this device may be faulty, please contact the authorized maintenance personnel of

UNI-T for testing. Any maintenance, adjustment or parts replacement must be done

by the relevant personnel of UNI-T.

Cooling

Do not block the ventilation holes at the side and back of this device;

Do not allow any external objects to enter this device via ventilation holes;

Please ensure adequate ventilation, and leave a gap of at least 15 cm on both sides,

front and back of this device.

Safe transportation

Please transport this device safely to prevent it from sliding, which may damage the

buttons, knobs or interfaces on the instrument panel.

Proper ventilation

Poor ventilation will cause the device temperature to rise, thus causing damage to

this device. Please keep proper ventilation during use, and regularly check the vents

and fans.

Keep clean and dry

Please take actions to avoid dust or moisture in the air affecting the performance of

this device. Please keep the product surface clean and dry.

Note

Calibration

The recommended calibration period is one year. Calibration should only be carried

out by qualified personnel.

7/ 14

2. Introduction of UPO1000CS Series Digital Phosphor Oscilloscope

UPO1000CS series contains the following 2 models.

Model

Analog Channels

Bandwidth

UPO1202CS

200MHz

UPO1102CS

100MHz

3. Getting Started Guide

This chapter introduces on using the oscilloscope for the first time, the front and rear panels, the user

interface, as well as the built-in help system.

3.1 General Inspection

It is recommended to inspect the instrument follow the steps below before using the UPO1000CS series

for the first time.

(1) Check for Damages Caused by Transport

If the packaging carton or the foam plastic cushions are severely damaged, please contact the UNI-T

distributor of this product immediately.

(2) Check Attachment

Please check appendix for the list of accessories. If any of the accessories are missing or damaged,

please contact UNI-T or local distributors of this product.

(3) Machine Inspection

If the instrument appears to be damaged, not working properly, or has failed the functionality test, please

contact UNI-T or local distributors of this product.

If the equipment is damaged due to shipping, please keep the packaging and notify both the

transportation department and UNI-T distributors.

8/ 14

3.2 Before Use

To perform a quick verification of the instrument’s normal operations, please follow the steps below：

(1) Connect to the Power Supply

The power supply voltage range is from 100 VAC to 240 VAC, the frequency range is 45 Hz to 440 Hz.

Connect the oscilloscope to the power supply line that came with the oscilloscope or any power supply

line that meets the local country standards. Turn on the power button, which on the back of the

oscilloscope. The soft power button in the front of the oscilloscope should be on red.

(2) Boot Check

Press the soft power button and the light should change to green.The oscilloscope will show a boot

animation, and then enter the normal interface.

(3) Connect Probe

Use probe in the attachment and connect it BNC terminal to the channel 1 BNC terminal of the

oscilloscope. Connect the probe’s main alligator clip to the “Compensating signal terminal” and the ground

clip is connected to the “Ground terminal” shown below. The output of the compensating signal should

be a 3 Vpp amplitude, default frequency is 1 kHz.

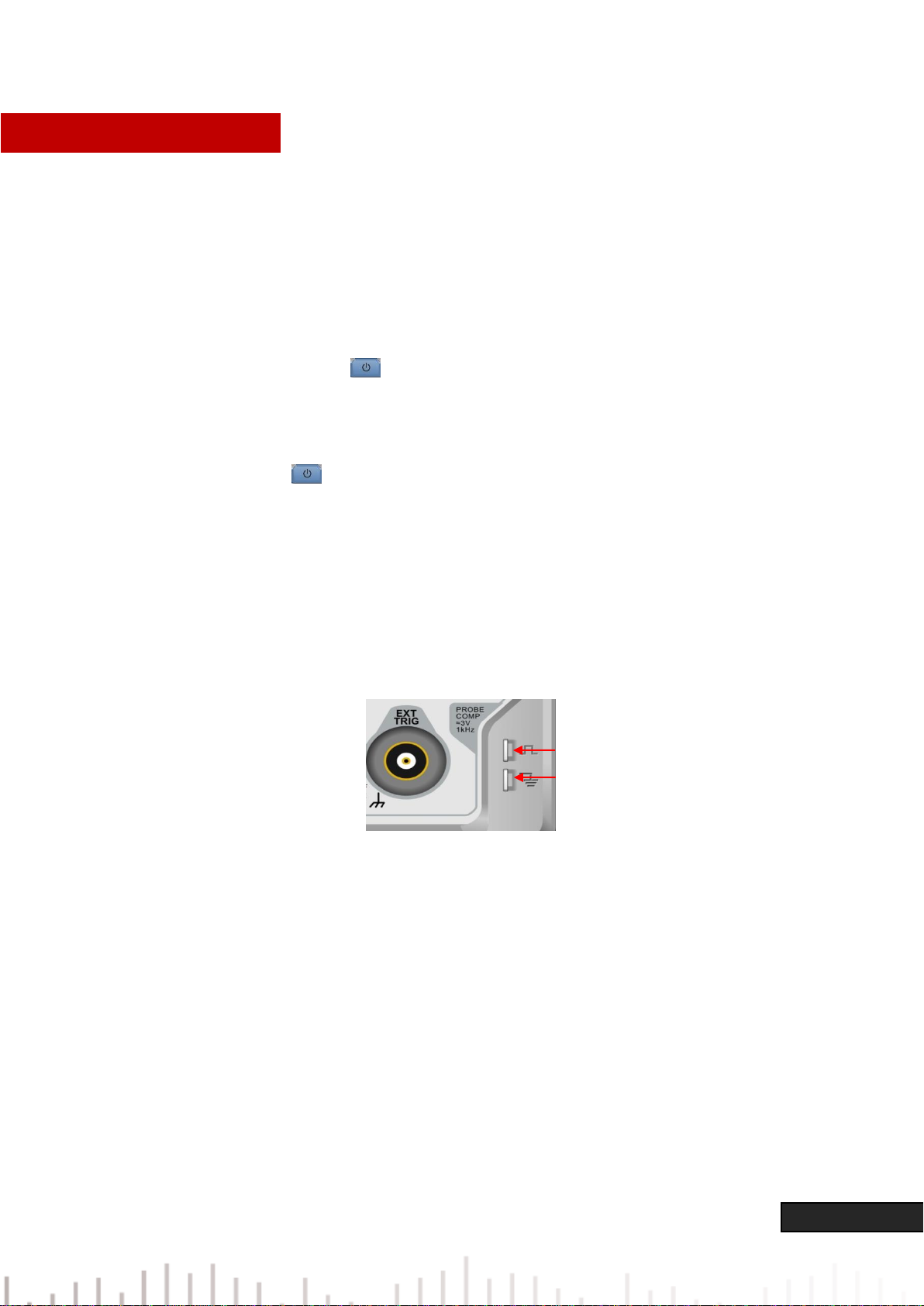

Figure 1 Compensating Signal and Ground Terminal

(4) Function Check

Press theAUTO key, a 3 Vpp 1 kHz square ware should appear. Repeat step 3 for all channels.

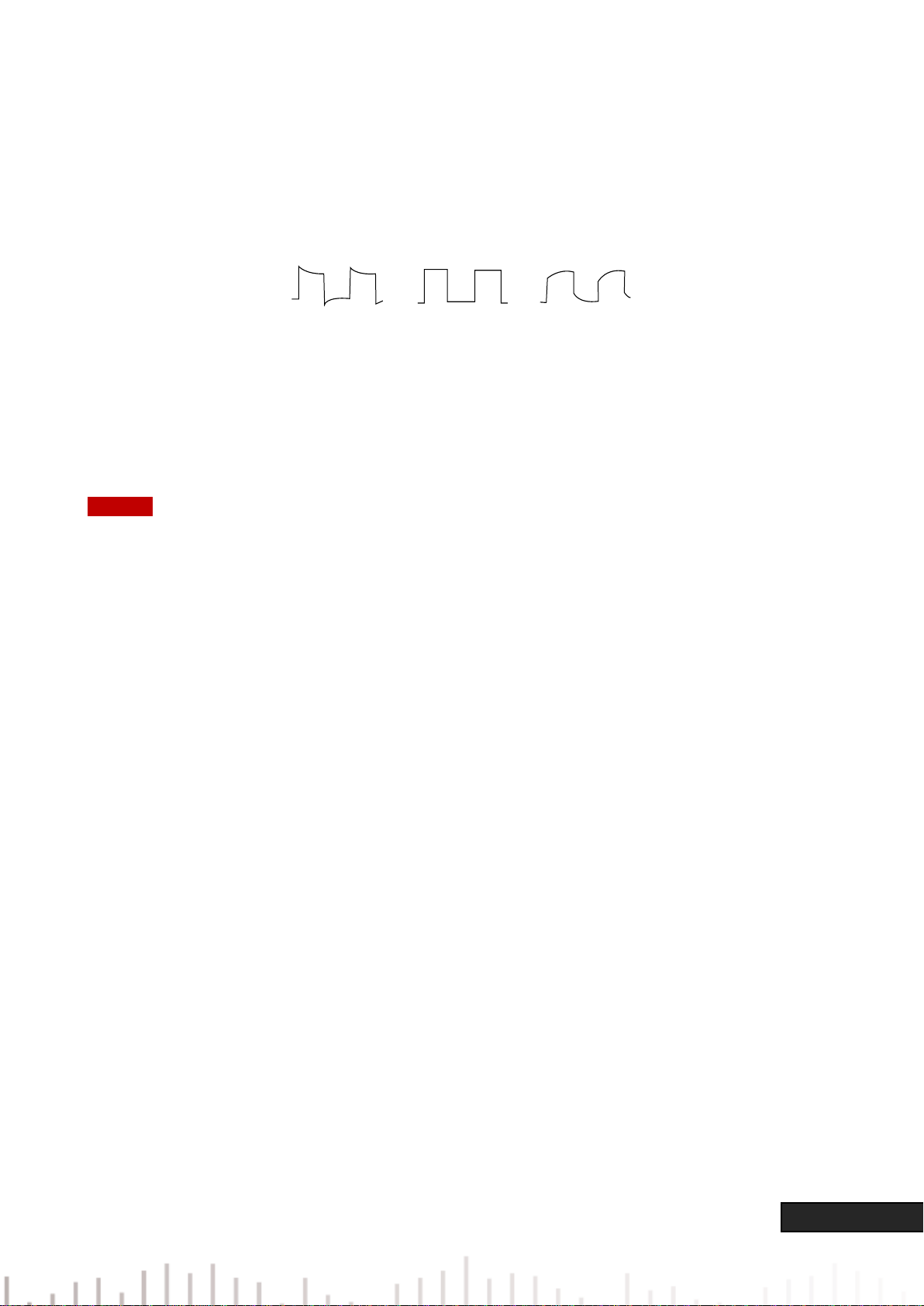

(5) Probe Compensation

When the probe is connected to any input channel for the first time, this step might be required in order

to match the probe and the input channel. Probes that are not compensated may lead to measurement

errors or mistake. Please follow the following steps:

Compensating signal terminal

Ground terminal

9/ 14

①Set the attenuation coefficient in the probe menu and the switch on the probe to 10x, and connect the

probe to CH1. Make sure the probe’s connector is properly connected with the oscilloscope. Connect the

probe’s main clip and ground clip to the oscilloscope’s compensating signal and ground terminal

respectively. Open CH1 and press theAUTO button.

②View displayed waveforms

Excessive Compensation Correct Compensation Insufficient Compensation

Figure 2 Compensating Calibration of Probe

③If the displayed waveform is look like the above “Insufficient Compensation” or “Excessive

Compensation”, use a non-metallic screwdriver to adjust the probe’s variable capacitance until the display

matches the "Correct compensation" waveform.

Warning: To avoid electric shock when measuring high voltage using the probe, please ensure

that the probe insulation is in good condition and avoid physical contact with any metallic part of

the probe.

10 / 14

4. Front Panel

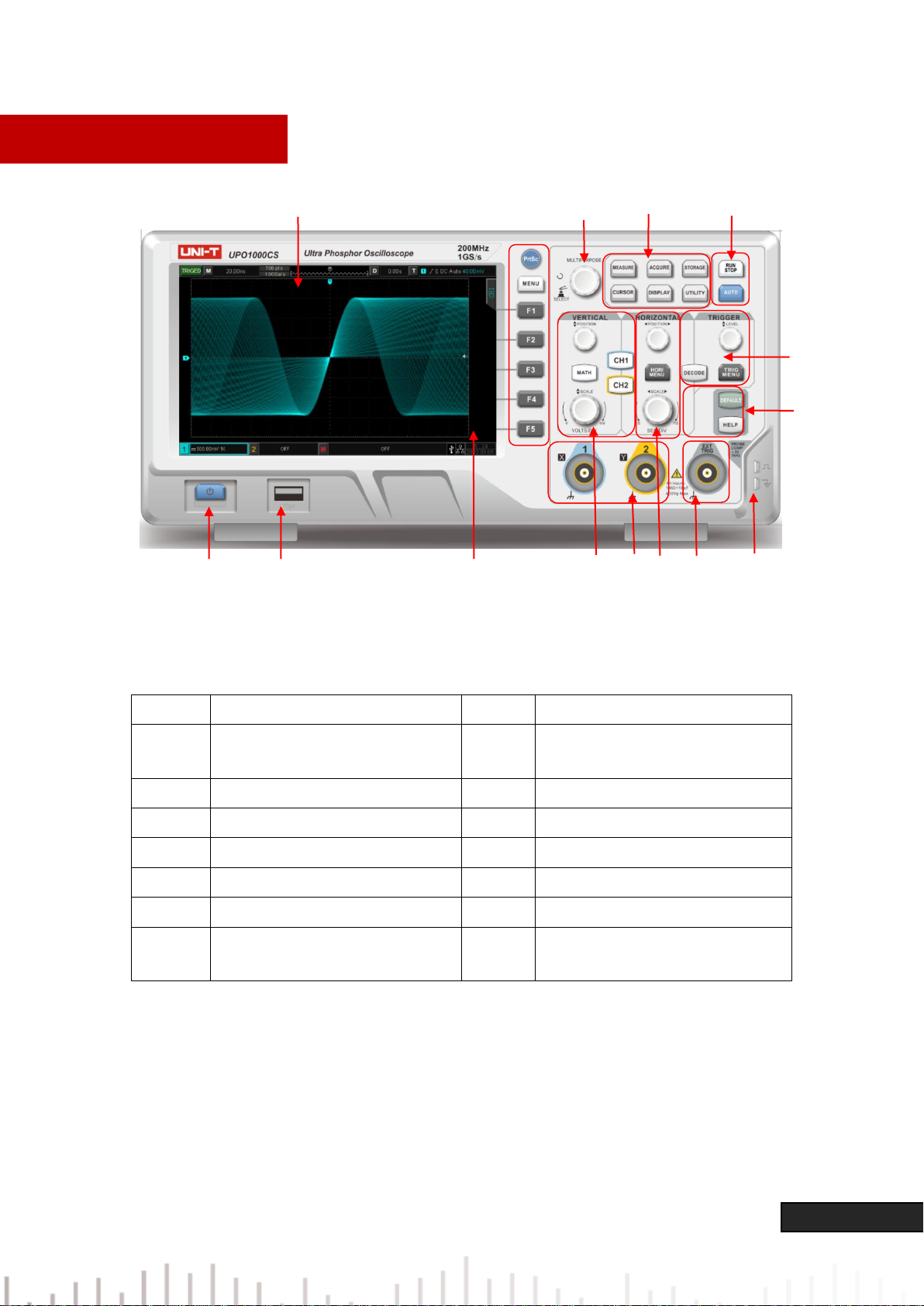

Figure 3 Front Panel

Table 1 Description of Front Panel

NO.

Description

NO.

Description

Screen display area

EXT (External trigger input)

terminal

Multipurpose knob

Horizontal control area

Function menu

Analog channel input terminal

Run/Stop, Automatic setting

Vertical control area

Trigger control

Control menu, copy key

Default, Help menu

USB HOST interface

Compensation signal and

Ground terminal

Soft Power on/off

○

Altri manuali per UPO1000CS Series

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Unit Apparecchiature di prova

Manuali Apparecchiature di prova popolari di altre marche

SMART

SMART KANAAD SBT XTREME 3G Series Manuale utente

Agilent Technologies

Agilent Technologies BERT Serial Manuale utente

Agilent Technologies

Agilent Technologies N3280A Manuale utente

Vernier

Vernier Go Direct Voltage Manuale utente

Lifeloc

Lifeloc R.A.D.A.R. Manuale utente

Fluke

Fluke T5-600 Istruzioni per l'uso e l'installazione

Mercury

Mercury TSL01 Manuale utente

MAHA

MAHA MBT Series Manuale utente

Fuji Electric

Fuji Electric P-61 Manuale utente

ETC

ETC SealerAtor Manuale utente

Skyfine

Skyfine ETHYWAY V2 Manuale utente

Appion

Appion G5 Twin Manuale utente

PCB Piezotronics

PCB Piezotronics 8159-0112A Manuale utente

BW Technologies

BW Technologies MicroDock II Manuale utente

Sun Nuclear

Sun Nuclear 1027 Manuale utente

Biomark

Biomark HPR LITE READER Manuale utente

Hioki

Hioki 3169-20 Manuale utente

Ashcroft

Ashcroft ATE-100 Manuale utente
