Unitech EA630 Manuale utente

Four-Slot Terminal Cradle

- EA630 -

Quick Start Guide

V1.0

Product View

1. LAN Port: Used for connecting to a four-slot cradle.

(Not available for terminal charging cradle)

2. WAN Port: Used for connecting to an Ethernet hub.

(Not available for terminal charging cradle)

3. DC Power Port: Used for connecting to a power adapter.

Package

Please make sure the following contents are in the gift box.

If something is missing or damaged, please contact your

unitech representative.

The basic package contents

EA630 Four-slot Terminal Charging Cradle or

EA630 Four-slot Terminal Ethernet cradle

Power Supply(12V/ 5A) and power Cord (US, EU or

UK )

Power connection

1. Plug the AC power cord into the power jack on the

power adapter.

2. Plug the other end of the AC adapter into an

electrical outlet.

3. Plug the power adapter cable into the DC in port of

the cradle.

How to use EA630 single slot cradle

There are two ways to charge the EA630 terminal :

￭You can directly charge EA630 with the boot case on

and slide it into the cradle.

￭To charge EA630 with the boot case on,

please remove this detachable part from the cradle

before charging. Here is the detachable part :

Charging Terminals with the cradle

You can charge up to four terminals at one time.

1. Be sure the cradle is connected to a power source.

2. Slide the terminal into the cradle.

3. The cradle will automatically detect the presence of

the terminal and begin charging.

4. The LED indicator on EA630 terminals will show red

light when EA630 is charging.

5. The LED indicator on EA630 terminals will show

green light when EA630 is fully charged.

CAUTION!



To ensure the unit working properly, please keep all connectors

away from the contaminants staying inside of them such as dust,

grease, mud, and water. The negligence may cause the unit with

no communication, short circuited, overheated and so on.



If the connector is damaged, please ensure the connector is being

fully repaired before using the unit to avoid causing short circuited.

http://www.ute.com/

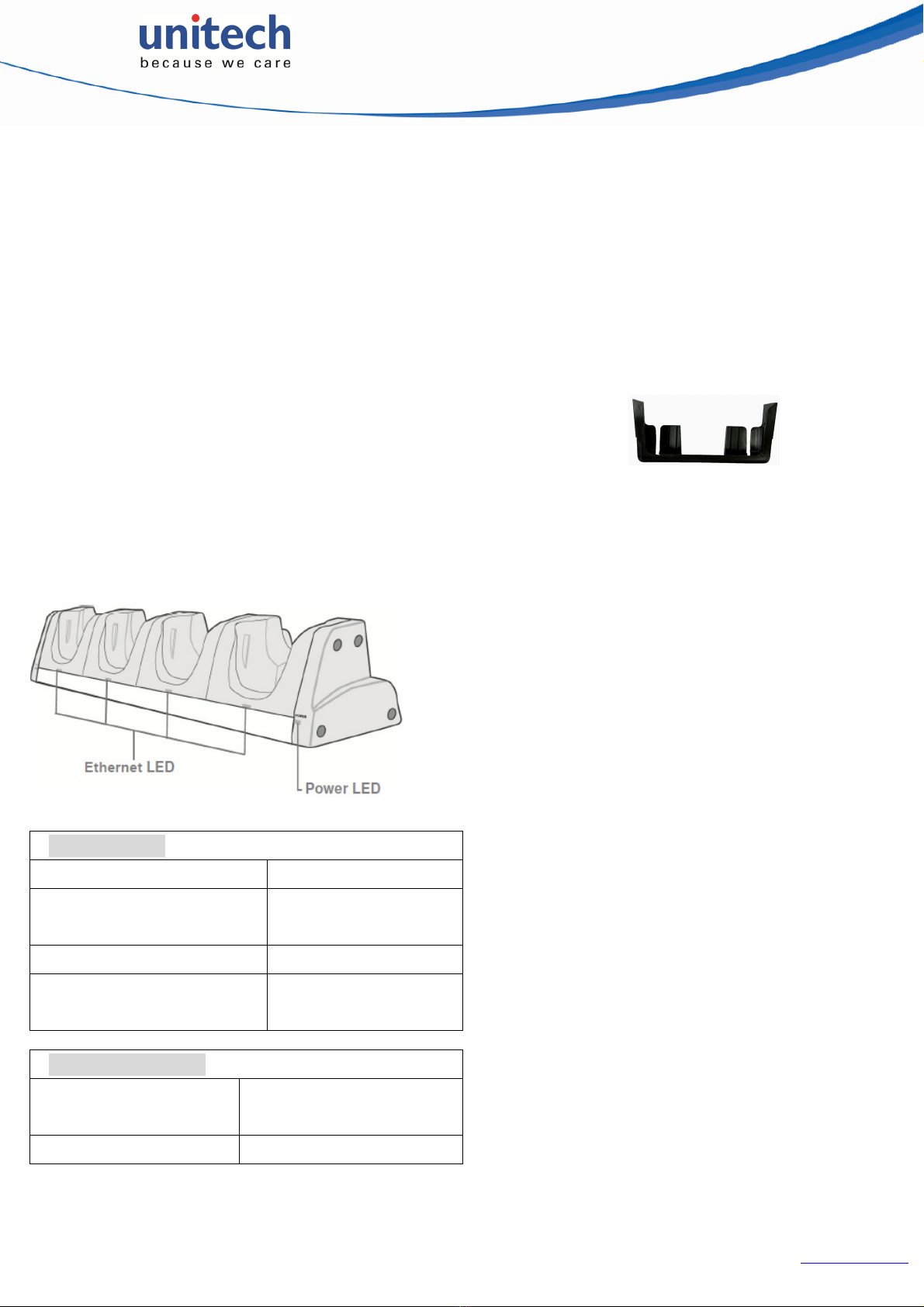

Checking the LED status

￭Ethernet cradle

Power LED (on both sides ) Description

Red Light Power supply is

connected.

Ethernet LED Description

Solid Blue light & Red light

blinking

Ethernet communication

￭Charging only cradle

Power LED

(on both sides )

Description

Red Light Power supply is connected
