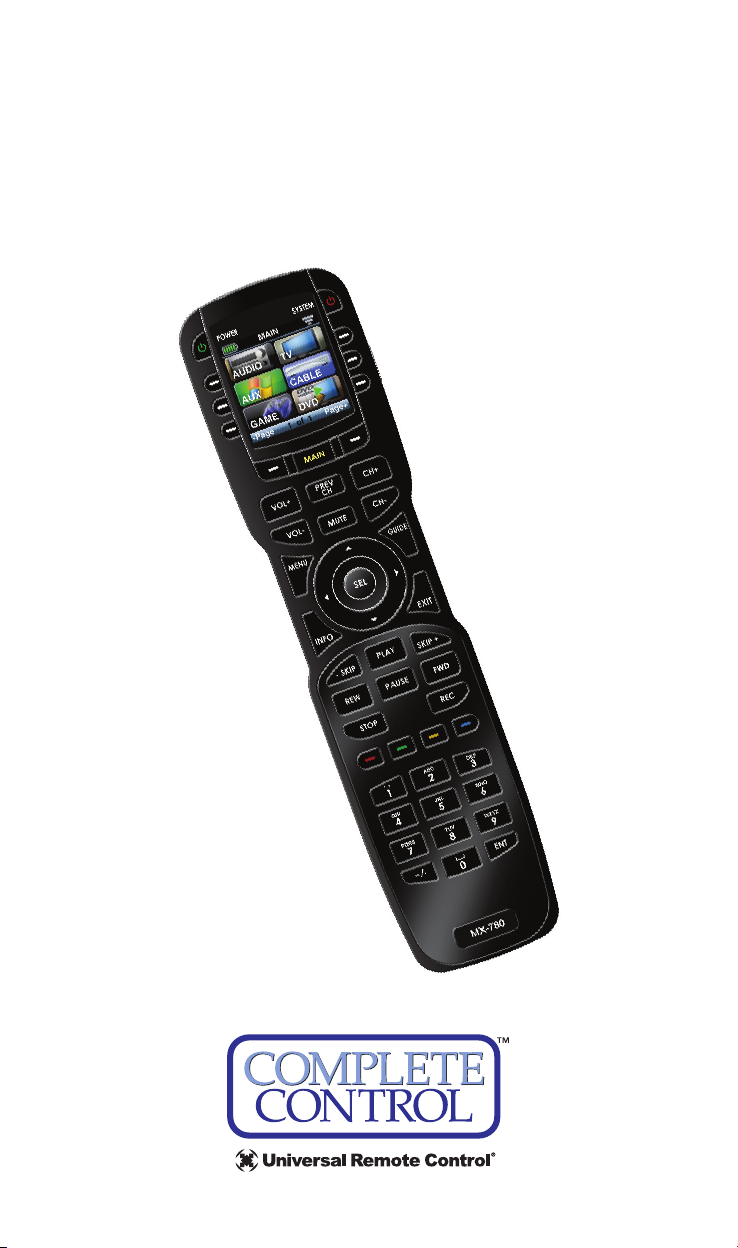

Universal Remote Control Complete Control MX-780 Manuale utente

MX-780

Owner’s Manual

The information in this manual is copyright protected. No part of this

manual may be copied or reproduced in any form without prior written

consent from Universal Remote Control, Inc.

UNIVERSAL REMOTE CONTROL, INC. SHALL NOT BE LIABLE FOR

OPERATIONAL, TECHNICAL OR EDITORIAL ERRORS/OMISSIONS MADE

IN THIS MANUAL.

The information in this manual may be subject to change without prior notice.

Complete Control is a registered trademark of Universal Remote Control, Inc.

Entertainment Made Simple is a trademark of Universal Remote Control, Inc.

All other brand or product names are trademarks or registered trademarks of

their respective companies or organizations.

Universal Remote Control, Inc.

500 Mamaroneck Avenue, Harrison, NY 10528

Phone: (914) 835-4484 Fax: (914) 835-4532

TABLE OFCONTENTS

Congratulations! 1

Using the MX-780 2

Displaying the Settings Screen 3

Color Screen 3

Button Lighting 4

System 5

Erasing and Resetting 5

Specifications 6

USA Limited Warranty Statement 7

Federal Communication Commission

Interference Statement 9

Page 1

MX-780 OWNER’SMANUAL

Congratulations!

Thank you for purchasing the Complete Control MX-780 universal

remote control. This unit can directly control every IR device in

your home. You can also control devices located in different rooms

by integrating an MRF base station. Controlling your home is simple

with the MX-780 remote.

Brilliant OLED color display with hard button interface

When any button is pressed, the color OLED (Organic Light Emitting Diode)

screen, as well as the remote buttons, light up. Once the screen is lit,

each of the three buttons on either side of the screen are labeled.

These button labels are based on the devices you want to watch or

listen to.

User interface customizable for any activity

Each button is customizable for activities such as watching TV or

listening to the radio. These activities can contain multiple commands

(macros) which enable a single button press to turn the needed

devices ON or OFF.

Ultra-reliable narrow band RF - compatible with URC

418 MHz RF Base Stations

The MX-780 can communicate directly to RF base stations, such as

the MRF-350 and the MRF-260. It also natively communicates to

URC Lighting via 418MHz RF. This gives the MX-780 the ability to

control your system without being in direct line-of-sight.

Fast setup of complex systems via Complete Control PC editor

To fully automate an audio/video system, and integrate two way

automation of servers etc., the programmer must have a detailed

knowledge of each component, LAN configuration, WiFi

optimization and how the system is connected and operated. Only

a trained and certified professional audio/video installer can install

an MX-780 remote control in a timely and efficient manner.

Replacing the Batteries

Unlock the battery cover by pushing up on the spring lock at the

bottom of the cover. Remove the cover. Observe the + and –

polarity indicators inside the battery compartment and the batteries.

Place the four AA batteries into their positions in the battery compartment.

Now, replace the battery cover and snap it into place.

Page 2

MX-780 OWNER’SMANUAL

Using the MX-780

The MX-780 displays the title (Main or device) at the top of the

screen. Below the title, the OLED displays the device or command

names. All of the hard buttons of the MX-780 are changed to

control the functions of the selected device.

The Title displays

what the main page

or device you can

control.

Press either of the

Page buttons to see

any other available

choices.

The Light

button

backlights all

of the

buttons.

The OLED button

labels describe

special features

for this activity.

The Channel and

Previous Channel

buttons will change

channels when you

have selected devices

like CABLE.

The 4 way cursor

buttons enable you

to navigate on

screen guides and

menus with ease.

The Number keypad

enters numbers for

the devices you’ve

selected. When

watching Cable TV,

use the number

keypad to enter

channel numbers.

When listening to a

CD, the number

keypad enters track

numbers.

The Volume and

Mute buttons always

control the sound

regardless of what

screen is displayed.

The Transport buttons

(Play, Stop, Skip-, Skip+,

FF, REW and Pause)

operate when the

selected device requires

them. When watching

Cable TV, use the number

keypad to enter channel

numbers.

When listening to a CD,

the number keypad

enters track numbers.

MX-780 OWNER’SMANUAL

Displaying the Settings Screen

You can adjust settings for the MX-780 whenever

you like by pressing and holding the MAIN + ENT

button for three seconds. When you do, the screen

will change to the Settings menu. If you do not

press any button on the Settings screen, the

MX-780 returns to the previous Settings or Main

screen after 30 seconds.

There are two Settings screens. To access the

other page, press either of the page buttons. To

select a setting, press the button adjacent to the

setting you would like to adjust.

To go back a step or to get out of the settings

screen, press either the MAIN button or the EXIT

button on the MX-780.

Color Screen

Color screen settings provides two configurable options.

1. Brightness: Adjust the screen brightness by pressing the screen buttons

on the left and right side of the slider bar. Once

the brightness has been adjusted, simply press

the Save button. Pressing the Cancel button will

revert to the remote’s last saved brightness setting.

Note: High brightness settings will delete the

batteries faster.

2. Automatic Turn Off: Adjust the duration the OLED screen will

remain illuminated after a button is pressed. Pressing the left and

right screen buttons, next to the slider bar,

changes how long the OLED screen stays on.

Pressing the Less side decreases the time in steps

down to a minimum time of 5 seconds.

Pressing the More side increases the time in

steps up to a maximum of 60 seconds. Once

the setting has been adjusted, simply press the

Save button. Pressing the Cancel button reverts

the remote’s Automatic Turn Off setting to the last saved setting.

Note: Increasing the Auto Turn off time will delete the batteries faster.

Page 3

Page 4

Button Lighting

The Button Light settings page provides two configurable options

for how the MX-780’s hard buttons should behave.

1. Automatic ON: Adjusting this setting controls when the hard

button backlight automatically turns on.

a. Automatic Light Yes: Every time a

button is pressed the button back

light automatically turns on.

b. Automatic Light No: The only way

to turn on the hard button

backlight is to press the dedicated

Lights button, located on the right

side of the remote control.

Once all changes have been made, press

the Save button. Pressing the Cancel

button reverts to the remote’s last saved

setting. Note: Selecting AutoLight Yes will

delete the batteries faster.

2. Automatic Turn Off: You can adjust the amount of time the

backlight remains on after a button is pressed. Press the left and

right screen buttons next to the slider bar

to change the duration. Pressing the Less

side decreases the time in steps down to

a minimum of 5 seconds. Pressing the

More side increases the time in steps up

to a maximum of 60 seconds. Once the

setting has been adjusted, simply press the

Save button. Pressing the Cancel button

reverts to the remote’s last saved Automatic Turn off setting.

Note: Increasing the Auto Turn off time will delete the batteries

faster.

MX-780 OWNER’SMANUAL

Page 5

MX-780 OWNER’SMANUAL

System

The System Settings page provides two options.

1. Power Remaining: This option shows you how

much battery life is remaining. You can also

adjust when the low battery warning screen

appears by pressing the screen buttons to the

left and right of the slider bar. Once the low

battery percentage is reached, a notification

screen appears reminding you the batteries will

need to be replaced. Once the setting has been

adjusted, simply press the Save button. Pressing the Cancel button

reverts to the remote’s last saved Power Remaining setting.

3. System Info: The System Info screen

displays data about the MX-780’s memory

usage and operating system version.

Pressing the Next screen button takes you

to the Operating System information, and

pressing the Prev button takes you back to

the System Memory information.

Erasing and Resetting

WARNING! Only use this button when instructed by Technical Support.

It resets the memory of the MX-780 to the factory

default. All of your programming will be lost!

To erase your MX-780 program, press the Erase

button to return to factory default. Once selected

a secondary screen will ask if you really want to

erase the program.

MX-780 OWNER’SMANUAL

Page 6

Specifications

Microprocessor: ARM7TDMI

FLASH: 32Mbit Nor FLASH

Display: 1.46” PMOLED (128 x 128)

Total Customization Capability: Up to 48 devices and up to 8 pages

each for a total of 384 pages.

Learning Capability: Standard frequencies (15kHz to 460kHz)

Macro Capability: Up to 255 steps each

IR Range (Line of Sight via Infrared): 30-50 feet, depending on the

environment

RF Range (radio frequency): 50 to 100 feet, depending upon the

environment

RF Frequency: 418MHz

Weight: 8.5 oz. (with battery)

Size: 8.7”H x 2.2”W x 1.3”D

Batteries: Four AA Alkaline Batteries (included)

Battery Life: 18 Hours of continuous button pressing with backlighting

and LCD ON (months of use for most users).

Users should expect some variation based on the brand

of alkaline batteries used.

Note: In actual use, the MX-780 protects itself if it gets stuck

between couch cushions (with a button being continuously

pressed). After 30 seconds the MX-780 will turn off, and will-

not turn on again until the button is released.

Need assistance or have questions?

Our Customer Service Support Center is here to help.

Call (914) 835-4484 to speak with a customer service

representative or email us at [email protected]

500 Mamaroneck Avenue, Harrison, NY 10528

Phone: (914) 835-4484 Fax: (914) 835-4532

www.universalremote.com

Page 7

USA Limited Warranty Statement

Your Universal Remote Control, when delivered to you in new con-

dition, is warranted against defects in materials or workmanship as

follows: UNIVERSAL REMOTE CONTROL, INC. warrants this prod-

uct against defects in material or workmanship for a period of one

(1) year and as set forth below. Universal Remote Control will, at its

sole option, repair the product using new or comparable rebuilt

parts, or exchange the product for a comparable new or rebuilt

product. In the event of a defect, these are your exclusive reme-

dies.

This Limited Warranty covers only the hardware components pack-

aged with the Product. It does not cover technical assistance for

hardware or software usage and it does not cover any software

products whether or not contained in the Product; any such soft-

ware is provided “AS IS” unless expressly provided for in any

enclosed software Limited Warranty.

To obtain warranty service, you must deliver the product, freight

prepaid, in its original packaging or packaging affording adequate

protection to Universal Remote Control at the address provided in

the Owner’s Manual. It is your responsibility to backup any macro

programming, artwork, software or other materials that may have

been programmed into your unit. It is likely that such data, soft-

ware, or other materials will be lost during service and Universal

Remote Control will not be responsible for any such damage or

loss. A dated purchase receipt, Bill of Sale, Installation Contract or

other verifiable Proof of Purchase is required. For product support

and other important information visit Universal Remote Control’s

website: http://www.UniversalRemote.com or call the Customer

Service Center (914) 835-4484.

This Limited Warranty only covers product issues caused by defects

in material or workmanship during ordinary consumer use. It does

not cover product issues caused by any other reason, including but

not limited to product issues due to commercial use, acts of God,

third-party installation, misuse, limitations of technology, or modifi

-cation of or to any part of the Universal Remote Control product.

This Limited Warranty does not cover Universal Remote Control

products sold as USED, AS IS, REFURBISHED, so-called “B STOCK”

or consumables (such as batteries). This Limited Warranty is invalid

if the factory-applied serial number has been altered or removed

from the product. This Limited Warranty is valid only in the United

States of America. This Limited Warranty specifically excludes prod-

ucts sold by unauthorized resellers.

MX-780 OWNER’SMANUAL

Indice

Altri manuali Universal Remote Control Telecomando universale

Universal Remote Control

Universal Remote Control Complete Control MRF-260 Manuale utente

Universal Remote Control

Universal Remote Control UR4-DSR Manuale utente

Universal Remote Control

Universal Remote Control URC-L-1870 Manuale utente

Universal Remote Control

Universal Remote Control Osiris MX-3500 Manuale utente

Universal Remote Control

Universal Remote Control CLIKR-5 UR5L-8700L Manuale utente

Universal Remote Control

Universal Remote Control Easy Clicker OCE-0009D Manuale utente

Universal Remote Control

Universal Remote Control 4 Function DTV Remote Control Manuale utente

Universal Remote Control

Universal Remote Control BW-1220US Manuale utente

Universal Remote Control

Universal Remote Control omega MX-650 Manuale utente

Universal Remote Control

Universal Remote Control CLIKR-5 UR5U-8700L-IP Manuale utente

Universal Remote Control

Universal Remote Control Atlas M1055 Manuale utente

Universal Remote Control

Universal Remote Control UR2-DTA Manuale utente

Universal Remote Control

Universal Remote Control POWERBLASTER MRF100B Manuale utente

Universal Remote Control

Universal Remote Control Easy Clicker UR3L-SR4 Manuale utente

Universal Remote Control

Universal Remote Control total control TRC-780 Manuale utente

Universal Remote Control

Universal Remote Control ORION MX-850 Manuale utente

Universal Remote Control

Universal Remote Control UR-S86TVE Manuale utente

Universal Remote Control

Universal Remote Control CLIKR-5 UR5U-8700L Manuale utente

Universal Remote Control

Universal Remote Control PHAZR -5 UR5U-9000L Manuale utente

Universal Remote Control

Universal Remote Control Complete Control MX-880 Manuale utente

Universal Remote Control

Universal Remote Control Easy Clicker UR2-211 Manuale utente

Universal Remote Control

Universal Remote Control COMPLETE CONTROL MX-880Z Manuale utente

Universal Remote Control

Universal Remote Control UR4-DSR Manuale utente

Universal Remote Control

Universal Remote Control UR4-DSR Manuale utente

Manuali Telecomando universale popolari di altre marche

Pronto

Pronto Peel Manuale utente

GE 24929 Manuale utente

Radio Shack

Radio Shack Wireless Remote Control System Manuale utente

AUVIO

AUVIO Universal Home Theater Remote Manuale utente

Philips

Philips Icon SRU4106 Manuale utente

THOMSON

THOMSON ROC4309 Manuale utente

Philips

Philips pm625S Manuale utente

GE RM94931 Manuale utente

RCA

RCA RCU600WMS - Universal Remote Control Manuale utente

Blackweb

Blackweb BWB17AV002 Manuale utente

Marmitek

Marmitek DoorGuard 300 Manuale utente

Chunghop

Chunghop RM-L618 Manuale utente

GE RM24965 Manuale utente

Anderic

Anderic KTN828 Manuale utente

Sunwave Tech.

Sunwave Tech. Touch Screen Remote Control Manuale utente

Medion

Medion E74023 Manuale utente

intensity

intensity RM02A Manuale utente

GE RM24950 Manuale utente
