TRC-780 Owner’s Manual

The information in this manual is copyright protected. No part of this manual

may be copied or reproduced in any form without prior written consent

from Universal Remote Control, Inc.

UNIVERSAL REMOTE CONTROL, INC. SHALL NOT BE LIABLE FOR OPER-

ATIONAL, TECHNICAL OR EDITORIAL ERRORS/OMISSIONS MADE IN

THIS MANUAL.

The information in this manual may be subject to change without prior

notice.

URC - Control the Experience is a registered trademark of Universal Remote

Control, Inc.

All other brand or product names are trademarks or registered trademarks

of their respective companies or organizations.

500 Mamaroneck Avenue, Harrison, NY 10528

Phone: (914) 835-4484 Fax: (914) 835-4532

TABLE OFCONTENTS

Congratulations! 1

Displaying the Settings Screen 2

Color Screen 2

Button Light 3

System 4

Button Beep 4

Date/Time 5

Erasing and Resetting 5

Join to Network 6

Specifications 6

USA Limited Warranty Statement 7

Federal Communication Commission

Interference Statement 9

Regulatory Information to the user 10

Declaration of Conformity 11

Page 1

TRC-780 OWNER’SMANUAL

Congratulations!

You’ve purchased a unique synthesis of hardware and software engi-

neering, the Total Control TRC-780. The TRC-780 achieves a magnifi-

cent combination of power and flexibility by simplifying and

automating the operation of even the most complex systems.

The MRX-10 controller is required to make the TRC-780 work. The

combination of the TRC-780 and MRX-10 create a robust and power-

ful system.

Backlit Color OLED Screen Buttons

When any button is pressed, the color OLED screen as well as the

remote buttons light up. Once the screen is lit, each of the six buttons

on either side of the screen will have a label. These button labels

change based on what you are watching or listening to. Thus, if you

have selected Watch TV, you will see a list of buttons that are useful

to that activity. If you are listening to your iPod through a PSX-2, you

will be able to browse the iPod content.

RF “No Rules” Operation

The TRC-780 communicates directly to the MRX-10 via 2.4 GHz

bidirectional RF. This gives the TRC-780 the ability to control your

system without being in direct line of sight of the equipment.

Your custom installer may have installed a ZR-1 Repeater to improve

communication between the TRC-780 remote controls and the

MRX-10 in your system.

Replacing the Batteries

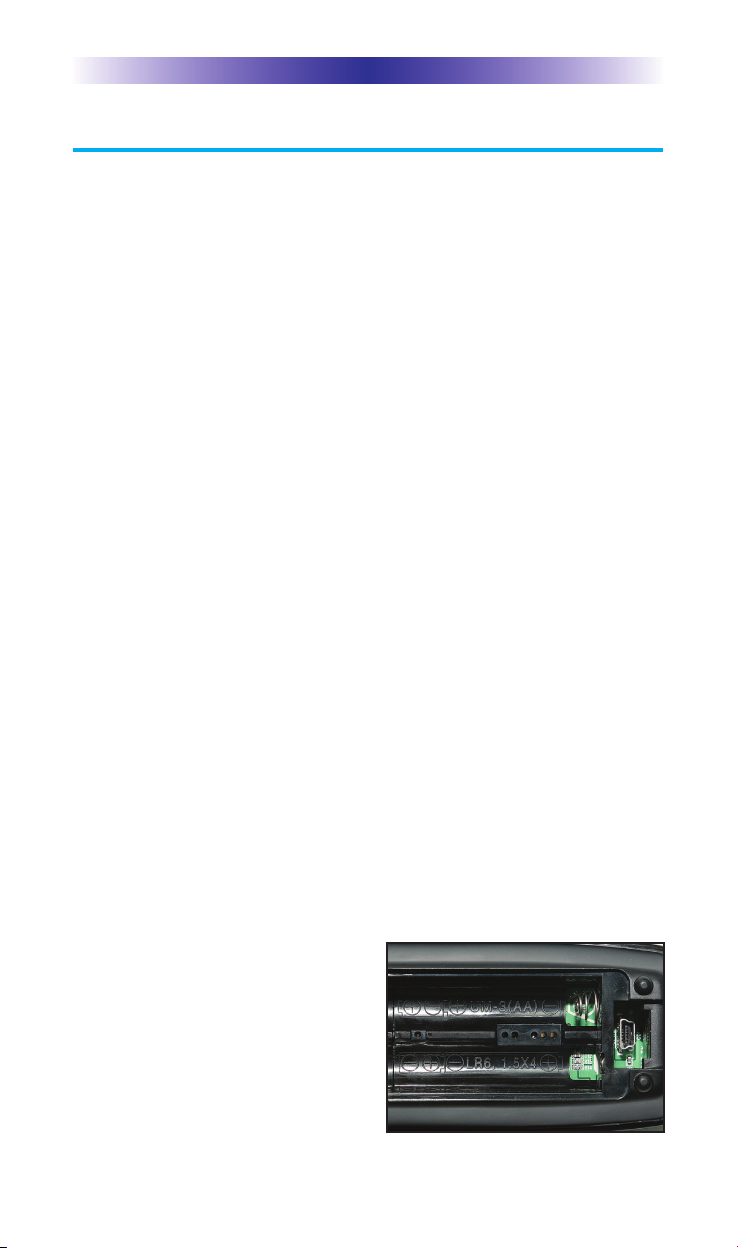

Unlock the battery cover by pushing up on the spring lock at the

bottom of the cover. Remove the cover.

Observe the + and – polarity indi-

cators inside the battery compart-

ment and the batteries. Place the

four AA batteries into their posi-

tions in the battery compartment.

Now, replace the battery cover and

snap it into place.

Page 2

TRC-780 OWNER’SMANUAL

Displaying the Settings Screen

You can adjust settings of the TRC-780 whenever

you like by pressing and holding the MAIN + ENT

button for three seconds. When you do the screen

will change to the Settings Menu. If you do not press

any button on the Settings screen, the TRC-780 will

beep signifying a time-out after 30 seconds and

return to the previous setting or main screen.

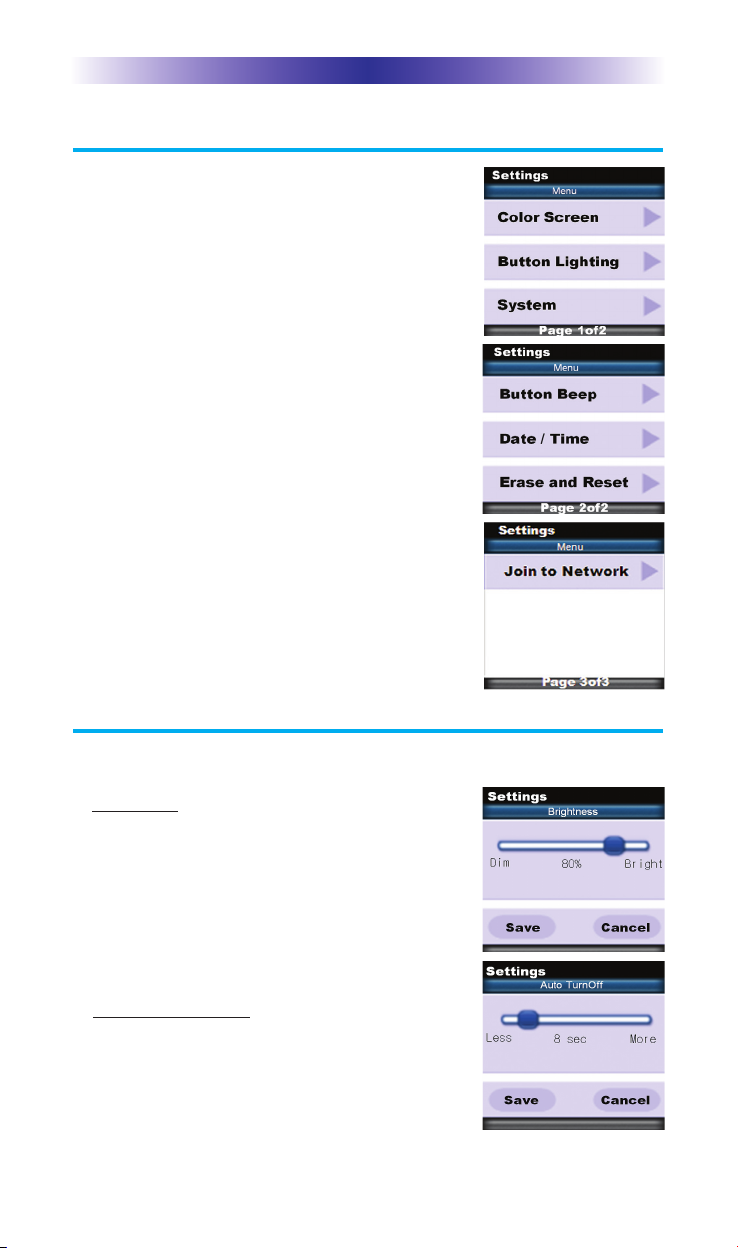

There are two pages of Settings screens. To access

the other page, press either of the page buttons.

To select a setting, press the corresponding button.

To go back a step or to get out of the settings screen,

press either the MAIN button or the EXIT button on

the TRC-780.

Color Screen

Color screen settings give two configurable options.

1. Brightness: Adjust the screen brightness by

pressing the screen buttons on the left and right

side of the slider bar. Once the brightness is

adjusted, press the Save button.

Pressing the Cancel button will revert to the

remotes last saved brightness setting.

Note: The higher the brightness, the faster the

batteries will deplete.

2. Automatic Turn Off: Adjust the duration the

OLED screen will stay illuminated after a button

is pressed. Pressing the left and right screen

buttons, next to the slider bar, will change how

long the OLED screen will stay on.

Pressing the Less side will decrease the time in

TRC-780 OWNER’SMANUAL

steps down to a minimum time of 5 seconds.

Pressing the More side will increase the time in

steps up to a maximum of 60 seconds. Once the

setting is adjusted, press the Save button. Pressing

the Cancel button will revert the remote’s Automatic

Turn Off setting to the last saved setting.

Note: The longer the OLED screen stays on, the faster

the batteries will deplete.

Button Light

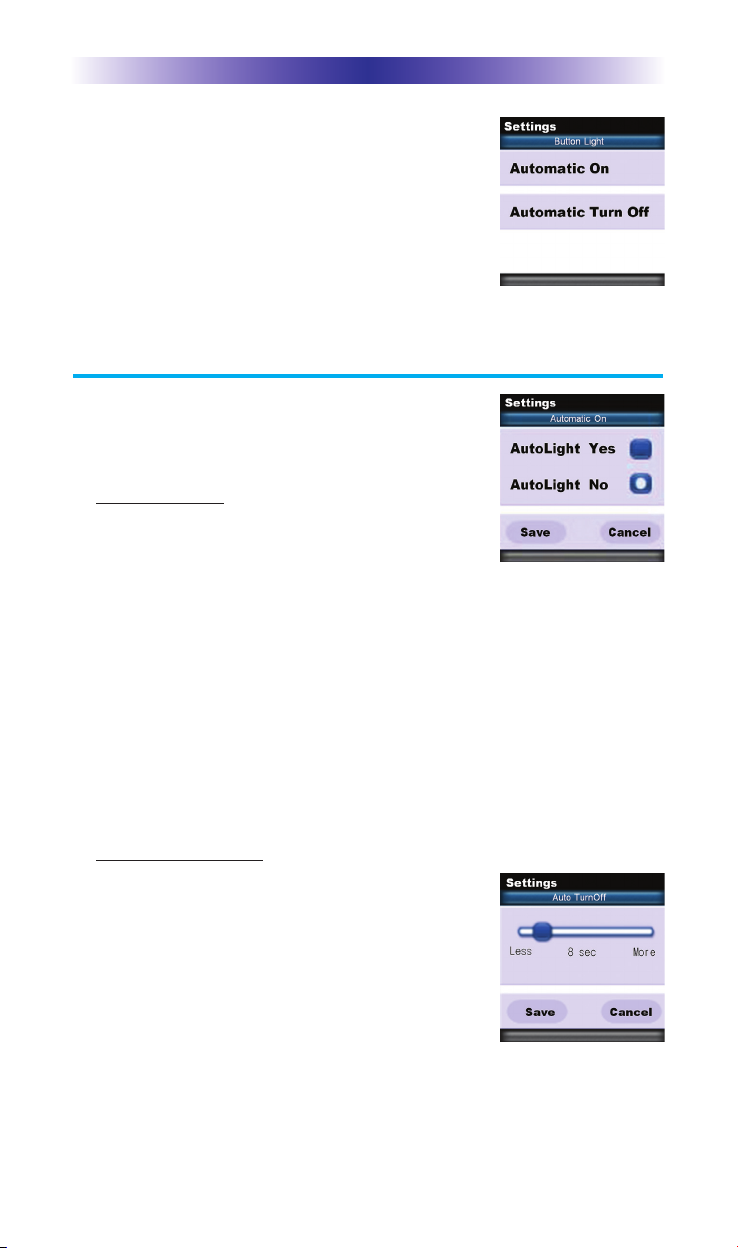

The Button Light settings page provides two

configurable options for how the TRC-780’s

hard buttons should behave.

1. Automatic ON: Adjusting this setting will

control when the hard button backlight

turns on.

a. Automatic Light Yes: Every time a

button is pressed the button back light will automati-

cally turn On.

b. Automatic Light No: The only way to turn on the hard

button back-light is to press the dedicated Lights button

located on the right side of the remote control.

Once all changes have been made, press the Save button.

Pressing the Cancel button will revert to the remotes last saved

setting.

Note: The more often the back light turns On, the faster the

batteries will deplete.

2. Automatic Turn Off: You can adjust the amount of time the back-

light will remain after a button is pressed.

Press the left and right screen buttons next

to the slider bar to change the duration.

Pressing the Less side will decrease the time

in steps down to a minimum of 5seconds.

Pressing the More side will increase the time

in steps up to a maximum of 60 seconds.

Once the setting has been adjusted, simply

press the Save button. Pressing the Cancel button will revert to

the remote’s last saved Automatic Turn off setting.

Note: The longer the backlight stays on, the faster the batteries

will deplete.

Page 3

Page 4

System

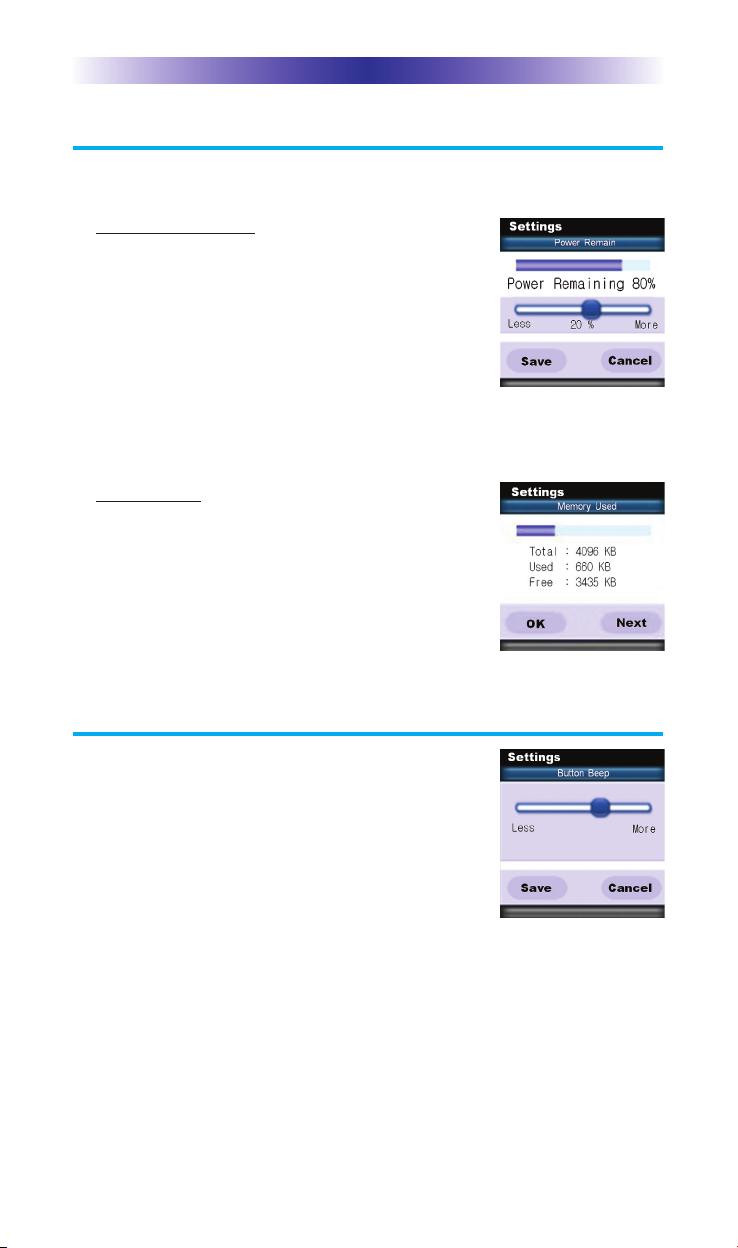

The System Settings page provides two options.

1. Power Remaining: This option shows you

how much battery life is remaining. You

can adjust when the low battery warning

screen will appear by pressing the screen

buttons to the left and right of the slider bar.

The battery indicator will blink when the

batteries are low and need to be replaced.

Once the setting is adjusted, press

the Save button. Pressing the Cancel button will revert to the

remotes last saved Power Remaining setting.

2. System Info: The System Info screen dis-

plays data about the TRC-780’s memory

usage, and operating system version.

Pressing the Next screen button will take

you to the Operating System information,

and pressing the Prev button will take you

back to the System Memory information.

Button Beep

Use the screen buttons to the left and right of

the slider bar to adjust the button sound.

Once the setting is adjusted, press the Save

button. Pressing the Cancel button will revert

to the remotes last saved button beep setting.

TRC-780 OWNER’SMANUAL

Page 5

TRC-780 OWNER’SMANUAL

Date/Time

The Date and Time are automatically sent from the

MRX-10 to the TRC-780. If you would like to

adjust the date or time you can do so on the

remote control. Note: Any Date or Time adjust-

ment made on the TRC-780 will automatically go

out to all the other remotes and keypads in the

system.

1. Change Date: Tap the button beside Day, Month,

or Year, then use the numeric keypad to enter

in the new date information. When you are

finished, press the Save button.

2. Change Time: Tap the button beside Hour of

Minutes, then use the numeric keypad to enter

in a new time. Set AM/PM by toggling the

button. When you are finished, press the Save

button.

3. Display Date/Time: The TRC-780 can display

either the Date or Time, but not both.

Select which one you would like to display.

Press the screen button next to Date or Time.

Once you are finished, press the Save button.

Erasing and Resetting

WARNING! Only use this button when instructed by Technical

Support. It resets the memory of the TRC-780 to

the factory condition. All your programming

will be lost!

To set the remote to its factory default setting,

press "Erase." A secondary screen opens and

requires your confirmation.

TRC-780 OWNER’SMANUAL

Join to Network

This feature is only used by the installer at the

remote's initial setup. You will only need to

access this screen if directed by your installer or

technical support. Press the main button to exit

the Join to Network screen. If you do not press a

button, it will timeout after 5 minutes.

Specifications

Microprocessor: ARM7TDMI

RAM: 8Mbit SRAM

FLASH: 32Mbit Nor FLASH

Display: 1.46” PMOLED (128 x 128)

IR Range (Line of Sight via Infrared): 30-50 feet, depending on the

environment

RF Range (radio frequency): 50 to 100 feet, depending upon the

environment

RF Frequency: 2.45GHz (Two-way RF)

Provides: 2-Way communication with MRX-10 (or higher) network

system controller.

Weight: 8.5 oz. (with battery)

Size: 8.7”H x 2.2”W x 1.3”D

Battery Life: 18 Hours of continuous button pressing with back-

lighting and LCD ON (months of use for most users).

Users should expect some variation based on the

brand of alkaline batteries used.

Note: In actual use, the TRC-780 protects itself if it gets stuck

between couch cushions (with a button being continuously

pressed). After 30 seconds the TRC-780 will turn off, and will

not turn on again until the button is released.

Page 6

TRC-780 OWNER’SMANUAL

Page 7

USA Limited Warranty Statement

Your Universal Remote Control, when delivered to you in new con-

dition, is warranted against defects in materials or workmanship as

follows: UNIVERSAL REMOTE CONTROL, INC. warrants this prod-

uct against defects in material or workmanship for a period of one

(1) year and as set forth below. Universal Remote Control will, at its

sole option, repair the product using new or comparable rebuilt

parts, or exchange the product for a comparable new or rebuilt

product. In the event of a defect, these are your exclusive reme-

dies.

This Limited Warranty covers only the hardware components pack-

aged with the Product. It does not cover technical assistance for

hardware or software usage and it does not cover any software

products whether or not contained in the Product; any such soft-

ware is provided “AS IS” unless expressly provided for in any

enclosed software Limited Warranty.

To obtain warranty service, you must deliver the product, freight

prepaid, in its original packaging or packaging affording adequate

protection to Universal Remote Control at the address provided in

the Owner’s Manual. It is your responsibility to backup any macro

programming, artwork, software or other materials that may have

been programmed into your unit. It is likely that such data, soft-

ware, or other materials will be lost during service and Universal

Remote Control will not be responsible for any such damage or

loss. A dated purchase receipt, Bill of Sale, Installation Contract or

other verifiable Proof of Purchase is required. For product support

and other important information visit Universal Remote Control’s

website: http://www.UniversalRemote.com or call the Customer

Service Center (914) 835-4484.

This Limited Warranty only covers product issues caused by defects

in material or workmanship during ordinary consumer use. It does

not cover product issues caused by any other reason, including but

not limited to product issues due to commercial use, acts of God,

third-party installation, misuse, limitations of technology, or modifi

-cation of or to any part of the Universal Remote Control product.

This Limited Warranty does not cover Universal Remote Control

products sold as USED, AS IS, REFURBISHED, so-called “B STOCK”

or consumables (such as batteries). This Limited Warranty is invalid

if the factory-applied serial number has been altered or removed

from the product. This Limited Warranty is valid only in the United

States of America. This Limited Warranty specifically excludes prod-

ucts sold by unauthorized resellers.

Altri manuali per total control TRC-780

Indice

Altri manuali Universal Remote Control Telecomando universale

Universal Remote Control

Universal Remote Control UR5-8400A Manuale utente

Universal Remote Control

Universal Remote Control 4 Function DTV Remote Control Manuale utente

Universal Remote Control

Universal Remote Control Easy Clicker OCE-0009D Manuale utente

Universal Remote Control

Universal Remote Control Total Control TRC-1280 Manuale utente

Universal Remote Control

Universal Remote Control POWERBLASTER MRF100B Manuale utente

Universal Remote Control

Universal Remote Control UR3-J22TWM Guida per l'amministratore

Universal Remote Control

Universal Remote Control Complete Control MX-880 Manuale utente

Universal Remote Control

Universal Remote Control Complete Control MX-810 Manuale utente

Universal Remote Control

Universal Remote Control BW-1220US Manuale utente

Universal Remote Control

Universal Remote Control UR4-DSR Manuale utente

Universal Remote Control

Universal Remote Control Customizer URC-300 Manuale utente

Universal Remote Control

Universal Remote Control omega MX-650 Manuale utente

Universal Remote Control

Universal Remote Control CLIKR-5 UR5U-8500 Manuale utente

Universal Remote Control

Universal Remote Control UR4U-MDVR2 Manuale utente

Universal Remote Control

Universal Remote Control Complete Control MX-780 Manuale utente

Universal Remote Control

Universal Remote Control WR7 Manuale utente

Universal Remote Control

Universal Remote Control CLIKR-5 UR5U-8700L-IP Manuale utente

Universal Remote Control

Universal Remote Control COMPLETE CONTROL MX-880Z Manuale utente

Universal Remote Control

Universal Remote Control PHAZR -5 UR5U-9000L Manuale utente

Universal Remote Control

Universal Remote Control MX-890 Manuale utente

Universal Remote Control

Universal Remote Control CLIKR-5 UR5U-8700 Manuale utente

Universal Remote Control

Universal Remote Control UR-S86TVE Manuale utente

Universal Remote Control

Universal Remote Control CLIKR-5 UR5L-8700L Manuale utente

Universal Remote Control

Universal Remote Control CLIKR-5 UR5U-8700L Manuale utente

Manuali Telecomando universale popolari di altre marche

Pronto

Pronto Peel Manuale utente

GE 24929 Manuale utente

Radio Shack

Radio Shack Wireless Remote Control System Manuale utente

AUVIO

AUVIO Universal Home Theater Remote Manuale utente

Philips

Philips Icon SRU4106 Manuale utente

THOMSON

THOMSON ROC4309 Manuale utente

Philips

Philips pm625S Manuale utente

GE RM94931 Manuale utente

RCA

RCA RCU600WMS - Universal Remote Control Manuale utente

Blackweb

Blackweb BWB17AV002 Manuale utente

Marmitek

Marmitek DoorGuard 300 Manuale utente

Chunghop

Chunghop RM-L618 Manuale utente

GE RM24965 Manuale utente

Anderic

Anderic KTN828 Manuale utente

Sunwave Tech.

Sunwave Tech. Touch Screen Remote Control Manuale utente

Medion

Medion E74023 Manuale utente

intensity

intensity RM02A Manuale utente

GE RM24950 Manuale utente

Universal Remote Control total control TRC-780 Manuale utente

Manuali Telecomando universale popolari di altre marche
