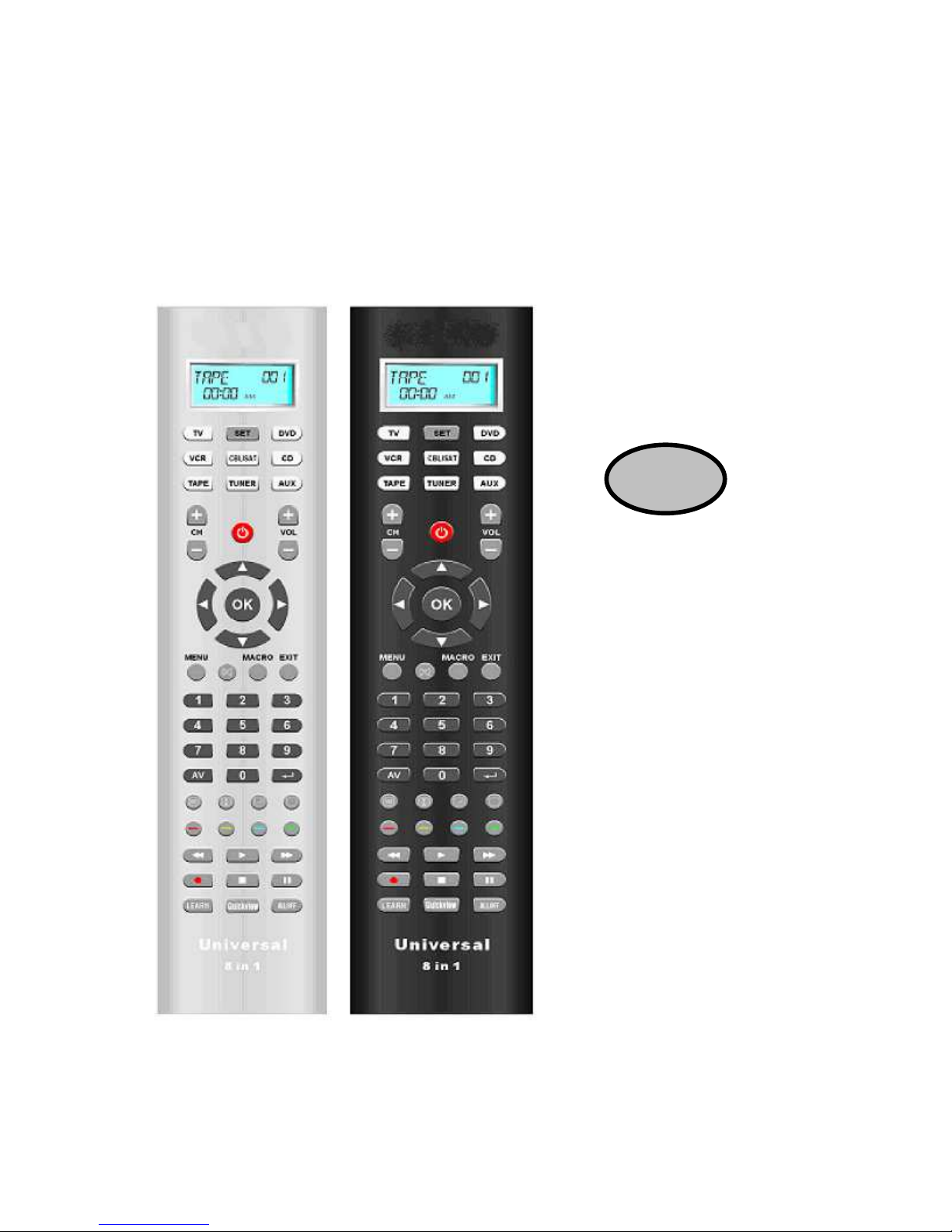

Universal Remote Control URC-L-1870 Manuale utente

URC-L-1870

UNIVERSAL

REMOTE

……………………………………………………………………………………………………

Contents

Introduction -----------------------------------------------------------------------------------3

Battery Installation ------------------------------------------------------------------------4

Function Keys -----------------------------------------------------------------------------------5

Set up Your Remote Control

Set-up by Brand and Code -------------------------------------------------------------------------------6

Set-up by Auto Search -----------------------------------------------------------------------------------6

Learn Function

A. Learn a Command--------------------------------------------------------------------------------------------8

B. Delete a Command-------------------------------------------------------------------------------------------9

C. Delete All Commands in a Device-----------------------------------------------------------------------10

D. Delete All Commands---------------------------------------------------------------------------------------11

Other Set-up

A. Set up Clock ----------------------------------------------------------------------------------------------- 11

B. Volume lock ------------------------------------------------------------------------------------------------ 12

C. Device lock ------------------------------------------------------------------------------------------------- 13

D. Background Adjust --------------------------------------------------------------------------------------- 14

E. Contrast Adjust--------------------------------------------------------------------------------------------- 15

F. All off function----------------------------------------------------------------------------------------------- 15

G. Show view--------------------------------------------------------------------------------------------------- 15

H. Macro function---------------------------------------------------------------------------------------------- 15

I. Delete Macro function------------------------------------------------------------------------------------ 17

J. Device Alternation----------------------------------------------------------------------------------------- 17

Clear All -----------------------------------------------------------------------------------------------18

Need Help? ------------------------------------------------------------------------------------------19

Device Brand Code List

TV ------------------------------------------------------------------------------------------------------

VCR ------------------------------------------------------------------------------------------------------

CBL/SAT ------------------------------------------------------------------------------------------------------

CD -------------------------------------------------------------------------------------------------------

DVD ------------------------------------------------------------------------------------------------------

TAPE -------------------------------------------------------------------------------------------------------

TUNER -------------------------------------------------------------------------------------------------------

AUX ------------------------------------------------------------------------------------------------------

……………………………………………………………………………………………………

Introduction

Thank you for purchasing the URC20-F15DL universal remote control. It has 8

direct device buttons with LCD screen and features the largest infrared code library on

the European market. Based on our (patent pending) creative design, it has the easiest

and fastest way to “set up directly” by brand name and code no. through the LCD

screen even without the manual book.

The URC20-F15DL universal remote control covers almost all brands of

Televisions (TV), DVD-players (DVD), DVR-players (DVD), DVB (CBL/SAT), (digital)

Satellite receivers (CBL/SAT), Cable box (CBL/SAT), Video Recorders (VCR), Tuner

receivers (TUNER), Tape receivers (TAPE), CD-players (CD), Audio amplifiers (AMP)

and other Audio (AUX). It can operate all main functions of your devices.

You can also use “Auto Search” to scan the code library in case of you can’t find

your device brand in the list.

Besides, URC20-F15 can “learn” a new code from an original remote control to

supplement the codes in case of code shortage.

“Show View” function scans all channels for you to have a program quick view.

“All off” function can switch off all your devices with one button.

“Macro” function makes several sequent operations with one button for your home

theater

“Volume lock” can fix VOL+/VOL- button to control only the amplifier for your home

theater.

“Device lock” can prevent the device from being reset until you unlock it.

URC20-F15 has backlight for LCD screen and separate device backlight to show you

the currently working device.

“Low battery indication” reminds you when needed to replace the batteries.

“Device Alternation” allows you to set up any device to AUX. E.g. you can set up a

TV code to AUX and then you will have 2 TV device keys.

All the set up data will be stored in “back up memory” permanently, you don’t need to

be worry about data loss when you replace battery.

The F15DL also has “real time clock” to show your time and AM or PM.

All above mentioned functions show you the URC20-F15D is a advanced, very

powerful LCD universal remote control. Please read this user manual carefully prior to

using you new LCD remote control.

Code Assignment

Bank for Device Initial code Total of codes

TV TV 042 372

VCR VCR 115 170

CBL/SAT Satellite, Cable, DVB 045 323

DVD DVD, DVR 006 127

CD CD 098 120

TUNER TUNER 075 103

TAPE TAPE 083 133

AUX AMP, LD 030 178

……………………………………………………………………………………………………

Battery Installation

This remote control needs 2 AAA batteries to work with. Fresh Alkaline batteries are

strongly recommended. To install the batteries:

1. Turn the remote over, and lift the battery cover off.

2. Insert the batteries, matching the batteries to the (+) and (-) marks inside the

battery compartment.

3. Slide the battery cover back into place.

Notice 1. Whenever the batteries needed replacement, the LCD remote will indicate this on the

screen with a message. Please replace the new batteries now.

2. All data you have set up into the unit will be stored in memory even you take off the

batteries, but you may need to set the clock again.

Security- and disposal references for batteries:

- Batteries are not included in the delivery!

- Keep children away from batteries. If batteries are being swallowed accidentally,

consult a doctor immediately!

- Never bypass batteries.

- Please pay attention to the right polarity (+) and (-) of the batteries! Always

replace both batteries at once; do not use old and new batteries together or

batteries of different types at the same time.

- Do not open batteries, deform or recharge them!

- There is a risk of injury, in case of leaking batteries!

- Do not throw batteries into the fire.

- Danger of exploding is existent.

- Take exhausted batteries out of the device immediately.

- Take the batteries out of the device, if you do not use it for a long period of time.

With reference to environmental protection:

Packing materials are raw materials and can be used again.

Keep packing materials separate. For more information about recycling contact your local

administration.

Old devices do not belong in the domestic refuse!

Dispose of old devices responsibly, and contribute to environmental protection.

Your local administration will inform you about collecting points and opening times.

Old batteries do not belong in the domestic refuse!

Dispose of old batteries accordingly and contribute to environmental protection.

Your local administration will inform you about collecting points and opening times.

Maintenance

Protect the remote control from dirt. Do not use solvents or other aggressive detergents.

Clean the case with a damp cloth and dry it well afterwards.

Note:

In case of leaking batteries, wipe the battery compartment with a cloth. Do not insert

new batteries straightaway.

……………………………………………………………………………………………………

Function Keys

For you start to set up the remote control

or show you the status in LCD

The number keys operate the

same as on your original

remote control, and maybe also

used for entering device codes

when set up.

Let you select the device you

want to control.

Works like the Menu or OSD (on-

screen display)

or Memory key on your original remote control

Turns the device on or off.

Control the volume like the Volume

Up and Down on your original remote

control.

Works like the UP,DOWN,LEFT,RIGHT

OK key on your ori

ginal remote control for

menu function. But during set up mode they

are used for cursor, confirm and exit to

program your remote control only.

Works like the Channel Up and Down

keys on your original remote control.

Mute the sound

Let you make sequent o

perations for you home

theater.

Works like the TV/Video key on

your original TV remote, select

the input for TV.

Works like the Enter

on your

original remote.

For TV Fastext.

Television video, TV and text

mixed, Teletext mode, Page

hold

REW (fast reverse), PLAY

(operate your DVD,CD ect.),

FFWD (fast forward), REC

(Record), Stop

(Terminate your

operation), PAUSE (Pause the

function and standby)

Scans all channel for your

program quick view.

Switches off all your devices

with one button only.

Learnin

g function to import

instructions from other remote

control

Ends the entry

……………………………………………………………………………………………………

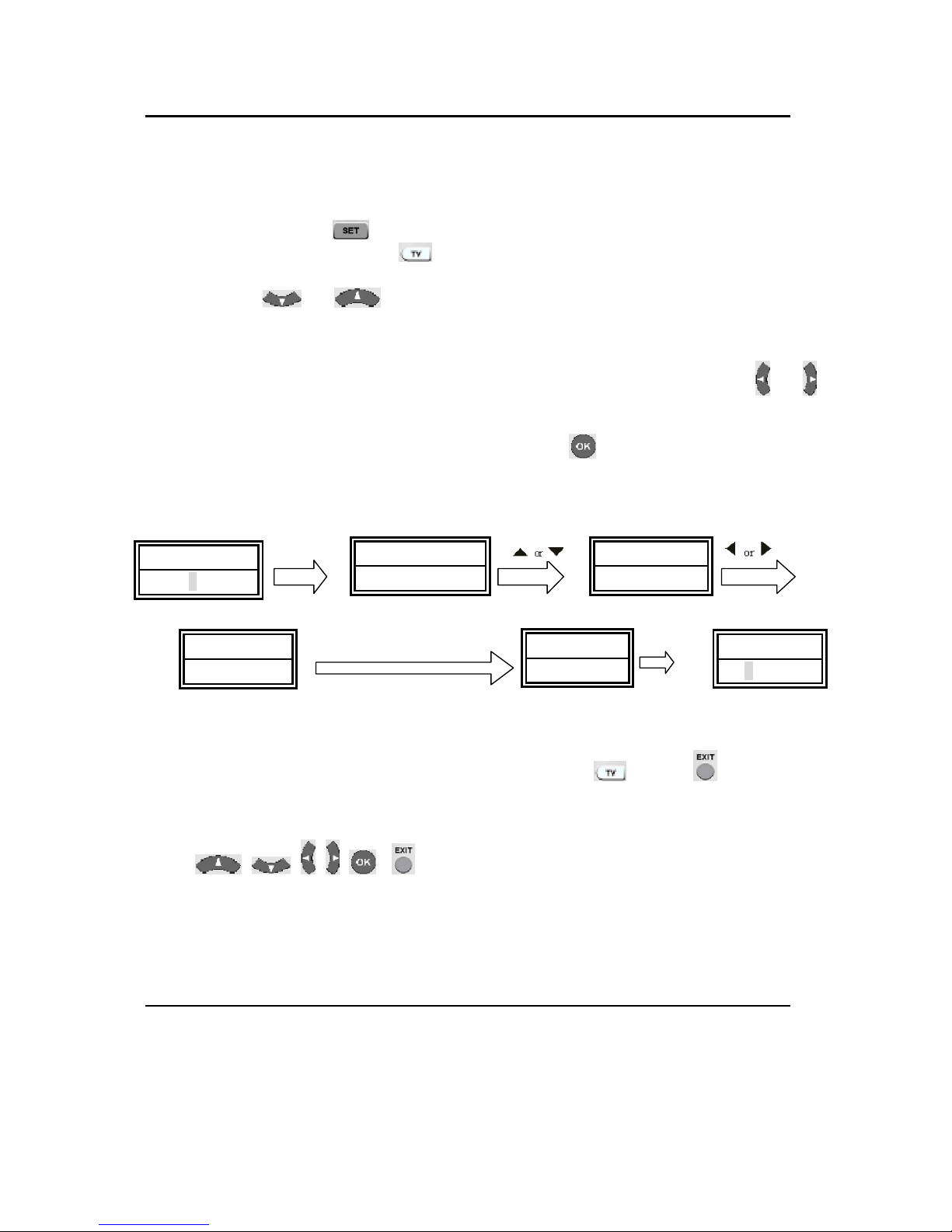

Direct Set Up (by Brand and Code)

This revolutionary method lets you directly choose the brand and code in LCD screen,

simply set up your remote control even without manual book.

1.Turn on the device (e.g. your television set) you would like to operate. If it is a VCR,

please insert a tape.

2.Press and hold the key on your remote control. Then press (simultaneously)

a desired device keys (e.g. )

3.Then release them, the brand will be displayed on the screen.

4.Press the or key to select the brand of your device (e.g. your TV

brand: Philips)

5.Check the function of the keys. If none of the keys of your new remote control can

work, or most of the keys work improperly, please try other code by the or

key to choose, until all basic functions operated properly.

6.If you are satisfied with the code, just press the key to save it. LCD shows

“SUCCESS” and then finishes the set up.

SET+TV

i f s a t i s f i e d , p r e s s O K

Remark:

1. To terminate set up, please press .any device (e.g. ) key or key.

2. You must point your remote control to the device that you want to control when

you test the keys.

3. ,only used to program your new remote control

during set up. You can’t control your device as normal menu function at this

moment until you finish set up.

4. If the device is locked, you must first unlock the device then set up.

Set-up by Auto Search

In case of the set-up by Brand and Code failed or you can’t find the brand name in

your remote control screen, you may use the Auto Search to find the correct code to

operate your device.

1. Turn on the device (e.g. television) you would like to operate. If it is a VCR,

please insert a tape.

T V

10:45 A M

P H I L I P S

001

A C C E N T

023

SUCCESS

P H I L I P S

016

T V 0 1 6

1 1 : 4 5 A M

……………………………………………………………………………………………………

2. Press the key on your new remote control for more than 3 seconds. Then

release it.

3. Press the or keys to select to “CODE SET UP” in LCD menu,

and press the key.

4. The screen shows “DEV SEARCH” in the LCD menu, press the key to

confirm. Then press your desired device key (e.g. key) and then press

the key to start the Auto Search (you must point your remote control to

your device during the search).

5. See if the device reacts or not, once the device reacts, press any key to stop the

search.

6. Test if most of keys work good or not. If most keys work not good enough,

please repeat step 4~5.

7. If you satisfy the reactive code, please press the key to save it and LCD

shows “SUCCESS” then show “DEV SEARCH”. You can press device key (e.g.

)again to finish set up or use or to select other set up.

SET 3S

DVD

Press any key to stop the search check function

s, if satisfied, press OK

Remark:

1. In case of you did not stop the search on time when device being reacted, you may

press the or key to search back to find the passed code.

2. The keys of ,are only used to set-up your new remote control

during the Auto Search, you can’t control your device for menu function at the

moment until you finished set up.

T V 0 1 0

1 1 : 4 5 A M

C O D E S E T U P D E V S E A R C H

T V 0 1 0 D V D 0 1 4

D V D 0 1 3

D V D 0 3 5

SUCCESS

……………………………………………………………………………………………………

3. When remote control searches through all codes, the remote control will stop at the

beginning code of the search.

4. If the device is locked, you must first unlock the device then set up.

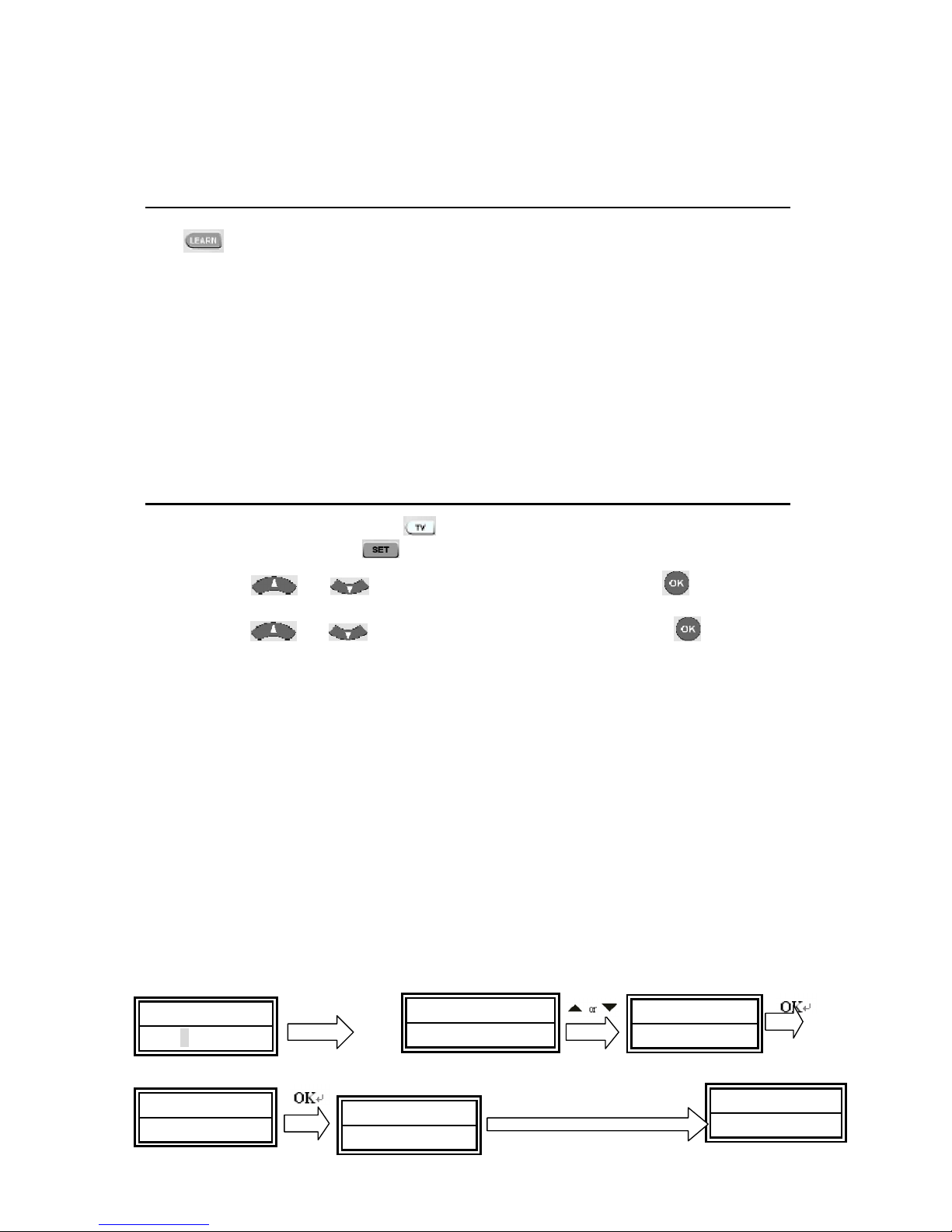

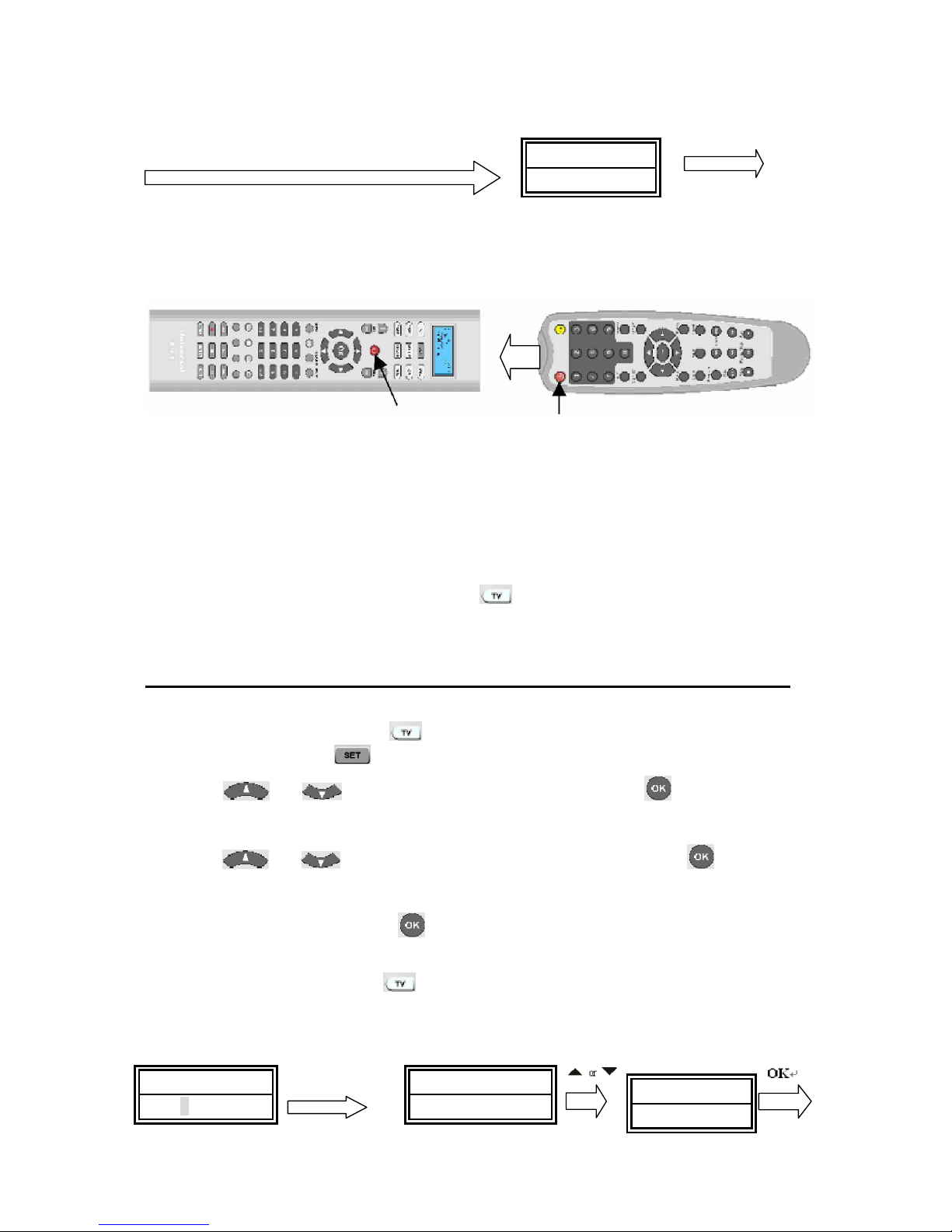

Learn

The function is used to supplement the preprogrammed code list. The standard

code list may provide most of functions needed, but you can add a small number of

additional functions on your URC20-F15D. Or you can add a new code from a new

original remote control which is shortage in the code list.

In learn mode, you must prepare a another original remote control where you will take

codes from and add into your URC20-F15DL.

You can select “LEARN KEY” to learn commands, or “DELETE KEY” to delete learnt

commands, or choose “DELETE DEV” to delete all learnt commands under a

device,or “DELETE ALL” to delete all learnt commands in the remote control.

Learn a Command

1 Press a device key (e.g. key) where you want to learn into.

2 Press and hold the key for more than 3 seconds, and then release it.

3 Scroll or key to “LEARNING”, then press the key.

4 Scroll or key to “LEARN KEY”, then press the key. The LCD

shows “SELECT KEY”.

5 Select a (target)key where you want to learn into (e.g. Power key). The LCD

shows “WAITING”, it is waiting for your source IR signal. (If you don’t send a IR

signal in 30s, LCD will show “FAILED” and then show “SELECT KEY” again.).

6 Point the transmitter of the original (source) remote control to the receiver

window of URC20-F15DL by approximately 30mm apart. Refer to below

drawing.

7 Press and hold a source key (e.g. Power key) from the original remote control

until the LCD display “S U C C E S S ”. If LCD shows “F A I L E D ”, please repeat

steps 4-6.

8. Repeat steps 4-6 to learn more other keys.

S E T 3 S

Press a target key e.g. ³Power

T V 0 1 0

1 1 : 4 5

C O D E S E T U P L E A R N I N G

WA I T T T I N G

L E A R N K E Y S E L E C T K E Y

……………………………………………………………………………………………………

Press a source key from original remote, e.g. ³Power´

Remark:

1. A selected target key can be multi learnt from different sources keys,

URC20-F15D will store the final learnt signal only.

2. All usual function keys can be learnt except ALL OFF, Show View and Macro etc..

3. Some code form may not be learn by this remote control.

4. You can learn about 100 keys totally for 8 device key.

5. You may press any device key (e.g. key) to finish the learn operation. But

you can’t quit when LCD shows “WAITING” until it’s ended.

Delete a Command

If you like to delete a learnt command, you can follow the steps as below:

1. Press the device key (e.g. key) where you like to delete command from.

2. Press and hold the key for more than 3 seconds, and then release it.

3. Scroll or key to “LEARNING”, then press the key and the LCD

shows “LEARN KEY”.

4. Scroll or key to “DELETE KEY ” and then press the key.

5. Press the key on URC20-F15DL that you want to delete, the LCD shows “SURE

DELET” and then press the key to confirm, the LCD will show “SUCCESS”.

6. Repeat step 4 to delete other key if you want.

7. Press a device key (e.g. key) to quit the delete operation when all desired

commands are deleted.

S E T 3 S

SUCCESS

C O D E S E T U PT V 0 1 0

1 1 : 4 5

L E A R N I N G

Target Key Source Key

Original Remote ControlReceiver window

……………………………………………………………………………………………………

Select a key you want to delete d delete next key

Delete All Command in a Device

If you want to delete all learnt commands in a device with one operation in stead of

deleting every key one by one, please follow the below steps:

1. Press a device key (e.g. key) where you want to delete commands.

2. Press and hold the key for more than 3 seconds, and then release it.

3. Scroll or key to “LEARNING”, then press the key and the LCD

display

“LEARN KEY”.

4. Scroll or key to “DELETE DEV” and then press the key. The LCD

shows “SELECT DEV”

5. You select the device key (e.g. key) want to delete.

6. The LCD shows “SURE DELET” , press the key to confirm, the LCD shows

“SUCCESS”, then shows“SELECT DEV”.

7. Repeat step 4-5 to delete commands for other device key.

8. Press to quit current operation.

S E T 3 S

Device key

L E A R N K E Y S E L E C T K E Y

D E L E T E K E Y

SURE DELET S U C C E S S

C O D E S E T U PT V 0 1 0

1 1 : 4 5

L E A R N I N G

L E A R N K E Y S E L E C T D V E

D E L E T E D E V

S U C C E S SSURE DELET S E L E C T D V E

Indice

Altri manuali Universal Remote Control Telecomando universale

Universal Remote Control

Universal Remote Control Complete Control MX-810 Manuale utente

Universal Remote Control

Universal Remote Control BW-1220US Manuale utente

Universal Remote Control

Universal Remote Control Universl Remote Manuale utente

Universal Remote Control

Universal Remote Control Easy Clicker UR2-211 Manuale utente

Universal Remote Control

Universal Remote Control PHAZR -5 UR5U-9000L Manuale utente

Universal Remote Control

Universal Remote Control CLIKR-5 UR5U-8500 Manuale utente

Universal Remote Control

Universal Remote Control omega MX-650 Manuale utente

Universal Remote Control

Universal Remote Control Complete Control MX-780 Manuale utente

Universal Remote Control

Universal Remote Control CLIKR-5 UR5U-8700 Manuale utente

Universal Remote Control

Universal Remote Control Complete Control MX-880 Manuale utente

Universal Remote Control

Universal Remote Control MX-890 Manuale utente

Universal Remote Control

Universal Remote Control CLIKR-5 UR5U-8700L-IP Manuale utente

Universal Remote Control

Universal Remote Control UR3-J22TWM Guida per l'amministratore

Universal Remote Control

Universal Remote Control Unifier URC-100 Manuale utente

Universal Remote Control

Universal Remote Control CLIKR-5 UR5U-6200L Manuale utente

Universal Remote Control

Universal Remote Control COMPLETE CONTROL MX-450 Manuale utente

Universal Remote Control

Universal Remote Control POWERBLASTER MRF100B Manuale utente

Universal Remote Control

Universal Remote Control UR4-DSR Manuale utente

Universal Remote Control

Universal Remote Control UR4-DSR Manuale utente

Universal Remote Control

Universal Remote Control UR-S86TVE Manuale utente

Universal Remote Control

Universal Remote Control UR5-8400A Manuale utente

Universal Remote Control

Universal Remote Control MRF-260i Manuale utente

Universal Remote Control

Universal Remote Control MX-350 Manuale utente

Universal Remote Control

Universal Remote Control 4 Function DTV Remote Control Manuale utente

Manuali Telecomando universale popolari di altre marche

Pronto

Pronto Peel Manuale utente

GE 24929 Manuale utente

Radio Shack

Radio Shack Wireless Remote Control System Manuale utente

AUVIO

AUVIO Universal Home Theater Remote Manuale utente

Philips

Philips Icon SRU4106 Manuale utente

THOMSON

THOMSON ROC4309 Manuale utente

Philips

Philips pm625S Manuale utente

GE RM94931 Manuale utente

RCA

RCA RCU600WMS - Universal Remote Control Manuale utente

Blackweb

Blackweb BWB17AV002 Manuale utente

Marmitek

Marmitek DoorGuard 300 Manuale utente

Chunghop

Chunghop RM-L618 Manuale utente

GE RM24965 Manuale utente

Anderic

Anderic KTN828 Manuale utente

Sunwave Tech.

Sunwave Tech. Touch Screen Remote Control Manuale utente

Medion

Medion E74023 Manuale utente

intensity

intensity RM02A Manuale utente

GE RM24950 Manuale utente
