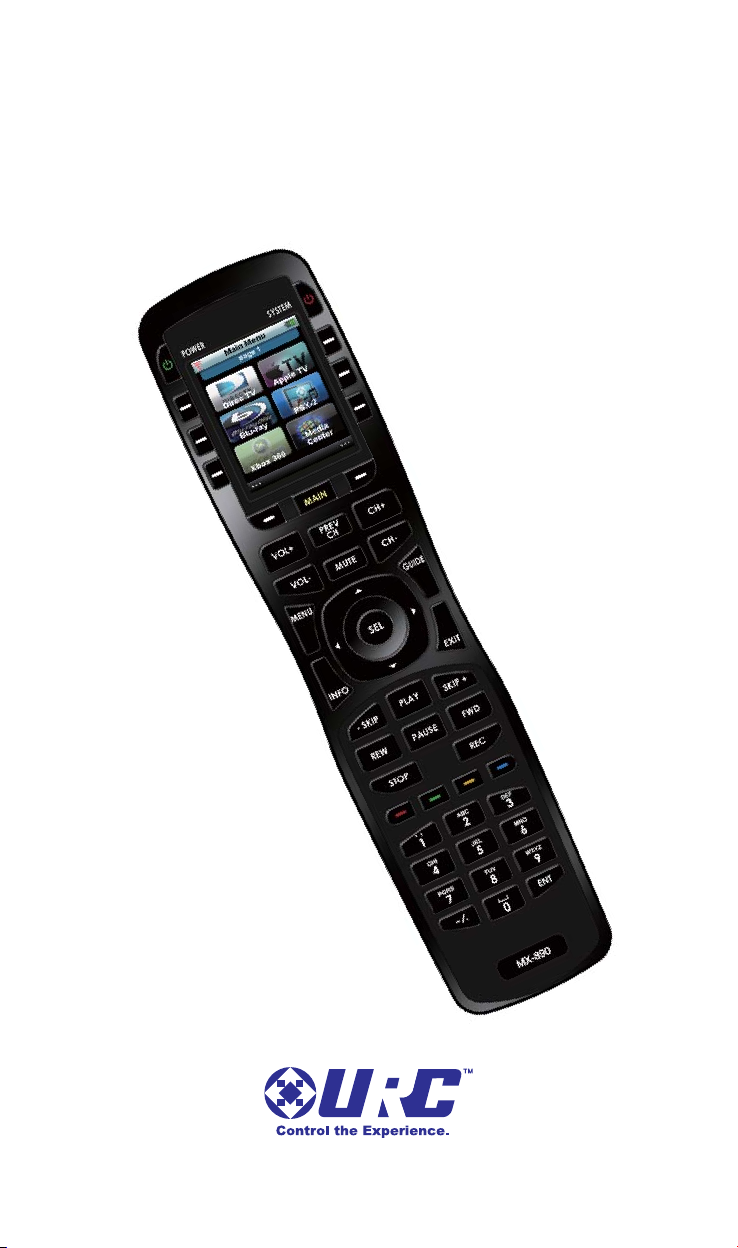

Universal Remote Control MX-890 Manuale utente

MX-890 Color LCD Screen

Owner’s Manual

500 Mamaroneck Avenue, Harrison, NY 10528

Phone: (914) 835-4484 Fax: (914) 835-4532

This remote control was Custom Programmed for you by:

For questions about your Custom Programming call:

Custom Programming of a complex home theater and/or a multi-room

system is one of the most challenging tasks within an audio/video

installation. It involves an intimate knowledge of how the components

interact and exact details on the proper sequences of control.

Only a Complete Control dealer has the requisite experience and training

to quickly and effectively customize a remote control for true automated

operation.

Congratulations on your choice!

The information in this manual is copyright protected. No part of this manual may be

copied or reproduced in any form without prior written consent from Universal

Remote Control, Inc.

UNIVERSAL REMOTE CONTROL, INC. SHALL NOT BE LIABLE FOR OPERATIONAL,

TECHNICAL OR EDITORIAL ERRORS/OMISSIONS MADE IN THIS MANUAL.

The information in this manual may be subject to change without prior notice.

Complete Control is a registered trademark of Universal Remote Control, Inc.

All other brand or product names are trademarks or registered trademarks of their

respective companies or organizations.

TABLE OFCONTENTS

Congratulations! 1

Using the MX-890 2

Connecting the Battery Pack 3

Using the Charging Base 3

Resetting the MX-890 3

Displaying the Settings Screen 4

Sleep Settings 5

System 5

Brightness 5

Power 6

Button Light 6

Date and Time 6

Sound 7

Pickup Settings 7

Factory Default 7

Exit 7

Maintaining Your MX-890 8

Specifications 8

USA Limited Warranty Statement 9

Federal Communication Commission

Interference Statement 11

MX-890 COLOR LCD SCREEN

Page 1

Congratulations

Thank you for purchasing the Complete Control MX-890 color LCD

screen universal remote control. This remote can directly control your

devices via IR or wirelessly control your devices throughout the home

using an RF base station. Controlling your home is simple with the

MX-890 remote.

Brilliant 2" color LCD screen with pickup sensor

The MX-890 has a programmable 2” color LCD screen. When the

remote is picked up, the color LCD screen as well as the remote

buttons, will light up.

Control devices using ultra-reliable narrow band RF

The MX-890 can communicate directly to RF base stations, such

as the MRX-1/RFX-250, MRF-350 and the MRF-260. It also natively

communicates to URC Lighting via RF. This gives the MX-890 the

ability to control your system without being in direct line-of-sight.

Identify a remote using Room Labels

Use the included room labels to keep track of each room’s MX-890.

No longer will you have the kitchen remote in the living room; simply

add a room label for easy identification.

Charging Base Included..no need for batteries

There is no need to constantly purchase batteries, just place the

remote on the charging base and recharge the battery...DONE!

Fast setup of complex systems via Complete Control PC Program

To fully automate your audio/video system, the programmer must

have detailed knowledge of each component and how the system is

connected and operated. Only a trained and certified professional

audio/video installer can program an MX-890 remote control in a

timely and efficient manner.

User interface customizable for any activity

Each button is customizable for activities such as Watch TV or

Listen to Radio. These activities can contain multiple commands

(macros) which enable a single button press to turn the needed

devices ON or OFF. Only a trained and certified professional

audio/video installer can program an MX-890 remote control in a

timely and efficient manner.

MX-890 COLOR LCD SCREEN

Using the MX-890

The MX-890's main pages display the activities and devices in your

system. Press the MAIN button to view your devices or the activities

placed here by your custom professional. Large systems may have

more than one page. Press either of the PAGE buttons if you don’t

see all your devices. Press any LCD hard button, to select an activity

or a device. The screen will change to display the buttons you need

for that activity/device. The PAGE buttons may reveal additional

buttons for some devices and activities.

When you would like to control another device, press the MAIN

page button and select a new device button.

The Power button turns

your system ON.

The Volume and Mute

buttons always control

the sound regardless of

what screen is displayed.

Press either of the Page

buttons to see any other

available choices.

The Transport buttons

(Play, Stop, Rec, Skip-,

Skip+, FF, REW and

Pause) operate when the

selected device requires

them. When watching

Cable TV, use the

number keypad to enter

channel numbers. When

listening to a CD, the

number keypad enters

track numbers.

The Channel and

Previous Channel

buttons will change

channels when you

have selected devices

like CABLE.

The Number keypad

enters numbers for the

devices you’ve selected.

When watching Cable TV,

use the number keypad to

enter channel numbers.

When listening to a CD,

the number keypad enters

track numbers.

Page 2

When pressed, these

LCD hard buttons

execute the activity/

command/device on

the associated icon.

The Navigation buttons

enable you to navigate

on screen guides and

menus with ease.

The System button

turns all your

equipment OFF.

The Color buttons work

to control additional

options provided by other

devices like Cable,

Satellite or Blu-Ray.

The Main button accesses

all programmed

activities and devices.

MX-890 COLOR LCD SCREEN

Connecting the Battery Pack

Unlock the rear cover by pressing down on the spring lock at the

top of the cover. Remove the cover. For shipment from the factory,

the battery is left out of the MX-890. Place the battery into the

battery compartment, making sure you align the contacts on the

battery to the contacts on the MX-890. The battery will snap into

place when aligned properly. Replace the cover and snap it into

place.

Using the Charging Base

Plug the 5V adapter into a power outlet and into

the back of the charging base.

Gently place the MX-890 into the cradle of the

charging base. It automatically aligns itself

to the contacts on the charging base.

The Status light should immediately light. Red

indicates that it is charging. Blue shows that it

is fully charged. There is no harm in leaving

the MX-890 on its charging base whenever

it is not in use.

Optionally, the 5V power adapter can be plugged

directly to the bottom of the MX-890.

Resetting the MX-890

Normally, resetting the MX-890 is not necessary. However, if you

notice unusual behavior, press the reset button within the battery

compartment. Press the Reset button to cycle the MX-890’s power

and reboot the unit.

Page 3

Red indicates charging, Blue that

the remote is fully charged.

Page 4

Displaying the Settings Screen

You can enter the Settings menu by pressing and holding the MAIN and

ENT button for three seconds. The MX-890 will timeout after it is idle for

30 seconds and return to the previous setting or Main screen. There are

two pages of Settings screens. Select a setting by pressing a button on the

LCD screen. Press either of the PAGE buttons to access the other page. To

go back a step or to get out of the settings screen, press the MAIN button.

There are two pages of Settings screen. To access the other page, press

either of the PAGE buttons.

MX-890 COLOR LCD SCREEN

Page 2 of the Settings

Screen

Page 1 of the Settings

Screen

Page buttons reveal the

rest of the settings.

MX-890 COLOR LCD SCREEN

Page 5

Sleep Settings

Conserve energy by configuring the MX-890 to

fall a sleep after a specified amount of time. Select

an amount of time by pressing the left or right hard

buttons, to adjust the slide bar.

System

The System Information screen displays data about

your MX-890's operating system, memory etc.

Brightness

Adjust the screen brightness by pressing the left or

right hard buttons to move the slider. Min (minimum)

is the dimmest setting and Max (maximum) is the

brightest setting.

Page 6

MX-890 COLOR LCD SCREEN

Power

You can display the remaining charge by

selecting Power. Press the left or right hard

buttons to move the slider. MIN or MAX adjusts the

timing of the low battery warning notification.

Button Light

You can adjust the brightness of the LEDs that

backlight the buttons of the MX-890. Press the left

hard button to dim or press the right hard button

to brighten the backlighting.

Date and Time

Your MX-890 may have been programmed to

display the date or time on the LCD screen.

If you need to, press the left or right hard buttons to

adjust the time displayed by changing the settings on

this screen.

MX-890 COLOR LCD SCREEN

Page 7

Sound

Adjust the button beep level to Off or Loudest by

pressing the left or right hard buttons.

Pickup Settings

You can set your MX-890 to turn on when

picked up. Adjust the Pickup Sensor by pressing the

associated hard button adjacent to the ON or OFF

check box.

Factory Default

WARNING! Only use this button when instructed

to by Technical Support. It resets the memory of

the MX-890 to the factory condition. All your

programming will be lost! Press and hold the Erase

button to return the remote to its factory condition.

Exit

When you have finished adjusting Settings, simply tap the Exit button to

return to normal operation.

Indice

Altri manuali Universal Remote Control Telecomando universale

Universal Remote Control

Universal Remote Control CLIKR-5 UR5U-8700L-IP Manuale utente

Universal Remote Control

Universal Remote Control UR17E - CODE BOOK Manuale utente

Universal Remote Control

Universal Remote Control ORION MX-850 Manuale utente

Universal Remote Control

Universal Remote Control Complete Control MRF-260 Manuale utente

Universal Remote Control

Universal Remote Control Easy Clicker UR3L-SR4 Manuale utente

Universal Remote Control

Universal Remote Control CLIKR-5 UR5L-8700L Manuale utente

Universal Remote Control

Universal Remote Control MX-350 Manuale utente

Universal Remote Control

Universal Remote Control Osiris MX-3500 Manuale utente

Universal Remote Control

Universal Remote Control CABLEVISION OCE-0027A Manuale utente

Universal Remote Control

Universal Remote Control CLIKR-5 UR5U-8700L Manuale utente

Universal Remote Control

Universal Remote Control WR7 Manuale utente

Universal Remote Control

Universal Remote Control UR4-DSR Manuale utente

Universal Remote Control

Universal Remote Control COMPLETE CONTROL MX-880Z Manuale utente

Universal Remote Control

Universal Remote Control total control TRC-780 Manuale utente

Universal Remote Control

Universal Remote Control Easy Clicker OCE-0009D Manuale utente

Universal Remote Control

Universal Remote Control MX-900 Manuale del proprietario

Universal Remote Control

Universal Remote Control Total Control TRC-1280 Manuale utente

Universal Remote Control

Universal Remote Control Complete Control MX-810 Manuale utente

Universal Remote Control

Universal Remote Control Atlas M1055 Manuale utente

Universal Remote Control

Universal Remote Control Universl Remote Manuale utente

Universal Remote Control

Universal Remote Control Complete Control MX-780 Manuale utente

Universal Remote Control

Universal Remote Control MRF-300/RFX150 Manuale utente

Universal Remote Control

Universal Remote Control Customizer URC-300 Manuale utente

Universal Remote Control

Universal Remote Control AVEX R6 - SPECS SHEET Manuale utente

Manuali Telecomando universale popolari di altre marche

Pronto

Pronto Peel Manuale utente

GE 24929 Manuale utente

Radio Shack

Radio Shack Wireless Remote Control System Manuale utente

AUVIO

AUVIO Universal Home Theater Remote Manuale utente

Philips

Philips Icon SRU4106 Manuale utente

THOMSON

THOMSON ROC4309 Manuale utente

Philips

Philips pm625S Manuale utente

GE RM94931 Manuale utente

RCA

RCA RCU600WMS - Universal Remote Control Manuale utente

Blackweb

Blackweb BWB17AV002 Manuale utente

Marmitek

Marmitek DoorGuard 300 Manuale utente

Chunghop

Chunghop RM-L618 Manuale utente

GE RM24965 Manuale utente

Anderic

Anderic KTN828 Manuale utente

Sunwave Tech.

Sunwave Tech. Touch Screen Remote Control Manuale utente

Medion

Medion E74023 Manuale utente

intensity

intensity RM02A Manuale utente

GE RM24950 Manuale utente
