Uplift Desk STR036 Manuale utente

Desk Extension Mount

STR036 + STR038 or STR039

The Desk Extension can be installed on either the right or left side of your UPLIFT Desk V2 or V2-Commercial frame. These

Instructions apply to both the UPLIFT Desk C-Frame and T-Frame. Note: T-Frame desks are only available in a 30" depth,

C-Frame desks are available in both 24" and 30" depths.

Step 1 - Main Bracket Attachment

• Choose which side of your desk you want to attach the

Desk Extension.

• Orient the Main Bracket with the attachment tabs

on each side of the desk leg as shown and raise the

bracket up so that the desk frame side bracket slides

between the slots in the Main Bracket.

• Align the two holes on each side of the Main Bracket

attachment tabs with the holes in the UPLIFT V2 desk

frame.

• Loosely insert the four M8x10 Flat Head Screws through

the holes in the bracket and into the threaded holes

in the desk frame using the larger 5mm Allen Wrench.

Once all four screws have been started, tighten them

all with the Allen Wrench.

Tray Tray Pad

Main Bracket

U-Bracket

(qty 2)

Support Bracket

Step 2 - U-Bracket Attachment (optional)

If you think you might place more than 30 lbs of weight on

the Desk Extension, continue with this step. If you will not

be placing more than 30 lbs on the Desk Extension, you can

proceed to Step 3.

• Line up one U-Bracket on one side of the Main Bracket

as shown with the desk frame side bracket in the slot

of the U-Bracket. Make sure the larger holes in the

U-Bracket are facing out to accommodate the heads of

the attachment screws.

• Using the larger, 5mm Allen Wrench, loosely insert two

of the M6x10 Socket Head Screws. Once both screws are

started, tighten them securely with the Allen Wrench.

• Repeat this step with the second U-Bracket on the

other side of the Main Bracket.

Package Contents

STR038 - 30" Desk Extension Tray

STR039 - 24" Desk Extension Tray

M8x10 Flat Head Screw

#10x5/8" Wood Screw

M6x8 Flat Head Screw

M6x10 Socket Head Screw

Hex Nut

Allen Wrench

C3 C4 C5

H4a

H1 H2 H3 H5

H4b

C3 C4 C5

H4a

H1 H2 H3 H5

H4b

(qty 4)

(qty 2)

(4 mm and 5 mm)

Package Contents

STRO36 - Desk Extension Mount

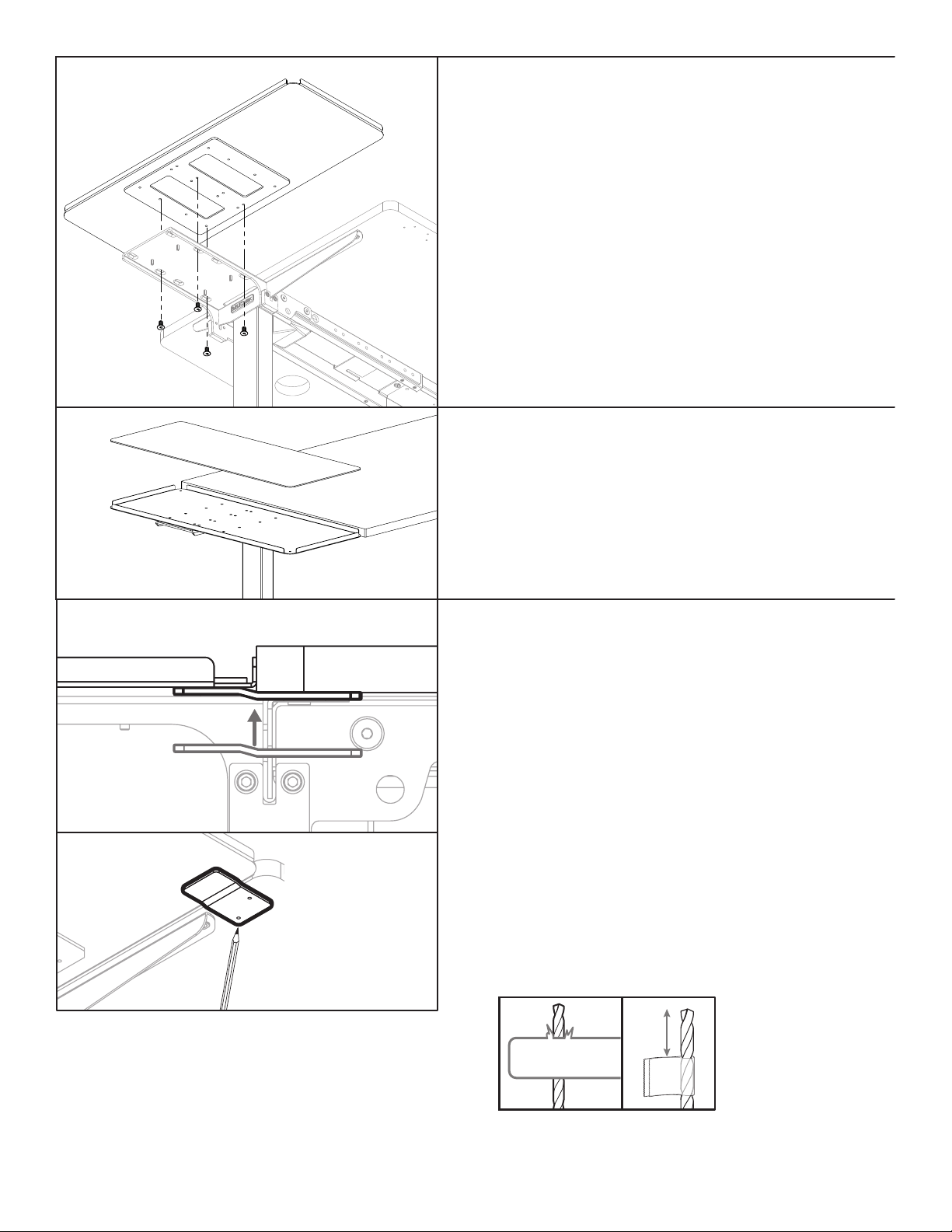

Step 3 - Tray Attachment

A. Place the Tray on top of the Main Bracket and align the

front and back of the Tray with the front and back edges

of the desktop.

Caution: Until the Tray is secured to the Main Bracket

in the following step, be careful to ensure the Tray does

not fall off the bracket causing damage or injury.

B. From the underside of the Tray and Main Bracket, insert

the four M6x8 Flat Head Screws into the four threaded

holes in the Tray that most closely align with the slots in

the bottom of the Main Bracket. Don’t tighten the screws

until the next step.

C. Once all screws have been started, push the Tray against

the side of the desktop so there is no gap and tighten the

screws with the smaller 4mm Allen Wrench.

Step 4 - Tray Pad Application

A. Peel the backing off of the Tray Pad.

B. Align the Tray Pad within the walls of the Tray and press

down to afx to the Tray’s surface. Adhere the pad from

one end to the other to ensure it lays at without bumps

and bubbles.

Step 5 - Support Bracket Attachment (optional)

The Support Bracket is optional and designed for use on

30" deep desktops. If you do not plan on placing excessive

weight towards the front of the Tray or you are installing the

Desk Extension on a 24" deep desktop, you can skip this

step.

A. Line up the Support Bracket just past the front end of

your desk frame side bracket in the orientation shown

with the portion that bends up facing towards the Tray.

B. While holding the Support Bracket in place, make a

pencil mark at each of the two hole locations in the

bracket.

C. Pre-drill holes for the bracket screws where you made

your pencil marks. DRILL NO DEEPER THAN 1/2" deep to

avoid drilling through your desktop. We recommend

wrapping a piece of tape around your drill bit 1/2" from

the tip. Stop drilling just before the tape touches the

desktop.

0.5”

Tape

Tray Desktop

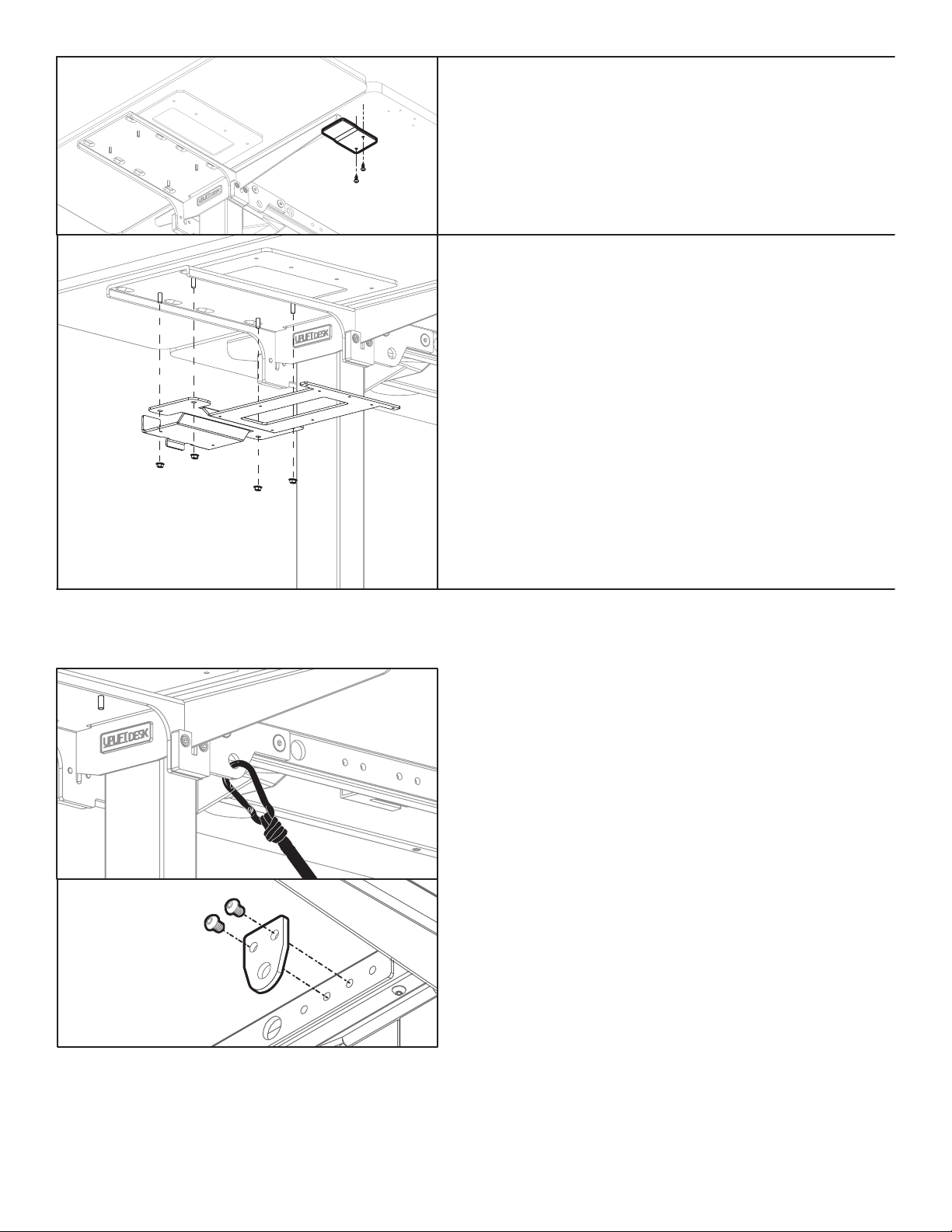

Step 5 (Continued)

D. Realign the Support Bracket holes with the pre-drilled

holes in the desktop and use a Phillips Head Screwdriver

to insert the two #10x5/8" Wood Screws. Be careful to not

over-tighten the screws to avoid stripping.

Step 6 - CPU Holder Adapter Attachment

(optional)

If you have purchased a CPU Holder Adapter (CPU002) and

a CPU Holder (CPU128), follow these assembly instructions.

Otherwise, skip to the next section.

A. Align the four holes on the tabs of the CPU Holder Adapter

with the threaded studs in the Main Bracket of the Desk

Extension with the long end of the CPU Adapter pointing

towards the front of the desk.

B. Install one of the Hex Nuts to each of the threaded studs

and tighten them with an adjustable wrench to x the

CPU Holder Adapter securely in place.

C. Once the CPU Holder Adapter is rmly attached, follow

the instructions included with the CPU Adapter and CPU

Holder for the remainder of the assembly.

Step 7 - Under Desk Hammock Attachment

(optional)

If you have purchased an Under Desk Hammock (ACC042),

follow these instructions. Otherwise, you are done with your

Desk Extension assembly.

Note: The Under Desk Hammock should only be used on

UPLIFT V2 Desks between 72"and 80"wide. It should not

be used with UPLIFT V2-Commercial Desks due to the

lower crossbar included with that frame.

A. Attach the carabiner clip at one end of the Under Desk

Hammock to the accessory mounting points on your

Desk Extension Main bracket as shown.

B. Align one of the Anchor Plates included with your UPLIFT

V2 Frame with two of the mounting points on the side of

the frame opposite the Desk Extension. Attach with two

M8x10 Machine Screws included with your desk frame

and secure with the larger 5mm Allen Wrench.

C. Attach the second carabiner clip at the other end of the

Under Desk Hammock to the Anchor Plate.

D. Refer to the instructions provided with the Under Desk

Hammock for additional information and adjustments.

SAVE THE INSTRUCTIONS

Study this manual carefully. If this product is sold, please provide this

manual to the buyer, installers, or support personnel operating the product.

Work Better. Live Healthier

AI-STR036-1.0

the scope of delivery, even if the item is resold. This guide is also available on the UPLIFT Desk

website: upliftdesk.com. These specications are subject to United States copyright law.

upliftdesk.com

[email protected]

800-349-3839

512-614-3152
