Urmet domus 1083/12 Manuale utente

Configuration guide

System Type A

1083/12 -1083/15 -1083/16

Contents

Introduction

Menu structure

Configuration

Programming proximity access keys

Programming door open codes

Appendix

Contents

Introduction

Menu structure

Configuration

Programming proximity access keys

Programming door open codes

Appendix

Contents

Introduction

Menu structure

Configuration

procedure

Programming proximity access keys

Programming door open codes

Appendix

procedure

Programming proximity access keys

Programming door open codes

procedure

Programming proximity access keys

Programming door open codes

Programming proximity access keys

Page 1

Page

Page 4

Page 12

Page 1

Page

Page 1

Page

Page 4

Page 12

Page 1

Page

Introduction

1083/201083/20 1083/75

System Type A–

One (or up to a maximum of four) ‘Main’ entry panels

i.e. panels which call all apartments in the system.

The apartment numbers are in the range of 1 to 127.

Example 1 -A block of fifty apartments with postal

addresses from 1 to 50

Example 2 -A block of twenty apartments with postal

addresses from 101 to 120.

This programming guide is intended specifically for a particular type of system –System Type A

Page 1

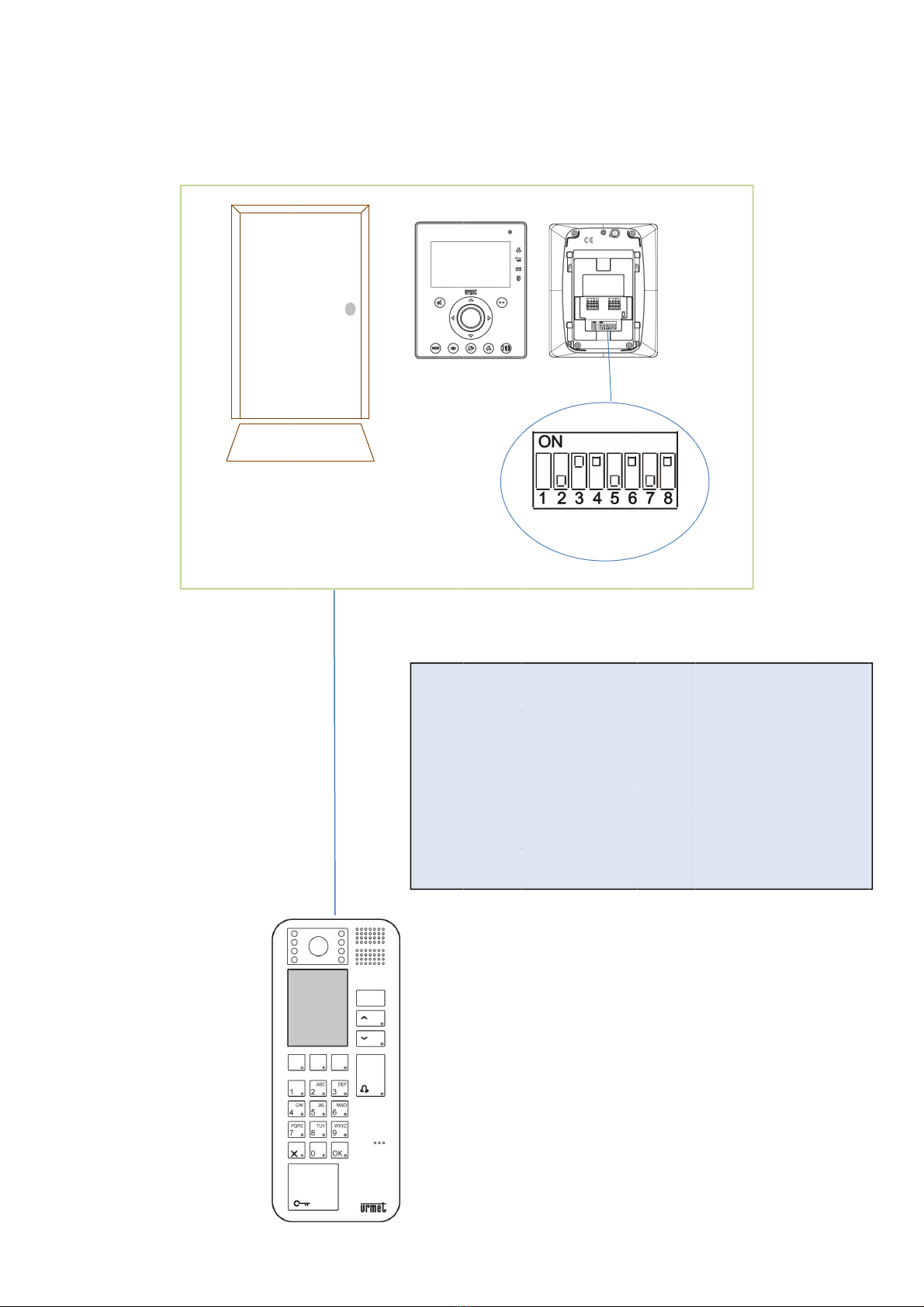

System Type A

on the entry panel, the system will ring the

monitor with the DIP switch setting

In other words the binary address on the monitor

or monitor bracket should be set to the same

number as the apartment postal address.

Page 2

System Type A

on the entry panel, the system will ring the

monitor with the DIP switch setting

In other words the binary address on the monitor

or monitor bracket should be set to the same

number as the apartment postal address.

Page 2

USER 53

System Type A

on the entry panel, the system will ring the

monitor with the DIP switch setting

In other words the binary address on the monitor

or monitor bracket should be set to the same

number as the apartment postal address.

USER 53

when you dial for example

on the entry panel, the system will ring the

monitor with the DIP switch setting

In other words the binary address on the monitor

or monitor bracket should be set to the same

number as the apartment postal address.

USER 53

when you dial for example

on the entry panel, the system will ring the

monitor with the DIP switch setting

In other words the binary address on the monitor

or monitor bracket should be set to the same

number as the apartment postal address.

when you dial for example

on the entry panel, the system will ring the

monitor with the DIP switch setting

In other words the binary address on the monitor

or monitor bracket should be set to the same

number as the apartment postal address.

when you dial for example

on the entry panel, the system will ring the

In other words the binary address on the monitor

or monitor bracket should be set to the same

number as the apartment postal address.

when you dial for example

In other words the binary address on the monitor

or monitor bracket should be set to the same

Menu Structure

LANGUAGE

CONFIGURATION

NAMES

DOOR OPENER

KEYS

RESET

SIMPLIFIED GUI

MODULE TYPE

MULTIRISE

ID PRIMARY MODULE

CODE TYPE

BUSY TIME

STOPABLE

DOOR LOCK 1 RELEASE TIME

DOOR LOCK 1

DOOR LOCK 2 RELEASE TIME

DOOR LOCK 2

PASSWORD

LCD BACKLIGHT

BUTTON SOUND

MULTITOUCH CALL

WELCOME MESSAGE

TIME ZONE

DATE AND TIME

DAY

POSTMAN

VOCAL SYNTHESIS

SWITCHBOARD

NEW

MODIFY

DELETE

DELETE ALL

NEW

MODIFY

DELETE

DELETE ALL

NEW

MODIFY

DELETE

Page 3

Note –It is necessary to pass

through each configuration step

and arrive back at the top level

menu for information to be saved

Configuration procedure

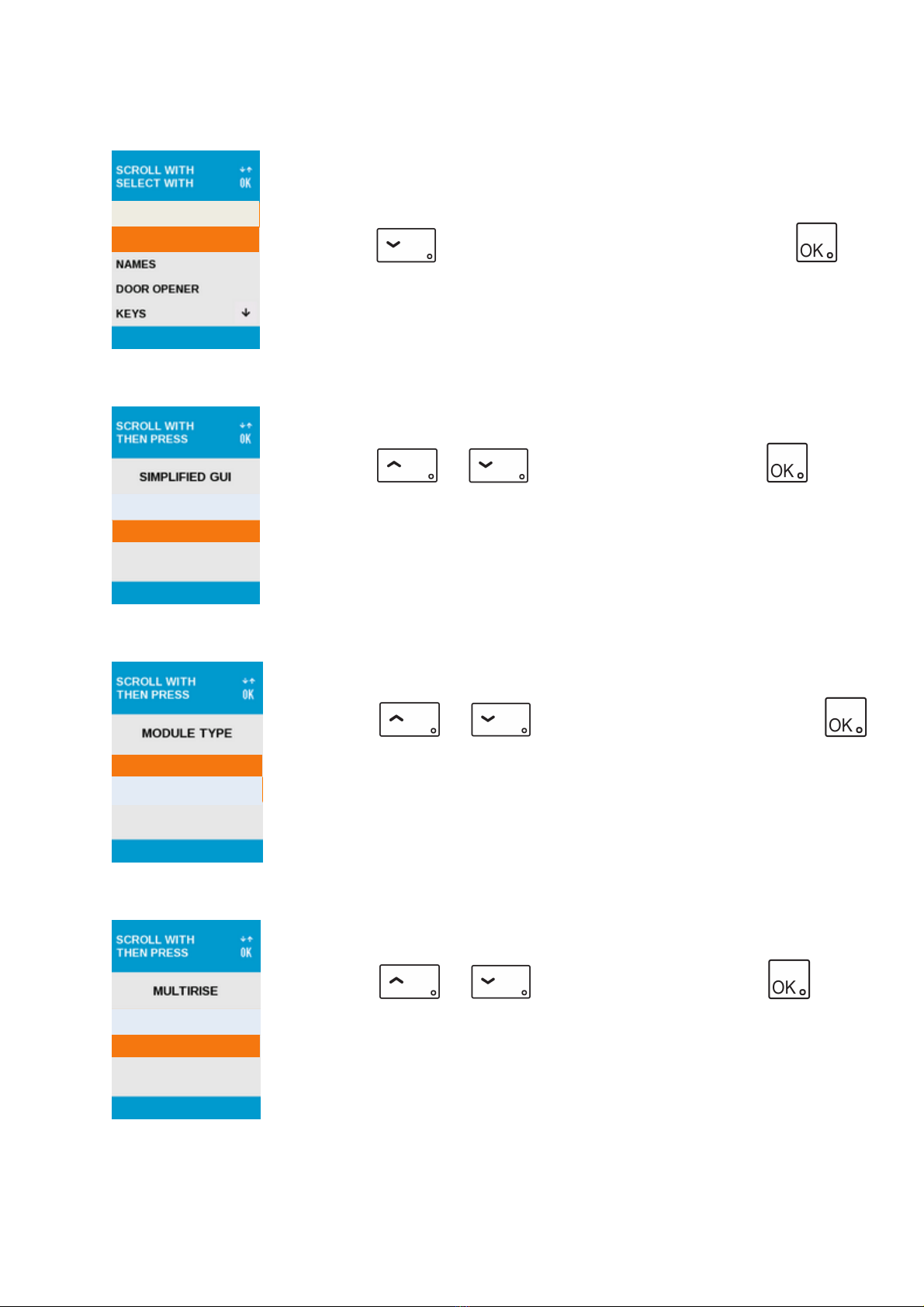

When the unit is first powered the screen is as follows –

On the entry panel keypad press 99999 and you will see this screen –

Enter 1000 (the default password)then press

Use the and buttons to select

LINGUA and press

Use the and buttons to select

ENGLISH UK and press

ENGLISH UK

Page 4

You see this screen –

Press the button to select CONFIGURATION then press

Use the or buttons to select NO and press

YES

PRIMARY

SECONDARY

Use the or buttons to select PRIMARY and press

Use the or buttons to select NO and press

YES

Page 5

CONFIGURATION



LANGUAGE

PHYSICAL

In a system with only one entry panel the ID is always 0. In this case just press .

In a system with two, three or four panels, each must have a different ID.

For example to change the panel ID to 1just press then press

Use the or buttons to select PHYSICAL and press

LOGICAL

It is suggested to keep the default setting by pressing

Page 6

The ID of the panel is determined by where it is connected in the system.

You must refer to the connection diagram of your system for the ID of each panel.

DOOR LOCK 1 RELEASE TIME adjusts the voltage free relay (C NO NC) time

and also the solid state lock release output (SE+ SE-) time.

For example for a time of 10 seconds press 1 0

Choosing FREE means that the door can be opened by the monitor or handset at

any time without the monitor or handset being called.

Choosing SECRET means that the monitor or handset must be called before it can

open the door.

Use the or buttons to make a selection then press

DOOR LOCK 2 RELEASE TIME adjusts the voltage free relay (C NO) time.

For example for a time of 1 second press 1then press

Choosing FREE means that the gate can be opened by the monitor or handset at

any time without the monitor or handset being called.

Choosing SECRET means that the monitor or handset must be called before it can

open the gate.

Use the or buttons to make a selection then press

For an explanation of the three different lock outputs see the appendix

Page 1

Page 7

Change the PASSWORD if required by pressing the button below Cto delete

the current password -

Enter the new password and press

Adjusts the panel display backlight

Use the or buttons to make a selection then press

The entry panel button confirmation beep can be ON or OFF.

Use the or buttons to make a selection then press

Page 8

It is possible that when a number of buttons are pressed at the same time, a

particular monitor or handset can be called, for example a caretaker’s apartment.

If you wish to use this feature enter the apartment address then press .

Otherwise just press
