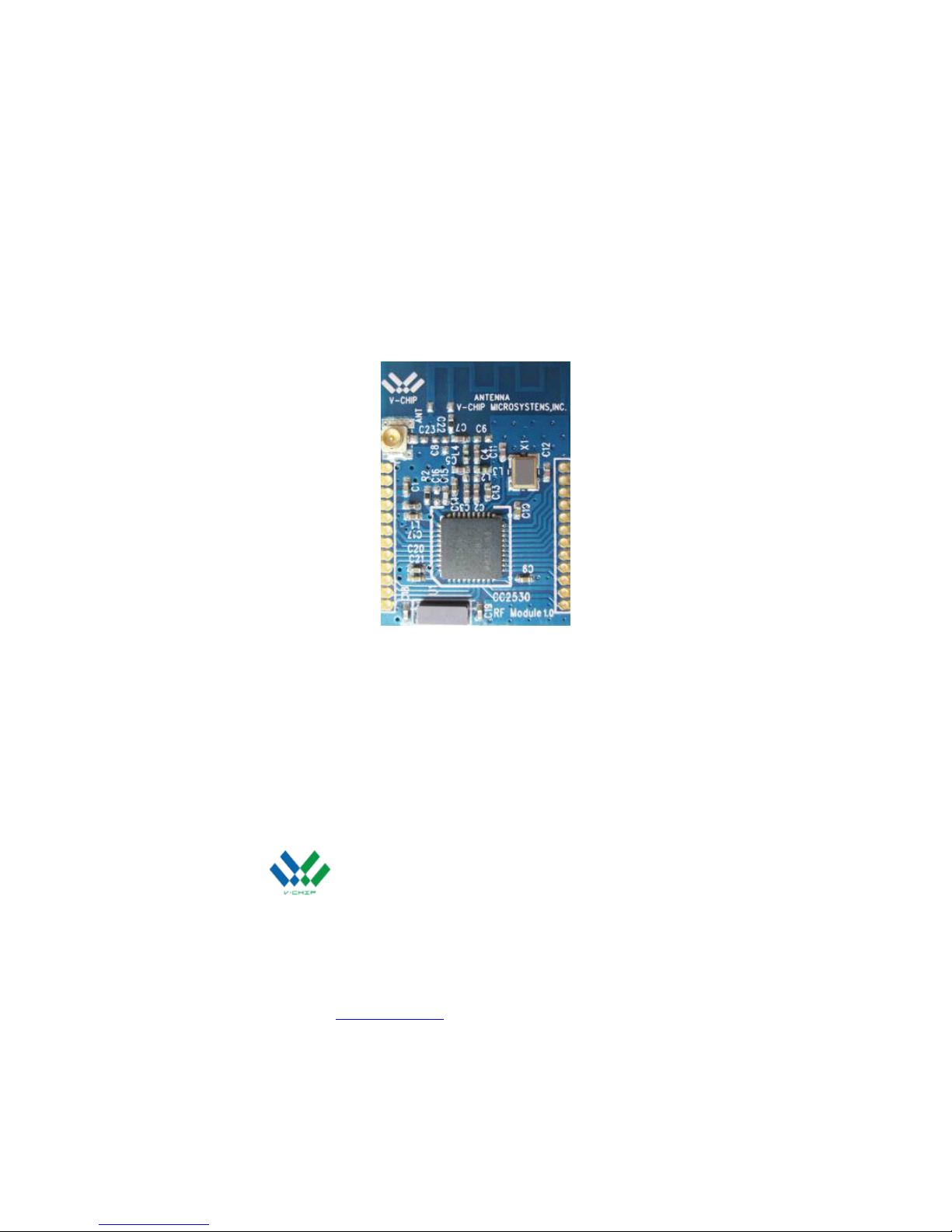

V-Chip Microsystems VT-CC2530-Z1 Manuale utente

VT-CC2530-Z1

VT-CC2530-Z1 Wireless

Wireless

Wireless Module

Module

User

User Guide

Guide

V-CHIP MICROSYSTEMS Co. Ltd

Address: Room 612-613, Science and Technology Service Center Building,

NO.1, Qilin Road, Nanshan District, Shenzhen, Guangdong

TEL ：0755-88844812

FAX ：0755-22643680

E-mail ：sales@digirf.com

Post Code ：518052

Web Site ：www.digiRF.com

COPYRIGHT @ 2012 Shenzhen V-CHIP MICROSYSTEMS Co. Ltd VERSION:

VT-CC2530-APR-2012

VT-CC2530-Z1

General

General Description

Description

VT-CC2530- Z 1 is based on RF Transceiver CC2530 of TI Chipcon, it

’

s a small size and ultra low power UHF

wireless module. CC2530 is a true system-on-chip (SoC) solution for IEEE 802.15.4, ZigBee and RF4CE

applications . It combines RF transceiver with an industry-standard enhanced 8051 MCU

,in-system programmable

flash memory, 8-KB RAM

and many other powerful features . Customer can use it conveniently and reducing your

development time.

Features

Radio

Radio and

and

and Power

Power

�2.4-GHz IEEE 802.15.4 Compliant RF Transceiver

�Excellent receiver sensitivity and robustness to

�Interference, receiver sensitivity reach to -97dBm

�Programmable output power up to 4.5dBm

�Suitable for systems targeting compliance with worldwide

radio-frequency : ETSI

ETSI

ETSI EN

EN

EN 300

300

300 328

328

328 and EN

EN

EN 300

300

300 440

440

440 Class

Class

Class 2

2

2(Europe),

FCC

FCC CFR47

CFR47

CFR47 Part

Part

Part 15

15

15 (US), and ARIB

ARIB

ARIB STD-T66

STD-T66

STD-T66 (Japan)

�Accurate digital RSSI/LQI support

�Data rate: 250kBaud

�Modulation: O-QPSK

�Integrated PCB antenna, other antenna are optional with an IPX

connector

�Active-Mode RX (CPU Idle): 24 mA

�Active Mode TX at 1 dBm (CPU Idle): 29 mA

�Power Mode 1 (4 uS Wake-Up): 0.2 mA

�Power Mode 2 (Sleep Timer Running): 1 uA

�Power Mode 3 (External Interrupts): 0.4 uA

�Wide Supply-Voltage Range (2 V – 3.6 V)

8051

8051 MCU

MCU

MCU and

and

and Peripherals

Peripherals

�Powerful five-channel DMA

�128KB in-system programmable flash, customization 32-,64-,256-KB

�8KB RAM with retention in all power modes

COPYRIGHT @ 2012 Shenzhen V-CHIP MICROSYSTEMS Co. Ltd VERSION:

VT-CC2530-APR-2012

VT-CC2530-Z1

�CSMA/CA hardware support

�AES security coprocessor

�Battery monitor and temperature sensor

�12-Bit ADC with eight channels and configurable resolution

�Two powerful USARTs with support for several serial protocols

�IEEE 802.15.4 MAC timer, general-purpose timers (One 16-Bit, Two 8-Bit)

�32-kHz sleep timer with capture

�Watchdog timer

�21 general-purpose I/O pins (19 × 4 mA, 2 × 20 mA)

�Hardware debug support

Applications

�2.4-GHz

2.4-GHz

2.4-GHz IEEE

IEEE

IEEE 802.15.4

802.15.4

802.15.4 Systems

Systems

�RF4CE

RF4CE

RF4CE Remote

Remote

Remote Control

Control

Control Systems

Systems

Systems (64-KB

(64-KB

(64-KB Flash

Flash

Flash and

and

and Higher)

Higher)

�ZigBee

ZigBee

ZigBee Systems

Systems

Systems (256-KB

(256-KB

(256-KB Flash)

Flash)

�Home/Building

Home/Building

Home/Building Automation

Automation

�Lighting

Lighting

Lighting Systems

Systems

�Industrial

Industrial

Industrial Control

Control

Control and

and

and Monitoring

Monitoring

�Low-Power

Low-Power

Low-Power Wireless

Wireless

Wireless Sensor

Sensor

Sensor Networks

Networks

�Consumer

Consumer

Consumer Electronics

Electronics

�Health

Health

Health Care

Care

COPYRIGHT @ 2012 Shenzhen V-CHIP MICROSYSTEMS Co. Ltd VERSION:

VT-CC2530-APR-2012

VT-CC2530-Z1

General

General Characteristics

Characteristics

Test operating conditions ：Ta=25 ° C ，VCC=3.3V if nothing else stated.

Parameter

Parameter Type

Type

Type Condition/Note

Condition/Note

Operating supply voltage DC 2.0 ～3.6V

Central frequency 2394 －2507 MHz Programmable

Frequency accuracy ± 30KHz

Modulation format O-QPSK

Transmit power ≤4.5dBm Programmable

TX current consumption <29mA Po=1dBm

Receiver sensitivity -97dBm

RX current consumption <24mA

Sleep State current consumption <0.4mA Power Mode 1

Data rate 250kBaud Programmable

Communication distance 100m At open area

Antenna impedance 50ohm

Operating temperature -20 ～+75 ° C

Storage temperature range -40 ～+125 ° C

Dimension 20 mm × 28 mm × 2.4mm See more in PCB description

Note

Note ：

1．The module transmission data rate will affect Transmission distance ,the higher the data rate , the closer the

distance, and the lower the receiving sensitivity .

2．The supply voltage to the module will affect TX power, in the operating supply voltage range, the lower the

voltage, the lower the TX power.

3．The module central frequency will change as the operating temperature change, use it under suggest temperature,

the module can work well.

4．The antenna will strongly affect the communication distance, please select matched antenna and connect it

correctly.

5．The module mount will affect the communication distance.

COPYRIGHT @ 2012 Shenzhen V-CHIP MICROSYSTEMS Co. Ltd VERSION:

VT-CC2530-APR-2012

VT-CC2530-Z1

PCB

PCB Description

Description

Pin Configuration

Configuration

Pin name

name

name Pin

Pin type

type

type Description

Description

VCC Power(Analog) 2.0 V - 3.6 V analog power supply connection.

GND Ground Connect to the system ground.

RESET_N Digital Input Reset, active low

P0_0 Digital I/O CC2530 digital I/O pin P0_0

P0_1 Digital I/O CC2530 digital I/O pin P0_1

P0_2 Digital I/O CC2530 digital I/O pin P0_2

P0_3 Digital I/O CC2530 digital I/O pin P0_3

P0_4 Digital I/O CC2530 digital I/O pin P0_4

P0_5 Digital I/O CC2530 digital I/O pin P0_5

P0_6 Digital I/O CC2530 digital I/O pin P0_6

P0_7 Digital I/O CC2530 digital I/O pin P0_7

P1_0 Digital I/O CC2530 digital I/O pin P1_0

P1_1 Digital I/O CC2530 digital I/O pin P1_1

P1_2 Digital I/O CC2530 digital I/O pin P1_2

P1_3 Digital I/O CC2530 digital I/O pin P1_3

P1_4 Digital I/O CC2530 digital I/O pin P1_4

P1_5 Digital I/O CC2530 digital I/O pin P1_5

P1_6 Digital I/O CC2530 digital I/O pin P1_6

P1_7 Digital I/O CC2530 digital I/O pin P1_7

P2_0 Digital I/O CC2530 digital I/O pin P2_0

P2_1 Digital I/O CC2530 digital I/O pin P2_1

P2_2 Digital I/O CC2530 digital I/O pin P2_2

ANT RF IO Antenna impedance 50 ohm

COPYRIGHT @ 2012 Shenzhen V-CHIP MICROSYSTEMS Co. Ltd VERSION:

VT-CC2530-APR-2012

VT-CC2530-Z1

Configuration

Configuration Registers

Registers

The configuration of CC2530 can be done with software SmartRF Studio7. Complete descriptions of the registers

are given in the CC2530 datasheet. We can provide evaluation board and demo code to the customer to develop

and evaluate the module

’

s capability.

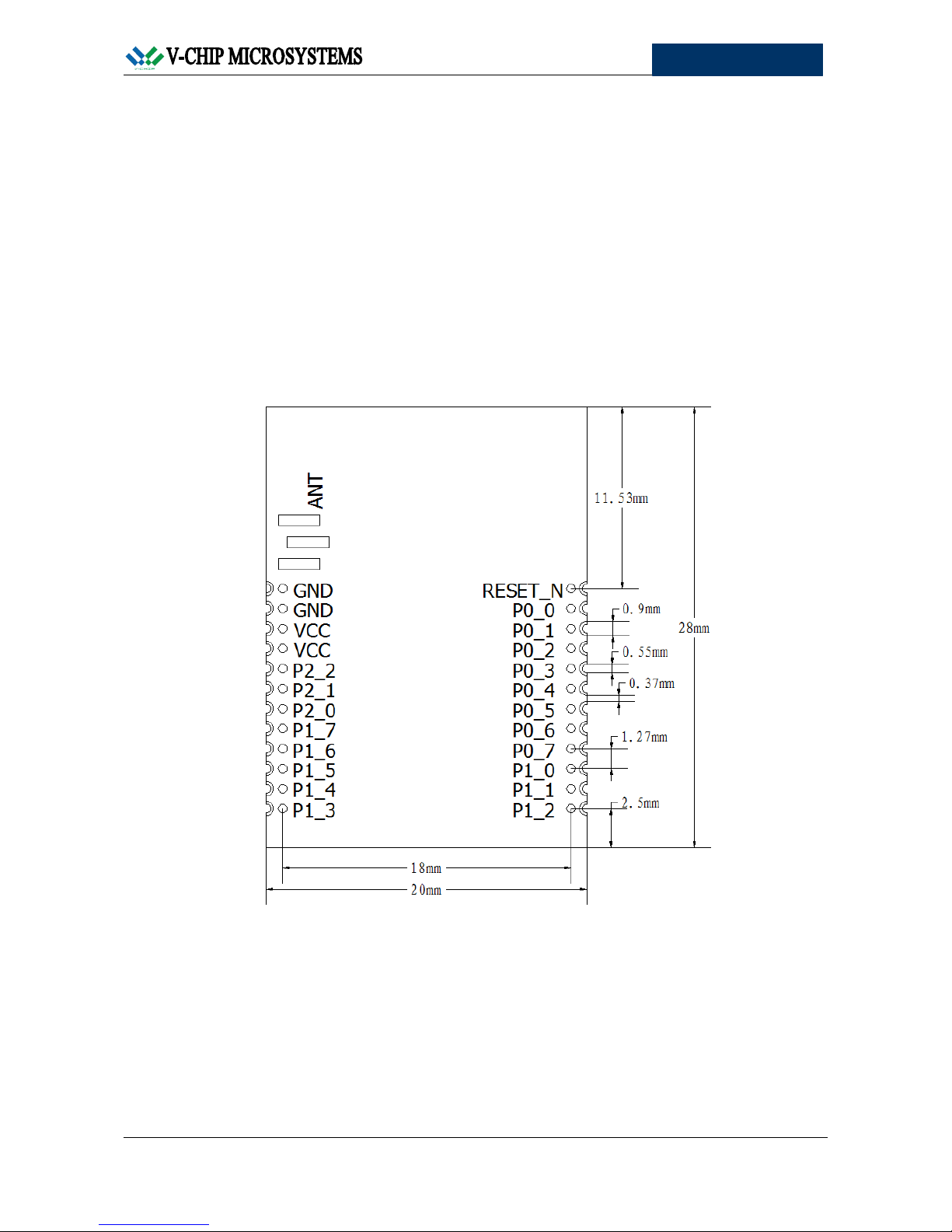

Dimension

COPYRIGHT @ 2012 Shenzhen V-CHIP MICROSYSTEMS Co. Ltd VERSION:

VT-CC2530-APR-2012

VT-CC2530-Z1

Antenna

VT-CC2530-Z1 support PCB antenna and outer antenna with IPEX connector. C22 and C23 are 0 Ohm when used

as jumper to connect two type antenna. For use PCB antenna, there is only need to solder C22. For use outer

antenna, there is only need to solder C23. PCB antenna is standard when the module leaving factory, if there is

some more requirement about use outer antenna, please contact with the sales. Additionally we can coordinate

with you to select antenna, match antenna to the module in order to make the product work well.

Some recommend antennas as the table below.

2.4G

2.4G antenna

antenna

antenna （Optional ）

Characteristic

Characteristic ：small size, good direction,

low cost, embed convenient.

Rubber

Rubber Duck

Duck

Duck and

and

and Tenon

Tenon

Tenon Antenna

Antenna

Antenna and

and

and IPEX

IPEX

connector

（Optional ）

Characteristic

：High gain, IPX connector

extending with ultra coaxial cable, easy to

fix.

SMA

SMA rubber

rubber

rubber antenna

antenna

（Optional ）

Characteristic

：used with IPX-SMA coaxial

cable, medium-scale, low cost, high gain

。

Suit for equipment with iron crust.

Note:

Note: optional

optional

optional need

need

need another

another

another payment

payment

payment and

and

and the

the

the cost

cost

cost refer

refer

refer to

to

to the

the

the antenna

antenna

antenna price.

price.

price. It

It

It is

is

is not

not

not recommend

recommend

recommend to

to

to DIY

DIY

soft

soft cable

cable

cable antenna.

antenna.

antenna. Because

Because

Because the

the

the impedance

impedance

impedance is

is

is difficult

difficult

difficult to

to

to control,

control,

control, and

and

and the

the

the soft

soft

soft cable

cable

’

s

s shape

shape

shape is

is

is not

not

not fixed

fixed

fixed to

to

make

make it

it

it lack

lack

lack of

of

of consistency.

consistency.

VT-CC2530-APR-2012

VT-CC2530-Z1

Questions

Questions and

and

and Answers

Answers

Description

Description Reason

Reason

Reason and

and

and Solution

Solution

Can ’ t

communication

1．The power supply connect not well, check the module VCC whether it is out of maximum

rating.

2．The signal line connect not well, check the module SPI interface.

3．The settings of the transmitter module and receiver module are not the same. Check these

modules ’ register configuration.

4．Signal block. If the transmitter work with a high TX power, and the receiver was put at a short

distance(<0.5m), maybe there is a signal block to make no communication.

Communication

distance is too

short

1．The application environment is too bad or the antenna is shield. Put the antenna to a better place

outside or higher throw a coaxial line , replace it with a higher gain antenna.

2．The work space contains a same frequency interference source, or a strong magnetic field

interference, power source disturbance. Try to change the carrier frequency or get far away from

the source of the disturbance.

3．The power supply is not strong. Check the voltage and the current whether it is enough.

High data error

1．The power supply ripple is too big, Change the power supply.

2．Check the module register configuration, it is recommended to set as the CC2530-datasheet.

3．There is a carrier frequency interference, change the channel.

4．The antenna unmatched to the module RF interface, change another matched antenna.

Development

Development Package:

Package:

1. CC2530 datasheet （CC2530.pdf ）

2. CC2530 register configuration tool （SmartRF Studio 7 v1.4.9.zip ）

3. CC2530 demo code (CC2530 Demo Code.rar ）

4. Hard ware tools （TI Chipcon Evaluation Board ）

Note

Note ：

1

1．

You

can

can get

get

get the

the

the development

development

development package

package

package above

above

above from

from

from the

the

the salesman

salesman

salesman when

when

when you

you

you order

order

order the

the

the module.

module.

2

2．As

As

As version

version

version update

update

update ，please

please

please refer

refer

refer to

to

to our

our

our latest

latest

latest development

development

development materials.

materials.

VT-CC2530-APR-2012

VT-CC2530-Z1

IMPORTANT

IMPORTANT NOTICE

NOTICE

V-CHIP MICROSYSTEMS Co. Ltd (below called V-CHIP) reserve the right to make corrections,

modifications, enhancements, improvements, and other changes to its products and services at any time and

to discontinue any product or service without notice. Customers should obtain the latest relevant information

before placing orders and should verify that such information is current and complete.

V-CHIP warrants performance of its hardware products to the specifications applicable at the time of sale

in accordance with V-CHIP ’ s standard warranty.

V-CHIP does not warrant or represent that any license, either express or implied, is granted under any

V-CHIP patent right, copyright, mask work right, or other V-CHIP intellectual property right relating to any

combination, machine, or process in which V-CHIP products or services are used. Reproduction of V-CHIP

information in V-CHIP data books or data sheets is permissible only if reproduction is without alteration and

is accompanied by all associated warranties, conditions, limitations, and notices. Reproduction of this

information with alteration is an unfair and deceptive business practice. V-CHIP is not responsible or liable

for such altered documentation. Information of third parties may be subject to additional restrictions. Resale

of V-CHIP products or services with statements different from or beyond the parameters stated by V-CHIP

for that product or service voids all express and any implied warranties for the associated V-CHIP product or

service and is an unfair and deceptive business practice. V-CHIP is not responsible or liable for any such

statements.

V-Chip Microsystems VT-CC2530-Z1 Manuale utente

Manuali Scheda di rete popolari di altre marche
