V-tech DS6101 Manuale utente

User’s manual

Accessory handset

for use with

VTech model DS6151

w w w.v te c h p h o n e s .c o m

Model: DS6101

Congratulations

on purchasing your new VTech product. Before using this telephone, please

read Important safety instructions on page 9 of this manual.

This manual has instructions for setup and registration of your new handset.

For full instructions on using the handset, see the user’s manual that came

with your telephone base.

If you cannot nd your user’s manual, you can view or download it at

www.vtechphones.com.

For support, shopping, and everything new at VTech, visit our website at

www.vtechphones.com.

In Canada, please visit www.vtechcanada.com.

The ENERGY STAR®program (www.energystar.gov) recognizes

and encourages the use of products that save energy and help

protect our environment. We are proud to mark this product with

the ENERGY STAR®label indicating it meets the latest energy

efﬁciency guidelines.

Telephones identiﬁed with this logo have reduced noise and

interference when used with most T-coil equipped hearing aids and

cochlear implants. The TIA-1083 Compliant Logo is a trademark of

the Telecommunications Industry Association. Used under license.

Visit www.vtechphones.com.

Registration

warranty support.

Product news

Learn about the latest VTech products.

Compatible with

Hearing Aid T-Coil

TIA-1083

Table of contents

Getting started ................................... 1

Parts checklist...................................... 1

Battery installation................................ 2

Battery charging ................................... 2

Belt clip and optional headset..............4

Add and register a handset.................. 5

Replace a handset ............................... 6

Handset layout ..................................... 7

Appendix............................................. 9

Important safety instructions................ 9

Operating range ................................. 11

Maintenance....................................... 11

The RBRC®seal................................. 12

FCC, ACTA and IC regulations .......... 13

California Energy Commission

battery charging testing

instructions..................................... 15

For C-UL compliance only ................. 16

Limited Warranty ................................ 19

Technical speciﬁcations ..................... 21

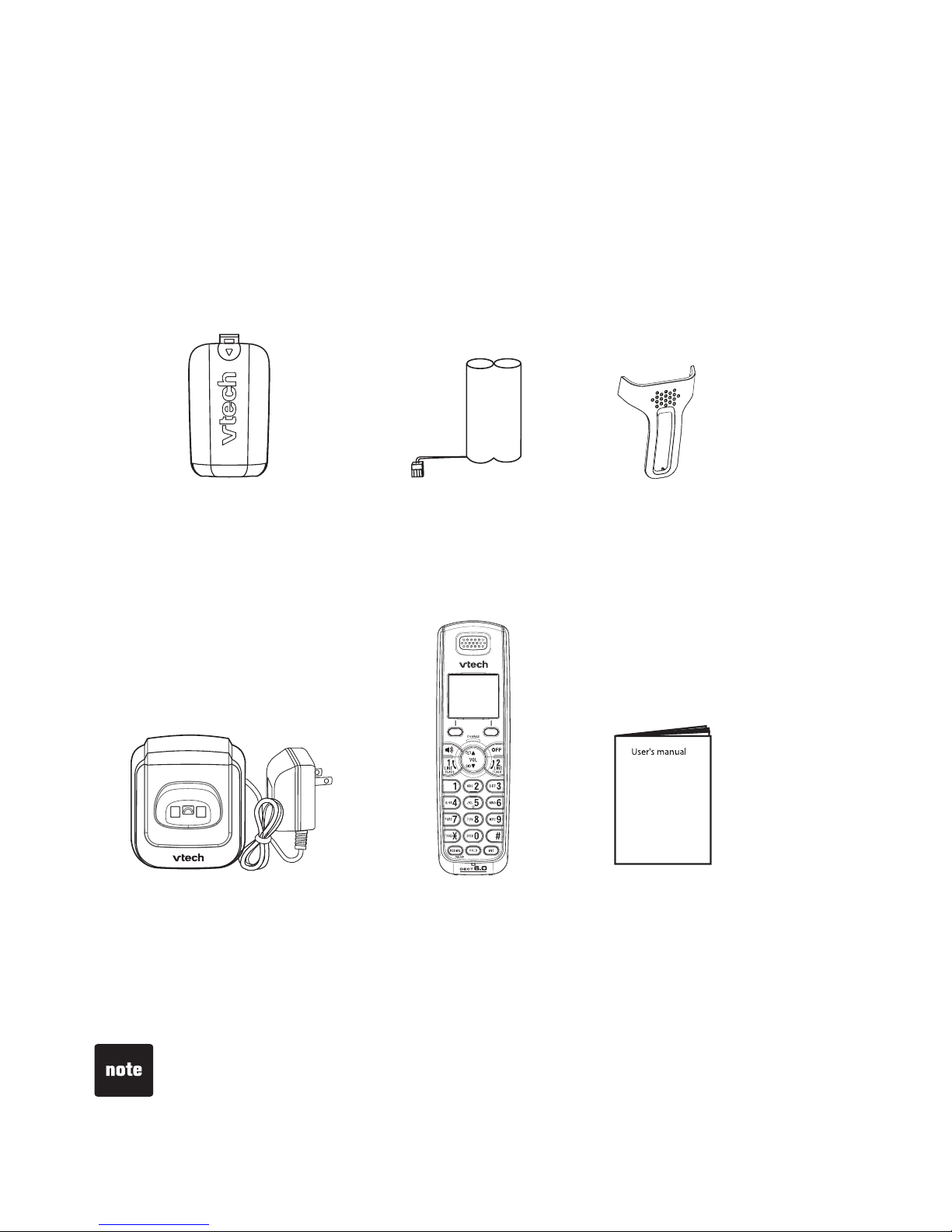

Parts checklist

Your telephone contains the following items. Save your sales receipt and

original packaging in the event warranty service is necessary.

Handset

Battery compartment cover Battery

User’s manual

To purchase a replacement battery or a power adapter, visit our website at

www.vtechphones.com or call 1 (800) 595-9511. In Canada, go to

www.vtechcanada.com or call 1 (800) 267-7377.

Getting started

Charger and power adapter

Belt clip

Getting started

Battery installation

Install the battery as shown below.

Battery charging

Once you have installed the battery, the screen indicates the battery status

(see the table below).

For best performance, keep the handset in the telephone base or

charger when not in use.

The battery is fully charged after 16 hours of continuous charging.

If the handset will not be used for a long time, disconnect and

remove the battery to prevent any possible leakage.

•

Battery indicators Battery status Action

The screen is blank. Battery has no charge and

the handset cannot be used. Charge without interruption

(at least 30 minutes).

The screen shows

Place handset in

charger and ﬂashes.

Battery has very little charge

and the handset cannot be

used.

Charge without interruption

(at least 30 minutes).

The screen shows Low

battery and ﬂashes. Battery has enough charge

to be used for a short time.

Charge without interruption

(at least 30 minutes).

The screen shows

HANDSET.Battery is charged. To keep the battery charged,

place it in the telephone

base when not in use.

1 2

Plug the battery connector

securely into the socket inside the

battery compartment, matching

the color-coded label.

Place the battery with the label

THIS SIDE UP and the wires

inside the battery compartment.

Slide the battery compartment

cover towards the center of the

handset until it clicks into place.

Charge the handset by placing it

in the telephone base.

CHARGE light remains

on when charging.

Getting started

Battery charging

When the battery is fully charged, you can expect the following performance:

Operation Operating time

While in handset use (talking*) Up to 10 hours

While in speakerphone mode (talking*) Up to 7 hours

While not in use (standby**) Up to 10 days

*Operating times vary depending on your actual use and the age of the battery.

**Handset is not charging or in use.

Getting started

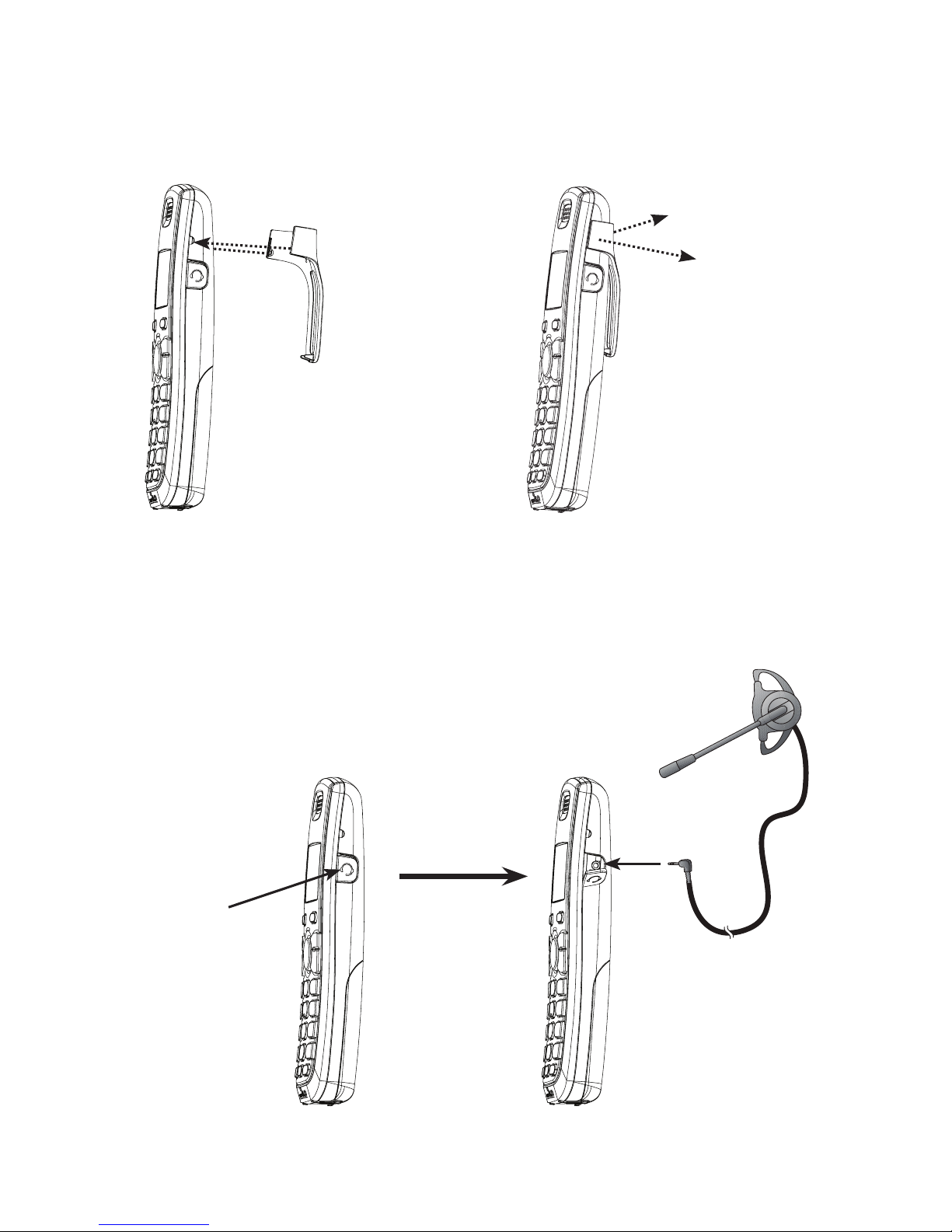

Belt clip and optional headset

Belt clip

Lift the plastic cover.

Plug a 2.5mm headset

into the jack on the side

of the handset.

Headset

For handsfree telephone conversation, you can use any industry standard

2.5mm headset (purchased separately). For best results, use a

VTech 2.5mm headset.

To attach the belt clip:

Snap the belt clip into

the slots on both sides

of the handset.

To remove the belt clip:

Gently lift either of the

belt clip tabs outwards to

remove the belt clip from

the handset.

Getting started

Add and register a handset

Each newly purchased handset (DS6101) must be registered to the

telephone base (DS6151) before use. When ﬁrst purchased, each

expansion handset shows

Press [HOLD] on base for 4 sec, then press [#]

on handset

. You may need to charge the handset before registering to the

telephone base. For more details on battery charging, see the table on

page 2.

To make registration easier, read all of the instructions on this page before

you begin.

To register a handset:

Place the unregistered handset in the telephone base. If Press [HOLD]

on base for 4 sec, then press [#] on handset does not appear on the

handset screen after a few seconds, remove the handset and place it in

the telephone base again.

Press and hold HOLD on the telephone base for about four seconds until

the telephone base displays Registering handset. While the handset

is still in the telephone base, press #(pound key) on the handset. The

handset shows Registering... Please wait and it takes up to 60 seconds

to complete the registration. The handset and the telephone base show

HANDSET X Registered (Xrepresents the handset number assigned)

and you hear a beep when the registration completes.

When the registration is complete, the newly registered handset is assigned

the next available handset registration number. For instance, if you already

have HANDSET, the next registered handset will be HANDSET 2. Then your

ﬁrst handset will be renamed as HANDSET 1.

If the registration fails, the handset shows Registration failed. To reset the

handset, remove the handset from the telephone base and place it back in.

Try the registration process again.

You cannot register a handset if any other system handset is in use.

Only one handset can be registered at a time.

•

HOLD

Getting started

Replace a handset

If you want to replace a handset or reassign the designated handset number

of a registered handset, you must deregister all the handsets and then

individually register each handset.

To make deregistration easier, read all of the instructions on this page before

you begin.

To deregister all handsets:

Remove any handset from the telephone base. Press and hold HOLD on

the telephone base for about 10 seconds until the telephone base displays

Deregister all handsets?

Press the YES softkey.

The deregistration process takes about 10 seconds to complete. All

handsets show Press [HOLD] on base for 4 sec, then press [#] on

handset when the deregistration completes.

If deregistration fails, you may need to reset the telephone and try again.

To reset:

Pick up the registered handset and then press or .

Press OFF and then place the handset back in the telephone base.

-OR-

Unplug the power adapter from the telephone base, then plug it back in.

You cannot deregister a handset if any system handset or telephone base is

in use.

Handset layout

Getting started

Softkeys (2)

Press to select a menu item displayed above the key.

/VOL (directory/volume)

Press to enter the directory when the telephone is

not in use.

While in a menu, press to scroll up.

During a call or message playback, press to increase

the listening volume.

(speakerphone)

Press to make or join a call using the ﬁrst available

line, starting with line 1.

Press to answer a call.

During a call, press to switch between speakerphone

and handset use.

CID /VOL (caller ID/volume)

Press to review the call log when the telephone is

not in use.

While in a menu, press to scroll down.

During a call or message playback, press to

decrease the listening volume.

While reviewing a call log entry, press repeatedly to

add or remove 1 in front of the telephone number

before dialing or saving it in the directory.

REDIAL/PAUSE

Press to review the redial list.

While dialing or entering numbers into the directory,

press and hold to insert a dialing pause.

TONE

Press to switch to tone dialing temporarily when

using the pulse service.

(line 1/ﬂash)

Press to make or answer a call on line 1.

During a call, press to receive an incoming call on

line 1 when you receive a call waiting alert.
