V-tech Five Handset Expandable Cordless Phone System with BLUETOOTHA Wireless... Manuale utente

User’s manual

Accessory handset for use with

VTech models DS6311/DS6321/

DS6322

w w w.v t e c h p h o n e s .c o m

Model: DS6301

Congratulations

on purchasing your new VTech product. Before using this telephone, please

read the Important safety instructions on page 9 of this manual.

This manual has instructions for setup and registration of your new handset.

For full instructions on using the handset, see the user’s manual that came

with your telephone base.

If you cannot nd your user’s manual, you can view or download it at

www.vtechphones.com.

For support, shopping, and everything new at VTech, visit our website at

www.vtechphones.com. In Canada, visit www.vtechcanada.com.

The ENERGY STAR®program (www.energystar.gov) recognizes

and encourages the use of products that save energy and help

protect our environment. We are proud to mark this product with

the ENERGY STAR®label indicating it meets the latest energy

efciency guidelines.

The Bluetooth®word mark and logos are owned by Bluetooth SIG, Inc. and any use

of such marks by VTech Holdings Limited is under license. VTech Holdings Limited is

a member of Bluetooth SIG, Inc. Other trademarks and trade names are those of their

respective owners.

Table of contents

Getting started ................................... 1

Parts checklist...................................... 1

Battery installation ............................... 2

Battery charging................................... 3

Add and register a handset.................. 4

Replace a handset ............................... 5

Handset layout ..................................... 6

Appendix ............................................. 8

Battery.................................................. 8

Important safety instructions................ 9

Precautions for users of implanted

cardiac pacemakers........................ 10

Operating range ................................. 10

Maintenance....................................... 10

About cordless telephones................. 11

The RBRC®seal................................. 11

Warranty............................................. 12

FCC, ACTA and IC regulations .......... 14

Technical specications ..................... 16

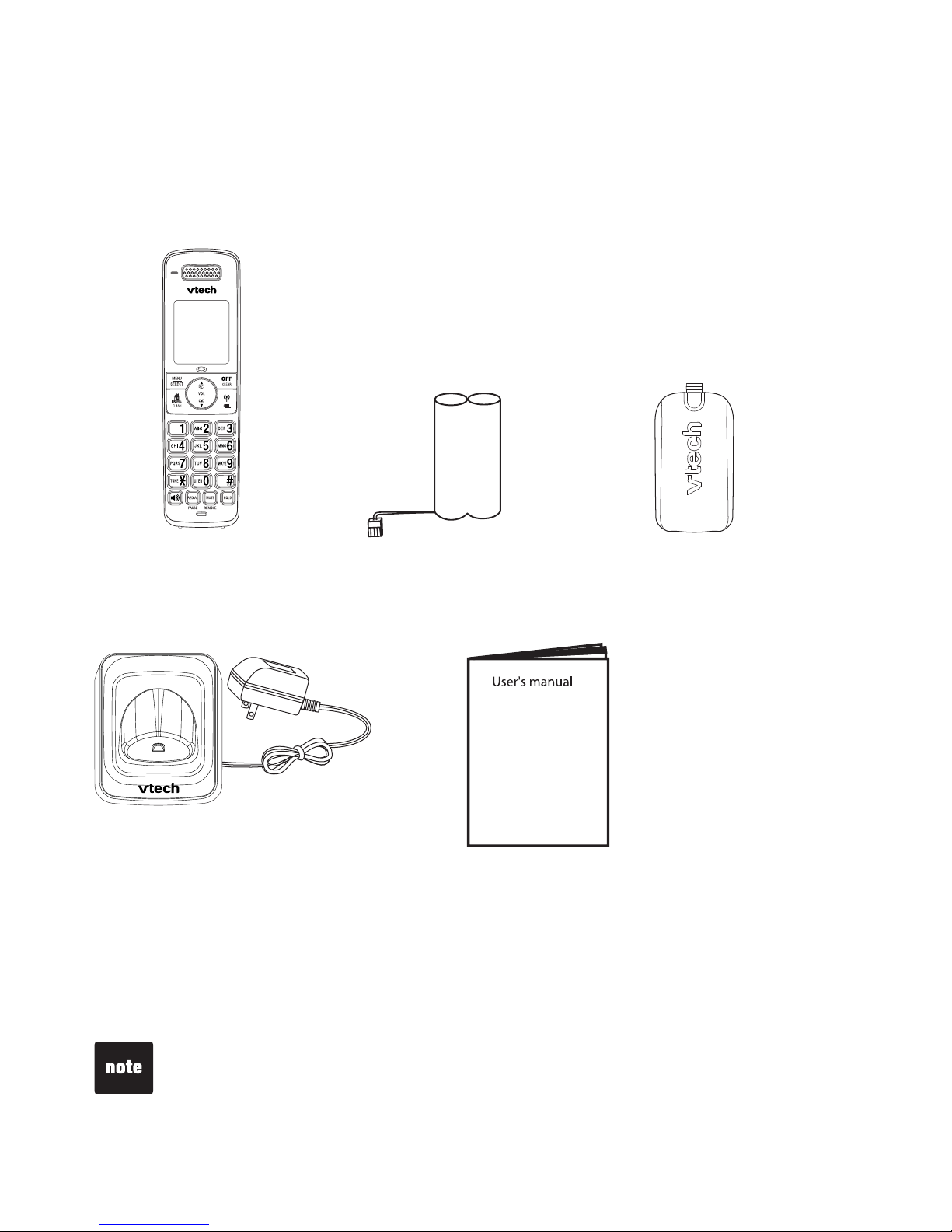

Parts checklist

Your telephone contains the following items. Save your sales receipt and

original packaging in the event warranty service is necessary.

Handset Battery

User’s manual

To purchase a replacement battery or a power adapter, visit our website at

www.vtechphones.com or call 1 (800) 595-9511. In Canada, go to

www.vtechcanada.com or dial 1 (800) 267-7377.

Getting started

Charger and power adapter

Battery

compartment

cover

Getting started

If the handset will not be used for a long time, disconnect and remove

the battery to prevent possible leakage.

To purchase a replacement battery, visit our website at

www.vtechphones.com or call 1 (800) 595-9511. In Canada, go to

www.vtechcanada.com or dial 1 (800) 267-7377.

•

Battery installation

Install the battery as shown below.

If the battery compartment cover is on the handset, press the indentation

and slide the cover to remove.

Plug the battery connector securely into the socket inside the handset

battery compartment, matching the color-coded label.

Place the battery with the label THIS SIDE UP facing up and the wires

inside the battery compartment.

Align the cover at against the battery compartment, then slide it towards

the center of the handset until it clicks into place.

Charge the handset by placing it in the telephone base or charger. The

CHARGE light is on when the handset charges.

CHARGE light

Getting started

Battery charging

Once you have installed the battery, the screen indicates the battery status

(see the table below). If necessary, place the handset in the telephone base

or charger to charge the battery. For best performance, keep the handset in

the telephone base or charger when not in use. The battery is fully charged

after 16 hours of continuous charging. See the table on page 8 for battery

operating times.

If the screen is blank, you need to charge the handset without interruption for

at least 10 minutes to give the handset enough charge to use the telephone

for a short time. When the battery is low, the handset beeps and shows

Low battery and a ashing . If you are on a call in low battery mode, the

handset beeps every minute.

The following table summarizes the battery charge indicators and actions

to take.

Battery indicators Battery status Action

The screen is blank. Battery has no charge

and the handset cannot

be used.

Charge without interruption

until the screen shows

HANDSET X (at least

10 minutes).

The screen shows

Place in charger and

ashes.

Battery has very little

charge and the handset

cannot be used.

Charge without interruption

until the screen shows

HANDSET X (at least

four minutes).

The screen shows

Low battery,

ashes, and the

handset beeps.

Battery has enough

charge to be used for a

short time.

Charge without interruption

until the screen shows

HANDSET X (at least

30 minutes).

The screen shows

HANDSET X.

Battery is charged. To keep the battery charged,

place it in the telephone base

or charger when not in use.

Getting started

Add and register a handset

You can add new handsets (DS6301, purchased separately) to your

telephone system, but each handset must be registered with the telephone

base before use. When rst purchased, each expansion handset shows

Press and hold FIND HANDSET on base for 4 sec, then press # on

handset after a battery is installed. You may need to charge the handset

before registering to the telephone base. For more details on battery

charging, see the table on page 3.

To register a handset:

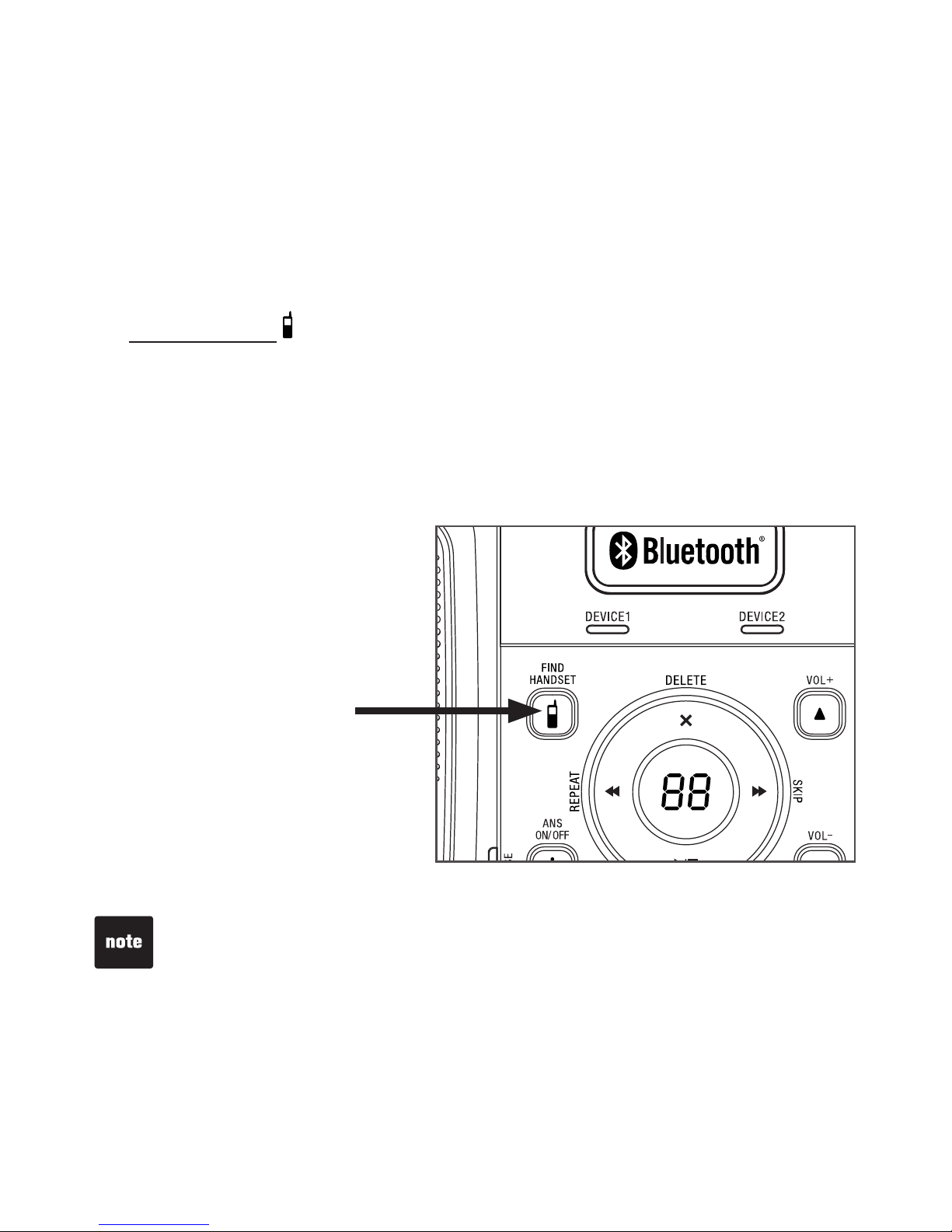

Press and hold /FIND HANDSET on the telephone base for about four

seconds until the red IN USE light turns on.

Press #(pound key) on the handset. Its screen shows Registering...

Please wait and it takes up to 60 seconds to complete the registration.

The handset shows HANDSET X Registered (Xrepresents the handset

number assigned) and you hear a beep when the registration

is completed.

If the registration fails, the handset shows Registration failed for a few

seconds and then

Press and hold FIND HANDSET on base for 4 sec,

then press # on handset.

Try the registration process again.

You cannot register a handset if any other system handset is in use.

•

Getting started

Replace a handset

If you want to replace a handset or reassign the designated handset number

of a registered handset, you must deregister all the handsets and then

individually register each handset.

To make deregistration easier, read all of the instructions on this page before

you begin.

To deregister all handsets:

Press and hold /FIND HANDSET on the telephone base for about 10

seconds until the IN USE light ashes, then release FIND HANDSET.

Press /FIND HANDSET again. You must press /FIND HANDSET

while the IN USE light is still ashing. The IN USE light ashes for about

seven seconds.

All system handsets show Out of range OR No power at base for a few

seconds and then

Press and hold FIND HANDSET on base for 4 sec,

then press # on handset

when the deregistration is completed. The

deregistration process takes about 10 seconds to complete.

If deregistration fails, you may need to reset the telephone and try again.

To reset:

Press and hold OFF/CLEAR or place the handset back in the

telephone base.

-OR-

Unplug the power from the telephone base, then plug it back in.

After deregistering, register each handset individually. See Add and register

a handset on page 4.

•

You cannot deregister handsets if any system handset is in use.

Getting started

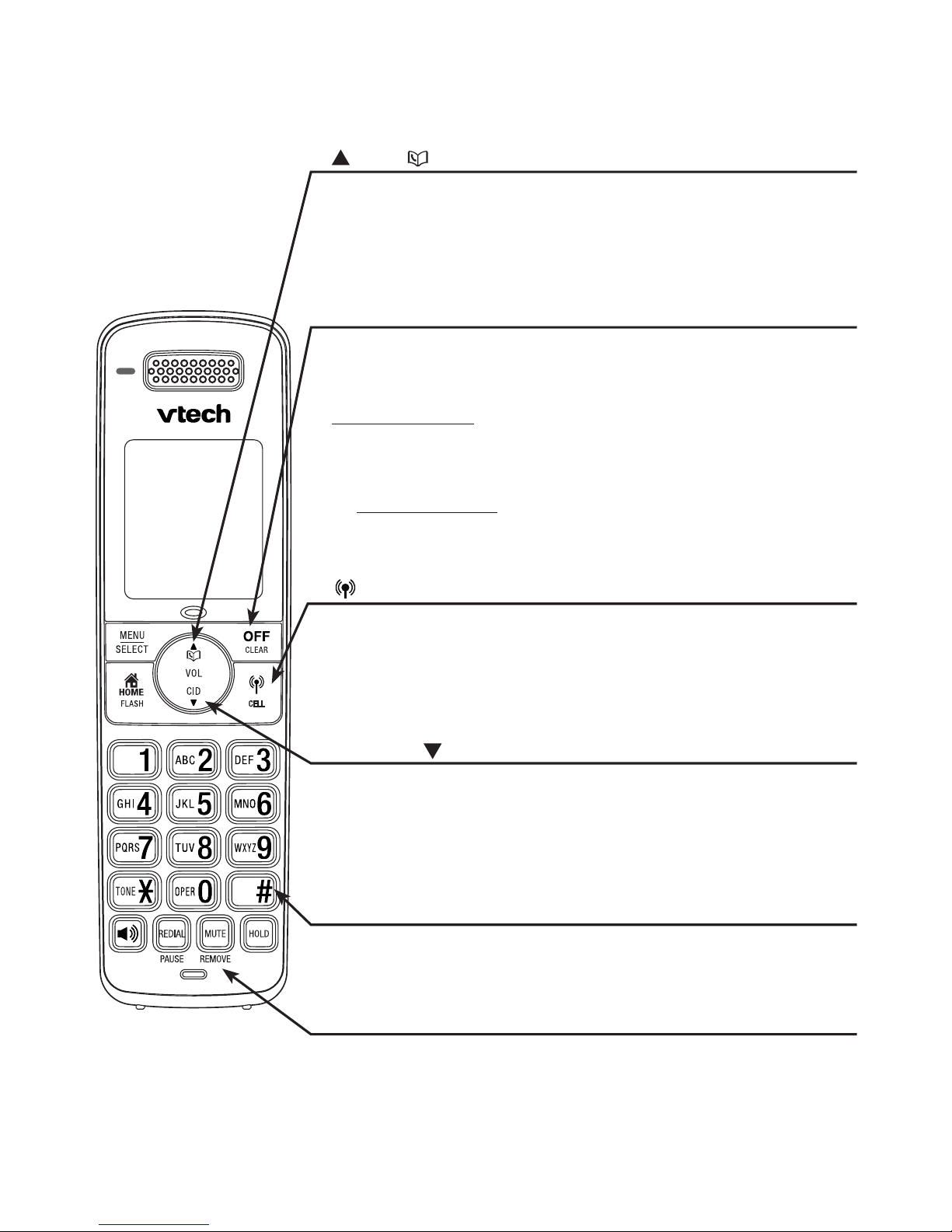

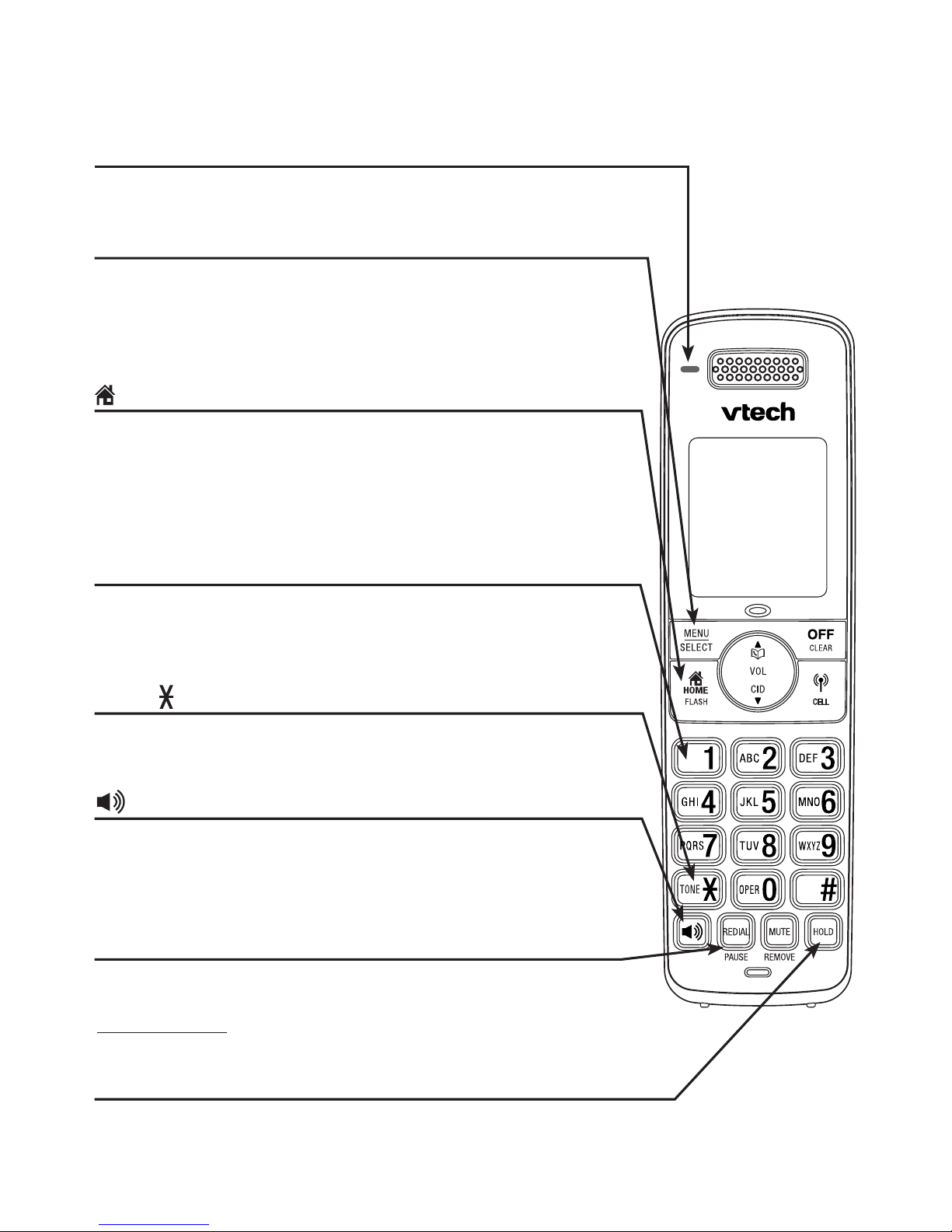

Handset layout

While reviewing a call log entry, press repeatedly

to add or remove 1 in front of the telephone number

before dialing or saving it in the directory.

/HOME/FLASH

Press to make or answer a home call.

During a home call, press to answer an incoming call

when you hear a call waiting alert.

Flashes quickly when there is an incoming home call.

Flashes slowly when a home call is on hold.

Press to make or answer a home call using the

handset speakerphone.

During a call, press to switch between speakerphone

and handset.

HOLD

Press to put a call on hold.

TONE

Press to switch to tone dialing temporarily during a call

if you have pulse service.

CHARGE light

On when the handset is charging in the telephone base

or charger.

MENU/SELECT

Press to show the menu.

While in a menu, press to select an item, or save an entry

or setting.

REDIAL/PAUSE

Press to review the redial list.

While dialing or entering numbers into the directory,

press and hold to insert a dialing pause.

Getting started

Handset layout (continued)

VOL/CID/

While in a menu, press to scroll down.

During a call, press to decrease the listening volume.

When the handset is not in use, press to review the

call log.

OFF/CLEAR

During a call, press to hang up.

While the handset is ringing, press to silence the ringer

temporarily.

Press and hold while the telephone is not in use to

erase the displayed messages (XX Missed calls and

Download dir aborted).

While in a menu, press to exit without making changes

or press and hold to return to idle mode.

While entering or editing a directory entry, press to

erase a digit or character.

/VOL/

While in a menu, press to scroll up.

During a call, press to increase the listening volume.

When the handset is not in use, press to enter the

directory.

/CELL

Press to make or answer a cell call.

During a cell call, press to answer an incoming call

when you hear a call waiting alert.

Flashes quickly when there is an incoming cell call.

Flashes slowly when a cell call is on hold.

While reviewing a call log entry or a directory entry,

press repeatedly to show other dialing options.

MUTE/REMOVE

While on a call, press to mute the microphone.

While reviewing the call log, directory or redial list, press to

delete an individual entry.

Press to delete digits when predialing.

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali V-tech Cornetta

V-tech

V-tech ErisTerminal VDP801 Manuale utente

V-tech

V-tech DECT 6.0 CS6219 Manuale utente

V-tech

V-tech CS6400 Manuale utente

V-tech

V-tech DS8141 Manuale utente

V-tech

V-tech VTECH LS6425 Manuale utente

V-tech

V-tech i 5807 Manuale utente

V-tech

V-tech FS2605A Manuale utente

V-tech

V-tech IS7101 Manuale utente

V-tech

V-tech CTM-S2415HC Manuale utente

V-tech

V-tech Analog Contemporary Series Manuale utente

V-tech

V-tech LS5105 - Cordless Extension Handset Manuale utente

V-tech

V-tech CS6219 Manuale utente

V-tech

V-tech VSP600A Manuale utente

V-tech

V-tech DS6101 Manuale utente

V-tech

V-tech USB7050 Manuale utente

V-tech

V-tech LS6002 Manuale utente

V-tech

V-tech I5808 - Cordless Extension Handset Manuale utente

V-tech

V-tech I5808 - Cordless Extension Handset Guida utente

V-tech

V-tech CareLine SN1157 Manuale utente

V-tech

V-tech CS6509 Manuale utente

V-tech

V-tech CTM-A2116 Manuale utente

V-tech

V-tech DS6751 Manuale utente

V-tech

V-tech vt5820 Manuale utente

V-tech

V-tech CS6719-2 Manuale utente

Manuali Cornetta popolari di altre marche

Swissvoice

Swissvoice ePure HD Manuale utente

Philips

Philips TD6736/BH051P Manuale utente

ASCOM

ASCOM I62 - Manuale utente

LG-Ericsson

LG-Ericsson LIP-9010 Manuale utente

GE 1583 Manuale utente

iiNet

iiNet Handset Manuale utente

ASCOM

ASCOM 9p23 Manuale utente

AT&T

AT&T DLP70110 Manuale utente

AirCell

AirCell ST 3100 Manuale utente

Eaton

Eaton HHIR-LCD-PROG Istruzioni per il montaggio

Mitel

Mitel 112 Manuale utente

SBC

SBC SBC-381H Manuale utente

Mitel

Mitel 5602 Manuale utente

ASCOM

ASCOM d81 Messenger Istruzioni per l'installazione

SpectraLink

SpectraLink 7522 Manuale utente

Avaya

Avaya L100 Series Come usare

ooma

ooma HD2 Handset Manuale utente

Yealink

Yealink IPW56 Manuale utente
