Note: This kit must be installed or serviced by a quali ed installer, service agency or the gas

supplier. These instructions are to be used in conjunction with the main installation instructions for

the above listed models.

WARNING: If the information in these instructions is not followed exactly, a  re or explosion

may result causing property damage, personal injury or loss of life.

GROUNDING: This power supply must be installed and grounded in accordance with local codes,

or in the absence of local codes, with the current Canadian Electrical Code CSA C.1. or in the

USA the National Electrical Code ANSI/NFPA0 latest edition.

DESCRIPTION OF SYSTEM

The models listed above have been designed to accommodate the installation of an air circulation

fan. Operated by a variable speed control and a thermally actuated switch, the fan is designed to

boost the natural convection through the heater; this may be a desirable feature dependent on the

 replace location and room layout. The circulating fan may be installed before the heater installation

or as a retro t at a later date.

OPERATION

The fan is designed for automatic operation using a thermal switch. It will take approximately 10-15

minutes for the appliance to warm up and allow the switch to activate the fan. To operate the fan,

rotate the speed control knob clockwise from OFF to HIGH. Further rotation will control the fan speed,

once the automatic thermal switch has been activated. If the  re is turned off, the fan will continue

to operate until the thermal switch cools, unless the speed control is manually turned to the OFF

position.

Should electrical power fail, the heater operation will remain unaffected.

ELECTRICAL REQUIREMENTS

The fan kit requires a power supply of 120 Volts, 1 phase, 60 Hz. Full load current is less than 1

amp.

4000510-04

555CFK CIRCULATING FAN KIT

INSTALLATION and OPERATING INSTRUCTIONS

CSA approved for use only with:

Valor models 530 I, RetroFire RF24 and Madrona MF28



Variable Speed

Control Box

Spade

Terminals

Fan with bracket mounted

Spade

Terminals

Sheet Metal Screws (2)

Thread Cutting Screw (1)

Adhesive Cable Retainer

Thermal Switch

and Lead

6’-0”

Grounded

Plug

Fan Kit Components

FAN KIT COMPONENTS

The complete #555CFK kit contains the following:

Fan & motor unit assembled to fan mounting bracket c/w wiring harness, speed control junction

box, thermal sensor switch and 6’ cord set.

Control box mounting screw and cable retainer.

Unit mounting screws ().

•

PREPARATION

New replace installations

If installing the fan kit in a new application, follow the installation guidelines in the following pages in

conjunction with the installation manual supplied with the replace engine.

Existing replace installations

If installing the fan kit in an existing replace, start with the following steps, refering to the installation

manual supplied with the replace engine.

In a cold replace, remove the trims and front (preceded by the top if 530 free standing stove), the

window, the logs/coals/stones and bricks.

Shut-off the gas supply to the replace and disconnect the gas line from the unit’s valve.

Remove the burner module.

If installing in an insert, insure that the metal base of the replace enclosure is supported. If

the metal base can ex up and down, it may be a source of vibration noise when the fan unit is

installed. Now is the time to correct this.

Install the fan according to the guidelines of the next pages.

TESTING THE FAN UNIT AFTER INSTALLATION

Although the fan and controls are factory tested to ensure proper operation, a check should be

performed after the fan installation, prior to nishing the assembly of the replace.

Before energizing the control box, manually bypass the thermal switch with a jumper either at the

switch or at the spade terminals (be careful not to short out if using a non-insulated jumper). Plug-in

the power cord to energize the control box. Rotate the control knob and check that the fan operates

correctly at all speeds. Once veried, disconnect the power, remove the jumper, and reconnect the

thermal switch wires to the control box terminals.

.

INSTALLATION—VALOR MODEL 530 I

At the bottom right hand side of the rebox,

raise the sheet metal tab if not already raised.

Fasten the motor control to the tab with one

screw.

Feed the power cord out through the opening

in the rear left corner of the heater. Tuck wires

in the back corner so they will be behind the

fan unit when installed.

.

Fit the fan unit by placing it into the rear of the

liner box (with the wires running behind) and

secure to the rear wall using the two screws

provided.

Secure the thermally actuated switch to the

side of the rebox using  screws.

Use the U shaped self-adhesive cable retainer

to hold the thermal switch wiring to the bottom

of the appliance and away from the fan inlet.

Raise this tab

Fasten blower control to

engine tab using one screw

Run Power Cord

out left hand rear

corner

Route wires in

back corner

behind fan

Thermoswitch

Wire

Fasten Fan to back

of Heater using 2 screws

Thermoswitch

Wire

Clip Thermoswitch wire

to sheet metal bottom

using clip provided

Test the fan operation as indicated on page 3

of this manual.

Finish the assembly of the replace as

indicated in the installation manuals provided

with the replace’s engine, front and trim.

.

Control Valve

(GV60) Fan ControlRemote

Receiver

INSTALLATION—VALOR MODEL 530 I

INSTALLATION—RETROFIRE MODEL RF24

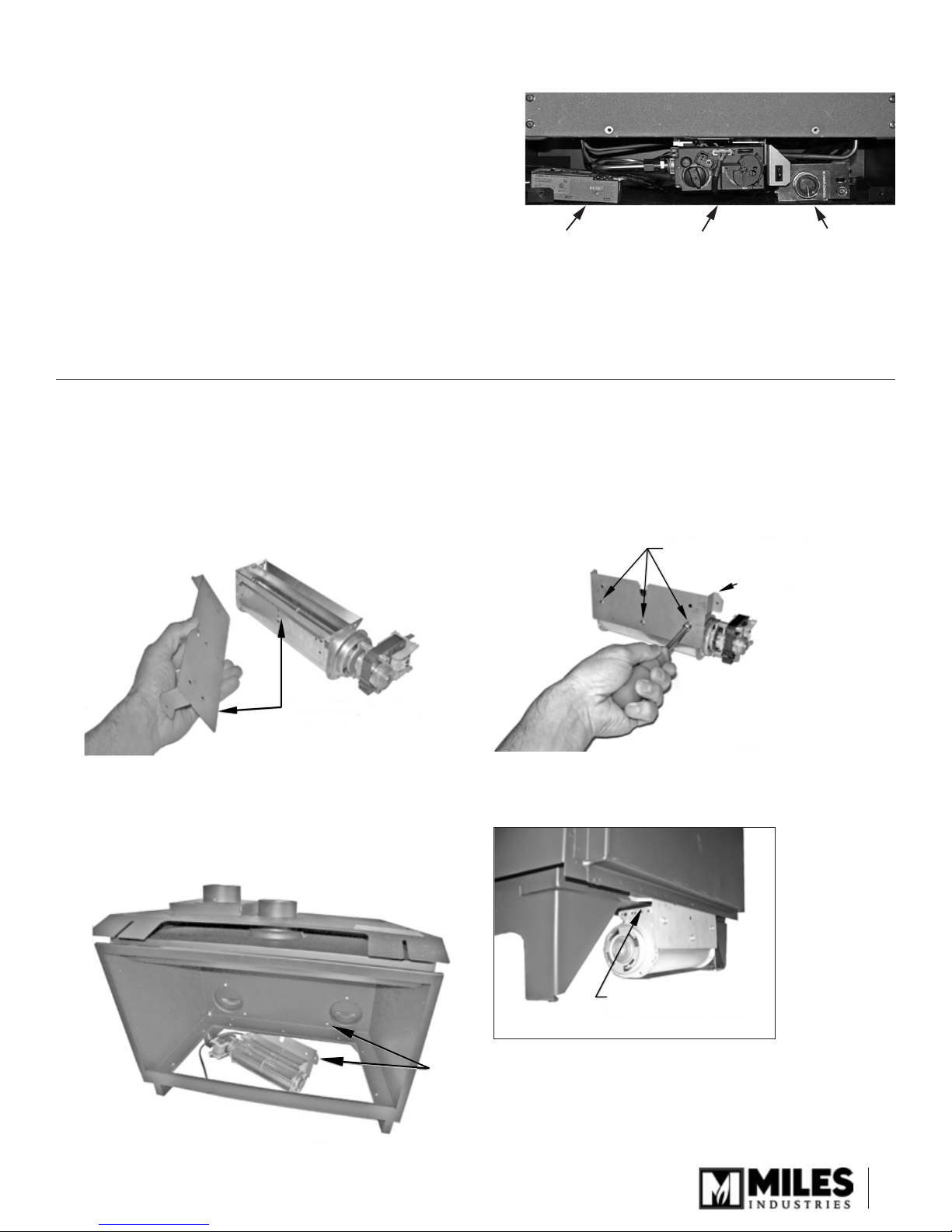

Remove the fan mounting bracket and

reinstall in reverse position to the fan

assembly. (The mounting bracket is originally

supplied set up for heater model 530

application).

With the burner module removed, install the

fan unit into the rear convection channel on

heater.

.

Unscrew 3 screws and

remove fan mounting

plate

Flip bracket over and reinstall

using screws through

3 lower holes

Tabs facing forward

Slip Fan Bracket into

Rear Convection Channel

and line up Mounting Holes

Fan Bracket installed

into Convection Channel

Fan and Bracket installed

with 2 mounting screws

Line up the screw holes and secure the fan

assembly using  screws.

Fasten the fan control box to lower right

hand support leg. (The control box may

alternatively be ipped over and secured to

the left hand support leg if desired.)

Fasten the thermal switch to underside of

burner module using  screws.

Test the fan operation as indicated on page 3

of this manual.

Finish the assembly of the replace as

indicated in the installation manuals provided

with the replace’s engine, front and trim.

.

Fasten Fan Control Box

to lower RH Support Leg

using 1 screw

Fasten Thermal Switch to

underside of burner module

using 2 existing screws

INSTALLATION—RETROFIRE MODEL RF24



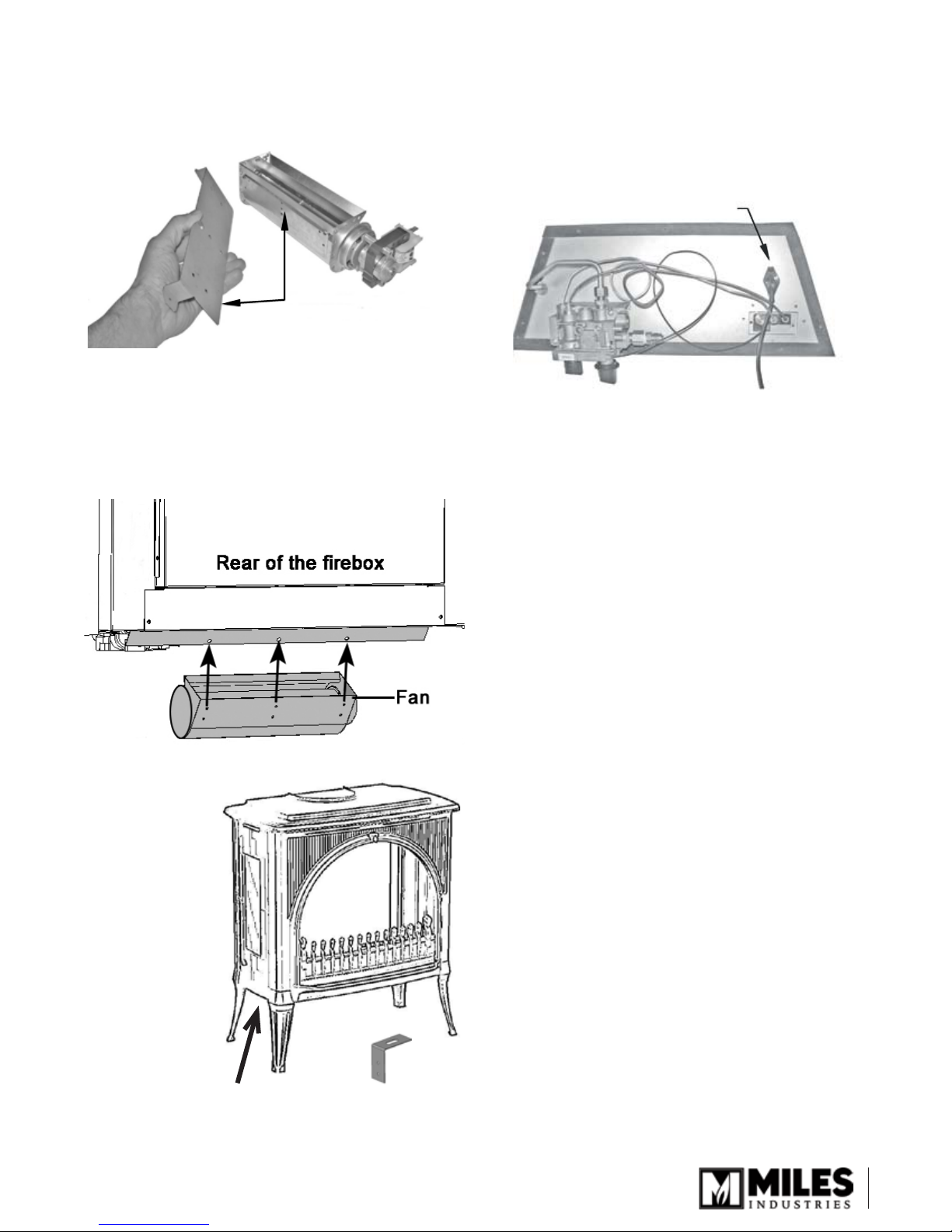

Remove the mounting plate from the fan and

discard it.

Position the fan in such way that its exhaust is

directed upwards, towards the space between

the inner and the outer walls of the rebox.

Using 3 screws, x the fan to the rebox

bracket.

Fix the fan

control box

bracket

provided to the

control box with

 screws.

Fix the bracket

with the control

box attached

to the base of

the stove from

underneath.

.

Fasten Thermal Switch to

underside of burner module

using 2 existing screws

Fan control

box position

Fan control

box bracket

Unscrew 3 screws and

remove fan mounting

plate

Fix the thermoswitch to the underside of the

burner plate, behind the pilot area, with 

screws taken from the burner plate.

Test the fan operation as indicated on page 3

of this manual.

Finish the assembly of the replace as

indicated in the installation manuals provided

with the replace’s engine, front and trim.

.

INSTALLATION—MADRONA MODEL MF28

MAINTENANCE

This fan does not require any regular maintenance or lubrication; however, periodic cleaning of the

unit compartment to remove household lint will help to maintain peak performance and extend the fan

life.

This space can be accessed by opening the lower door or removing the front. Using a crevice tool on

the end of a vacuum cleaner hose, carefully clean the bottom area of the replace linerbox, paying

particular attention to the area under the burner box base.

Should the fan require additional servicing, it must be done by a qualied gas appliance service

person.

Over time, it may be useful to clean the fan blades themselves for dust accumulation. To do this, it is

necessary to remove the burner assembly. This must be done by a qualied gas appliance service

person.

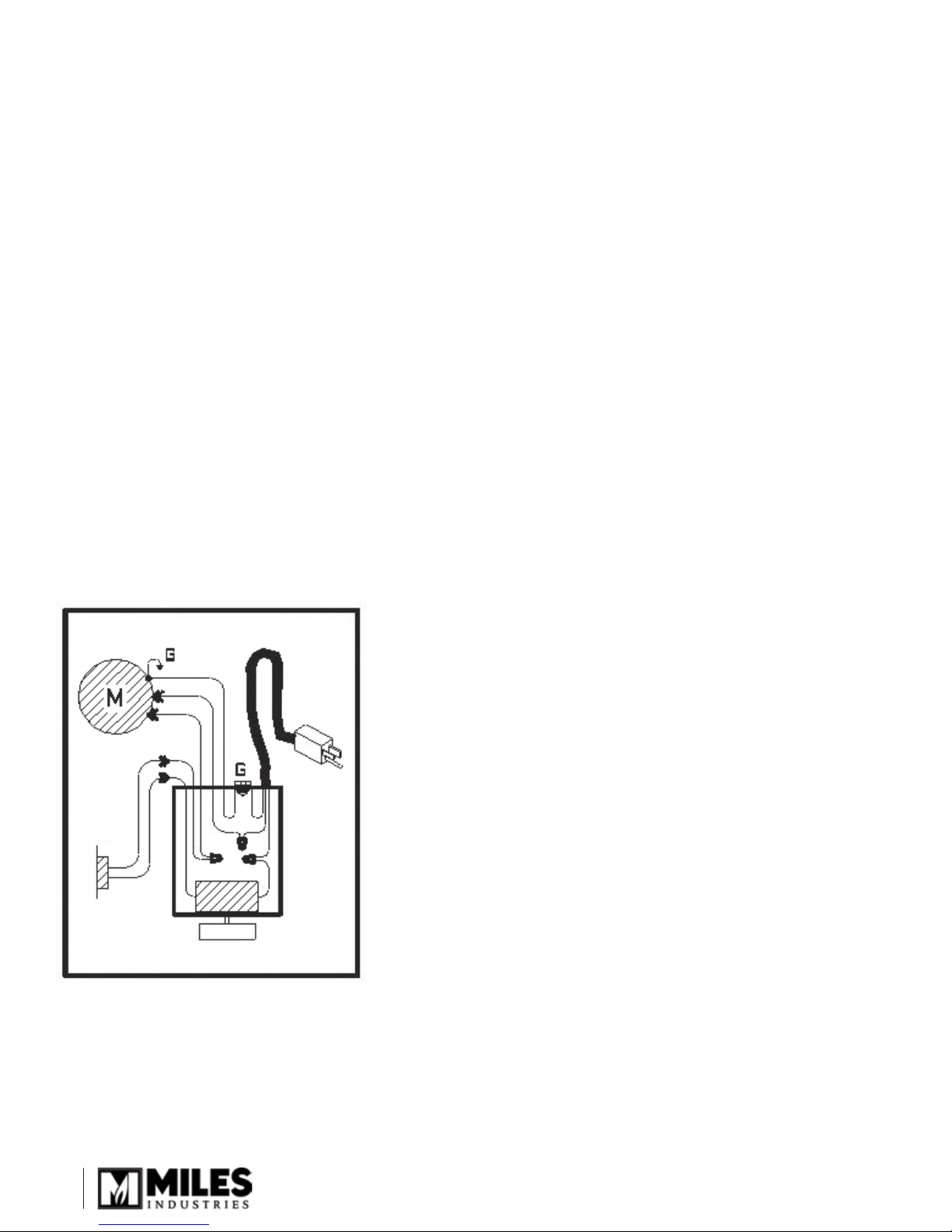

WIRING DIAGRAM

Warning- Electrical Grounding Instructions

This appliance is equipped with a three-prong (grounded) plug for your protection against shock

hazard and must only be plugged directly into a properly grounded three-prong receptacle. Do not

cut or remove the grounded prong from this plug. Alternatively, it may be hard wired by a qualied

electrical installer.

MODEL 555CFK - OPTIONAL BLOWER KIT

MILES INDUSTRIES LTD.

BLOWER

THERMO

SENSOR

POWER CORD

OFF-ON SWITCH

SPEED CONTROL

Electrical Schematic

555CFK

PLEASE LEAVE INSTALLATION AND OPERATING INSTRUCTIONS

WITH THE HOMEOWNER.

LIMITED WARRANTY POLICY

Miles Industries Ltd. warrants all components of the model 555CFK Circulating Fan Kit for a period of

one year from the date of purchase against defects in materials or workmanship. This warranty covers

only the cost of defective parts and applies only to the original consumer purchaser. The replacement of

defective parts by Miles Industries Ltd. will be without charge during the warranty period. This warranty

does not extend to (1) components damaged by accident, neglect, misuse, abuse, alteration, and

negligence of others, including the installation thereof by unqualied installers () the costs of removal,

reinstallation or transportation of defective parts or (3) incidental or consequential damages.

THIS WARRANTY IS EXPRESSLY IN LIEU OF ALL OTHER WARRANTIES, EXPRESSED OR

IMPLIED, INCLUDING THE WARRANTY OF MERCHANTABILITY OF FITNESS FOR PURPOSE

AND OF ALL OTHER OBLIGATIONS OR LIABILITIES. MILES INDUSTRIES LTD. DOES NOT

ASSUME, NOR HAS IT AUTHORIZED ANY PERSON INCLUDING ITS SALES REPRESENTATIVES

TO ASSUME FOR IT, ANY OTHER OBLIGATION OR LIABILITY IN CONNECTION WITH THE SALE

OR USE OF THE MODEL 555CFK CIRCULATING FAN KIT.

A qualied installer, in accordance with the instructions supplied must install the model 555CFK

Circulating Fan Kit. The defective components should be returned at your expense to the dealer from

where the product was purchased or authorized service agent. The sales invoice evidencing proof

of purchase and date of purchase must accompany any components returned for warranty repair/

replacement. Miles Industries Ltd. reserves the right to repair and return any defective component.

Manufactured and distributed in Canada and USA by

Miles Industries Ltd.

190–55 Dollarton Hwy.,North Vancouver, BC, Canada VH 3B1

Tel. 604-984-3496 Fax 604-984-046

www.valorreplaces.com

Note : Ce kit doit être installé et entretenu par un installateur quali é, une agence de service

certi ée ou un fournisseur de gaz. Ces instructions doivent être utilisées conjointement avec les

instructions d’installation des modèles mentionnés ci-haut.

MISE EN GARDE : Si les instructions fournies dans le présent guide ne sont pas suivies à la

lettre, un feu ou une explosion pourraient résulter et causer des dommages matériels, des

blessures ou la mort.

MISE À LA TERRE : La prise de courant utilisée pour brancher cet appareil doit être installée et

mise à la terre conformément aux codes locaux et, en l’absence de codes locaux, elle doit être

conforme à la version courante du Code canadien de l’électricité CSA C.1 ou, aux États-Unis, à la

version courante du National Electrical Code ANSI/NFPA 0.

DESCRIPTION DU SYSTÈME

Les modèles de foyers 530 de Valor, RetroFire et Madrona de Miles Fireplaces ont été conçus pour

permettre l’installation facultative d’un ventilateur de circulation d’air. Avec son contrôleur de vitesse

variables et son interrupteur thermique, ce ventilateur est conçu pour augmenter la convection na-

turelle du foyer; cette option peut être désirable selon l’emplacement du foyer. Le ventilateur peut être

installé au moment de l’installation du foyer ou à une date ultérieure.

FONCTIONNEMENT

Ce ventilateur est conçu pour fonctionner automatiquement avec un interrupteur thermique. Il faudra

approximativement 10 à 15 minutes pour réchauffer l’appareil et permettre à l’interrupteur d’actionner

le ventilateur. Pour faire fonctionner le ventilateur, tournez le bouton de la boîte de contrôle dans le

sens horaire de OFF à HIGH. Lorsque l’interrupteur thermique est actionné, continuez à tourner le

bouton pour contrôler la vitesse. Si le foyer est éteint, le ventilateur continuera de fonctionner jusqu’à

ce que l’interrupteur thermique refroidisse. Le ventilateur peut être aussi éteint en tournant le bouton

de contrôle à la position OFF.

En cas de panne d’électricité, le fonctionnement du foyer ne sera pas affecté.

EXIGENCES ÉLECTRIQUES

Le ventilateur doit être branché dans une prise de courant de 120 Volts, 1 phase, 60 Hz. L’intensité

de la charge pleine est de moins de 1 ampère.

VENTILATEUR POUR CIRCULATION D’AIR 555CFK

GUIDE D’INSTALLATION ET D’OPÉRATION

Homologué par la CSA pour usage exclusif avec les modèles

530 de Valor, RetroFire RF24 et Madrona MF28 de Miles Fireplaces

Altri manuali per 555CFK

Indice

Lingue:

Altri manuali Valor Accessori per caminetti

Valor

Valor 546LFB Manuale utente

Valor

Valor H3 Series Manuale utente

Valor

Valor GV60CKO Manuale utente

Valor

Valor G4 791STB Manuale utente

Valor

Valor G3.5 Series Manuale utente

Valor

Valor 784EC Manuale utente

Valor

Valor 720SWK Manuale utente

Valor

Valor 1430CIK Manuale utente

Valor

Valor G3 Series Manuale utente

Valor

Valor L1 Series Manuale utente

Valor

Valor Legend G4 Series Manuale utente

Valor

Valor Retrofire RA24JDNK Istruzioni operative

Valor

Valor G4 790FTV Manuale utente

Valor

Valor PORTRAIT BSK563 Manuale utente

Valor

Valor PORTRAIT BSK539-549-550 Manuale utente

Valor

Valor LEGEND G3 BSK742 Manuale utente

Valor

Valor H6 Series Manuale utente

Valor

Valor Wonderfire BR417 Manuale utente

Valor

Valor G3.5 Series Manuale utente

Valor

Valor LX2 Series Manuale utente

Valor

Valor Legend G3 Manuale utente

Valor

Valor MADRONA Series Manuale utente

Valor

Valor Retrofire RF24JB Istruzioni operative

Valor

Valor H3 Series Manuale utente

Manuali Accessori per caminetti popolari di altre marche

Exodraft

Exodraft Xzense Manuale utente

Whalen

Whalen Ruso MNFP62BF23-6 Manuale utente

Lopi

Lopi Hearthview 864 Manuale utente

Woodstock Soapstone

Woodstock Soapstone Fireview 201 Manuale utente

EdilKamin

EdilKamin SERBATOIO 250 Guida rapida

Bronpi

Bronpi KIT-1 Manuale utente

Town & Country Fireplaces

Town & Country Fireplaces 22150051 Manuale utente

Travis Industries

Travis Industries 33 DVI Manuale utente

Superior

Superior ASD3628-TI Manuale utente

pleasant hearth

pleasant hearth OFP28WG Manuale utente

IHP

IHP Astria Series Manuale utente

Firegear

Firegear FG-H-2110SS Manuale utente

Nibe

Nibe Contura C i31 Manuale utente

kozy heat

kozy heat KZK-052 Manuale utente

SimpliFire

SimpliFire SF-WM36 Manuale utente

Bluegrass Living

Bluegrass Living BC18NR Guida rapida

pleasant hearth

pleasant hearth IRIS SCROLL Manuale utente

Cooke

Cooke Glass Wind Guard Manuale utente
