Valor Portrait 569 Ledge Front Manuale utente

4002418-09

The installation of this kit affects the framing and method of

installing the 530 heater.

Installation Sequence

1. Frame the cavity.

2. Install the heater with stud brackets, stand-offs, insulation, wall switch

kit, and cement board.

3. Gas fit and vent heater.

4. Drywall only (no tile, etc.).

5. Assemble and install the mounting frame.

6. Install finishing material (tile, etc.). Finish around or under 570 Finishing

Plate if using it.

7. Install the trim panel fitted with the barrier screen.

Note: This kit must be

installed or serviced by a

qualified installer, service

agency or gas supplier.

These instructions are to be

used in conjunction with the

main installation instructions

for the above listed heater

model.

Ledge Fronts 569

Approved for use with Valor heater models 530IN/IP ONLY

Not compatible with 530INI/IPI insert heaters

HOT GLASS WILL

CAUSE BURNS.

DO NOT TOUCH GLASS

UNTIL COOLED.

NEVER ALLOW CHILDREN

TO TOUCH GLASS.

DANGER

A barrier designed to reduce the risk of burns from the hot

viewing glass is provided with this appliance and must be

installed for the protection of children and other at-risk

individuals.

INSTALLER: Leave this

manual with the appliance.

CONSUMER: Retain this

manual for future reference.

INSTALLATION MANUAL

Portrait

530 engine

Touch control

wall switch

Roof

grille

panel

Stand-off

Insulation

Stud bracket

Convection baffle

Mounting

frame

Window frame cover

Cement board

Trim panel —patina, brushed nickel or black—

with barrier screen

570FPB Finishing Plate

(530 engine and 570FPB Finishing Plate sold separately)

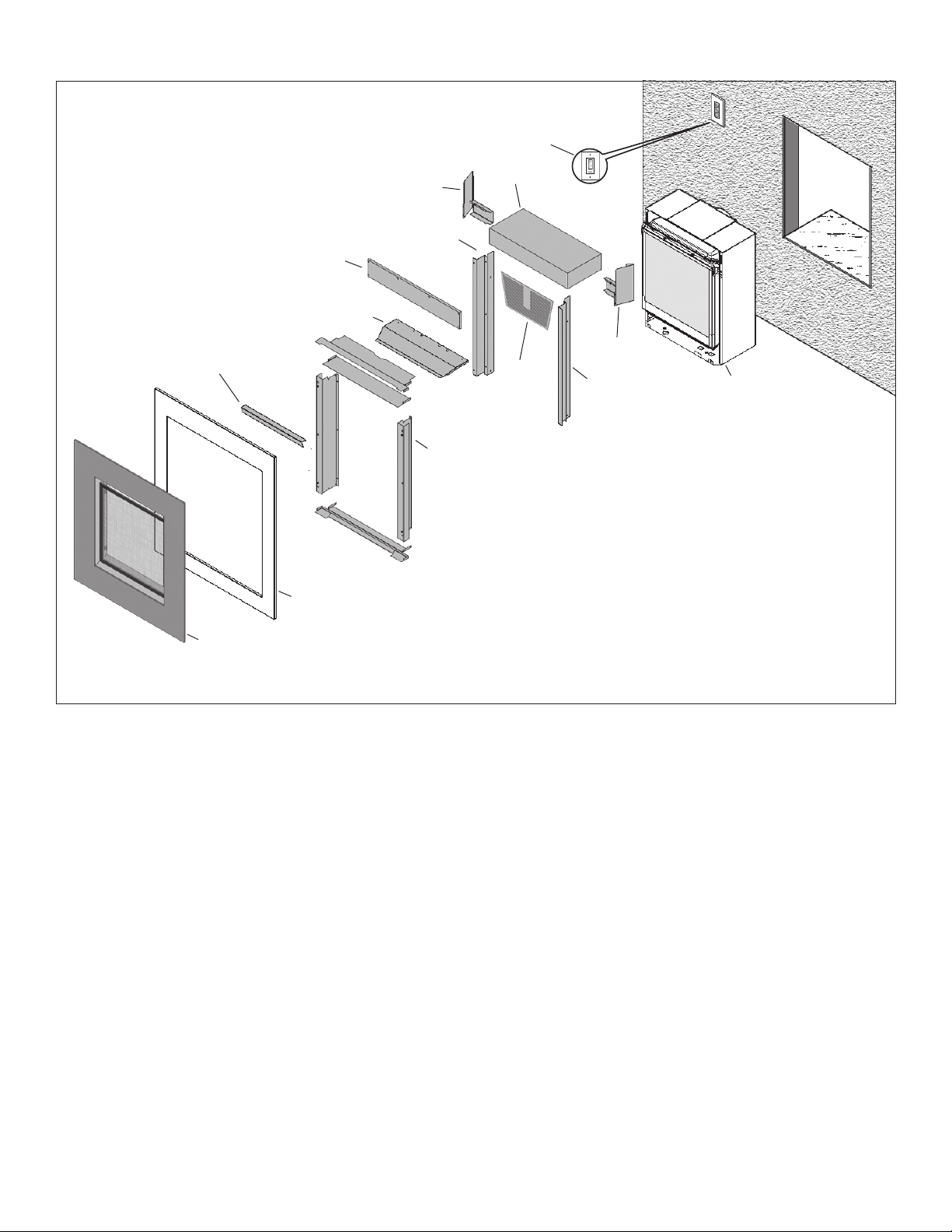

Overview

570 Finishing Plate

sold separately

Cement board

center

of vent

11/16” (17 mm) between

bottom of engine and

bottom of trim

570 plate thickness: 1/2” (13 mm)

Min. 36” (0.9 m) to

combustible materials

27-3/8” (696 mm)

31-1/8” (790 mm)

30” (762 mm)

36-1/2” (927 mm)

21-5/8” (549 mm)

25-1/4” (641 mm)

30-1/4” (768 mm) to header base

31” (787 mm) to cement board top

4” (102 mm) between

bottom of engine and

bottom of 570 plate

bottom of 570

bottom of trim

1/2” (13 mm) min.

under bottom of

trim for air gap

3-5/16” (84 mm)

cement board

and drywall

thickness:

1/2” (13 mm)

wall nish thickness

over top of drywall:

max 1” (25 mm),

1/2” (13 mm)

when using 570 Plate

6-5/8” (168 mm) dia.

3-5/8”

(92 mm)

7-1/8”

(181 mm)

2”

(51 mm)

22-1/2” (572 mm)

47-15/16” (1216.9 mm)

Face of

wall studs

33-15/16” (861.3 mm)

11-15/16”

(302.5 mm)

20” (508 mm)

12-3/4”

(324 mm)

surface

of wall

nish

2” (51 mm) sidewall

minimum clearance

90°

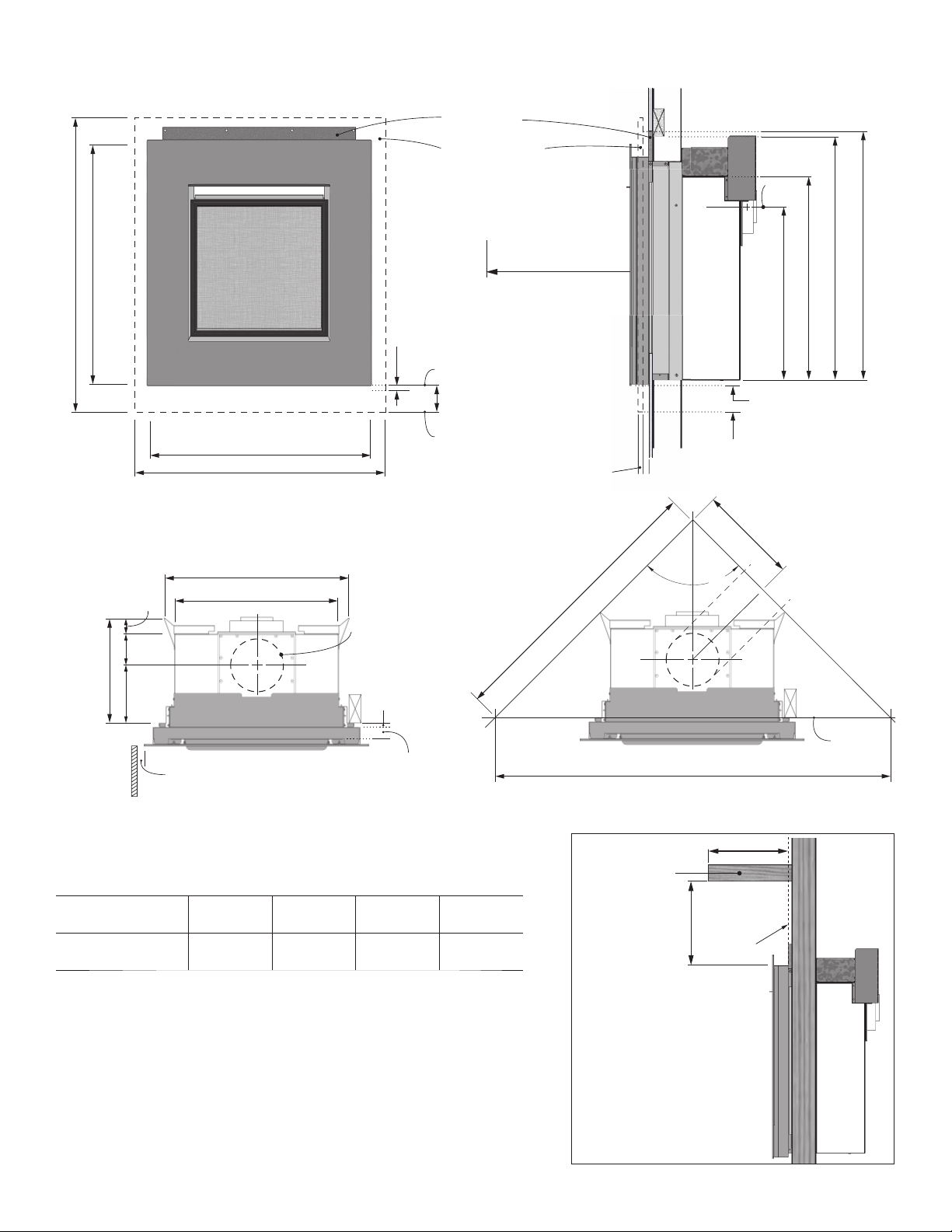

Dimensions & Clearances

Mantel Clearances A

Combustible

mantel

Face of

cement

board/

drywall

Mantel Depth ‘A’ 0–6”

(0–152 mm)

8”

(203 mm)

10”

(254 mm)

12”

(305 mm)

Mantel Height ‘B’ 4”

(102 mm)

8”

(203 mm)

10”

(254 mm)

12”

(305 mm)

Side View

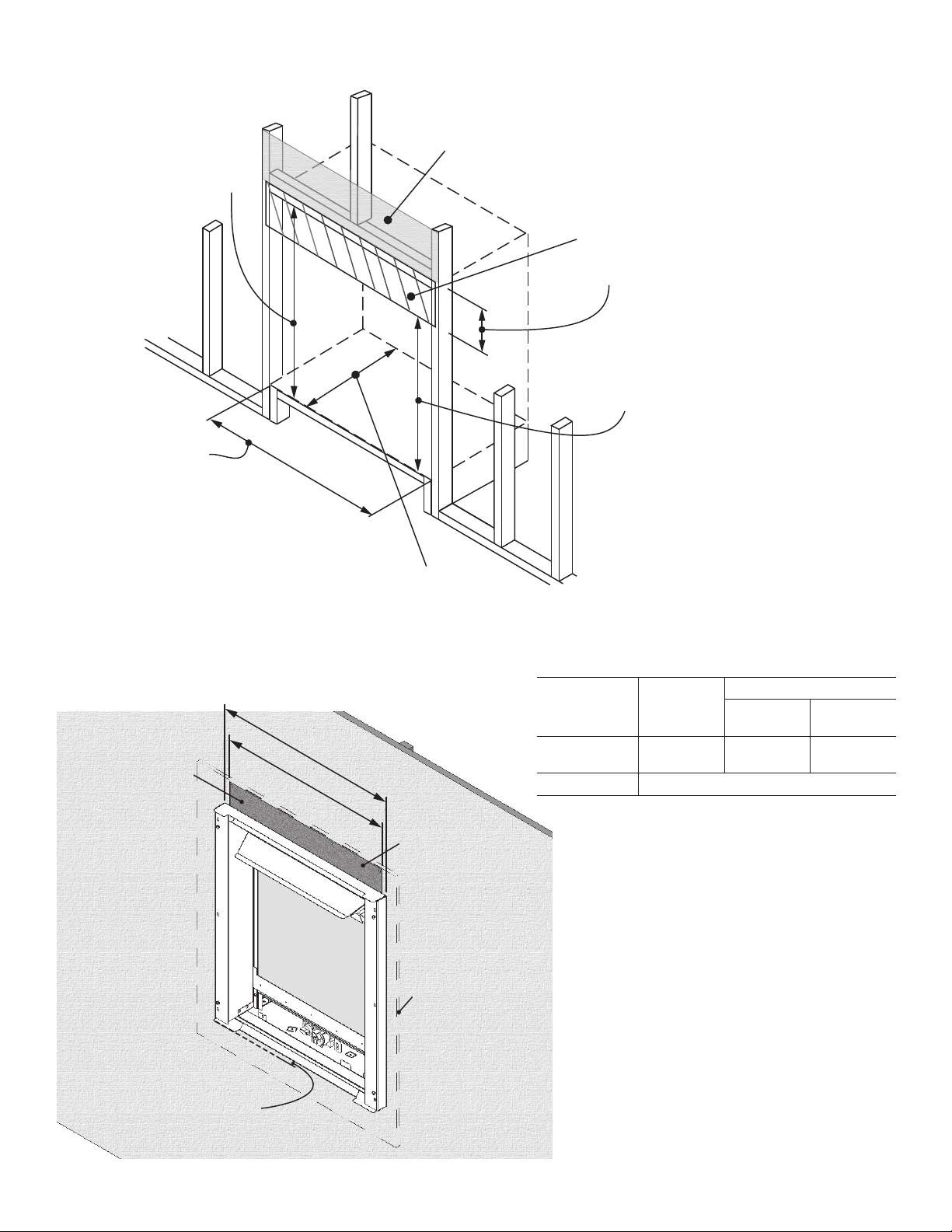

Framing

Wall Finish

30-1/4”(768 mm)

to header

27-3/8”(695 mm) to

cement board

3-5/8”(92 mm)

cement board

supplied

22-1/2”min.

(572 mm)

Wall Finish

This is the framing

width. Drywall to

23-3/4”(603 mm) wide.

Minimum 12-3/4” (324 mm)

(Allow extra for rear vent elbow)

drywall

570 plate outline

wall nish must be

non-combustible

at top of opening

gap must

remain open

for air ow

cement board

23-3/4” (603 mm)

25” (635 mm)

WALL FINISH no 570 plate

with 570 finishing plate

tile up to

plate:

tile behind

plate:

Tile or finish

thickness

1-1/8”

(30 mm)

1-3/8”

(35 mm)

5/8”

(18 mm)

Drywall 1/2” (12.7 mm)

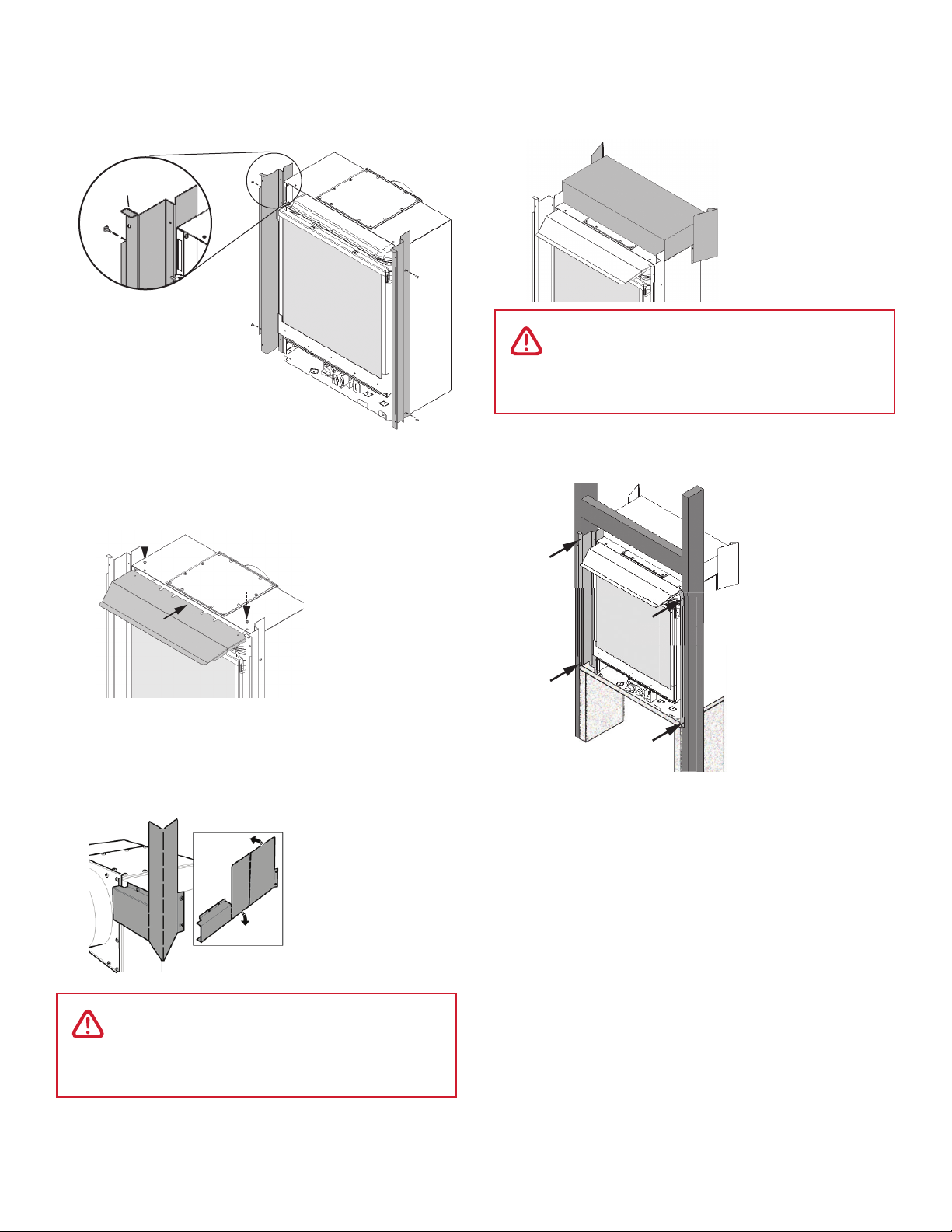

Installation

1. Fit the stud brackets to the appliance’s sides (2

screws/side). Make sure the horizontal tabs are at

the top.

2. Fit the convection baffle to the top of the appliance

case (2 screws). The convection baffle slips under

the top of the appliance case.

3. Required for installation in combustible

construction. Bend the stand-offs into shape and

fix them to the appliance’s case as indicated (4

screws/side, pre-fitted on engine).

tab at

the top

WARNING

Failure to install the stand-off spacers may

result in a fire hazard.

WARNING

Failure to install the insulation layers may

result in a fire hazard.

4. Required for installation in combustible

construction. Add insulation pad on the top of the

appliance, cutting around the pipe if installing a top

vent.

5. Mount the appliance to the studs with wood screws

(2/side, not supplied). Make sure the framing is

leveled.

7. Install Wall Switch

The wall switch includes a 35 feet cable which connects

to the receiver in the fireplace. The receiver is located

left of the gas valve under the firebox.

Note: You must complete the installation of the wall

switch, connect the battery holder, and test the wall

switch before pairing the remote control handset to the

receiver. See the fireplace’s installation instructions for

details on pairing the handset to the receiver.

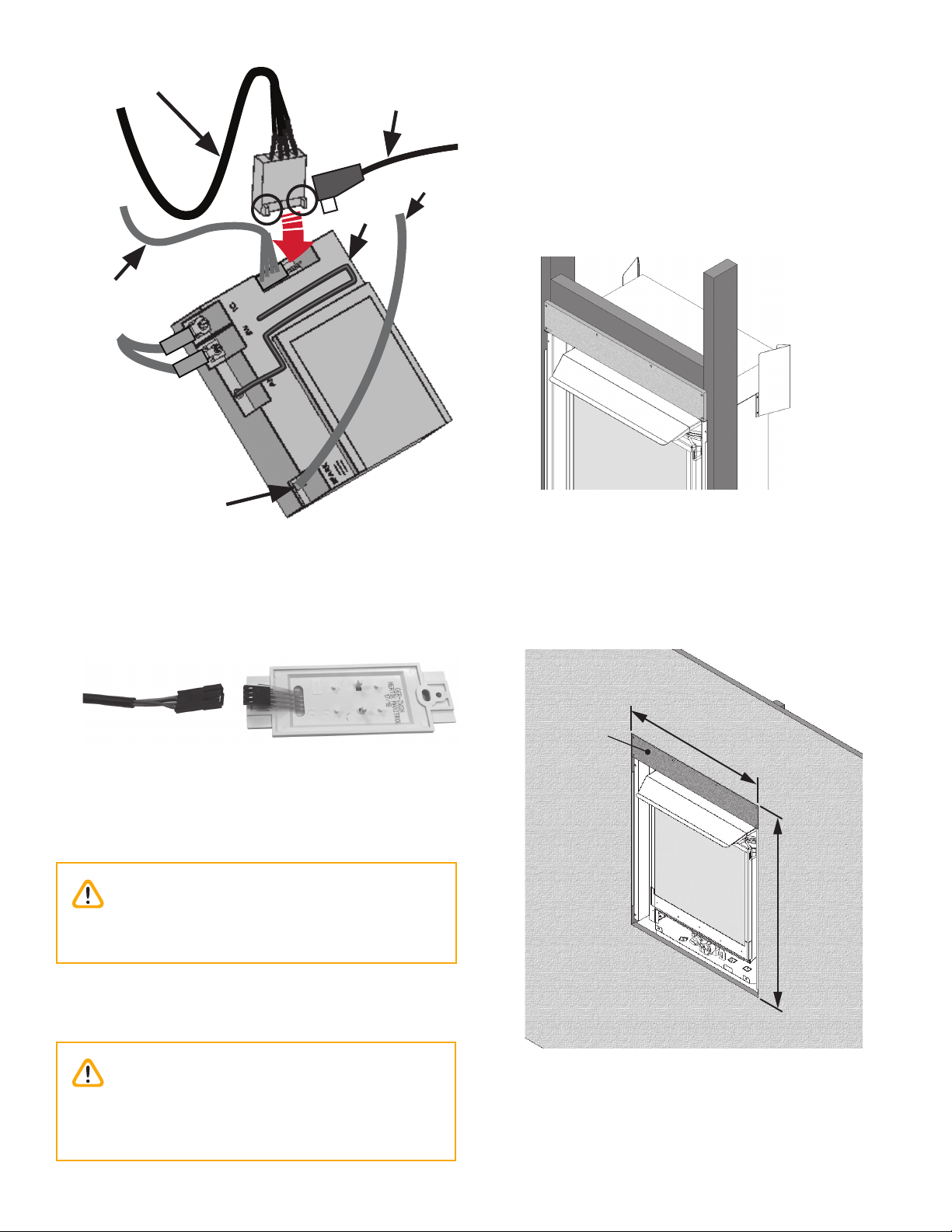

a. Decide where the switch is to be installed in the

wall. Install an electrical outlet box or mud ring

as required (not supplied).

b. Thread the switch wire through an access hole in

the appliance toward the outlet box. The brown

end stays in the engine, the black end goes out

to the wall switch.

c. If connected, disconnect the battery holder from

the receiver.

d. Pull out the receiver. You can remove the ignition

wire to improve access to the receiver.

e. Take the switch wire and plug the brown

connector into the receiver’s connection slot as

indicated (the other slot should already be fitted

with the valve’s wire harness connector). See

diagram below.

Grille inserted

parallel to firebox

edge

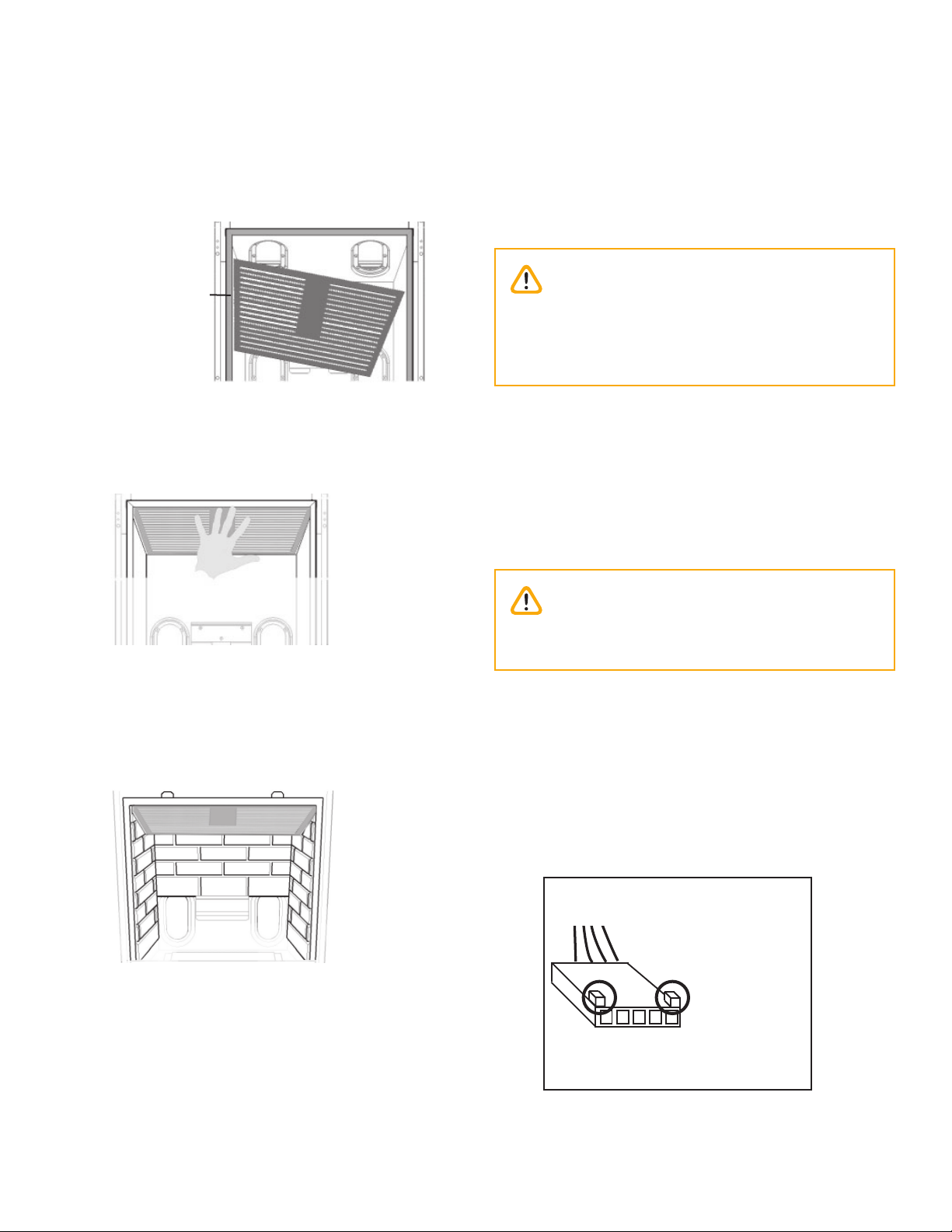

6. Install venting, panels, fuel beds, gas supply and so

on as per appliance instruction manual.

LOGS & ROCKS VERSIONS ONLY. Grille cannot be

used with coal fuel bed version. Install the grille panel

inside the appliance:

a. Insert the grille in the firebox by aligning one

of its side edge to the edge of the firebox as

indicated.

b. Raise the grille up to cover the top firebox ports

and hold with one hand.

Note: The port cover strip supplied with the

heater is not required.

c. Place the rear brick wall. It should support the

grille. If not, keep holding it while you place the

side brick walls. Refer to the fireplace installation

manual for more information on installing the

brick walls.

IMPORTANT: The connection can

only be done one way.

Do not force it or damage the pins

on the receiver box!

Caution

DO NOT PUT BATTERIES IN THE REMOTE CONTROL

RECEIVER. DO NOT PUT BATTERIES IN THE

BATTERY HOLDER or DO NOT CONNECT IT to the

receiver BEFORE you connect the wires!

Caution

DO NOT RUN the switch wire over top of firebox.

Route wire so it does not contact firebox.

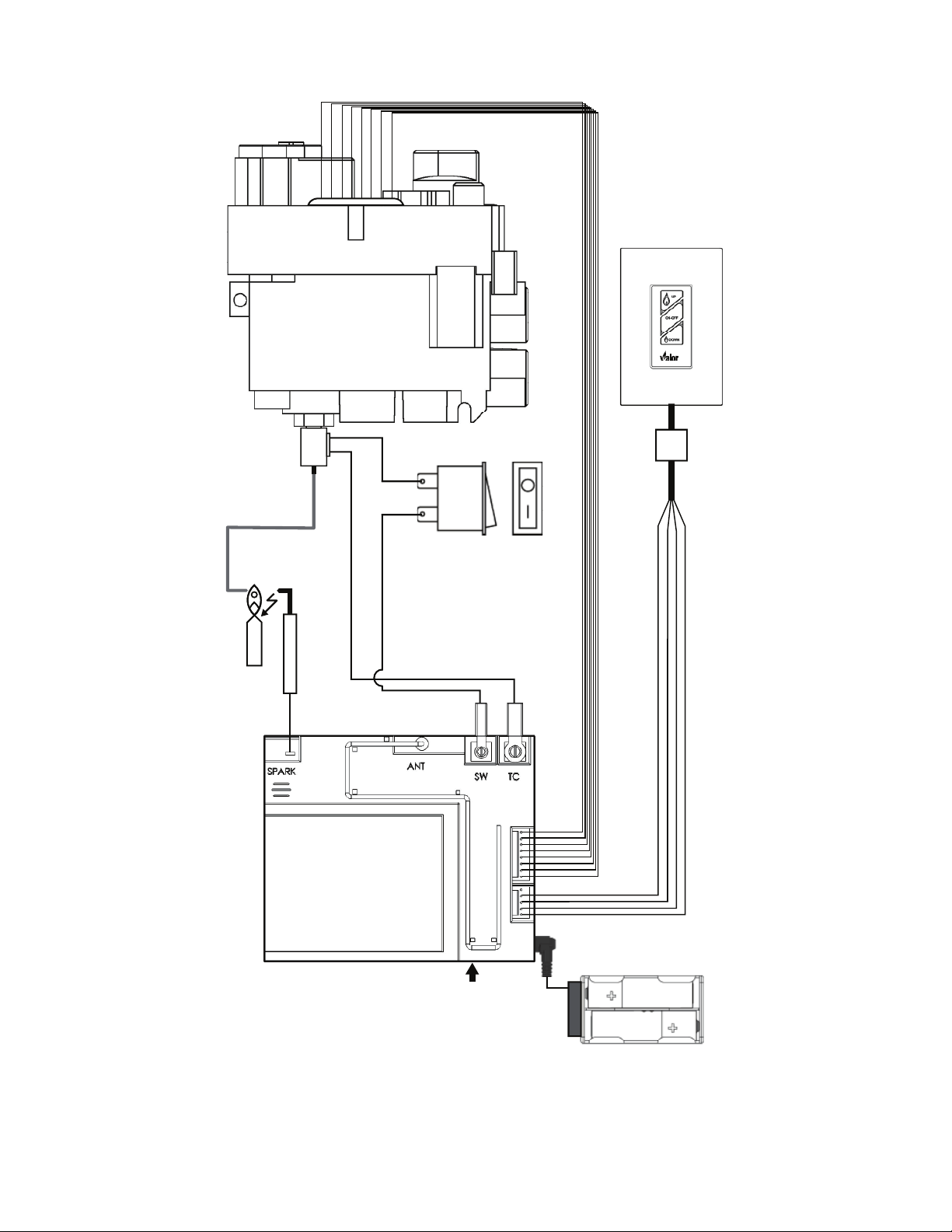

Ignition Wire Connection

(spade type connector)

Be careful when removing and

reinstalling not to bend or break

the spade connector

Ignition Wire

Antenna

Valve Wire

Harness

Wall Switch Harness Battery holder cable

(disconnected)

Caution

To avoid short-circuit to receiver, position

antenna so that it DOES NOT TOUCH ignition wire.

Caution

DO NOT USE screwdriver or other metallic object

to remove batteries from receiver or handset!

This could cause a short-circuit to receiver.

f. On the outside of the fireplace, run the switch

wire into the outlet box. Use insulated type

staples to secure the wiring to framing.

g. Plug the black end of the wire into the switch

plate connector.

h. Screw the switch plate into the installed outlet

box.

i. Reconnect the ignition wire to the receiver if it

was previously removed.

j. Insert 4 AA batteries in the battery holder. DO

NOT PUT BATTERIES IN THE RECEIVER!

k. Connect the battery holder to the receiver.

l. Test the wall switch’s operation.

m. Once the operation is confirmed correct, fix the

wall cover plate to the outlet box.

n. Replace the receiver and battery box in their

positions, as well as the antenna if deployed.

8. Install the cement board on top of the appliance.

The board sits on the horizontal tabs at the top of

the stud brackets.

9. Install the drywall at this point. Although it can be

installed later, the mounting frame for the front will

overlap it.

Wall opening: 23-3/4” (w) x 31” (h)

Note: If tiling, etc. is used overtop of drywall,

complete steps 10, 11, and 12 first as the frame,

once installed, will define where to tile up to.

Cement

board

Drywall opening

31”

(787 mm)

23-3/4”

(603 mm)

c. Slide the internal baffle over the screw tips on

the frame’s left piece, under the top piece. Hold

the baffle in place with one hand.

d. With the other hand, align the right holes of

the baffle to the holes in the top piece and the

frame’s right piece. Fix the three pieces together

from the outside with all tabs inboard (2 screws).

NOTE: All the side tabs of the bottom, top, and

internal baffle pieces should be inboard of the

frame.

Bottom piece orientation—right side view

Front

Fixing points

Screw tip

Fixing points

Internal baﬄe orientation—

right side view

Front

Screw tip

Frame top

Frame bottom

Frame—right side view

No tabs showing

on outside surface

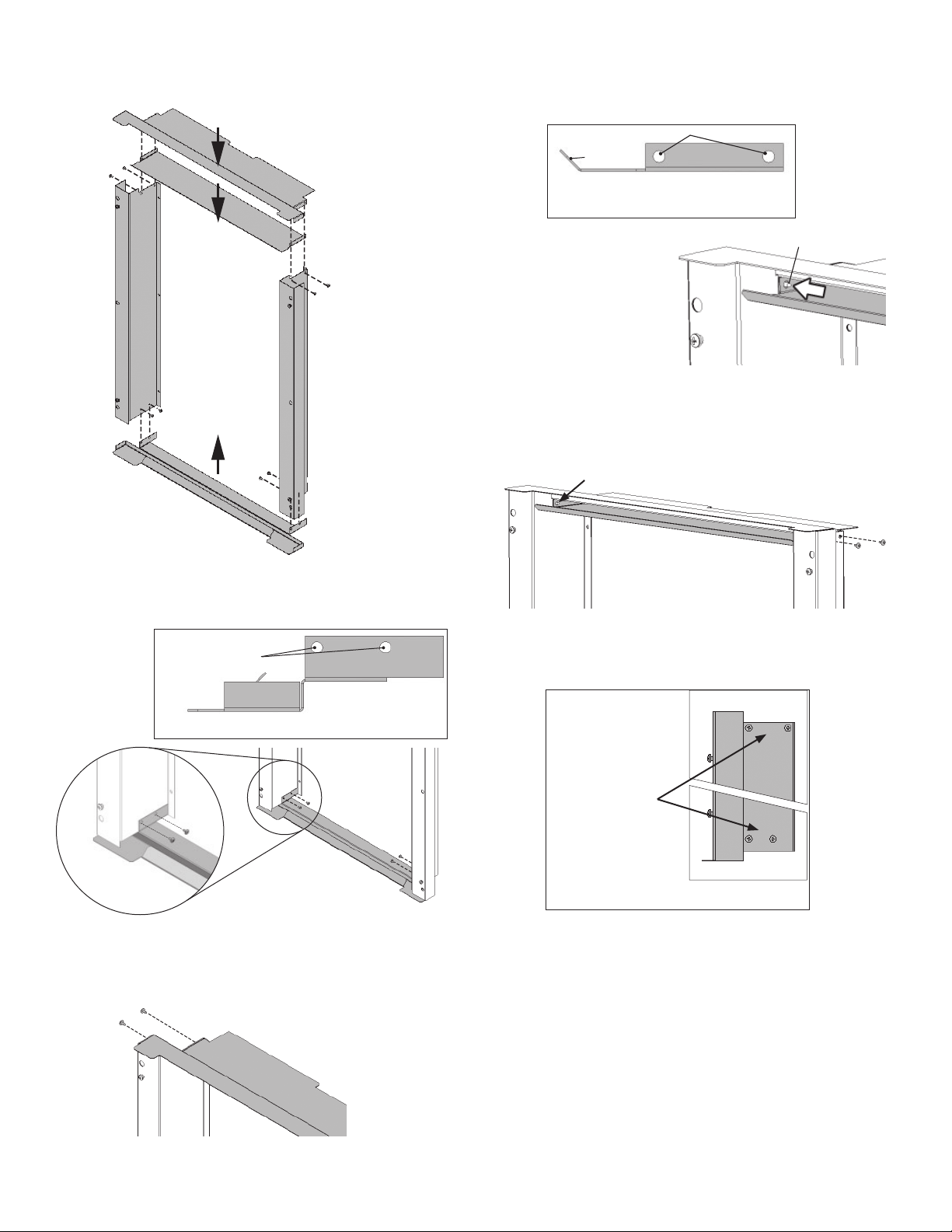

10. Assemble the mounting frame following the steps

indicated below.

a. Fix the bottom piece to the two side pieces as

indicated below (2 screws/side).

b. From outside of the frame, fix the top piece to

the left side piece with the tabs inboard of the

side piece (2 screws).

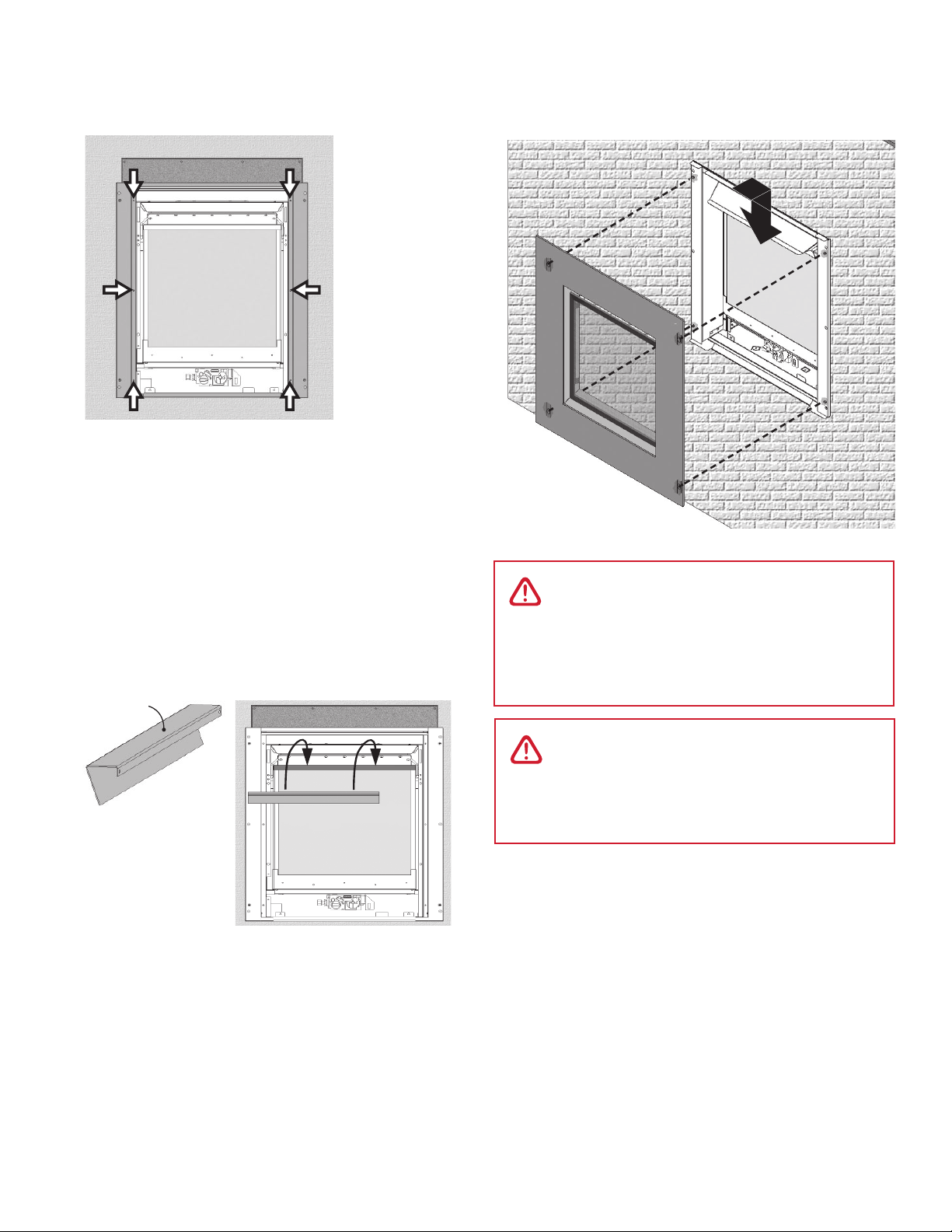

11. Slide the mounting frame over the appliance case.

The front of the frame has 4 screws protruding

from it. Fix the frame to the stud mounting panels

on each side of the appliance (3 screws per side).

12. Apply wall finish on top of drywall.

IMPORTANT: The drywall is assumed to be 1/2inch

thick.

Wall finish material thickness on top of drywall

such as tile, brick, and so on:

When finishing under optional 570 Plate:

1/2inch maximum.

When finishing around optional 570 Plate:

see mantel clearances if finish protrudes from plate.

Without 570 Plate: 1-1/8 inch maximum.

13. Hook the window trim cover on the top edge of the

window frame.

14. Hook the front trim to the mounting frame placing

its keyholes on the protruding screws on the front

face of the mounting trim and slide it downward to

fit it.

Maintenance

To clean the front trim, use mild soap and water. You

can dust the screen with a soft brush. To brush the back

of the screen, simply unhook the front trim.

If the barrier becomes damaged, the barrier shall

be replaced with the manufacturer’s barrier for this

appliance.

To clean the window and ceramics inside the firebox,

consult the Owner’s Information section of the Installation

and Owner’s Manual supplied with the fireplace.

DO NOT CLEAN THE GLASS WINDOW WITH AMMONIA!

Window frame cover—

rear view

Top

WARNING

DO NOT TOUCH THE BARRIER SCREEN,

CAST FRONT OR GLASS WHILE THEY ARE

HOT! Let the fireplace cool first before

performing any maintenance.

WARNING

FOR YOUR SAFETY, ensure the barrier

screen in installed on the fireplace after

maintenance.

Wiring Diagram

IGNITOR

red

Interruptor

Block

black

Battery Holder

PILOT

MAN Knob

Combination Control Valve

Main Valve Knob

PANEL

redyellow

Receiver

Antenna

RESET Button

Optional

Wall Switch

Kit

Connector

Thermocouple

8-Wire Cable (bundled)

ON/OFF Switch

Altri manuali per Portrait 569 Ledge Front

Questo manuale è adatto per i seguenti modelli

Indice

Lingue:

Altri manuali Valor Accessori per caminetti

Valor

Valor PORTRAIT BSK539-549-550 Manuale utente

Valor

Valor Legend G4 Series Manuale utente

Valor

Valor Legend G4 797FSB Manuale utente

Valor

Valor 784EC Manuale utente

Valor

Valor G3.5 Series Manuale utente

Valor

Valor G3.5 Series Manuale utente

Valor

Valor Madrona Manuale utente

Valor

Valor L1 Series Manuale utente

Valor

Valor 555CFK Manuale utente

Valor

Valor 752BTK Manuale utente

Valor

Valor H5 Manuale utente

Valor

Valor 1240BPK Manuale di istruzioni

Valor

Valor 739-72ILN/P Istruzioni per l'installazione

Valor

Valor 720SWK-M Manuale utente

Valor

Valor L1 Series Manuale utente

Valor

Valor Legend G3 739NGK Manuale utente

Valor

Valor LT1 2500K Manuale utente

Valor

Valor LX1 Series Manuale utente

Valor

Valor Horizon 615CVI Cast Surround Manuale utente

Valor

Valor PORTRAIT BSK563 Manuale utente

Valor

Valor G3 Series Manuale utente

Valor

Valor H3 Series Manuale utente

Valor

Valor 1435 Manuale utente

Valor

Valor HORIZON H4 Series Manuale utente

Manuali Accessori per caminetti popolari di altre marche

Exodraft

Exodraft Xzense Manuale utente

Whalen

Whalen Ruso MNFP62BF23-6 Manuale utente

Lopi

Lopi Hearthview 864 Manuale utente

Woodstock Soapstone

Woodstock Soapstone Fireview 201 Manuale utente

EdilKamin

EdilKamin SERBATOIO 250 Guida rapida

Bronpi

Bronpi KIT-1 Manuale utente

Town & Country Fireplaces

Town & Country Fireplaces 22150051 Manuale utente

Travis Industries

Travis Industries 33 DVI Manuale utente

Superior

Superior ASD3628-TI Manuale utente

pleasant hearth

pleasant hearth OFP28WG Manuale utente

IHP

IHP Astria Series Manuale utente

Firegear

Firegear FG-H-2110SS Manuale utente

Nibe

Nibe Contura C i31 Manuale utente

kozy heat

kozy heat KZK-052 Manuale utente

SimpliFire

SimpliFire SF-WM36 Manuale utente

Bluegrass Living

Bluegrass Living BC18NR Guida rapida

pleasant hearth

pleasant hearth IRIS SCROLL Manuale utente

Cooke

Cooke Glass Wind Guard Manuale utente
