VarTech Systems DiamondVue VT084C Manuale utente

8.4’ DiamondVue User Guide 150.028

VT084 DiamondVue Series

8.4” Flat Panel Series LCD Monitors

Model Numbers:

VT084C · VT084P · VT084PSS · VT084W

VT084CXGA · VT084PXGA · VT084WXGA

VT084P3 · VT084RDD

User’s Guide

Read these instructions completely before attempting to operate your new Color Display.

VarTech Systems Inc.

Solutions for Demanding Applications

Industrial CRT and Flat Panel Displays

8.4’ DiamondVue User Guide 150.028

Table of Contents

Page Page

Section 1 Section 4

Introduction 1 Touch screen 11

1.1 About LCD Monitors 1 4.1 Touch Screen Introduction 11

1.2 Product Safety Precautions 2 4.2 Touch Screen Definition 11

Section 2 Section 5

Display Setup 3 Troubleshooting Tips 12-13

2.1 Display Features 3

2.2 Unpacking The Display 4 Section 6

2.3 Included Parts 4 Cleaning & Maintenance 14

2.4 Connecting Your Display 4

2.5 Signal Connections 4-6 Section 7

Mounting Instructions 15

Section 3 Chassis Mount Procedure 15

Getting Started 7 Panel Mount Procedure 15

3.1 Adjusting the Display 7 VT084C Chassis Mount Drawing 16

3.2 Definition of OSD 7 VT084P Panel Mount Drawing 17

3.3 Adjustment Procedure 8-10 VT084W Wall Mount Drawing 18

VT084RDD Mechanical Drawing 19

Section 8

Display Specifications 20

8.4’ DiamondVue User Guide 150.028

LCDs

INTRODUCTION

Section

About LCD Monitors

What you gain by using an LCD monitor in your industrial controls

are the future of display technology. Although CRTS have dropped in cost

significantly, they do not offer the performance, reliability, and mounting

options available with LCDs. LCD monitors consist primarily of an LCD,

Video Board and a Back Light video. The LCD determines to a large

extent the viewing angle, brightness and contrast. Beyond that it is function

of the video board which converts the analog RGB (Red, Green, Blue) signals from a standard

video card to a high quality, digital RGB that the LCD can display.

Recently the video card has taken on a new role. It is the responsibility of this device to “scale” a

particular video resolution to the “native” resolution of the LCD. Simply, consider that a computer is

putting out a VGA [640x480] resolution signal, yet the LCD that is connected is an XGA [1024x768]

display. The displayed picture would be in the center 1/3 of the LCD. With the introduction of the

scaling engine. The converter will mathematically recalculate the 640x480 to 1024x768. This may

sound simple but it is in fact a complex algorithm that adjusts for different aspect ratios and pixel

alignment, essentially smoothing text and graphics to produce a picture that is pleasant to the eye.

All Vartech displays from 12.1” (800x600) to 23.1 (1600x1200) incorporate scaling engines in the

converter card.

1.1

8.4’ DiamondVue User Guide 150.028

Product Safety Precautions

⇒ Ensure that sufficient space is available around the display to provide the

circulation necessary for cooling.

⇒ Ensure that the ambient air temperature will not exceed the specified

maximum temperature.

⇒ Do not attempt to service this display yourself. The rear chassis has a seal so

that non qualified personal will not expose themselves to dangerous voltages

or other risks.

⇒ To protect from electrical shock, unplug the display power supply from the wall

before moving.

⇒ Do not expose the display to direct sunlight or heat.

⇒ Do not use this display near water

⇒ Do not place any heavy objects on the power cords. Damage may cause

electrical shock.

⇒ Unplug the power supply from the wall or unit if one of the following conditions

exists.

⇒ Power cord or plug is damaged or frayed.

⇒ Liquid is spilled into the display or the display is exposed to rain or

water.

⇒ The display does not operate normally when the operating

instructions are followed.

⇒ The display has been dropped or the enclosure has been

damaged.

⇒ The display exhibits a distinct change in performance, indicating a

need for service.

1.2

8.4’ DiamondVue User Guide 150.028

Section

DISPLAY SETUP

VT084 Series Display Features

⇒ The VT084 is capable of displaying 256K colors in a continuous spectrum. The high contrast

LCD enhances the image with no geometric distortion.

⇒ The VT084 Series directly accepts an analog 5 wire RGB with separate H/V.

⇒ The VT084 Series is set to VGA 640 x 480.

⇒ The VT084 Series is available in Panel Mount, Chassis Mount or Wall Mount industrial

packages.

⇒ The VT084 Series is supplied with a Anti-Reflective Screen unless equipped with an optional

Touch System.

⇒ The VT084 Series has a +12V DC jack. Vartech provides an optional 115/220VAC “Brick”

supply.

2.1

8.4’ DiamondVue User Guide 150.028

2.2 Unpacking and setting up your display

Your LCD monitor package will consist of the components listed below. Open shipping

container and lay all components on a flat clean surface.

What is included with your display

⇒ VT084P, VT084C, VT084W LCD Monitor

⇒ 5 ft Video Cable.

⇒ +12VDC power connection. (115/220VAC “Brick” Power Supply is optional)

⇒ 10-32 Mounting Hardware. (For use with Panel Mount only)

⇒ 6 ft RS232 Touch Interface Cable (Optional when touch is installed)

⇒ CD ROM with Touch Screen Drivers (Optional when touch is installed)

⇒ Users Manual

2.4 Connecting the Display

1. Connect all cables to the computer first. This would include the VGA cable and the

optional RS 232 serial touch screen connection.

fter connecting the cables between the LCD monitor and the computer, plug the

customer supplied +12VDC source to the 12V connection on the rear or the 12VDC

connection from the output of the optional 115/220VAC supply.

3. Once the +12V or the 115/220VAC connection is made, the display is active.

4. If your computer was off, turn on your computer.

5. Your display should now operate as a normal computer display showing your windows or

whatever video is being sent to the flat panel.

2.5 Signal Connections

To avoid irregular operation and /or damage to the display, please insure correct video is

being supplied as shown on the following page.

2.3

Note: If for any reason the display goes blank and gives an “out of Range” or “No Input Signal”,

your computer or video source is putting out a signal that is out of range of the LCD’s video

board. If this happens, reboot the computer or video source and make sure you are inputting

the correct signal. If the display doesn’t work properly, it may be because:

(a) The resolution is to high or low for the LCD.

(b) The refresh rate is set to high. Refresh on an LCD is different than a CRT. Set the refresh to

60Hz. CRT’s need a high refresh rate to avoid flicker. The refresh rate has no impact on

LCD’s.

(d) The unit is malfunctioning. If you believe this to be true, disconnect the video cable from the

rear of the LCD and connect to a known good computer CRT display. If the computer

display is working satisfactory and the video is within the appropriate range, then contact

Vartech Customer service for a RMA number at 800-223-8050.

8.4’ DiamondVue User Guide 150.028

2.6 Signal Connections Cont.

You can use an HD-15 connector cable or a BNC adapter cable to connect the flat panel

monitor to the host computer. The HD-15 video cable (supplied in the kit) you use with this

monitor is equipped with a conventional HD-15 connector at each end.

Note: The following figure is the view looking into the pin end of the male connector or solder

term end of the female connector.

HD-15 Video Connector

The following table provides the pin numbers and corresponding pin

assignments for the HD-15 video connector.

Pin assignments for the HD15 video connector

Pin Connection Pin Connection

1 Red Video 9 No Connection

2 Green Video 10 Sync Ground

3 Blue Video 11 No Connection

4 No Connection 12 Bi-Directional Data

5 Return 13 Horizontal Sync

6 Red Video Ground 14 Vertical Sync

7 Green Video Ground 15 DDC Clock

8 Blue Video Ground

Pin assignment for 9 Pin Optional Touch Screen Connector.

1 DCD Data Carrier Detect

2 RD (Rx) Receive Data

3 SD (Tx) Transmit Data

4 DTR Data Terminal Ready

5 SB Signal Ground

6 DSR Data Set Ready

7 RTS Request to Send

8 CTS Clear to Send

9 NC No Connection

HD15 Connector

8.4’ DiamondVue User Guide 150.028

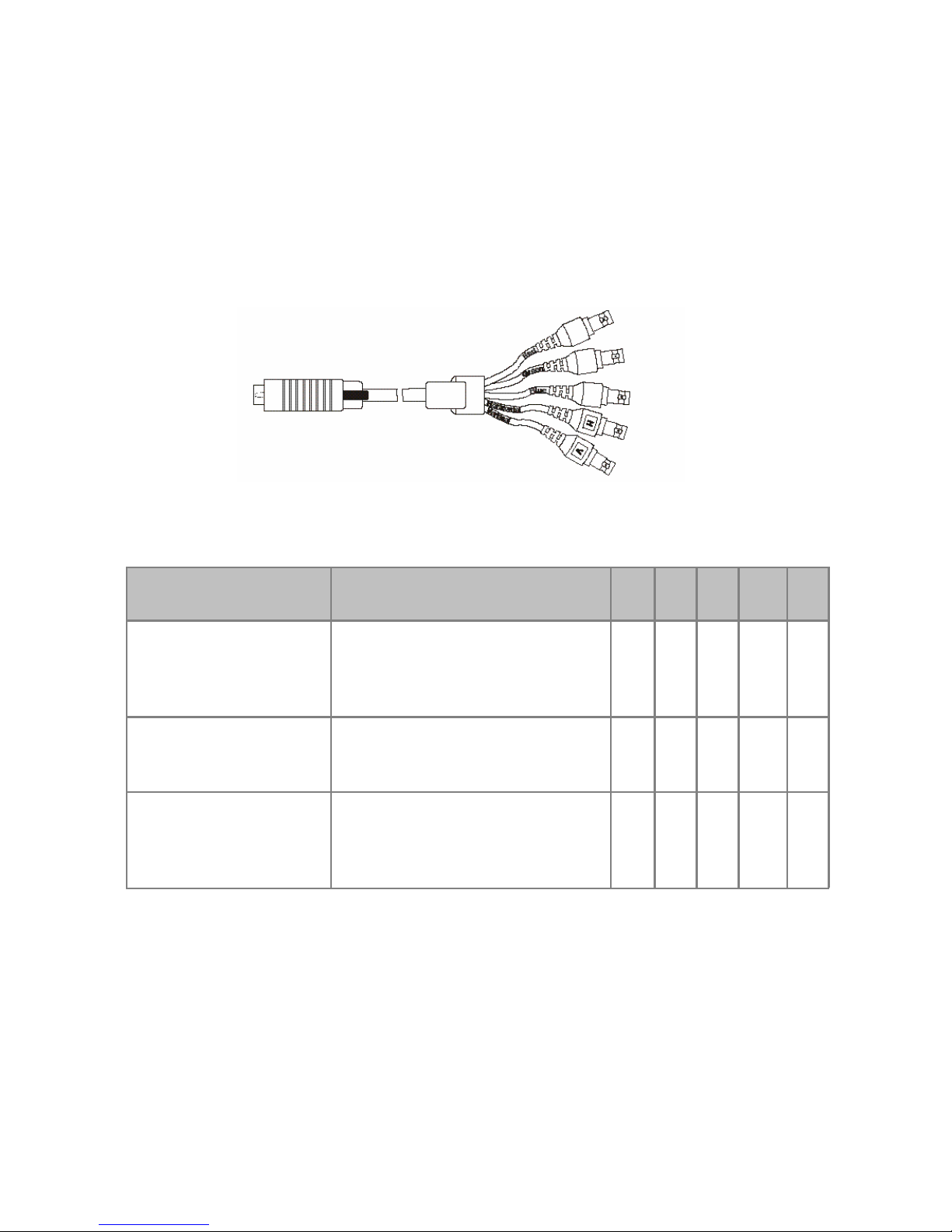

Optional BNC Adaptor Cable

A 5-BNC-to-HD-15 adapter cable is available. The functions of the cables are described

below.

⇒ R, B, and G: Red, Green, and Blue input connectors to establish color.

These are used for RS-343 analog signals.

⇒ HS/CS: Separate horizontal/composite sync signal from the video

source.

⇒ VS: Separate vertical sync signal from the video source.

BNC Adapter Cable

This table describes the signal types you can use with the connectors:

2.5 Signal Connections Cont.

BNC Signal Type Description RGB HS/

CS VS

Sync-on-Green

(optional)

Use the three video connectors.

Horizontal and vertical syncs

are supplied on the green video

line.

XXX

Composite Sync Use the three video connectors

plus the horizontal sync/

composite sync input.

XXXX

Separate Horizontal

and Vertical Sync.

Use the three video connectors

plus the horizontal sync/

composite sync and vertical

sync input.

XXXXX

8.4’ DiamondVue User Guide 150.028

Adjusting the display

Definition of OSD (on screen display) Adjustments

The VT084 Series display has an embedded microprocessor in the converter card. Once you

have the unit to display VGA do the following:

In order to navigate to the appropriate adjustments, press Menu and the OSD layout chart will

appear as indicated in Fig. 1 from left to right.

If you press the “MENU” the new settings are saved and the OSM appear and your setting will

be stored in the unit’s non volatile memory.

SelectMenu

Vartech Systems

www.vartechsystems.com

3.1

Section

GETTING STARTED

3.2

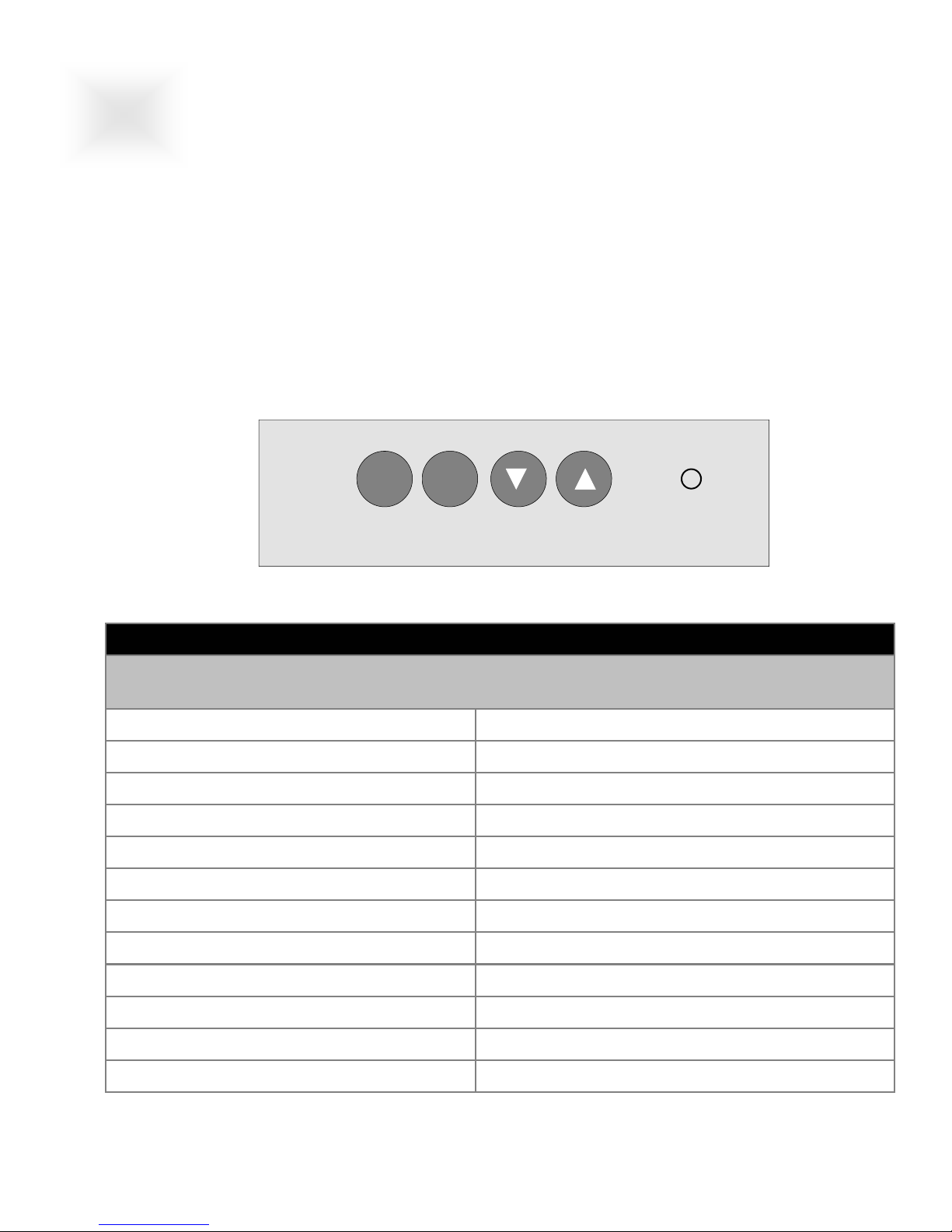

There are four membrane buttons (as shown above) located on the rear of the unit. They will

activate the OSD and allow navigation to all adjustments if your unit requires adjustment.

Main Menu Sub Adjustment

Automatic Adjust Geometry & Color Balance

Horizontal Position Horizontal position

Vertical Position Vertical Position

Horizontal Size Horizontal Size

Phase Phase

Brightness Brightness

Contrast Contrast

Color Red, Green, Blue

OSD Language English, Espanol, Deutsch, Francais, Italiano

Advanced Factory Preset, OSD Hor. Pos., OSD Vert. Pos.

Cancel

OSD Layout

Fig. 1

8.4’ DiamondVue User Guide 150.028

3.3 Adjustment Procedure

Automatic

Adjustment

Press Menu and the automatic adjustment will be the first item to appear on the OSD.

Hit Select and then press the Up/Down button to navigate to Geometry.

Press Select again and the display will automatically adjust the geometry.

Press the Up/Down button to Color Balance.

Hit Select again and the display will automatically preset the color balance to a

factory preset value.

Horizontal

Position

Press Menu.Press the Up button to the second icon which is Horz. Pos

Hit Select and then press the Up/Down button to achieve the desired position.

The desired value will be graphically illustrated along with a digital value.

When complete press Select and you are ready to move to the next adjustment.

Vertical

Position

Press Menu.Press the Up button to the third icon which is Vertical Position.

Hit Select and then press the Up/Down button to achieve the desired position.

The desired value will be graphically illustrated along with a digital value.

When complete press Select and you are ready to move to the next adjustment.

Horizontal

Size

Press Menu.Press the Up button to the fourth icon which is Horizontal Size.

Hit Select and then press the Up/Down button to achieve the desired size.

The desired value will be graphically illustrated along with a digital value.

When complete press Select and you are ready to move to the next adjustment.

Phase

Press Menu.Press the Up button to the fifth icon which is Phase.

Hit Select and then press the Up/Down button to achieve the desired phase.

The phase should be adjusted until the screen image is sharp and there is no

When complete press Select and you are ready to move to the next adjustment.

Brightness

Press Menu.Press the Up button to the sixth icon which is Brightness.

Hit Select and then press the Up/Down button to achieve the desired brightness

level.

The desired value will be graphically illustrated along with a digital value.

When complete press Select and you are ready to move to the next adjustment.

Contrast

Press Menu.Press the Up button to the seventh icon which is Contrast.

Hit Select and then press the Up/Down button to achieve the desired contrast level.

The desired value will be graphically illustrated along with a digital value.

When complete press Select and you are ready to move to the next adjustment.

OSD Display Menu

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali VarTech Systems Monitor

VarTech Systems

VarTech Systems VT064C Manuale utente

VarTech Systems

VarTech Systems VT190P2 Manuale utente

VarTech Systems

VarTech Systems VT170W Manuale utente

VarTech Systems

VarTech Systems VT520 Manuale utente

VarTech Systems

VarTech Systems VT14B-C1 Manuale utente

VarTech Systems

VarTech Systems VT150CHB Manuale utente

VarTech Systems

VarTech Systems VT19B-PW Manuale utente

VarTech Systems

VarTech Systems VT420 Series Manuale utente

VarTech Systems

VarTech Systems DiamondVue VT190C Manuale utente

VarTech Systems

VarTech Systems VT201CM Manuale utente

VarTech Systems

VarTech Systems VT121 DiamondVue Series Manuale utente

VarTech Systems

VarTech Systems VT320D Manuale utente

VarTech Systems

VarTech Systems DiamondVue VT150P Manuale utente

VarTech Systems

VarTech Systems VT420W Manuale utente

VarTech Systems

VarTech Systems VT064P Manuale utente

VarTech Systems

VarTech Systems VT190PVS Manuale utente

VarTech Systems

VarTech Systems ColorVue VT190PC Manuale utente

VarTech Systems

VarTech Systems VT084XHB Manuale utente

VarTech Systems

VarTech Systems VT121XA4 Manuale utente

VarTech Systems

VarTech Systems VT14A-D Manuale utente

VarTech Systems

VarTech Systems VT20A Manuale utente

VarTech Systems

VarTech Systems VT084XA4 Manuale utente

VarTech Systems

VarTech Systems VT420D Manuale utente

VarTech Systems

VarTech Systems VT181R2 Manuale utente

Manuali Monitor popolari di altre marche

Linear Acoustic

Linear Acoustic LQ-1000 Manuale utente

AOC

AOC I2579V Manuale utente

Gateway

Gateway FPD1520 Manuale utente

Furuno

Furuno Mu 120c Manuale utente

Asus

Asus VB171D - 17" LCD Monitor Manuale utente

Dell

Dell S2230MX Istruzioni utente

Philips

Philips 107C64 Manuale utente

Dell

Dell S2409WFP Manuale utente

EverFocus

EverFocus EN-7517E Manuale utente

Panasonic

Panasonic TH152UX1 - 152" PLASMA TV Manuale utente

Dell

Dell Precision 7680 Manuale di istruzioni

LG 50PM1M - - 50" Plasma Panel Manuale utente

Bosch

Bosch DDU 9 Manuale utente

Acer

Acer A231HL Manuale utente

Philips

Philips 86BDL4152T Manuale utente

NEC

NEC AccuSync LCD5V Manuale utente

Emay

Emay SleepO2 Manuale utente

IBM

IBM 6360 Istruzioni per l'installazione
