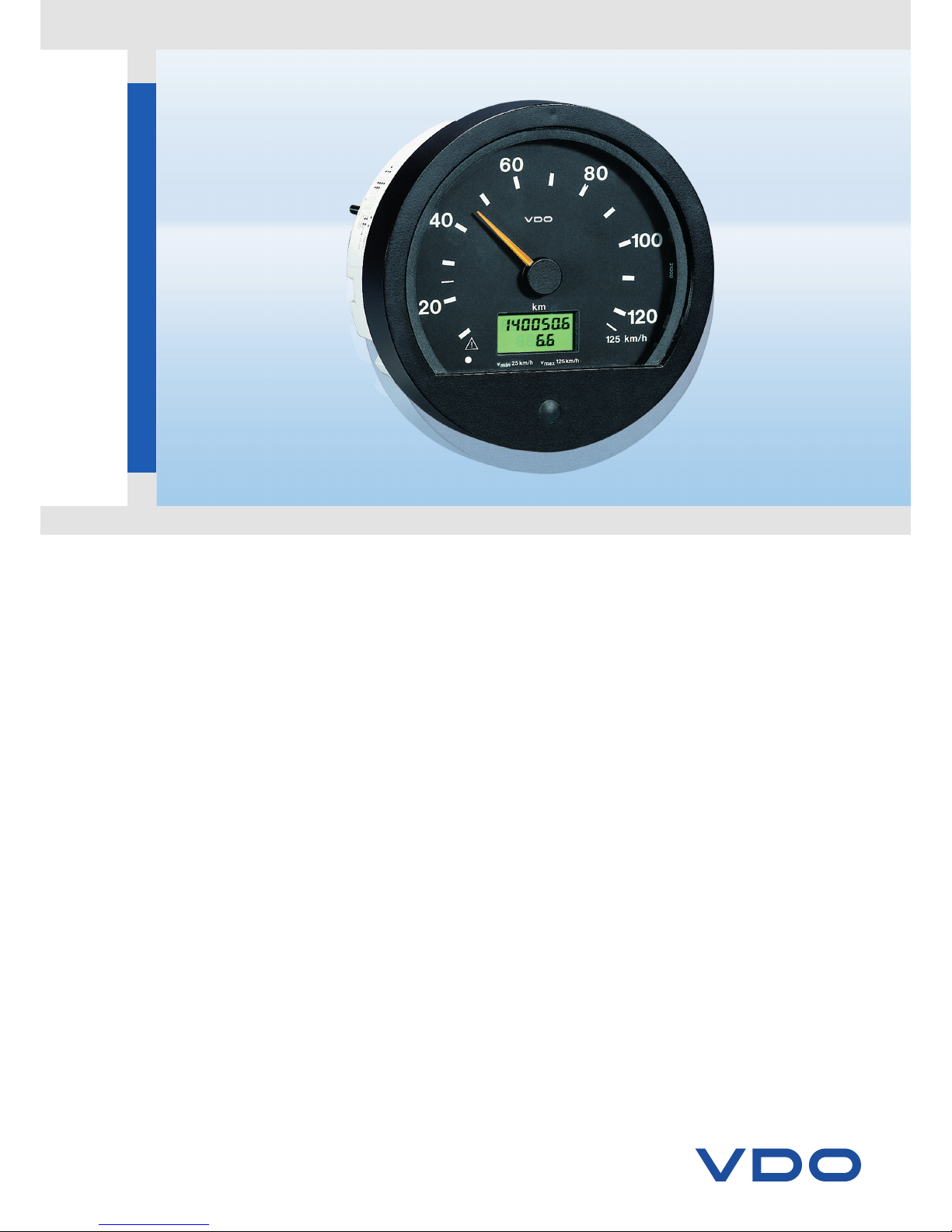

VDO ELECTRONIC SPEEDOMETER 1323 Manuale utente

By its modular design and custom-tailored front

panel, the electronic speedometer 1323 can be inte-

grated harmoniously into present and future cockpit

systems.

The electronic speedometer 1323 provides the

required display of the speed either Stand alone or in

combination with the radio-format tachograph MTCO

or DTCO.

Used stand alone the electronic speedometer 1323

is directly connected to the speed sensor. In combi-

nation with the tachograph the K-Line or the CAN-

interface are used.

The microprocessor and modern stepper motor

technology form the basis for the precise speed indi-

cation and odometer. The accurate data recording

and indication meet the stringent requirements of

national and EU-wide regulations.

Features

• Indication of total distance travelled in the 7-digit

LC display with 100 meter digit

• Speed pointer set to the legally required tolerance

• Optional display of daily kilometres and time with

setting knob

• Custom-tailored design for pointers, dial and front

frame as an option

• Outputs for v-signal, 4 imp/m, driving and stop

signal for stand alone version

• Communication with tachograph via K-Line or CAN

Application

• Vehicles subject to tachograph regulations with

seperate indication and recording

• Vehicles not subject to tachograph regulation

• Replace KTCO in combination with MTCO or DTCO

www.vdo.com

Electronic Speedometer

1323

Technical Information

Measuring range 125 km/h (standard)

Operating temperature - 25 ... + 70° C

Operating voltage 12 or 24 V

Power consumption typ. 6 mA at 24 V 8 mA CAN version

(Standby)

Pulse range 2 400 - 25 000 Imp/km

no pulse range CAN version

Inputs Hall sensor, inductive sensor, instrument

interface K-Line or CAN

Outputs 2 x v-pulse, 4 Imp/m, driving/stop signal

(stand alone version)

Accuracy Speed pointer set to the legally required tolerance

EMV/EMC RL 95/94/EG ISO 7637

Casing Acrylonitrile-butatiene-Styrene (ABS)

Weight approx. 470 g

Standard mounting position according to DIN 16257 between + 20 ° and + 80 °

Mounting Dimensions

(in mm):

Available options

Trip indicator, time, custom-

tailored front frame design,

function control LED and

T symbol in connection with

tachograph measuring range:

• to customer requirements,

from 80 km/h - 180 km/h

• 125 km/h + 80 mph;

160 km/h + 100 mph

• 100, 140, 180 km/h

(in connections with MTCO

and DTCO)

VDO – A Trademark of the Continental Corporation09/2008 | A2C59512778 | We reserve the right to make changes in availability as well as technical changes without prior notice.

Continental Trading GmbH | Heinrich-Hertz-Strasse 45 | 78052 Villingen-Schwenningen | Germany

E-mail: [email protected] | www.vdo.com

Electronic Speedometer

1323
