VDO MI 2050 Manuale

Multimedia Interface

MI 2050 Product Information

Automatic Source Selection

Based on its source priority logic, MI 2050 can switch auto-

matic between both possible sources. The reversing camera has

always highest priority and will be shown automatically when

the rear gear gets active. The monitor will stay dark (blacklight

off) when no signal is available. This function is for driver‘s

safety reason.

Input for up to 2 sources

The MI 2050 provides input for up to 2 different sources.

- 1 VDO Dayton Reversing Camera (RV 5200 or RV 5100)

- 1 universal AV source, such as DVD Player DV 6200 or

TV 5200 or DTV 6500

Integrated power supply for reversing camera

To make the installation more simple and less costly MI 2050

provides an integrated power supply for a VDO Dayton Rever-

sing Camera. This is the most simple and safest way to get the

rear view image on the screen.

Small dimensions

Together with the new RV 5200 color camera and the new

MM 5200 monitor it is a highly attractive system with small

dimensions.

Monitor Connection

When connecting a monitor to the MI 2050 you may chose

between a connection via CVBS (Mitsumi) or RCA. Please note

that the MI 2050 can only drive one monitor at a time even

if there are two mechanical connections possible. A parallel

usage of RCA and Mitsumi connectors is not possible.

Since there is no connection of a navigation computer‘s signal

forseen, IR and RGB signals are not supported.

• Enables stand-alone use of

one VDO Dayton monitor

• Small dimensions

and easiest installation

• Input for one universal AVsource

• Input for one VDO Dayton

reversing camera

• Power supply for camera

integrated

Options

• Reversing camera RV 5200 for integrated

installation (Colour, PAL 50Hz)

• Reversing camera RV 5100 for

external installation (b/w, 50Hz)

• Video components

(e.g.TV tuner, DVD player, Game console...)

Important notes

1MI 2050 does not support the connection of a navigation system,

hence RGB and IR signals are not used or forwarded.

2MI 2050 can drive only one monitor at the same time:

either one MM 5XXX OR one MM 2700.

Technical Data

• Operating voltage: 10.5V - 14.4V, negative ground

• Power consumption: max. 2A

• Operating temp. range: -20°C to +80°C

• Video in/out (AV1/2): 1Vpp / 75 Ohm

• Audio in (AV1/2): 1.5Vpp / 20 kOhm

• Camera in: Siemens VDO format on 4pin Mini DIN

• Dimensions: 85 x 78 x 33 mm (wxdxh)

• Weight: ca. 112g.

Multimedia Interface

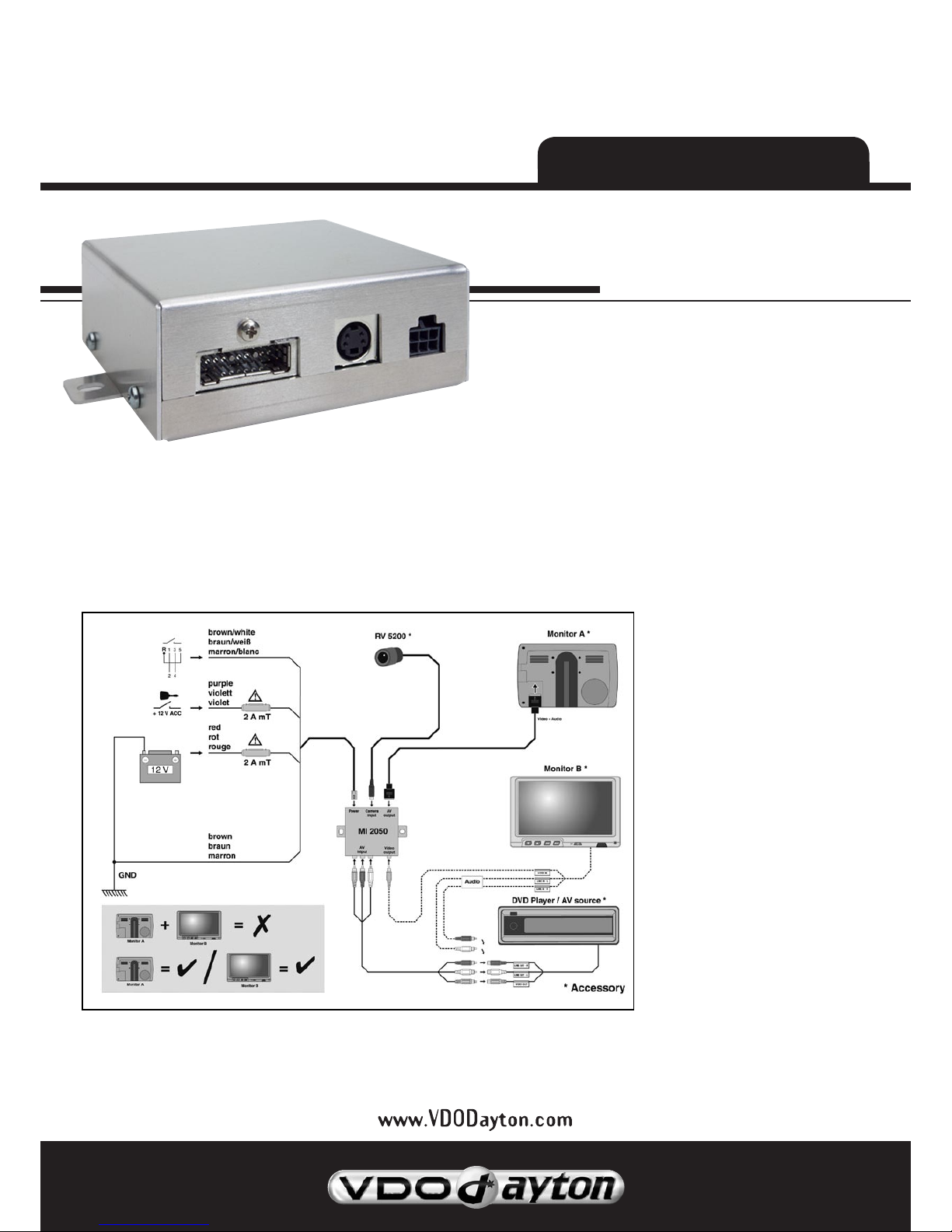

MI 2050 Technical Information

09/2006 • MI 2050 • Subject to modiﬁcation • VU26-0013-06 355 02

Connections
