VDO Roadlog Manuale di programmazione

VDO RoadLog™

Quick Start Instructions

V.2.0

Includes ROADSIDE INSPECTION instructions.

www.vdoroadlog.com

VDO and RoadLog - Trademarks of the Continental Corporation

KEEP IN THE CAB

AT ALL TIMES.

Icons

Driver Overview

Driver Name

Driver ID

Current Duty Status

ON Duty Time Left

Driving Time Left

Change Duty Status Trailer Number

Shipping Document

Fueling

View / Print / Edit

Certify Logs,

DVIR, Recap

Roadside Inspection,

Driver Options: Exemptions,

Other Compensated Work,

Change HOS rule Set

View / Print / Edit

Certify Logs,

DVIR, Recap

Time needed to

the closest reset

Driving Time Left

before the break

Weekly/Cycle

Time Available

HOS Rule

Enabled,

Current Time,

Time Zone

and Date

Powering Up the RoadLog – Note: RoadLog ELD wake-up is automatic when

the key in the ignition is turned to ON; RoadLog ELD goes to sleep when the

ignition is OFF for at least 6 minutes.

Audible Warning – Note: RoadLog will issue an audible warning to alert the Driver

about to reach the time limit or when the Driver forgot to log in.

Screen Too Bright At Night – Tip: In order to turn off the bright screen when

driving at night, tap the screen twice. It will turn off. The vehicle has to be in motion

for this function to work. To turn it back on, tap the screen one more time.

GPS OK

Data

diagnostic

event logged

GPS Not OK

No trailers

assigned

GSM

Connectivity

GSM

No Connectivity

Volume OFF

No shipment

documents

assigned

USB Inserted

Malfunction

logged

Software

download in

progress

Time needed to

the closest reset

Driving Time Left

before the break

Weekly/Cycle

Time Available

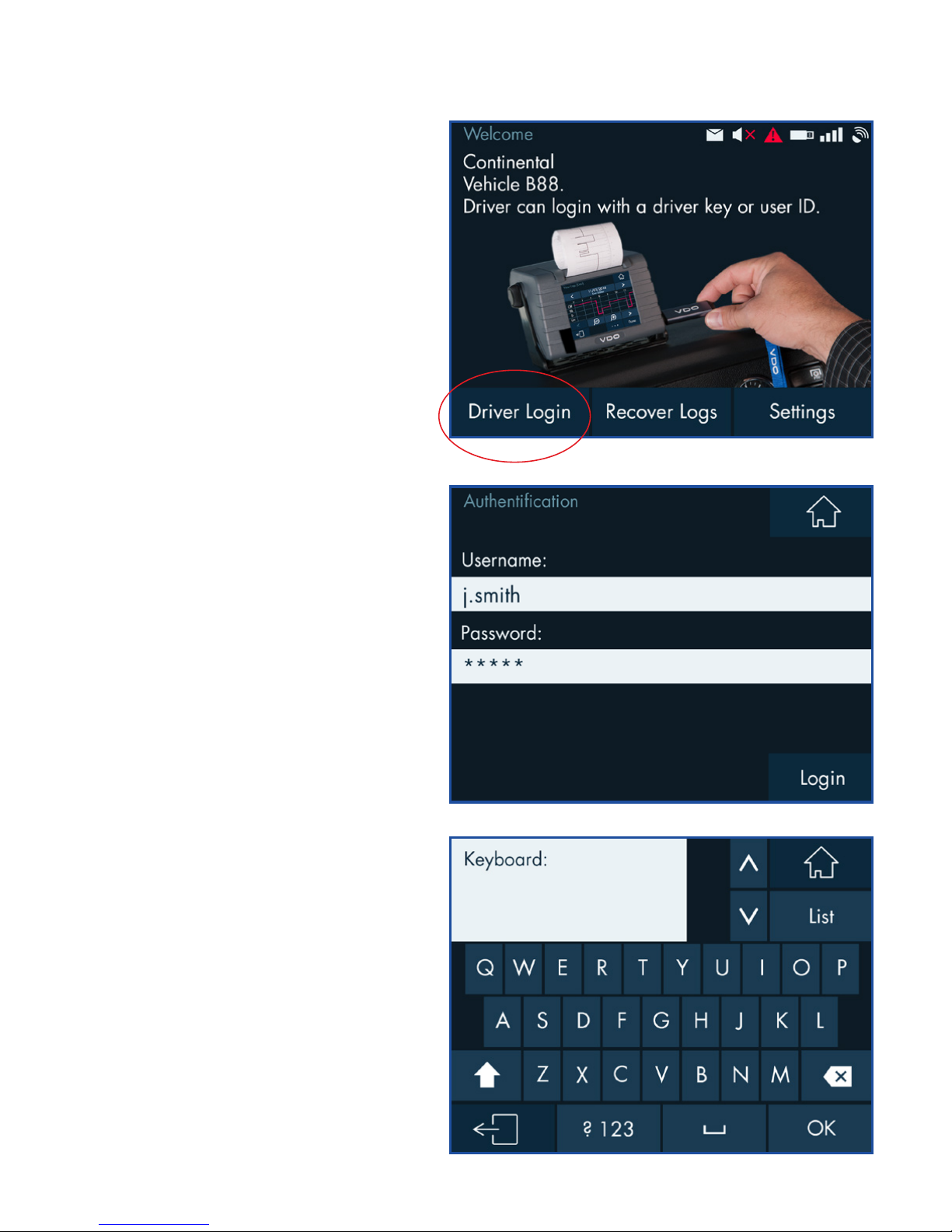

In order to log in with a Driver Key, insert

the Driver Key into the USB port on the

right side of the RoadLog as shown to

the right. Follow the prompts on the

screen.

In order to log in to the RoadLog with

Username and Password, tap “Driver

screen will show up. Enter your

username and password via keyboard.

The entries are case sensitive, so make

sure you use lower and upper case

letters as needed.

To log in without the Driver Key, tap on

the box with Username and Password.

Keep in mind that entries here are case

sensitive.

Use keyboard to enter Username and

Password. Conrm your entries with OK.

Quick Start Instructions

This screen allows you to see whether

you have hours available before you log

in. If you have hours available, select

continue – otherwise you will have to

wait until your daily or weekly reset is

accomplished.

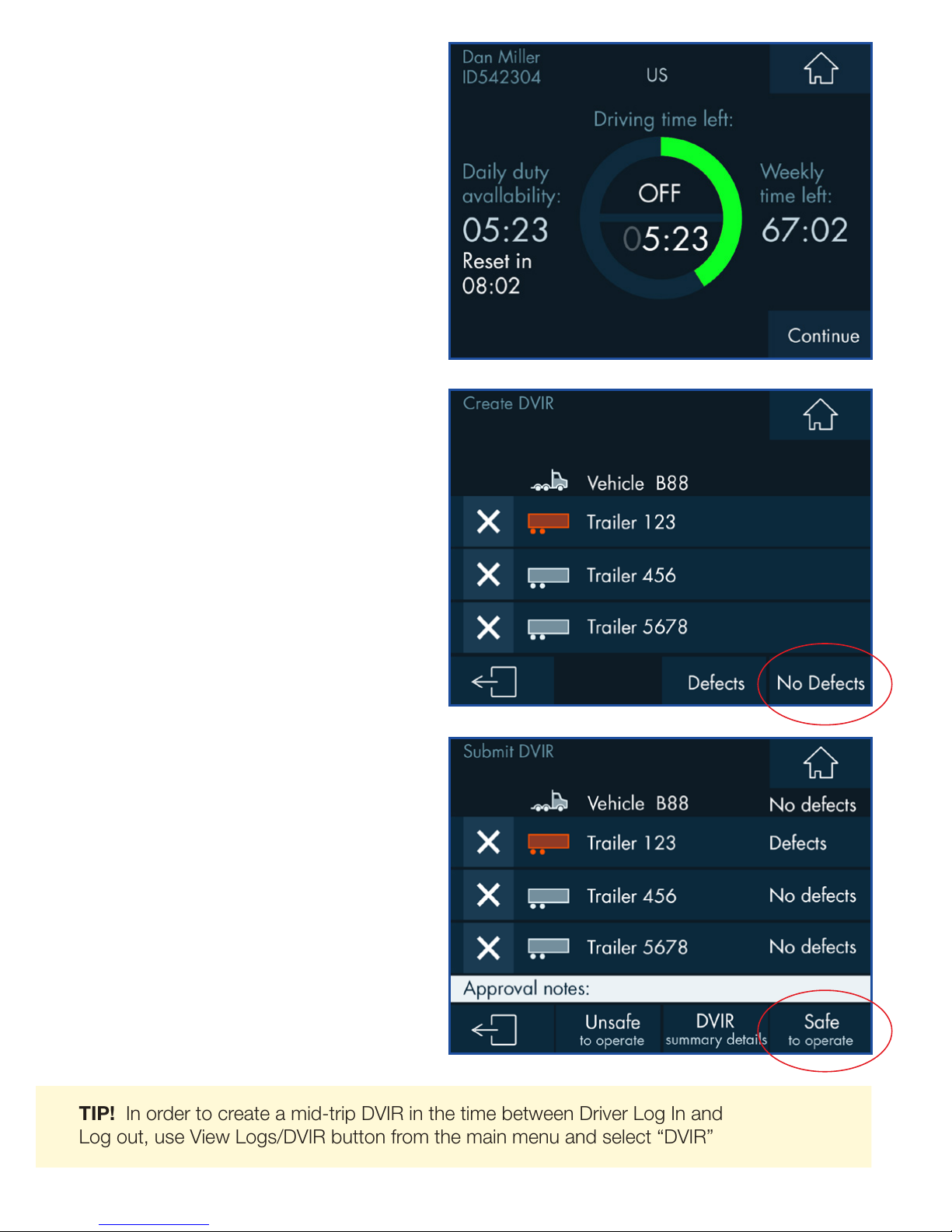

DVIR Pre-trip and

Post-trip Inspection

You will be asked to perform the vehicle

pre-trip and post-trip inspection on

the screen as part of log in and log out

process.

For No Defects DVIR, select “No

Defects” and “Safe to operate” for each

asset currently in your combination.

To add “Defects,” select “Defects”

button and select defects from a list, or

type in your own defect description.

TIP! In order to create a mid-trip DVIR in the time between Driver Log In and

Log out, use View Logs/DVIR button from the main menu and select “DVIR”

Acceptance of back ofce driver

logs edits (edits request by support

personnel)

During login, if support personnel have

requested edits in your logs, you will

be prompted to review those edits and

accept or reject them.

UDA Unassigned Driving Account

If the vehicle is driven without any

driver logged in, RoadLog will still track

the periods driven in order to assign

this period to a driver later. During your

right, where you can either accept this

driving period as yours or refuse to

accept it.

Once rejected, the unassigned

driving period will not be presented to

you. However, if the period remains

unassigned it will be present in your

log during roadside inspection.

RODS Updated from the portal

For the RoadLog Plus (with wireless

connection), the following message

shows that edits have been done to

your Driver Logs from the back ofce.

Duty Status Change

Driver can select any duty status

change by selecting “Status Change”

button from the Driver Overview screen

and selecting any of the statuses

available.

In case there is more than one driver

logging in, the driver with intention to

drive should select “Active Driver.” The

other driver can select “On Duty” “Not

Driving ,”or “Sleeper Berth.” “Personal

Use” and “Yard Moves” are available

in an extended menu indicated by this

button:

Automatic Duty Status Change

(5 mph = Driving)

Warning: When the vehicle starts

moving at a speed above 5 miles

per hour, the Active Driver’s status

is immediately and automatically

changed from “Off Duty” to “Driving.”

If the driver is done for the day, it is

highly recommended that they log out

of the RoadLog completely, to avoid

someone else (e.g. another driver or

mechanic) tripping the “Off Duty” time

into “On Duty” when they move the

vehicle.

A notication bar informs the user

about this change.

Duty Status Change Alert

If the user remains in “Driving,” RoadLog

will prompt the driver to change duty

status.

Location Indication

Note: The vehicle location at duty

status change is captured automatically

by GPS, accurate to within 3 yards.

RoadLog associates this GPS location

with the closest large population

location based on Census Data. It may

happen that this location is further away

from you than another location that

you know is closer. For example, if the

vehicle is in Fogelsville, PA the system

will label it as 7 miles West of Allentown,

PA since Allentown, PA is the location

with the larger population and better

known to law enforcement. This is

consistent with requirements in FMCSA

ELD regulations.

Tasks

Entering “Trailer Numbers and

“Shipment Documents” is required

as” part of your HOS record. Use the

specic buttons to perform those

actions.

“Vehicle Fueling” entries are optional.

However, if used they help in preparing

accurate records for IFTA ling.

Some versions of RoadLog allow for

instant communication with the dispatch

ofce via the “Messages” button. Also,

the dispatcher can assign a load to a

vehicle remotely. This information is

available from the “Loads” button level.

Adding/removing Trailer

Current Trailers screen

Adding/Removing

Shipping Documents

Current Shipping Document screen

Submit DVIR

When adding / removing trailers,

RoadLog will automatically prompt the

user to perform a DVIR.

View Logs / DVIR / Print

Recap

The driver totals for ON Duty time are

available for the last 7 / 8 days.

Depending on the driver schedule,

the screen will show 7 days or 8 days

for US drivers and 7 or 14 days for

Canada drivers.

Edit / Modify Logs

In order to annotate or edit your log,

tap on the graph grid.

You will be able to add annotations for

any duty status or edit / add new duty

records.

Note: Driving periods cannot be edited.

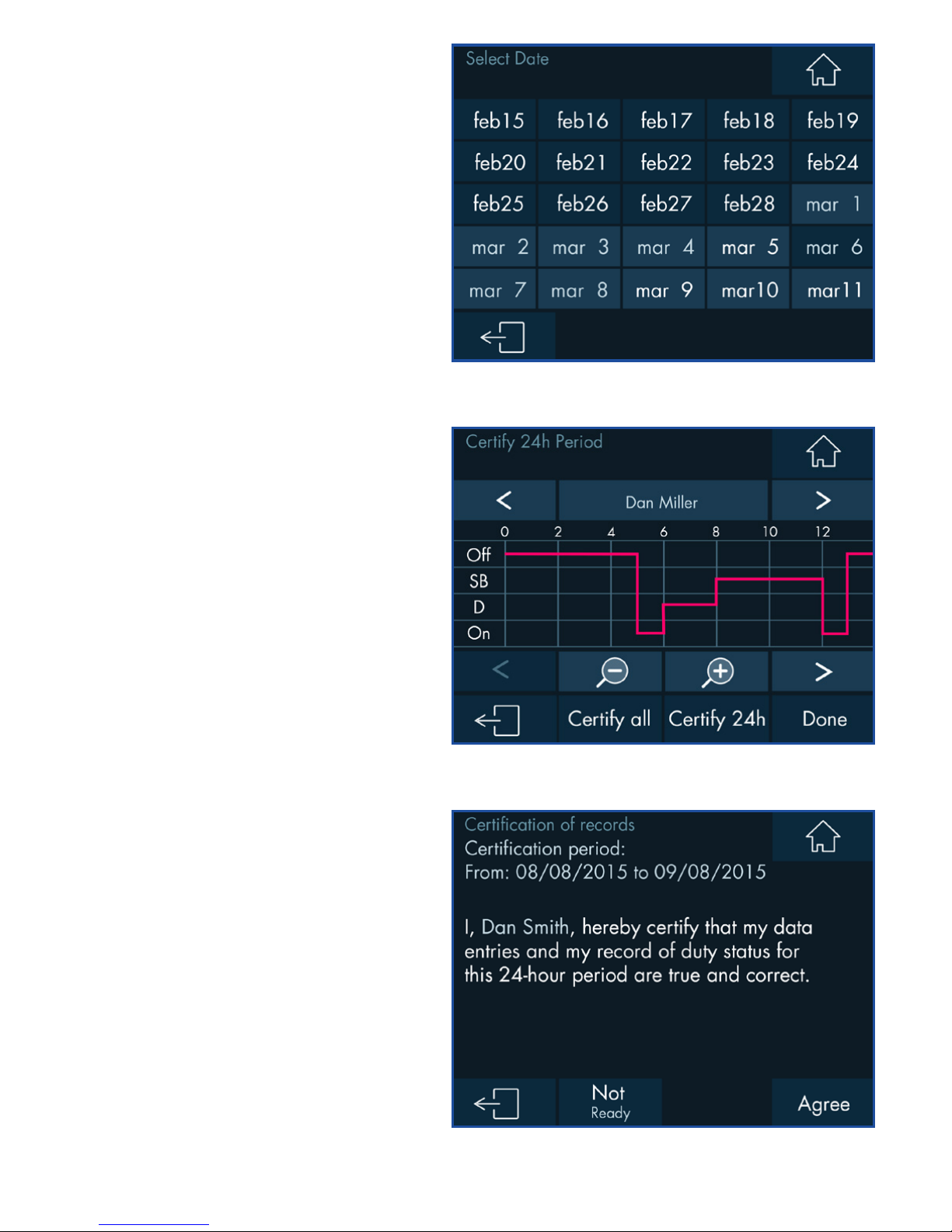

Calendar View

Tap on date in order to select any day

from the past 25 days.

Certication of Records

Certify

Driver’s logs certication is required.

Tap the “Certify” button to complete

the 24 hours certication process

RoadLog will automatically prompt the

driver to certify logs during the login

and logout process. If the user is not

ready to certify they can skip this step.
