USER MANUAL 3

GEBRUIKERSHANDLEIDING 9

MODE D'EMPLOI 15

MANUAL DEL USUARIO 21

BEDIENUNGSANLEITUNG 27

INSTRUKCJA OBSŁUGI 33

MANUAL DO UTILIZADOR 39

DEM102

V. 01 –07/05/2015 2 ©Velleman nv

DEM102

V. 01 –07/05/2015 3 ©Velleman nv

USER MANUAL

1. Introduction

To all residents of the European Union

Important environmental information about this product

This symbol on the device or the package indicates that disposal

of the device after its lifecycle could harm the environment. Do

not dispose of the unit (or batteries) as unsorted municipal waste;

it should be taken to a specialized company for recycling. This

device should be returned to your distributor or to a local

recycling service. Respect the local environmental rules.

If in doubt, contact your local waste disposal authorities.

Thank you for choosing Velleman! Please read the manual thoroughly before

bringing this device into service. If the device was damaged in transit, do

not install or use it and contact your dealer.

2. Safety Instructions

Warning! Visible laser radiation. Do not stare into the beam as

eye damage may occur. This device contains a class 2 laser.

Output power does not exceed 1 mW, wavelength 650 nm.

Never point the laser beam at a person or animal. Never point the

laser beam at reflective surfaces. Never look at the laser beam

using an optical instrument, such as binoculars or a microscope.

Keep this device away from children and unauthorized users.

Keep this device away from rain, moisture, splashing and dripping

liquids. Never put objects filled with liquids on top of or close to

the device.

3. General Guidelines

Refer to the Velleman® Service and Quality Warranty on the last pages

of this manual.

Keep this device away from dust and extreme temperatures.

Protect this device from shocks and abuse. Avoid brute force when

operating the device.

Familiarise yourself with the functions of the device before actually

using it.

DEM102

V. 01 –07/05/2015 4 ©Velleman nv

All modifications of the device are forbidden for safety reasons. Damage

caused by user modifications to the device is not covered by the

warranty.

Only use the device for its intended purpose. Using the device in an

unauthorised way will void the warranty.

Damage caused by disregard of certain guidelines in this manual is not

covered by the warranty and the dealer will not accept responsibility for

any ensuing defects or problems.

Do not switch the device on immediately after it has been exposed to

changes in temperature. Protect the device against damage by leaving

it switched off until it has reached room temperature.

Readings may be affected if the unit is operated within a radio

frequency electromagnetic field, but the performance of the instrument

will not be permanently affected.

Use the original packaging if the device is to be transported.

Keep this manual for future reference.

4. Features

fast and easy measurement

precise IR and TK temperature measurement

built-in dual laser pointers increase the target accuracy

adjustable emissivity: 0.1 ~ 1.0

ºC/ºF selection

MAX, MIN, DIF, AVG record

REC datalogger function for 12 points

LCD dual display with backlight

resolution: 0.1°C/°F

lock-on function (continuous scan function)

high and low alarms

automatic range selection

automatic data hold function

automatic power off

comes with soft carrying case

5. Overview

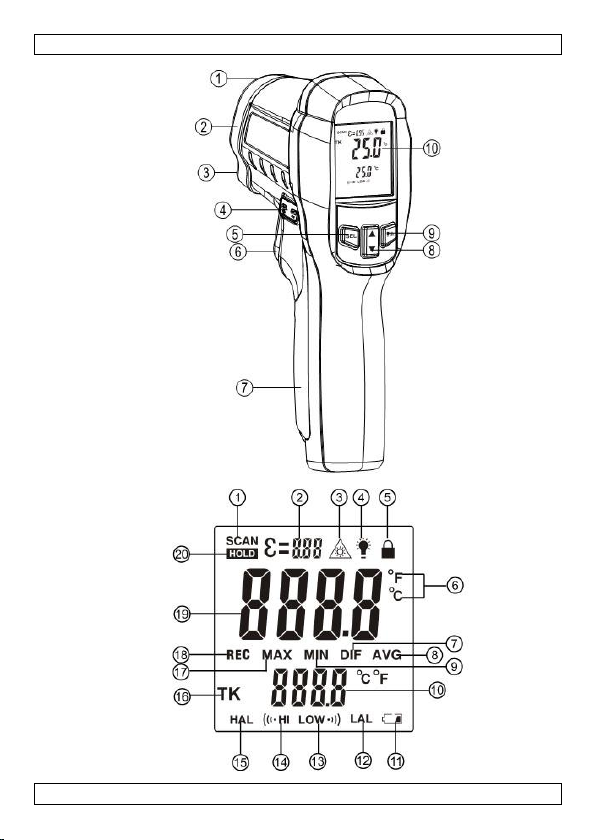

Refer to the illustrations on page 2 of this manual.

laser beam

measurement trigger

IR sensor

battery compartment

laser beam

up/down button

K-type probe interface

laser/backlight button

setting button

LCD display

DEM102

V. 01 –07/05/2015 5 ©Velleman nv

Display

measurement

battery level

emissivity

low alarm mode

laser

low alarm

backlight

high alarm

trigger lock

high alarm mode

°C/°F

K-type mode

DIF

MAX

AVG

data recording

MIN

current reading

reading

data hold

6. Battery

This device is battery-operated, using 1x 9 V battery. Replace it when the

battery-low icon appears.

To replace the battery, proceed as follows:

1. Wait until the device powers off automatically (about 35 s).

A malfunction may occur if you replace the batteries while the

device is on.

2. Open the battery compartment.

3. Replace the battery with a new 9 V battery.

4. Close the battery compartment.

Warning: Do not puncture batteries or throw them in fire as they

may explode. Do not attempt to recharge non-rechargeable

batteries (alkaline). Dispose of batteries in accordance with local

regulations. Keep batteries away from children.

7. Operation

7.1 Measuring the Temperature

1. Aim the IR sensor at the target and press the measurement trigger to

display the target’s surface temperature. A red laser spot appears on

the target during measurement.

2. The distance-to-target ratio is 13:1. This means that, for example, at

13 cm, the target must be larger than 1 cm to get a proper

measurement. Make sure the target area is within this field of view.

3. The device can measure temperatures in °C or °F. Press the up/down

key while the device is on to switch between measurement units. The

corresponding symbol (°C or °F) appears on the display.

DEM102

V. 01 –07/05/2015 6 ©Velleman nv

4. Press the laser/backlight button to switch the laser pointer on or off; in

data-hold mode, press the laser/backlight button to switch the

backlight on or off.

5. When you release the measurement trigger, the hold mode is

automatically activated: the last measurement value remains on the

display until you press the measurement key again, or until the device

shuts off automatically (after approx. 35 seconds).

6. Note that the display is always on, while the laser is only on during

measurement.

Remarks: The temperature

of a shiny or polished metal surface

through a transparent surface such as glass

of an object covered with frost, grime, oil

cannot be measured.

7.2 Measuring the Emissivity

1. Hold the setting button pressed to enter/exit the emissivity mode.

2. Adjust the emissivity value with the up/down button.

Emissivity Table

substance

emissivity

substance

emissivity

aluminium

0.30

glass

0.90 ~ 0.95

asphalt

0.95

iron oxides

0.78 ~ 0.82

concrete

0.95

lacquer

0.80 ~ 0.95

leather

0.95

plastic

0.85 ~ 0.95

ceramic

0.95

paper

0.70 ~ 0.94

copper

0.50

sand

0.90

brick

0.90

rubber

0.95

carbon

0.85

timber

0.94

fat

0.94

textiles

0.94

frozen food

0.90

lead

0.50

hot food

0.93

marble

0.94

ice

0.98

cloth

0.98

snow

0.90

plaster

0.80 ~ 0.90

human skin

0.98

water

0.93

7.3 Other Functions

1. In normal mode, briefly press the setting button to review the different

values.

2. In normal mode, hold the laser/backlight button pressed to select the

IR or K-type measurement mode.

DEM102

V. 01 –07/05/2015 7 ©Velleman nv

3. In normal mode, slide the lock switch inside the battery compartment

to the right to lock the measurement function and to enter the

continuous measurement function. Slide to the left to unlock.

4. In emissivity mode, briefly press the setting button to set the low and

high alarm values.

5. In recording mode, press the up/down button to review the latest 12

recorded readings.

8. Cleaning and Maintenance

The IR sensor is the most delicate part of the device and it shall be kept

clean at all times. To do this, only use a soft cloth or cotton bud with a

little water or medical alcohol.

Allow the lens to fully dry before using the device.

Wipe the other parts of the device regularly with a moist, lint-free cloth.

Do not use alcohol or solvents.

Do not submerge the device in water or any other liquid.

There are no user-serviceable parts. Contact your dealer for spare parts

if necessary.

The device shall be stored between –20° C and +65° C (–4° F to

+149° F).

9. Technical Specifications

measurement range

infrared

-50° C ~ +500° C (-58° F ~ +932° F)

K-type probe

-50° C ~ +1370° C (-58° F ~ +2498° F)

operating temperature

0° C ~ 50° C (32° F ~ 122° F)

storage temperature

-20° C ~ 60° C (-4° F ~ 140° F)

accuracy IR

-50° C ~ 0° C /

-58° F ~ 32° F

± 4° C / 7.2° F

0° C ~ 500° C /

32° F ~ 932° F

± 1.5 % ± 2° C / 3.6° F

accuracy K-type probe

± 1.5 % ± 1° C / 1.8° F

resolution

0.1° C / 0.1° F

response time (90 %)

< 250 ms

emissivity range

0.1 ~ 1.0 adjustable

laser wavelength

650 nm

auto switching-off

± 10 s

distance-to-spot ratio

D/S = 13:1

power supply

1x 9 V battery 6F22 (incl.)

dimensions

95 x 83 x 192 mm

weight (with battery)

± 275 g

DEM102

V. 01 –07/05/2015 8 ©Velleman nv

Use this device with original accessories only. Velleman nv cannot

be held responsible in the event of damage or injury resulting from

(incorrect) use of this device. For more info concerning this product

and the latest version of this manual, please visit our website

www.velleman.eu. The information in this manual is subject to

change without prior notice.

The copyright to this manual is owned by Velleman nv. All

worldwide rights reserved. No part of this manual may be copied,

reproduced, translated or reduced to any electronic medium or otherwise

without the prior written consent of the copyright holder.

DEM102

V. 01 –07/05/2015 9 ©Velleman nv

GEBRUIKERSHANDLEIDING

1. Inleiding

Aan alle burgers van de Europese Unie

Belangrijke milieu-informatie betreffende dit product

Dit symbool op het toestel of de verpakking geeft aan dat, als het

na zijn levenscyclus wordt weggeworpen, dit toestel schade kan

toebrengen aan het milieu. Gooi dit toestel (en eventuele

batterijen) niet bij het gewone huishoudelijke afval; het moet bij

een gespecialiseerd bedrijf terechtkomen voor recyclage. U moet

dit toestel naar uw dealer of naar een lokaal recyclagepunt

brengen. Respecteer de plaatselijke milieuwetgeving.

Hebt u vragen, contacteer dan de plaatselijke autoriteiten

betreffende de verwijdering.

Dank u voor uw aankoop! Lees deze handleiding grondig voor u het toestel

in gebruik neemt. Werd het toestel beschadigd tijdens het transport,

installeer het dan niet en raadpleeg uw dealer.

2. Veiligheidsinstructies

Waarschuwing! Zichtbare laserstraal. Kijk niet in de laserstraal

om oogletsels te voorkomen. Dit toestel is een laserproduct

klasse 2.

Uitgangsvermogen < 1 mW, golflengte 650 nm.

Richt de laserstraal nooit op personen of dieren. Richt de

laserstraal nooit op reflecterende oppervlakken. Bekijk een

laserstraal nooit met een optisch instrument, zoals een verrekijker

of een microscoop.

Houd dit toestel buiten het bereik van kinderen en onbevoegden.

Bescherm het toestel tegen regen, vochtigheid en opspattende

vloeistoffen. Plaats nooit objecten gevuld met vloeistof op of naast

het toestel.

3. Algemene richtlijnen

Raadpleeg de Velleman® service- en kwaliteitsgarantie achteraan deze

handleiding.

Bescherm het toestel tegen stof en extreme temperaturen.

Bescherm tegen schokken. Vermijd brute kracht tijdens de bediening

van het toestel.

Leer eerst de functies van het toestel kennen voor u het gaat

gebruiken.

DEM102

V. 01 –07/05/2015 10 ©Velleman nv

Om veiligheidsredenen mag u geen wijzigingen aanbrengen. Schade

door wijzigingen die de gebruiker heeft aangebracht aan het toestel valt

niet onder de garantie.

Gebruik het toestel enkel waarvoor het gemaakt is. De garantie vervalt

automatisch bij ongeoorloofd gebruik.

De garantie geldt niet voor schade door het negeren van bepaalde

richtlijnen in deze handleiding. Uw dealer is niet aansprakelijk voor

defecten of problemen die hierdoor veroorzaakt zijn.

Zet u het toestel best niet aan onmiddellijk nadat het werd blootgesteld

aan temperatuurschommelingen. Om beschadiging te vermijden, moet

u wachten tot het toestel de kamertemperatuur heeft bereikt.

Elektromagnetische velden en radiofrequenties kunnen de uitlezing

beïnvloeden. De werking van het toestel zal echter niet permanent

verstoord worden.

Gebruik de oorspronkelijke verpakking wanneer u het toestel vervoert.

Bewaar deze handleiding voor verdere raadpleging.

4. Eigenschappen

snelle en gemakkelijke meting

precieze IR- en TK-temperatuurmeting

ingebouwde laserpointer voor meer nauwkeurigheid

instelbare emissiviteit 0.1 ~ 1.0

temperatuurweergave in °C of °F

MIN-, MAX-, DIF-, AVG-metingen

REC-datalogger (12 punten)

lcd-display met achtergrondverlichting

resolutie: 0.1 °C/°F

lock-onfunctie (continue scanfunctie)

hoog en laag alarm

automatische selectie meetbereik

automatische dataholdfunctie

automatische uitschakeling

geleverd met zachte draagtas

5. Omschrijving

Raadpleeg de afbeeldingen op pagina 2 van deze handleiding.

laserstraal

meetknop

IR-sensor

batterijvak

laserstraal

knop omhoog/omlaag

K-type sonde-interface

knop voor laser/

achtergrondverlichting

SET-knop

LCD-display

Indice

Lingue:

Altri manuali Velleman Termometro

Velleman

Velleman WT902 Manuale utente

Velleman

Velleman DTP1N Manuale utente

Velleman

Velleman DEM101 Manuale utente

Velleman

Velleman PEREL WC216 Manuale utente

Velleman

Velleman DVM105 Manuale utente

Velleman

Velleman DVM99 Manuale utente

Velleman

Velleman TA4 Manuale utente

Velleman

Velleman DVM8869 Manuale utente

Velleman

Velleman DVM99 Manuale utente

Velleman

Velleman DTP6 Manuale utente

Velleman

Velleman DTP6 Manuale utente

Velleman

Velleman PMTEMP1 Manuale utente

Velleman

Velleman DEM100 Manuale utente

Velleman

Velleman DEM103 Manuale utente

Velleman

Velleman TA25 Manuale utente

Velleman

Velleman IPDD900 Manuale utente

Velleman

Velleman DEM401 Manuale utente

Velleman

Velleman DVM1322 Manuale utente

Velleman

Velleman DVM8861 Manuale utente

Velleman

Velleman DEM103 Manuale utente

Velleman

Velleman WSPT1 Manuale utente

Velleman

Velleman DVM8855 Manuale utente

Velleman

Velleman DVM1090 Manuale utente

Velleman

Velleman PEREL DTP10 Manuale utente

Manuali Termometro popolari di altre marche

Delton

Delton 981A Manuale utente

Baker

Baker MM2P Manuale utente

Tarmo

Tarmo 320281 Manuale utente

Citizen

Citizen CTD 504 Manuale utente

TFA

TFA 14.1500 Manuale utente

Vive

Vive DMD1010 Manuale utente

Gotemp

Gotemp THB4002 Manuale utente

GREISINGER

GREISINGER G 1202 Manuale utente

Amprobe

Amprobe TMD-53W Manuale utente

Trotec

Trotec BP10 Manuale utente

Radiance instruments

Radiance instruments RT616 Series Manuale utente

Eurolec

Eurolec IR151 Manuale utente

Scaneo

Scaneo TS42B Manuale utente

Sper scientific

Sper scientific 800043 Manuale utente

Microlife

Microlife NC 200 Manuale di istruzioni

Motorola

Motorola MBP69SN Guida alla configurazione

The MeatStick

The MeatStick The MeatStick Manuale utente

Hama

Hama TH35-A Manuale utente
