Verizon FiOS MI424WR Manuale utente

Wireless

Broadband

Router

User’s

Manual

MI424WR

Table of Contents

1 Introduction 1

Package Contents 1

Minimum System Requirements 2

Features 2

Getting to Know the Router 4

2 Connecting the Router 9

Setting Up the Router 9

Computer Network Configuration 11

Configuring the Router 13

Home Page 15

3 Configuring My Network Settings 17

Accessing My Network 17

Using My Network 18

4 Creating a Wireless Network 25

Overview 25

Wireless Status 26

Basic Security Settings 28

Advanced Security Settings 30

Configuring a Wireless Windows XP Client 38

Connecting a Wireless Windows XP Client 40

5 Using Network Connections 45

Network (Home/Office) 46

Ethernet Connection 51

Coax Connection 54

Broadband Ethernet Connection 57

Coax Broadband Connection 62

WAN PPPoE/WAN PPPoE 2 68

6 Configuring the Router’s Security 75

General 77

Access Control 79

Port Forwarding 82

DMZ (Demilitarized Zone) Host 83

Port Triggering 84

Remote Administration 86

Static NAT 88

Advanced Filtering 89

Security Log 92

7 Using Parental Controls 99

Activating Parental Controls 99

Advanced Parental Controls 101

Wireless Broadband Router User Manual

8 Using Advanced Settings 103

Firmware Upgrade 105

Firmware Restore 107

Configuration File 108

System Settings 109

Date and Time 114

Scheduler Rules 115

Routing 117

IP Address Distribution 119

Diagnostics 123

Restoring Default Settings 124

Reboot the Router 124

MAC Cloning 125

ARP (Address Resolution Protocol) Table 125

Users 126

QoS 127

Local Administration 127

Remote Administration 128

Dynamic DNS 128

DNS Server 130

Network Objects 132

Universal Plug and Play (UPnP) 133

Protocols 135

9 Monitoring the Router 137

Router Status 137

Advanced Status 138

10 Troubleshooting 141

A Quality of Service 145

Traffic Priority 145

Traffic Shaping 149

B Specifications 161

General 161

Wireless Operating Range 162

LED Indicators 162

Environmental 162

Introduction

Thank you for purchasing the Wireless Broadband Router. The Wireless

Broadband Router supports Multimedia over Coax Alliance (MoCA), a new net-

working standard that allows digital entertainment and information to be trans-

mitted and distributed to multiple devices over coaxial cables. The Router also sup-

ports Ethernet and Wi-Fi networking, making it the most versatile router available.

If you want to take your home or office networking to the next level, the Wireless

Broadband Router is sure to be one of the keys to your success.

Package Contents

s Wireless Broadband Router

s Black Power cord

s Yellow cable (Ethernet, 6 ft.)

s White cable (Ethernet, 10 ft.)

s Quick Start Guide

s Installation Guide

s User Manual CD

s Wireless Networking Guide

s Wall-mount template

Wireless Broadband Router User Manual

Chapter 1 Introduction

s Wall-mount template

s Vertical stand

s Warranty

Minimum System Requirements

s Computer with Ethernet capability

s Microsoft Windows 98SE, Me, 2000, or XP; Mac OS 9 or greater; Linux/

BSD, Unix

s Internet Explorer 5.0 or higher; Netscape Navigator 7.0 or higher

s TCP/IP network protocol installed on each computer

Features

s Supports multiple networking standards, including:

WAN - Ethernet and MoCA interfaces

LAN - 802.11g, 802.11b, Ethernet, and MoCA

s Integrated wired networking with 4-port 10/100 Mbps Ethernet switch

and MoCA

s Integrated wireless networking with 802.11g access point featuring:

802.11g enabled to support speeds up to 54 Mbps wirelessly

802.11b backward compatible, communicating with 802.11b wireless

products at speeds up to 11 Mbps

s Enterprise-level security, including :

Fully customizable firewall with Stateful Packet Inspection

Content filtering with URL-keyword based filtering, parental control,

customizable filtering policies per computer, and E-mail notification

Denial of service protection against IP spoofing attacks, intrusion and

scanning attacks, IP fragment overlap, ping of death, and fragmentation

attacks

Event logging

Wireless Broadband Router User Manual

Chapter 1 Introduction

Intrusion detection

MAC address filtering

NAT

DMZ hosting

Access control

Advanced wireless protection featuring WPA, WEP 64/128 bit encryp-

tion, 802.1x authentication, and MAC address filtering

ICSA certified

s Other Features

DHCP server option

DHCP server/PPPoE server auto-detection

DNS server

LAN IP and WAN IP address selection

MAC address cloning

Port forwarding

PPPoE support

QoS support (end to end layer 2/3) featuring Diffserv, 802.1p/q prioriti-

zation, configurable upstream/downstream traffic shaping, random early

detection and pass-through of WAN-side DSCPs, PHBs, and queuing to

LAN-side devices

Remote management and secured remote management using HTTPS

Reverse NAT

Static NAT

Static routing

Time zone support

VLAN multicast support

VPN IPSec (VPN passthrough only)

Wireless Broadband Router User Manual

Chapter 1 Introduction

Getting to Know the Router

This section contains a quick description of the Router’s lights (LEDs), ports, etc.

The Router features several indicator lights on its front panel, and a series of ports

and switches on its rear panel.

Front Panel

The front panel of the Router features ten indicator lights: Power, WAN Ethernet,

WAN Coax, Internet, LAN Ethernet (4), LAN Coax, and Wireless.

Power Light

The Power light displays the Router’s current status. If the Power light glows

steadily green, the Router is receiving power and fully operational. When the

Power light flashes rapidly, the Router is initializing. If the Power light is not illu-

minated or glows red when the Power cord is plugged in and the Power switch is

turned on, the Router has suffered a critical error and technical support should

be contacted.

WAN Ethernet Light

The WAN Ethernet light illuminates when the Router is connected to the

Internet via Ethernet. If flashing, data traffic is passing across the port.

WAN Coax Light

The WAN Coax light glows steadily or flashes when the Router is connected to

the Internet via coaxial cable.

Wireless Broadband Router User Manual

Chapter 1 Introduction

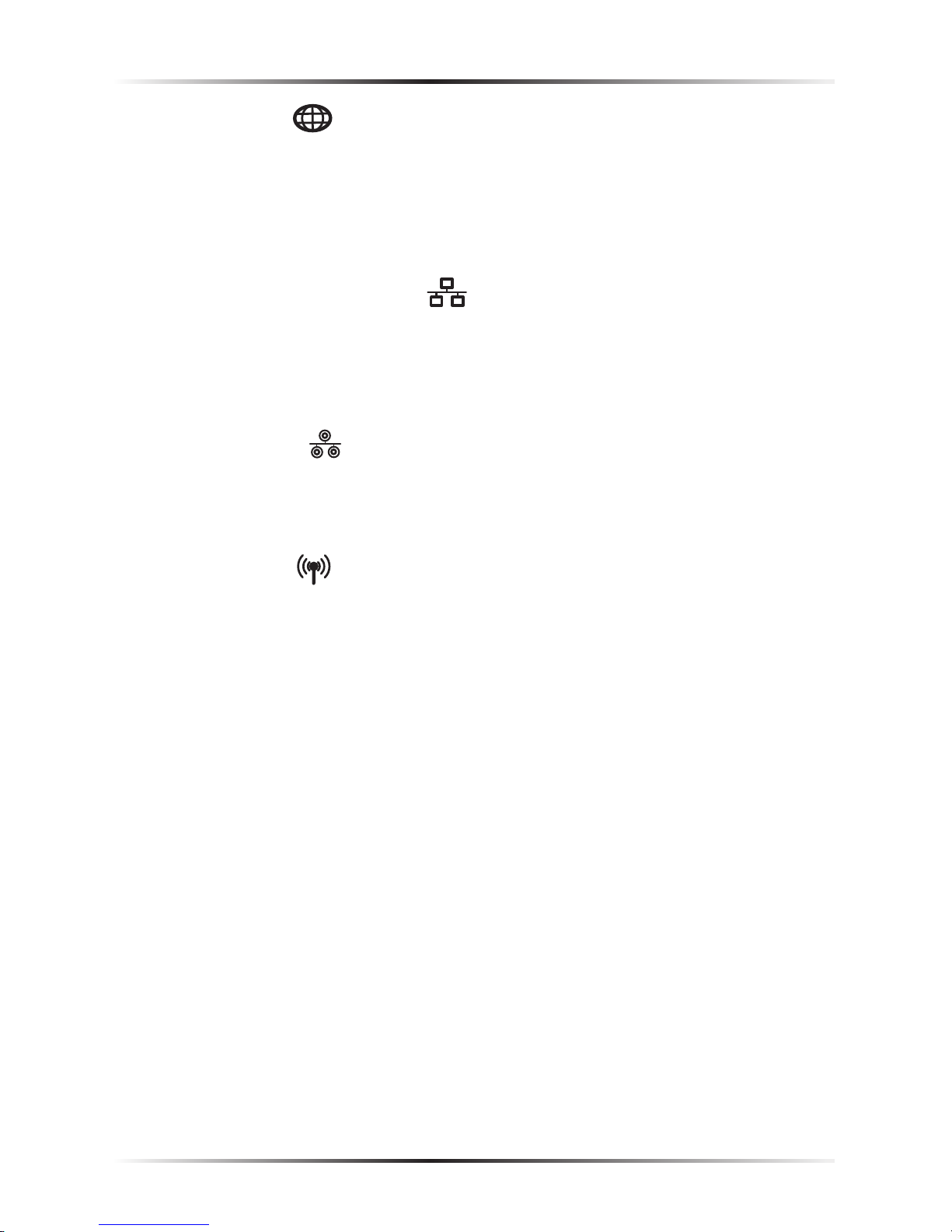

Internet Light

When the Internet light glows steadily green, the Router is connected to the ISP

(Internet Service Provider). If it glows amber, there is a physical connection to

the ONT (Optical Network Terminator), but authentication has not taken place

(i.e., no IP address is present).

LAN Ethernet Lights (1, 2, 3, 4)

The LAN Ethernet lights illuminate when the Router is connected to a local

network via one or more of its Ethernet ports. If flashing, data traffic is passing

across the port(s).

LAN Coax Light

The LAN Coax light glows steadily or flashes when the Router is connected to a

local network via its Coax port.

Wireless Light

The Wireless light illuminates when the Router’s wireless access point is turned

on. If flashing, data traffic is passing across the wireless connection.

Wireless Broadband Router User Manual

Chapter 1 Introduction

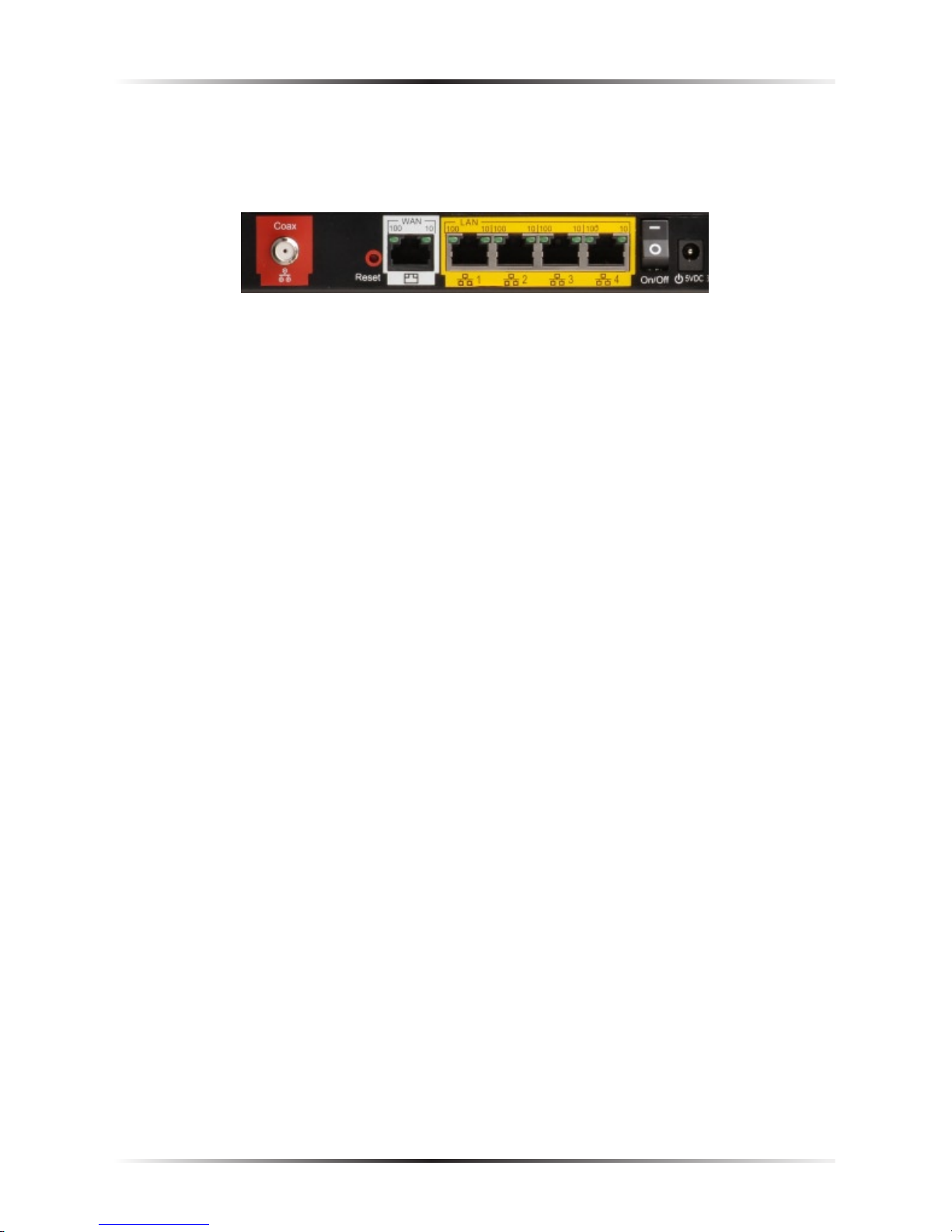

Rear Panel

The rear panel of the Router features seven ports (Coax, WAN Ethernet, LAN

Ethernet [4], and Power), as well as a Reset button and Power switch.

Coax Port

The Coax port connects the Router to the ISP or other devices using a

coaxial cable.

Reset Button

To restore the Router’s factory default settings, press and hold the Reset button

for approximately ten seconds. The reset process will start about ten seconds

after releasing the button. When the Router resets, all the lights on the front

panel turn off, and then some of the lights start flashing. The Router has com-

pleted its reset process when the Power light glows steadily green.

M Caution: Do not unplug the Power cord from the Router dur-

ing the reset process. Doing so may result in the loss of the

Router’s configuration information. If this occurs, reset the

Router again.

WAN Ethernet Port

The WAN Ethernet port connects the Router to the ISP using an Ethernet cable.

LAN Ethernet Ports (4)

The LAN Ethernet ports connect devices to the Router via Ethernet cables to cre-

ate a local area network (LAN). The LAN Ethernet ports are 10/100 Mbps auto-

sensing ports, and either a straight-through or crossover Ethernet cable can be

used when connecting devices to the ports.

Wireless Broadband Router User Manual

Chapter 1 Introduction

Power Switch

The Power switch powers the Router on and off.

Power Port

The Power port connects the Router to an electrical wall outlet via the

Power cord.
