Verizon VersaLink 7500 Manuale utente

VERIZON 7500 WIRELESS

ROUTER/MODEM

Verizon High Speed Internet

for Business

STATIC IP

SET UP

GUIDE

SETTING UP YOUR NEW STATIC IP CONNECTION

AND IP ADDRESS(ES)

This Static IP Set Up Guide will instruct you how to set up your new static IP

connection and and multiple IP addresses (if applicable). Static IP addresses

have a dedicated connection to the Internet.

STEPS TO SET UP YOUR STATIC IP ADDRESS(ES)

1. First make sure you have received a Service Activation Email from

Verizon that states your Verizon High Speed Internet for Business

service is activated at your location, billing has started and lists the

Static IP address(es) you ordered:

• IP Address Quantity

• Starting IP Address

If you ordered more than one IP address, your IP addresses will run

sequentially beginning with the starting IP address shown above.

• Subnet Mask

• Default Gateway Address

• Primary DNS

• Secondary DNS

Verizon High Speed Internet for Business Service will not work until

you have been notified by Verizon that your service is activated.

2. Connect your new Verizon HSI 7500 wireless modem router to your

computer following the “Quick Start Guide” in the box with the

modem router.

3. Follow the instructions in this Static IP Set Up Guide that will help

you configure your Static IP address into your operating system

and troubleshoot if necessary.

After you set up your Static IP address(es), open your browser and go to

business.verizon.net to learn about the Verizon Small Business Center,

Verizon email, web hosting and where to get additional Verizon High

Speed Internet for Business support.

Verizon High Speed Internet for Business

SETTING UP YOUR VERIZON HIGH

SPEED INTERNET FOR BUSINESS

STATIC IP CONNECTION

Single Static IP Configuration ............PAGES 3-11

Multiple Static IPs Configuration ......PAGES 12-23

Operating System Configuration ......PAGES 24-7

WINDOWS®XP............................................PAGES 24-28

WINDOWS VISTA®......................................PAGES 29-32

MAC®OS X (10.4)........................................PAGES 33-34

MAC®OS X (10.5)........................................PAGES 35-37

Troubleshooting: ..................................PAGE 38

If the Connection is not working

SECTION

NEED HELP? Call The Verizon Online Business Center at 1.888.649.9500

SECTION

Configuring Your Verizon 7500 Wireless

Modem Router with a Single IP

Step 1 - Login: To get to the Verizon Wireless interface,

enter in the browser address line: http://192.168.1.1

After you have clicked “OK” in the secure screen, the Detect WAN

Click on Detect Configuration to continue.

Click on detect configuration to continue.

Configuration page is displayed during a first time login.

Verizon High Speed Internet for Business

SECTION

admin

password

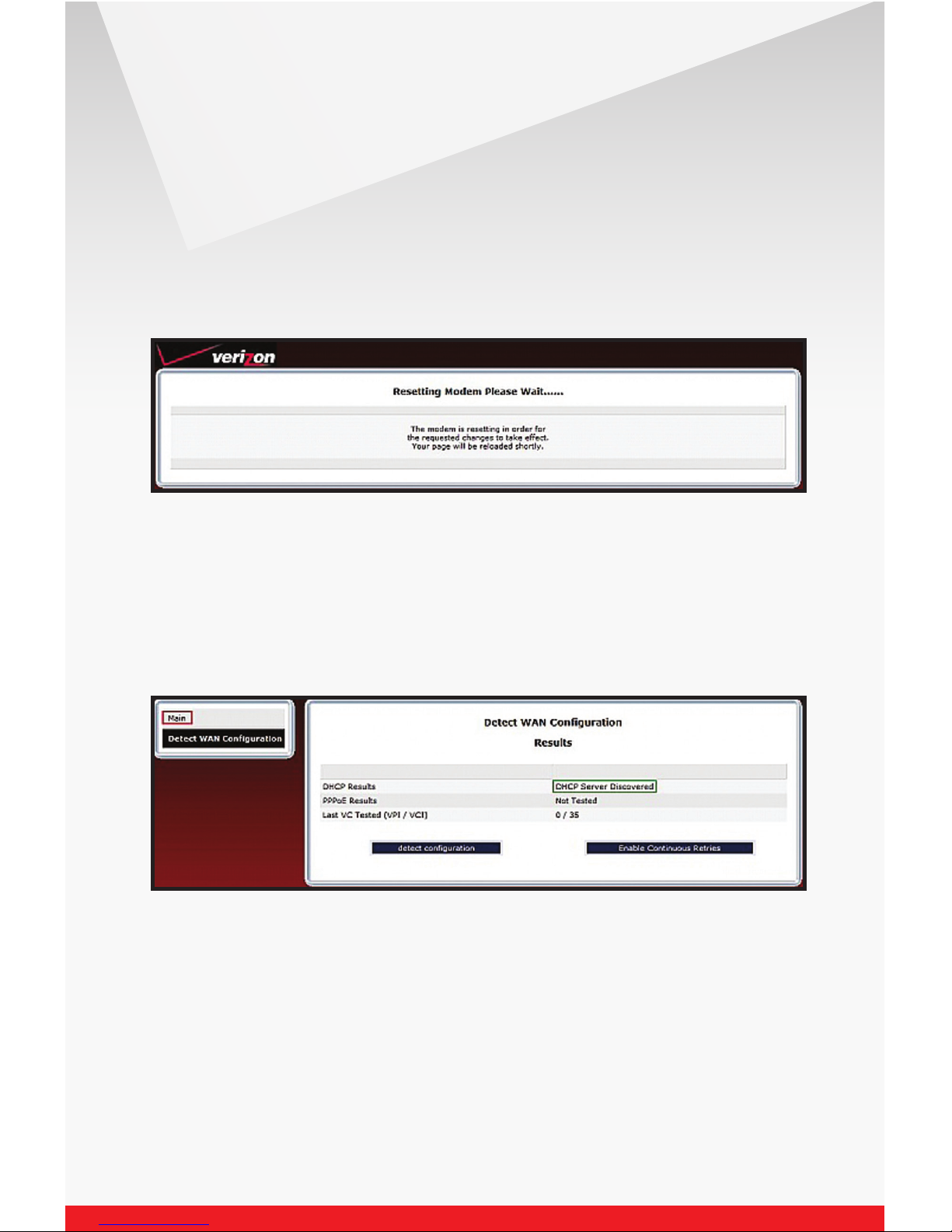

During detection the modem will reset numerous times. Be sure to keep

an eye on the DSL light status to know when the modem has obtained

sync and is ready to continue.

When the modem has completed detection (or even if detection fails),

wait for the DSL light to go solid and then click on the Main link in the

left navigation menu.

NEED HELP? Call The Verizon Online Business Center at 1.888.649.9500

Single Static IP

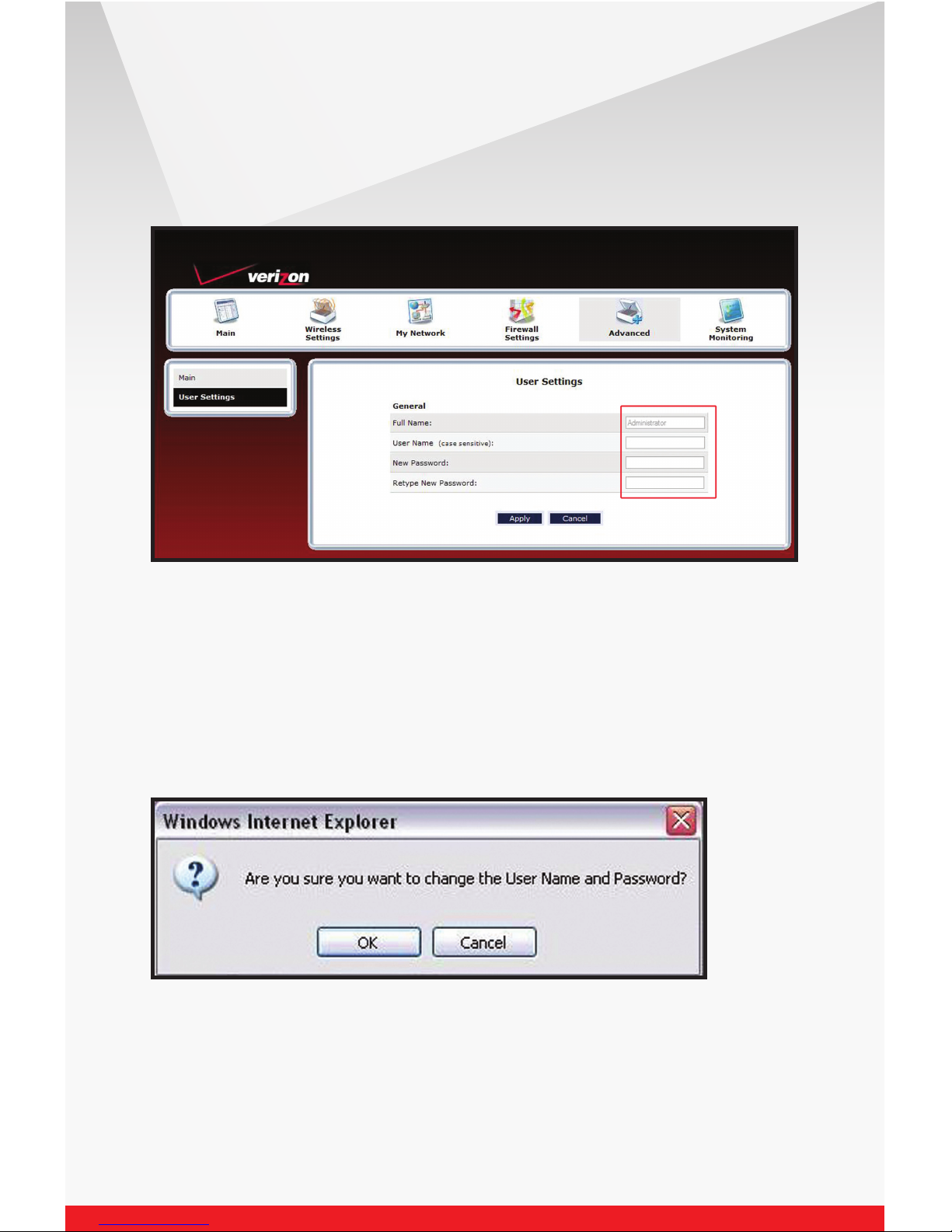

Since this is the first login, a prompt is displayed to change the factory

default User Name and password.

Verizon High Speed Internet for Business

This is the user name/password setting for the GUI interface. For the

User Name, type “admin” or the name of your choice. Next, type a

password (Be sure to write down your User Name and password and

store it in a safe place for future use). Do not use the word “password”

on this login screen. After clicking “Apply”, then “OK” in the pop-up

screen, you will be taken to the Main screen.

Note: Creating a User Name and password and the detection of WAN

settings is only required on the first login to the modem. Future logins

will not require these steps except when the gateway has been set to

factory default settings.

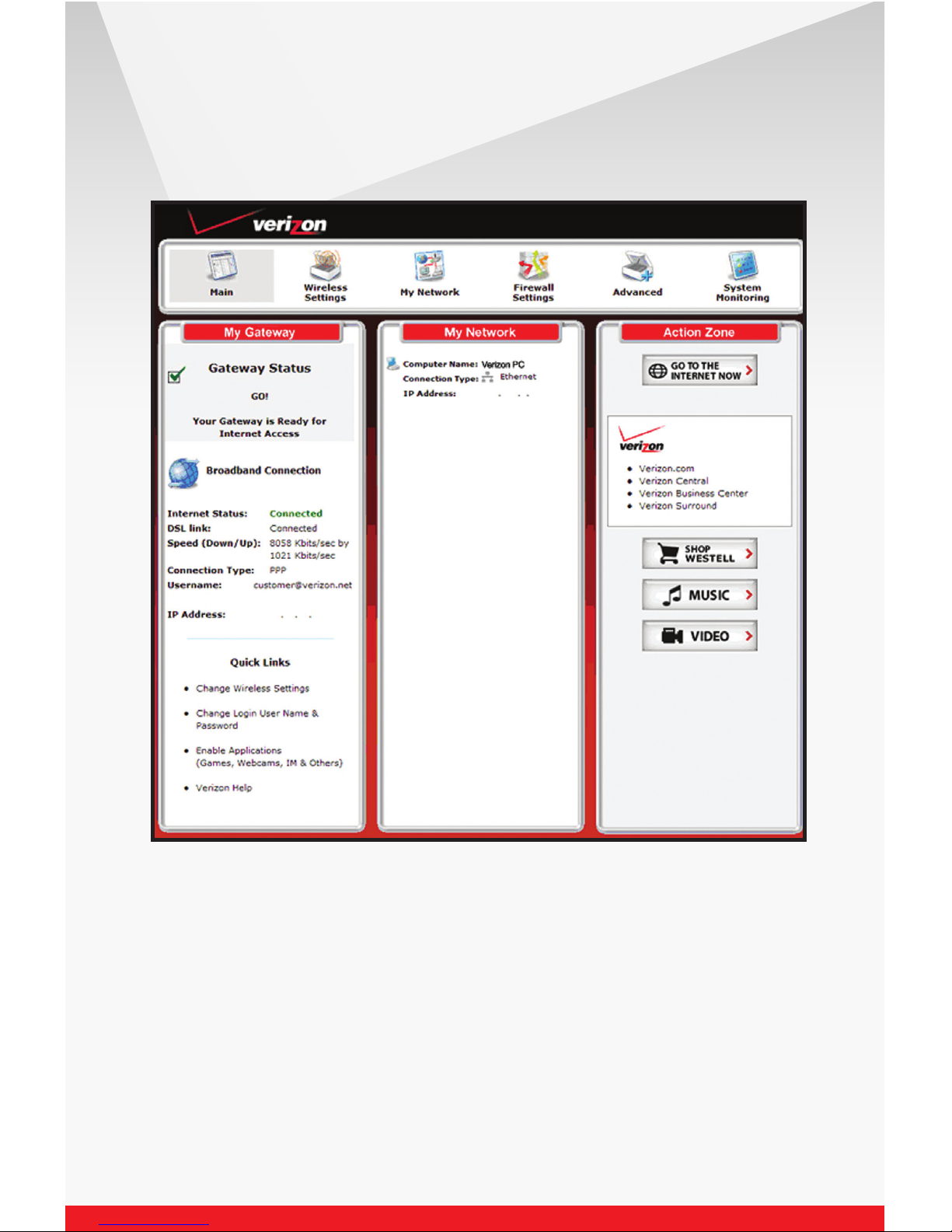

From the MAIN screen, Gateway Status:

NEED HELP? Call The Verizon Online Business Center at 1.888.649.9500

Single Static IP

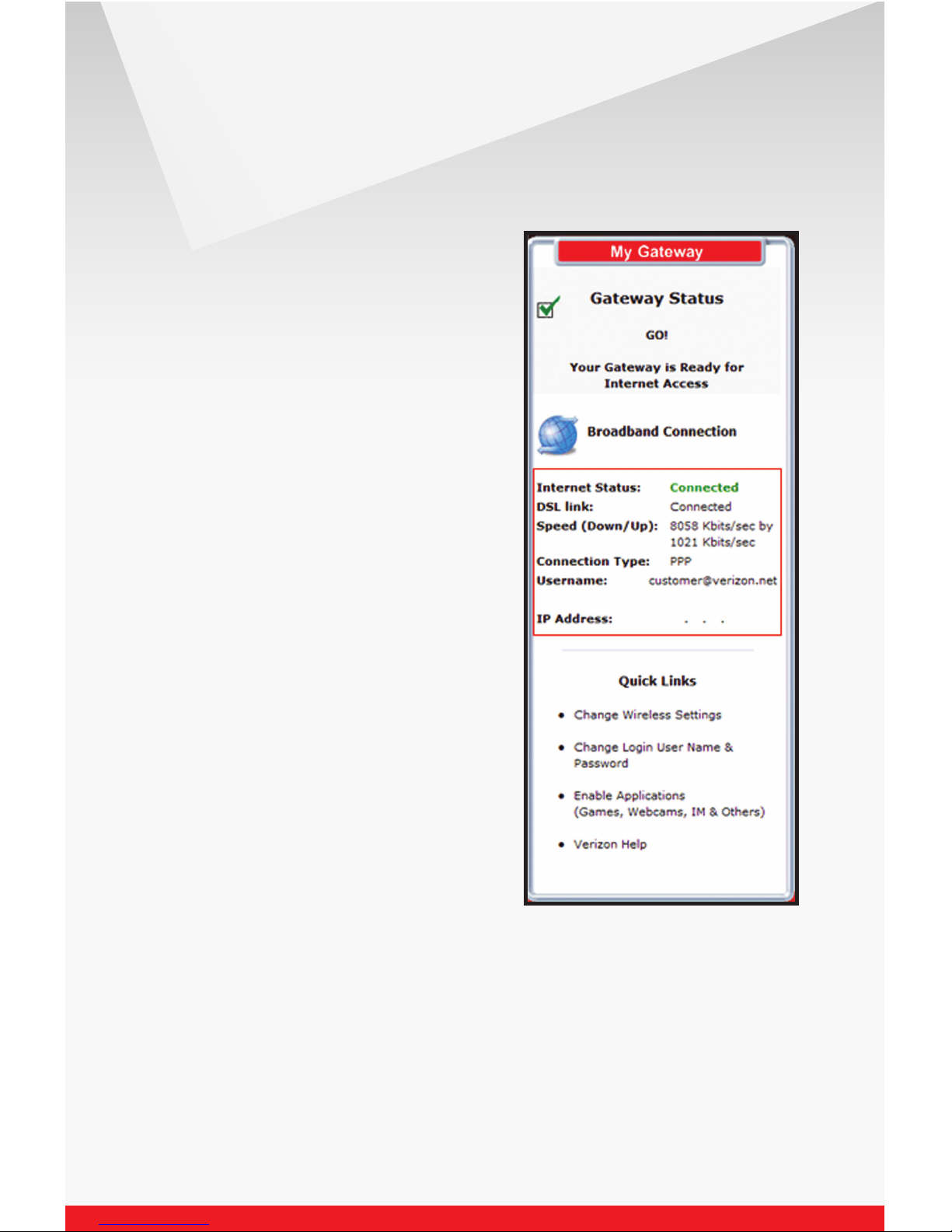

In the My Gateway panel of the

Main page, view the DSL link field.

If the status reads Not Connected,

you do not have a DSL link.

However, if DSL Link field displays

Connected and the Speed

(Down/Up) field displays numeric

values, a DSL link has been

established. Notice the Connection

Type, Username and IP Address.

In this example, the Connection

Type is "PPP" (PPPoE).

Verizon High Speed Internet for Business

NEED HELP? Call The Verizon Online Business Center at 1.888.649.9500

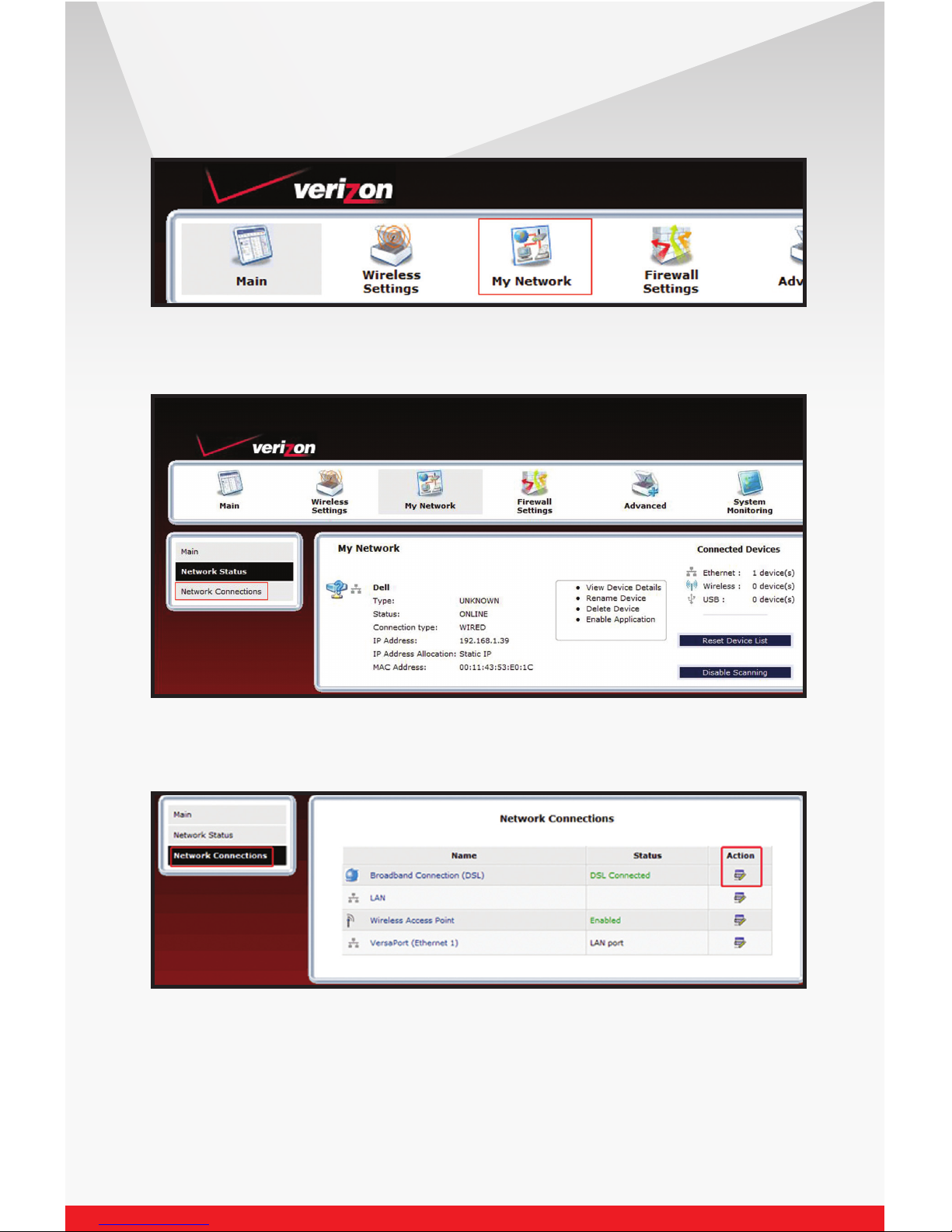

Click on My Network.

The My Network page is displayed. Click on Network Connections.

This will bring you to the Network Connections screen.

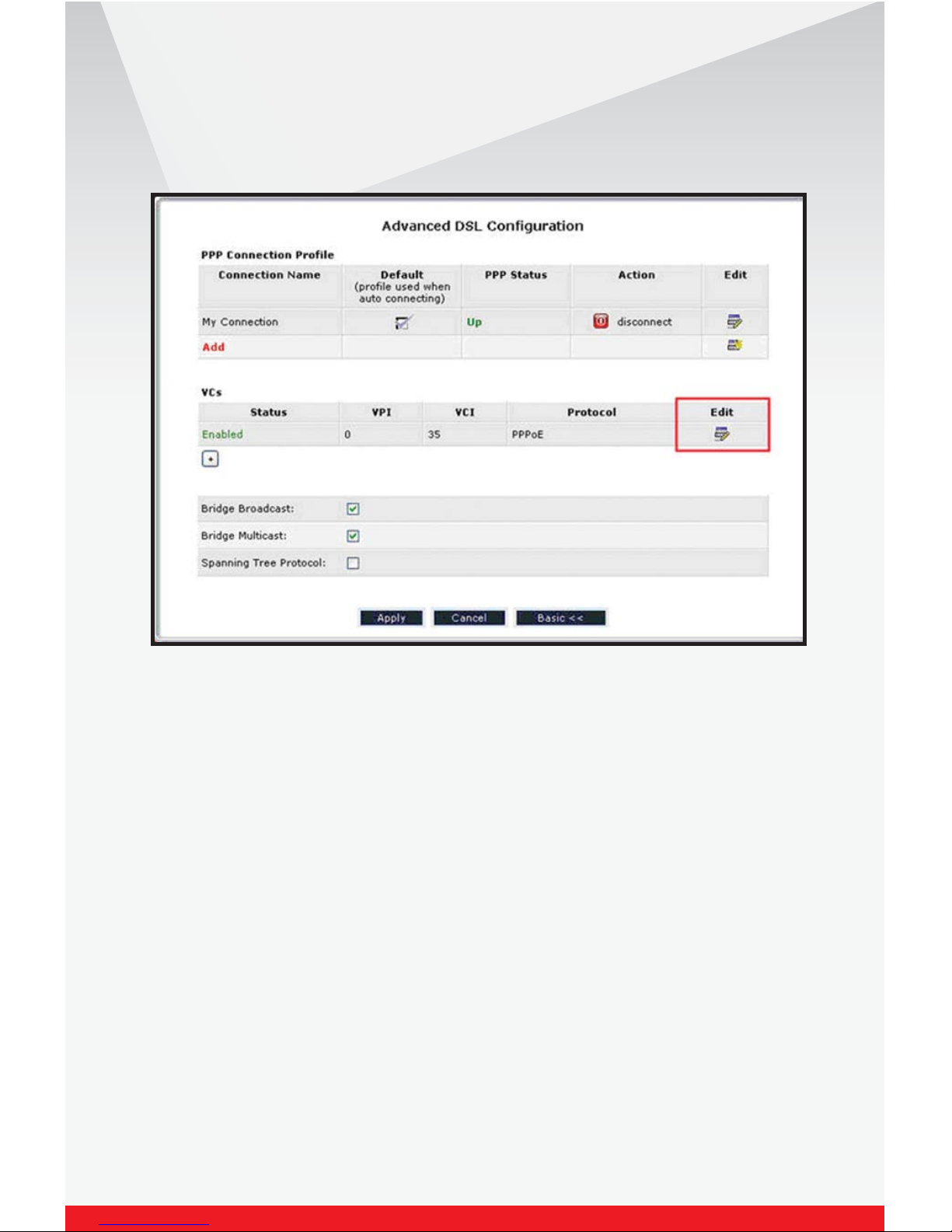

Click on Action. This will bring you to the Advance DSL Connection

screen.

Single Static IP

Click on Edit in the VCs section.

Verizon High Speed Internet for Business
