Verizon Speed RC400L Manuale utente
User guide
RC400L Mobile Hotspot
4 5
Caring for your Mobile Hotspot
Like any electronic device, the Mobile Hotspot must be handled with care
to ensure reliable operation. Orbic® recommends the following guidelines:
• Protect the Mobile Hotspot from liquids, dust, and excessive temperatures.
• Do not apply adhesive labels to the Mobile Hotspot; they might cause the Mobile Hotspot
to potentially overheat and they might alter the performance of the antenna.
• Store the Mobile Hotspot in a safe place when not in use.
6 7

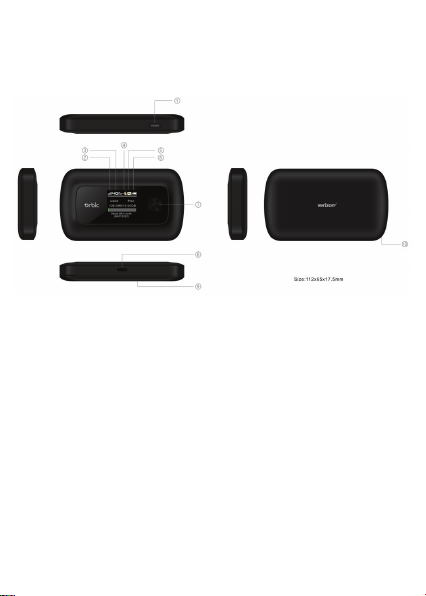

About your
Mobile Hotspot
1. Menu button
2. Signal status icon
3. Network mode icon
4. Wi-Fi signal icon
5. Unread message icon
6. Battery icon
7. Power button
8. USB Type-C Port
9. Battery cover
10. Cutout to remove back cover
6 7
Status Indicators
DISPLAY ICON DESCRIPTION
Black Screen
Network Signal
Strength
Activity Indicator
Wi-Fi Indicator
Messages
Connected Devices
Battery Charge
Indicator
Battery Charge
Indicator
Battery AC
Charging Indicator
The Mobile Hotspot is powered off or in sleep mode.
Tap the power button to wake up device if in sleep mode.
Network Signal Strength Indicator.
More bars indicate more signal strength.
Data is being transferred between the mobile network
and your Mobile Hotspot.
Your Mobile Hotspot Wi-Fi network in turned ON.
You have unread messages.
Shows the number of Wi-Fi devices connected
to your Mobile Hotspot.
The battery is fully charged.
The battery is critically low and the Mobile Hotspot will
shut down unless the battery is connected to the charger.
Displays when the Mobile Hotspot is connected
to the AC Charger.
8 9
Power Management
Charging Your Mobile Hotspot
IMPORTANT!
CAUTION!
To charge the battery:
Before you use your Mobile Hotspot, be sure to charge the battery for at least three hours
to ensure a full initial charge. When fully charged, the battery has up to 12 hours of life.
Before using your Mobile Hotspot, read the battery safety information in the
“Product Safety and Warranty Information” section of this guide.
(See Proper Battery Use and Disposal on page 10.)
Connect the USB end of the charger into the charging port of the Mobile Hotspot.
Plug the other end of the wall charger into the appropriate electrical outlet.
When the battery is fully charged, the battery icon will turn solid black.
Use only batteries and chargers with your Mobile Hotspot that have been approved
by Orbic® for optimal performance and safe operation.
1
2
10 11
Cleaning and Maintenance
The Product, the battery and the charger are not waterproof. Do not use them in places with high humidity like a bathroom
and also avoid spilling any liquids on the Product, battery or charger. Use a soft cloth to clean the Product, the battery
and the charger. Do not use alcohol, diluted liquid or benzene to clean the Product.
WARNING!
Always use only approved batteries and chargers with your Mobile Hotspot.
The warranty does not cover damage caused by non-approved batteries and/or chargers.
CAUTION!
Risk of explosion if battery is replaced by an incorrect type. Dispose of used batteries in accordance
with local regulations. Risk of fire and burns. Do not open, crush, heat above 600C or incinerate.
Follow manufacturer’s instructions.
IMPORTANT!
Whenever you remove or insert the battery, ensure your Mobile Hotspot is not connected to any device
or power source. Never use tools, knives, keys, pens or any type of object to force the door open or
to remove the battery. Using any of these types of objects could result in puncturing the battery.
12 13
Turning your Mobile Hotspot
On and Off
• To turn your Mobile Hotspot on, press and hold the Power button for 2 seconds
• To turn it off, press and hold the Power button for 3 seconds
• To wake the Mobile Hotspot display, press and release the Power button.
Setting Up Wi-Fi Connection
Press and hold the “power” button for 5 seconds until the welcome logo is displayed
on the Screen, and Wi-Fi is on.
Use your terminal device to search for the wireless network connection with
the Wi-Fi’s SSID “Verizon-RC400L-XX” and click “Connect”. Enter PASSWORD.
The Password can be found by going to the 2.4GHz WIFI info or 5GHz WIFI Info
screen. The password is displayed next to the lock icon.
1
2
IMPORTANT!
Charge the battery completely before you connect your computer to your Mobile Hotspot.
12 13
Using your Mobile Hotspots
The Home Screen
The Home Screen lets you see what your Mobile Hotspot is doing at a glance:
From the Mobile Hotspot, you can check your Mobile Hotspot’s status, view your current data usage,
see Wi-Fi and Connected Devices details, and more.
Mobile Hotspot Home Screen
Unlimited Data
Signal status icon
Network mode
Number of Wi-Fi
devices connected to
your Mobile Hotspot Unread message
Battery level
Used data Plan data
At the top of the screen, you’ll see status indicators for network signal strength ,
data traffic activity , unread system messages , and battery .
The Data Usage section shows how much of your monthly data you’ve used
and how much time is left until the next billing cycle.
If you have
unlimited data:
16 17
2.4 GHZ Wi-Fi & 5GHZ Info (cont’d)
Device Settings
Press Power/OK to view next options.
Press Power/OK to highlight which Chanel you want to use (2.4GHz or 5GHz)
and press Power/Next to select.
Press Menu/Next to view Mobile Data status, press Power/OK to select Mobile Data ON/OFF.
You can set this in two options:
• Mobil Data
• Data Roaming
OK/Power Menu/Next
Configuración de la conexión Wi-Fi
Mantenga presionado el botón de "encendido" durante 5 segundos hasta que se muestre el
logotipo de bienvenida en la pantalla y Wi-Fi está activado. !
Utilice su dispositivo terminal para buscar la conexión de red inalámbrica con!
SSID de Wi-Fi “Verizon-RC400L-XX” y haga clic en “Conectar”. Introducir la contraseña.!
La contraseña se puede encontrar yendo a la información de WIFI de 2.4GHz o a la Información
de WIFI de 5GHz pantalla. La contraseña se muestra junto al icono de candado. !
Activar su punto de acceso móvil Encendido y apagado
• Para dar vuelta a su punto de acceso móvil, pulse y mantenga pulsado el Poder botón durante 2
segundos
• Para apagarlo, mantenga pulsada la potencia botón durante 3 segundos
• Para activar el punto de acceso móvil pantalla, presione y libere el Poder botón.
1
2
3
¡IMPORTANTE!
Cargue la batería completamente antes de conectar su computadora
a su punto de acceso móvil
