DIGITAL TORQUE WRENCH

USER MANUAL

We continue to be committed to provide you tools with competitive price.

"Save Half", "Half Price" or any other similar expressions used by us only represents an

estimate of savings you might benefit from buying certain tools with us compared to the major

top brands and doses not necessarily mean to cover all categories of tools offered by us. You

are kindly reminded to verify carefully when you are placing an order with us if you are

actually saving half in comparison with the top major brands.

- 1 -

Have product questions? Need technical support? Please feel free to

CustomerService@vevor.com

NEED HELP? CONTACT US!

This is the original instruction, please read all manual instructions

carefully before operating. VEVOR reserves a clear interpretation of our

user manual. The appearance of the product shall be subject to the

product you received. Please forgive us that we won't inform you again if

there are any technology or software updates on our product.

DIGITAL TORQUE WRENCH

MODEL: DSM1-100008B

- 2 -

IMPORTANT SAFETY INSTRUCTIONS

Warning - To reduce the risk of injury, user must read

instructions manual carefully.

This symbol, placed before a safety comment, indicates a

kind of precaution, warning, or danger. Ignoring this warning

may lead to an accident. To reduce the risk of injury, fire, or

electrocution, please always follow the recommendation

shown below.

1. Using overload (exceeding 120% of the maximum operating torque

value) may cause damage to the screwdriver or loss of accuracy.

2. Do not shake the screwdriver violently or drop it to the ground.

3. Do not use a screwdriver as a striking tool.

4. Do not place the screwdriver in areas with high temperature, humidity, or

direct sunlight.

5. Do not use a screwdriver near water.

6. If the screwdriver is accidentally wet, please immediately wipe it with a

dry towel. The salt in the seawater may damage the screwdriver.

7. Do not use organic solvents to clean the screwdriver, such as alcohol or

paint thinner.

8. Do not place the screwdriver near magnetic objects.

9. Do not place the screwdriver in a dusty or sandy area as this can cause

serious damage to the screwdriver.

10. Do not press the LCD screen under gravity.

11. Please apply an appropriate amount of force, andthe application point

should not be at the end of the grip.

- 3 -

1. Product structure

1. jump ring

10. PEAK (peak mode)/TRACK (Follow Mode)

2. sensor

11. Battery display

3.LCD screen

12. Torque display value

4. buzzer

13. Unit display

5. Key buttons

14. Power/Cancel button

6. Correction point

15. Unit/Set button

7. Battery cover

16. Backlight and lock button

8. working condition

17. Up/Down buttons

9. LED indicator light

- 4 -

2. Main functional features:

1. Digital display of torque value, clockwise and counterclockwise operation.

2. Peak and Track modes.

3. +/-2% (forward rotation) accuracy (between 20% and 100% of the maximum

operating torque value).

4. When the set torque value is reached, the buzzer and light will alert with a

green light of 85% -90% and a red light of 100% will light up.

5. Press the backlight button to select whether the backlight is on or off. Long

press and hold for three seconds to lock the button to prevent accidental operatior

adjust the torque value.

6. Can be preset to P-P8, and can store 500 sets of data.

3. PRODUCT PARAMETERS

1) Model: DSM1-100008B

2) Range: 0.3~8N.m

3) Increment : 0.01N.m

4) Support unit: N.m, ft-lb, in-lb, and kg.cm

5) Use 2pcs AAA 7 batteries；

6) Maximum torque value: 8N.m/5.9ft-lb/70.8in-1b/81.6kg.cm

7) Driver size: 1/4inch

8) Range and Precision : ±2%

9) Screwdriver bit Material and QTY: CrV ; 12pcs ;

10) Screwdriver bit list:

Type

List

Slotted head

90-6、38-4、CR-V3)

Phillips head

CR-VPH0、 CR-VPH1、CR-VPH2

Hexagon socket

5/64、3/32、5/32

Torx head

T10、 T15、T20

- 5 -

4.Setting

Step 1: Unit selection

Step 2: Set the target torque value

- 6 -

Step 3: Peak Hold/Trace

ability Mode Selection

Step 4:Trace ability mode operation

steps and functions

5. Precautions before using a screwdriver

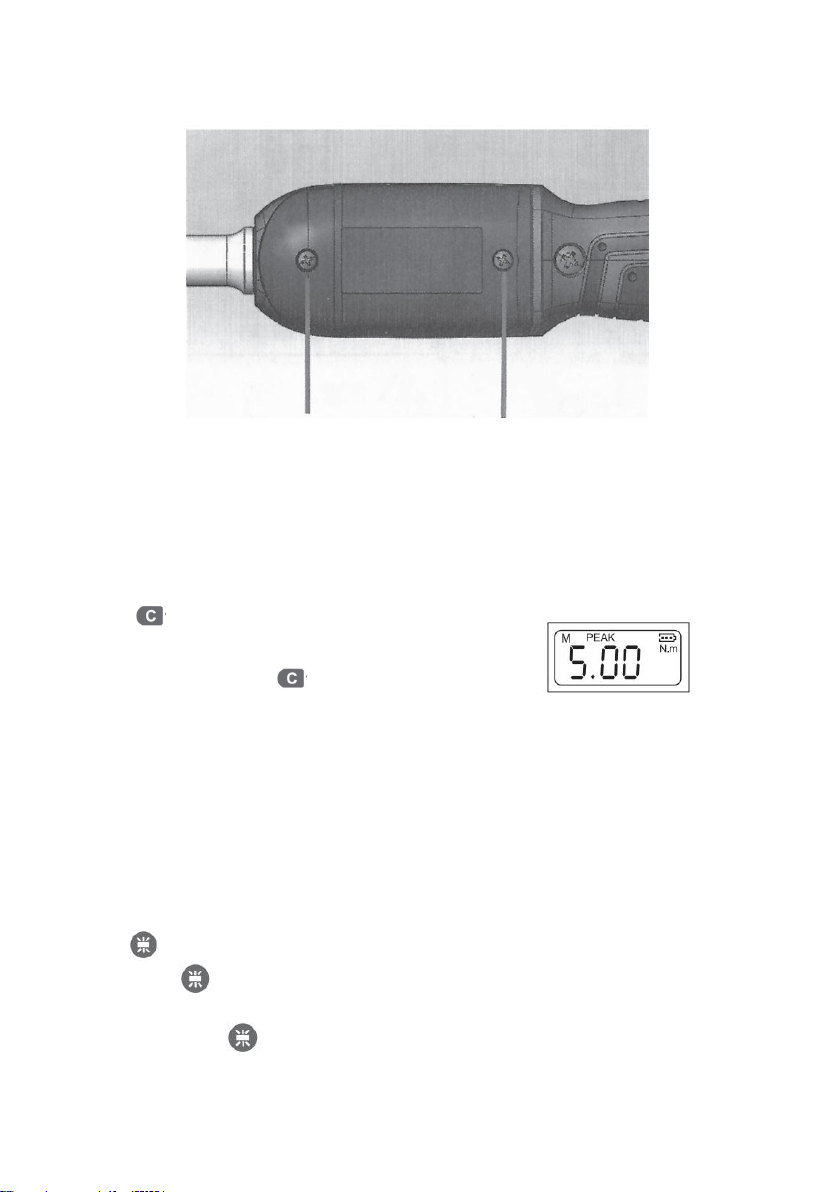

5.1 Battery installation

1.Open the battery cover

2.Place two AAA 7 batteries into the battery box, paying attention to the direction

- 7 -

ofthe positive and negative electrodes.

3.Install the battery onto the back cover and tighten the screws.

Battery replacement method:

Remove two screws and the back cover, install the battery and cover the back

cover, and tighten the screws.

5.2 Turn on the power and reset the wrench

1. press Turn on the screwdriver power supply.

2. Before use, press the Reset the screwdriver.

Be careful:

If external force is already applied to the screwdriver before turning on the

power.there will be an offset value displayed on the screen after turning on the

power.Please press the button to reset the screwdriver before normal operation

and use.

5.3 Backlight and button locking function

1.Press Press the key to turn on the backlight on the display screen.

2. Long press Press the key for three seconds to lock the adjustment button to

3.Prevent the screwdriver from accidentally changing the set value during use

Unlock, long press Press the key for three seconds to unlock the device and

set the screwdriver value.

- 8 -

5.4 Wake up the screwdriver in power saving mode

1. To save power, press and hold the wrench when it is not working

Key can shut down.

2.press The key can awaken the screwdriver for normal operation.

5.5 Battery handling method

1. If the screwdriver is not used for a long time, please remove the battery.

2. When you need to travel long distances or are in a cold area, please

prepare a backup battery.

3. Do not mix different brands of batteries, nor do you mix old and new

batteries.

4. Sweat, water, oil stains, etc. can hinder the contact of battery electrodes.

Please wipe the battery clean before inserting a torque screwdriver.

5.Please discard the used battery in the designated recycling area and do

not place it in a fire.

6. Matters needing attention:

1. When measuring wrench, press the Key into mode selection, press

the up and down keys to select TRACK mode

2. press Key Select Backlight 0n/0ff, Long Press Keys for 3 seconds

lock keys to prevent incorrect operation Adjusting Torque

3. Torque wrench screwdriver must not force more than 110% of the

maximum screwdriver torque

4. When installing the rear cover of the battery, press the specified arrow

lightly, lock left-hand and release right-hand.

5. Do not use a torque screwdriver as a hammer or lever for irregular

operation

6. To maintain good accuracy, it is recommended to recalibrate

approximately every year or 10000 times.

7. Please consult your local distributor for relevant calibration matters.

- 9 -
