VEVOR XC6527 Manuale utente

Technical Support and E-Warranty Certificate www.vevor.com/support

GEAR PULLER

MODEL: XC6527

We continue to be committed to provide you tools with competitive price.

"Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings

you might benefit from buying certain tools with us compared to the major top brands and does not necessarily

mean to cover all categories of tools offered by us. You are kindly reminded to verify carefully when you are

placing an order with us if you are actually saving half in comparison with the top major brands.

1

MODEL: XC6527

Have product questions? Need technical support? Please feel free to

contact us: Technical Support and E-Warranty Certificate

www.vevor.com/support

NEED HELP? CONTACT US!

This is the original instruction, please read all manual instructions

carefully before operating. VEVOR reserves a clear interpretation of our

user manual. The appearance of the product shall be subject to the

product you received. Please forgive us that we won't inform you again if

there are any technology or software updates on our product.

GEAR PULLER

2

Safety & Warning

Read and understand this entire manual before assembling, installing,

operating, or servicing this product. Failure to follow these warnings and

instructions can cause death, personal injury, or damage valuable

property.

While assembling and using this product, keep the work area clean and

well-lighted, and keep spectators and children out of the work area.

Wear ANSI-approved safety goggles, heavy-duty work gloves, and

safety shoes during use.

Use as intended only.

Before each use, inspect the general condition of the product. Check for:

broken, cracked, or bent parts, loose or missing parts, and any condition

that may affect the proper operation of the product.

After every use, wipe with a clean cloth. Then, store the product in a

safe, dry location out of reach of children and other non-authorized

people.

Ensure only genuine parts are used for replacement & Repair.

Be aware of dynamic loading! The sudden load movement may briefly

create an excess load, causing product failure.

Specifications

Model Series

XC6527

Max. Tensile Force (t)

2（Small）& 5（large）

Max. Jaw Spread(inch)

3 Small）& 7（large）

Structural Style

Mechanical

3

Figure of the Product

Part

Description

Qty.

1

Toolbox

1

2

Large Screw

1

3

Small Screw

1

4

Small Pull Jaw

3

5

Large Pull Jaw

3

6

Small Pull Block

1

7

Large Pull Block

1

4

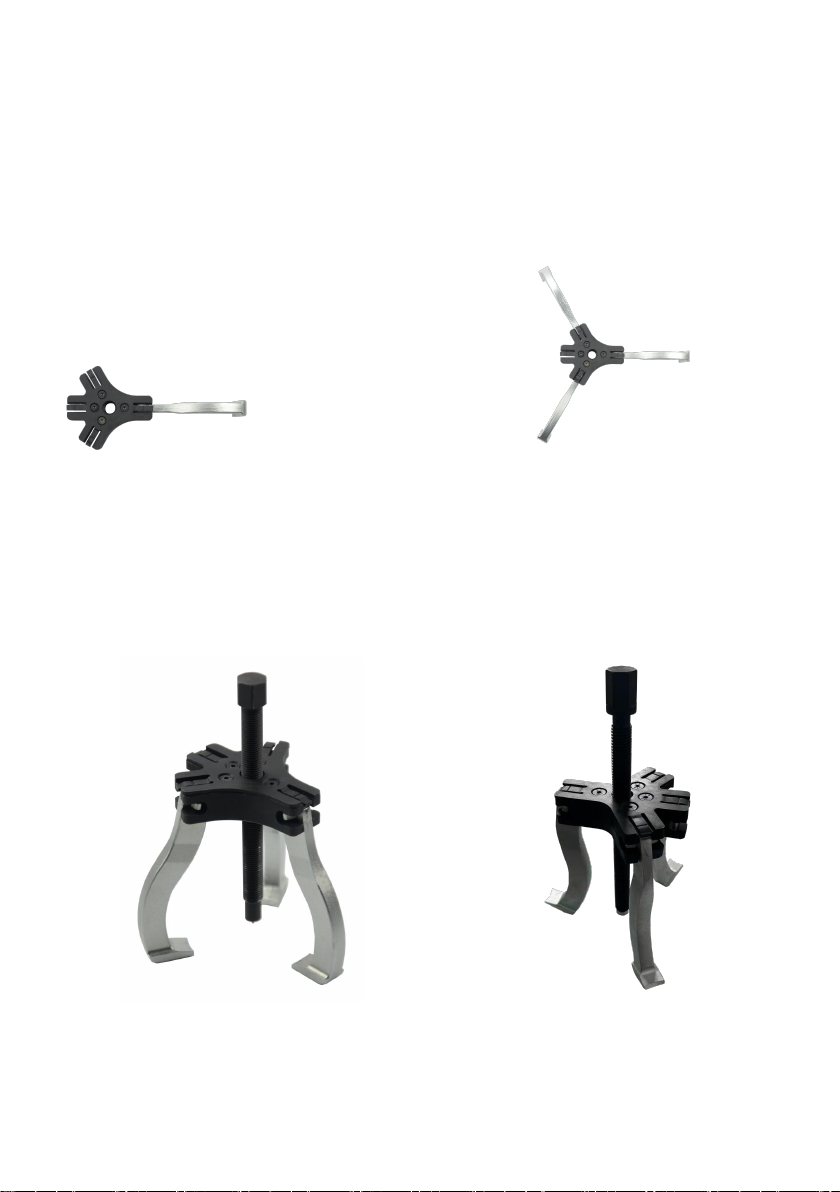

Installation instructions

Three-legged Pattern：

Step 1. Step 2.

Step 3.

OR

5

Double Leg Pattern：

Step 1. Step 2.

Step 3.

OR

Instructions

A. Gear puller is often used in mechanical maintenance.

B. It is mainly used to remove the damaged bearings from the shaft along

the axis.

6

C. It mainly comprises a rotating handle, a screw rod, and a pulling claw.

There are two claws, three claws, the main size of the length of the pull

claw, pull claw spacing, and screw length, to adapt to different diameters

and different coaxial installation depths of the bearing.

D. When in use, the screw center is positioned at the shaft end center hole

to adjust the position of the pulling claw so that the pulling claw is hooked

to the outer ring of the bearing, and the rotating handle makes the pulling

claw drive the bearing to move outward along the axis to remove.

Address: Baoshanqu Shuangchenglu 803long 11hao 1602A-1609shi

Shanghai

Imported to AUS: SIHAO PTY LTD, 1 ROKEVA STREETEASTWOOD NSW

2122 Australia

Imported to USA: Sanven Technology Ltd., Suite 250, 9166 Anaheim Place,

Rancho Cucamonga, CA 91730

REP

UK

Pooledas Group Ltd

Unit 5 Albert Edward House, The Pavilions

Preston, United Kingdom

REP

EC

SHUNSHUN GmbH

Römeräcker 9 Z2021, 76351

Linkenheim-Hochstetten, Germany

Made In China

Technical Support and E-Warranty Certificate

www.vevor.com/support
