ENGLISH

Contents

Foryoursafety .................3

Welcome to digital satellite TV! . . . . 4

Updatestoyourbox..................4

Inserting the batteries in your remote

control..............................4

Your remote control . . . . . . . . . . . . . 5

Your Viasat box . . . . . . . . . . . . . . . . . 6

Frontpanel..........................6

Rear panel connectors overview . . . . . . . .7

Installation ....................8

The supplied equipment . . . . . . . . . . . . . . .8

Where to place your set-top box . . . . . . .8

WhatelsedoIneed?..................8

Smartcard ........................8

Inserting your smart card . . . . . . . . . . . .9

Activating your subscription . . . . . . . . . .9

Satellitedish.......................9

Connection method 1:

To TV and VCR (without SCART) . . . .11

Connection method 2:

ToTVandVCR....................12

Connection method 3:To TV only . . . .13

Optional audio connections . . . . . . . . . . .14

Connecting to the telephone line . . . . . .14

Connecting a ‘magic eye’ . . . . . . . . . . . . . .15

Connecting to the mains supply. . . . . . . .15

Switching on for the ﬁrst time . . . . . . . . .16

RFTuning...........................17

Switching on and off . . . . . . . . . . . . . . . . .17

Getting Started . . . . . . . . . . . . . . . . 18

Using the Viasat Guide. . . . . . . . . . . . . . . .18

Changingchannel....................18

Unlocking a locked channel. . . . . . . . . . . .18

Changing the volume on your TV set . . .19

Using the channel banner . . . . . . . . . . . . .19

Displaying the channel banner . . . . . . .19

Watching a programme . . . . . . . . . . . .20

Instantly recording a programme . . . . .20

Setting a reminder . . . . . . . . . . . . . . . . .20

Displaying extra programme

information.......................20

Symbols in the channel banner and extra

information screens . . . . . . . . . . . . . . . . . .21

UsingLivePause.....................22

Using other VIASAT on-screen features

while you are using Live Pause . . . . . . .22

Using Instant Rewind . . . . . . . . . . . . . . . . .23

On-screen symbols . . . . . . . . . . . . . . . . . .24

EPG...............................26

Finding a programme. . . . . . . . . . . . . . .26

ViasatEPG....................26

Ticket..............................29

Purchasing a Ticket programme . . . . . .29

Viasat Ticket . . . . . . . . . . . . . . . . . . 29

Planner.............................31

Planner......................31

Your box’s disk space. . . . . . . . . . . . . . .33

Schedule changes . . . . . . . . . . . . . . . . . .33

Using Series Link . . . . . . . . . . . . . . . . . .33

Deleting a programme from your

Planner...........................34

Watching a programme when you see

thereminder......................34

Recording programmes . . . . . . . . . . . . . . .35

Recording Programmes . . . . . . . . . . 35

Using your box while you are recording

aprogramme.....................36

Recording clashes. . . . . . . . . . . . . . . . . .36

Disk space warning . . . . . . . . . . . . . . . .37

Manualrecording....................38

Watching recordings . . . . . . . . . . . . . . . . .39

Playbacksymbol...................39

Watching Recordings. . . . . . . . . . . . 39

Duringplayback...................40

Watching recordings of restricted

programmes or locked channels . . . . .41

Using Bookmarks . . . . . . . . . . . . . . . . . .41

InteractiveTV.......................41

Playinggames.....................41

Active........................41

Using the Setup menus . . . . . . . . . . . . . . .42

Using the Parental Control menu. . . . . . .42

2Using yourViasat box

Setup........................42

Locking Channels . . . . . . . . . . . . . . . . . .43

Setting viewing restrictions . . . . . . . . . .44

Setting purchase restrictions. . . . . . . . .45

Changing your PIN code. . . . . . . . . . . .45

Changing your Planner settings. . . . . . . . .46

Changing your PVR recording settings. . .47

Using the System Settings . . . . . . . . . . . . .48

Changing the Picture settings . . . . . . . .49

Changing the Sound settings. . . . . . . . .50

Changing the Language &

Subtitles settings . . . . . . . . . . . . . . . . . . .51

Viewing the box information . . . . . . . .51

Viewing the Signal Test screen . . . . . . .52

Installation Setup . . . . . . . . . . . . . . . . . .52

Changing the LNB Setup. . . . . . . . . . . .53

Setting the Default Transponder . . . . .55

Changing the Modem Settings . . . . . . .56

Setting the RF output channel . . . . . . .56

Setting up your remote control

foryourTV.........................57

Extra Information . . . . . . . . . . . . . . 58

Recording a digital satellite programme. .59

Switching between digital satellite TV

and terrestrial TV . . . . . . . . . . . . . . . . . . . .59

Solving problems . . . . . . . . . . . . . . . 59

Errormessages......................60

On-screen messages . . . . . . . . . . . . . . . . .60

General Problems . . . . . . . . . . . . . . . . . . .62

Environmental issues. . . . . . . . . . . . 64

Speciﬁcation..................65

End User Licence Terms . . . . . . . . . 66

Contents

ENGLISH

For your safety

Your set-top box has been manufactured to meet international safety standards, but you

must take care if you want to obtain the best results and operate it safely.

It is important that you read this booklet completely, especially the safety instructions

below. If you have any doubts about the installation, operation or safety of your set-top box,

please consult your dealer.

The model number, serial number and electrical rating of this set-top box are on a label

on its base.

WARNING!

Remember that contact with 230 V AC mains can be lethal or can cause a

severe electric shock.To avoid this risk:

Never remove the top cover from your set-top box.There are no user-

serviceable parts inside it, but there are some high-voltage live parts.

Make sure that all electrical connections are properly made.

Do not connect any of your equipment (set-top box,TV, video recorder

etc.) to the mains supply until you have properly connected all the other

leads.

Disconnect your set-top box from the mains supply (by disconnecting its

mains lead from the mains wall socket) before you disconnect any other

equipment from its rear panel.

Never push anything into the holes, slots or other openings of the set-top

box case (except a smart card into its correct slot).

CAUTION!

4In order to ensure a free ﬂow of air around the set-top box, allow at least 5 cm of

space above and around the set-top box.

8Never stand your set-top box on soft furnishings or carpets. Do not cover any

ventilation slots.

8Do not place your set-top box in an unventilated cabinet or on top of a unit which

emits heat (e.g. a TV or VCR).

8Do not place your set-top box in a cabinet with more than one other piece of audio/

video equipment, for example,VCR or DVD.

8Do not use or store your set-top box in hot, cold, damp or dusty places.

8Do not put anything on your set-top box which might drip or spill into it. Never stand

objects ﬁlled with liquids, such as vases, on top of your set-top box.

8Never place naked ﬂame sources, such as lighted candles, on top of your set-top box.

8If you move your set-top box between locations at different temperatures, allow it to

reach room temperature before you apply power to it.

8To avoid possible damage to the internal hard disk, do not pick up or otherwise move

your set-top box while it is connected to the mains supply. If you want to move your

set-top box, ﬁrst disconnect it, then wait at least 30 seconds before continuing.You

should handle your set-top box carefully, as any damage you cause to the internal hard

disk (or any other component) will invalidate your warranty.

4Using yourViasat box

Welcome to digital satellite TV!

Thank you for choosing the Pace PVR box for viewing your Viasat channel packages. Please

follow the instructions in this User Guide carefully to enjoy all the advantages of digital

satellite TV.We advise following the user instructions and recommendations supplied with

your box, especially for ﬁrst-time use.

Your box fully complies with international DVB (Digital Video Broadcasting) standards.

Updates to your box

From time to time, your box may be updated.These updates provide enhanced features;

new screens and menus may become available.Although any new screens and menus may

look a little different from those described in this User Guide, you should be able to use

the same techniques (e.g. highlight and select) with them.

Updates will usually happen in the middle of the night.Your box needs to be in standby to

receive updates.

Inserting the batteries in your remote control

Before you can use your remote control, you must insert the two supplied AA batteries as

follows:

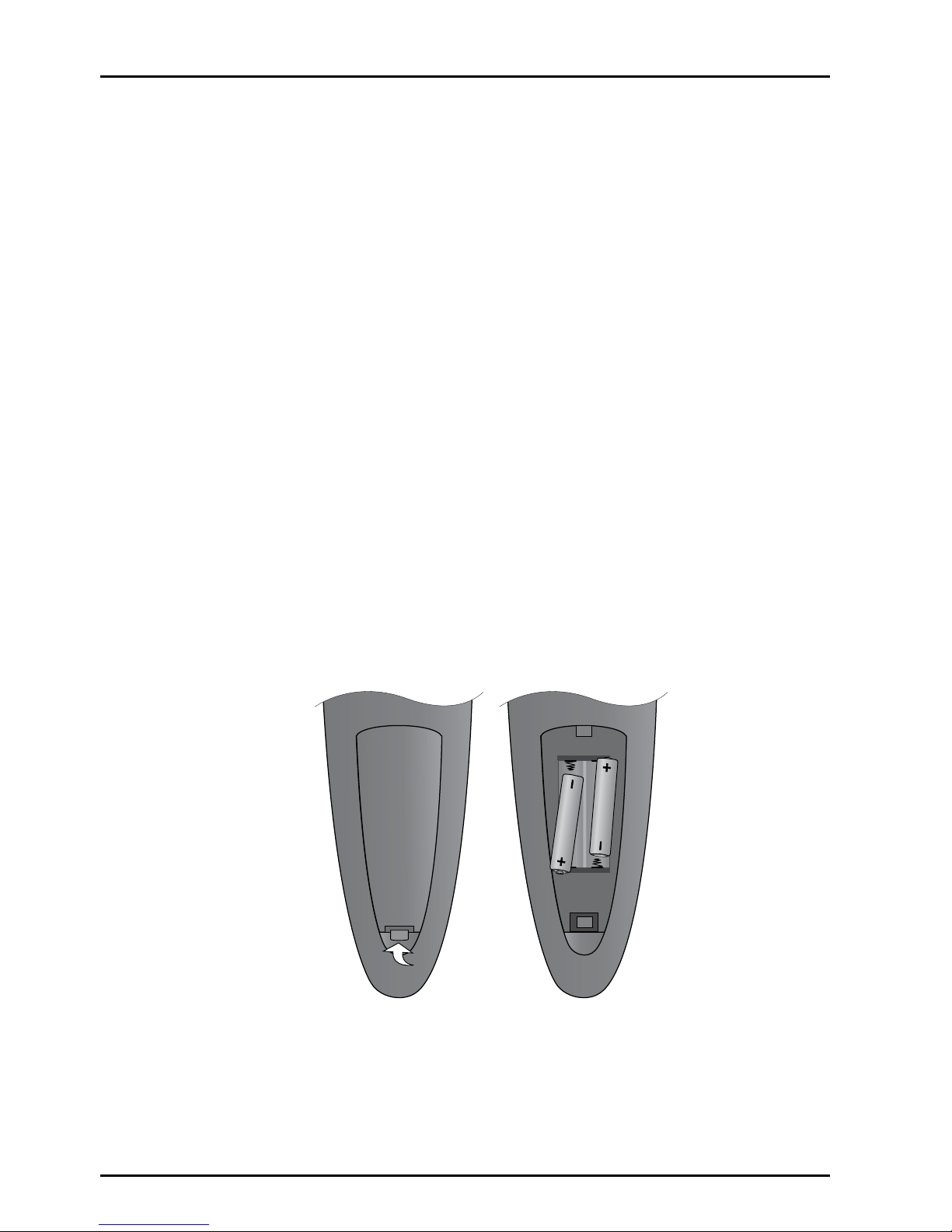

1. Push the catch at the bottom of the remote control battery cover up, then lift off the

cover.

2. Insert the batteries as shown below. Be sure to match the + and – marks on the

batteries to their respective marks inside the battery compartment.

3. Replace the battery cover, by inserting the tab at the top of the cover ﬁrst, then

pushing the cover into place.

8Don’t leave ﬂat batteries in your remote control.

4Replace both batteries at the same time.

8 Do not dispose of used batteries with your domestic rubbish.

4 Used batteries should be recycled at the end of their useful life.

❖

ENGLISH

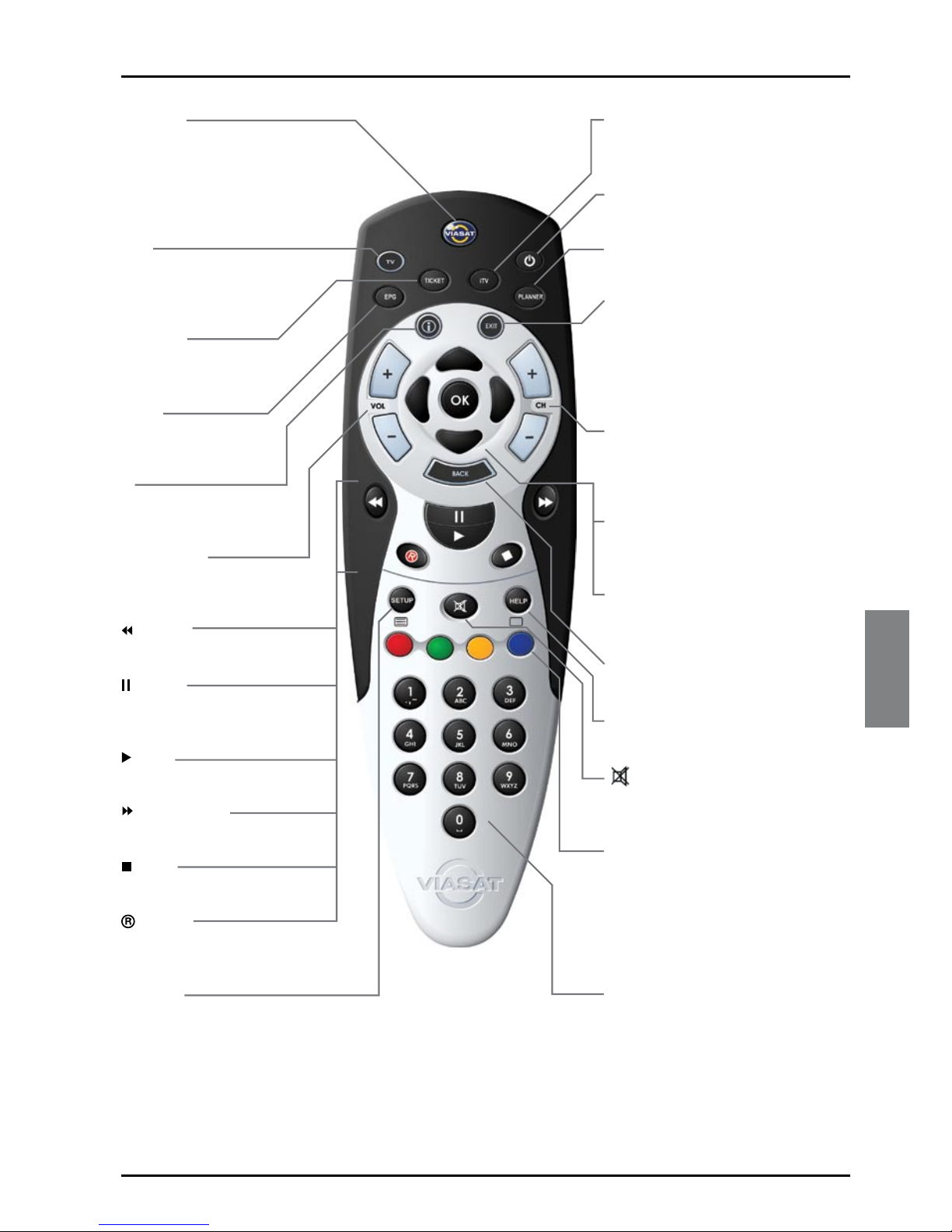

Your remote control

VIASAT

Takes you from the EPG to the

last channel you were watching

Takes you back to Normal mode

after you have been using

'TV-only mode'

Switches to ‘TV-only mode’, to

use yourVCR or other item

connected through your box

TICKET

Displays the Ticket screen to

order movies and events

EPG

Displays the electronic

programme guide (EPG)

Displays more information

about a programme

vol + and –

Changes the volume of your

TV up or down*

rewind

Rewinds the programme

pause

Pauses the programme or starts

a ‘Live Pause’ recording

play

Plays a recorded programme

fast forward

Fast forwards the programme

stop

Stops playback of the programme

record

Records the programme or sets a

reminder for a future recording

SETUP

Displays the Setup screen to alter

your box‘s settings

iTV

Displays the menu forViasat’s range of

interactive services

Puts your box into or out of standby

PLANNER

Displays your Planner

EXIT

Takes you from the EPG to the last

channel you were watching

Takes you back to Normal mode

after you have been using 'TV-only

mode'

ch + and –

Changes channel and pages up and

down through listings in the EPG and

Planner

arrow buttons

U, D, L, R

Moves the highlight around the screen

Confirms a choice or makes a

selection

BACK

Jumps back to the previous screen

HELP

Displays help information

mute

Turns the sound of your TV

on or off*

colour buttons

Use to select the matching colour

option shown on screen, or as

explained in this User Guide.

Also, the red button launches an

interactive service when you see the

red button on your TV screen

number buttons (0-9)

Use to change channel, enter numbers

and select on-screen options

*For information on setting up your remote control to operate your TV, see page 55.

6Using yourViasat box

Your Viasat box

record

play

OKBackEPG

PVR Digital Satellite Receiver

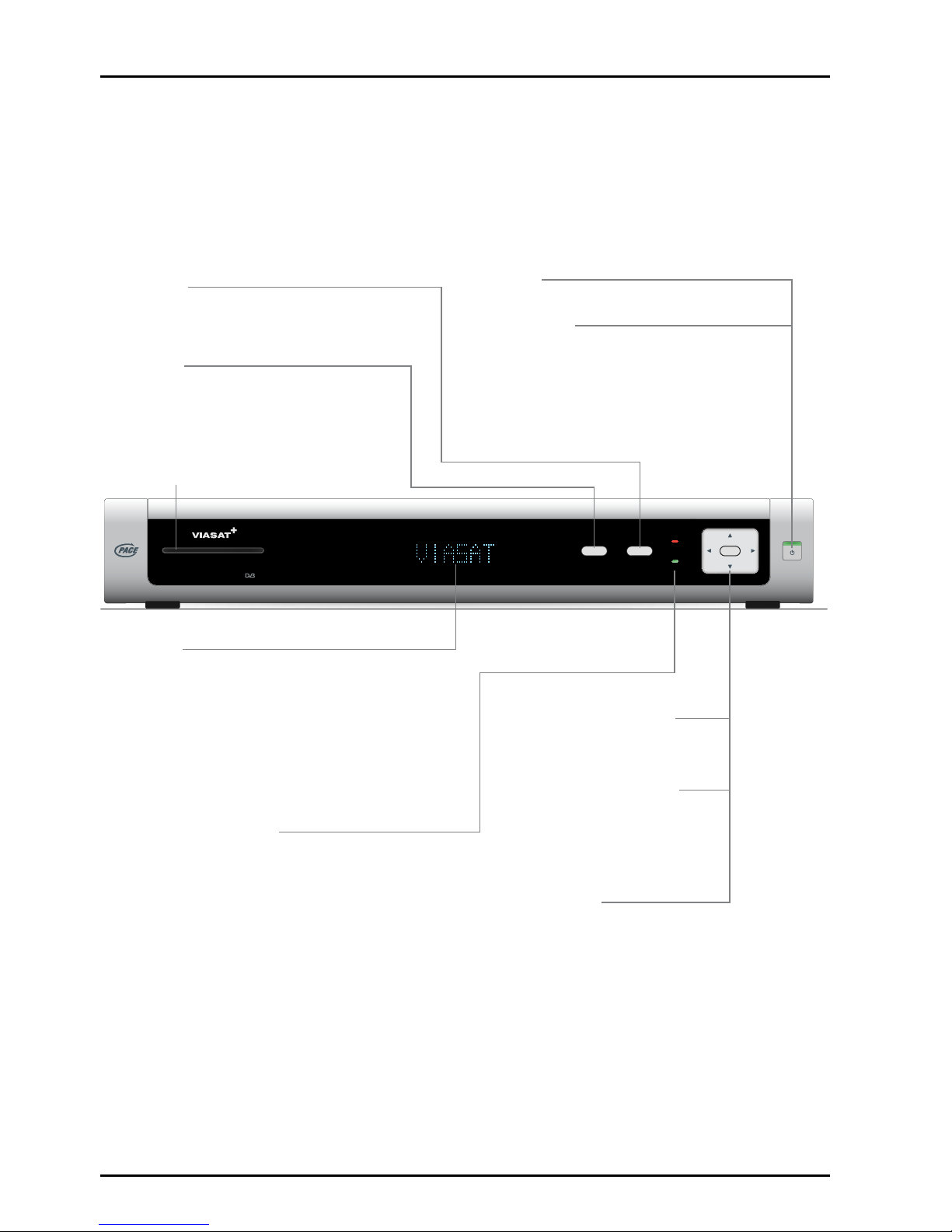

EPG button

To display the Viasat EPG

(electronic programme guide)

LED display

Shows the current time when your box

is in standby

Shows the channel number when tuned

to a TV or radio channel

Shows the current playback function, for

example ‘PLAY’,‘PAUS’,‘FF 2’,‘RW 4’ etc.

Back button

To remove a menu and go

back to the previous screen

smart card slot

To insert your smart card

OK button

To conﬁrm a choice or save

a setting

Sbutton

To switch your set-top box into or out of standby

indicator light

Lights up red when your set-top box is in standby

Lights up green when your set-top box is active

Lights up orange when your box is receiving a signal

from your remote control

record and play indicators

Lights up red when your box is

recording to the hard disk

Lights up green when your box is

playing back from the hard disk

Front panel❖

UD (arrow buttons)

To highlight the previous or next

item in a list or on-screen menu

LR (arrow buttons)

To move to the left and the right

through on-screen menus, lists

or items

To change setting on the screens

ENGLISH

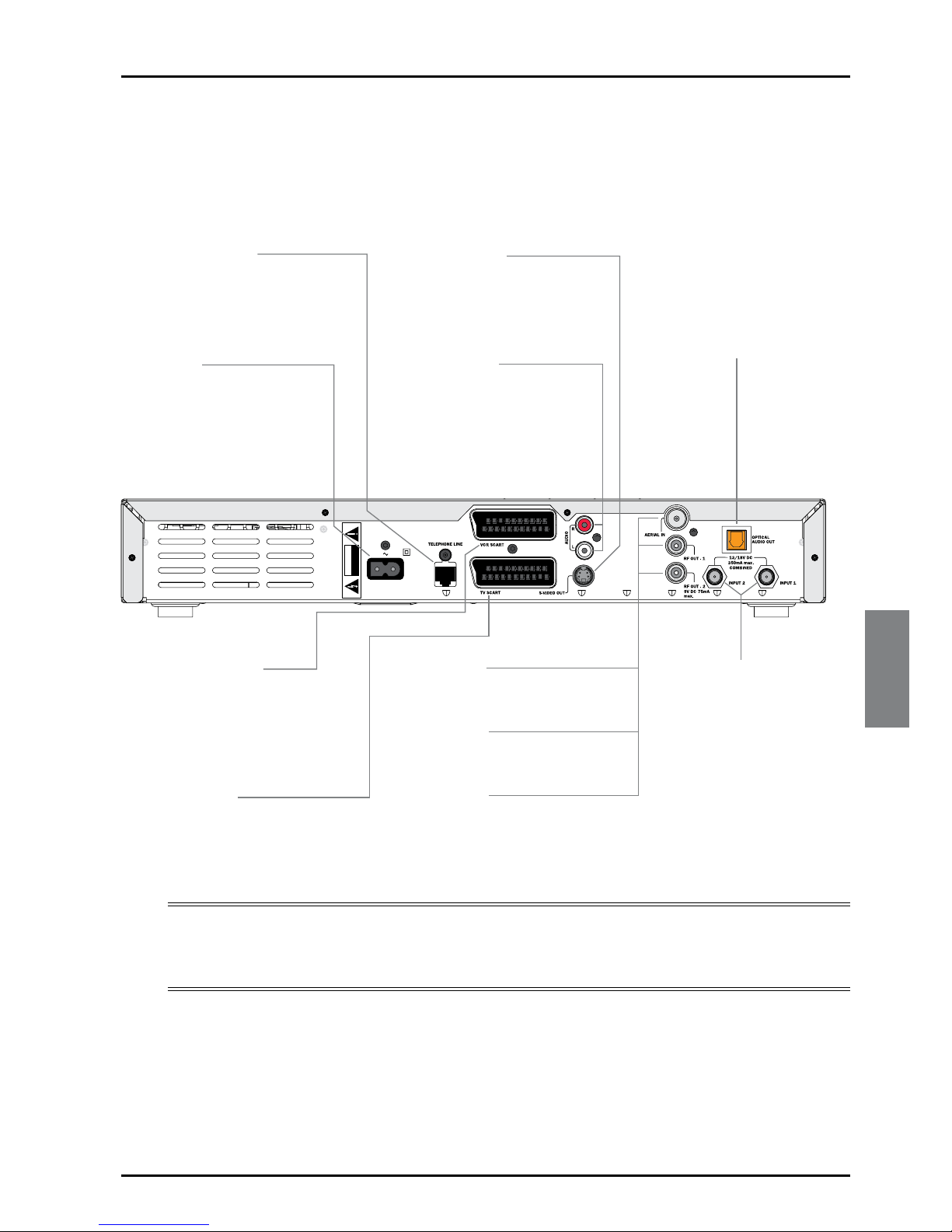

Rear panel connectors overview

Full details about connecting up and installing your set-top box begin on page 8.

❖

230V 50Hz

OHSCIRTCELEFOK

OTONOD

NOI

TUAC

OPTICAL AUDIO

OUT

To connect an optical

digital-audio lead (not

supplied) to a home

cinema system

INPUT 1 and

INPUT 2

To connect the

satellite signals inputs

from the Quad LNB

AERIAL IN

To connect the lead from your

TV antenna

RF OUT - 1

To connect an RF lead to your TV

(or video recorder)

RF OUT - 2

To connect an RF lead to a

second TV or ‘magic eye’

TELEPHONE LINE

To connect the telephone lead

Mains input

Do not connect the mains

plug to the wall socket

until you have made ALL

the other connections

VCR SCART (in/out)

To connect to the SCART

connector on yourVCR or

to connect to another item

of equipment with a SCART

output

TV SCART (out)

To connect to the SCART

connector on your TV

AUDIO L + R

(Left and right stereo audio

To connect phono leads (not

supplied) to a TV,VCR or hi-ﬁ

ampliﬁer

WARNING

Always disconnect your set-top box from the mains supply before you connect it to (or

disconnect it from) any other equipment.

Your Viasat box

S-VIDEO OUT

To connect to an S-Video lead

(not supplied) to the S-Video

connector on your TV

8Using yourViasat box

Installation

To install your box, follow the instructions from this page up

to page 16.

The supplied equipment

If you have not already done so, remove all the packaging.

You should have the following items:

Viasat PVR box (see page 6)

Remote control and batteries (see page 4)

User guide

Mains lead - with 2-way set-top box connector and

2-pin mains plug (see right)

SCART lead (see right)

RF lead (see right)

Telephone lead - RJ11 to RJ11 (see right)

Telephone line (RJ11) adapter suitable for your location

(see page 14)

Where to place your box

Before you start, make sure that your TV, VCR and box will

be placed in a location that is conveniently located:

near an easily-accessible mains wall socket;

within reach of your TV-antenna and satellite-dish leads;

within 10 metres of a telephone point. (If not, you will

need an extension telephone lead.)

WARNING

Before you connect your box to any other equipment,

you must disconnect ALL the equipment from the mains

supply.

❖

◆

❖

◆

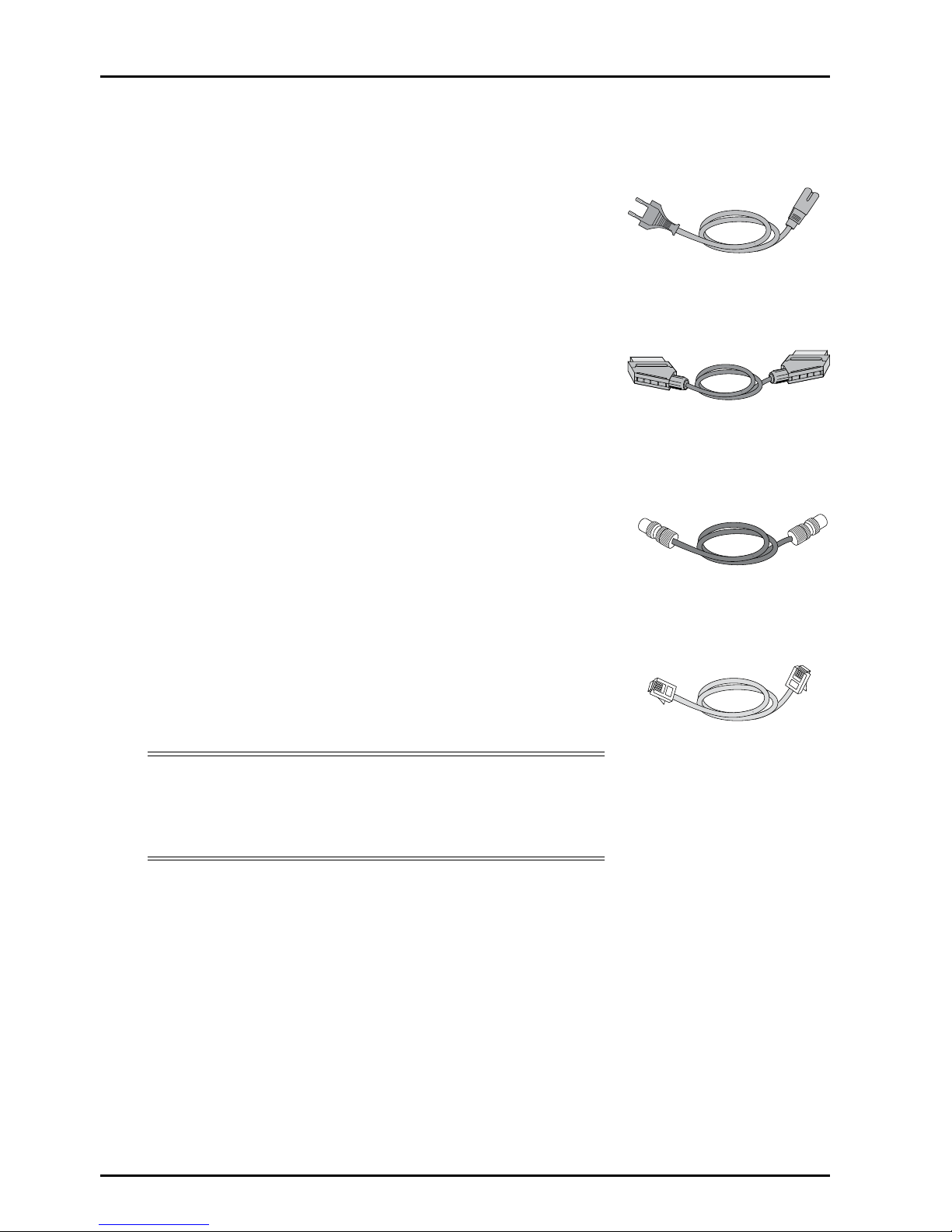

Mains lead

SCART lead

RF lead

Telephone lead

What else do I need?

Smart card

To get access to the channels to which you have subscribed, you will need a smart card.

If you are an existingViasat customer...

Please remove your smart card from your old box and insert it into your new box.

If you are a newViasat customer...

The smart card is not included in the package, but will arrive in a separate delivery

within a week. In the meantime you can use your box to watch non-encrypted

channels.

❖

◆

ENGLISH

Installation

Inserting your smart card

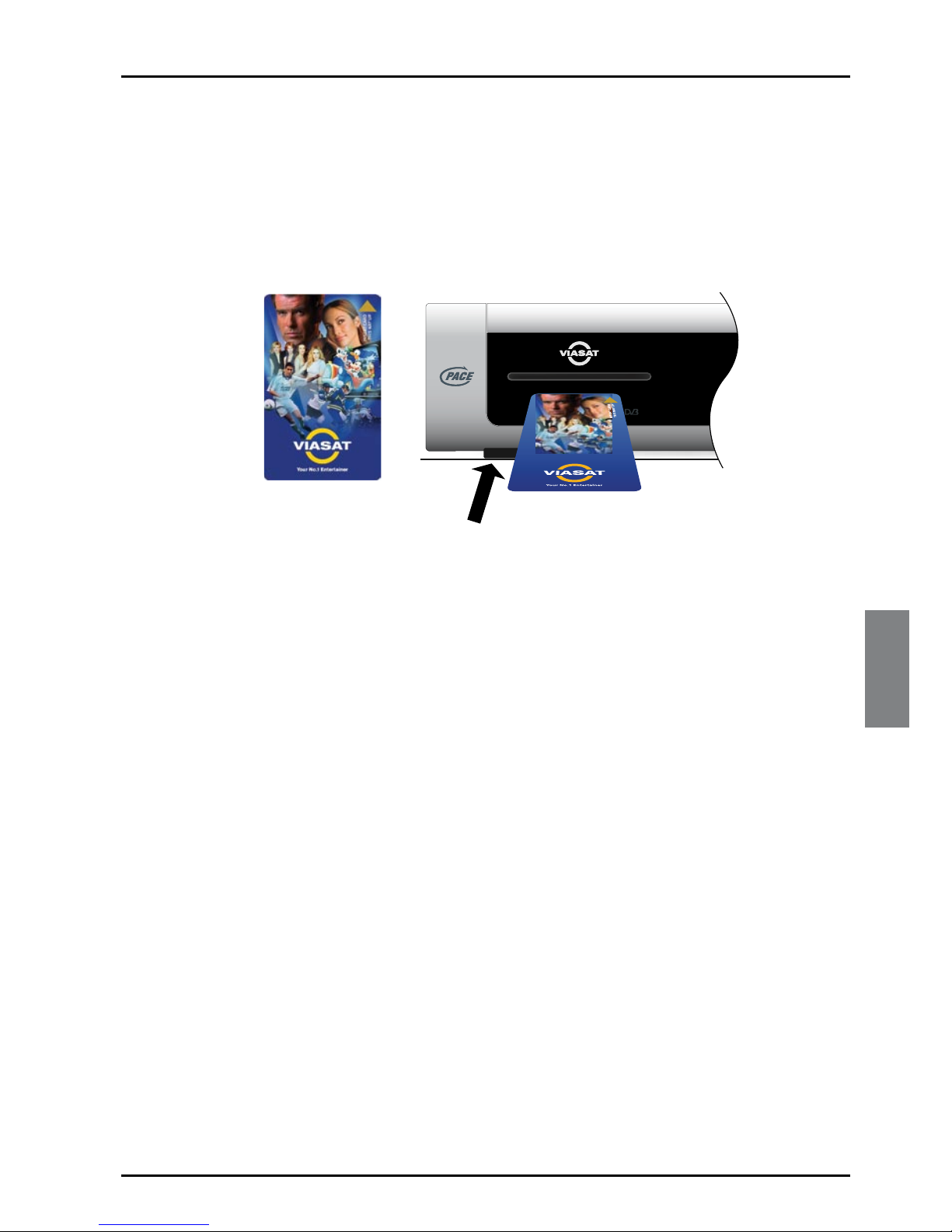

1. Take your smart card from its packaging (if you have not already done so) and hold it

so that the picture is facing upwards, and the ‘smart’ patch is facing downwards and at

the end away from you.

2. Insert the smart card into the smart card slot of the front panel of your box. Insert it

as far as it will go, without forcing it.

PVR Digital Satellite Receiver

Taking care of your smart card

Do not remove and re-insert your smart card unnecessarily.

Do not bend your smart card; keep it away from children and pets.

Do not put your smart card in liquids or use cleaning ﬂuids on it.

Activating your subscription

When you have completed the installation (see page 15), a Subscription Activation screen

will be displayed. Please follow the instructions that are given on the screen to get access

to yourViasat channel package.

Satellite dish

You will need a correctly-installed satellite dish, pointing at the correct satellite(s).

If you have a satellite dish but it is not pointing at the correct satellite(s), you will need

to make adjustments. Please see the information supplied with your dish/LNB for

details on how to do this, or seek professional advice.

If you do not have a satellite dish installed, please ask your dealer to recommend a

local dish-installation engineer.

Quad LNB set-up

Since the PVR has two tuner inputs you need to duplicate the incoming signal.This is done

by replacing your existing Sirius Universal Single LNB with a Universal Quad LNB and

install an extra cable to the PVR, or, if you are a new customer, installing two cables to the

PVR. One Universal Quad LNB and 2 x 25 m coaxial cables are included in this package by

Viasat.

Your choice of setup depends on the number of LNB:s in your antenna:

One LNB - Your antenna is equipped with only one LNB.The antenna must be aligned

towards Sirius 5°East

◆

Indice

Altri manuali ViaSat Decoder

ViaSat

ViaSat Pace 460 Manuale utente

Manuali Decoder popolari di altre marche

VBrick

VBrick 8000-0188 Manuale utente

Kogan

Kogan KGNPVR500VAA Manuale utente

Asus

Asus O!PLAY MEDIA PRO Manuale utente

Samsung

Samsung ICU 100 Manuale utente

VECTORMAX

VECTORMAX A12E Manuale utente

DStv

DStv Explora Manuale utente

Ace Digital TV

Ace Digital TV ADB 3800 Manuale utente

Cisco

Cisco 4398DVB Manuale utente

Polaroid

Polaroid KHA-01651B Manuale utente

Samsung

Samsung GX-SM530CF Manuale utente

BT Business Total Broadband Manuale utente

Megasat

Megasat HD 720 plus Manuale utente

Sungale

Sungale STB608 Manuale utente

Amino

Amino Amigo 7X Manuale utente

Geniatech

Geniatech ATV225 Manuale utente

Android

Android Androidminibox mx2 se Manuale utente

Hama

Hama Internet TV Box Manuale utente

Ariva

Ariva T650i Manuale utente
