The

following procedure outlines how to configure the HST-3000 utilizing the Electrical (RJ-

45) Ethernet Interface to conduct a bit error rate test. Please read entire procedure

BEFORE starting.

Menu selections are made from the HST-3000 front panel either by using the keypad to

select the option number OR by using the arrow keys to scroll to the desired selection and

pressing the OK key.

Please note that this same procedure may be used for Optical (MMF, SMF) Ethernet

Interface, substituting appropriate Fiber Optic Connectors and selecting the ETH

OPTIC soft key in Part 1, Step 2.

HST-3000 Front Panel:

Power Key

Second function key

Keypad

12 Buttons

Cancel Key

OK Key

Soft Keys

4 Keys

Status LEDs

LCD

Readable in

direct sunlight

Arrow keys

Microphone

Navigation Keys

4 Keys

HST-3000 Ethernet Layer 3 Traffic

Testing

Page 2 of 5

Part 1: Configuring the HST-3000

Step Action Details

1. Power Press the green Power Key to turn on the HST.

2. ETH ELEC Press the ETH ELEC Soft key to test 10/100/1000 Mbps

Ethernet via the SIM RJ-45 interface.

3. Terminate Press the 1key on the Keypad to select Terminate.

4. Test Press the 2key on the Keypad to select Layer 3 IP Traffic.

5. Configure Press the Configure Navigation key to configure test settings.

Press keys 0 through 9 on the Keypad, making appropriate

selections for Autonegotiation, Encapsulation, Load, and IP

Addressing Information:

6. Advance settings may be configured by pressing the Settings Soft key:

Page 3 of 5

Part 2: Connecting to the Circuit

Step Action Details

1. Home Press the HOME Navigation Key to return to the Results

Screen.

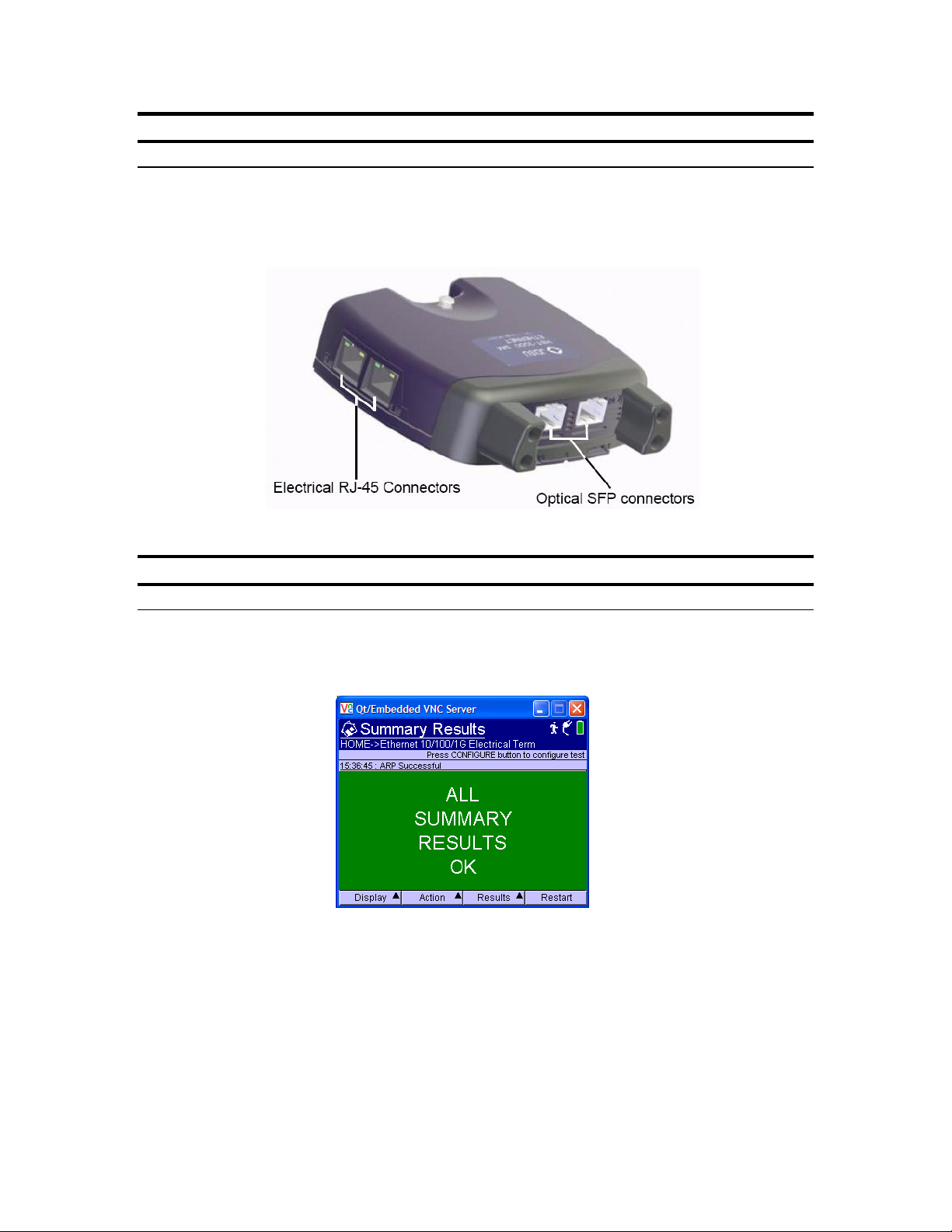

2. Connect the HST-3000 to the line under test using the Electical RJ-45 connector

labels R/T 1 on the left side of the SIM.

Part 3: Verifying Connectivity

Step Action Details

1. Sync LED A green Sync LED indicates the Ethernet link is active

2. Restart Press the Restart soft key to reset counter and alarms.

ALL SUMMARY RESULTS OK should be displayed.

“ARP Successful” should also be displayed.

Page 4 of 5

Part 4: Performing the Test

Step Action Details

1. Start Traffic Press the Action soft key and select Start Traffic. Verify that

Traffic is also started at far end test set.

2. Data LED A green Data LED indicates traffic is being received

3. Insert Error Press the Action soft key again, and then select 3-Insert Single

FCS Error. Verify that the Error LED turns red and “Lost

Frame 1”is displayed on the far end test set.

4. Restart Press the Restart soft key to reset counter and alarms.

ALL SUMMARY RESULTS OK should be displayed.

5. Test Allow HST-3000 to perform test for desired amount of time.

6. Display Press the Display soft key to select Results views. Verify that

test results in Link Stats and Error Stats meet requirements

for the line under test.

Page 5 of 5

7. Display Press the Display soft key to select additional Results views, if

required to troubleshoot the line under test:

8. Save Press the Results soft key and select Save to save test results.

9. Action Press the Action soft key and select 1-Stop Traffic.
