OneAdvisor 1000 High-Speed Network Testing Platform
OneAdvisor 1000 High-Speed Network Testing Platform
QUICK CARD
Ethernet Y.1564 Layer 2 Multiple Streams
This quick card describes how to configure and run an Y.1564 Layer 2 Multiple Streams Test for Metro
Ethernet service activation using the OneAdvisor 1000 100G Module.
LAUNCH TEST
1. Press the Power button to turn on the
OneAdvisor.
2. Press the 100G Module Test icon
at the top of the screen.
3. Tap the Power button and click
to launch the 100G Module.
4. Using the Select Test menu, Quick Launch
menu, or Job Manager, launch the Ethernet
Y.1564 Layer 2 Traffic test on Port 1 for the
desired rate. For Example:
Ethernet►1GigE Optical ►Y.1564 SAMComplete
►L2 Multiple Streams ►P1 Terminate.
5. Tap the button next to “Start a New
Configuration (reset to defaults)”
Figure 1: Equipment Requirements
•OneAdvisor 1000 equipped with the following:
o100G Transport Module
oBERT software release V30.1.0 or greater
oC510GELAN test option for 10 Gigabit Ethernet
oC525GE test option for 25 Gigabit Ethernet
oC540GE test option for 40 Gigabit Ethernet
oC550GE test option for 50 Gigabit Ethernet
oC5100GE test option for 100 Gigabit Ethernet
•Optical Transceiver supporting the interface to be tested
(SFP or QSFP)
•Cables to match the optical transceiver and the line under test
•Fiber optic inspection microscope (P5000i or FiberChek Probe)
•Fiber optic cleaning supplies
Figure 2: Launch Screen
Figure 3: Y.1564 test
VIAVI//Public
OneAdvisor 1000 High-Speed Network Testing Platform
OneAdvisor 1000 High-Speed Network Testing Platform
QUICK CARD
2

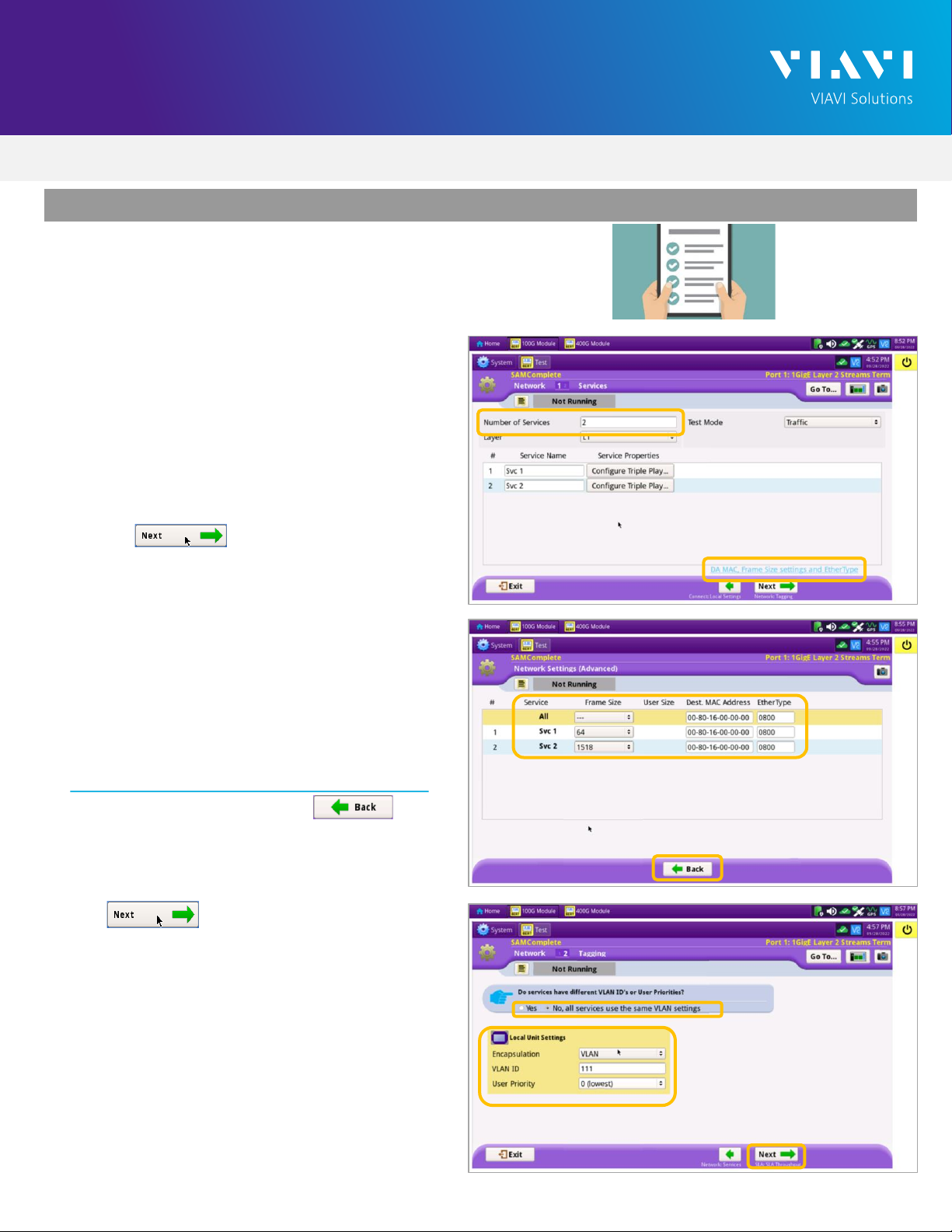

CONFIGURE TESTCONFIGURE TEST
Figure 4: Work Order
Figure 6: Network Settings (Advanced)
Figure 5: Network Services
Figure 7: Network Tagging
►The following Information is needed to
configure the test:
•Number of Streams to generate
•VLAN ID, if VLAN tagging is used
•Frame Size for each stream
•Committed Information Rate (CIR) for
each stream
•Pass/Fail Threshold for Frame Loss
Ratio, Delay and Delay Variation (Jitter)
1. Tap the button 3 times to display
the Network Services screen. Set Number
of Services to the number of streams you
wish to generate.
2. If you want different Frame Sizes,
Destination MAC Addresses, or Ethertypes
for each stream, tap
DA MAC, Frame Size setting and Ethertype,
enter desired values, and tap .
3. Tap to display the Network
Tagging screen.
►If you are testing a single VLAN, set
Encapsulation to VLAN and enter the
VLAN ID.
►If you are testing multiple VLANs, tap
the Yes radio button and enter the
VLAN IDs and Priorities.
VIAVI//Public
OneAdvisor 1000 High-Speed Network Testing Platform
OneAdvisor 1000 High-Speed Network Testing Platform
QUICK CARD
3
4. Tap to display the SLA Throughput
screen.
►Enter the CIR allocated to each stream of
traffic or service.
►Under EIR, Enter the additional bandwidth
available when only one stream of traffic is
being generated,
►If the streams are not policed individually,
uncheck all Policing checkboxes.
5. Tap the button twice to display the
SLA Performance screen.
►Enter the Frame Loss Ratio, Frame
Delay, and Delay Variation pass/fail
criteria for all services.
6. Tap the button 5 times to display the
J-QuickCheck screen.
Figure 8: SLA Throughput
Figure 9: SLA Performance
Figure 10: J-QuickCheck
VIAVI//Public
OneAdvisor 1000 High-Speed Network Testing Platform
OneAdvisor 1000 High-Speed Network Testing Platform
QUICK CARD
4
►For Optical Interfaces:
1. Use the VIAVI P5000i or FiberChek Probe
microscope to inspect both sides of every
connection being used (SFP, attenuators,
patch cables, bulkheads)
oFocus the fiber on the screen.
oIf it appears dirty, clean the fiber end-face
and re-inspect.
oIf it appears clean, run the inspection test.
oIf it fails, clean the fiber and re-run
inspection test. Repeat until it passes.
2. Insert desired Optical Transceiver into the
Port 1 SFP or QSFP slot on the top of the
T-BERD.
3. If necessary, insert optical attenuators into
the SFP TX and/or RX ports.
4. Connect the SFP to the port under test
using a jumper cable compatible with the
line under test.
►For Copper 10/100/1000BASE-T interfaces:
Connect the 10/100/1000 RJ-45 jack to
the port under test using CAT 5E or better
cable.
1. Verify that Local Port status UP and Full
Duplex (FD)
2. Tap the button.
3. Verify that the Remote Loop is recognized.
4. Tap the button to display the
Run Y.1564 Tests screen.
Figure 12: Local Port status
Figure 11: Inspect Before You Connect
CONNECT TO LINE UNDER TEST AND LOOP BACK DEVICE
Figure 13: Run J-QuickCheck
VIAVI//Public
OneAdvisor 1000 High-Speed Network Testing Platform
OneAdvisor 1000 High-Speed Network Testing Platform
QUICK CARD
© 2022 VIAVI Solutions, Inc,
Product specifications and descriptions in this
document are subject to change without notice.
Patented as described at viavisolutions.com/patents
Contact Us
To reach the VIAVI office nearest you,
visit viavisolutions.com/contact
+1 844 GO VIAVI
(+1 844 468-4284)
1. Tap the button three times to
display the Report screen.
2. Tap .
3. Tap buttons three times to
close the report and exit the Y.1564 test.
RUN TEST
1. Tap the button.
2. Wait for the test to complete and verify that
all tests pass or complete as indicated by a
green checkmark.
CREATE REPORT
Figure 14: Run Y.1564 Tests
Figure 15: Create Report
Figure 16: Exit
