T-BERD/MTS 5800 Portable Network Tester

T-BERD/MTS-5800 Portable Network Tester

QUICK CARD

Testing Ethernet Voice over IP (VOIP) SIP Trunks

•This quick card describes how to configure and run an Ethernet VOIP Test to validate the

provisioning and performance of a Session Border Controller (SBC) and SIP trunk at the

network border. The following Information is needed to complete this test:

✓Physical Interface (RJ-45 Copper, 1000BASE-SX Multimode, 1000BASE-LX Single mode, etc.)

✓Speed andAuto Negotiation settings of the SBC LAN port

✓VLAN ID (if a VLAN is being used)

✓IP Address for the SBC LAN port

✓IP Address, Subnet mask, and default gateway for the T-BERD/MTS or PBX

✓Is registration required, or is this a non-registering trunk?

✓Username and Password (required for registering trunks only)

✓Customer’s Billing Telephone Number for the SIP trunk

✓Destination Telephone Number(s) for outbound call testing

•T-BERD/MTS 5800 equipped with the following:

oTransport software release V31.2.1 or greater

oTest options:

▪C5VOIP: Voice over IP option

▪C5BT: Bluetooth (optional, for Bluetooth headset)

▪C5LSCAPTURE or C510GCAPTURE (recommended for

packet capture and analysis)

•Headset (Plantronics M114/M210c, or BenertechA310QD)

•CAT5E or fiber optic cables to match the line under test

•For optical interfaces:

oFiber inspection microscope (P5000i or FiberChek Probe)

oFiber optic cleaning supplies Figure 1: Equipment Requirements

CONNECT HEADSET AND CONFIGURE AUDIO SETTINGS

1. Press the Power button to turn on the

T-BERD/MTS.

2. Connect the headset to the headset jack on

the side of the T-BERD/MTS.

3. Press the System icon in the top left

corner of the screen.

4. Press the Audio icon . Set Speaker

Volume near the maximum setting and set

Microphone Volume to the center setting.

If desired, you can adjust these settings

during the test. The speaker icon

on the top bar of the T-BERD provides a

shortcut to this screen.

Figure 3: Audio Settings

Figure 2: System menu

VIAVI//Public

T-BERD/MTS 5800 Portable Network Tester

T-BERD/MTS-5800 Portable Network Tester

QUICK CARD

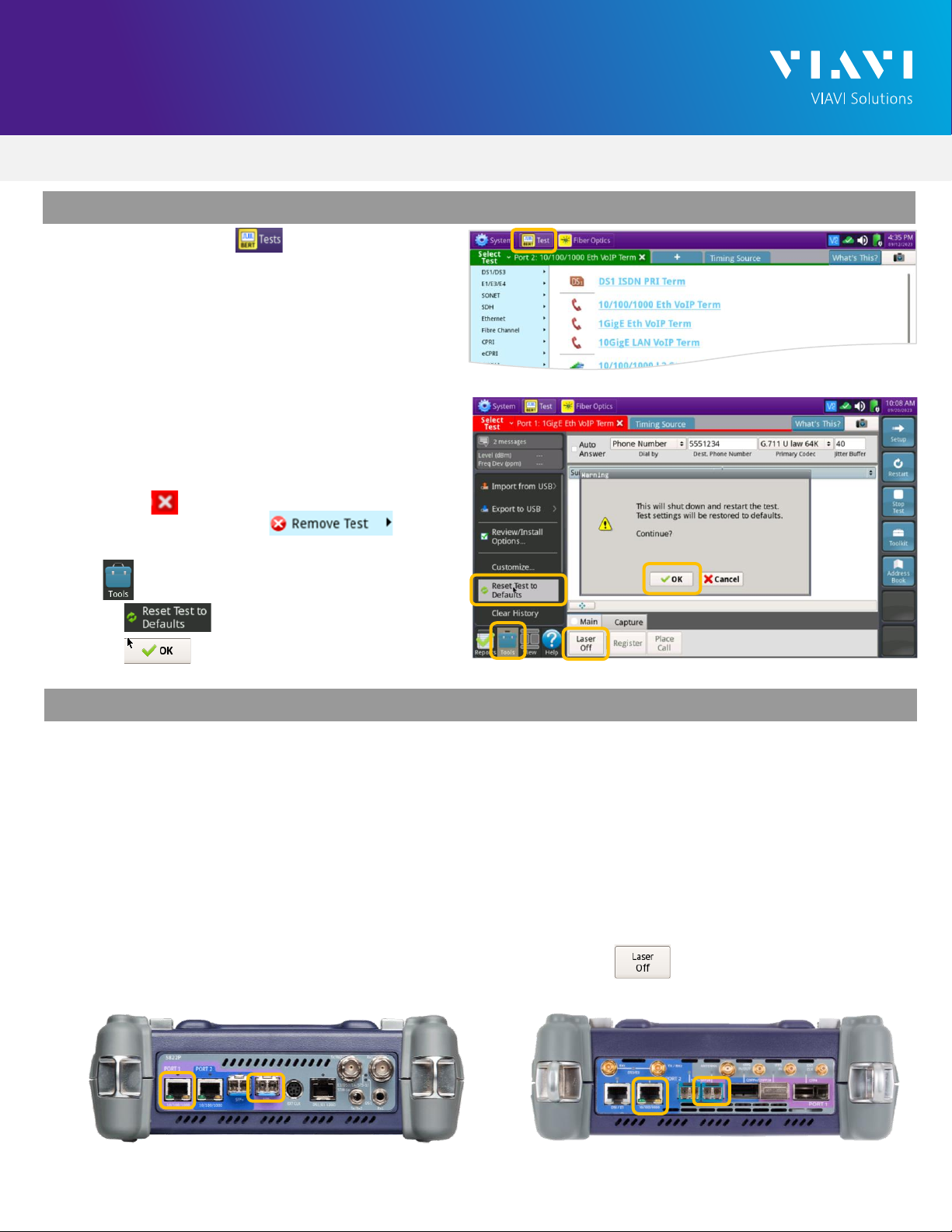

LAUNCH TEST

1. Press the Test icon at the top of the

screen to display the Launch Screen.

2. Using the Select Test menu, Quick Launch

menu, or Job Manager, launch the Ethernet,

VoIP, Terminate test for the desired physical

interface/line rate and port; for example:

•Ethernet►1GigE Optical►VoIP►P1 Terminate

•Ethernet►10/100/1000►VoIP►P2 Terminate

►Note: If tests have been launched on both

Port 1 and Port 2, you must remove the test

on Port 2 before launching the VOIP test.

Tap the icon next to the Port 2 tab in the

Select Test bar or tap

in the Select Test menu to remove the test.

3. Tap to open the Tools Panel and

select .

4. Press to continue.

Figure 4: Launch Screen

Figure 5: Tools Panel

CONNECT TO LINE UNDER TEST

•For copper testing with the SmartClass 4800 or T-BERD/MTS 5800v2, connect the Port 1

10/100/1000 RJ-45 jack to the Ethernet port under test using CAT 5E or better cable.

•For copper testing with the T-BERD/MTS 5800-100G, connect the Port 2 10/100/1000 RJ-45 jack

to the Ethernet port under test using CAT 5E or better cable.

•For optical testing, insert an SFP or SFP+ into the Port 1 slot on the top of the T-BERD/MTS.

1. Ensure the fiber and connectors are clean using a Fiber Inspection microscope.

2. Connect the SFP or SFP+ to the Ethernet port under test.

▪Use Multimode jumper cables for 850 nm 1000BASE-SX or 10GBASE-SR.

▪Use Single mode jumper cables for 1310 nm 1000BASE-LX or 10GBASE-LR.

3. Select the Laser tab in the Main Action Panel and press to turn the Laser on.

Figure 6: T-BERD/MTS 5800v2 Figure 7: T-BERD/MTS 5800-100G

VIAVI//Public

T-BERD/MTS 5800 Portable Network Tester

T-BERD/MTS-5800 Portable Network Tester

QUICK CARD

CONFIGURE TEST

Folder

Option

Value(s)

VoIP,

General

Source Alias

For Registering Trunks, enter Billing Telephone Number (BTN) for the PBX.

For Non

-Registering Trunks, enter BTN@SBC LAN IP Address; user=phone.

i.e.“321555432[email protected];user=phone”

Outbound Alias

(Dial by)

For Registering Trunks, select “Phone Number”.

For Non

-Registering Trunks, select “ Name/URI/Email”

Dest

Phone Number/

Name /URI/ Email

For Registering trunks, enter your 10

-digit cell phone number.

For non

-registering trunks, enter Cell Phone Number@SBC LAN IP Address.

i.e. “3215551[email protected]”.

100 Rel Usage

Disabled

1. Press the Setup soft key on the top right side of the screen.

2. Select the indicated folders and configure your test as follows. Leave all other values at default,

unless specified in the work order.

Folder

Option

Value(s)

Interface,

Physical Layer

Auto Negotiation

Set to same value as the SBC LAN port under test. Enter

Speed if Auto

Negotiation is off; i.e., 100 Mbps.

Ethernet/IP

Encapsulation

None

or VLAN. Enter VLAN ID if VLAN is being used.

Source IP Type

Static

or DHCP.

Source IP

Enter the static Source IP Address for the T

-BERD/MTS/PBX.

Default Gateway

Enter the IP Address for the SBC LAN port.

Subnet Mask

Enter Subnet Mask for the T

-BERD/MTS/PBX.

Figure 8: Setup, Interface Figure 9: Setup, Ethernet/IP

Figure 10: Non-registering Trunk Setup, VOIP/General Figure 11: Registering Trunk Setup, VOIP/General

VIAVI//Public

T-BERD/MTS 5800 Portable Network Tester

T-BERD/MTS-5800 Portable Network Tester

QUICK CARD

3. If you have configured settings for a Registering Trunk, tap to verify connectivity to the SBC.

4. Tap the Results soft key to view the Test Results screen.

CONFIGURE TEST (continued)

Folder

Option

Value(s)

VoIP,

Proxy

Proxy Mode

For Registering Trunks, select “Static”

For Non

-Registering Trunks, select “No Proxy”

Proxy IP

SBC LAN IP Address

Proxy Username

Enter

User Name.

Proxy Password

Enter Password.

Figure 12: Non-registering Trunk Setup, VoIP/Proxy Figure 13: Registering Trunk Setup, VoIP/Proxy

VERIFY CONNECTIVITY AND REGISTRATION

1. Verify the following:

►Summary LED is green

►Network Up LED is green

►Sync Acquired LED is green

►Link Active LED is green

2. If you are testing a Registering Trunk and have configured VoIP/Proxy settings, the T-BERD/MTS

automatically sends a REGISTER message to the Proxy IP. A green phone labeled “Registered” in the

LED panel indicates successful registration.

Figure 14: Non-registering Trunk Results Figure 15: Registering Trunk Results

VIAVI//Public

T-BERD/MTS 5800 Portable Network Tester

T-BERD/MTS-5800 Portable Network Tester

QUICK CARD

1. Using your cell phone, dial the billing

telephone number (BTN) for the PBX (or dial

the temporary “test” number if the BTN has

not been ported).

2. In the T-BERD/MTS’s Actions Panel, select

the Call Controls tab. Allow the call to ring

at least 2 times. Confirm the Ring back tone

is heard on your cell phone and tap

on the T-BERD/MTS to answer the call.

3. Put on the headset. If the headset includes

an on/off switch and volume control, turn it

on and adjust the volume to the desired

level.

4. Confirm that voice is heard, and voice quality

is acceptable on both the T-BERD/MTS’s

headset and the Cell Phone. If static is

heard on your cell phone, move the

microphone boom farther away from your

mouth to avoid overdriving the microphone.

5. Hang up the call from your cell phone. Verify

that the call status on the T-BERD/MTS

changes to IDLE.

Figure 16: Results, Incoming call

INBOUND CALL TESTING

Figure 17: Results, Connected call

Figure 18: Results, Disconnected

VERIFY CONNECTIVITY AND REGISTRATION (continued)

Troubleshooting Tips:

1. If the specified LEDs are not green, verify the following:

►The T-BERD/MTS is configured correctly, as outlined above.

►The LAN Port of the SBC is properly configured and enabled.

►Cables are good quality and properly connected.

2. Tap the message icon in the top left screen to confirm DHCP IPAddress

assignment.

3. Change the results category and group from Summary/Status to Ethernet/Stats to view Ethernet

Statistics including Local Config Status and error counts.

4. Change the results category and group to Transaction Log/Signaling to view registration messages.

If the T-BERD/MTS fails to automatically register, tap the Register button in the Main Action Panel at

the bottom of the screen.

5. If your unit includes options for Packet Capture, start a capture session and view signaling messages

using WireShark.

VIAVI//Public

T-BERD/MTS 5800 Portable Network Tester

T-BERD/MTS-5800 Portable Network Tester

QUICK CARD

RUN TEST

1. In the T-BERDMTS’s Actions Panel, tap .

The T-BERD/MTS will transmit INVITE

messages to initiate the call. Call status is

displayed in the LED panel.

2. Answer the incoming call on your cell phone. If

the call is successful, Call Status will change

from Ringback to Conversation.

3. Converse and confirm that voice quality is

acceptable on the T-BERD/MTS and the Cell

Phone. A wide variety of call statistics can be

viewed in the results screen, by changing the

Results category and group from

Summary/Status to other selections including

Content/Current Call Scores, Transport/QOS,

Ethernet/Stats, and more.

4. In the T-BERD/MTS Main Actions Panel, tap

to disconnect the call.

5. In the T-BERD/MTS Quick Config menu,

change “Destination Phone Number” to the next

number in the call plan.

6. In the T-BERD/MTS Main Actions Panel, tap

to initiate the call.

7. Converse and confirm that voice quality is

acceptable on the T-BERD/MTS and for the

called party.

8. In the T-BERD/MTS Actions Panel, tap

to disconnect the call.

9. Repeat steps 5 through 8 for all numbers in

the call plan. Call Plans may include:

•Toll Free numbers

•Local off-network numbers

•Local on-network numbers

•Long Distance numbers

•International numbers

•Blocked Calls

•n11 numbers such as 411 (directory

assistance), 611 (customer service), and

911 (emergency services)

Figure 19: Results, Place Call

OUTBOUND CALL TESTING

Figure 20: Results, Connected call

Figure 21: Results, Content/Current Call Scores

VIAVI//Public

T-BERD/MTS 5800 Portable Network Tester

T-BERD/MTS-5800 Portable Network Tester

QUICK CARD

Product specifications and descriptions in this

document are subject to change without notice.

Patented as described at viavisolutions.com/patents

To reach the VIAVI office nearest you,

visit viavisolutions.com/contact

+1 844 GO VIAVI

(+1 844 468-4284)

CREATE REPORT

1. Tap to open the Reports Panel and

select . .

2. Tap .

3. A report will be saved to the T-BERD/MTS

/bert/reports folder.

Figure 22: Create Report

Indice

Altri manuali Viavi Apparecchiature di prova

Viavi

Viavi T-BERD/MTS 2000 Manuale utente

Viavi

Viavi OneAdvisor 800 Series Manuale utente

Viavi

Viavi FBP-HD4i Manuale utente

Viavi

Viavi OneAdvisor 1000 Manuale utente

Viavi

Viavi IFR 6000 Manuale elenco delle parti

Viavi

Viavi T-BERD/MTS-5800 Manuale elenco delle parti

Viavi

Viavi T-BERD/MTS-2000 Manuale elenco delle parti

Viavi

Viavi T-BERD MTS 5800 Manuale elenco delle parti

Viavi

Viavi SmartClass Fiber MPOLx Manuale elenco delle parti

Viavi

Viavi T-BERD MTS 5800 Manuale elenco delle parti

Viavi

Viavi T-BERD/MTS 8000 Manuale elenco delle parti

Viavi

Viavi ATC-5000NG Manuale utente

Viavi

Viavi 3900 Series Manuale del proprietario

Viavi

Viavi 8000 V2 Platform Manuale elenco delle parti

Viavi

Viavi FBP-HD4iP Manuale utente

Viavi

Viavi E4100 Series Manuale elenco delle parti

Viavi

Viavi HST-3000 Manuale utente

Viavi

Viavi OCC-4056 Manuale elenco delle parti

Viavi

Viavi HST-3000 Manuale utente

Viavi

Viavi SmartClass Fiber OLTS-85 Manuale utente

Viavi

Viavi OneExpert DSL ONX-580 Manuale utente

Viavi

Viavi T-BERD/MTS-4000 v2 Manuale elenco delle parti

Viavi

Viavi ComXpert CX100 Manuale utente

Viavi

Viavi T-BERD 6000A V2 Manuale elenco delle parti

Manuali Apparecchiature di prova popolari di altre marche

SMART

SMART KANAAD SBT XTREME 3G Series Manuale utente

Agilent Technologies

Agilent Technologies BERT Serial Manuale utente

Agilent Technologies

Agilent Technologies N3280A Manuale utente

Vernier

Vernier Go Direct Voltage Manuale utente

Lifeloc

Lifeloc R.A.D.A.R. Manuale utente

Fluke

Fluke T5-600 Istruzioni per l'uso e l'installazione

Mercury

Mercury TSL01 Manuale utente

MAHA

MAHA MBT Series Manuale utente

Fuji Electric

Fuji Electric P-61 Manuale utente

ETC

ETC SealerAtor Manuale utente

Skyfine

Skyfine ETHYWAY V2 Manuale utente

Appion

Appion G5 Twin Manuale utente

PCB Piezotronics

PCB Piezotronics 8159-0112A Manuale utente

BW Technologies

BW Technologies MicroDock II Manuale utente

Sun Nuclear

Sun Nuclear 1027 Manuale utente

Biomark

Biomark HPR LITE READER Manuale utente

Hioki

Hioki 3169-20 Manuale utente

Ashcroft

Ashcroft ATE-100 Manuale utente
