Vicon V700-C Series Manuale utente
V700-C Series
COLOR DOME CAMERAS
About this manual
INSTRUCTION MANUAL XX178-01
Before installing and using the camera, please read this manual carefully.
Be sure to keep it handy for later reference.
This installation should be made by a qualified service person and should
conform to the National Electric Code, ANSI/NFPA 70 and all local codes.
Installers should use appropriate hardware mounting materials.
This equipment generates and uses radio frequency energy and if
not installed and used properly, that is, in strict accordance with the
manufacturer’s instruction, may cause interference to radio and
television reception. It has been type tested and found to comply
with the limits for a Class A computing device in accordance with
the specification in subpart B of part 15 of the FCC rules, which are
designed to provide reasonable protection against such interference
in a commercial installation. However, there is no guarantee that
interference will not occur in a particular installation. If this
equipment does cause interference to radio and television reception,
which can be determined by turning equipment off and on, the user
is encouraged to try and correct the interference by one or more of
the following measures:
• Reorient the receiving antenna.
• Relocate the equipment with respect to the receiver.
FCC Notice
Note: Complies with Federal Communications Commission Rules &
Regulations Part 15, Subpart B for a Class A digital device.
WARNING
Warning: Power must be removed from this unit before
removing circuit modules or cables.
Caution: This unit contains circuit cards with integrated circuit
devices that can be damaged by static discharge. Take all
necessary precautions to prevent static discharge.
• Relocate the equipment away from the receiver.
• Plug the equipment into a different electrical outlet so that the
equipment and receiver are on different branch circuits.
If necessary, the user should consult the dealer or an experienced
radio/television technician for additional suggestions.
The user may find the following booklet prepared by the Federal
Communications Commission helpful:
“Interference Handbook, Bulletin CIB-2”
This booklet is available from the U.S. Government Printing Office,
Superintendent of Documents, Mailstop SSOP, Washington, D.C.
20402-9328, ISBN 0-16-045542-1.
Surface-Mount configuration In-Ceiling configuration
Dimensions : inch (mm)
PRECAUTIONS
■Do not open or modify
Do not open the case except during maintenance and installation, as it may
be dangerous and cause damages.
■Do not put objects inside the unit
Make sure that no metal objects or flammable substances
get inside the camera. It could cause fire, short-circuits or damages.
■Be careful when handling the unit
To prevent damage, do not drop the camera or subject it to strong shock or
vibration.
■Install away from electric or magnetic fields
■Protect from humidity and dust
■Protect from high temperature
Be careful when installing close to the ceiling , in a kitchen or boiler room, as
the temperature may rise to high levels.
■Cleaning
Dirt can be removed from the case only by wiping it with a soft cloth
moistened with a soft detergent solution.
■Mounting Surface
The mounting surface material must be strong enough to support the camera.
TROUBLESHOOTING
Before sending the camera out for repair, check the items below.
If the problem persists after checking these items, contact your service
center.
■If no image appears
Is the coaxial cable attached securely?
Are the power and voltage normal?
Has the iris of the lens inside the camera been
adjusted correctly (with the level volume) ?
Is there adequate illumination?
■If the image is unclear
Is the lens in focus?
Is the lens dirty?
Dirt or fingerprints on the lens can adversely affect the
images. Gently wipe any dirt or fingerprints off the lens
with a soft cloth or lens cleaning paper and cleaning
fluid (commercially available).
Is the monitor adjusted correctly?
WARNING:
TO PREVENT THE RISK OF FIRE OR ELECTRIC SHOCK,
DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.
LENS ADJUSTMENT
1. Adjust the panning (360˚) and tilt (90˚) position.
2. Set the zoom position by using Zoom Lever Screw.
3. Set the focus by using Focus Lever Screw.
4. Loosen set screws (using small M1.0 Hex L-wrench provided) to adjust roll
(turns camera position top/bottom).
PAN ROLL
SET SCREW
(2X)
TILT
90˚
ZOOM
FOCUS
SPECIFICATION - V700-C SERIES
General Spec NTSC PAL
CCD Type 1/3" 410K Pixels Color 1/3" 470K Pixels Color
Total number of pixels 811(H) X 508 (V) 795(H) X 596(V)
Min illumination
Video Output
Resolution
S/N Ratio
Shutter speed 1/60~1/100,000sec 1/50~1/100,000sec
Sync System
White Balance
OSD Control
DNR OFF, LOW, MIDDLE, HIGHT
SENSE_UP OFF/AUTO (X2 ~ X256)
AWB
MIRROR OFF/MIRROR/V_FLIP/ROTATE
PRIVACY 6 ZONE / SIZE
Power Input
Video Output
Voltage
Power Consumption
Operation temp
In storage temp
Operation humidity
0.013 fc (0.14 Lux ) @ F1.2, 30IRE
1.0Vp-p/75 ohm Composite
560 TV Lines
50dB (AGC off)
Internal / External
Connector
2 WIRE
BNC Cable
Electric Spec
Auto
ATW/ AWC/ MANUAL/ PUSH LOCK
Under 90％(Non-condensing)
Mechanical Spec
14 ~ 131°F (-10 ~ 55°C)
-4 ~ 158°F (-20 ~ 70°C)
DC 12V (11V ~ 16V) AC 24V (20V ~ 28V)
DC 12V : Max 1.8 [W] AC 24V : Max 2.4 [W]

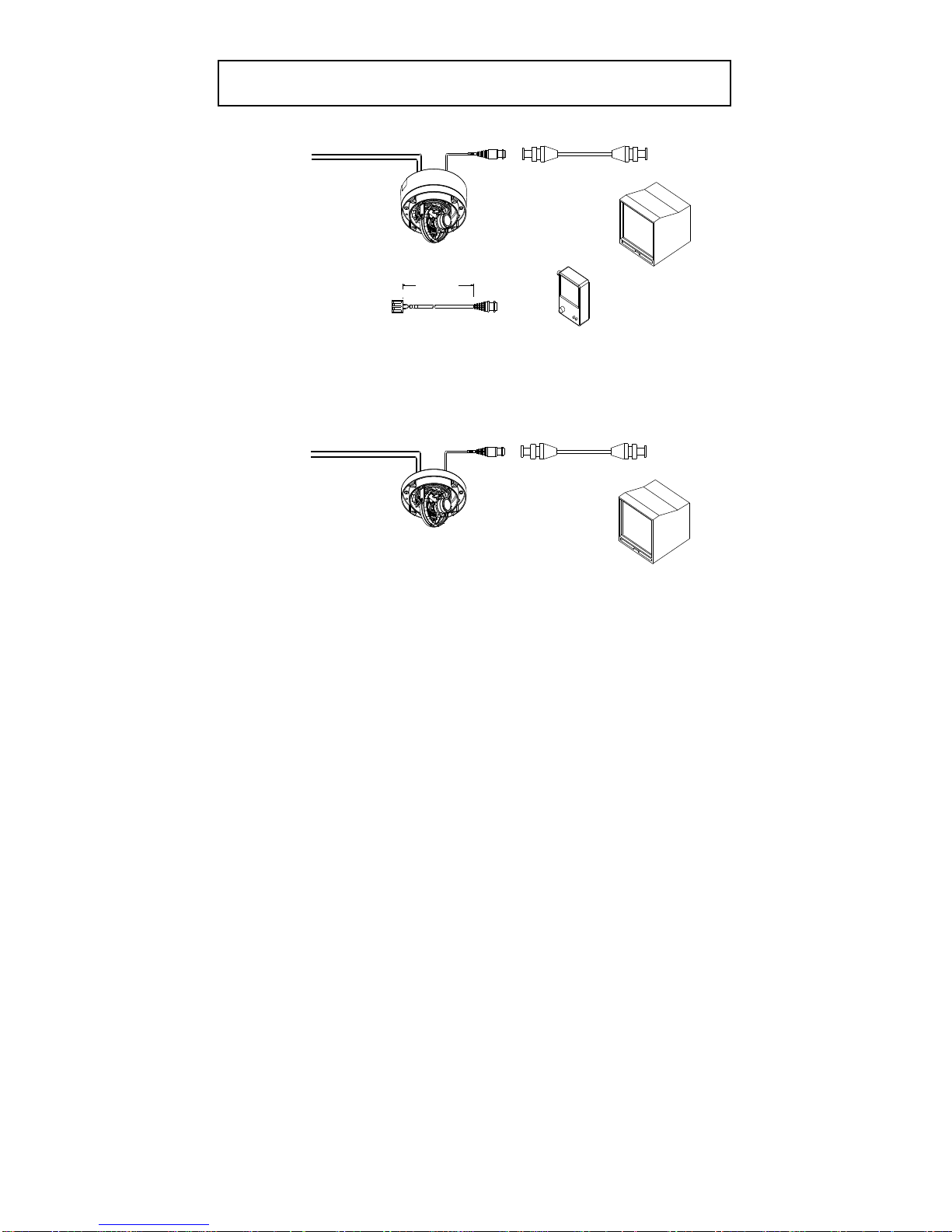

CONNECTIONS
CAUTION
The use of a UL Listed Class 2 power supply is required to ensure
compliance with electrical safety standards.
Check for polarity when using a 12VDC power supply.
12VDC-24VAC
12VDC-24VAC
RED (+)
BLACK (-)
11.8in
(300mm)
RED (+)
BLACK (-)
VIDEO
VIDEO
Cable for connection to portable monitor, provided.
When using a portable monitor, terminate at 75ohms (at last device).
Surface-Mount Base
In-Ceiling Base
