Victrola THE BRIGHTON Manuale utente

PLEASE READ THIS INSTRUCTION MANUAL CAREFULLY BEFORE USE

AND KEEP IT FOR FUTURE REFERENCE.

BRIGHTON

THE

MODEL: VTA-71

INSTRUCTION MANUAL

CONTENTS

Safety Instructions..........................................................................

Product Overview............................................................................

Vinyl Record Operation...................................................................

Bluetooth Operation........................................................................

Maintenance/Proper Handling........................................................

Troubleshooting Guide.....................................................................

Setup/Basic Operation....................................................................

Specifications..................................................................................

FCC Statement and other warnings................................................

Bluetooth-Out Operation.................................................................

SAFETY INSTRUCTIONS

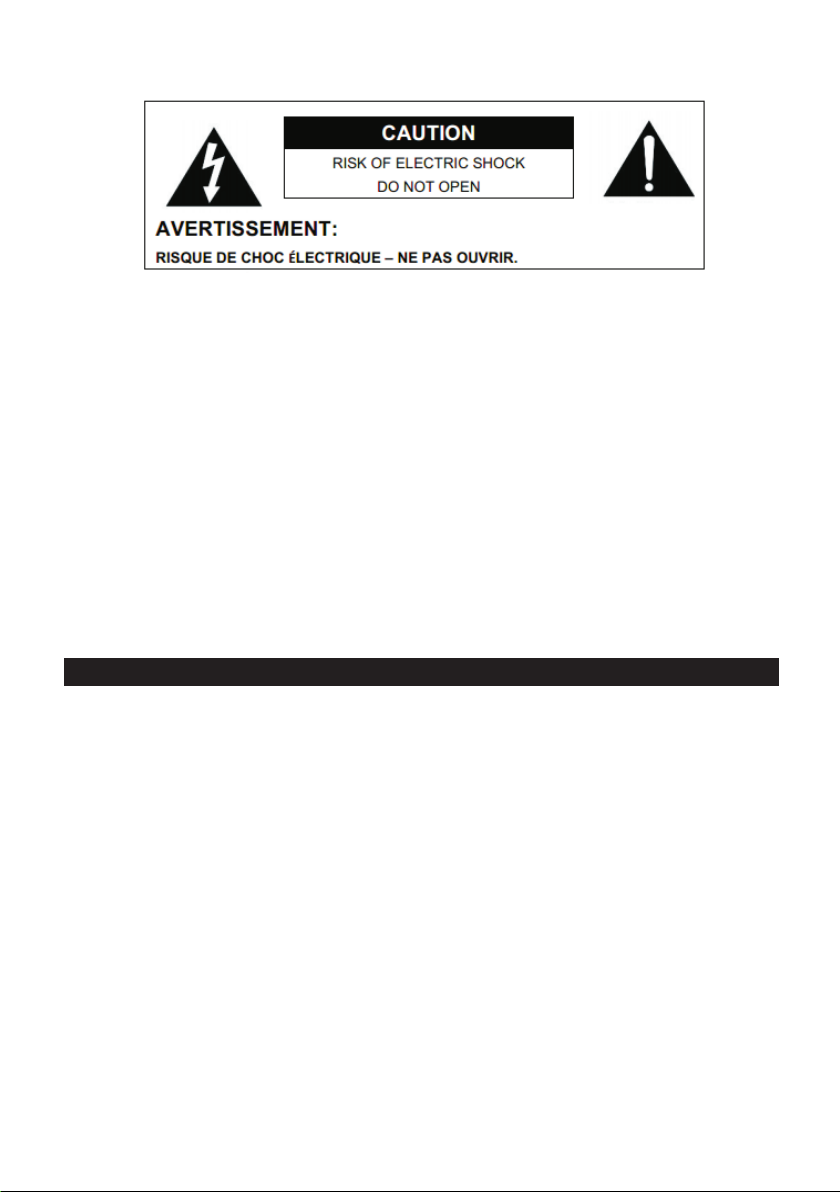

-This lightning flash with arrowhead symbol within an equilateral triangle is

intended to alert the user to the presence of non-insulated “dangerous voltage”

within the product’s enclosure that may be of sufficient magnitude to constitute

a risk of electric shock.

-Warning: To reduce the risk of electric shock, do not remove cover (or back) as

there are no user-serviceable parts insides. Refer servicing to qualified personnel.

-The exclamation point within an equilateral triangle is intended to alert the user to

the presence of important operating and maintenance instructions in the

literature accompanying the appliance.

CAUTION: To reduce the risk of fire or electric shock, do not expose this appliance

to rain or moisture.

WARNING:To prevent electric shock, do not use this (polarized) plug with an

extension cord, receptacle or other outlet unless the blades can be

fully inserted to prevent blade exposure.

1. Read these instructions – All the safety and operating instructions should be

read before this product is operated.

2. Keep these instructions – The safety and operating instructions should be

retained for future reference.

3. Heed all warnings – All warnings on the appliance and in the operating

instructions should be adhered to.

4. Follow all instructions – All operating and use instructions should be followed.

5. Do not use this apparatus near water – The appliance should not be

used near water or moisture – for example, in a wet basement or near

6. Clean only with dry cloth.

7. Do not block any ventilation openings. Install in accordance with the

manufacturer’s instructions.

8. Do not install near any heat sources such as radiations, heat registers,

stoves, or other apparatus (including amplifiers) that produce heat.

a swimming pool, and the like.

Safety Instructions

9. Do not defeat the safety purpose of the polarized or grounding plug. A polarized

plug has two blades with one wider than the other. A grounding plug has two

blades and a third grounding prong. The wide blade or the third prong is

provided for your safety. If the provided plug does not fit into your outlet, consult

an electrician for replacement of the obsolete outlet.

10. Protect the power cord from being walked on or pinched

particularly at the plugs, convenience receptacles, and at

the point where they exit from the apparatus.

11. Only use attachments/accessories specified by the

manufacturer.

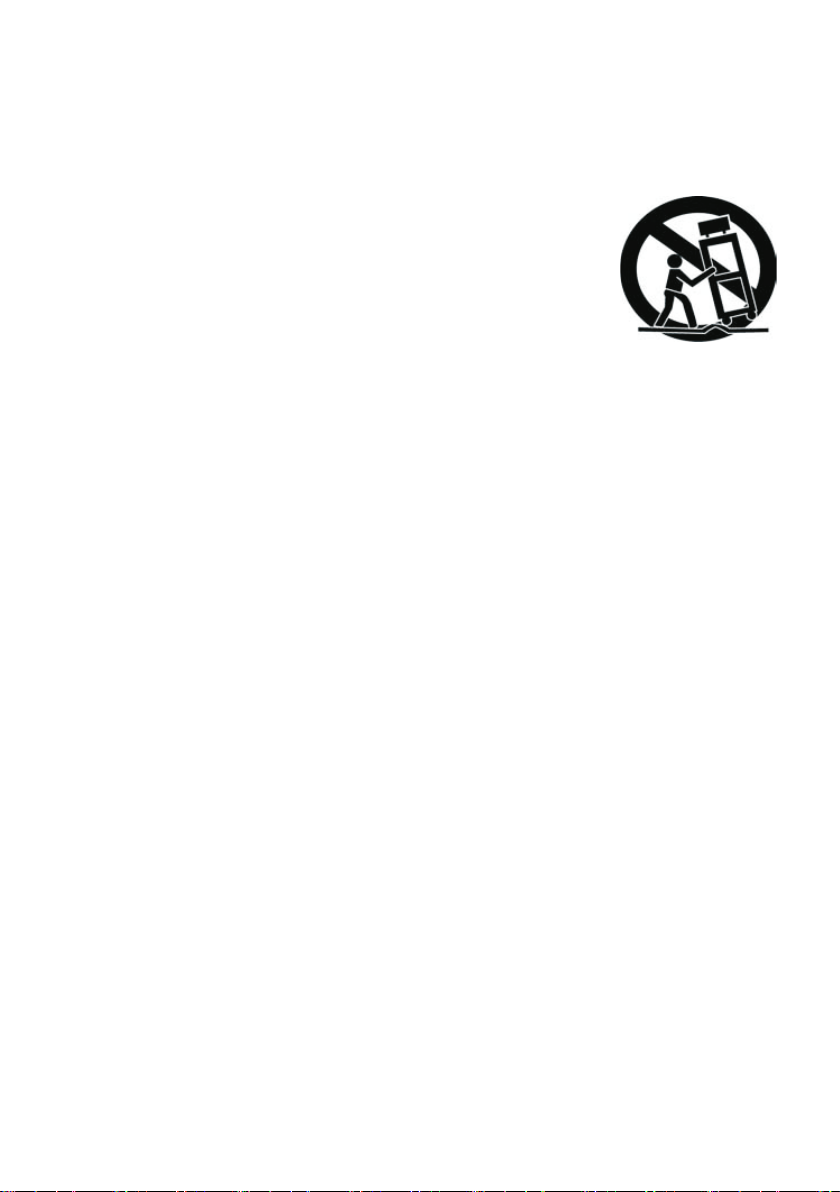

12. Use only with the cart, stand, tripod, bracket, or table

specified by the manufacturer, or sold with the apparatus.

When a cart or rack is used, use caution when moving the cart/apparatus

combination to avoid injury from tip-over.

13. Unplug the apparatus during lighting storms or when unused for long periods

of time.

14. Refer all servicing to qualified personnel. Servicing is required when the

apparatus has been damaged in any way, such as power supply cord or plug

is damaged, liquid has been spilled or objects have fallen into the apparatus

has been exposed to rain or moisture, does not operate normally, or has been

dropped.

15. The mains plug is used as disconnect device, the disconnect device shall

remain readily operable.

16.

17. Use the equipment in a moderate climate.

To reduce the risk of fire or electric shock, do not expose this apparatus to

rain or moisture. The apparatus shall not be exposed to dripping or splashing

and that no objects filled with liquids, such as vases, shall not be placed on

apparatus.

ACCESSORIES INCLUDED

• INSTRUCTION MANUAL

• WARRANTY (BACK OF MANUAL)

• POWER ADAPTOR

PRODUCT OVERVIEW

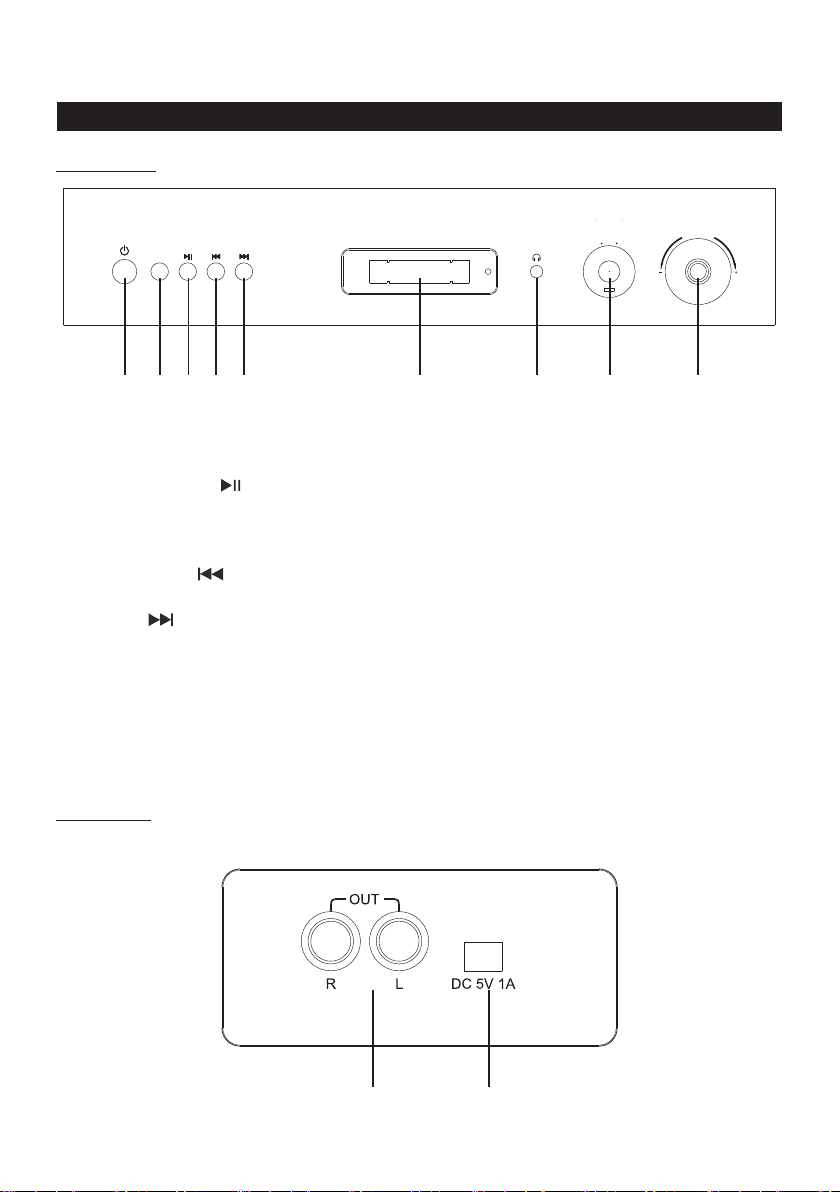

Front View

1. POWER: Press to turn the unit ON or OFF.

2. BT OUT: Press to activate the Bluetooth output function.

3. PLAY/PAUSE ( )

Press to start playback, press again to pause.

Long press the button for 3 seconds to disconnect the Bluetooth pairing.

(NOTE: This button only works in Bluetooth mode.)

4. PREVIOUS ( )

Skip to the previous track or station.

5. NEXT ( )

Skip to the next track or station.

6. Display Screen

7. 3.5mm EARPHONE JACK: Accepts headphone/earphone plugs.

8. BT/PHONO/FM KNOB: Turn to select BT/PHONO mode.

9. VOLUME KNOB: Turn to adjust volume.

1 2 3 4 5 6 7 8 9

Rear View

10 11

BT OUT

BT PHONO

10. LINE OUT jacks

For amplifier device with RCA auxiliary input sockets, insert the white and red

plugs on the RCA cable into the unit. Insert the opposite end into the amplifier

device. Be sure to connect the white plug to the white jack and the red plug

to the red jack.

11. DC Input Jack

Connect the power adapter to the jack to power on the unit.

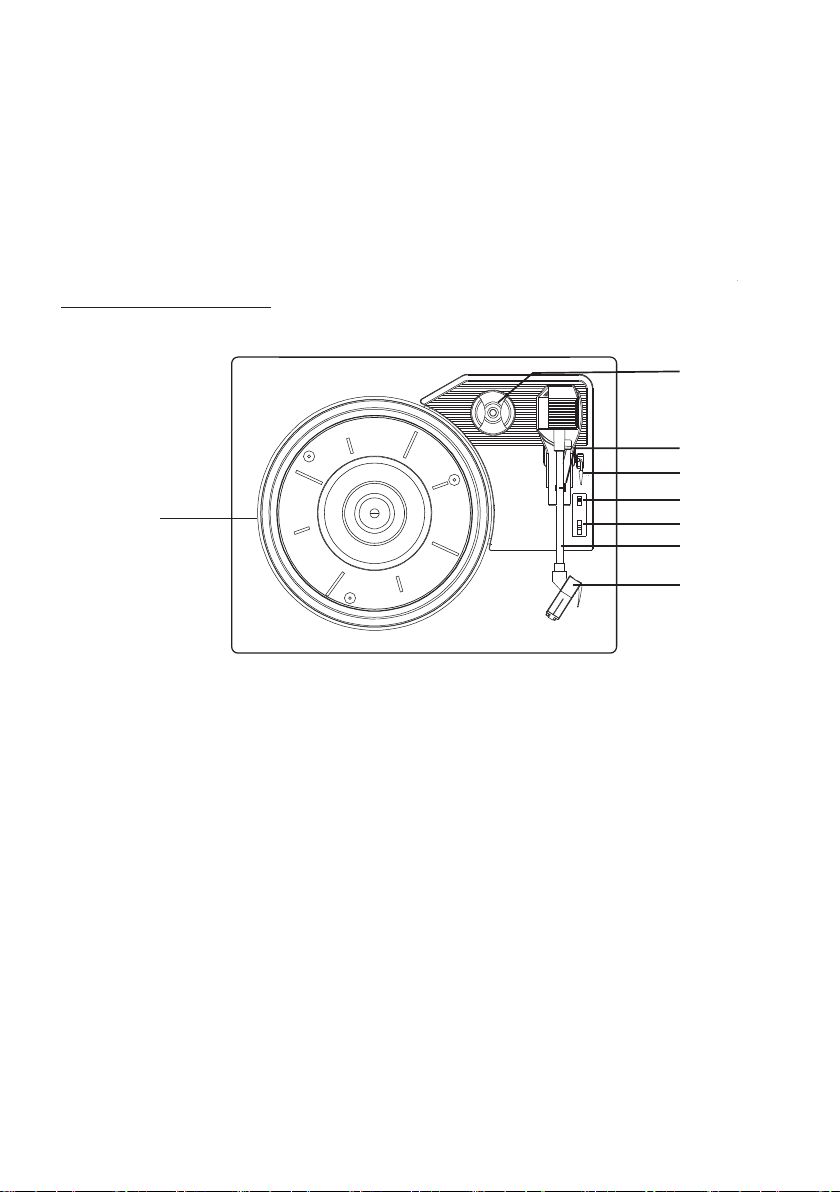

12. Turntable

13. 45 RPM adapter

14. Tone Arm holder

15. Cue Lever:

16.

Before use, gently push the Tone Arm holder to the right to release

the TONE ARM.

AUTO STOP ON/OFF SWITCH: Switch “ON”, the turntable will stop

automatically when finish playing. Switch “OFF”, the turntable will keep turning

when finished playing.

17. Speed Selector

18. Tone Arm

19. STYLUS

Part of the Turntable

SETUP/BASIC OPERATION

Setup

1. Remove white protective needle cover by gently pulling towards front of unit.

2. Remove any packaging materials from the unit.

Note:

- It is strongly recommended that this product should be operated

only from the type of power source indicated on the marking label.

Basic Operation

1. Press the POWER button to turn the unit on.

2. Select mode by turning the BT/PHONO KNOB.

3. Rotate the VOLUME KNOB to adjust to the desired sound level.

Listening through RCA LINE OUT

For amplifier device listening, first reduce the volume level to minimum. Insert the

white and red plugs on the RCA cable into the unit, then insert the opposite end

into the amplifier device. Be sure to connect the white plug to the white jack and

the red plug to the red jack.

Listening through Earphones/Headphones (not included)

For private listening, first reduce the volume level to minimum.

Insert your headphones’ plug into the 3.5mm jack, then

adjust the volume up by turning the VOLUME KNOB.

Note: The speakers will automatically be deactivated

while headphones are plugged in.

CONDENSATION WARNING:

When the unit is moved from a cold or warm place, or is used following a sudden

temperature change, there is the danger that water vapor in the air may condense

on the unit, preventing proper operation. In such cases, leave the unit for 1-2 hours

after plugging it into an AC outlet to allow it to stabilize at the temperature of its

surroundings.

Connect the power adapter to the DC Input jack to power on the unit.

VINYL RECORD OPERATION

1. Turn the unit ON by pressing the POWER button.

3. Gently open the dust cover.

4. Put the record on the turntable. Select the speed. When

playing a 45 RPM record, use the included 45 adaptor..

5. Gently push the Tone Arm holder to the right to release the TONE ARM.

7. Move the TONE ARM gently to the edge of the record

(or the starting point of the track). The turntable will begin to turn.

8. Gently lower the TONE ARM by slowly releasing the CUE LEVER.

You can lower the TONE ARM manually if the CUE LEVER

has not been raised.

9. Turn the VOLUME KNOB to adjust the volume.

10. When playback has finished, slightly lift the tone arm using the CUE

LEVER and return it to the TONE ARM holder.

6. Raise the to lift the TONE ARM off the tone arm

support.

Cue Lever

2. Turn the BT/PHONO KNOB to enter the PHONO mode.

BLUETOOTH OPERATION

An external device with Bluetooth Connectivity can be wirelessly connected to this

turntable using the Bluetooth Function.

GETTING CONNECTED USING BLUETOOTH

Display Screen.

2. Turn your external devices’ Bluetooth Setting ON. Wait a moment, then look for

NOTE: The effective distance between your external device and this unit is

10 meters (33ft).

3. Select the Bluetooth pairing name, to connect the unit. Once connected the

“bt” on the Display Screen will stop flashing.

4. Select the music media files on your external device, then press the

1. Turn the BT/PHONO KNOB to select BT mode. The “bt” will flash on the

PLAY/PAUSE button ( ) to begin playback.

To temporarily pause playback, press the PLAY/PAUSE button ( ) when

playback. Press again to resume.

6. To skip to the previous or the next tracks, press the PREVIOUS/NEXT button

( or ) to listen.

The product supports Bluetooth wireless connection (BT-OUT). It can be connected

with external Bluetooth-compatible headphones (not included) and Bluetooth

speakers (not included)

1. When playing your vinyl record, press the BT OUT button.

2. The “ " icon flashes on the Display Screen.

3. Turn ON your external Bluetooth receiver device (such as Bluetooth

headphones and Bluetooth Speakers) and set to pairing mode.

4. Wait for a few seconds, they will make connection to each other automatically.

5. The “ " icon stops flashing once successful paired.

6. Control the playback from your BT speaker.

(You can only adjust the volume from your external Bluetooth Device.)

BLUETOOTH-OUT OPERATION

• Place the Bluetooth device within 1m (3.3') of the product to perform

pairing correctly.

• The product stays in the pairing mode for about 30 seconds. If pairing is not

properly completed, follow the above steps again from the beginning after

turning all devices OFF.

• "BT OUT" is only compatible with vinyl record playback.

the Bluetooth Pairing name “Victrola Brighton”

MAINTENANCE/PROPER HANDLING

Handling Vinyl Records

•

• To clean a record, use a soft anti-static cloth to gently wipe the record surface.

• Keep records in their protective sleeves when not in use.

• Always store records upright on their edges.

• Avoid placing records in direct sunlight, close to a heat source

(radiators, stoves, etc.), or in a location subject to vibration, excessive dust,

heat, cold or moisture.

Do not touch the record’s grooves. Only handle records by the edges or the

label with clean hands. Touching the record surface will cause your record’s

quality to deteriorate.

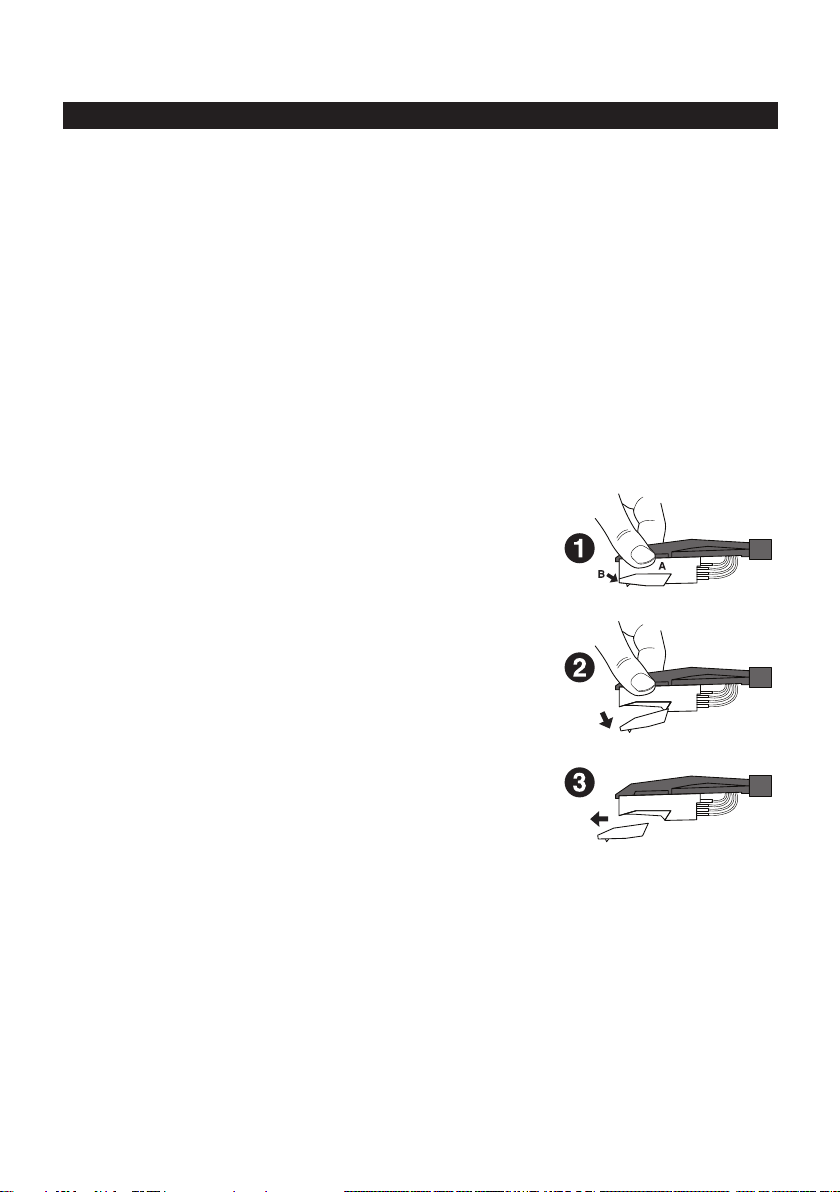

Removing the Stylus from the Cartridge

1. Using your fingers, hold at point “A”

and push down point “B”

WARNING: When applying force to stylus,

too much may damage or break the stylus.

2. Continue to push down until the stylus

separates from the front of the cartridge.

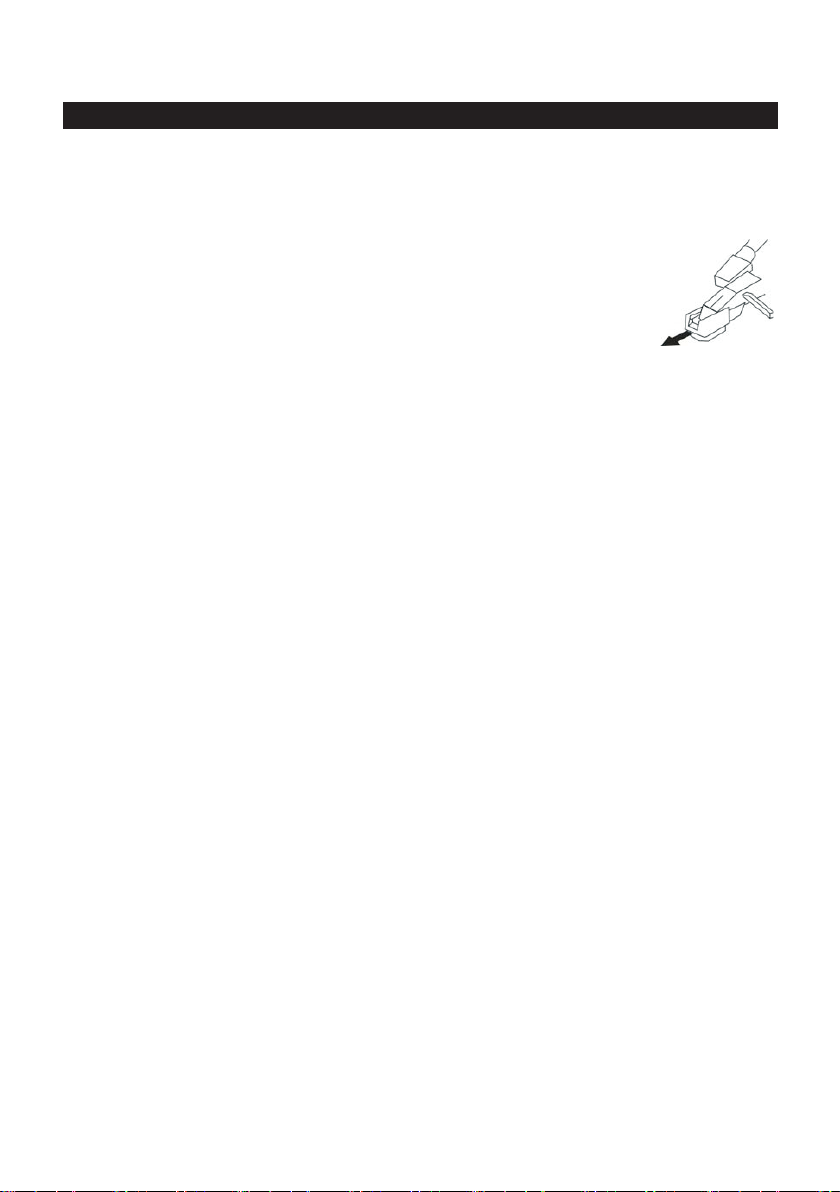

3. Remove the rear of the stylus carefully

from the cartridge.

Installing the Stylus

1. Follow the previous steps but in reverse.

Caution:

�Do not remove or bend the stylus needle.

�Do not touch the needle to avoid injury to your hand.

�Turn off the unit’s power before you replace the stylus.

�Keep out of reach of children.

Please note: The stylus should last about 50 hours under

normal use. It is recommended that the stylus be replaced

as soon as you notice a change in sound quality

HOW TO REPLACE THE TURNTABLE STYLUS

(Replacement Stylus # VND-08)

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Victrola Giradischi

Victrola

Victrola VWRP3500 Manuale utente

Victrola

Victrola THE JOURNEY+ Manuale utente

Victrola

Victrola THE JOURNEY Manuale utente

Victrola

Victrola Canvas VSC-400SB Manuale utente

Victrola

Victrola MONTAUK Manuale utente

Victrola

Victrola THE EASTWOOD SIGNATURE Manuale utente

Victrola

Victrola EMPIRE VTA-270B-FNT Manuale utente

Victrola

Victrola VTA-204B Manuale utente

Victrola

Victrola HI-RES VPT-1500 Manuale utente

Victrola

Victrola VPA-583 Manuale utente

Victrola

Victrola JOURNEY+ VSC-500SB Manuale utente

Victrola

Victrola HI-RES Manuale utente

Victrola

Victrola VTA-600B Manuale utente

Victrola

Victrola Parker Manuale utente

Victrola

Victrola Jackson Manuale utente

Victrola

Victrola VTA-754B Manuale utente

Victrola

Victrola VSC-550BT Manuale utente

Victrola

Victrola SONOMA VTA-570B Manuale utente

Victrola

Victrola HI-RES Manuale utente

Victrola

Victrola VPRO-2000 Manuale utente

Victrola

Victrola VTA-65 Manuale utente

Victrola

Victrola THE HAWTHORNE Manuale utente

Victrola

Victrola AVERY VTA-320B Manuale utente

Victrola

Victrola VTA-72 Manuale utente

Manuali Giradischi popolari di altre marche

Gemini

Gemini CDT-05 MKII Manuale utente

Rotel

Rotel RP-820 Manuale utente

Shuman

Shuman MC-250BT Manuale utente

Stanton

Stanton STR8-150 Manuale utente

Audio Technica

Audio Technica AT-LPW40WN Manuale utente

Crosley

Crosley McQueen CR7011-GY Manuale utente

Reloop

Reloop SMP-1 Manuale utente

auna

auna TT-Classic Plus Manuale utente

COMO AUDIO

COMO AUDIO Turntable Analog Manuale utente

Dual

Dual 1009 F Manuale utente

REED

REED Muse3C Manuale utente

AXIOMTEK

AXIOMTEK OPS883-H Series Manuale utente

Pioneer

Pioneer PL-71 Manuale utente

Vestax

Vestax PDX-a1 Manuale utente

Denon

Denon DP-400 Manuale utente

Dual

Dual 504 Manuale utente

Audio-Techica

Audio-Techica AT-LP60XBT Manuale utente

Goldring

Goldring G99 Manuale utente
