TV2.0
Unique USB 2.0 TV box
User's Manual
________________________________________________________________________________
FEDERAL COMMUNICATIONS COMMISSION
This device complies with Part 15 of the FCC Rules Operation is subject to
the following two conditions: this device may not cause harmful interference,
and (2) this device must accept any interference received, including
interference that may cause undesired operation.
This equipment has been tested and found to comply with the limits for a
Class B Digital Device, pursuant to part 15 of the FCC Rules. These limits
are designed to provide reasonable protection against harmful interference in
a residential installation. This equipment generates, uses and can radiated
radio frequency energy and, if not installed and used in accordance with the
instruction, may cause harmful interference to radio communication.
However, there is no grantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by tuning the equipment off
and on, the user is encouraged to try to correct the interference by one or
more of the following measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
-Consult the dealer or an experienced radio/TV technician for help.
Notice: Changes or modifications not expressly approved by the party
responsible for compliance could void the user’s authority to operate the
equipment.
CE DECLARATION
This device complies with CE . These limits are designed to provide
reasonable protection against harmful interface in a residential installation.
Printed in TAIWAN R.O.C No.01071504
All contents are subject to change without notice.
All trademarks are the property of their respective owner
I
TableofContents
Chapter 1. Overview ---------------------------------------------------------- 1
1.1 Introduction ----------------------------------------------------------------- 1
1.2 Features --------------------------------------------------------------------- 1
1.3 Specifications --------------------------------------------------------------- 2
1.4 Package Contents --------------------------------------------------------- 2
1.5 Minimal System Requirements ----------------------------------------- 2
Chapter 2. Installation ------------------------------------------------------- 3
2.1 Hardware device description ------------------------------------------- 3
2.2 Application Software(TV Jukebox) Installation --------------------- 4
2.3 Driver Installation ---------------------------------------------------------- 5
Chapter 3. Basic Function Operating ------------------------------- 8
3.1 Starting -----------------------------------------------------------------------
3.2 Preview -----------------------------------------------------------------------
3.3 Close --------------------------------------------------------------------------
3.4 Pause ------------------------------------------------------------------------
3.5 Stop ---------------------------------------------------------------------------
3.6 Record -----------------------------------------------------------------------
3.7 TV/Composite/S-video Display ----------------------------------------
3.8 Channel Scan --------------------------------------------------------------
3.9 Channel Click --------------------------------------------------------------
3.10 Setting -----------------------------------------------------------------------
3.11 Minimize ---------------------------------------------------------------------
3.12 Time Shift -------------------------------------------------------------------
3.13 Color Control ---------------------------------------------------------------
3.14 Still Image Capture -------------------------------------------------------
3.15 Schedule Recording ------------------------------------------------------
3.16 Last Channel ----------------------------------------------------------------
3.17 Mute ---------------------------------------------------------------------------
3.18 Help ---------------------------------------------------------------------------
3.19 Last Channel ---------------------------------------------------------------
3.20 Mute --------------------------------------------------------------------------
3.21 Help ---------------------------------------------------------------------------
8
8
9
9
10
10
10
10
10
11
13
13
14
14
14
14
14
14
14
15
15
Chapter 4. Trouble Shooting -----------------------------------------------
______________________________________________________________________________
16
II
Chapter1.Overview
1.1 Introduction
Congratulations on your purchase of “XTV20”. The “XTV20” bring a
home entertainment system and video-editing studio to your PC and
Notebook. Using the latest USB2.0 technology, you can now watch and
record TV/Video in DVD quality.
XTV20 with both video and audio captured through USB, there is no
need to use audio cable connect audio card in XP environment.
Also no need to use external power adapter, especially suitable for
laptop/notebook user.
Featured ergonomic functions includes remote control, timeshifting,
schedule recording, snapshot, channel preview….
1.2 Features
USB2.0 high speed TV device support real-time TV, S-video and
composite video input
Both audio and video go through USB( XP OS), audio no need though
audio card
No need to use external power adapter
Auto channel scan
Full TV frequency function support
Fine tune function to adjust signal quality
Full screen display
16 channel preview
PIP(Picture-in-Picture) mode
Parental Channel Lock-Out
Time-shifting
Favorite TV program setting
Analog video(S-video, Composite) input, Multi-system video support
Real-time MPEG1/2/4/AVI recording and playback
Schedule recording for TV program
Snapshot push button support
Plug-and-play support for quick connection and easy capture
Powerful video editing function include Motion Video Special Effects/
Title Effects/ Picture-in-Picture Effects/ Slow & Fast Motion Video
_____________________________________________________________
1
Chapter 1. Overview
Effects/ background music/ color background/ Transitional Effects
Bi-lingual function available for different model
1.3 Specifications
TV : 75 ohm coaxial TV Antenna/Cable input
Analog video in : One S-video and one composite video input
Audio in :Two L/R RCA audio input
Audio output : in XP audio go through USB, in Win2000 audio though
Sound card,
Video system : NTSC, PAL, SECAM multi system support
Motion capture : MPG1/2/4 and AVI format support
Still image capture : 720x576(PAL) and 720x480(NTSC) BMP/JPG/TIF/
PCX/TGA file format support
Performance : Up to 25 fps at 720x576 for PAL, 30 fps at 720x480 for
NTSC
Power Source : 5VDC, 450mA(max) through USB port, no need power
adapter
1.4 Minimum System Requirements
Pentium4 1G or higher CPU
Microsoft Windows 2000/XP
64MB RAM (128MB RAM recommended)
300MB of available hard disk space (4GB recommended)
USB 2.0 equipped computer
CD-ROM drive
Sound card
1.5 Package Contents
XTV20 USB2.0 TV box
One 3.5mm stereo to 3.5mm stereo audio cable
USB cable
Remote controller
TV jukebox Software CD
Ulead VideoStudio editing software CD
Manual
_____________________________________________________________
2
Chapter 2. Installation
Please make sure your computer has USB2.0 port correctly installed
and functioning !! ( We strongly recommend updating your WinXP to
SP1 or Win2000 to SP4 and updating USB2.0 host driver before
installation to make sure computer’s USB2.0 port is correctly
functioning )
Steps: (1) Install AP software (see 2.2)
(2) Install Driver (see 2.3)
(3) Plug XTV hardware (see 2.3)

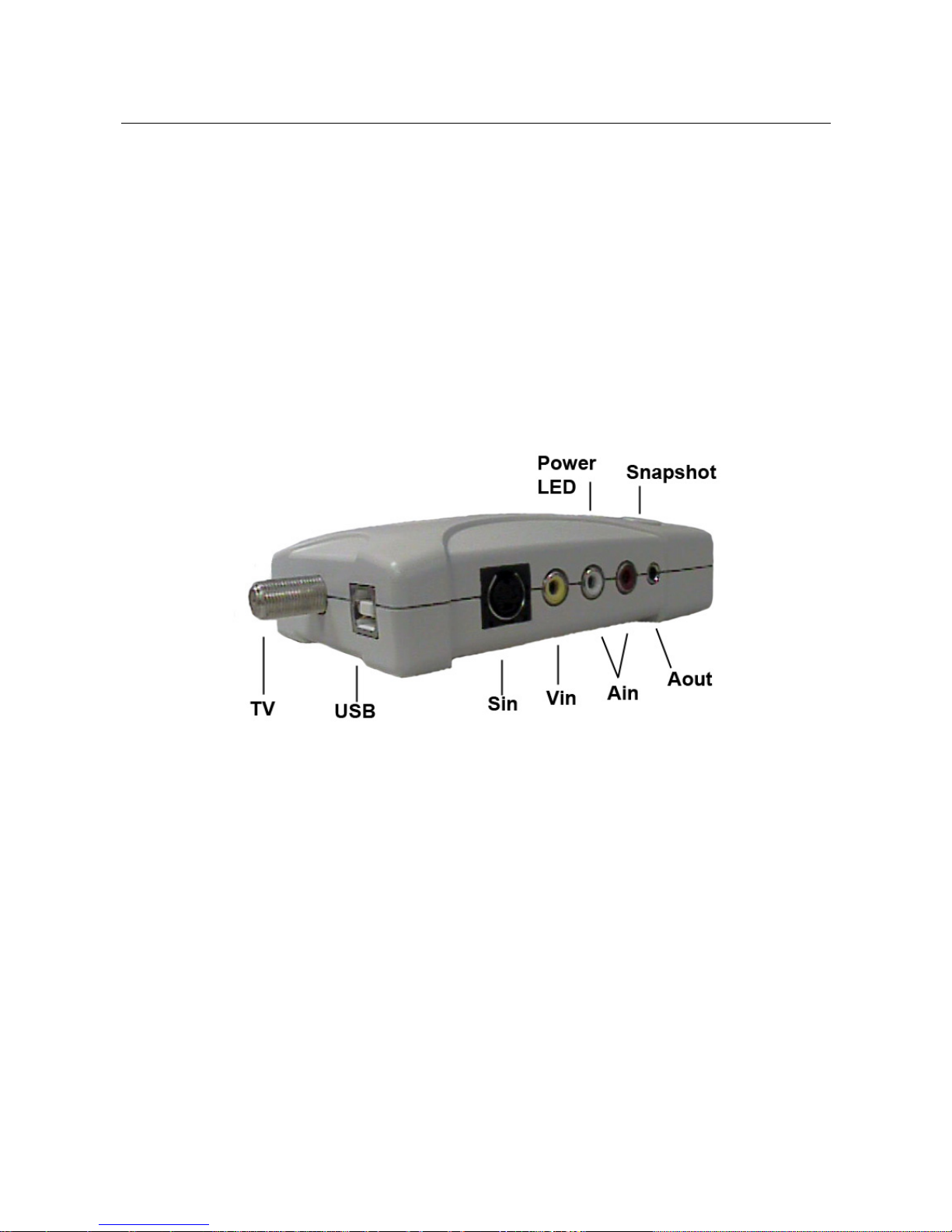

2.1 Hardware device description
TV : Connect to TV antenna/cable
USB : Connect use bundled USB cable connect to USB 2.0 port of your
computer
Sin : S-Video input from external A/V device(e.g.VCR)
Vin:Composite video input from external A/V device(e.g.VCR)
Ain:Audio L/R input from external A/V device(e.g.VCR)
Aout : In WinXP, not required in XP O/S
In Win2000, please connect bundled stereo cable to line-in
of Sound card
Snapshot : Instantaneous still image capture
Power LED : Power on indicator
_____________________________________________________________
3
Chapter 2. Installation
2.2 Application Software (TV Jukebox) Installation
※ Do not connect XTV to computer USB port before software
installation
2.2.1. Please insert "Multimedia Installation Kit" CD-ROM into your
CD-ROM drive; Run " E:\XTV20\SETUP.EXE "; (assuming
CD-ROM drive in E drive)

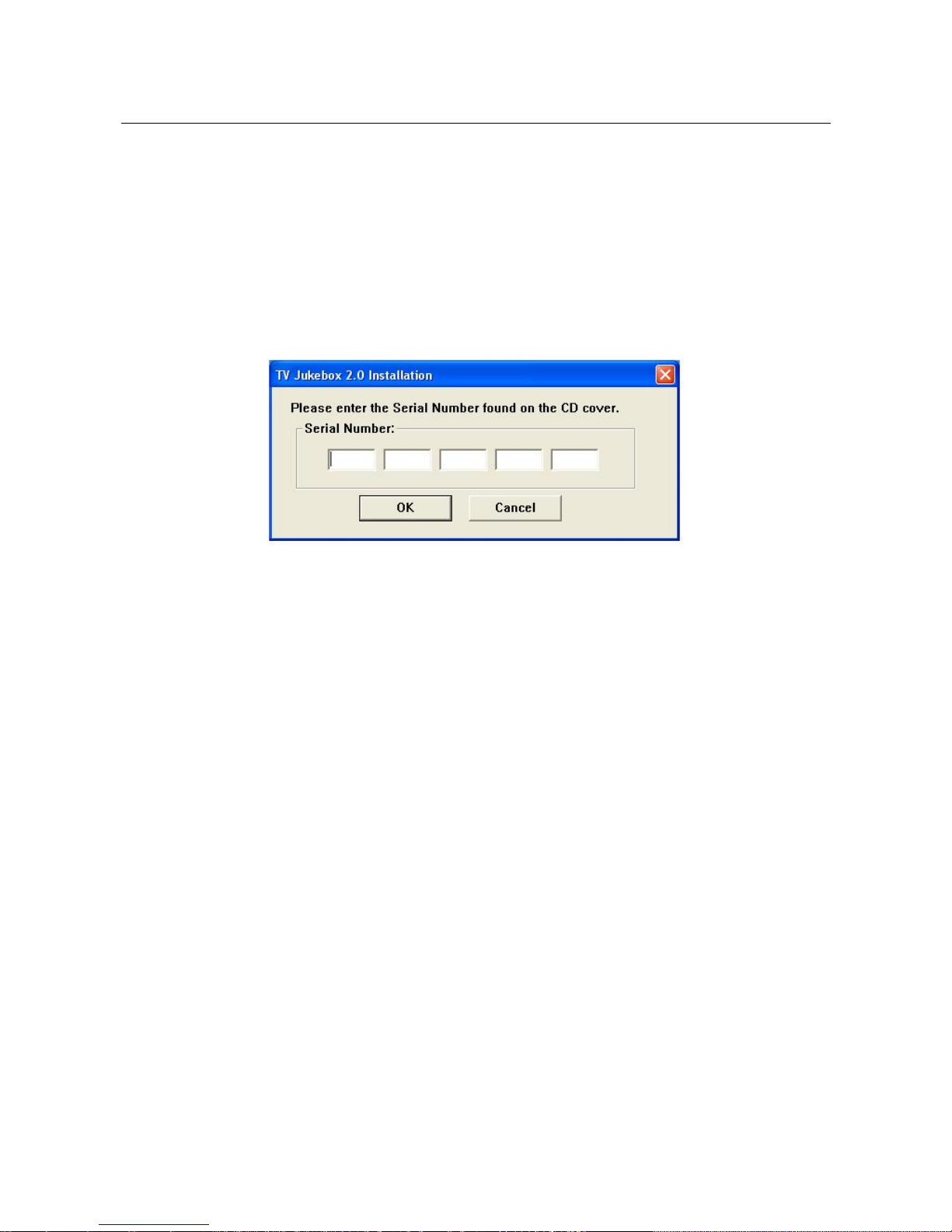

Please type in serial No., (see Serial No. on CD-ROM envelop)
※Serial number is case sensitive
Click“OK”
2.2.2. Welcome to the InstallShield wizard and Click “Next”
2.2.2. Choose destination location and click “Next”
2.2.3.Select Program Folder; Click “Next”
2.2.4. Finished Jukebox software installation; Click “Finish”
2.2.5.Install “Windows Media Format 9 Series Runtime Setup”;
Click “Yes”
2.2.6.License agreement; Click “Yes”
2.2.7. Finished Windows Media Format 9 Series Runtime Setup;
Click “Ok”
Finished AP software installation
_____________________________________________________________
4
Chapter 2. Installation
2.3. Driver Installation

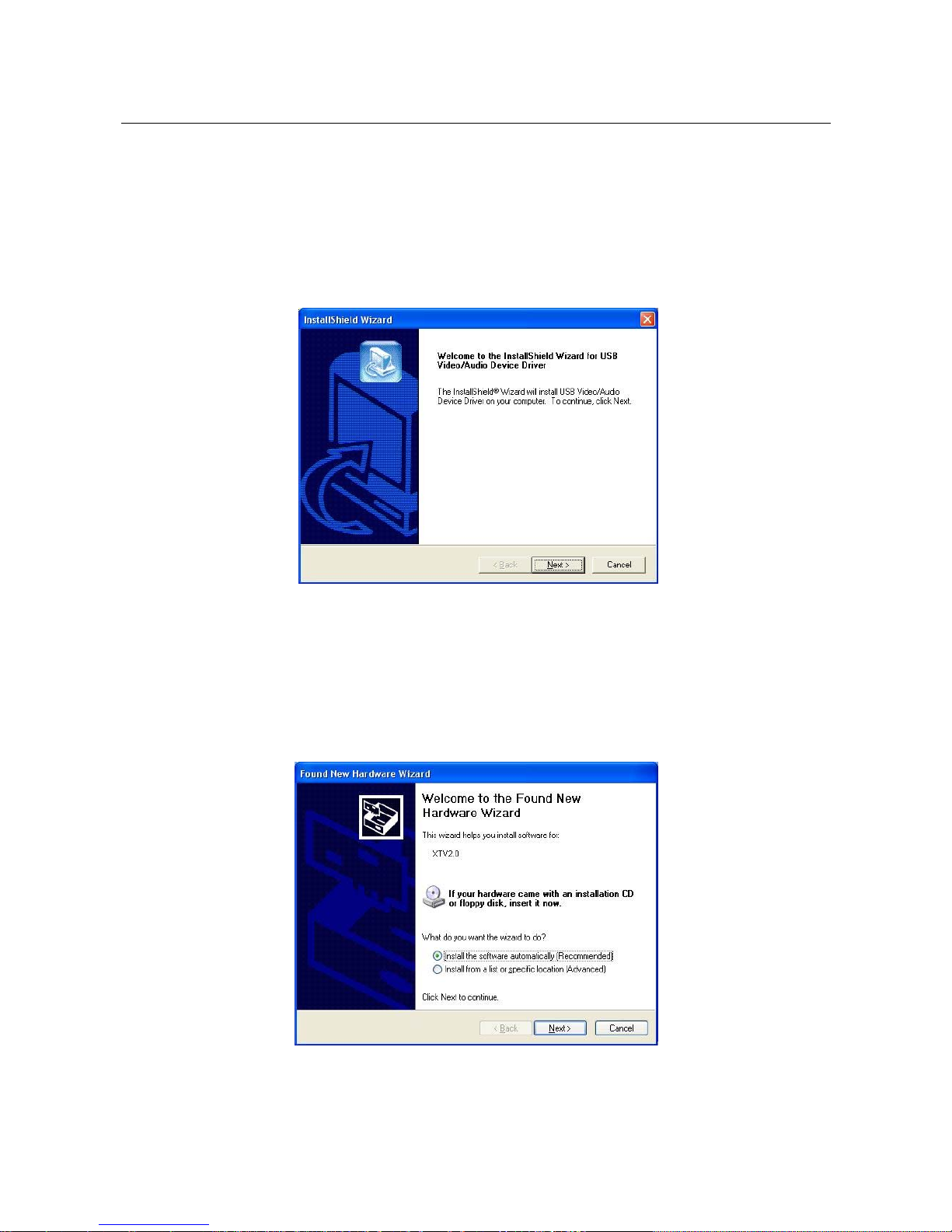

2.3.1. Please insert "Multimedia Installation Kit" CD-ROM into your
CD-ROM drive; Run " E:\XTV20\Driver\SETUP.EXE "; (assuming
CD-ROM drive in E drive)
Click "Next"
2.3.2. Complete Setup Wizard; Click "Finish"
2.3.3. Plug the XTV device into computer’s USB2.0 port; System will
detect new Video device as below.
Choose “Install the software automatically (Recommended)”
AndClick“Next”
_____________________________________________________________
5
Chapter 2. Installation
2.3.4. When Windows XP show message about this software didn’t pass
windows logo, please click “Continue Anyway” (though XTV
driver did not apply for windows logo approval, it is thoroughly
tested by engineers, and it will not cause harm to your system)
2.3.5. Complete the video driver installation
Click “Finish”
2.3.6. System detect new Audio device as below.
Choose “Install the software automatically (Recommended)”
AndClick“Next”
_____________________________________________________________
6
Chapter 2. Installation
2.3.7. When Windows XP show message about this software didn’t pass
windows logo, please click “Continue Anyway” (though XTV
driver did not apply for windows logo approval, it is thoroughly
tested by engineers, and it will not cause harm to your system)

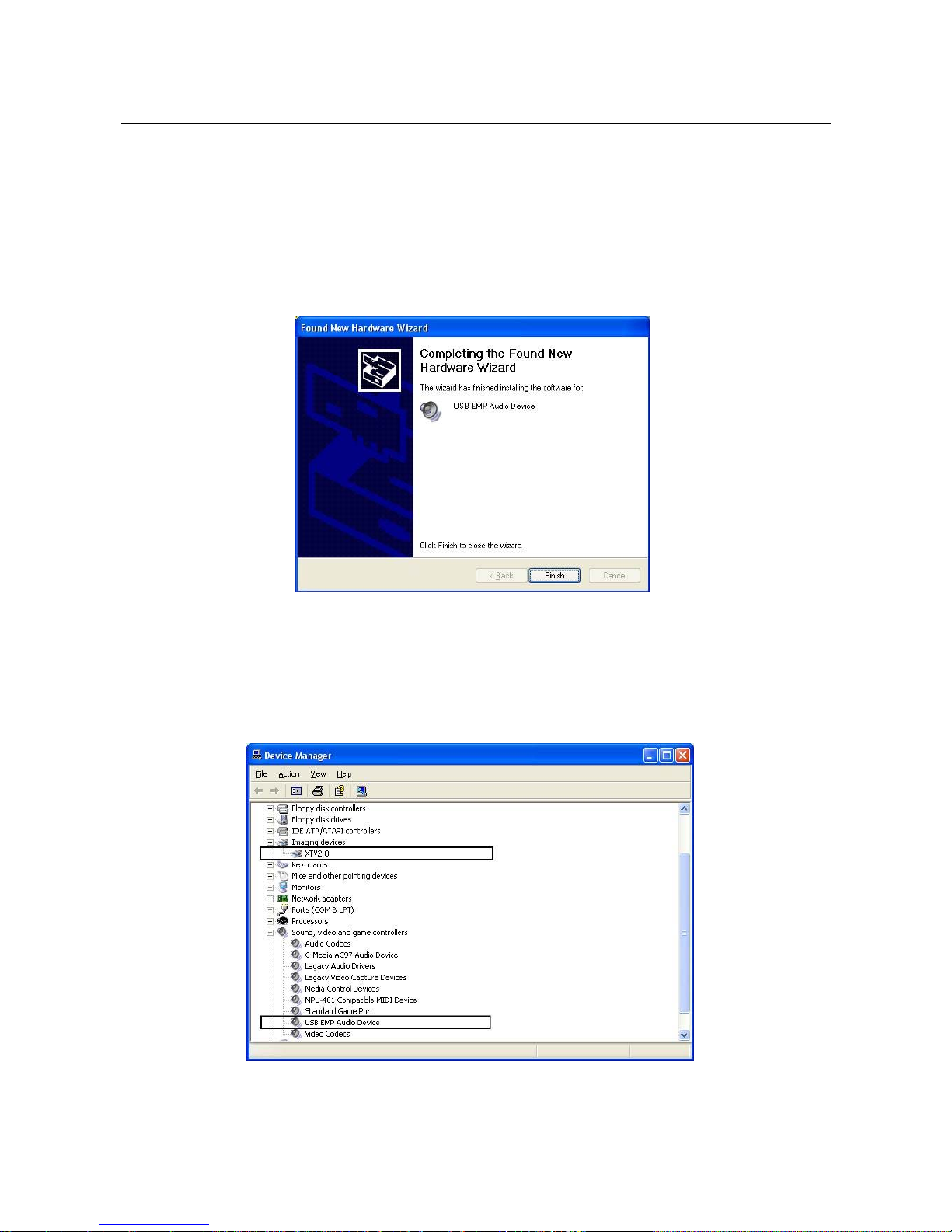

2.3.8. Complete the Audio driver installation
Click “Finish”
2.3.9. Please check XTV driver was install successful in your
computer; (Go to My Computer->Control Panel->System
->Hardware->Device manager”)
There are XTV2.0 and USB EMP Audio Device
