Viglen SX220 User Guide 5

Introduction

This manual describes the Viglen SX220 system and the SCB2 motherboard. The

motherboard is the most important part of your computer. It contains all of the CPU,

memory and graphics circuitry that makes the computer work.

The motherboard contains the very latest in CPU design, the Intel Pentium III

processors, which include MMX, Internet Streaming SIMD Extensions and Tualatin

technology. MMX technology adds a total of 57 instructions to the CPU, all of which

are designed to vastly improve both multimedia and communications on your PC.

SIMD Extensions add 70 new instructions enabling advanced imaging, 3D,

streaming audio and video, and speech recognition for an enhanced Internet

experience. Tualatin technology includes a smaller die size of 0.13 micron, resulting

in lower power consumption and lower heat output. The Level2 cache on die has

increased to 512K in size. The combination of the Intel Pentium III processors,

MMX, SIMD, Tualatin technology and Viglen expertise make this a formidable

computer.

This manual contains technical information about the Viglen SCB2 motherboard and

other hardware components inside your computer. If you are new to computers we

recommend that you read the user guide first. If you are an experienced computer

user this manual should provide all the information you will need to perform simple

upgrades and maintenance.

We hope that this manual is both readable and informative. If you have any

comments or suggestions about how we could improve the format then please fill out

the form at the back of the manual and send it to us.

Above all we hope that you enjoy using your Viglen computer.

Viglen SX220 User Guide6

The SX220 system consists of the following major components:

•The chassis and its subassemblies, device bays, and front bezel

•A slim-line CD-ROM drive & Floppy Disk Drive

•The power supply

•The cooling system

•SCB2 Motherboard & PCI riser cards

The major component of the kit is the chassis. It is important to become familiar with

the chassis both externally and internally and the security features it provides.

Viglen SX220 User Guide 7

Physical Specifications

The SX220 chassis is designed as a 2U 19” Rackmount unit. The server will be

supplied complete with a pair of industry standard 19” Rails, handles and all of the

necessary nuts and bolts.

Table 1: Physical Specifications

Specifications

Height 89 mm

Width / Rackmount Height 430 mm / 2U

Depth 648 mm

Weight 18 kg typical configuration

Chassis Front Controls and Indicators

The front panel controls and indicators are located behind the optional front bezel of

the system as shown in Figure 1. You can access the panel and the system

peripherals by grasping the bezel at its edges and gently pulling it towards you.

Figure 1: Chassis Front Controls and Indicators

A –Chassis handles F– RJ-45 serial port (PC-to-PC)

B – Drive bay (1-inch) G – USB connectors 3 and 4

C– HDD activity/fault indicator H – System controls

D– Flex bay (seventh HDD or

optional CDROM drive/FDD module) I –Tape drive bay

E– Front panel indicator lights

Viglen SX220 User Guide8

Front Panel Controls and Indicators

Figure 2: Front Panel Controls and Indicators

A –NIC 1 activity LED I– Power/sleep LED

B – NIC 2 activity LED J – Power button

C– System status LED K – FDD activity LED

D –Fixed disk drive status LED L– CD-ROM activity LED

E– ID LED M– CD-ROM drive eject button

F –ID button N –Manual CD-ROM drive eject button

G –NMI button (tool assisted) O –FDD eject button

H –Reset button

Viglen SX220 User Guide 9

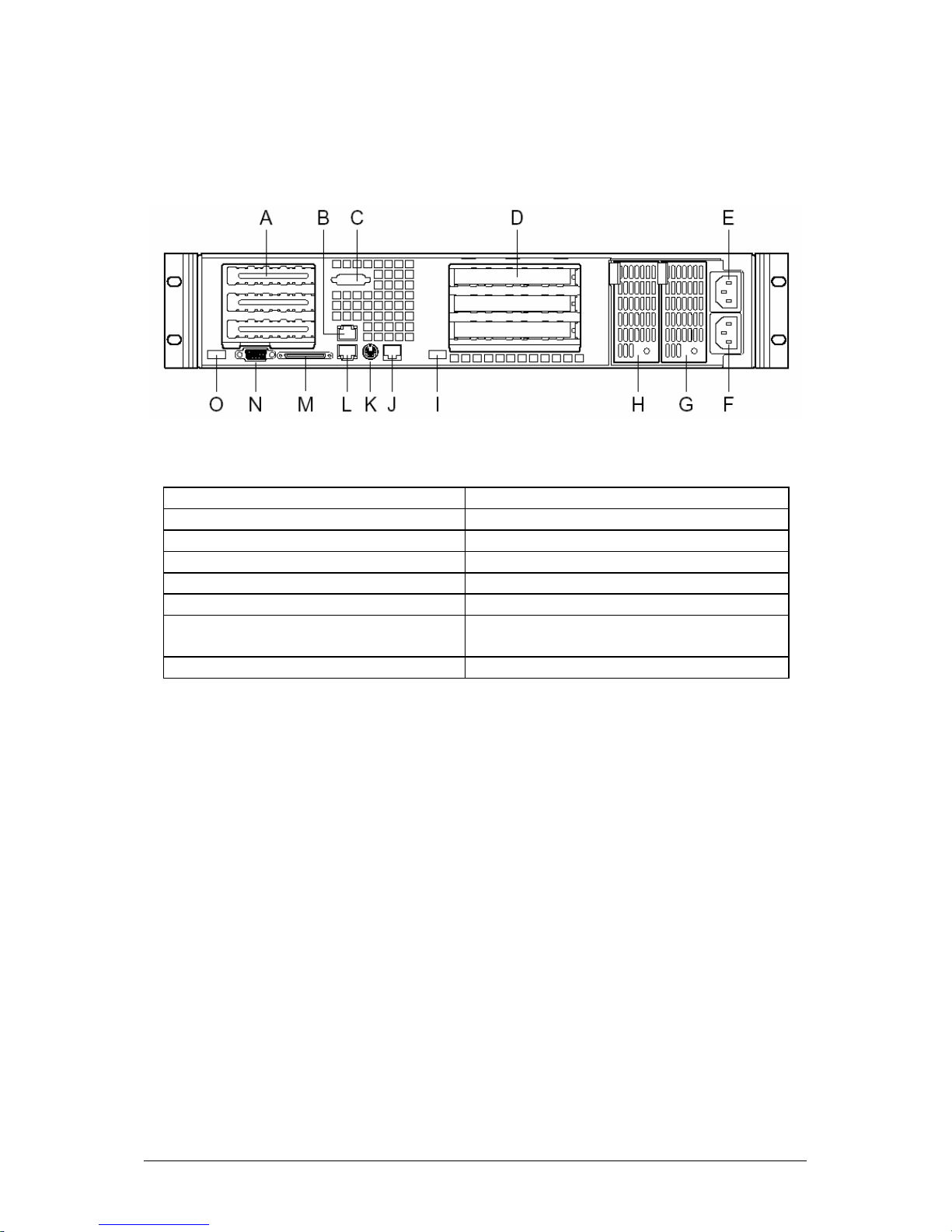

Chassis Back I/O Ports and Features

The back panel provides connectors for the server board, slots for add-in cards, and

the power supply for the server. Figure 3 identifies the features of the back panel.

Figure 3: Chassis Back I/O Ports and Features

A –PCI card bracket (low profile) I– USB connector 2

B – RJ45 NIC 2 connector J – RJ45 serial 2 port

C– Serial 1 port mounting hole K – PS/2* mouse/keyboard connector

D –PCI card bracket (full-height) L– RJ45 NIC 1 connector

E– AC power input (primary) M– SCSI connector

F– AC power input (redundant) N– Video connector

G– Power supply module,

redundant O– USB connector 1

H– Power supply module, primary
