VISO LabFlicker

User Manual

Last edited 22 of August 2019

Content

SAFETY INFORMATION......................................................................................................................... 3

INTRODUCTION.................................................................................................................................... 4

ABOUT THE VISO LABFLICKER .........................................................................................................................4

ABOUT THIS DOCUMENT .................................................................................................................................4

DIMENSIONS........................................................................................................................................ 5

LABFLICKER PACKAGE CONTENT.......................................................................................................................6

PACKAGES AND WEIGHT .................................................................................................................................6

SOFTWARE INSTALLATION ................................................................................................................... 7

CONNECTING THE VISO LABFLICKER ..................................................................................................... 8

EXTENDING THE USB CONNECTION ...................................................................................................... 9

HOW TO USE THE VISO LABFLICKER ..................................................................................................... 9

MAKE A MESASUREMENT .................................................................................................................. 10

BASIC MEASUREMENT ..................................................................................................................................11

ADVANCED MEASUREMENT...........................................................................................................................11

TOO MUCH/LITTLE LIGHT ................................................................................................................... 12

FLICKER MEASUREMENT DATA .......................................................................................................... 13

FLICKER FREQUENCY ....................................................................................................................................13

FLICKER PERCENTAGE...................................................................................................................................13

FLICKER INDEX ............................................................................................................................................13

FLICKER FFT ...............................................................................................................................................14

SVM.........................................................................................................................................................14

JA8...........................................................................................................................................................15

PSTLM ......................................................................................................................................................15

IMPORT/REMOVE FLICKER MEASUREMENT ....................................................................................... 16

SPECIFICATIONS ................................................................................................................................. 17

Safety Information

Warning! This product is not for household use.

Read this manual before installing and operating the controller, follow the safety warnings listed

below, and study all the cautions in the manual.

If the controller or the power supply are in any way damaged, defective, wet, or show signs of

overheating, disconnect the power supply from the AC power and contact Viso Service for

assistance.

Do not install or use the device outdoors. Do not spray with or immerse in water or any other

liquid.

Do not remove any covers or attempt to repair the controller or the power supply. Refer any

service to Viso.

Disposing of this product

Viso products are supplied in compliance with Directive 2002/96/EC of

the European Parliament and of the Council of the European Union on

WEEE (Waste Electrical and Electronic Equipment), as amended by

Directive 2003/108/EC, where applicable.

Help preserve the environment! Ensure that this product is recycled at

the end of its lifetime. Your supplier can give details of local

arrangements for the disposal of Viso products.

Introduction

About the VISO LabFlicker

The VISO LabFlicker expands the ability of the Viso Systems Goniometers series to measure the

light Flicker using the same Light Inspector software. The device is easily connected to the

computer using USB and automatically detected by the Light Inspector software.

About this document

These guidelines describe the installation process of the VISO LabFlicker and how to use it with

any of VISO Systems goniometers.

Viso Systems ApS, Denmark.

Information subject to change without notice. Viso Systems ApS and all affiliated companies disclaim liability for any injury,

damage, direct or indirect loss, consequential or economic loss or any other loss occasioned by the use of, inability to use or

reliance on the information contained in this manual.

Dimensions

115

13 53

A A

B B

C C

D D

E E

F F

DRAWN

CHK'D

APPV'D

MFG

Q.A

UNLESS OTHERWISE SPECIFIED:

DIMENSIONS ARE IN MILLIMETERS

SURFACE FINISH:

TOLERANCES:

LINEAR:

ANGULAR:

FINISH: DEBURR AND

BREAK SHARP

EDGES

NAME

SIGNATURE

DATE

MATERIAL:

DO NOT SCALE DRAWING

REVISION

TITLE:

DWG NO.

SCALE:1:1 SHEET 1 OF 1

WEIGHT:

Flicker Assem

LabFlicker Package Content

•LabFlicker Unit

•5m USB Cable

•Test Certificate

Packages and weight

Shipping packages Shipping dimensions CBM Weight

1. LabFlicker 17 x 13 x 7 cm 0,0015 0,5 Kg

Total shipping weight: 0,5 kg.

The shipment is done in a total of 1 package

Software Installation

Before you can start using the VISO LabFlicker, the “Viso Light Inspector” software must be

installed. It is supported on all newer windows platforms.

Use the following link to download the latest version:

http://www.visosystems.com/download-light-inspector/

1) Make sure to install 5.28 or later for LabFLicker, or

the LabFlicker will not be supported by the Light

Inspector.

2) Please make sure the LabFlicker is not connected

to the computer during software installation.

3) Run the .msi file and follow the installation

instruction.

4) USB drivers are automatically installed.

Your measurements are not lost when updating to a

newer version or uninstalling and reinstalling. All

measurements will always remain in your document

folder. If you want to remove all your measurements go

to the ‘Light Inspector’ folder and delete them manually.

Typical folder location:

C:\Users\’Username’\Documents\Viso Systems\Light Inspector

Or if stored in dropbox:

C:\Users\’username’\Dropbox

Connecting the VISO LabFlicker

Connect the VISO LabFlicker to your Windows computer using the supplied USB cable.

When connected the VISO LabFlicker will wait for connection and when it is ready it will show

‘Click to Start’ in the display

Extending the USB connection

If, for example, the LabFlicker is used with the LabSpion you may want to keep the LabFlicker

around the LabSpion Base. By using an active USB hub you can split the single USB cable to the

LabSpion so both LabSpion and LabFlicker can be used on the same USB connection. A USB hub

as pictured below can be acquired through Viso Systems.

How to use the VISO LabFlicker

On the front of VISO LabFlicker it has a ‘Start/Pause’ button which is used for starting and

stopping capturing the flicker. On the back you find the sensor at the top. Make sure not to

shadow the sensor while measuring and place your hand like shown below.

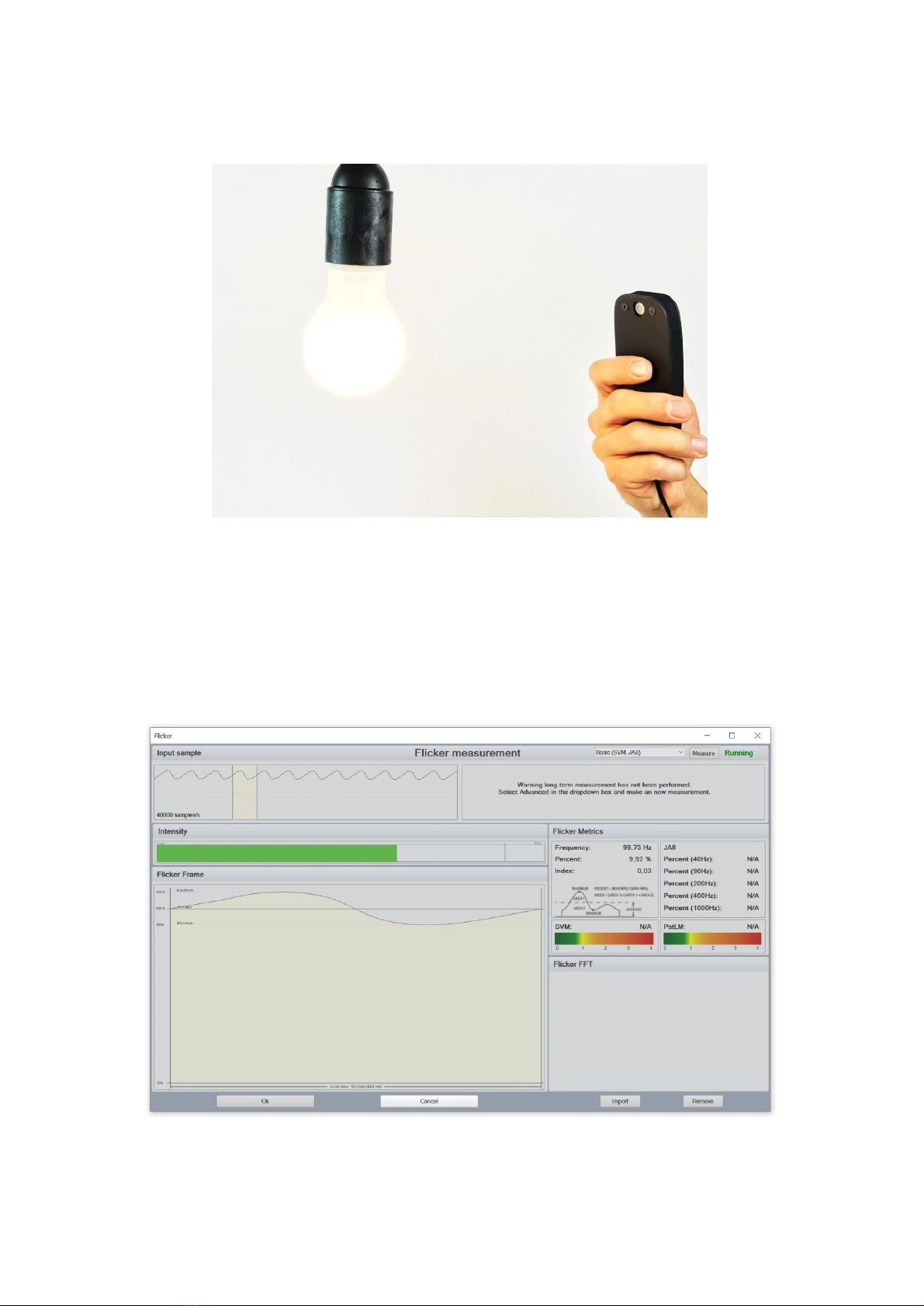

To make a measurement press the Start/Pause button and move the the LabFlicker towards the

lamp you want to measure, with the sensor facing the lamp.

Make a mesasurement

To make a flicker measurement first choose the light measurement you want to add the flicker

measurement to by selecting it in the library window in the Light Inspector software or choose

a new blank sheet if you just want clean flicker measurement.

When the LabFlicker is connected to the Light Inspector software and the ‘Start/Pause’ button

is pressed a window for the flicker measurement will appear.

The flicker window gives a live feedback of your flicker data.
