Vitek Mighty DomeColor Dome Camera Series Manuale utente

black

VITEK

Mighty Dome

Color Dome Camera Series

•480 and 550 TV Line versions

•True Mechanical Day/Night function available

•Flush or Surface Mount

•UTP interfaceand Heater / Blower Options Available

•Dual Voltage 12VDC & 24VAC

•Infinity Ball Mount for Any Viewing Angle

•Indoor and Vandal Proof IP 68 Rated Models Available

•Lens options include: 2.9-10mm, 9-22mm, or 18-50mm

•Available in ivory or black

BOX CONTENTS

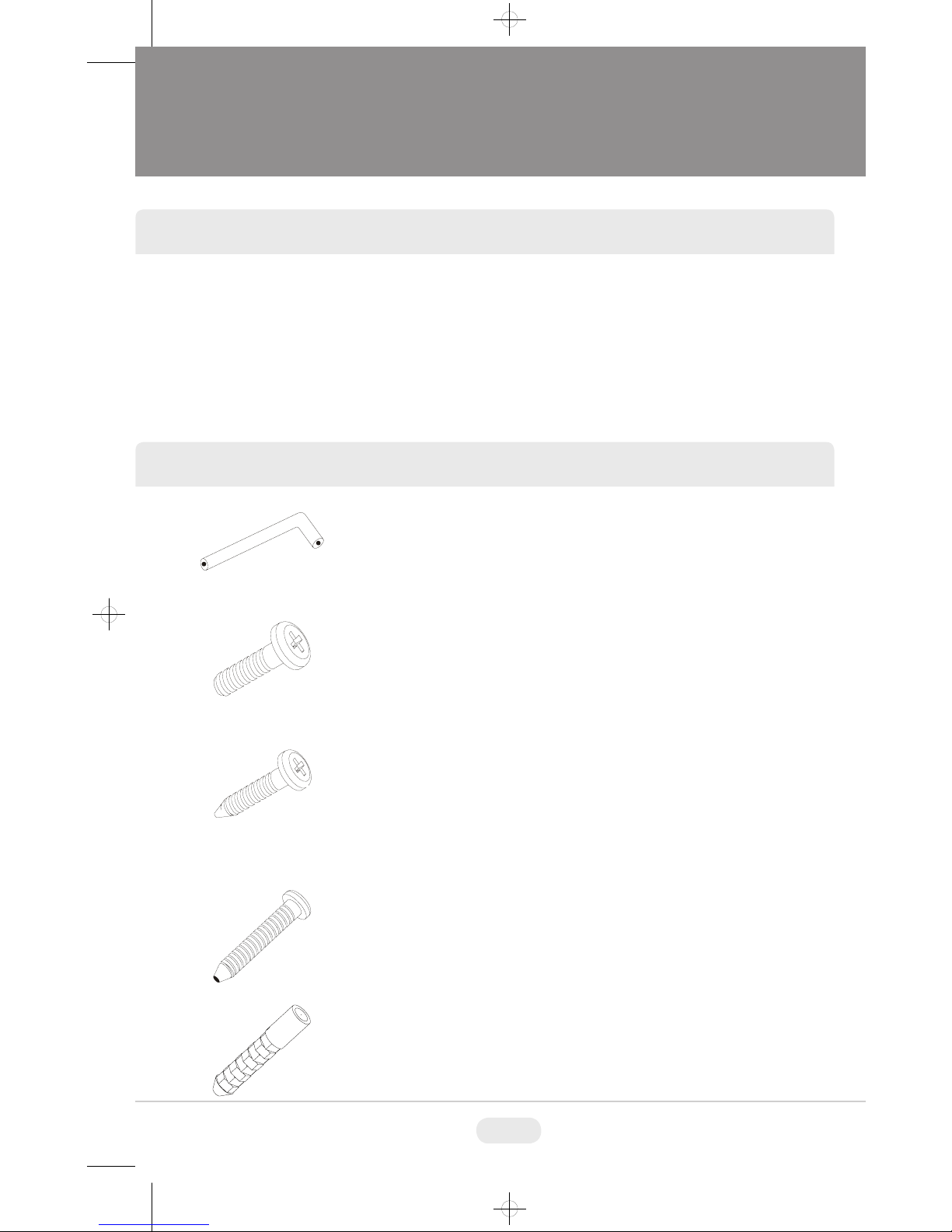

MOUNTING ACCESSORIES

1) Dome Camera

2) Mounting Accessories

3) VT-MD-2VOC (Secondary Video Output Cable)

4) Instruction Manual & Mounting Template

Torx Wrench - (Vandal & IR Versions Only)

Type #: T20

Length: 63mm / Diameter: 4mm

Qty: 1

Phillips head Screws - (Vandal & IR Versions Only)

For attaching the dome cover to the flush housing.

Type #: Phillips head M4x10

Length: 10mm / Diameter: 4mm

Qty: 4

Self Tapping Screws

For attaching the surface mount housing or the the flush

mount base to a solid surface.

Type #: Phillips St4x30

Length: 30mm / Diameter: 4mm

Qty:4

Self Tapping Screws - (Indoor Version Only)

For attaching the dome cover to the flush housing.

Type #: Phillips St4x12

Length: 12mm / Diameter: 4mm

Qty: 4

Dowels

If necessary, use the to help secure the self tapping screws.

Length: 30mm / Diameter: 7mm

Qty: 4

black

AVAILABLE MODELS / ACCESSORIES

INDOOR MIGHTY DOME CONFIGURATIONS:

VTD-MH2910 / MH922: Indoor Color Dome Camera w/2.9-10mm or 9-22mm

Varifocal Lens & 480TVL

VTD-MX2910 / MX922 / MX1850: Indoor Color Dome Camera w/2.9-

10mm, 9-22mm, or 18-50mm Varifocal Lens & 550TVL

IR MIGHTY DOME CONFIGURATIONS:

VTD-MVH2910/L35 / MVH922/L35: Vandal Proof Color Dome Camera

w/2.9-10mm or 9-22mm Varifocal Lens, 480TVL & 35 IR LED’s

VTD-MVX2910/L35 / MVX922/L35 / VTD-MVX1850: Vandal Proof Color

Dome Camera w/2.9-10mm, 9-22mm, or 18-50mm Varifocal Lens, 550TVL & 35

IR LED’s

VANDAL-PROOF MIGHTY DOME CONFIGURATIONS:

VTD-MVH2910 / MVH922: Vandal Proof Color Dome Camera w/2.9-10mm

or 9-22mm Varifocal Lens & 480TVL

VTD-MVH2910DN / MVH922DN: True Day/Night Vandal Proof Color Dome

Camera w/2.9-10mm or 9-22mm Varifocal Lens & 480TVL

VTD-MVX2910 / MVX922 / MVX1850: Vandal Proof Color Dome Camera

w/2.9-10mm, 9-22mm, or 18-50mm Varifocal Lens & 550TVL

VTD-MVX2910DN / MVX922DN / MVX1850DN: True Day/Night Vandal

Proof Color Dome Camera w/2.9-10mm, 9-22mm, or 18-50mm Varifocal Lens &

550TVL

WDR MIGHTY DOME CONFIGURATIONS:

VTD-MX922-WDR / MX2910-WDR: Indoor Color Dome Camera w/550 TV

Lines and 2.9-10mm or 9-22mm Lens

VTD-MVX2910-WDR / MVX922-WDR: Vandal Proof Color Dome Camera

w/550 TV Lines and 2.9-10mm or 9-22mm Lens

Optional Mounts & Accessories:

VT-MD-2VOC: Secondary Video Output Cable for Mighty Domes (Included)

Heater/Blower Option: Heater/Blower Option (Vandal Proof Models)

UTP Option: UTP Option for Mighty Domes

VT-MD/PLMT: Mighty Dome Pole Mount

VT-MD/CMT: Mighty Dome Ceiling Mount

VT-MD/CNMT: Mighty Dome Corner Mount

VT-MD/WMT: Mighty Dome Wall Mount

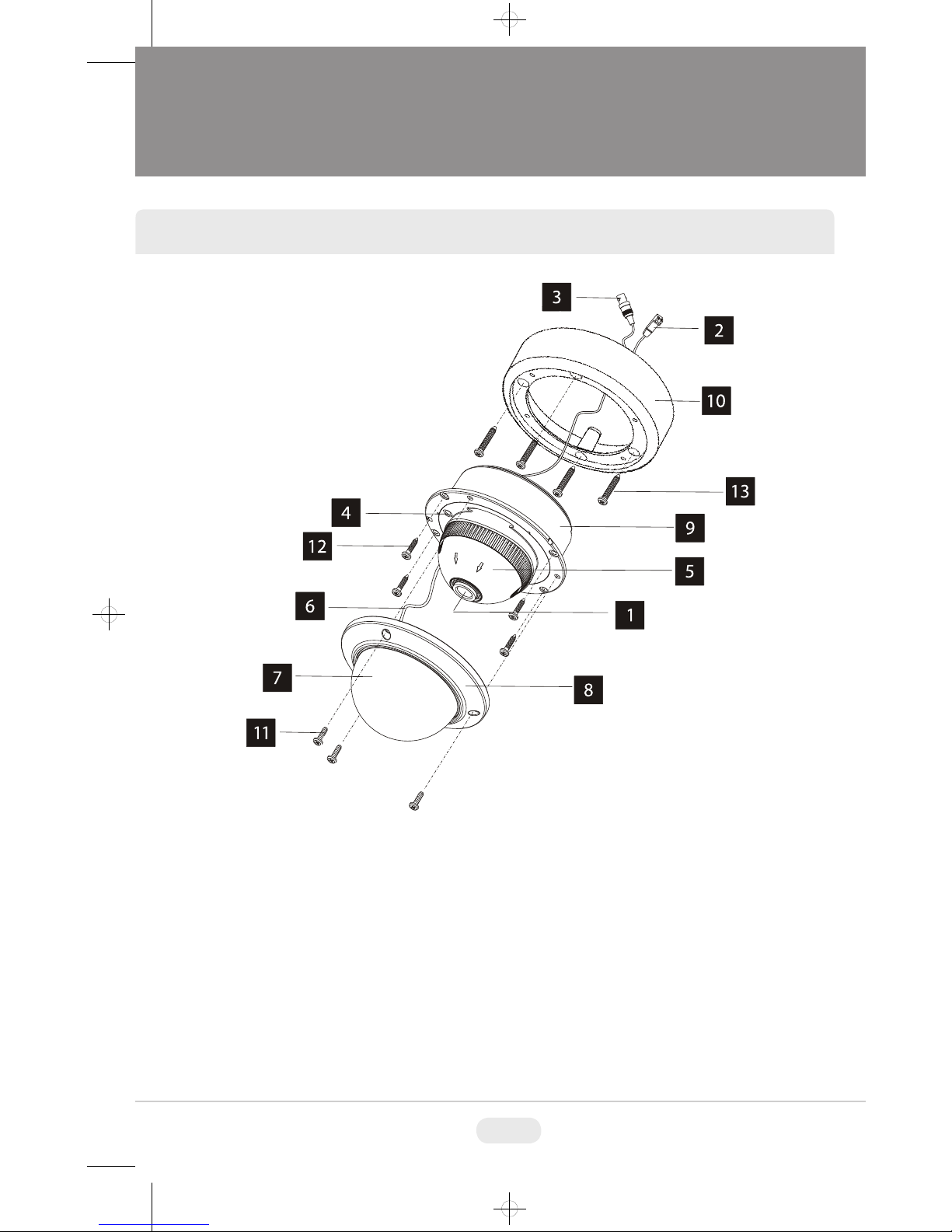

MIGHTY DOME LAYOUT

1) Lens

2) Power Input Connector(12VDC /

24VAC)

3) Video Output Connector - BNC

4) Camera Holder and 2nd Video

output

5) Ball with the Camera Assembly

6) Safety Wire

7) Bubble

8) Dome Cover Ring

9) Flush Mount Base

10) Surface Mount Plate

11) Assembly Screws - Torx M4x9

(Vandalproof)

12) Assembly Screws - Phillips

ST4x12 (Indoor) / Phillips M4x10

(Vandalproof / IR)

13) Mounting Screws - Phillips ST4x30

black

INSTALLATION

1) Dome Cover

1.1 Vandal Proof Domes - Use the provided Torx wrench to unscrew the vandal

proof screws and remove the dome cover.

1.2 Indoor Domes - Turn the dome cover to the left to remove the dome cover.

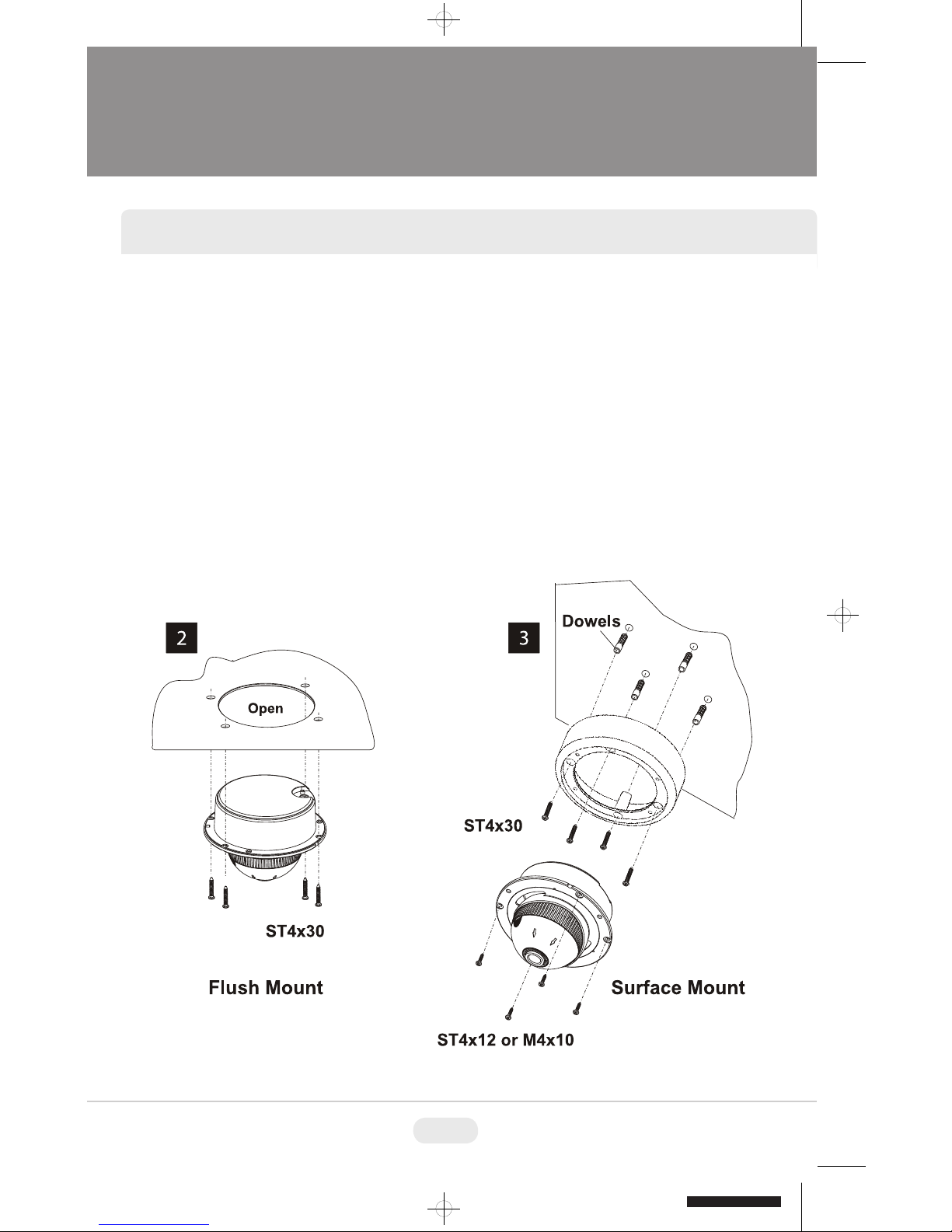

2) Flush Mount Installation:

Using four St4x30 screws, attach the flush mount base to a sturdy surface.

3) Surface Mount Installation:

Drill pilot holes at the mounting location using the provided mounting template.

Using four St4x30 screws, mount the surface mount housing to a sturdy

surface. Using four ST4x12 (Indoor) screws or M4x10 (Vandal-proof) screws,

attach the flush mount base to the surface mount housing.

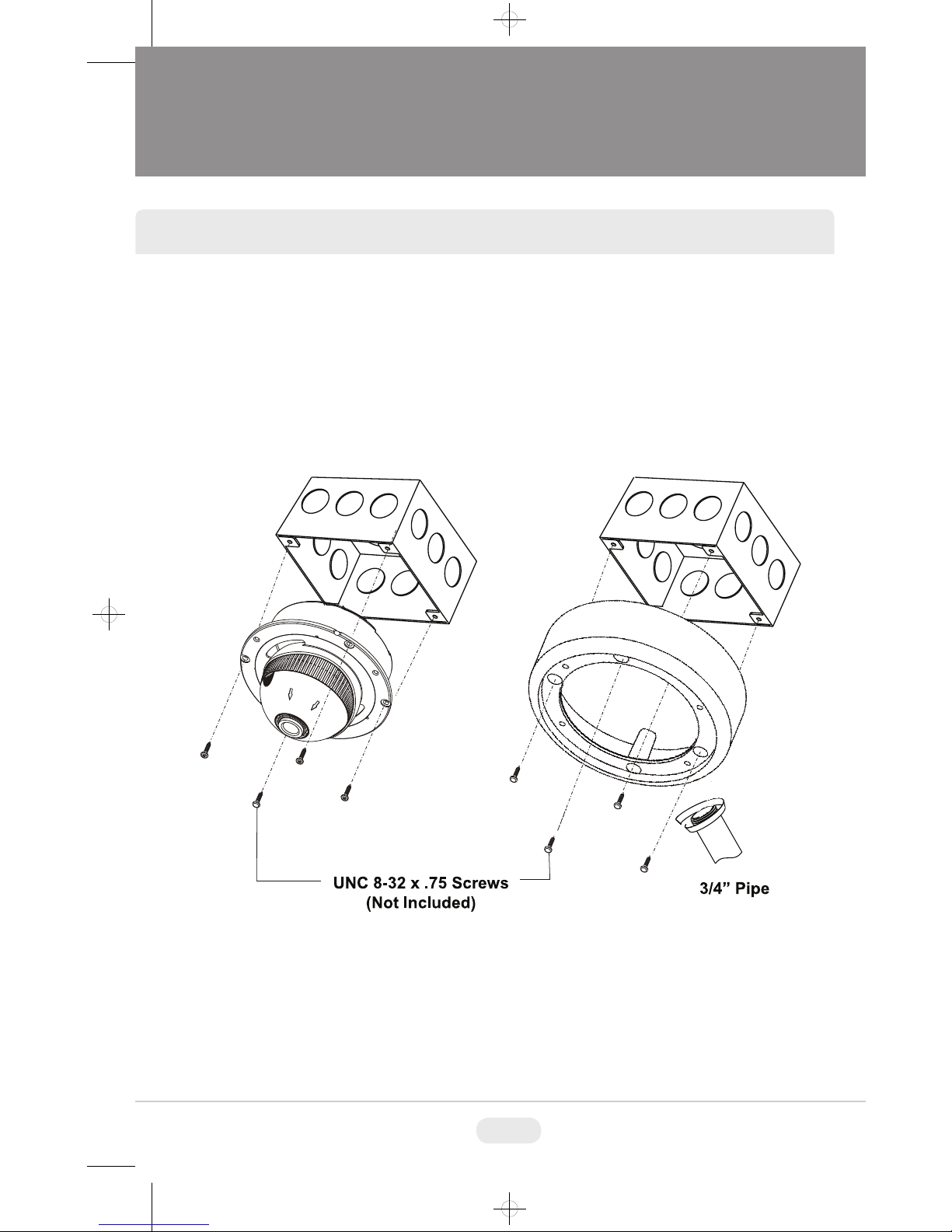

JUNCTION BOX INSTALLATION

Mighty Domes can easily be flush or surface mounted to an electrical junction box

(J-Box) using the pre-drilled mounting holes on either the surface mount housing

or the the flush mount base.

black

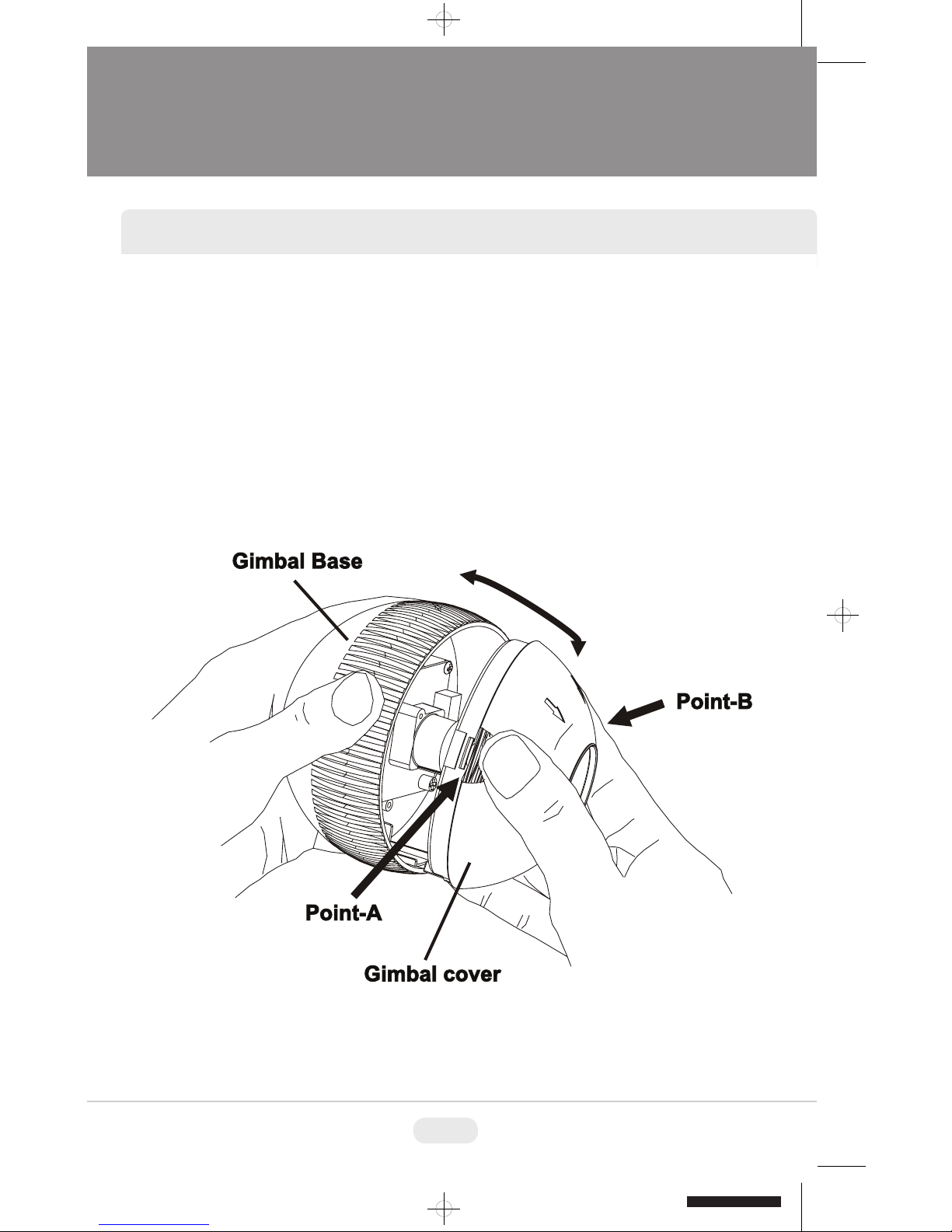

OPEN GIMBAL COVER

To adjust the zoom and the focus, the gimbal needs to be removed temporarily

from its base.

1) Remove the ball gimbal from its socket, and hold the base firmly with one hand.

2) Gently squeeze Point A and B and pull away from the base until the gimbal is

removed from the base.

3) Replace the Gimbal cover by aligning the cover to the base and pressing down

until it snaps back onto the base.

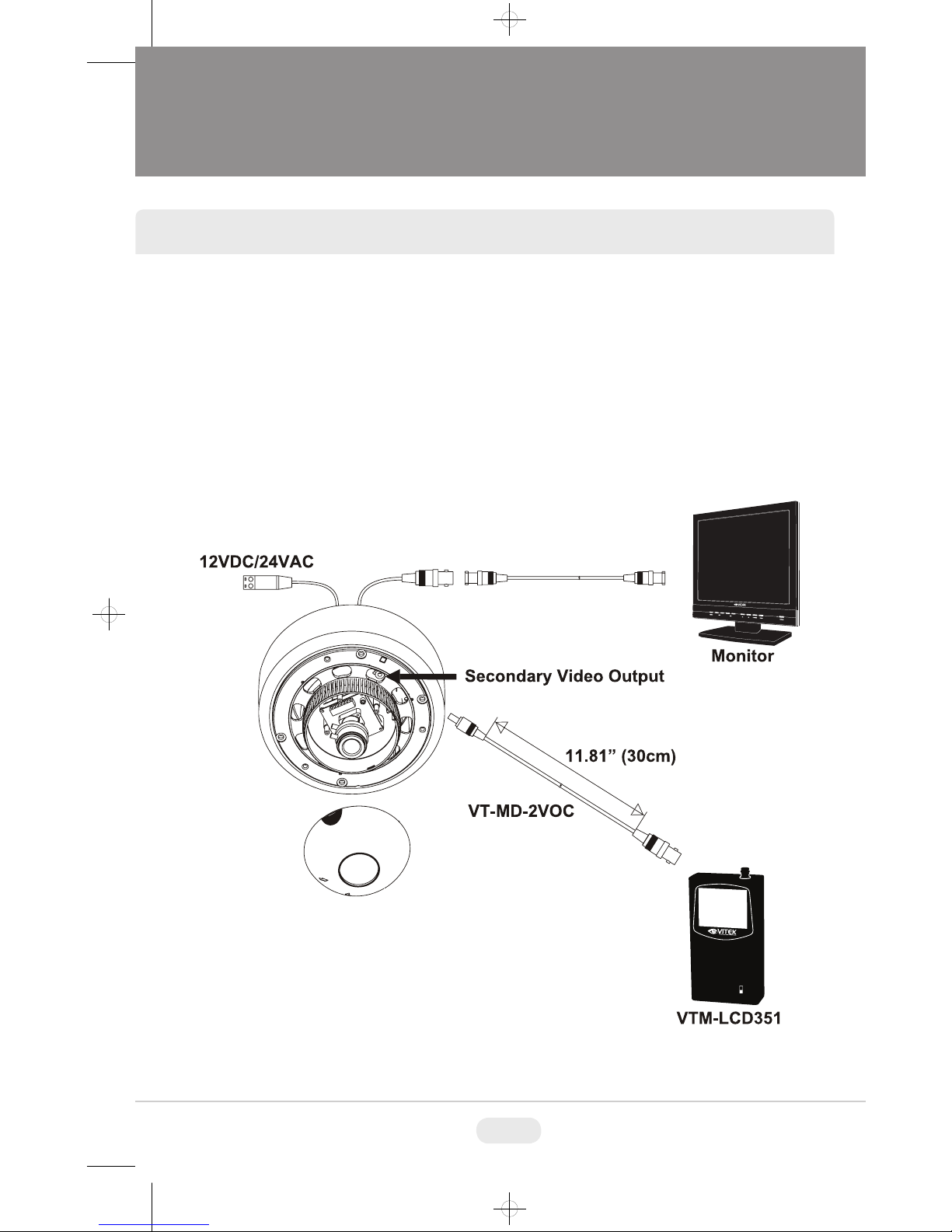

CONNECTIONS

• Power connection: 12VDC and 24VAC dual input.

• All Mighty Dome cameras come standard with a secondary video output. The

secondary video cable (VT-MD-2VOC) is included in the box.

black

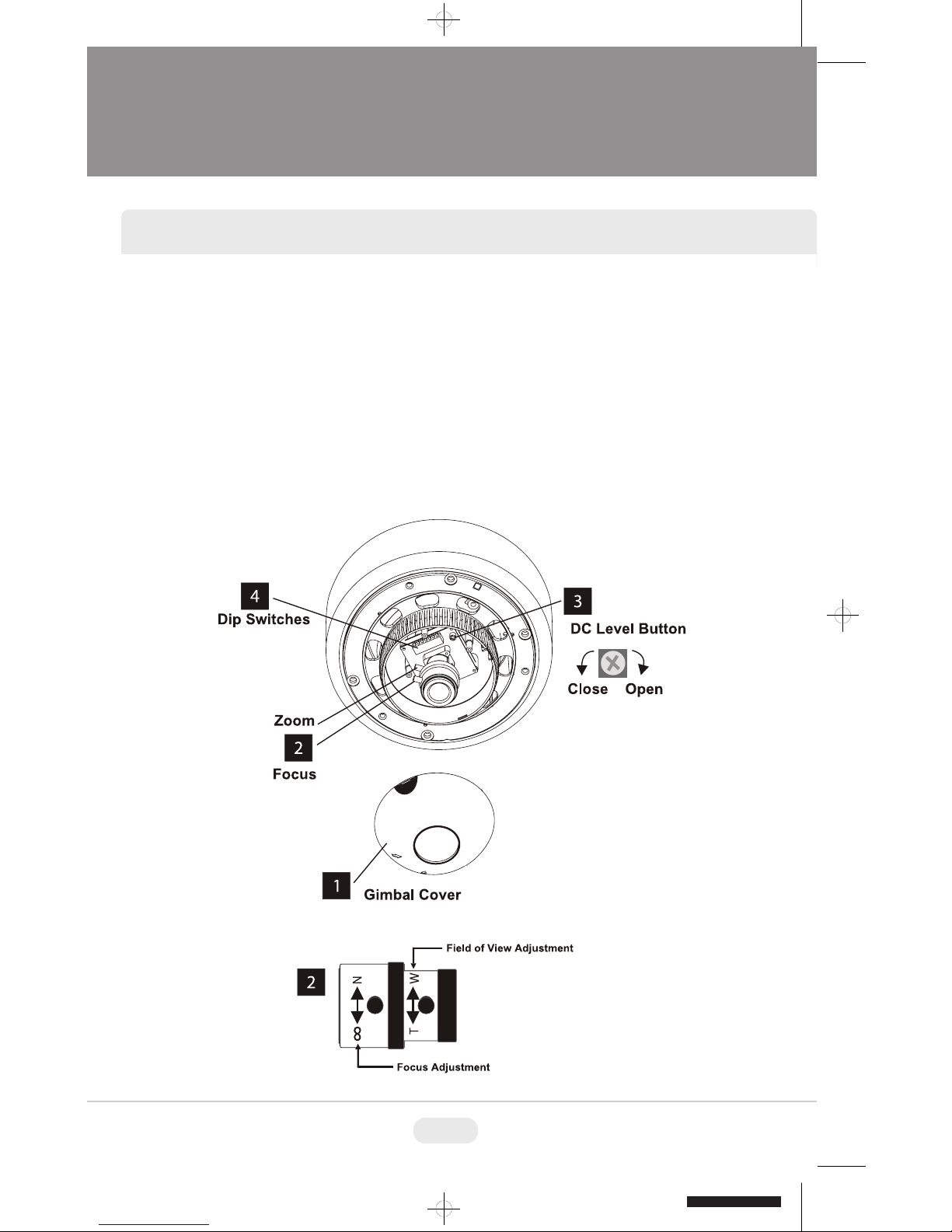

LENS ADJUSTMENT

1) Remove the Gimbal cover from the Gimbal base.

2) Loosen Zoom & Focus screws and make necessary adjustments as shown.

Field of view: Telephoto(T) to Wide(W)

Focus: Near(N) to infinity( )

3) DC Level: Adjust left or right if the picture is too dark.

4) Dip Switches. See Page 9

5) Reattach the gimbal cover to the gimbal base.

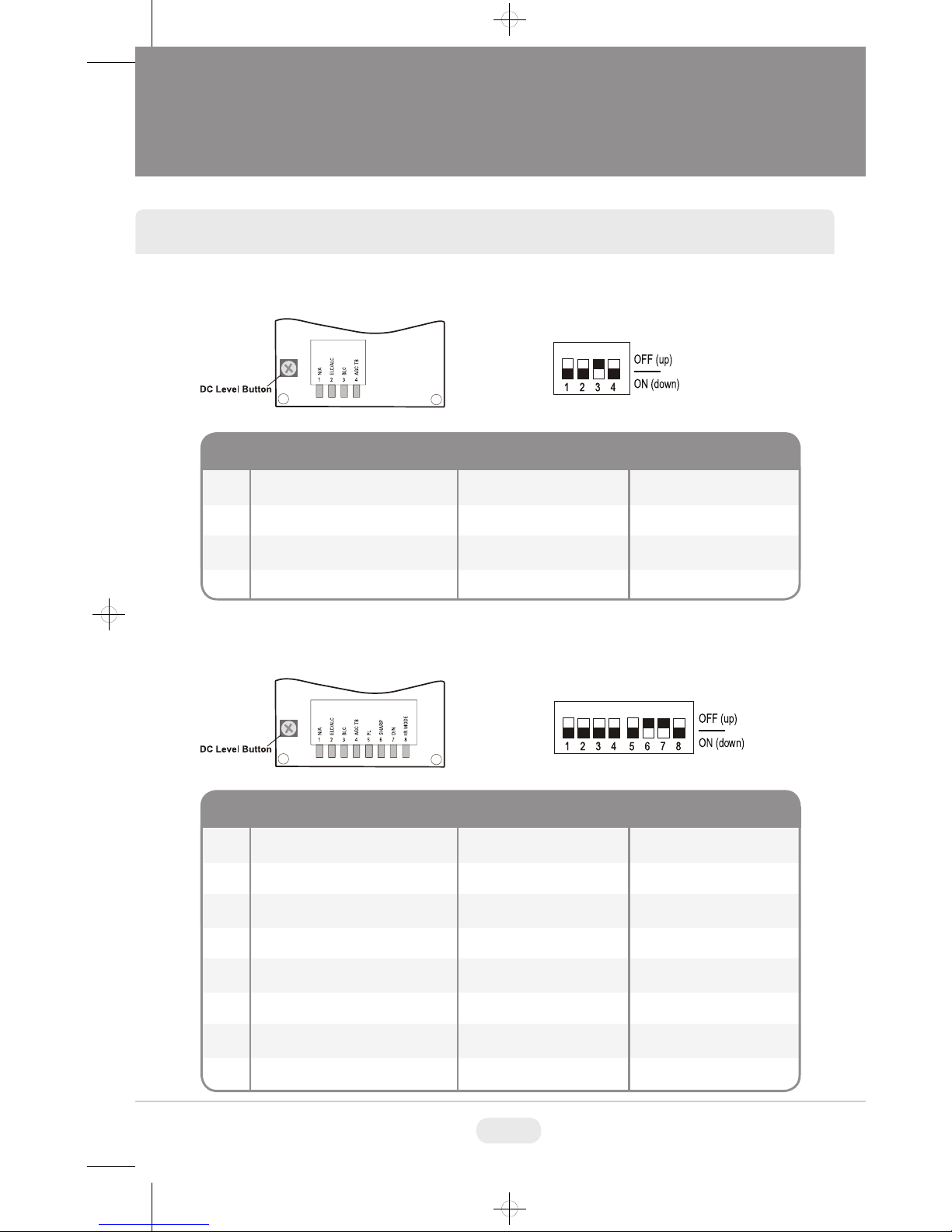

DIP SWITCH ADJUSTMENTS

Day/Night & IR Mighty Domes:

Factory Default:

Function OFF ON

N/A

ELC/ALC

Back Light Control (BLC)

Auto Gain Control (AGC)

Flickerless

Sharpness

Day/Night

IR Mode (IR Model Only)

ALC

Off

Normal

Off

Normal

Day

Off

ELC

Turbo

Sharp

Auto

Function OFF ON

N/A

ELC/ALC

Back Light Control (BLC)

Auto Gain Control (AGC)

ALC

Off

Normal

ELC

Turbo

Indoor & Vandal-Proof Mighty Domes (Non-Day/Night):
