Vitek Transcendent Series Manuale utente
VITEK
VITEK
VTC-TNB2LPR
Transcendent Series
2 MegaPixel License Plate
Recognition WDR IP Motorized
Bullet Camera
QUICK START GUIDE
FEATURES:
• Advanced Starlight Technology Offers Dramatically Higher Sensitivity to
Light Producing Color Images in Very Dark & Night Scenes
• 1/2.8” 2.0 Megapixel CMOS Image Sensor
• 1080P (1920 × 1080), 720P (1280 × 720), D1, CIF, 480 × 240
• 7~22mm @ F1.6 Motorized Varifocal Lens
• Field of View - H: 44°~17.6°; V:25.6°~10°; D: 49.7°~20.2°
• 6 Matrix IRs with up to 325’ IR Range
• True Wide Dynamic Range (120db)
• True Mechanical Day/Night function by ICR
• XD-DNR (3D & 2D Digital Noise Reduction)
• License Plate Recognition (LPR), Abnormal Video, Scene Change
• LPR Snapshot: Overview and Cutout of Plate, White List: 10,000
• LPR Capture Speed Range: 0-44m/h (0~70km/h) [Installation Dependent]
• Smart H.265 / H.265+ / H.265 / Smart H.264 / H.264+ / H.264 / MJPEG
Compression
• MicroSD Card Slot for Local Recording (Up to 128GB)
• One Channel Audio Input + One Channel Audio Output*
• One Channel Alarm Input + One Channel Alarm Output
• Remote Viewing via CMS, Internet Explorer, and iOS & Android Apps
• ONVIF Compliant
• IP67 Weather Resistance
• Wall Mount Included and Optional Junction Box VT-TJB01 Available
• 12VDC & PoE (Power over Ethernet) Operation
• 3-Year Warranty
*Please research local, state and federal laws regarding audio surveillance.
PLEASE NOTE:
Complete User Guide, Software, Tools, and Updates are
available online. Scan the QR Code or visit:
http://www.vitekcctv.com/Downloads
2 3
Reset
Components and Accessories
Overview
Hex Wrench Anchors
3

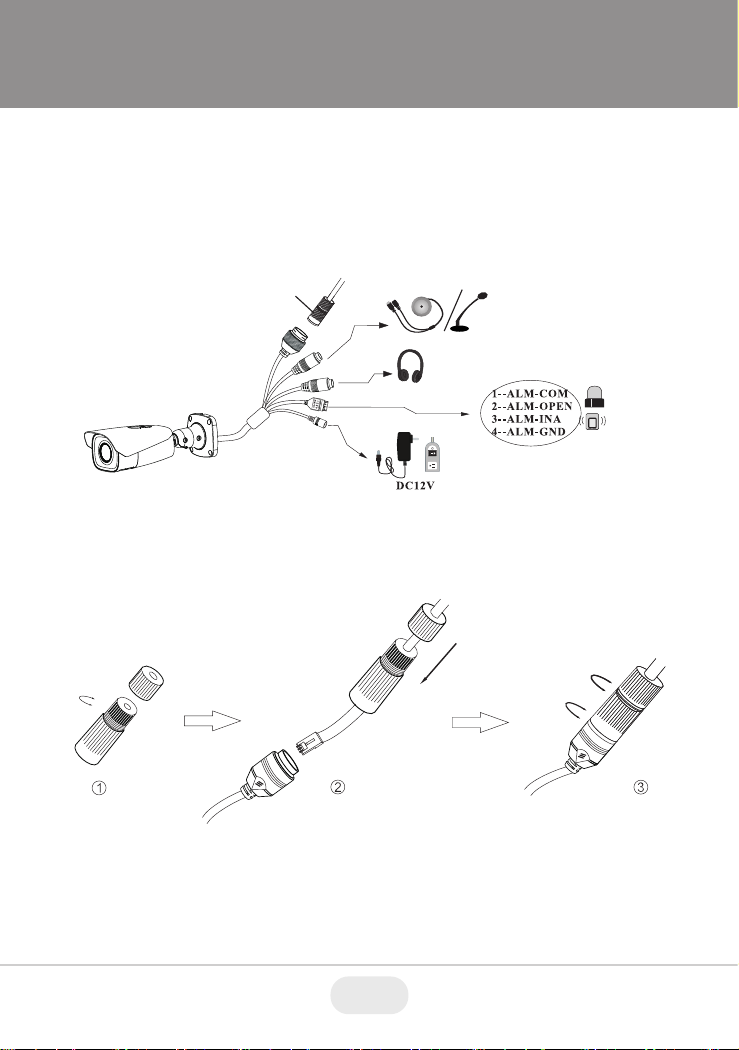

Cable Connections
Weather Resistant Network Coupler
First connect the weather resistant cap to an ethernet patch cable,
then connect the cameras ethernet adaptor. If not powering the
camera with PoE, also connect the power cable to an approved
12VDC power supply.
1. Loosen the nut from the Weather Resistant Network Coupler,
2. Run ethernet cable through coupler, then attach a RJ-45 connector.
3. Tighten the nut and coupler for a weather resistant seal.
weather resistant cap
4 5

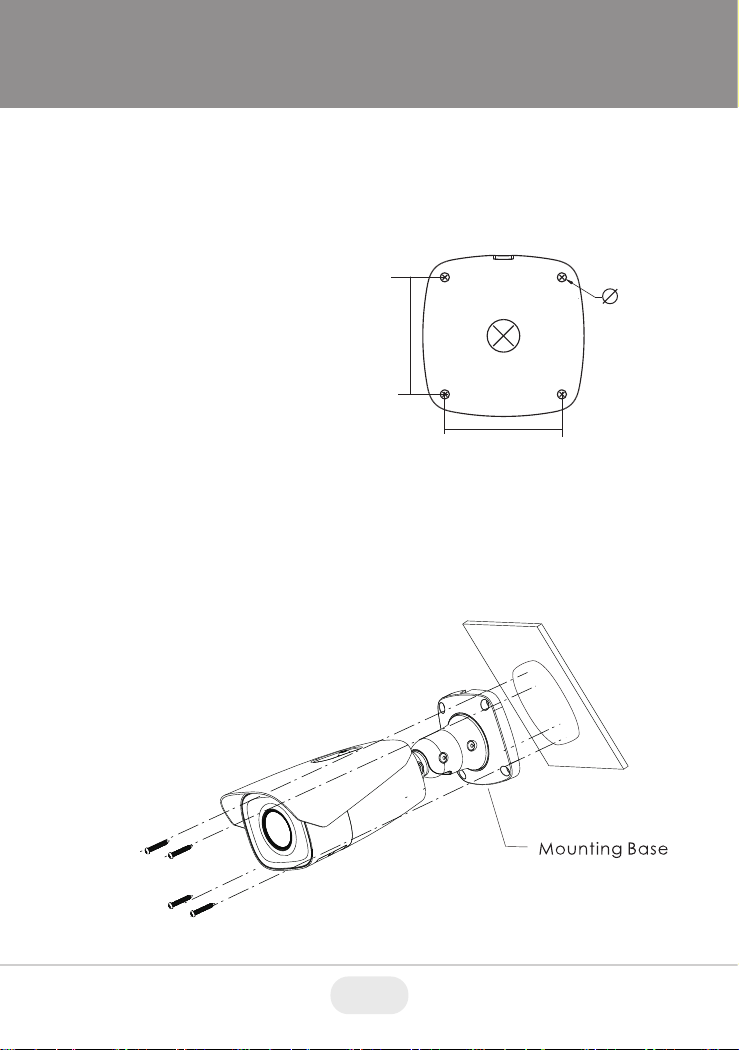

Installation
Before beginning installation, make sure that the wall or ceiling is
strong enough to withstand 3 times the weight of the camera. The
mounting steps are as follows:
1. Attach the drill template to
the place where you want to
install the camera, then drill
4 screw holes and 1 cable
hole (if you want to route the
cables through the mounting
base) according to the drill
template
2. Route the cables and connect the power & video cables, use the
rubber plug to fill the gap of the mounting base. then secure the
mounting base to the ceiling or wall with screws.
2.54”
2.54”
.2”
5
Installation
3. Loosen the mount lock to adjust the Pan and Tilt of the camera, then
tighten the mount lock to secure the viewing angle adjustments.
4. Open the cover of the camera as shown in the following figure,
then insert a MicroSD card.
Insert MicroSD Card
5. Re-install the cover back on the camera and close it with screws.
Be sure to re-install the cover evenly.
6 7
LAN Configuration
The camera can be accessed on the local network either using the
IP-Tool or directly in a web browser.
Accessing the Camera Using the IP-Tool
1. Make sure the camera and PC are connected to the LAN.
2. Locate the IP-Tool installer at www.
vitekcctv.com/Downloads/Soft-
ware/Transcendent-IPTool_v2.0.2.zip
, then install on the PC. Open
the installed application.
3. Modify the IP address. The default IP address is 192.168.226.201.
Click the information of the camera listed in the above table to show
the network information on the right side. Modify the IP address and
gateway of the camera and make sure its network address is in the
same local network segment as the computer’s. Please modify the
IP address of your device according to the practical situation.
For example, the IP address of your computer
is 192.168.13.4. So the IP address of the
camera should be changed to 192.168.13.X.
After modifying, please input the password
of the administrator and click “Modify” button
to modify the setting.
** Default admin password: “123456".
MENU
IP Camera
Network Cable Network Cable
Switch
Router Computer
7
4. Double-click the IP address and then the system will pop up the web
browser to connect IP-CAM . IE browser will download the Active X
control. After downloading, a login window will pop up as shown
below:
Input the user name and password to log in.
Default user name: admin / Default password: 123456.
Directly Access Through a Web Browser
The default network settings are as shown below:
IP address: 192.168.226.201 HTTP: 80
Subnet Mask: 255.255.255.0 Data Port: 9008
Gateway: 192.168.226.1
You may use the above default settings when you log in the camera for
the first time.
1. Manually set the IP address of the PC. The network segment should
be the same as the default settings of IP-CAM. Open the network
and share center. Click “Local Area Connection” to pop up the
following window.
Select “Properties” and then select Internet protocol according to the
actual situation (for example: IPV4). Next, click “Properties” button to
set the network of the PC.
8 9
2. Open the IE Browser and input the default address of IP-CAM and
confirm. The IE browser will download Active X control.
3. After downloading Active X control, the login dialog box will pop up.
4. Input the default username and password and then enter to view.
WAN Configuration
Access the camera by the router or virtual server for example.
1. Make sure the camera is connected to the LAN; Then log into the
camera via LAN and go to System Congfig→Network Config→Port
menu to set up the port number.
2. Enter System Config→Network Config→IP Address menu to modify
the IP address.
4. Open the web browser and input its WAN IP and HTTP port to
access the IP-CAM.
3. Go to the router’s management interface through IE browser to
forward the IP address and port of IP-CAM in the “Virtual Server”.
5. For additional setup, features and functions, please scan the
QR code on the front page of this quick guide and download
the complete manual.
9
Image Sensor 1/2.8” 2.0 Megapixel Progressive Scan CMOS
Image Size 2 MegaPixel (1920 × 1080)
Resolution 1080P (1920 × 1080), 720P (1280 × 720), D1, CIF, 480 × 240
Min. Illumination 0.0026 [email protected],AGC ON; 0 lux with IR / 0.005 [email protected], AGC ON; 0 lux with IR
Electronic Shutter 1 / 25 s ~ 1 / 100000s
Lens 7~22mm Motorized Varifocal Lens @ F1.6
IR LEDs, Distance 6 Matrix Style IRs, Up to 325’
Video Compression Smart H.265/(+), H.265, Smart H.264/(+), H.264, MJPEG
Audio Compression G.711A / G.711U
Main-Stream 60Hz: 1080P/720P (1~30fps); HFR Mode: 1080P/720P (60Hz:
1~60fps; 50Hz: 1~50fps) 50Hz: 1080P/720P (1~25fps)
Sub Stream, Third Stream 60Hz: 720P/D1/CIF (1~30fps); 50HZ: 720P/D1/CIF/480x240
(1~25fps)
Bit Rate / Type 64 Kbps ~ 6 Mbps / VBR + CBR
Wide Dynamic Range 120dB
Digital Noise Reduction XD-DNR (3D & 2D-DNR)
Other Features Backlight / Hightlight Compensation, Defog
Image Setting ROI, Saturation, Brightness, Chroma, Contrast,
Sharpen, NR; Adjustable through client software or browser
Analytics License Plate Recognition, Abnormal Video, Scene Change
Alarm
Smart Alarm
1 Ch. Alarm In + 1 Ch. Alarm Out*
Motion Detection, SD Card Error, SD Card Full
General Functions Watermark, IP Filter, Video Mask, Illegal Login Lock
Region of Interest (ROI) Each ROI to be configured separately
Network RJ45
Hardware Reset Yes
Analog Video Output No
Audio 1 Ch. Audio In + 1 Ch. Audio Out*
Local Storage Built-in Micro SD card slot up to 128GB
Remote Viewing CMS / Web Browser / Mobile (iOS/Android)
Supported Browsers Internet Explorer, Chrome and Firefox with IE Tab
Interface Protocol ONVIF
Weather IP67
Power Input
Consump. (12VDC, PoE)
12VDC / PoE
(12VDC) 210mA (IRs Off) / 545mA (on), (PoE) 4W (IRs off) / 7.8W (on)
Working Environment -22°~140° / < 95% Humidity
Weight
Dimensions L x W x H
36.69.5 oz. / 2.29 lbs. / 1.04kg
3.95” x 3.54” x 11.00” (100.3mm x 89.9mm x 279.5mm)
DETAILED SPECIFICATIONS - VTC-TNB2LPR
10 11
Consider These
Other Great
Transcendent Products!
Pair with VITEK
Transcendent Series
Network Recorders
Supporting Advanced
Analytics and PoE!
VT-TJB01
Optional Junction
Box for Use with
Select
Transcendent Bullet
Cameras including
VTC-TNB2LPR
Accessories
Recorders
VT-TPLMT
Transcendent
Universal Pole
Mount
VT-TCNMT
Transcendent
Univeral
Corner Mount
