Vitek Transcendent VTD-TND8RMS Manuale utente

VITEK

FEATURES

• 1/2.5” 8.0 Megapixel Progressive Scan CMOS image

sensor

• Up to 30fps live view @ 8 MegaPixel (3840x2160)

• Motorized 3.3-12mm Varifocal Lens

• 30 Infrared LED’s with 100’ IR Range

• 120dB Super Wide Dynamic Range (WDR)

• True Mechanical Day/Night function by ICR

• XD-DNR (2D-DNR & 3D-DNR) Noise Reduction

• Fully Programmable Intelligent Analytics including Object

Removal/Museum Search, Line Crossing, and Area

Intrusion Detection

• H.265/H.264/MJPEG Triple Streaming

• Secondary Video Output (CVBS)

• Remote Viewing via CMS, Internet Explorer, and iOS &

Android Apps

• IP66 Weather Resistance & IK10 Impact Rating

• MicroSD memory card slot for Local recording supporting

up to 128GB MicroSDXC cards

• ONVIF Compliant

• Optional Wall (VT-TWM03) & Junction Box (VT-TJB02)

Mounts Available

• 12VDC & PoE (Power over Ethernet) Operation

VTD-TND8RMS

Transcendent Series 8

Megapixel H.265 Indoor/

Outdoor WDR IP Dome Camera

with 30 IR LED Illumination &

Motorized Varifocal Lens

QUICK START GUIDE

PLEASE NOTE:

Complete User Guide, Software, Tools, and Updates are

available online. Scan the QR Code or visit:

http://www.vitekcctv.com/Downloads

2 3

Overview

Components and Accessories

Camera

Quick Guide

Screws

Hex Wrench

Drill Template

Rubber Gasket

Waterproof Cap

Service Port Cable

RESET LINK

DC IN

CVBS

8 9

RJ-45 Ethernet

Audio In

Audio Out

CVBS Output

Alarm I/O

RS-485

Power Cable

Reset

Service Port

MicroSD Card Slot

Network Cable & Power Connections

First connect the Waterproof Cap to an Ethernet patch cable, then

connect the cameras ethernet adaptor. If not powering the camera with

PoE, also connect the power Cable to an approved 12VDC Power

Supply.

Weather Resistant Network Coupler

1. Loosen the nut from the Weather Resistant Network Coupler,

2. Run ethernet cable through coupler, then attach a RJ-45 connector.

3. Tighten the nut and coupler for a weather resistant seal.

Network Cable

Optional 12VDC

Power Connection.

Not needed with PoE

ALM: COM

ALM: NO

ALM: IN

ALM: GND

RS-485 +

RS-485 -

4 5

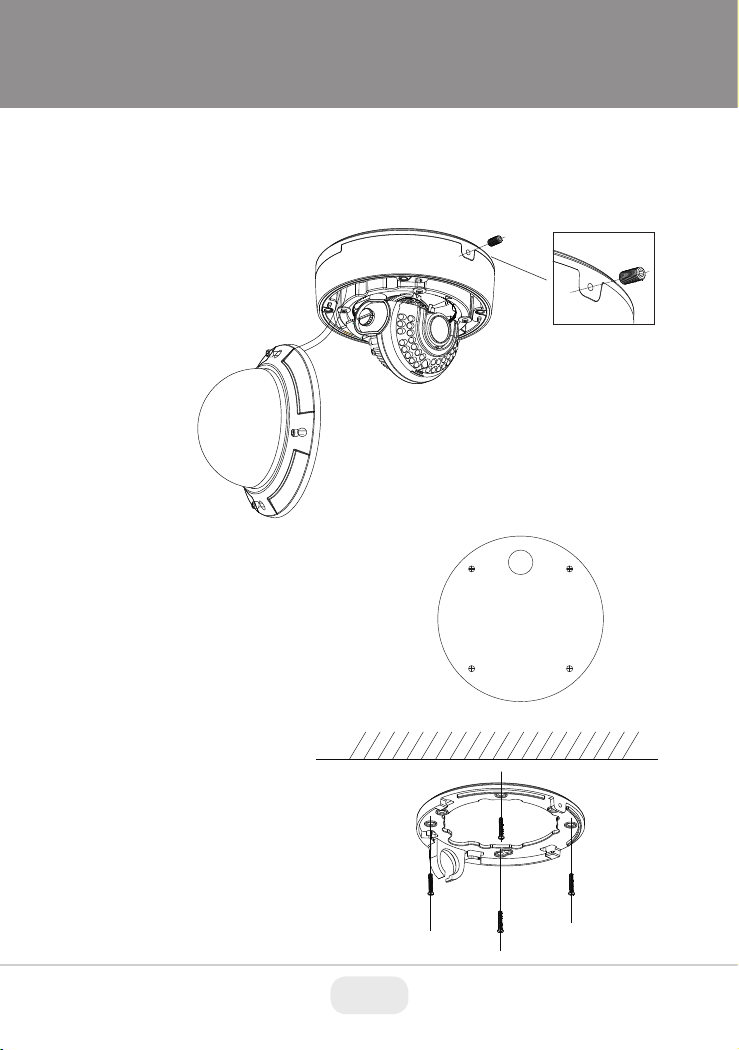

Installation

Before beginning installation, make sure that the wall or ceiling is

strong enough to withstand 3 times the weight of the camera. The

mounting steps are as follows:

1. Loosen the screws to

open the lower dome

and then loosen the

lock screw to remove

the mounting base.

2. Attach the drill template to

the place where you want to

install the camera, then drill

4 screw holes and 1 cable

hole (if you want to route the

cables through the mounting

base) according to the drill

template.

3. Route the cables and

connect the power & video

cables, then secure the

mounting base to the ceiling

or wall with screws.

Lock Screw

Installation

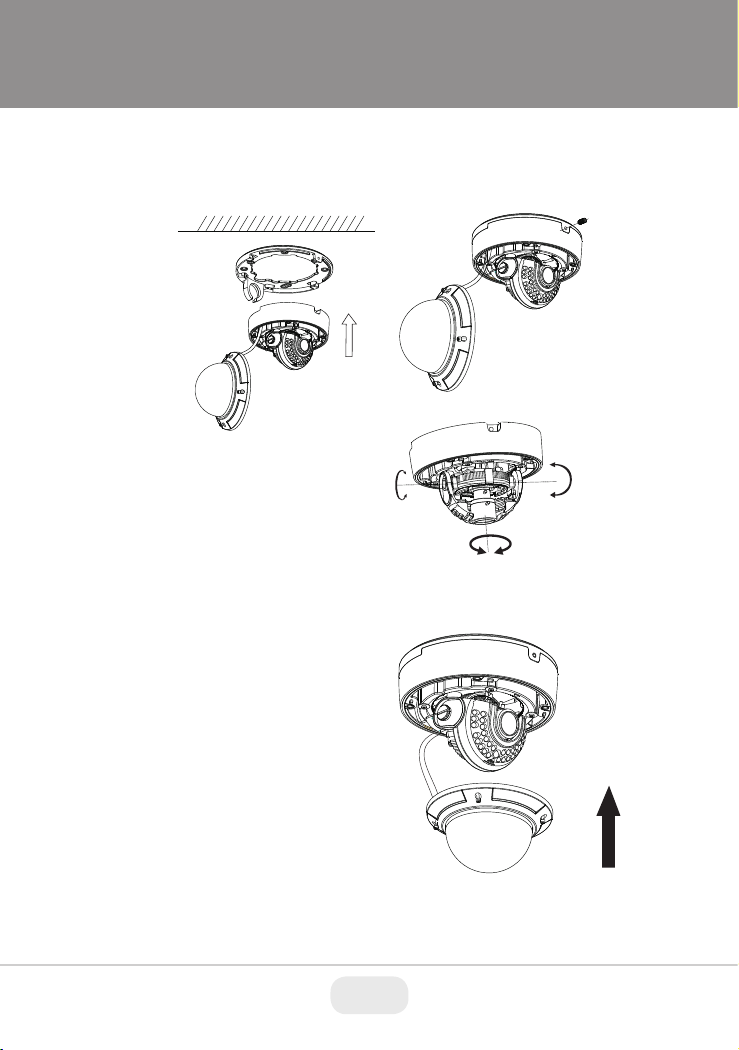

4. Install the camera to the mounting base with the lock screw.

5. Adjust the Three-axis camer

bracket to obtain the optimi-

um viewing angle.

6. Install the dome bubble on

the camera with the screws,

then carefully remove the

protective film to complete

the installation.

Tilt 0°~75°

Pan 0°~360°

Rotation 0°~360°

6 7

LAN Configuration

The camera can be accessed on the local network either using the

IP-Tool or directly in a web browser.

1. Attach the drill template to the place where you want to install the

camera, then drill 3 screw holes and 1 cable hole (if you want to

route the cables through the mounting base) according to the drill

template

Accessing the Camera Using the IP-Tool

1. Make sure the camera and PC are connected to the LAN.

2. Locate the IP-Tool installer on the included Product Documentation

CD, then install on the PC. Open the installed application.

3. Modify the IP address. The default IP address is 192.168.226.201.

Click the information of the camera listed in the above table to show

the network information on the right side. Modify the IP address and

gateway of the camera and make sure its network address is in the

same local network segment as the computer’s. Please modify the

IP address of your device according to the practical situation.

For example, the IP address of your computer

is 192.168.13.4. So the IP address of the

camera shall be changed to 192.168.13.X.

After modification, please input the password

of the administrator and click “Modify” button

to modify the setting.

** Default admin password: “123456".

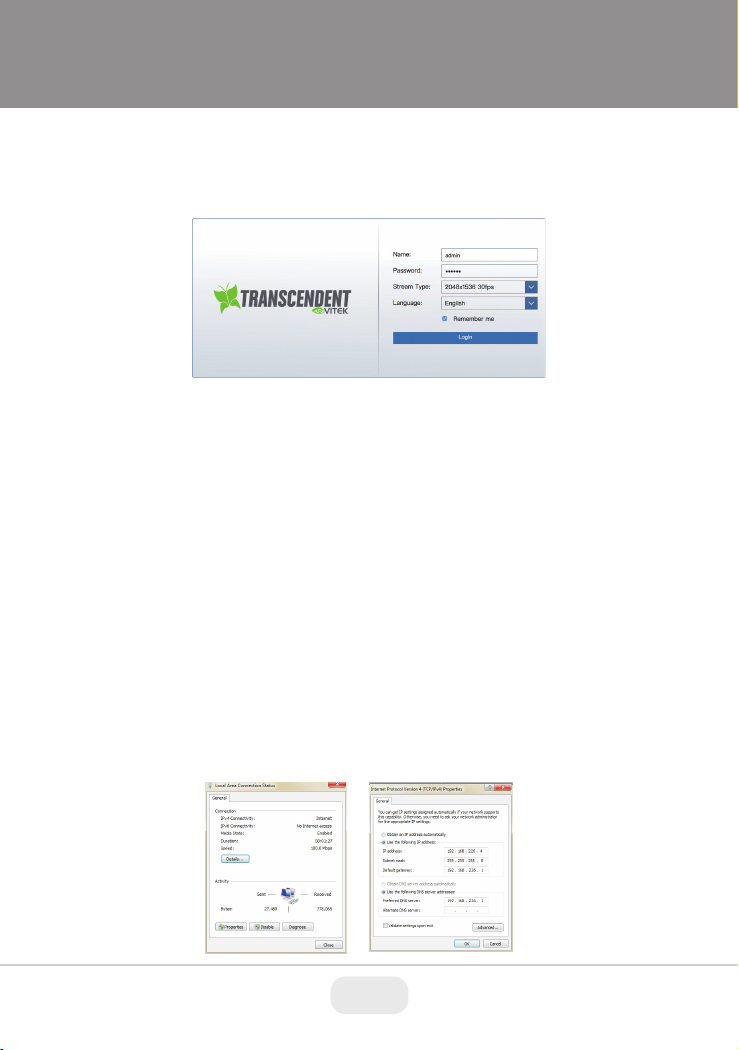

4. Double-click the IP address and then the system will pop up the web

browser to connect IP-CAM . IE browser will download the Active X

control automatically. After downloading, a login window will pop up

as shown below:

Input the user name and password to log in.

Default user name: admin / Default password: 123456.

Directly Access Through a Web Browser

The default network settings are as shown below:

IP address: 192.168.226.201 HTTP: 80

Subnet Mask: 255.255.255.0 Data Port: 9008

Gateway: 192.168.226.1

You may use the above default settings when you log in the camera for

the first time.

1. Manually set the IP address of the PC and the network segment

should be as the same as the default settings of IP-CAM. Open the

network and share center. Click “Local Area Connection” to pop up

the following window.

Select “Properties” and then select Internet protocol according to the

actual situation (for example: IPV4). Next, click “Properties” button to

set the network of the PC.

2. Open the IE Browser and input the default address of IP-CAM and

confirm. The IE browser will download Active X control automatical-

ly.

3. After downloading Active X control, the login dialog box will pop up.

4. Input the default username and password and then enter to view.

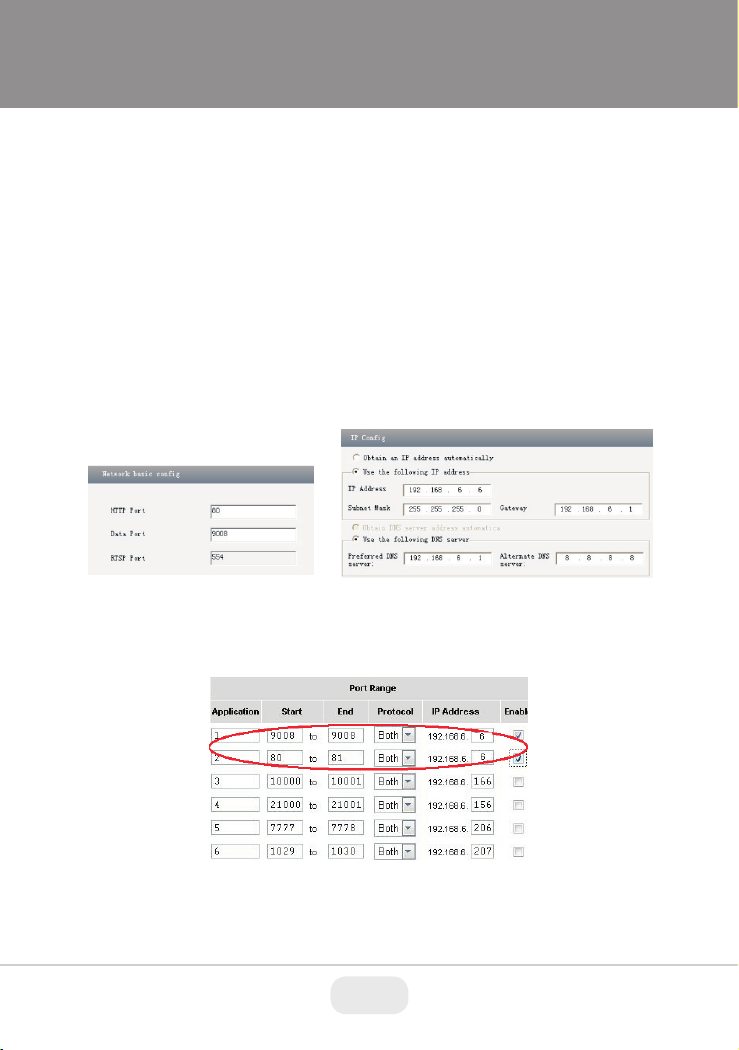

WAN Configuration

Access the camera by the router or virtual server for example.

1. Make sure the camera is connected to the LAN; Then log into the

camera via LAN and go to System Congfig→Network Config→Port

menu to set up the port number.

2. Enter System Config→Network Config→IP Address menu to modify

the IP address.

4. Open the web browser and input its WAN IP and HTTP port to

access the IP-CAM.

3. Go to the router’s management interface through IE browser to

forward the IP address and port of IP-CAM in the “Virtual Server”.

Rubber Plug
