Vitek VTC-T4T3HR2MD Manuale utente

VITEK

FEATURES

• 1/2.9” 2.1 Megapixel Sony® Exmor™ Progressive Scan

CMOS Sensor

• 30fps live view @ 1920 x 1080p

• True Day/Night by IR Cut Filter

• HD-TVI / HD-CVI / AHD / 960H CVBS Video Output

(Selectable)

• Motorized 2.8~12mmMegaPixel IR Corrected Auto Focus

Varifocal Lens with CoC

• 3 Integrated High Power Dynamic IR LEDs with up to 115’

IR Range

• 3D-DNR Noise Reduction

• True Wide Dynamic Range (WDR)

• 16:9 Video format

• IP66 Weather Resistance

• Supports Up The COAX Control (CoC)

• Over 1500’ HD Video Transmission (Depending on cable

characteristics and integrity)

• Optional Junction Box Mount Available (VT-TJB04A)

• 12VDC / 24VAC Dual Voltage Operation

• 3 Year Warranty

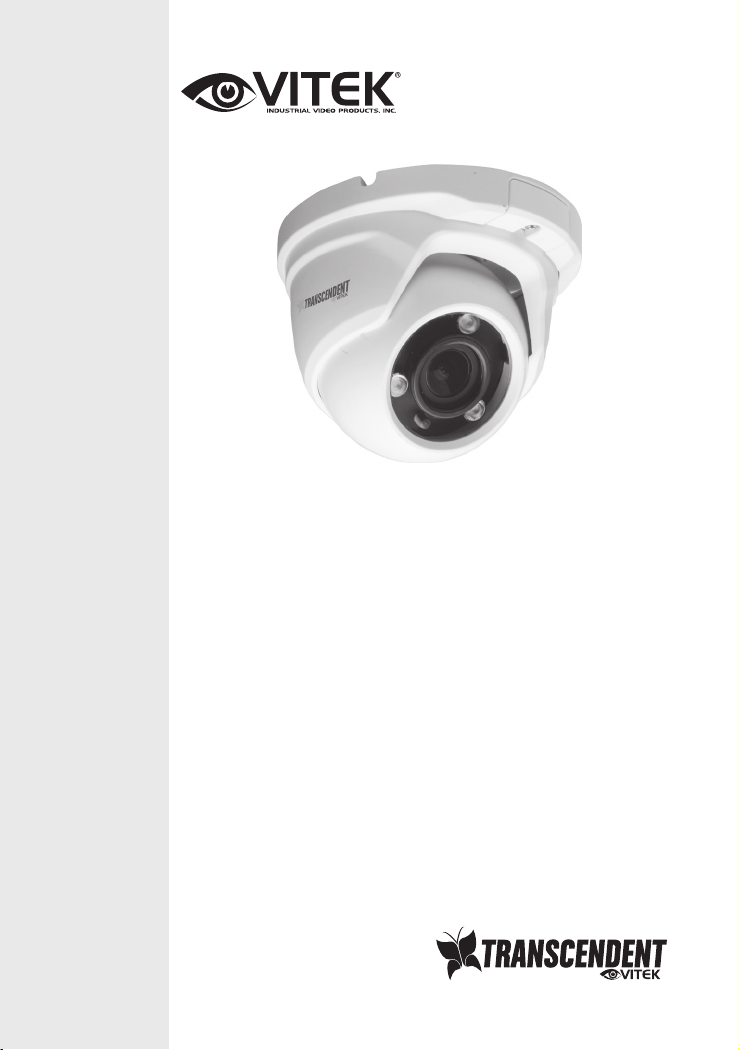

VTC-T4T3HR2MD

2.1 Megapixel 4-IN-1 HD-TVI /

AHD / CVI / CVBS Motorized

Varifocal WDR Ball/Turret

Camera w/IR LED Illumination

2 3

Safety Precaution

CAUTION: TO REDUCE THE RISK OF ELECTICAL

SHOCK, DO NOT REMOVE COVER (OR BACK).

NO USER SERVICEABLE PARTS INSIDE.

REFER SERVICING TO QUALIFIED SERVICE PERSONNEL

To prevent electrical shock and risk of fire hazards, do not expose this unit

to rain or moisture and only use specified power source..

Warning :

This equipment has been tested and found to comply with the limits for a Class

A digital device, pursuant to part 15 of the FCC Rules. These limits are designed

to provide reasonable protection against harmful interference when the equipment

is operated in a commercial environment. This equipment generates, uses, and

can radiate radio frequency energy and, if not installed and used in accordance with

the instruction manual, may cause harmful interference to radio communications.

Operation of this equipment in a residential area is likely to cause harmful

interference in which case the user will be required to correct the interference at

their own expense.

Caution :

Any changes or modifications in construction of this device which are not expressly

approved by the party responsible for compliance could void the user's authority

to operate the equipment.

Main power quality should be that of a typical commercial environment. If the user

of the model requires continued operation during power interruptions, it is

recommended that the device be powered from an uninterruptible power supply

(UPS).

The symbol is intended to alert the user to the presence of important

operating and maintenance (servicing) instructions in the literature

accompanying the unit.

The symbol is intended to alert the user to the presence of uninsulated

"dangerous voltage" within the product's enclosure that may be of

sufficient magnitude to constitute a risk of electrical shock.

Power & Video Connections

Monitor

Video

12VDC / 24VAC Power

Connect the HD-TVI Video or AHD/CVBS video connector to a BNC

patch cable, then to a DVR. Next connect the power connector to a

12VDC or 24VAC power adaptor.

Installation

1) Disconnect power before installation.

2) Confirm proper 12VDC or 24VAC power supply is used to prevent

damage to the camera.

3) Do not use in an environment beyond the boundaries of the

specifications.

Video Output Mode Switch:

Select the desired video mode using the dip switches

contained within the on-cable Output Mode Switch as follows:

CVBS

AHD

HD-TVI

CVI

4 5

OSD Instruction

1. IRIS

2. 2-MOTOR

IRIS ALC

2-MOTOR

EXPOSURE

BACKLIGHT OFF

DAY&NIGHT

COLOR

DNR LOW


MOTION OFF

SYSTEM

EXIT

IRIS ELC

2-MOTOR

EXPOSURE

BACKLIGHT OFF

DAY&NIGHT

COLOR

DNR LOW


MOTION OFF

SYSTEM

EXIT

2-MOTOR

AF (Auto Focus))

Choose between Auto focus and Manual focus.

SCANNING

When Lens scans Half or Full for focusing.

SYNC TDN

Lens scans Half or Full for focusing. Adjust lens

when switching from Day to Night or Night to Day.

INITIAL

Sets lens parameters from close to far.

IRIS

Electronic Light Control (ELC)

When using a fixed or manual iris lens, the

camera's ELC can adjust for moderate changes in

illumination levels. While it is fine for indoor

applications in fixed illumination conditions, a

fixed iris and ELC circuitry cannot approach the

range of illumination usable with an auto-iris lens

and ALC circuitry.

Automatic Light Control (ALC)

When using an auto-iris lens, the ALC circuitry

samples the illumination level and automatically

adjusts the iris to create the proper sized aperture

for proper exposure.

BACKLIGHT OFF

DNR LOW

MOTION OFF

AF MODE AUTO

SCANNING HALF

ONE PUSH AF ON

SYNC TDN ON

INITIAL ON

RETURN

3. EXPOSURE

4. BACKLIGHT

IRIS ELC

2-MOTOR

EXPOSURE

BACKLIGHT BLC

DAY&NIGHT

COLOR

DNR LOW


MOTION OFF

SYSTEM

EXIT

BACKLIGHT

OFF/HLC/BLC/WDR, used in different environment.

HLC (High Light Compensation)

Cuts out the bright area with a mask and excludes it

from compensation..

LEVEL (0~20)

Sets the HLC level. It determines the video level that

starts cutting out. Lower setting starts the cut out at a

lower light level. The cut out area is masked with

selected color.

COLOR

Select mask color from 9 colors. Black, White,

Yellow, Cyan, Green, Magenta, Red, Blue and

Customize.

BLC (Backlight Compensation)

Compensates the video image by cutting out the

bright areas with a mask or adjusting the contrast of

the video. This function is used to brighten an image

in the foreground with a bright light area behind it

such as sunlight, limiting the affect of silhouette. BLC

has a target window for compensation and its size

and position can be set by H-POS, V-POS, H-SIZE and

V-SIZE.

H-POS, V-POS

Sets the position of BLC area to move vertically and

horizontally.

H-SIZE, V-SIZE

Sets the size of BLC area to move vertically and

horizontally.

WDR:

HIGH/ MIDDLE/ LOW level，selectable, 30fps.

Note:CVBS will stop when WDR is turned on.

EXPOSURE

BRIGHTNESS

0-20 selectable.

SHUTTER

AUTO/FLICKER/MANUAL

MANUAL MODE

1/25、1/50、1/100、1/200、1/400、1/800、1/1600、

1/3200、1/6400、1/12800、1/25600、1/30000,

selectable.

AUTO

DEBLURE/NORMAL., selectable.

SENS-UP

OFF、X2、X4、X8、X16、X32 selectable.

AGC

0-20 selectable

DNR LOW


MOTION OFF

H-POS 6

V-

POS 4

H-SIZE 5

V-SIZE 3

RETUREN

IRIS ELC

2-MOTOR

EXPOSURE

BACKLIGHT OFF

DAY&NIGHT

COLOR

DNR LOW


MOTION OFF

SYSTEM

EXIT

BACKLIGHT OFF

DNR LOW


MOTION OFF

BRIGHTNESS

SHUTTER MANUAL

SENS UP X2

AGC

RETURN

SHUTTER MANUAL

6 7

5. DAY&NIGHT

6. COLOR

IRIS ELC

2-MOTOR

EXPOSURE

BACKLIGHT OFF

DAY&NIGHT

COLOR

DNR LOW


MOTION OFF

SYSTEM

EXIT

IRIS ELC

2-MOTOR

EXPOSURE

BACKLIGHT OFF

Day& NIGHT EXTERN

COLOR

DNR LOW


MOTION OFF

SYSTEM

EXIT

DAY & NIGHT

Switch settings of Day and Night mode.

AUTO

Used when DAY or NIGHT is determined by light

level through the lens.

COLOR

The camera is always in COLOR mode. DAY/NIGHT

is disabled and outputs color video

B&W

The camera is always in B/W mode. Forcibly

removes IR cut filter and switches to B/W regardless

of light level.

EXTERN

DAY or NIGHT is determined by the built-in light

photo sensor for cameras with built-in IR LEDS.

ANTI-S AT

Sets the anti saturation level 0~20. Setting high

level avoids saturation but the corners will be

darker accordingly.

D＞N THRES & N＞D THRES

Sets the light level for switching from Day to Night /

Night to day.

D EL AY

Is time in seconds while camera maintains its status

before Day to Night / Night to Day switching. (Only

available when mode is AUTO or EXTERN).

COLOR

AWB (Auto White Balance)

Automatically tracks the changes of color

temperature and continuously adjusts the white

balance. AUTO, AUTOext, PRESET and MANUAL

modes are available.

AUTO

Optimized for Indoor installation and compensates

AWB for low color temperature such as

incandescent lights.

AUTOext

Optimized for outdoor sunlight applications and

compensates AWB for high color temperature such

as sunlight.

PRESET

AWB is performed only whenever button is pressed.

MANUAL

White balance is fixed to the settings by

Color-Temperature Red-GAIN and Blue-GAIN. It can

be used only when the color temperature does not

va r y.

DNR LOW

MOTION OFF

ANTI-SAT.

EXTERN SW NONE

D＞N THRES

N＞D THRES

DELAY LOW

RETURN

DNR LOW


MOTION OFF

WB MANUAL

COLOR GAIN

RETUEN

7. DNR

8. IMAGE

IRIS ELC

2-MOTOR

EXPOSURE

BACKLIGHT OFF

DAY&NIGHT

COLOR

DNR LOW


MOTION OFF

SYSTEM

EXIT

DNR

3D-NR (Digital Noise Reduction)

DNR function improves picture quality by filtering

out signal noise which is generated under low light

conditions. Set off, low, middle or high level. 3DNR

(3-dimensional noise reduction) which reduces

noise by multi frames. It is effective in low light. Set

to high will reduce the most noise but the image

will be less sharp and a tailing effect might occur.


SHARPNESS

Sets the Sharpness level 0~10. Increases or

decreases the sharpness of the picture. Too much

sharpness can make image harsh and show more

noise as well as line flicker at the edge of object in

the picture

GAMMA

Used to adjustment the monitor GAMMA value

0.45/0.55/0.65/0.75 selectable.

ORIENTATION

NORMAL / MIRROR / FLIP / MIRROR_V.

ACE

Improves the visibility for the bright areas and the

dark areas by compensating the video gain. Care

should be taken to select low, middle or high level,

because video may lose its quality in some

environments by over compensation. Video noise

can be increased in the dark area accordingly

DEFOG

Enhance foggy video according to status of scene.

Vide

o quality can be less in normal environments.

PRIVACY

Set ON/OFF for enabling/disabling PRIVACY mask.

16 privacy areas are available and each area is

programmable in size, color, position and

transparency.

ZONE NUM

Selects mask zone number from 0 to 16 to be

adjust.

‘

ZONE DISP

Displays OFF/ON for the mask area which you

selected.

H-POS, V-POS

Adjusts the mask area H, V position which you

selected.

TRANS

Selects transparency rate for the mask area from 0

to 3

DNR LOW


MOTION OFF

SYSTEM

SHARPNESS

GAMMA 0.55

ORIENTATION NORMAL

FLIP OFF

ACE OFF

DEFOG ON

PRIVACY

RETURN

IRIS ELC

2-MOTOR

EXPOSURE

BACKLIGHT OFF

DAY&NIGHT

COLOR

DNR LOW


MOTION OFF

SYSTEM

EXIT

8 9

9. MOTION

IRIS ELC

2-MOTOR

EXPOSURE

BACKLIGHT OFF

DAY&NIGHT

COLOR

DNR LOW


MOTION ON

SYSTEM

EXIT

MOTION

3 motion detection areas are available and each

area is programmable in size and location.

Motion can be detected in the area and

displays the results in blocks and/or a text

message

DET WINDOW

WINDOW ZONE : Set the detection zone

number from 0 to 3.

H-POS

0-60 horizontal starting point.

V-POS

0-34 vertical ending point.

H-SIZE

0-60 horizontal ending point.

V-SIZE

0-34 vertical ending point.

DET ZONE

Sets the detection zone 0 to 4 display types

which window use setting ON.

0) Set 100% opacity level of video background

except detection window zone.

1) Set 50% opacity level of video background

except detection window zone.

2) Set 25% opacity level of video background

except detection window zone.

3) Video background image is same as

detection window zone.

4) Detection window zone is displayed with box

line

MDRECT FILL

Sets the motion display type when motion is

detected in video. Setting ON will display a red

solid box type. Setting OFF will display a red

outline box type

Sensitivity

Sets the detection sensitivity for motion (0~10).

Higher values increases the sensitivity to detect

motion. Too low of a value will cause the erratic

detection by tree leaves or light level changes

MOTION OSD

Set ON or OFF to display motion results.

TEXT ALARM

Setting ON enables to display a text message

“WINDOWS MOVING!!” or icon when motion

is detected.

SYSTEM

DET WINDOE

DET TONE 2

MORECT FILL OFF

SENSITIVITY

MOTION OSD OFF

TEXT ALARM OFF

SIGNAL OUT OFF

RETURN

10. SYSTEM

IRIS ELC

2-MOTOR

EXPOSURE

BACKLIGHT OFF

DAY&NIGHT

COLOR

DNR LOW


MOTION OFF

SYSTEM

EXIT

SYSTEM

COM.

RS-485 Communication setting ID: 0-255,

BAUDRATE: 2400/4800/9600/57600/115200

selectable.

IMAGE RANGE

USER/FULL/COMP, the OFFSET of USER: 0-32.

COLOR SPACE

HD-CbCr、YUY、SD-CbCr.

FRAME RANGE

1080P/720P_ (25fps/30fps), selectable.

Monitor

0-3, choose a different screen style.

FREQ

NT SC/PAL.

CVBS

ON/OFF.

LAUGUAGE

Multiple languages CHN [S], CHN，EN、JPN

KOR、I TA

COLOR BAR

OFF/ON，used in color contrast test (color bar

on screen).

CAM TITLE

Using the OSD button select letters by

pushing button up, down, left or right.

RESET

Hold OSD button for 10 seconds to reset

camera

COLOR

DNR LOW


MOTION OFF

SYSTEM

DNR LOW

COM.

IMAGE RANGE USER

COLOR SPACE HD-CbCr

FRAME RATE 1080P_30FPS

Monitor 0-3

FREQ PAL

CVBS ON

LANGUAGE CHN[S]

COLOR BAR

CAM TITLE OFF

RESET ON

RETURN

IMAGE RANGE USER

10 11

CONSIDER THESE OTHER GREAT

TRANSCENDENT PRODUCTS!

VT-TJB04A

Optional Junction Box for Cable

Management for use with VTC-

T4T3HR2MD & VTD-T4D24R2MD

• 4, 8, 16, or 32 Channel HD-TVI / AHD / CVI / CVBS BNC Inputs + IP Camera Support

• 1-Channel IP Camera Support (VT-TTAR410 / VT-TTAR810) / 4-Channel IP Camera

Support (VT-TTAR1620 / VT-TTAR3280)

• 960fps @ 720p & 1080P-Lite / 480fps @ 1080p Recording

• Simple plug and play, point-to-point connection from camera to DVR

• H.264 Compression

• HDMI, VGA, and BNC (Spot) Video Outputs

• 2-Way Audio

• PTZ Control over RS-485

• 16 Alarm inputs / 4 Alarm Output

• Pentaplex: Live Display / Record / Playback / Backup / Remote Access

• 1 Internal SATA2/SATA3 HDD Slot supporting up to 8TB (1 x 8TB HDD) (VT-TTAR410

/ VT-TTAR810) / 2 Internal SATA2/SATA3 HDD Slots supporting up to 16TB (2 x 8TB

HDD) (TTAR1620) / 8 Internal SATA2/SATA3 HDD Slots supporting up to 64TB (8 x

8TB HDD) Internal Storage (VT-TTAR3280)

• Applications for iOS & Android

• Remote Viewing over the Internet via Web Browser or LAN

• Mac OS® Client & CMS Central Management Software Included

• Supports both Dynamic and Static IP Addresses

• Control locally via USB Mouse, or with the Included IR Remote control

• 3 Year Warranty

VT-TTAR Series

Transcendent Series 4, 8, 16, and 32 Channel 5-In-1 HD-TVI / AHD /

CVI / 960H / IP Digital Video Recorders

Altri manuali per VTC-T4T3HR2MD

Indice

Altri manuali Vitek Telecamera di sicurezza

Vitek

Vitek VTC-TNB4RMA4 Manuale utente

Vitek

Vitek VTC-IRE70 Manuale utente

Vitek

Vitek VIRTUOSO Manuale utente

Vitek

Vitek VT-PTZ220HD Manuale utente

Vitek

Vitek Transcendent Series Manuale utente

Vitek

Vitek TRANSCENDENT VTC-TNB48R4M2 Manuale utente

Vitek

Vitek Transcendent 3 Series Manuale utente

Vitek

Vitek VTD-VH49VP4 Manuale utente

Vitek

Vitek Virtuoso Series Manuale utente

Vitek

Vitek Transcendent Series Manuale utente

Vitek

Vitek VTD-MVH2910DN Manuale utente

Vitek

Vitek VTD-C410 Manuale utente

Vitek

Vitek TRANSCENDENT VTD-T4D6HR5MD Manuale utente

Vitek

Vitek Transcendent VTD-TNMD4RFA4-2 Manuale utente

Vitek

Vitek Transcendent Series Manuale utente

Vitek

Vitek VTD-C410 Manuale utente

Vitek

Vitek Alpha VTC-IRLED24 Manuale utente

Vitek

Vitek VTD-TND4RMS Manuale utente

Vitek

Vitek VTD-C510 Manuale utente

Vitek

Vitek Transcendent VT-TPT23HR-WM Manuale utente

Vitek

Vitek Transcendent VTC-THB2RFS Manuale utente

Vitek

Vitek VTC-TNB5RFEA-2 Manuale utente

Vitek

Vitek STARLIGHT VTC-IRM30-2812 Manuale utente

Vitek

Vitek VTC-TNT8RMA4 Manuale utente

Manuali Telecamera di sicurezza popolari di altre marche

Okina USA

Okina USA SIR36-870VF650LP Manuale utente

Divio

Divio NDR155PA Manuale utente

Canon

Canon VB-C500D Manuale utente

Easy Access

Easy Access EasyGuard Manuale utente

Vivotek

Vivotek FD9389-EHV-v2 Manuale utente

TUYA

TUYA COSMO W2 Manuale utente

Eusso

Eusso UNC7500-IR Guida all'installazione

urmet domus

urmet domus 1096/204 Manuale utente

VC VC20 series Manuale utente

Axis

Axis Q1614 Manuale utente

ieGeek

ieGeek DD201 Manuale utente

VADDIO

VADDIO ClearVIEW HD-USB PTZ 999-6990-000 Manuale utente

Vicon

Vicon V662-D-1 Istruzioni operative

Grundig

Grundig GCH-K0274P Manuale utente

Lorex

Lorex VANTAGE LBC7032 Manuale utente

4xem

4xem WPT Manuale utente

Samsung

Samsung SCV-3082 Manuale utente

Lumens

Lumens VC-A50PNW Manuale utente
