Vitesse VITM4-2CH Manuale utente

• The Vitesse modular system is a cost effective method of providing power and control for lighting installations in in-

dustrial, commercial and retail buildings. The system is designed for ease of installation: mains input is connected

using the spacious wiring compartment; control inputs and outputs are pluggable using industry standard connectors.

The modular approach allows for between 4 and 16 luminaires to be connected.

• The VITM4-2CH is a two channel, non-dimming distribution box for use in applications that require two independently

switched lighting circuits, or lighting and ventilation circuits. For example this product is ideal for connection to a 2

channel presence detector for separate window row switching. It has two live inputs, a common neutral and two

switch inputs.

VITM4-S-2CH

Vitesse modular starter for non-dimming systems

VITM4-E-2CH

Vitesse modular extender for non-dimming systems

Channel for channel nuts (zebs)

Removable gland plate with

3 x Ø20mm knockouts

3 x Ø20mm knockouts for rear

cable entry

4 x key slots to accept M6 (1/4”)

fixings

BESA box fixings

202mm

150mm

146mm

127mm

122mm

75mm

Fixing points

M6 (1/4”)

Warning. This device works at mains voltage. Be sure to take care when working with electricity.

• The box should be fixed on a smooth, flat surface or using drop rod fixings attached to channel nuts.

• Ensure that there is easy access to the wiring compartment and all connectors once the box is in-situ.

Height - allow 150mm for total height of unit (including connectors and cable)

9 pole interface

connector and lead

supplied with

detectors

Channel 1 Channel 2 Channel 1 Channel 2

Overview

Vitesse Modular 4 - 2 Channel Switching Modules

Product Guide

System Components

Installation

VITM4-2CH

Install this way up

The unit MUST be

installed this way up

to ensure good lock

of cable plug to

socket.

• All wiring should be mains rated.

• Remove wiring compartment cover. Wire the box using the diagrams

below

On/off 1 and On/Off 2 connect switches through to detectors

Switched live turns the lights on and off

• Use the cable clamps to secure the wiring or use cable glands (not

supplied). The clamps can be split, and flipped over to clamp

different cable diameters.

• Replace wiring compartment cover.

• Plug in the luminaires ensuring that the connector latches to the box.

• The unit MUST be installed orientated as per the arrow to ensure

good lock of cable plug to socket!

Small

cables

Large

cables

Cable clamps

Permanent Live

Neutral-Supply in

Earth

Live 1-Switched

Live 2-Switched

On / Off 1

On / Off 2

Live 1-Supply in

Live 2-Supply in

Local lighting switch and local emergency test switch

NEL

Local emergency

test switch

Local lighting

switch 1

Emergency test using central switch

NELMultiple boxes

DO NOT WIRE ACROSS

PHASES

Central

emergency test

switch

A local lighting switch may still be used when there

is a central emergency test switch or when a circuit

breaker is used to interrupt the power.

Wire link

NEL

Wire link

Channel 1 Channel 2

Local lighting

switch 2

Emergency test using power interruption

Wiring

Wiring using single supply

Luminaire connections / Lead colours

Permanent Live Black (4 core only)

Neutral Blue

Earth Green / Yellow

Switched Live Brown

Install this way up

Local lighting switch and local emergency test switch

NEL1

Emergency test using central switch

NEMultiple boxes

Emergency test using power interruption

DO NOT WIRE ACROSS

PHASES

A local lighting switch may still be used when there

is a central emergency test switch or when a circuit

breaker is used to interrupt the power.

Wire link

Sensor

Detector lead needs to be ordered separately

from the detector. Order code VITM4-L3-2CH.

Where two detectors connect to a single box a

dual lead is available VITM4-LD3-2CH.

CH1 and CH2 plugs are coded.

Ensure that the plugs are

inserted correctly and do not

apply excessive force

L1 L2

L2L1

Central

emergency test

switch

Local emergency

test switch

Local lighting

switch 1

Local lighting

switch 2

Wiring using dual supply

Connecting a detector

NEL

Single live supply Dual live supply

NEL1 L2

NEL

Single live supply Dual live supply

Wire link

NEL1

• Diagrams show separate switches for each channel. One switch can be used for both channels. For 2 switches set

switch mode on detector to “1 position switch separate” otherwise it can be left as default for 1 switch operation set

to “1 position switch together.”

• In 2 switches mode as shown, short push turns ON, Long held push turns OFF (>1 sec)

(Allow a few minutes initial power-on setup to take place before operation the switches!)

• See detector programming manual further information.

Presence detector connections - Automatic on, automatic off

Absence detector connections - Manual on, automatic off

Switch Noise Filtering

Due to the noise filtering process, there is a small delay of ~0.3 seconds. Therefore, kindly apply an assured push action

to these momentary switches, as fast clicks on the switches will be ignored as they are treated as noise on the line.

Ch1

Ch2

Ch1

Ch2

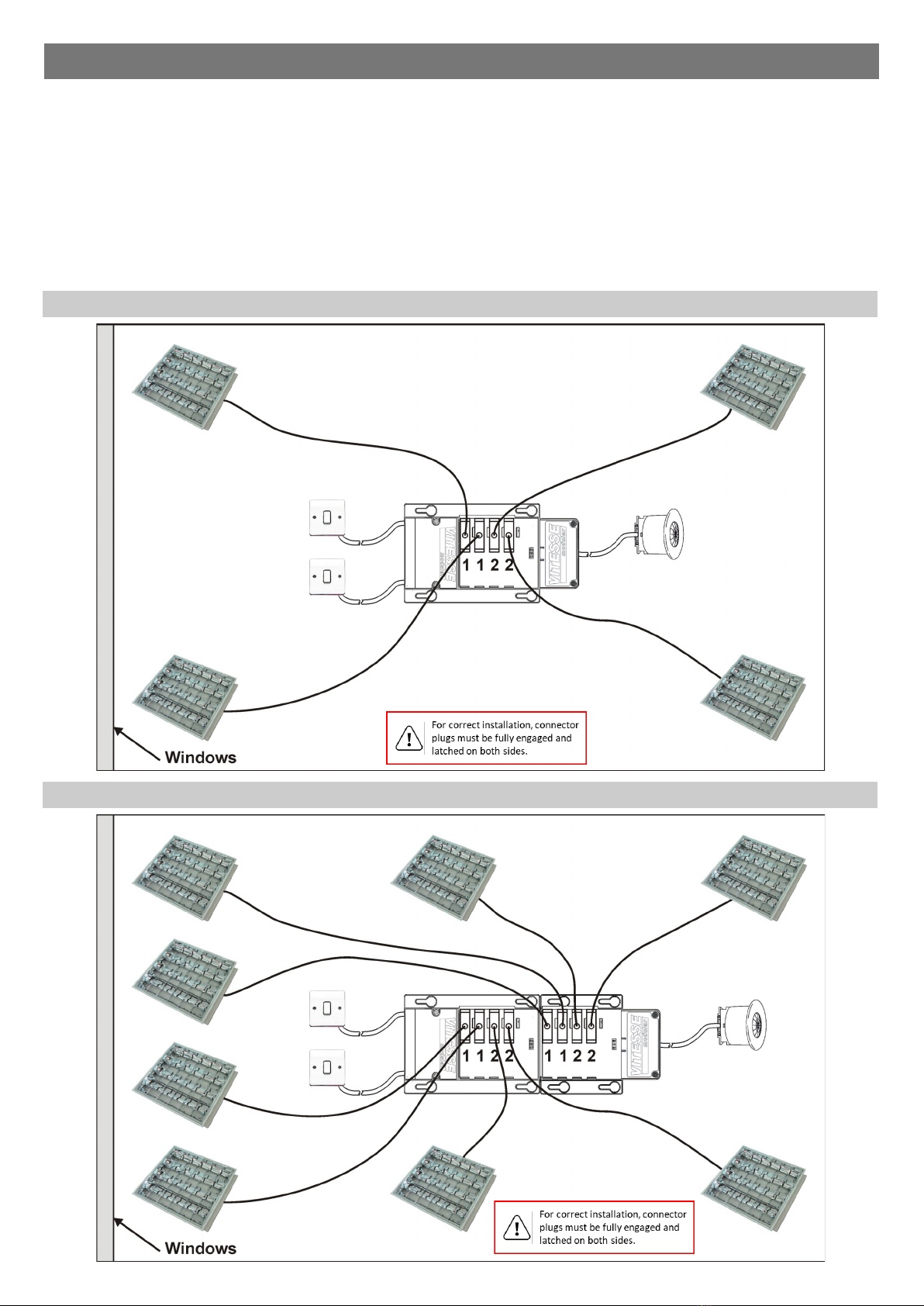

Window / room switching

Window / room switching + Extender

2 Channel detectors

The flexibility of using two channels detectors allows the following scenario:

• Channel 1 - occupancy and lux

Channel 1 of the detector can be used to switch the Channel 1 luminaires at a preset lux level. These luminaires

are typically situated nearest the windows. The luminaires will also switch with occupancy.

• Channel 2 - occupancy only

The inner luminaires, ie those furthest from the windows, are switched with occupancy only.

Switch inputs

• One or two manual switches, ie for luminaires on channels 1 and 2, can be used to manually override the lights on

or off, or in the case of absence detection activate the luminaires on entry.

The diagrams below illustrate a typical application.

Applications

This page intentionally left blank

Due to our policy of continual product improvement CP Electronics reserves the right to alter the specification of this product without prior notice.

Modules

VITM4-S-2CH 4 pole starter box, 2 channel

VITM4-E-2CH 4 pole extender box, 2 channel

Presence / Absence Detectors

Connectors

Detector Leads (LSF)

VITM4-L3-2CH 3m 2 channel sensor lead

VITM4-LD3-2CH 3m 2 channel dual detector sensor lead

VITM4-LPW 4 pole luminaire plug white

Luminaire Leads (LSF)

VITM4L303100W 3 core 3m 1.0mm2 White plug

VITM4L305100W 3 core 5m 1.0mm2 White plug

VITM4L403100R 4 core 3m 1.0mm2 Red plug

VITM4L405100R 4 core 5m 1.0mm2 Red plug

Other leads available to order.

Part numbers

C.P. Electronics Ltd

Brent Crescent

London

NW10 7XR

United Kingdom

Tel: + 44 (0) 333 900 0671

Fax: + 44 (0) 333 900 0674

www.cpelectronics.co.uk

[email protected]

Ratings

Voltage 230VAC +/- 10%

Frequency 50Hz

Terminal capacity 4mm2 in wiring compartment

Temperature 0ºC to 35ºC

Power Rating of system 16A. Rating of each output 10A (but limited on

the detector output rating, check datasheet of detector!

Compliance LVD-2014/35/EU

For further compliance information visit

www.cpelectronics.co.uk/compliance

For lighting purposes only with suitable circuit protection. For fixed wiring

only

Ref: #WD325 Issue 8

IMPORTANT NOTICE!

This device should be installed by a

qualified electrician in accordance with

the latest edition of the IEE wiring

regulations.

UK Patent no. GB2463063

EU patent pending

EU registered design no.

001587544-0001, 001587544-0002

EBDSPIR-PRM-2CH PIR 2-Channel presence detector

EBDSPIR-PRM-2CH-NC PIR 2-Channel presence detector, normally closed fail safe contacts

MWS3A-PRM-2CH Microwave 2-Channel presence detector

MWS3A-PRM-2CH-NC Microwave 2-Channel presence detector, normally closed fail safe contacts

MWS6-PRM-2CH Microwave 2-Channel presence detector

MWS6-PRM-2CH-NC Microwave 2-Channel presence detector, normally closed fail safe contacts
