ViTiny UM08B-CSZ064 Manuale utente

Version 1.0A

UM08B-CSZ064

User’s Guide

Contents

1. Product Introduction ...........................2

1.1 Packing Contents .........................2

1.2 CSZ064 Lens Assembling .............2

1.3 IR Remote controller....................5

1.4 Microscope menu functions........8

1.5 Microscope introduction: ..........22

1.6 Microscope Focus ......................27

1.7 Microscope accessory................28

2. Printed Notice....................................29

2.1 Maintenance..............................29

2.2 Product Specification.................30

1. Product Introduction

1.1 Packing Contents

The box contains 1 camera and 9 accessories.

Item

Q’ty

Item

Q’ty

Microscope Camera

White Balance Card

HDMI Cable

IR Remote Control

Power adaptor

User’s Guide

S114 Stand

2x B-CSZ064 Lens

Stand assemble guide

LED Ring Light GN05

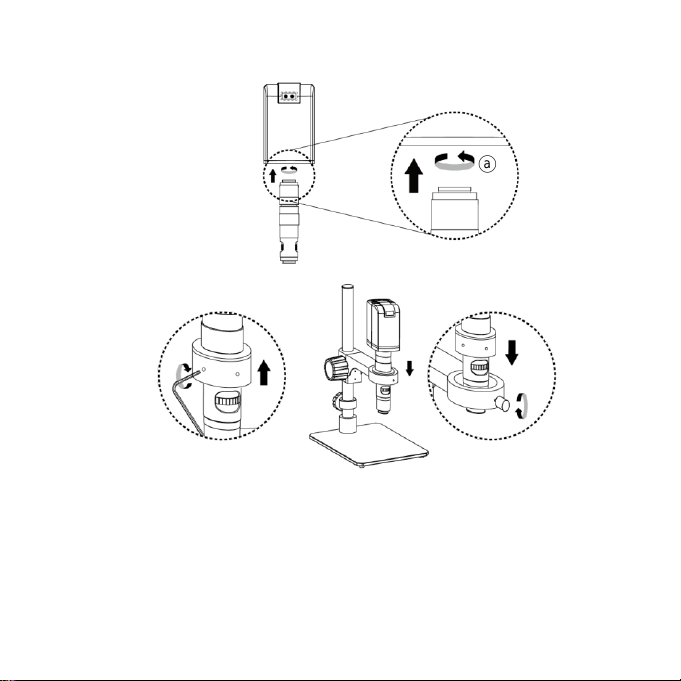

1.2 CSZ064 Lens Assembling

1.2.1 Fix microscope

Each CSZ064 lens has reach its parfocal distance when goods ship

out; simply screw ○athe CSZ064 lens under the microscope camera

and tighten up with stand○

b,refer to 1.5.3 section for assembling.

1.2.2 Start to use microscope

Connect the HDMI cable ○

cand adaptor ○

dwithin the box

to HDMI monitor and power. See below:

○

1.2.3 Power On/Off

Press Power to turn on microscope. Choose HDMI mode or

Auto on HDMI monitor to output image.

○

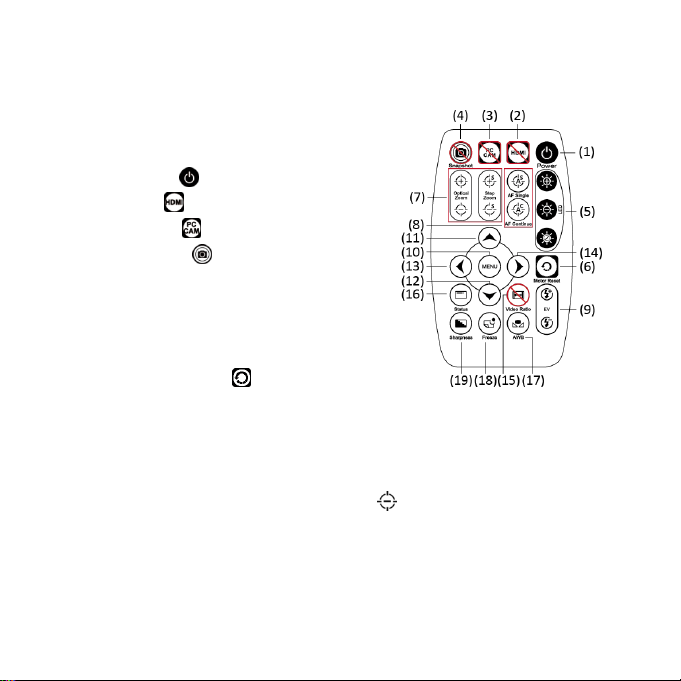

1.3 IR Remote controller

The microscope operation and

functions is controlled by the IR

remote controller.

(1) Power ：Turn on/off.

(2) HDMI ：No Function.

(3) PC CAM ：No Function.

(4) Snapshot ：No Function.

Only when connect to optional

accessory Image Capture Box

IMB05 for snapshot.

(5) LED Adjustment: No Function

(6) Motor Reset (Recalibrates

entire operation)：Returns to

the lens position. If a loss of

electricity occurred during operation, please reset the

operation.

(7) Manual focus: Press Zoom out till the end to set up the

sensor motor at the top, so that all optical objectives lens

reach the parfocal distance.

(7-1)Zoom in ：Zooms in; speed increases when held.

(7-2)Zoom out ：Zooms out; speed increases when held.

(8) Autofocus: Does not suggest to use this function in CSZ064

model. Whenever active the AF function, sensor position will

change. This might cause the sensor position not at the end so

image will not clear in every stage when manual adjust. If this

situation occurs, please refer to Section 1.6 Microscope Focus.

Press button one time to search focus in current area, press and

hold button for 2 seconds to search focus in whole area.

(8-1) Single Autofocus : Focuses one time.

(8-2) Continuous Autofocus :Re-focuses when image blurred.

(9) Exposure Value: 18 levels of exposure value are selectable,

from -9~Auto~+9.

(9-1)Increase ：Use to increase exposure when the image is

too dark.

(9-2)Decrease ：Use to decrease exposure when the image is

too bright.

(10)Menu on Screen ：Open/close menu for setting. Refer to

Section 1.4.

(11)Up ：Choose the previous item

(12)Down ：Choose the next item

(13)Left ：Choose the next value

(14)Right ：Choose the last value

(15)Video Ratio ：No Function

(16)Status Bar ：Status bar show [FL] for free lens. By switching

the Status bar, it will show OZ (sensor position), and EV

(Exposure). Each status only shows up 3 seconds.

(17)Auto White Balance Calibration : To calibrate the white

balance, place the white balance card (included in box) under

the lens, focus until clear, and choose On. Because the white

balance is sometimes influenced by external light sources, it is

recommended to calibrate the white balance if the color

seems off or incorrect.

(18)Image Freeze : ON/Off to freeze or unfreeze the image.

(19)Sharpness : On/Off to set sharpness at Minimum and

Maximum level.

1.4 Microscope menu functions

There are 8 functions in menu, press Up and Down to

choose item, Left and Right to turn on/off or adjust

parameter. Enter means more functions, press Menu to

enter next function or confirm. means no more settings.

Return to return last page, or press Left or Right to choose

“End” to return preview window.
