ViTiny UM20D-CSZ064 Manuale utente

Version 1.0

UM20D-CSZ064

User’s Guide

Contents

1. Product Introduction ...........................2

1.1 Packing Contents .........................2

1.2 Assemble microscope with stand 2

1.3 IR Remote controller....................4

1.4 Microscope menu functions........9

1.5 Microscope introduction:..........23

1.6 Microscope Focus......................26

1.7 Microscope accessory................28

2. Printed Notice....................................29

2.1 Maintenance..............................29

2.2 Product Specification.................30

2.3 Safety Instructions.....................31

1. Product Introduction

1.1 Packing Contents

The box contains microscope and accessories.

Item

Q’ty

Item

Q’ty

DiGi Microscope

HDMI Cable

D-CSZ064 Lens

(Hex Key Included)

USB-C 3.0 Cable

LED Ring Light GN03

IR Remote Control

Power adaptor

Calibrator

S115 Stand

(Instruction Guide included)

User’s Guide

White Balance Card

Software download:

http://www.vitiny.com/vitiny_en/ap_program.html

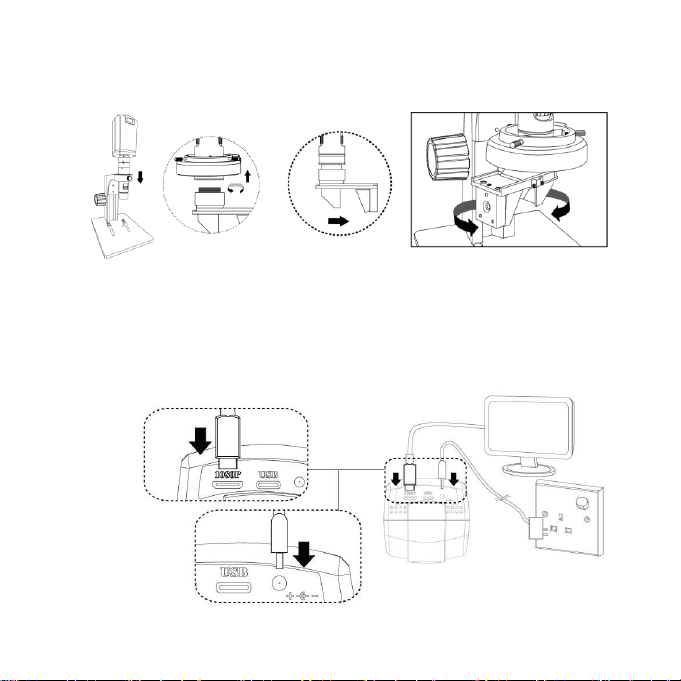

1.2 Assemble microscope with stand

1.2.1 Fix microscope

Each D-CSZ064 lens has reach its parfocal distance; simply

screw the lens under the microscope, then tighten the Ring

Light beneath and counterclockwise the 3D lens part to lens,

refer to 1.5.3 section for assembling.

Switch the 3D lens ○

ato view 3D image and 360°rotary.

1.2.2 Start to use microscope

Connect the HDMI cable○

band adaptor○

cto HDMI monitor

and power. See below:

○

3D lens part

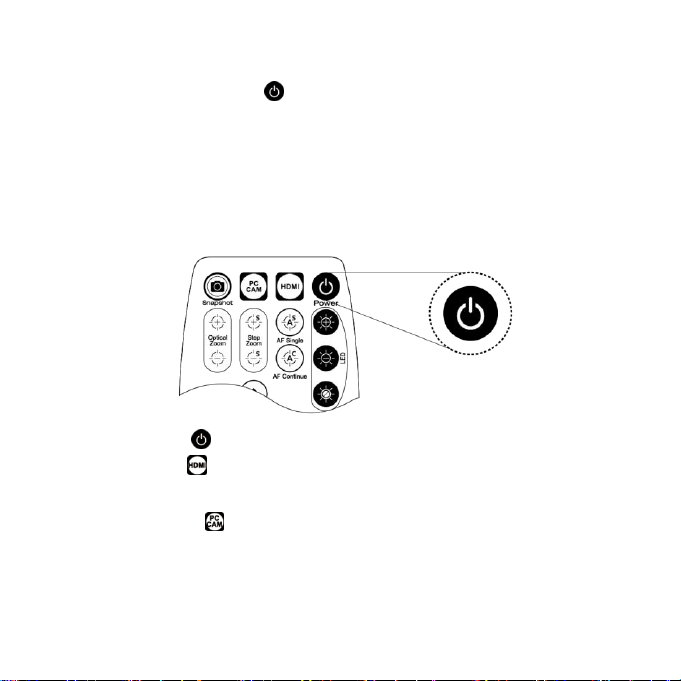

1.2.3 Power On/Off

Press Power to turn on microscope. Choose HDMI

mode or Auto on HDMI monitor to output image. *Long

press means press and hold the button for 2 seconds*

1.3 IR Remote controller

The microscope operation and functions is controlled by the IR

remote controller.

(1) Power ：Turn on/off.

(2) HDMI ：When in HDMI mode, the HDMI cable must

connect with the screen and microscope.

(3) PC CAM ：When in PC CAM mode, the USB cable must

connect to a PC and microscope. Please disable software

before switching to HDMI mode or powering off.

(4) Snapshot ：When preview on

PCCam mode, press snapshot to

take picture.

(5) LED Adjustment: No Function.

(6) Motor Reset (Recalibrates

entire operation)：Returns to

the lens position. If a loss of

electricity occurred during

operation, please reset the

operation.

(7) Manual focus

(7-1) Zoom in ：Zooms in;

speed increases when

held.

(7-2) Zoom out ：Zooms out; speed increases when held.

(7-3) Step zoom in ：zoom in by steps.

(7-4) Step zoom out ：zoom out by steps.

(8) Autofocus: Does not suggest to use this function in CSZ064

model. Whenever active the AF function, sensor position will

change. This might cause the sensor position not at the end so

image will not clear in every stage when manual adjust. If this

situation occurs, please refer to Section 1.6 Microscope Focus.

Press one time to search focus in current area, long press for 2

seconds to search focus in whole area.

(8-1) Single Autofocus : Focuses one time.

(8-2) Continuous Autofocus :Re-focuses when image blurred.

(9) Exposure Value: 20 levels of exposure value are selectable, from -

10~Auto~+9.

(9-1) Increase ：Use to increase exposure when the image

is too dark.

(9-2) Decrease ：Use to decrease exposure when the

image is too bright.

(10) Menu on Screen ：Open/close menu for setting. Refer to

Section 1.4.

(11) Up ：Choose the previous item, if Crosshair is ON, select

other color.

(12) Down ：Choose the next item, if Crosshair is ON, select other

color.

(13) Left ：Choose the next value, if Crosshair is ON, select Line

Size.

(14) Right ：Choose the last value. When MENU function is not

turn on, press to change Crosshair in Full screen size, normal

size or turn off.

(15) Video Ratio ：No Function.

(16) Status Bar ：Status bar show [FL] ○

dfor free lens. The

area○e tells the operation status and only show 3 seconds.

(16-1) Area○e：

(16-2-1) OZ：Optical Zoom. Ex: OZ：500.

500 means sensor position.

(16-2-2) SZ：Step Zoom. Ex :SZ : 500. Same format as OZ.

(16-2-3) AFS：Single Autofocus. Ex: AFS►A500, “A”means

search focus in “current area”, 500 means sensor

position. AFS►W500, “W”means search focus in

“whole area”.

○

(16-2-4) AFC：Continuous autofocus, “A”and “W”are same

function as AFS.

(16-2-5) EV：Exposure Value. Ex: EV：+5, means EV is +5,

EV：-5 means EV is -5.

(16-2-6) MR：Motor Reset.

(16-2-7) SHA：Sharpness. Ex: SHA►SET(5), means

sharpness is 5. SHA►SET(10) means the maximum 10.

(16-2-8) FRZ：Image Freeze. Ex: FRZ►ON, means freeze

image, FRZ►OFF means unfreeze image.

(16-2-9) WB：White Balance Calibration. Ex: WB►SET

means calibrate white balance.

(16-2-10) NONE：No Function.

(17) Auto White Balance Calibration : To calibrate the white

balance, place the white balance card (included in box) under

the lens, focus until clear, and choose On. Because the white

balance is sometimes influenced by external light sources, it is

recommended to calibrate the white balance if the color seems

off or incorrect.

(18) Image Freeze : ON/Off to freeze or unfreeze the image.

(19) Sharpness : On/Off to set sharpness at Minimum and

Maximum level.

1.4 Microscope menu functions

Press button to enter MENU, press Up and Down to

choose item, Left and Right to turn on/off or adjust parameter.

Enter means more functions, press Menu to enter next

function or confirm. means no more settings. Return to

return last page, or press Left or Right to choose “End” to

return preview window.
