Vivo MOUNT-G100B Manuale utente

Premium Aluminum Single Monitor Wall Mount

Scan the QR code with your mobile device or follow the link

for helpful videos and specifications related to this product.

Instruction Manual

https://vivo-us.com/products/mount-g100b

SKU: MOUNT-G100B

[email protected]om www.vivo-us.com 309-278-5303

Chat live with an agent!

GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST

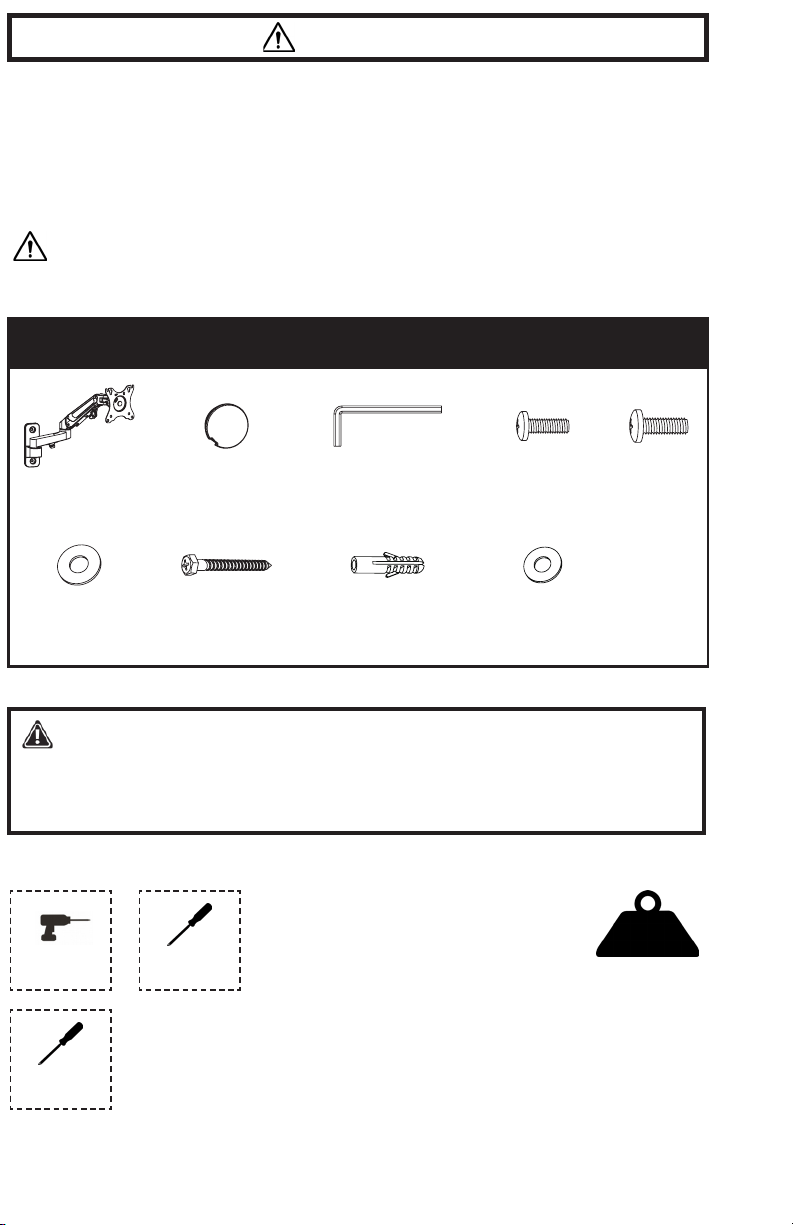

PACKAGE CONTENTS

TOOLS NEEDED

4.4-15.4lbs

(2-6.99kg)

DO NOT EXCEED WEIGHT CAPACITY.

Failure to do so may result in serious injury.

WARNING!

Phillips

Screwdriver

A (x1)

Arm

B(x2)

Screw Cover

C(x1)

5mm Allen

Wrench

W-A (x2)

Screw

W-B (x2)

Anchor

M-A (x4)

M4x12

M-B (x4)

M5x12

M-C (x4)

D5 Washer

If you do not understand these directions, or if you have any doubts about the safety of the

installation, please call a qualified technician. Check carefully to make sure there are no missing or

defective parts. Improper installation may cause damage or serious injury. Do not use this product

for any purpose that is not explicitly specified in this manual. Do not exceed weight capacity.

We cannot be liable for damage or injury caused by improper mounting, incorrect assembly or

inappropriate use.

NOTE: SOME HARDWARE INCLUDED MAY NOT BE USED

Drill

W-C (x2)

Washers

CAUTION!

DO NOT INSTALL INTO DRYWALL ALONE. VERIFY YOUR WALL CONSTRUCTION. USE WOOD STUDS TO

MOUNT. We include mounting for brick and concrete walls. If unsure, please contact us at vivo-us.

com, email at [email protected], or call us at 309-278-5303.

WARNING: CHOKING HAZARD

SMALL PARTS - NOT FOR CHILDREN UNDER 3 YEARS. ADULT SUPERVISION IS REQUIRED.

Flat Blade

Screwdriver

ASSEMBLY STEPS

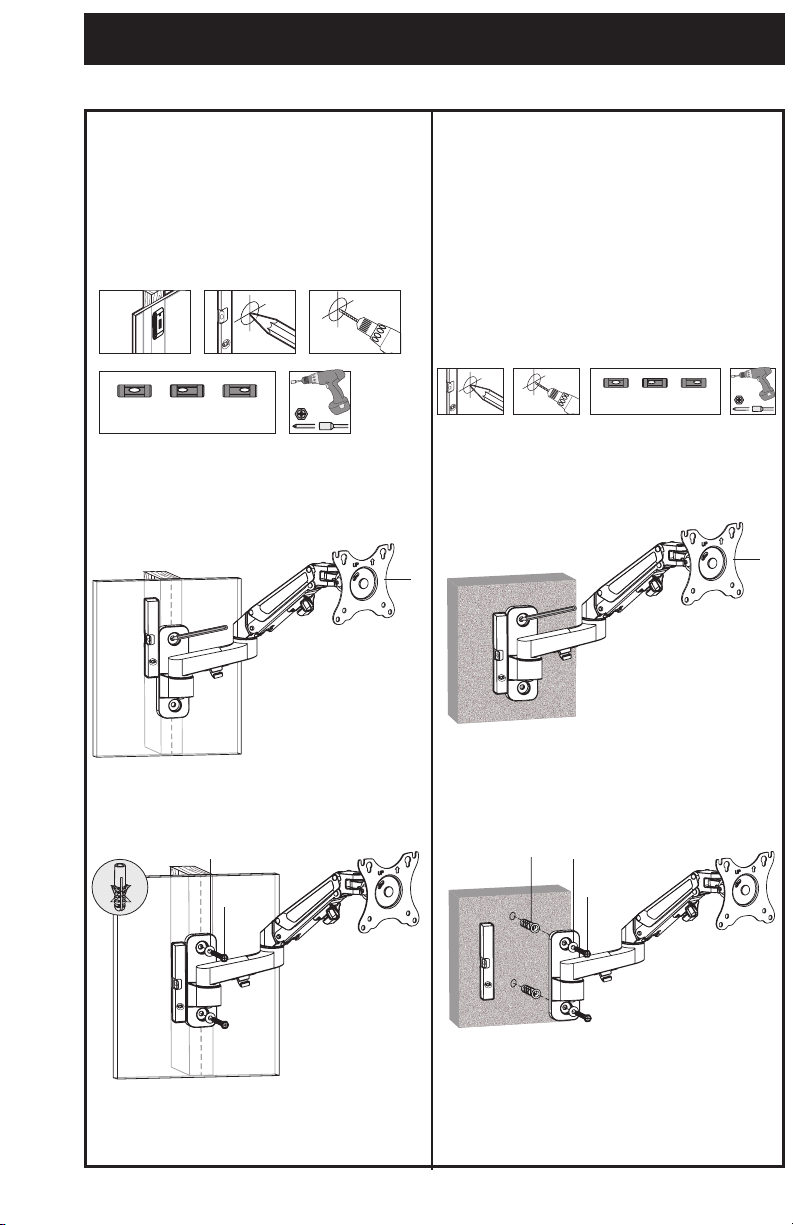

STEP 1

OPTION A: Wood Wall

Using the wall plate on the arm (A), mark

drilling locations. Use of a stud finder is highly

recommended. Drill 2.2” (55mm) deep holes using

a 3/16” (4.5mm) drill bit, and mount the arm to

the wall using screws (W-A) and washers (W-C).

OPTION B: Concrete/Brick Wall

Using the wall plate on the arm (A), mark drilling

locations. Drill 2.4” (60mm) deep holes using a

3/8” (10mm) drill bit, press anchors (W-B) into

holes, and mount the arm to the wall using screws

(W-A) and washers (W-C).NOTE: Anchors are

made for use with concrete or brick, and will not

work with drywall.

W- A

W- C

√

W- A

W- C

W- B

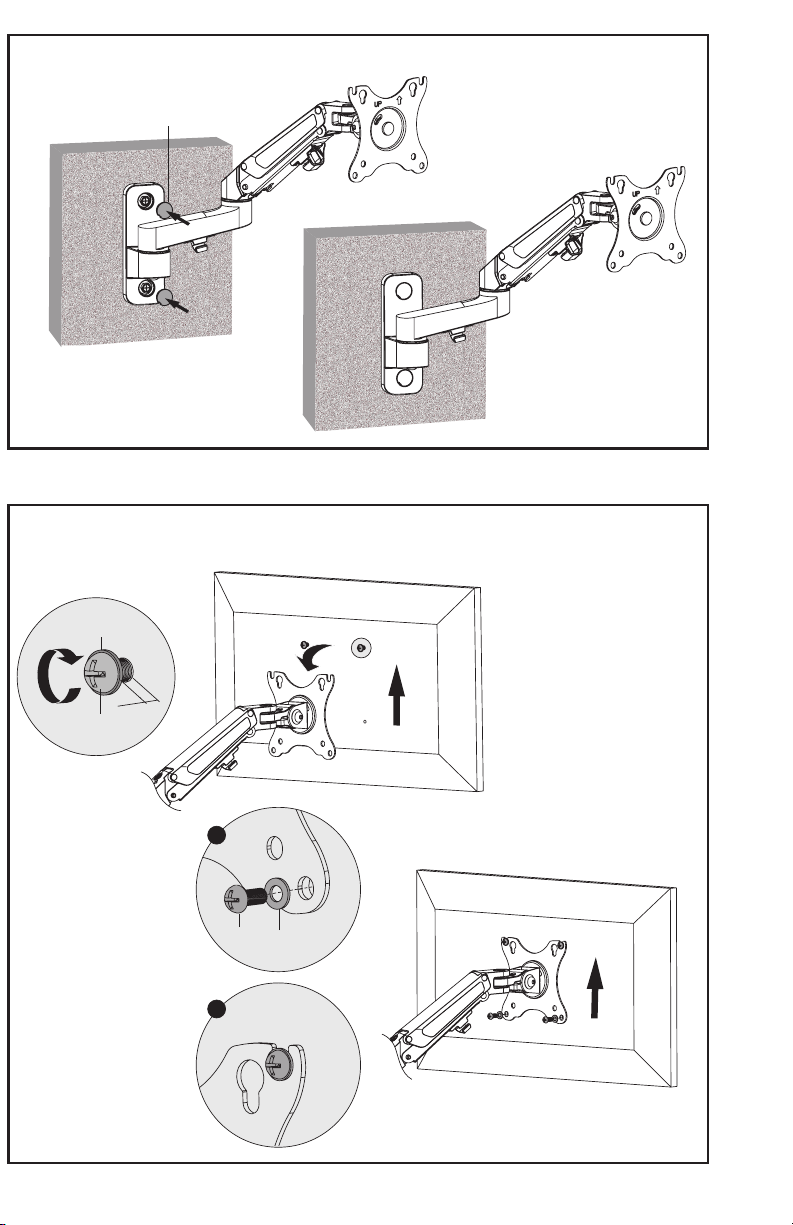

STEP 2

Attach screw covers (B) to wall plate.

STEP 3

Insert bolts (M-A or M-B) with washers (M-C) into top two holes of TV/monitor, leaving 3mm of thread

exposed. Hang TV/monitor over slots in VESA mounting plate, insert bolts with washers into lower two

holes, and tighten.

3mm

M- A

M- B

M- C

M- A

M- B

M- C

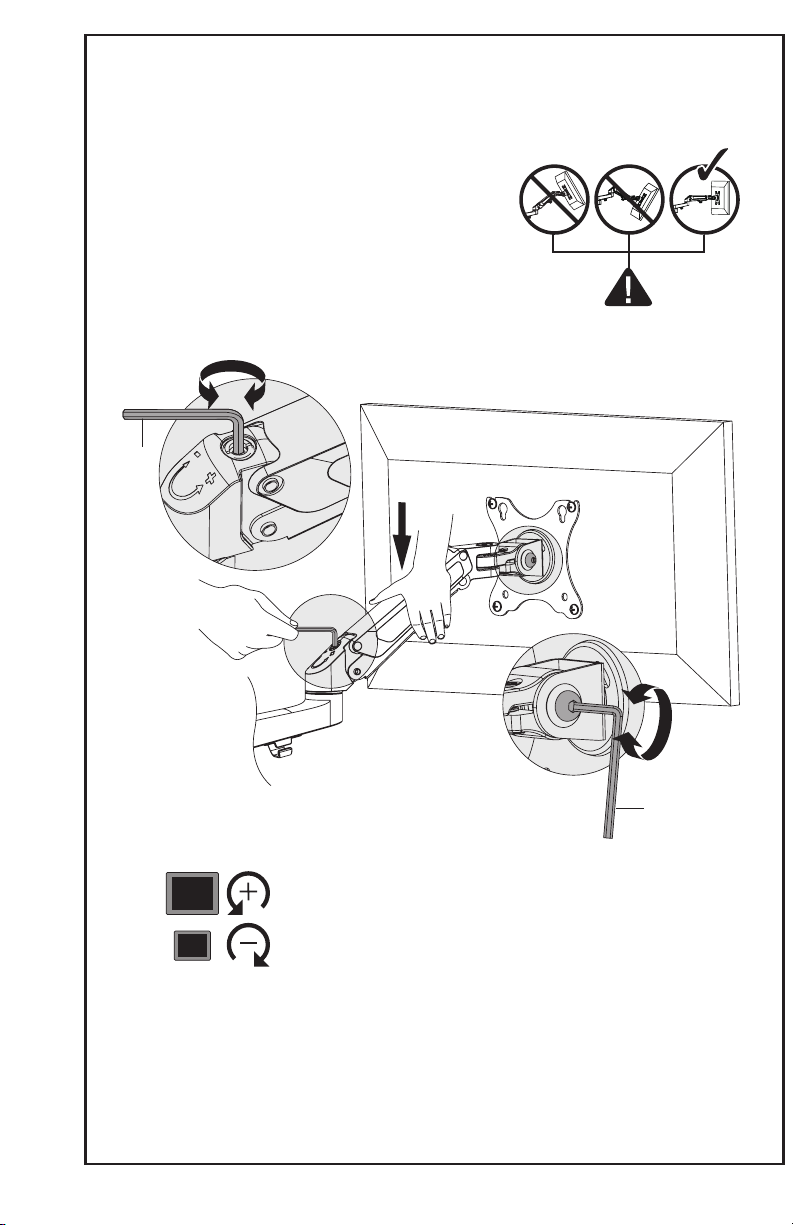

STEP 4

Adjust gas spring tension using the Allen wrench (C). Turn counter-clockwise to increase li, and

clockwise to decrease. Adjust the tilt joint support using the Allen key. NOTE: use a large flat-blade

screwdriver to tighten the socket set screw if the joint makes a popping noise.

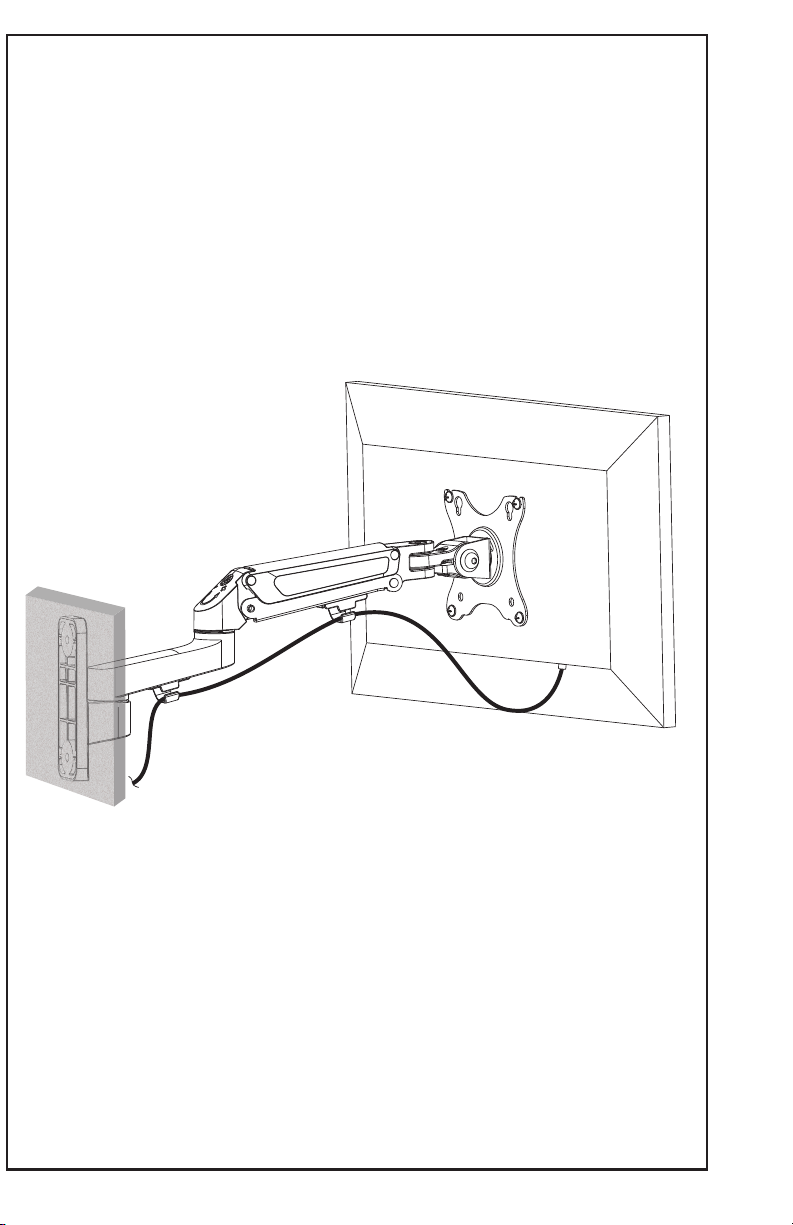

STEP 5

Use built in cable clips to manage cables.

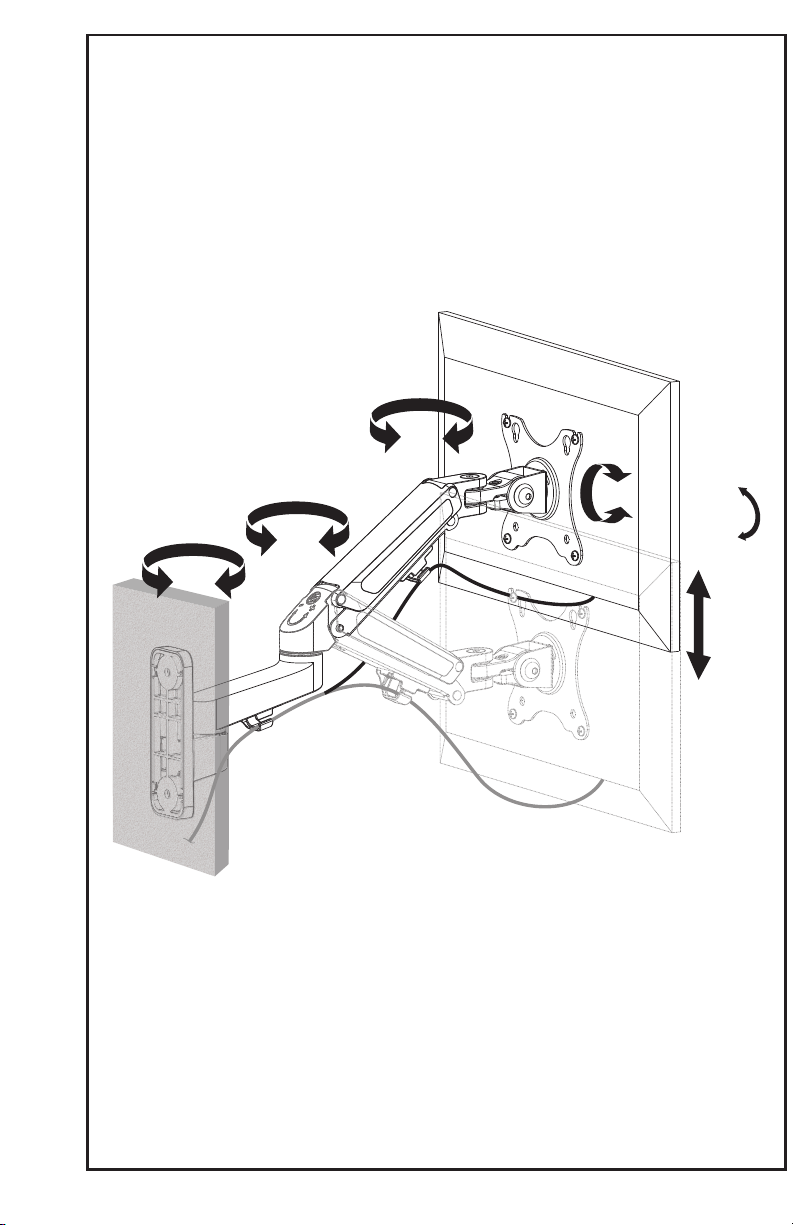

Adjust as Desired

±180°

+45°

-45°

±90°

±180°

±90°

LAST UPDATED: 03/05/2020

Open Monday - Friday 7:00am - 7:00pm CST,

our dedicated support team can oer immediate assistance with rapid response times. If any

parts are received damaged or defective, please contact us. We are happy to replace parts to

ensure you have a fully functioning product.

FOR MORE VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: www.vivo-us.com

[email protected] AVG. RESPONSE TIME (within oice hrs): 1HR 8M

- 23% within < 15m

- 38% within < 30m

- 61% within < 1hr

- 83% within < 2hr

- 92% within < 3hr

Love your new VIVO setup and want to share?

Tag us in your photo! @vivo_us

AVG. RESOLUTION TIME (within oice hrs): < 15 M

www.vivo-us.com

Chat live with an agent!

AVG. RESOLUTION TIME (within oice hrs): 5M 4S

309-278-5303
