Vivo STAND-V101BDU Manuale utente

Pneumatic Arm Single Monitor Desk Mount with USB

Scan the QR code with your mobile device or follow the link

for helpful videos and specifications related to this product.

Instruction Manual

https://vivo-us.com/products/stand-v101bdu

SKU: STAND-V101BDU

[email protected]om www.vivo-us.com 309-278-5303

Chat live with an agent!

GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST

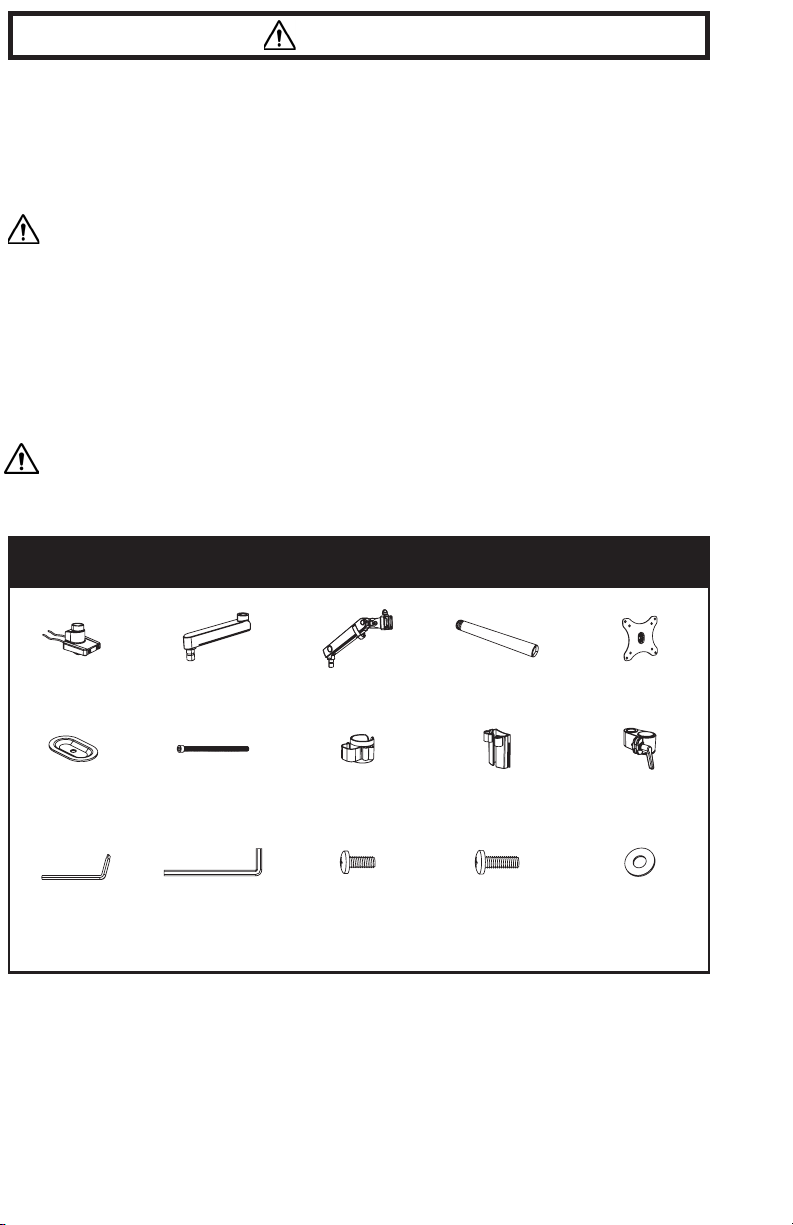

PACKAGE CONTENTS

WARNING!

A (x1)

Base

B(x1)

Lower Arm

If you do not understand these directions, or if you have any doubts about the safety of the

installation, please call a qualified technician. Check carefully to make sure there are no missing or

defective parts. Improper installation may cause damage or serious injury. Do not use this product

for any purpose that is not explicitly specified in this manual. Do not exceed weight capacity.

We cannot be liable for damage or injury caused by improper mounting, incorrect assembly or

inappropriate use.

NOTE: SOME HARDWARE INCLUDED MAY NOT BE USED

E(x1)

VESA Plate

F (x1)

Support Plate

G(x1)

Grommet Bolt

K (x1)

3mm Allen

Wrench

L (x1)

6mm Allen

Wrench

TIPOVER WARNING

SERIOUS OR FATAL CRUSHING INJURIES CAN OCCUR FROM TIPOVER. TO HELP PREVENT TIPOVER:

• NEVER ALLOW CHILDREN TO CLIMB, STAND, HANG, OR PLAY ON ANY PART OF MONITOR OR

STAND.

• USE TIPOVER RESTRAINT OR ANCHOR STAND TO WALL

USE OF TIPOVER RESTRAINTS MAY ONLY REDUCE, BUT NOT ELIMINATE RISK OF TIPOVER.

WARNING: CHOKING HAZARD

SMALL PARTS - NOT FOR CHILDREN UNDER 3 YEARS. ADULT SUPERVISION IS REQUIRED.

M-A (x4)

M4x12

M-B (x4)

M5x12

M-C (x4)

D5 Washer

C(x1)

Spring Arm

D(x1)

Pole

H(x1)

Cable Clip

I(x1)

Cable Clip

J(x1)

Arm Support

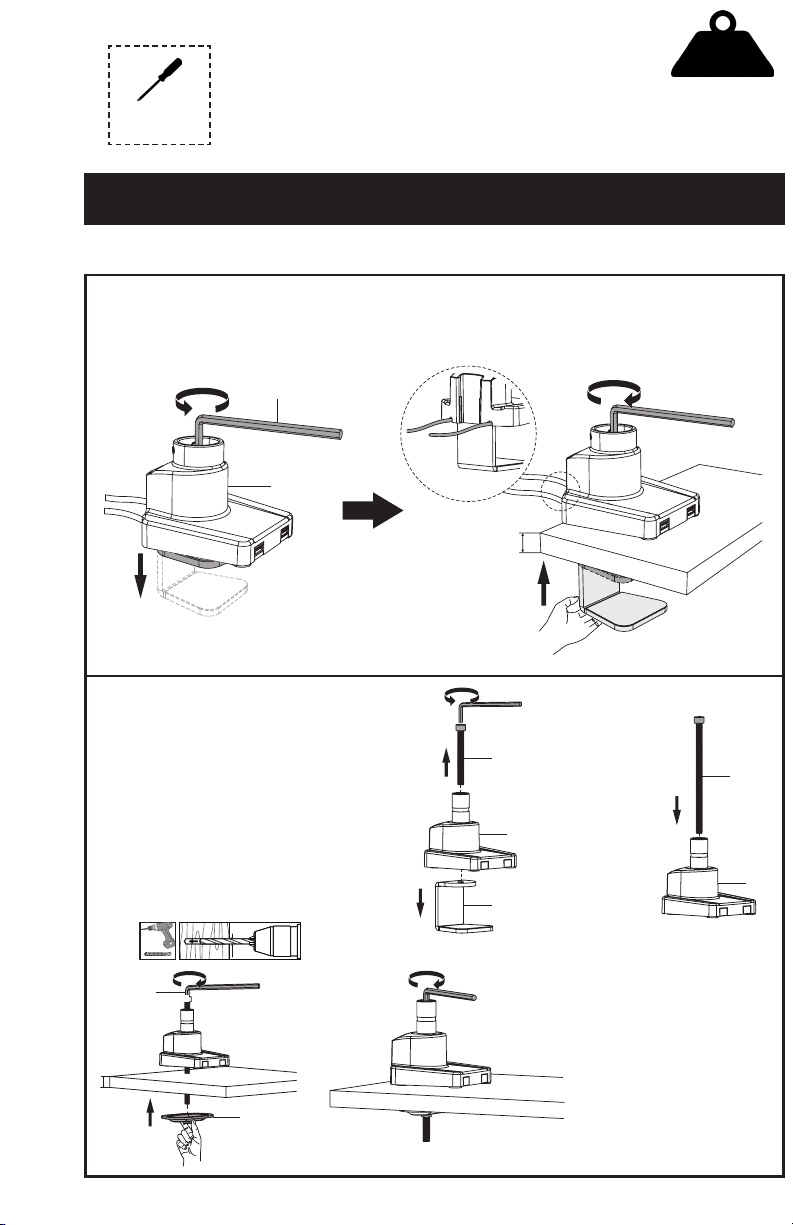

ASSEMBLY STEPS

STEP 1

OPTION A: Clamp Installation

Insert 6mm Allen wrench (L) into socket on top of base (A) and turn screw counter-clockwise to lower

clamp. Place on edge of table and tighten clamp.

TOOLS NEEDED

17.6lbs

(7.98kg)

DO NOT EXCEED WEIGHT CAPACITY.

Failure to do so may result in serious injury.

Phillips

Screwdriver

OPTION B: Grommet Base Installation

Remove bolt (A2) and clamp (A3) from base

(A1) using 6mm Allen wrench (L). Insert

grommet bolt (G) into base. Position the base

over the desk cable grommet hole. Hold the

support plate (F) underneath the desk. Tighten

the grommet bolt into the support plate using

the 6mm Allen wrench.

ø 10mm

(ø 3/8" )

10-50mm

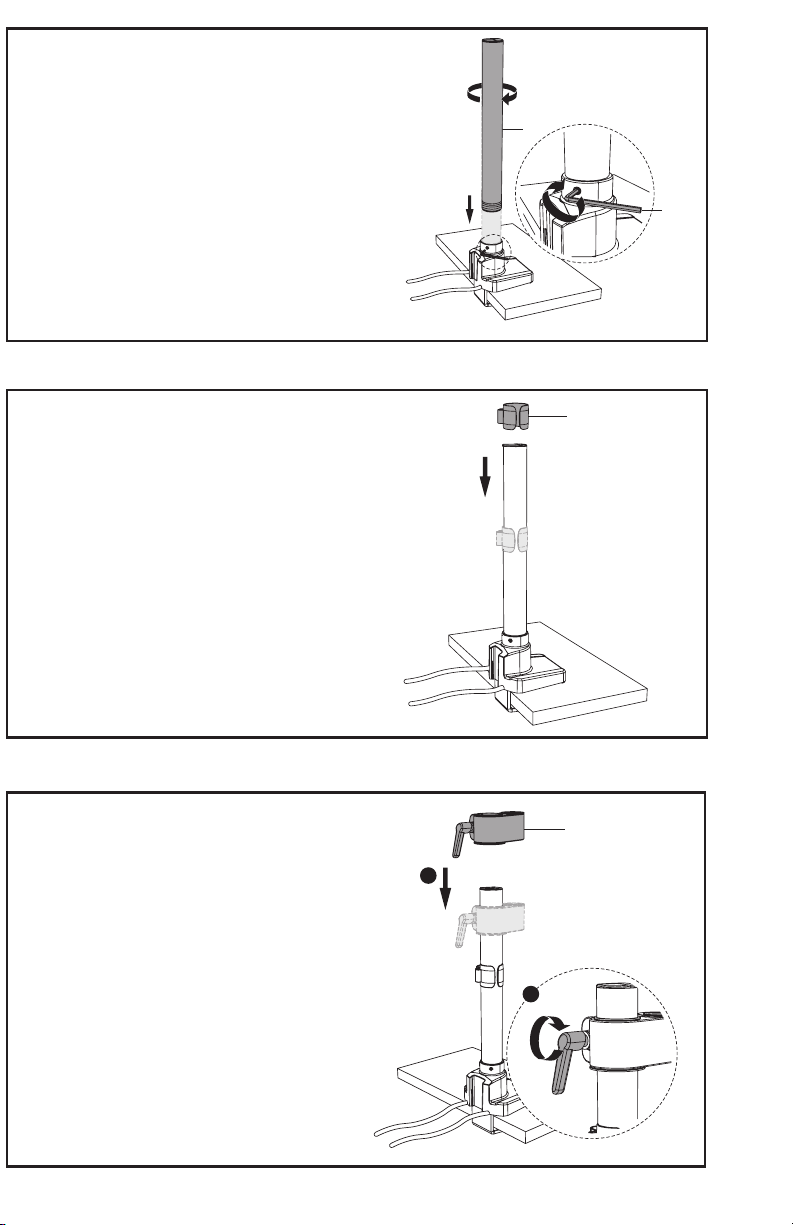

STEP 2

Screw pole (D) into base, and tighten the grub screw

using the 3mm Allen wrench (K).

STEP 4

Slide arm support (J) onto pole and tighten the

knob to secure.

STEP 3

Attach cable clip (H) to pole.

STEP 5

Place lower arm (B) onto arm support, and secure

by turning the screw on the support with 3mm Allen

wrench (K).

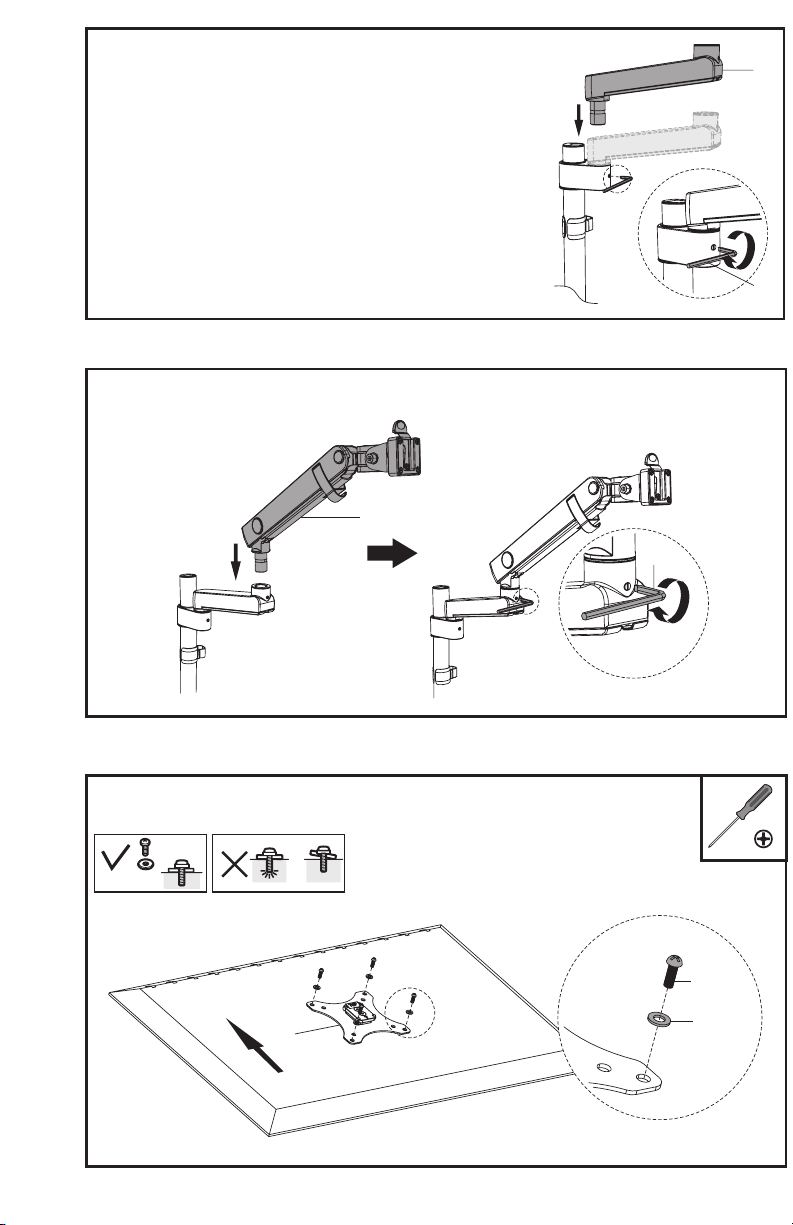

STEP 6

Place spring arm (C) onto lower arm, and secure by turning the screw on the lower arm with 3mm Allen

wrench (K).

STEP 7

Install the VESA plate (E) to monitor using M4x12 bolts (M-A) or M5x12 bolts (M-B) with

washers (M-C), making sure the arrow in back is pointing up.

M- C

M- A

M- B

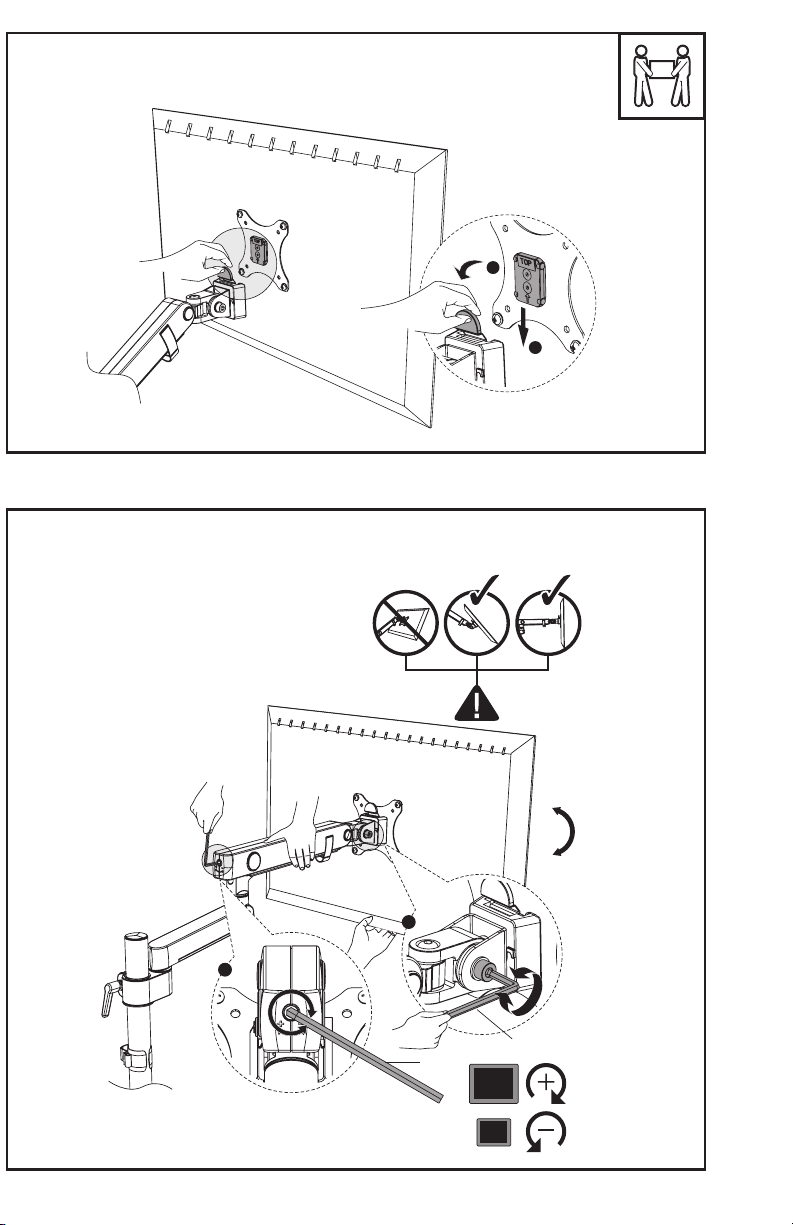

STEP 8

Pull back the release lever on the support bracket, then place the monitor with VESA

plate into the support.

STEP 9

If needed, adjust spring arm to support the monitor using the 6mm Allen wrench. Turn the screw in

back clockwise to increase support, and counter-clockwise to decrease. Adjust the tilt joint to tighten

or loosen tilt support.

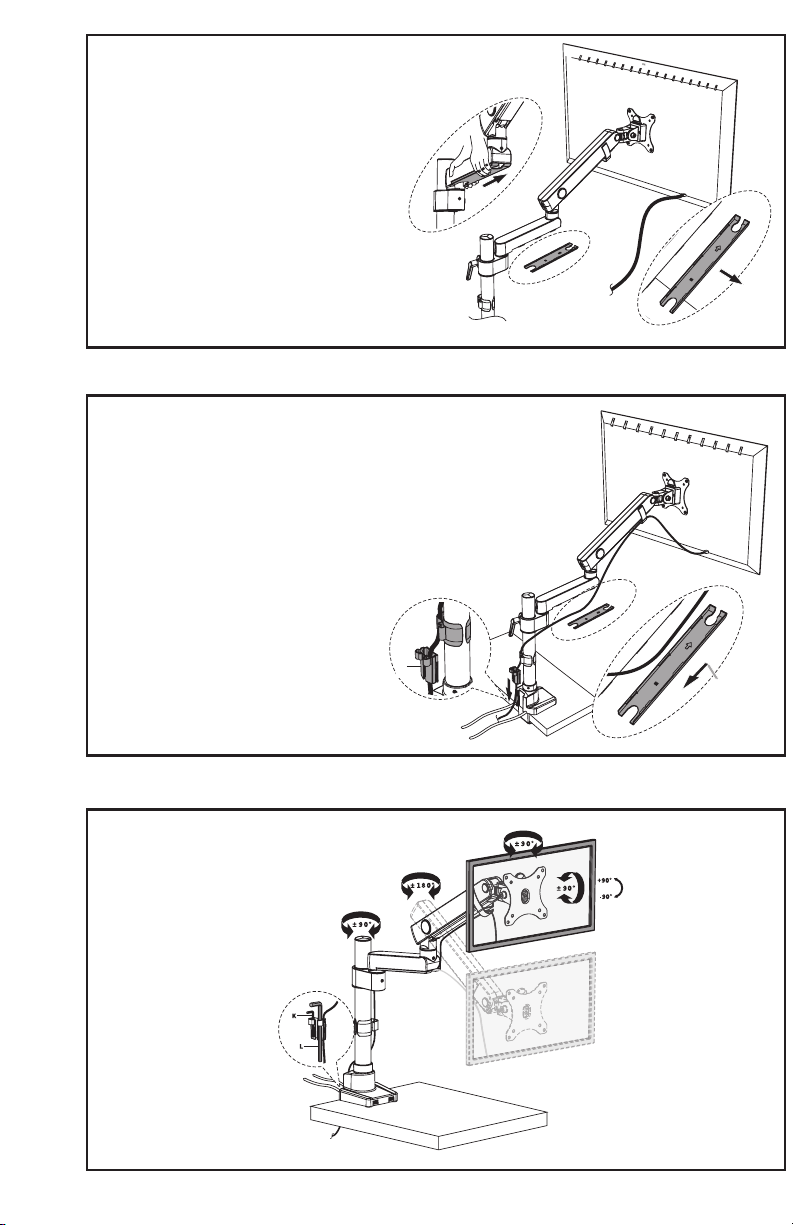

STEP 10

Slide cable cover on lower arm forward to remove.

Adjust as Desired

STEP 11

Install lower cable clip (I) to base. Organize

cables, then reinstall cable cover to lower arm.

LAST UPDATED: 07/03/2020

Open Monday - Friday 7:00am - 7:00pm CST,

our dedicated support team can oer immediate assistance with rapid response times. If any

parts are received damaged or defective, please contact us. We are happy to replace parts to

ensure you have a fully functioning product.

FOR MORE VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: www.vivo-us.com

[email protected] AVG. RESPONSE TIME (within oice hrs): 1HR 8M

- 23% within < 15m

- 38% within < 30m

- 61% within < 1hr

- 83% within < 2hr

- 92% within < 3hr

Love your new VIVO setup and want to share?

Tag us in your photo! @vivo_us

AVG. RESOLUTION TIME (within oice hrs): < 15 M

www.vivo-us.com

Chat live with an agent!

AVG. RESOLUTION TIME (within oice hrs): 5M 4S

309-278-5303
