Vox Technologies SSC-5x86H Manuale utente
SSC-5x86H Ver.C
Super 5x86H Half-sized
Single Board Computer
@Copyright 1996
All Rights Reserved.
Manual second edition Nov.10,1996
The information in this document is subject to change without prior notice
in order to improve reliability, design and function and does not represent
a commitment on the part of the manufacturer.
In no event will the manufacturer be liable for direct, indirect, special,
incidental, or consequential damages arising out of the use or inability to
use the product or documentation, even if advised of the possibility of such
damages.
This document contains proprietary information protected by copyright. All
rights are reserved. No part of this manual may be reproduced by any
mechanical, electronic, or other means in any form without prior written
permission of the manufacturer.
Trademarks
SSC-5x86H is registered trademarks of Acquire Inc., PC/104 is
trademarked of PC/104 Consortium, IBM PC is a registered trademark of
International Business Machines Corporation. Intel is a registered
trademark of Intel Corporation. AMI is registered trademarks of American
Megatrends, Inc. Other product names mentioned herein are used for
identification purposes only and may be trademarks and/or registered
trademarks of their respective companies.
1
Contents
1. Introduction.................................................................3
1.1 Specifications.........................................................................................4
1.2 What You Have......................................................................................5
2. Installation...................................................................6
2.1 SSC-5x86H Ver.C Layout ......................................................................6
2.2 Jumper Description ................................................................................8
2.3 CPU setting of SSC-5x86H Ver.C ..........................................................9
2.4 Watch-Dog Timer.................................................................................10
2.5 DiskOChip Flash Disk .........................................................................11
2.6 PS/2 Mouse Setting..............................................................................11
3. Connection................................................................12
3.1 Floppy Disk Drive Connector ...............................................................12
3.2 IDE Disk Drive Connector....................................................................13
3.3 Parallel Port.........................................................................................13
3.4 Serial Ports ..........................................................................................14
3.5 Keyboard Connector.............................................................................14
3.6 External Switches and Indicators..........................................................15
3.7 External Power Connector....................................................................15
3.8 External Speaker..................................................................................16
2
3.9 PS/2 Mouse Port .................................................................................16
3.10 PC/104 Connection Bus .......................................................................16
4. AWARD BIOS Setup................................................18
4.1 Getting Start ........................................................................................18
4.2 Standard CMOS Setup.........................................................................20
4.3 BIOS Feature Setup..............................................................................21
4.4 Chipset Feature Setup ..........................................................................22
4.5 Power management Setup.....................................................................23
Appendix A. Watch-Dog Timer.....................................25
3
1
Introduction
Welcome to the SSC-5x86H Super 5x86 Half-sized Single
Board Computer. The SSC-5x86H board is an ISA and
PC/104 form factor board, which comes equipped with high
performance 486DX/DX2/DX4 or the latest Cyrix/AMD 5x86
CPU and advanced high performance multi-mode I/O,
designed for the system manufacturers, integrators, or VARs
that want to provide all the performance, reliability, and
quality at a reasonable price.
An advanced high performance super AT I/O chip UMC
UM8669 is used in the SSC-5x86H board. Both on-chip
UARTs are compatible with the NS16C550. The parallel port
and IDE interface are compatible with IBM PC/AT and XT
architecture's. The UM8669 incorporates sophisticated power
control circuitry(PCC). The PCC supports multiple low power
down modes.
In addition, the SSC-5x86H provides two 72-pin SIMM sockets for
its on-board DRAM. The 72-pin accepts 1MB, 2MB, 4MB, 8MB,
16MB, and 32MB SIMM. So, the total on-board memory can be
configured from 1MB to 64MB.
SSC-5x86H uses the ALI chipset, M1489 and M1487, which
are 100% ISA compatible chipset.
The new Ver.C board have built-in DiskOnChip Flash Disk
Function and ESD +/-15KV protection RS-232 ports. The new
version will only need +5V power supply. It will be more
suitable for embedded application.
4
1.1 Specifications :
The SSC-5x86H Super 5x86 Half-sized Single Board Computer
provides the following specification:
•CPU : 486SX/DX/DX2/ DX4 or Cyrix/AMD 5x86
•Bus : ISA bus and PC/104 bus
•DMA channels : 7
•Interrupt levels : 15
•Chipset : M1489 and M1487
•Real-time clock/calendar : DS-12887 chip and quartz oscillator,
128B CMOS memory, powered by lithium battery for over 10
years of data retention.
•RAM memory : 1MB to 64MB,EDO and standard DRAM
supported
•E-IDE hard disk drive interface : up to two PCI Enhance IDE
hard drives.
•Floppy disk drive interface : two 2.88 MB, 1.44MB, 1.2MB,
720KB, or 360KB floppy disk drives.
•Two high speed Series ports : NS16C550 compatible UARTs
•Bi-directional Parallel Port
•Watch-dog timer : can be set by 1,2,10,20,110 or 220 seconds
period. Reset or NMI was generated when CPU did not
periodically trigger the timer. Your program use hex 043 and 443
to control the watch-dog and generate a system reset.
•External power connector
•Keyboard connector
•Mouse : PS/2 Mouse Port on-board.
•Power Consumption : +5V @ 1.75A ( 5x86-133, 4MB RAM)
•Operating Temperature : 0°~ 60°C ( CPU needs Cooler)
5
1.2 What You Have
In addition to this User's Manual, the SSC-5x86H Ver.C
package includes the following items:
•SSC-5x86H Ver.C Super 5x86 Half-sized SBC
•Printer Cable
•FDD/HDD Cable
•6-pin Mini-Din to 5-pin Din Keyboard Adapter Cable
If any of these items is missing or damaged, contact the
dealer from whom you purchased the product. Save the
shipping materials and carton in case you want to ship or
store the product in the future.
6
2
Installation
This chapter describes how to install the SSC-5x86H. At first,
the layout of SSC-5x86H is shown, and the unpacking
information that you should be careful is described. The
jumpers and switches setting for the SSC-5x86H's
configuration, such as CPU type selection, system clock
setting, and interrupt IRQ setting for serial ports and parallel
port, are also included.
2.1 SSC-5x86H Ver.C Layout
< reference next page >
7
8
2.2 Jumper Description
You can change the SSC-5x86H's configuration by setting jumper
switches on the board. The board's jumpers are preset at the factory.
Under normal circumstances, you should not need to change the
jumper settings.

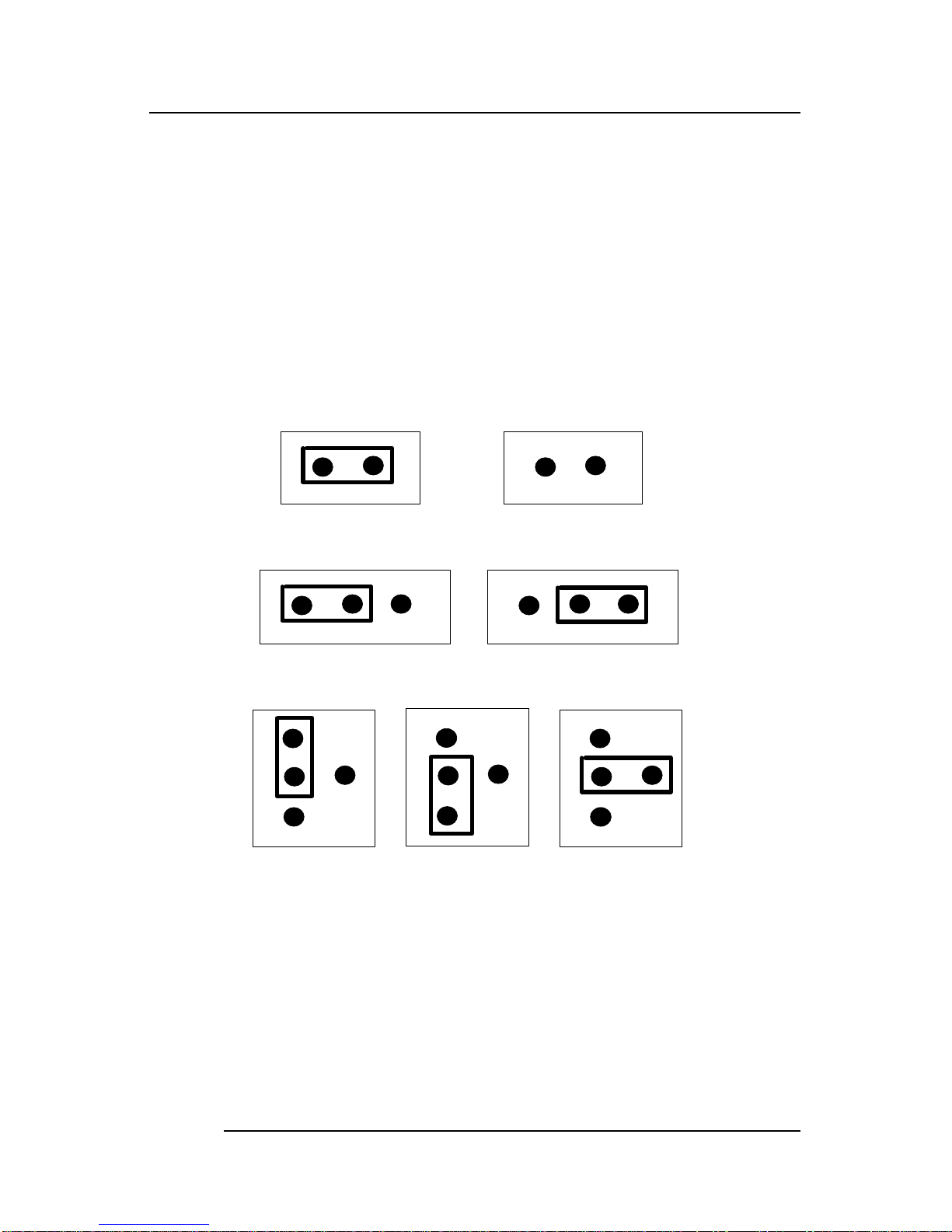

A jumper switch is closed (sometimes referred to as shorted with
the plastic cap inserted over two pins of the jumper). A jumper is
open with the plastic cap inserted over one or no pin(s) of the
jumper. Figure 2.2 below shows different jumper settings which
will be used in this chapter.
CLOSED OPEN
1-2
12-3
1
1-2
1
2
3
2-3
1
2
3
2-4
1
2
3
Figure 2.2
