washloo Odyssey Manuale utente
Washloo Odyssey
Wall Hung
User Manual
Clean Comfort Hygiene
Table of Contents
1
Page Description Page Number
Safety Precautions 2
Product Overview 4
Odyssey Dimensions 6
Odyssey –
Description of Parts
7
Odyssey - Functions 8
Function Description 10
Maintenance and Cleaning 13
Seat and Cover Removal 15
Remote Control Pairing 16
Troubleshooting 17
Technical Specifications 18
Warranty 19
User Information 20
1. Do not use a damaged power plug or loose electrical outlet
2. Make sure to use a dedicated electrical outlet. Failing to do so may result in electric
shock or fire.
3. Do not move the product by pulling the power plug.
4. Do not handle the power plug with wet hands
5. Do not forcefully bend the power cord or place heavy objects on it to prevent it
from being damaged or deformed.
6. Do not connect and pull the power plug repeatedly.
7. Unplug the product before cleaning, repairing, inspecting or replacing parts.
8. Remove any dust or water from the plug.
9. Do not plug the appliance into an electrical outlet or power strip that is being used
by too many appliances. Use an electrical outlet adequate for the voltage requirement
of the product.
10. If the power cord is damaged, do not attempt to repair, modify or replace the
cord, please contact our service centre.
11. If the product produces a strange noise, a burnt smell or emits smoke, unplug and
disconnect from the electrical outlet immediately. Failing to do so may result in
electric shock or fire.
12. Do not insert a wire or sharp object in any of the product gaps, or the warm air
outlet. This may result in electric shock or product damage.
2
Caution
May result in death or injury
Warning
Read all instructions before use.
Save these instructions for future reference.
Safety Precautions
Warning
May result in death or injury
13. Do not place an electric heater near the product or dispose of any burning materials
such as cigarettes in the toilet. This may result in fire or product deformation.
14. Do not place any containers filled with water, medicines, food, metallic objects or
flammable materials on top of the product. If foreign objects enter the product, this
may result in electric shock or fire.
15. Do not use the product in locations exposed to excessive moisture and do not splash
water onto the product.
16. Do not use the product if it is not working correctly –Please unplug the product
immediately, close off the main water supply and call our service centre. Failing to do so
may result in electric shock or fire.
17. While taking a shower or cleaning the bathroom, remove the power plug from the
electrical outlet and exercise caution that water or detergent does not splash onto the
bidet. Failing to do so may result in electric shock or fire.
18. Do not disassemble, repair or modify the product yourself.
19. Do not use the product whilst bathing
20. Do not place or store the product where it can fall or be pulled into a bath or sink.
21. Do not place in or drop the product into water or any other liquid.
22. Do not reach for the product if it has fallen into water or liquid, disconnect from the
power outlet immediately.
23. Do not operate or store the product in locations where flammable or combustible
materials are used.
24. Do not use industrial water or ‘grey’ water for the supply as this may cause skin
damage or disease.
25. Do not block the warm air outlet with your hand.
26. Turn off the water supply valve when cleaning the filter.
3
Safety Precautions
27. For children and seniors who have difficulties with adjusting temperature, those
with sensitive skin or impaired heat sensitivity, set the temperature of the wash
spray, air dryer and seat to `'low'' or `'off'' to prevent burning.
28. Close supervision is necessary when this product is used by children or persons
requiring general assistance.
29. Do not press the buttons using excessive force.
30. Do not stand or place heavy objects on the seat cover.
31. Use this product for its intended purpose only. As described in this manual. Do
not use any attachments that are not recommended by us.
32. Never operate this product if it has a damaged cord or plug, if it is not working
properly, if it has been dropped or damaged, or dropped in water. Return the
product to our service centre for examination.
33. Keep the cord away from heated surfaces.
34. Never block the air openings of the product or place it on a soft surface such as a
bed or couch, where the openings may get blocked. Keep the air openings free of
lint, hair etc.
35. Never use the product while sleeping or when drowsy.
36. Never drop or insert any objects into any openings or hoses.
37. Do not use the product outdoors or operate where aerosol (spray) products are
being used or where it could be exposed to pure oxygen.
38. This product should be earthed in the event of an electrical short circuit earth
reduces the risk of an electrical shock by providing an escape route (wire) for the
electrical current. This product is equipped with a cord incorporating an earth wire
and an earthed plug. The plug must be inserted into a power outlet that has been
correctly installed.
39. Unplug this product before filling (fill reservoir) with water only unless otherwise
specified by the manufacturer. Do not overfill.
4
Safety Precautions
40. Do not connect the mains water to the hot water pipe (only connect to cold
water supply)
41. After the installation, make sure to check all water supply connections for leaks.
Rubber washers should be in place for the water connection hoses and T valves.
42. Do not open/close the seat cover using excessive force.
43. Exercise caution that urine does not come into contact with the nozzles or warm
air dryer outlet, failure to do so may result in bad odours or malfunction.
44. If the product will not be used for a long period of time, unplug the power cord,
close the main water supply valve and drain any water in the water tank.
45. Do not pull out the bidet hose or connection hose using excessive force.
46. Do not use thinners, benzene, acidic chemicals, chloride or hydrochloric acid
detergents. This may result in corrosion to the metallic components and potential
discolouration or scratches to the bidet body.
47. This appliance is not intended for use by persons (including children) with
reduced physical, sensory or mental capabilities, or lack of experience and
knowledge unless they have been given supervision or introductions concerning the
use of the appliance by a person responsible for their safety. Children should also be
supervised to ensure that they do not play with the appliance.
5
Safety Precautions
6

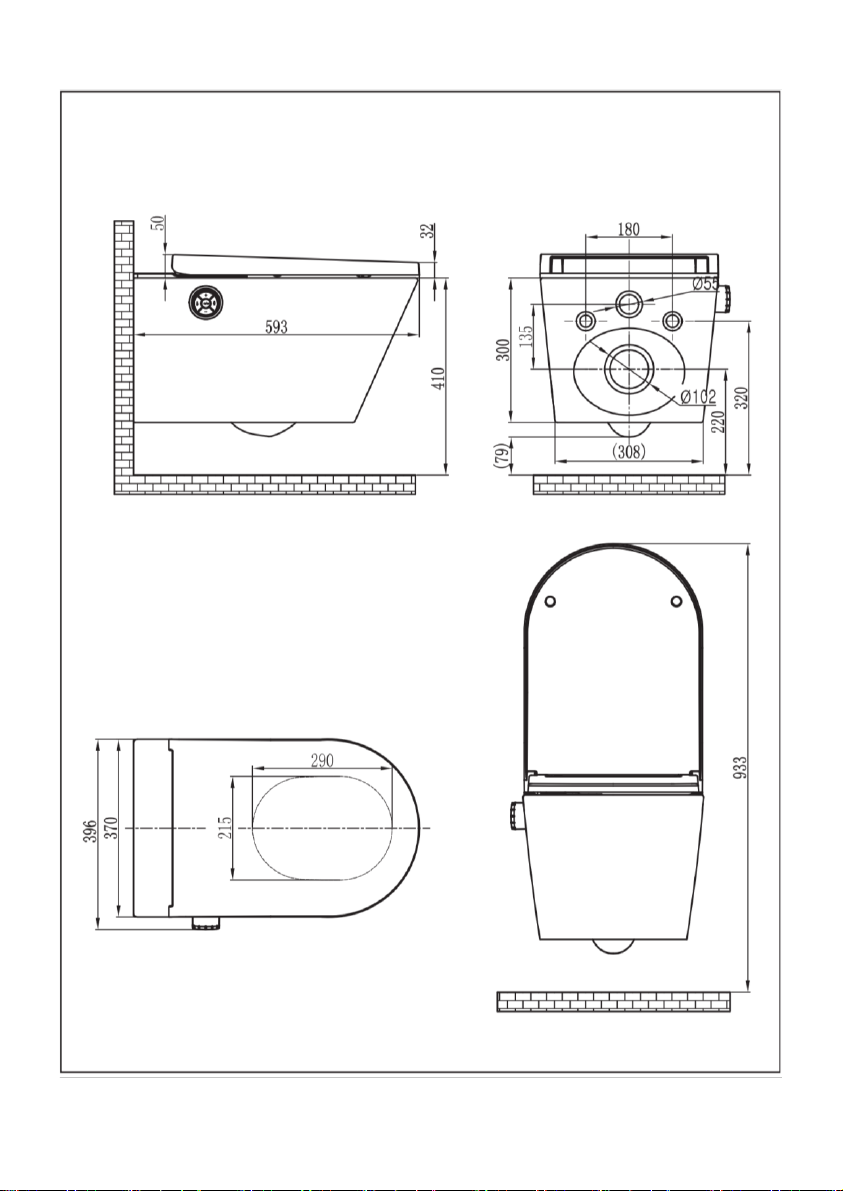

Odyssey - Dimensions
Note : The above illustration is an example only, your version may vary
Odyssey –Wall Hung

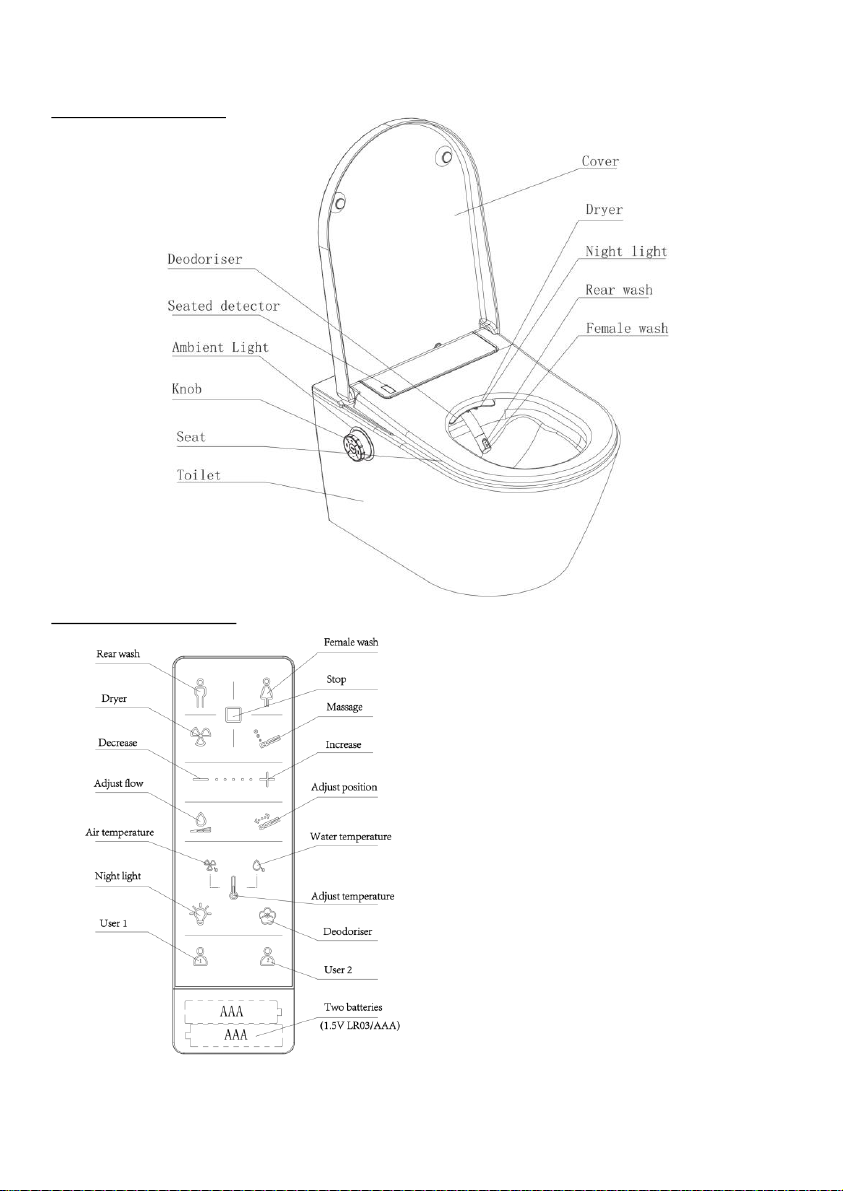

Odyssey –Description of Parts
Note : The above illustration is an example only, your version may vary
Odyssey Floor Standing
Odyssey Remote Control
1.Before using, the remote, it
requires 2 batteries (type 1.5V
LR3/AAA)
2. The following remote-control
operation is only for the Odyssey
Model with this remote control
7
Odyssey –Functions
Note : The above illustration is an example only, your version may vary

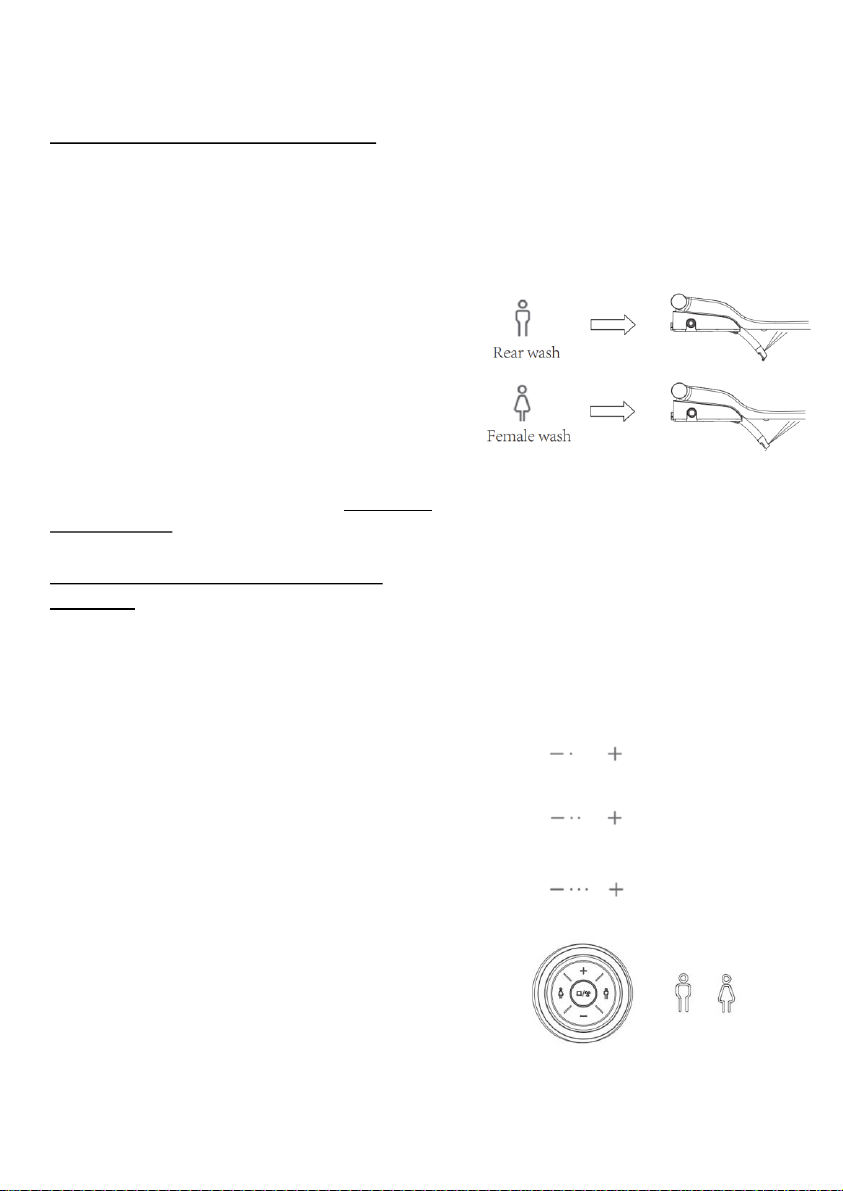

Rear Wash and Front Wash Functions
When seated and pressing the "Wash" button on the
remote control or on the Side Control then it will start to
wash using the Rear Function. It will operate for 3
minutes. You can stop washing during this period by
pressing the "Stop" button.
While Rear wash or Female wash functions are in
operation, they will wash in a ‘fixed position’ (Which is
adjustable via the control also) for about 10 seconds,
after 10 seconds the ‘movable wash’ will operate for
around 18 seconds, then regain the ‘fixed position’ until
the end of the cycle .
By pressing the "Rear wash "or "Female wash" on the
side control it will begin the drying process for 3
minutes when the washing cycle is over. (Automatic
cycling function)
Additional Rear Wash and Front Wash
Functions
During the operation of the Rear or Female wash
function, by pressing the ‘Rear Wash’ or ‘Female Wash’
function again on the side control or the remote control,
will change the ‘Cleaning Mode’ as explained and
indicated on the Remote Control below;
Oscillating : when one indicator light is on
Pulsating : when two indicator lights are on
Oscillating + Pulsating : when three indicator lights are
on Stop Operation
During the operation of the Rear/Female wash function
or drying function, by pressing the "Stop" button on the
remote control it will ‘Stop’ ALL washing or drying
operations.
Also, by pressing the middle button of the Side Control
it will stop washing or drying.
8
