Waudio Epic T12 Manuale utente
Professional
Loudspeaker
Epic T12
USER MANUAL
Professional Loudspeaker Technology
CONTENTS PageNo.
1.INTRODUCTION 2
2.FEATURES 2
3.CARE&MAINTENANCE 3
4. TECHNICAL SPECIFICATIONS 4
5. PRODUCT DISPOSAL 5
W Audio Professional Loudspeaker User Manual
1-
1. INTRODUCTION
Thank you for purchasing this W Audio professional loudspeaker product. The Epic T12 is
a wide bandwidth two way passive coaxial speaker system with high performance. The
coaxial series loudspeaker is a range of portable loudspeaker enclosures designed for a
variety of portable sound reinforcement and club applications. It is perfect for live club
performance, night club installation, conference room, multifunction hall and stage
monitoring.
2．FEATURES
1. MDF trapezoid cabinet with scratch-resistance textured paint.
2. High intensity cabinet construction.
3. 10” high power LF speaker.
4. One compression driver with 1” throat.
5. 80°X 80°constant directivity horn.
6. Crossover: passive 12db octave and HF unit equalizer.
7. Two durable handle on the rear for easy carrying.
8. 12 X M8 flying points
W Audio Professional Loudspeaker User Manual
2-
3．CARE & MAINTENANCE
1) Do not use this speaker near water.
2) Clean only with dry cloth.
3) Do not block any ventilation openings. Install in accordance with the instructions.
4) Do not install near any heat sources such as radiators, stoves, or other apparatus
(including amplifiers) that produce heat.
5) Protect the power cable from being walked on or pulled particularly at plugs.
6) Only use attachments or accessories specified by the manufacturer.
7) Do not connect this speaker during lightning storms or when being unused for a long
period.
8) Choose a suitable cable for the loudspeaker, cable which is too small will not give a high
output.
W Audio Professional Loudspeaker User Manual
3-
4．TECHNICAL SPECIFICATIONS
Model: Epic T12
Compression Driver: 1 x1” Throat
Woofer: 1 x10” coaxial low/mid range speaker (Ferrite )
Power (AES): 500W
Impedance: 8 Ω
Sensitivity(1W/m) f>100Hz: 95dB
Max sound Pressure at 1m: 119dB continuous, 122dB peak
Frequency response: 65Hz-----19kHz
Nominal directivity@-6dB (H x V): 800x 800
Cabinet 15mm MDF
Accessory 12x M8 flying points
Dimensions (W x D x H) 320 x 300 x 480 mm
Net weight 12Kg
W Audio Professional Loudspeaker User Manual
4-

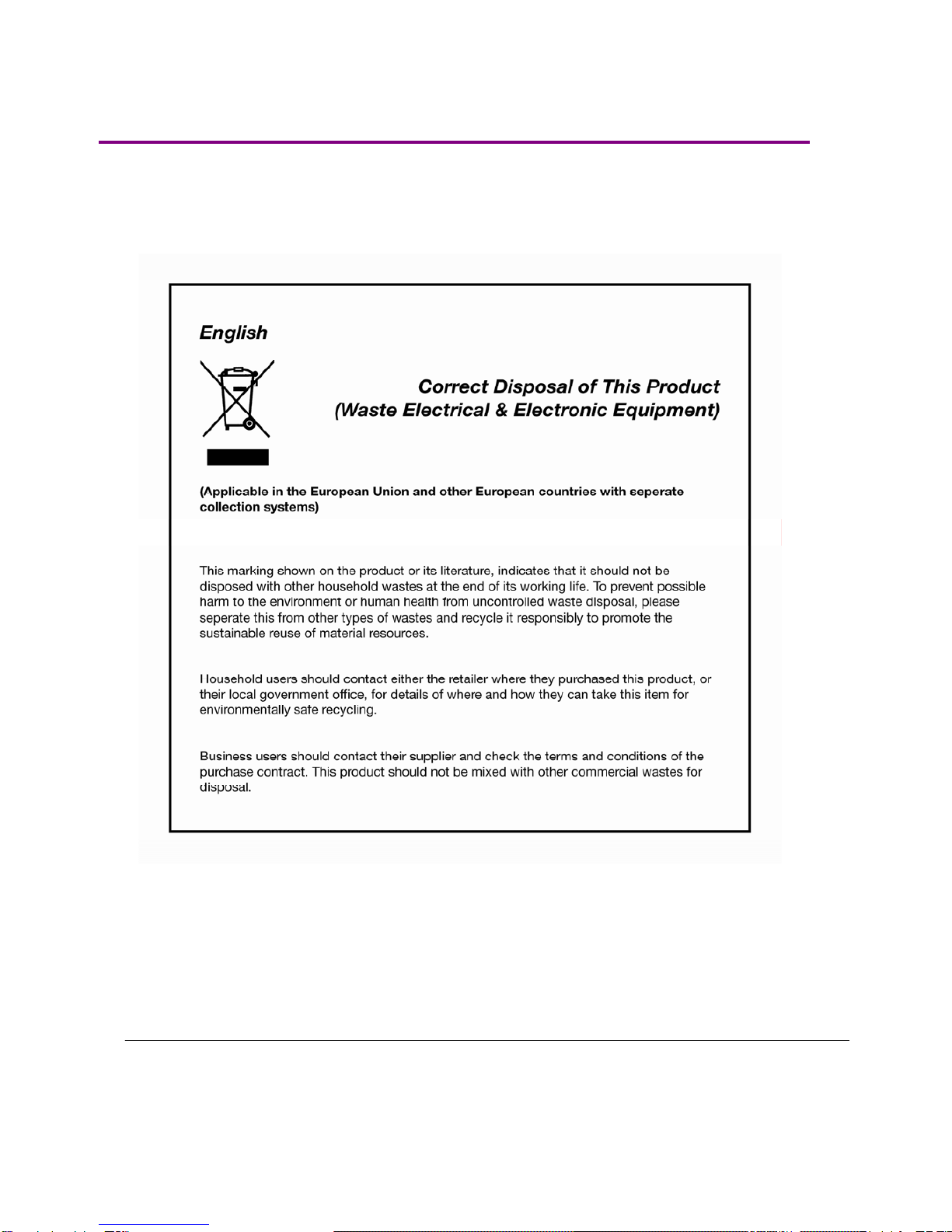

5. PRODUCT DISPOSAL
Specification is subject to change without prior notice.
W Audio Professional Loudspeaker User Manual
5-
