Surge Protection
This product features built-in surge protection circuitry in compliance with
applicable standards.
For comprehensive protection of a luminaire installation against lightning and
electrical surges, it is essential to cover mains supply and data input lines at
the distribution board level, by using respective primary (Type 1) and secondary
(Type 2) surge arrestors in compliance with EN61643-11/IEC61643-1.
Warning
Ensure that all required surge protection measures are in place and activated
prior to luminaire installation. Also, disconnect luminaires before operating
high-power devices such as, for example, electrical arc welders.
Do not open during installation
This product is factory-sealed.
Refer to the instructions contained in this
document for details.
WE-EF LEUCHTEN
Installation and Maintenance
Instructions
Floodlight with clamp
FLB141 #6 LED
FLB141 #7 LED
1

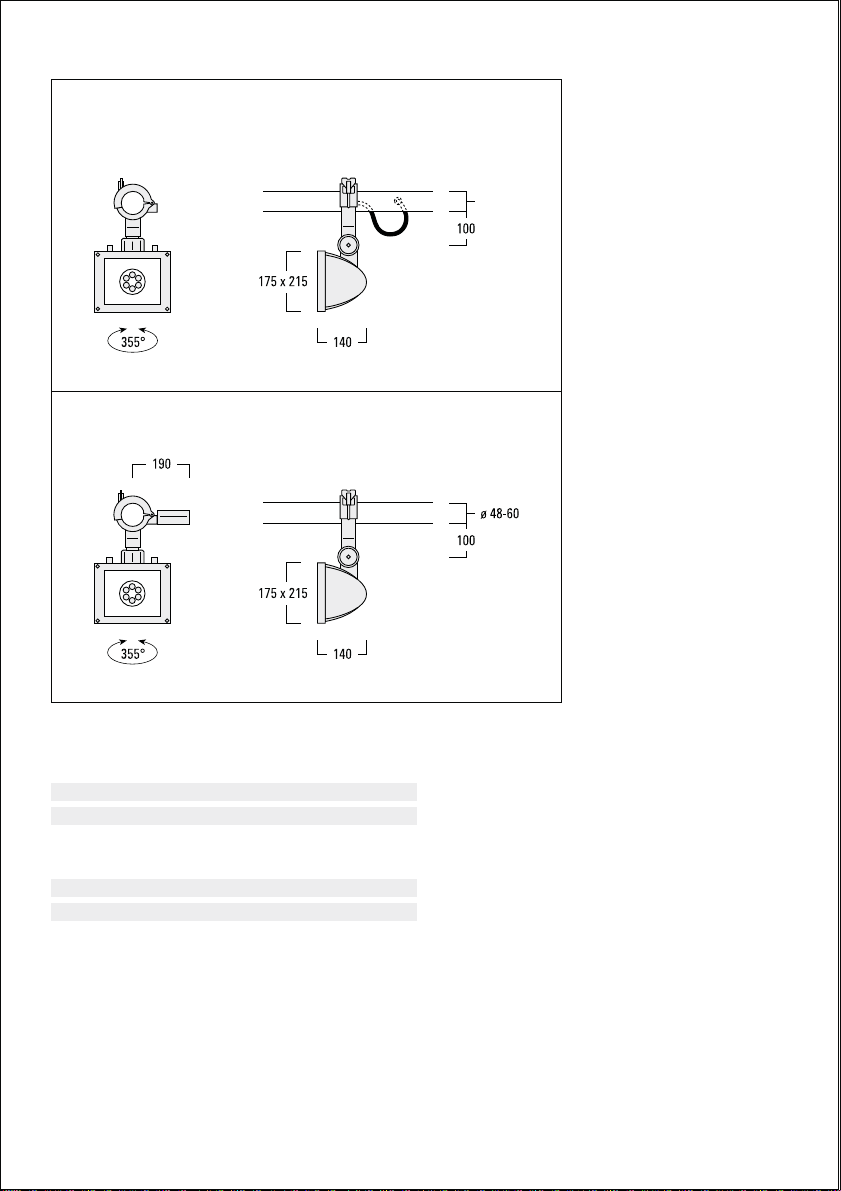

Floodlight with clamp
FLB141 #6 RAIL66 version
FLB141 #7 Space frame version
IP66, IK08, Class I, ta = 40°C
Weight kg
for FLB141 #6LED 3.9
for FLB141 #7LED 4.6
Windage area m²
for FLB141 #6 LED 0.040
for FLB141 #7 LED 0.045
Orientation: any
RAIL66
2
Light Source
LED
Maintenance
Apart from cleaning the product’s exterior surfaces, no special maintenance work is required.
Do not use high-pressure cleaners.
In case of component failure due to abnormal circumstances or at end of life, replacement must be carried out
E\DVXLWDEO\TXDOLƂHGDQGWUDLQHGSURIHVVLRQDO
Warning: Do not open luminaire while mains supply is switched on.
3
Installation
The product must be installed and maintained by a
VXLWDEO\TXDOLƂHGSURIHVVLRQDOLQFRPSOLDQFHZLWKODWHVW
building/construction and/or electrical regulations and
relevant legislation.
Warning: Switch off mains electrical supply prior to
installing and connecting the luminaire.
Notice:,IWKHOXPLQDLUHLVPRGLƂHGE\DQ\ERG\RWKHU
than the original manufacturer, then the warranty will
no longer be valid and shall become the full respon-
sibility of the modifying person/organisation. Claims
based on defects attributable to improper installation
and/or application, and the consequences thereof, are
excluded.
The installation on site must comply with local and/or
national health and safety regulations.
4
1) Switch off mains electrical supply.
Installation Procedure
Installation – RAIL66 version
Prior to installing the luminaire, mount and connect the selected RAIL66 mounting system in accordance with
relevant installation instructions
3) Determine desired position of luminaire A
on rail X, dependent on aiming requirements
and proximity to a suitable mains outlet Y.
4) Attach clamp Bto rail X. Tighten wingnut C.
2) Check that rating shown on luminaire label
conforms with mains electrical supply.
(example)
FLB141-LED 220-240V50-60/Hz
161-XXXX SOE XXXXXXX
LED 3000K 18W item no. XXX
07/18 IP66
5
5) Remove protective cover Zfrom mains outlet
Y. Insert in-line connector Gand tighten.
Attention: On any mains outlet Y’ that is not
used, protective cover Z’PXVWUHPDLQƂUPO\
VHFXUHG&KHFNDQGHQVXUHSURSHUƂWDQG
tightness.
6) Loosen screws Hand I slightly. Aim luminaire
in desired direction, retighten screws Hand I.
6
1) Switch off mains electrical supply.
Installation – Space frame version
Suitable for space frame diameter 48-60 mm.
4) Detach gear box cover Dby loosening screws S.3) Determine desired position of luminaire A
on space frame X, dependent on aiming
requirements. Attach clamp Bto space
frame X. Tighten wingnut C.
2) Check that rating shown on luminaire label
conforms with mains electrical supply.
(example)
FLB141-LED 220-240V50-60/Hz
161-XXXX SOE XXXXXXX
LED 3000K 18W item no. XXX
07/18 IP66
7
7) Reposition gear box cover Dand secure in
position by retighten screws S.
5) Feed mains supply cable Ethrough cable
gland G(Fig. I). 6) Connect mains supply cable Eleads to
respective terminals in terminal connector K:
a) ON/OFF (L = Phase, N = Neutral,
= Earthing)
b) 1-10 V/DALI (L = Phase, N = Neutral,
= Earthing, DA/DA = DALI control line,
D–/D+ = 1-10 V control line).
Tighten cable gland G.
Fig. I
8) Loosen screws Hand Islightly. Aim luminaire
in desired direction, retighten screws Hand I.
www.we-ef.com
WE-EF LEUCHTEN
Germany
Tel +49 5194 909 0
Fax +49 5194 909 299
info.germany@we-ef.com
WE-EF LUMIERE
France
Tel +33 4 74 99 14 44
Fax +33 4 74 99 14 40
info.france@we-ef.com
WE-EF HELVETICA
Switzerland
Tel +41 22 752 49 94
Fax +41 22 752 49 74
info.switzerland@we-ef.com
WE-EF LIGHTING
Thailand
Tel +66 2 738 9610
Fax +66 2 175 2174
LQIRDVLDSDFLƂF#ZHHIFRP
WE-EF LIGHTING
Australia
Tel +61 3 8587 0444
Fax +61 3 8587 0499
info.australia@we-ef.com
WE-EF LIGHTING
United States of America
Tel +1 724 742 0030
Fax +1 724 742 0035
info.usa@we-ef.com
TO9248W0519 © WE-EF 2019
7HFKQLFDOVSHFLƂFDWLRQVDUH
subject to change.
