WE-EF ETC330-FS Manuale utente
Surge Protection
This product features built-in surge protection circuitry in compliance with
applicable standards.
For comprehensive protection of a luminaire installation against lightning and
electrical surges, it is essential to cover mains supply and data input lines at
the distribution board level, by using respective primary (Type 1) and secondary
(Type 2) surge arrestors in compliance with EN61643-11/IEC61643-1.
Warning
Ensure that all required surge protection measures are in place and activated
prior to luminaire installation. Also, disconnect luminaires before operating
high-power devices such as, for example, electrical arc welders.
Do not open during installation
This product is factory-sealed.
Refer to the instructions contained in this
document for details.
WE-EF LEUCHTEN
Installation and Maintenance
Instructions
Inground Luminaire
ETC330-FS
EVC330-FS
ETC340-FS
EVC340-FS
ETC330-FS CC
EVC330-FS CC
ETC340-FS CC
EVC340-FS CC
ETC330-FS TW
EVC330-FS TW
ETC340-FS TW
EVC340-FS TW
1
IP67, Class I, ta = 40°C

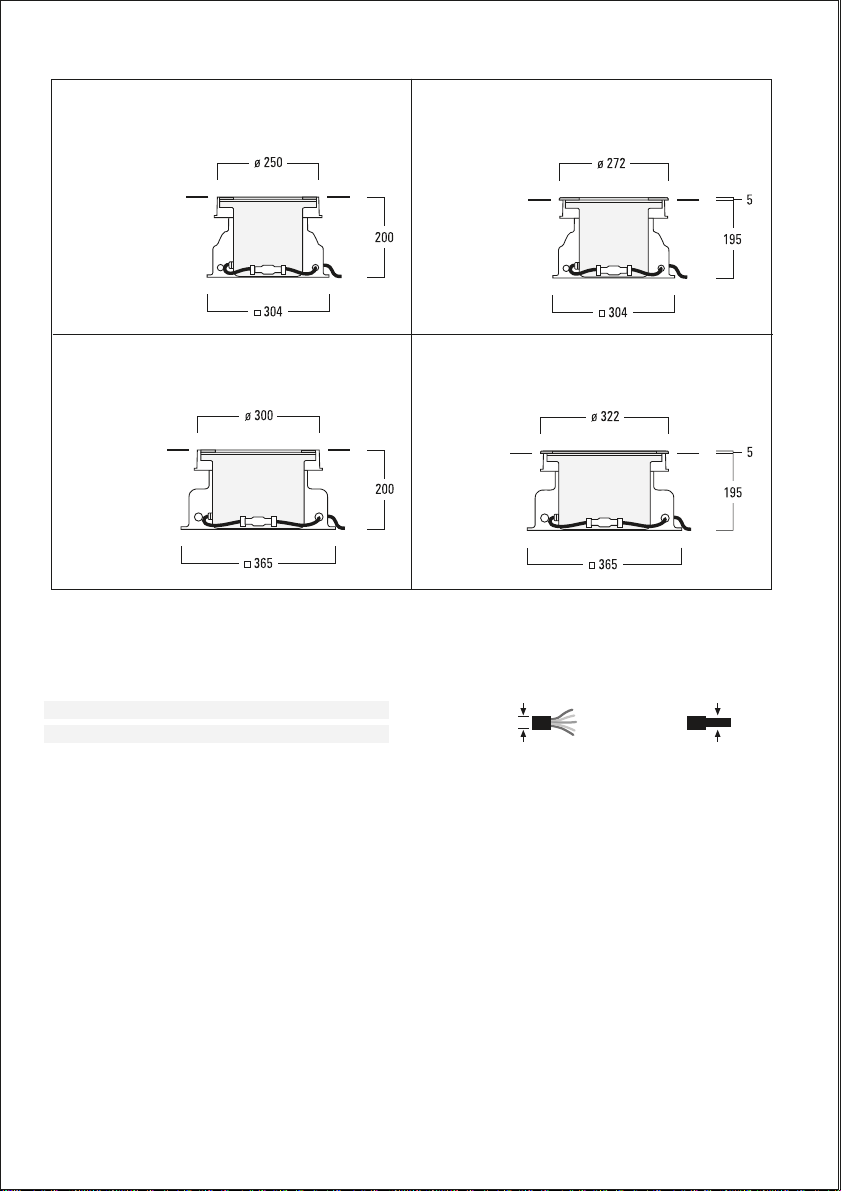

Inground Luminaire
EVC330-FS
EVC330-FS CC*
EVC330-FS TW
EVC340-FS
EVC340-FS CC*
EVC340-FS TW
ETC330-FS
ETC330-FS CC*
ETC330-FS TW
ETC340-FS
ETC340-FS CC*
ETC340-FS TW
Accessories:
DMX Wireless*
RF for ETC/EVC330-FS CC 430-0018
RF for ETC/EVC340-FS CC 430-0018
ø 5.5 – 12 mm 0.14 – 2.5 mm2
DMX-Power
2
Light Source
LED
Maintenance
Apart from cleaning the product’s exterior surfaces, no special maintenance work is required.
Do not use high-pressure cleaners.
In case of component failure due to abnormal circumstances or at end of life, replacement must be carried out
E\DVXLWDEO\TXDOLƂHGDQGWUDLQHGSURIHVVLRQDO
Warning: Do not open luminaire while mains supply is switched on.
For operation as colour changer the inground of the ETC/EVC300-FS CC series require a DMX control signal
(DALI on request). The operation without control signal may lead to error.
3
Installation
The product must be installed and maintained by a
VXLWDEO\TXDOLƂHGSURIHVVLRQDOLQFRPSOLDQFHZLWKODWHVW
building/construction and/or electrical regulations and
relevant legislation.
Warning: Switch off mains electrical supply prior to
installing and connecting the luminaire.
Notice:,IWKHOXPLQDLUHLVPRGLƂHGE\DQ\ERG\RWKHU
than the original manufacturer, then the warranty will
no longer be valid and shall become the full respon-
sibility of the modifying person/organisation. Claims
based on defects attributable to improper installation
and/or application, and the consequences thereof, are
excluded.
The installation on site must comply with local and/or
national health and safety regulations.
Installation Methods
Attention: The luminaire is factory-sealed and does not
need to be opened during installation.
For proper installation, use the supplied installation
blockout.
Ensure that proper drainage is provided for the shown
installation methods:
In landscape areas, sand with gravel base (Fig. I).
In paved areas, concrete with gravel base (Fig. II).
Fig. II
Fig. I
4
1) Ensure a suitable recess.
Phase One
Blockout Installation Procedure
3) Set mounting ring B/M in position. Arrow R
on mounting ring Mis pointed towards the
object to be illuminated (wall, tree, column).
'RQRWUHPRYHVWLFNHUVRQƂ[LQJWKUHDGKROHVD.
2) Select appropriate installation blockout
holes Sfor mains supply cable(s) Oand
data cable(s) if necessary.
FLUSH
RR
D
5
5) Switch off mains electrical supply.
7) Terminate cable Eand mains supply cable Oin
sealable junction box Jand connect leads to
respective terminals:
a) ON/OFF or wireless (L = Phase, N = Neutral,
= Earthing)
b) 1-10 V/DALI (L = Phase, N = Neutral,
= Earthing, DA/DA = DALI control line,
D–/D+ = 1-10 V control line).
c) DMX: for ETC330/EVC330 refer to separate
TO9259W wiring instruction for DMX cable and
for ETC340/EVC340 refer to separate TO9256W
wiring instruction for hybrid DMX cable.
Please refer to instruction inside SJB packaging.
For wallwash illumination only
Ensure the arrow indicated on the sticker is
facing the illuminated surface.
Phase Two
Luminaire Installation and Electrical Connection
6) Check that rating shown on luminaire label
conforms with mains electrical supply.
(example)
ETC330-FS 220-240V/60/Hz, 1-10V
185-XXXX SOE XXXXXXX
LED 4000K 12W item no. XXX
03/17 IP67
DIRECT LUMINAIRE TOWARDS WALL
Remove label before operation of luminaire.
TH0717W
6
3HHORIIVWLFNHUVRQƂ[LQJWKUHDGKROHVD.
11)Place housing Ainto installation blockout/
mounting ring assembly B/M while aligning
holes Don mounting ring M.
Warning: When housing Ais placed inside
installation blockout B, ensure there is no stress
on seal able junction box Jor electric cables.
9) Loosen countersunk screws C(do not turn
out). Insert mounting lever Lbetween head
of countersunk screws Cand cover lens.
10)Set cables and sealable junction box J
inside installation blockout/mounting ring
assembly B/M.
L
C
A
L
C
A
D
R
D
L
C
7
12) Remove lever Land tighten countersunk
screws C'hand-tight'.
C
www.we-ef.com
WE-EF LEUCHTEN
Germany
Tel +49 5194 909 0
Fax +49 5194 909 299
info.germany@we-ef.com
WE-EF LUMIERE
France
Tel +33 4 74 99 14 44
Fax +33 4 74 99 14 40
info.france@we-ef.com
WE-EF HELVETICA
Switzerland
Tel +41 22 752 49 94
Fax +41 22 752 49 74
info.switzerland@we-ef.com
WE-EF LIGHTING
United Kingdom
Tel +44 844 880 5346
Fax +44 844 880 5347
info.uk@we-ef.com
WE-EF LIGHTING
Thailand
Tel +66 2 738 9610
Fax +66 2 175 2174
LQIRDVLDSDFLƂF#ZHHIFRP
WE-EF LIGHTING
Australia
Tel +61 3 8587 0444
Fax +61 3 8587 0499
info.australia@we-ef.com
WE-EF LIGHTING
United States of America
Tel +1 724 742 0030
Fax +1 724 742 0035
info.usa@we-ef.com
TO9192W0919 © WE-EF 2019
7HFKQLFDOVSHFLƂFDWLRQVDUH
subject to change.
