Surge Protection

This product features built-in surge protection circuitry in compliance with

applicable standards.

For comprehensive protection of a luminaire installation against lightning and

electrical surges, it is essential to cover mains supply and data input lines at

the distribution board level, by using respective primary (Type 1) and secondary

(Type 2) surge arrestors in compliance with EN61643-11/IEC61643-1.

Warning

Ensure that all required surge protection measures are in place and activated

prior to luminaire installation. Also, disconnect luminaires before operating

high-power devices such as, for example, electrical arc welders.

Do not open during installation

This product is factory-sealed.

Refer to the instructions contained in this

document for details.

WE-EF LEUCHTEN

Installation and Maintenance

Instructions

Wall Luminaires Surface Mounted

RLS410 LED

RLS420 LED

Installation tools

Mounting hardware used on this product

includes fasteners with hexalobular socket

heads (ISO 10664). Installation requires the

use of matching tools.

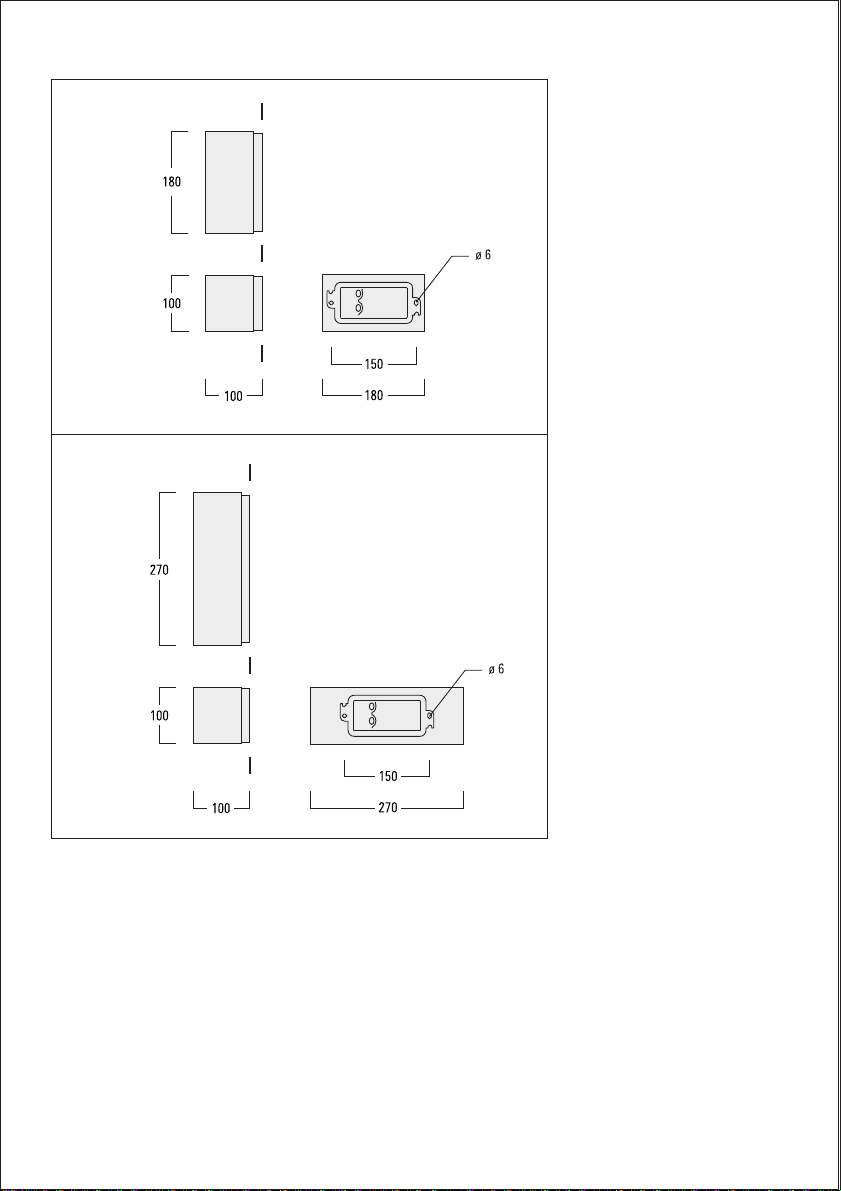

Wall Luminaires Surface Mounted

RLS410

RLS420

IP66, IK08. Class I, ta = 40°C

Tool required

– Screwdriver TX25

Light Source

LED

Maintenance

Apart from cleaning the product’s exterior surfaces, no special maintenance work is required.

Do not use high-pressure cleaners.

In case of component failure due to abnormal circumstances or at end of life, replacement must be carried out

E\DVXLWDEO\TXDOLƂHGDQGWUDLQHGSURIHVVLRQDO

Warning: Do not open luminaire while mains supply is switched on.

Installation

The product must be installed and maintained by a

VXLWDEO\TXDOLƂHGSURIHVVLRQDOLQFRPSOLDQFHZLWKODWHVW

building/construction and/or electrical regulations and

relevant legislation.

Warning: Switch off mains electrical supply prior to

installing and connecting the luminaire.

Notice:,IWKHOXPLQDLUHLVPRGLƂHGE\DQ\ERG\RWKHU

than the original manufacturer, then the warranty will

no longer be valid and shall become the full respon-

sibility of the modifying person/organisation. Claims

based on defects attributable to improper installation

and/or application, and the consequences thereof, are

excluded.

Attention: The luminaire is factory-sealed and does

not need to be opened during installation.

The installation on site must comply with local and/or

national health and safety regulations.

1) Switch off mains electrical supply.

Installation Procedure

 5HPRYHZDOOƃDQJHAfrom luminaire

housing Bby loosening screws C. Pull off

terminal connector D.

 'HWHUPLQHSRVLWLRQVIRUWZRƂ[LQJVFUHZVE.

Drill relevant holes Fand insert nylon plugs G

(not supplied by WE-EF).

3) Check that rating shown on luminaire label

conforms with mains electrical supply.

(example)

RLS420-LED 220-240V/50-60 Hz

131-XXXX SOE XXXXXXX

LED 3000K 18W item no. XXX

05/19 IP66

5) Feed supply cable G(and second cable Hfor through wiring, if required) through

packing ring Iand pressure screw(s) JZKLOHVHWWLQJZDOOƃDQJHAin position.

 7RƂ[WKHZDOOƃDQJHA, insert and tighten screws E. The orientation of

ZDOOƃDQJHA determines orientation of luminaire (up or down).

Uplight Downlight

The pre-installed packing ring Iis suitable for

cable diameters 7 to 9.5 mm.

For larger cable diameters (9 to 12 mm) use

the auxiliary packing ring supplied.

8) Position luminaire housing BRYHUZDOOƃDQJHAand reconnect terminal

connector D. Tighten two screws Cgradually in alternating sequence

both on top and bottom until fully secured.

7) Connect leads of main supply cable G(and second cable Hfor

through wiring, if required) to respective terminals of socket K:

a) ON/OFF (L = Phase, N = Neutral,

= Earthing)

b) 1-10 V/DALI (L = Phase, N = Neutral,

= Earthing, DA/DA = DALI control line,

D–/D+ = 1-10 V control line).

LN LN

NL LN

HK G

N+

DIM

–

DIM

L2 L3L1 N

L N +

DIM

–

DIM

L2 L3L1 N

www.we-ef.com

WE-EF LEUCHTEN

Germany

Tel +49 5194 909 0

Fax +49 5194 909 299

info.germany@we-ef.com

WE-EF LUMIERE

France

Tel +33 4 74 99 14 44

Fax +33 4 74 99 14 40

info.france@we-ef.com

WE-EF HELVETICA

Switzerland

Tel +41 22 752 49 94

Fax +41 22 752 49 74

info.switzerland@we-ef.com

WE-EF LIGHTING

Thailand

Tel +66 2 738 9610

Fax +66 2 175 2174

LQIRDVLDSDFLƂF#ZHHIFRP

WE-EF LIGHTING

Australia

Tel +61 3 8587 0444

Fax +61 3 8587 0499

info.australia@we-ef.com

WE-EF LIGHTING

United States of America

Tel +1 724 742 0030

Fax +1 724 742 0035

info.usa@we-ef.com

TO9261W0520 © WE-EF 2020

7HFKQLFDOVSHFLƂFDWLRQVDUH

subject to change.
